Madone SL Disc frame set is the ultimate platform for a high-value custom aerodynamic racing bike
Madone SL Disc frame set is the ultimate platform for a high-value custom aerodynamic racing bike
Trek

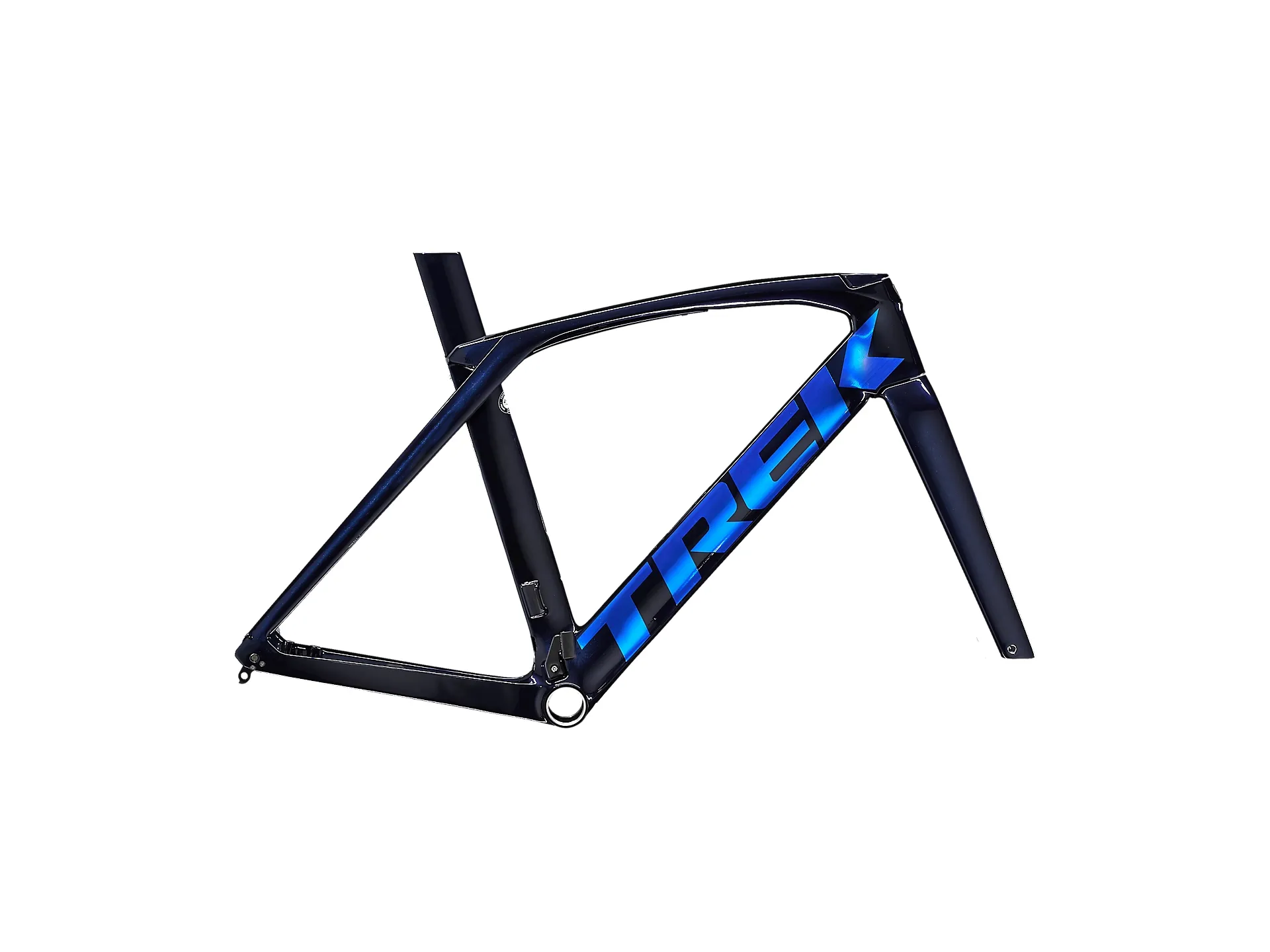

Trek Madone SL Disc Frameset 2024 in Deep Dark Blue

£3,880.00 £4,350.00 11% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Madone SL Disc Frameset 2024 in Deep Dark Blue

Season:2024

Brand:Trek

Code:35084SATOnyxCBNGLSBLK

Madone SL Disc frame set is the ultimate platform for a high-value custom aerodynamic racing bike

It's built with our lightweight 500 Series OCLV Carbon layup and Adjustable Top Tube IsoSpeed for an incredibly smooth ride.

Features:

  • Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
  • This bike looks awesome, like it's breaking speed records even when it's parked at the caféfor a post-ride espresso
  • Disc brakes offer better braking performance and extra clearance for wider, more stable tyres

Specifications:

  • Frame: 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, Duo Trap S-compatible, 142x12 mm thru-axle, H1.5 Race
  • Fork: Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
  • Weight: 56 – 2.12 kg/4.68 lb, This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Front derailleur: Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)
  • Max. chainring size: 1x: 50T, 2x: 54/40
  • Skewer: Bontrager Switch thru-axle, removable lever
  • Max tyre size: 28mm
  • Rotor size: Max brake rotor sizes: 160mm front & rear
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Saddle rail height min (w/short mast)55.558.561.56467697173
Saddle rail height max (w/short mast)61.564.567.57073757779
Saddle rail height min (w/tall mast)59626567.570.572.574.576.5
Saddle rail height max (w/tall mast)65687173.576.578.580.582.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, Duo Trap S-compatible, 142x12 mm thru-axle
  • Fork
    Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Front derailleur
    Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
