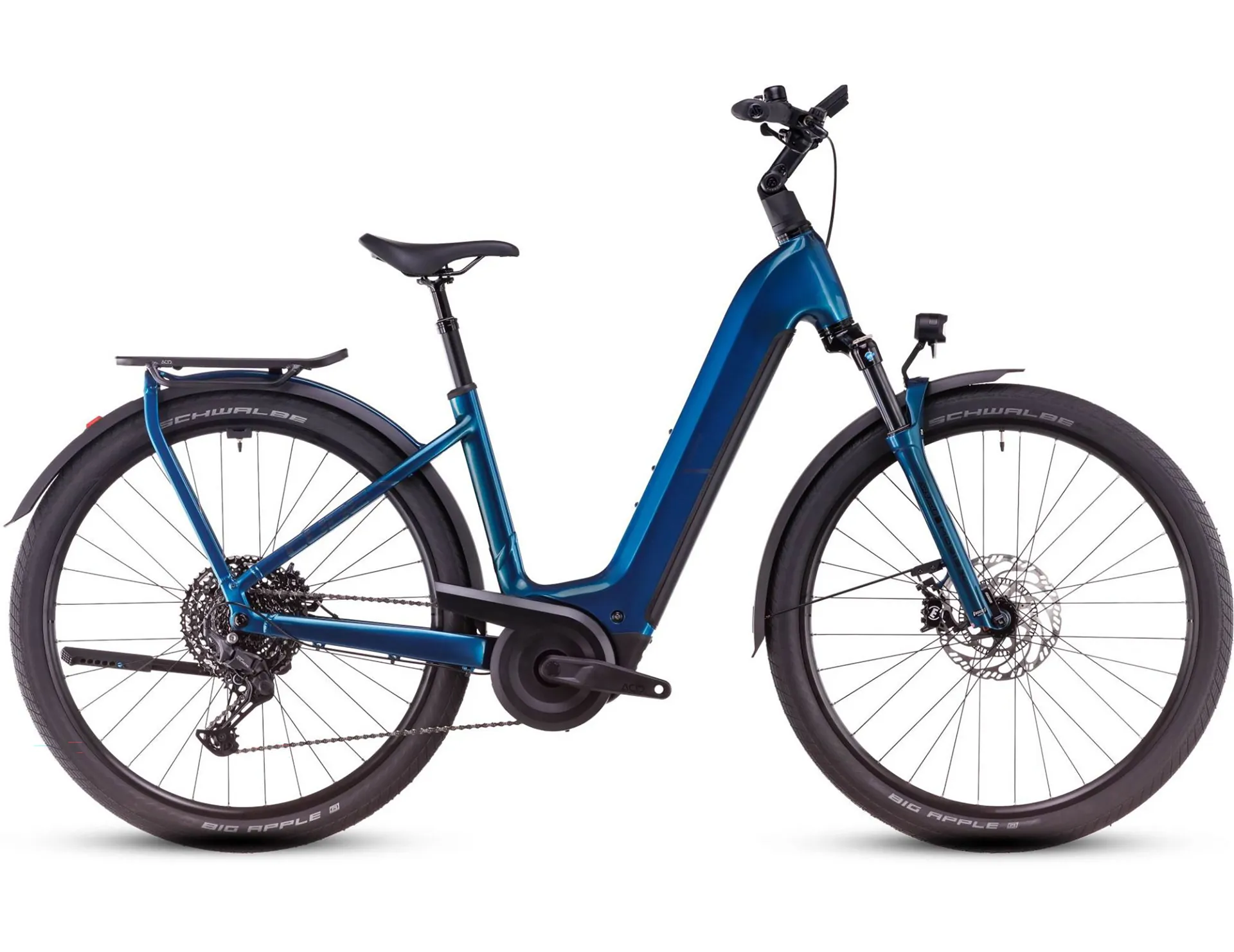

The Kathmandu Hybrid EX 800 from CUBE has got your back, wherever you take it. Its powerful Magura MT C ABS hydraulic disc brakes feature an ABS system to prevent the front wheel from losing grip, helping to keep you safe in all weathers and even under heavy braking. The Bosch CX drive has up to 85 Nm of torque in pedal assistance to dish out, backed up by the 800 Wh PowerTube battery and delivered to the rear wheel via Shimano's easy-to-use Cues 11-speed gears. There's a suspension seatpost, adjustable stem and a Suntour Mobie 34 fork to keep you comfortable. The Integrated Carrier 3.0 is adaptable and sturdy enough to take care of pretty much any load-carrying, whether it's for commuting or touring. And there's a full complement of accessories, so you can just concentrate on the ride.
The Kathmandu Hybrid's Easy Entry frame is designed to do exactly what it says, making adventurous cycling as accessible and straightforward as possible. The neatly housed Bosch CX drive and 800 Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chainguard mount and Cube's tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
From July 2025, CUBE bikes with the Bosch CX motor (BDU384Y) will get a significant performance boost. The upgrade can be easily installed by customers themselves via the Bosch eBike Flow App. No further actions are required.
With the eBike Flow App, customers can increase the specifications to:
100 Nm torque (90 Nm for models with a gear hub)
750 W peak power
400% support
Key Features & Benefits:
- Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
- Aluminium Frame:Lightweight & durable.
- Shimano Cues Drivetrain:Reliable, with a wide range of gears for all-terrain – even the biggest of hills.
Full Specification:
- Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
- Fork: SR Suntour Mobie 35 EQ Air, ABS, Tapered, 15x110mm, 100mm
- Motor: Bosch Performance Line CX Generation 5 (BDU38) 85Nm, from July 2025 up to 100Nm, Smart System
- Battery: Bosch PowerTube 800
- Controller: Bosch Kiox 300
- Number of Gears: 11
- Gear Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
- Chainset: Acid MTB Hybrid Pro
- Chainrings:
- Rear Cassette: Shimano Cues CS-LG400, 11-50T
- Chain: KMC eGlide
- Rear Derailleur: Shimano Cues RD-U6000-GS, 11-Speed
- Bottom Bracket:
- Pedals: Acid PP MTB
- Rims: Cube EX25, 32H, Disc, Tubeless Ready
- Front Hub: Cube Engineered By Newmen, 15mm, Boost, 6-Bolt
- Rear Hub: Cube Engineered By Newmen, 12mm, Boost, 6-Bolt
- Front Tyre: Schwalbe Big Apple, Active, 55-622
- Rear Tyre: Schwalbe Big Apple, Active, 55-622
- Brakes: Magura MT C ABS, Hydr. Disc Brake (203/203)
- Handlebars: Cube Comfort Trail Bar, 700mm
- Handlebar Grip: Acid Travel Comfort
- Headset: Acros AZF-1035, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

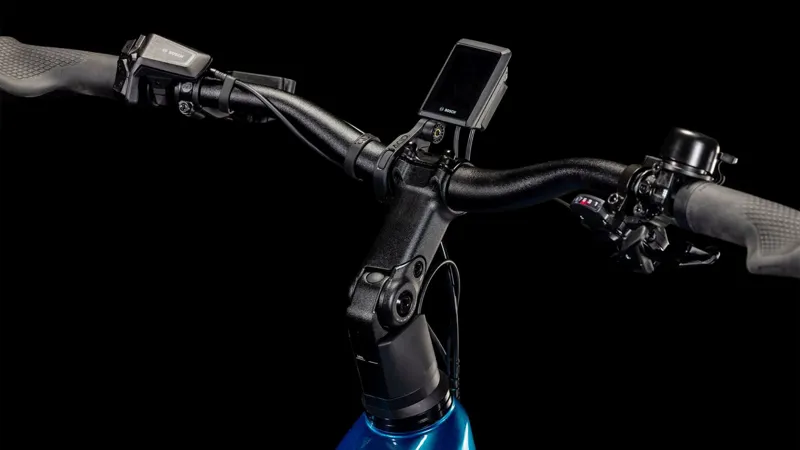

- Stem: Cube Comfort Stem Pro, 31.8mm, Adjustable
- Saddle: Acid Sequence Pro Plus

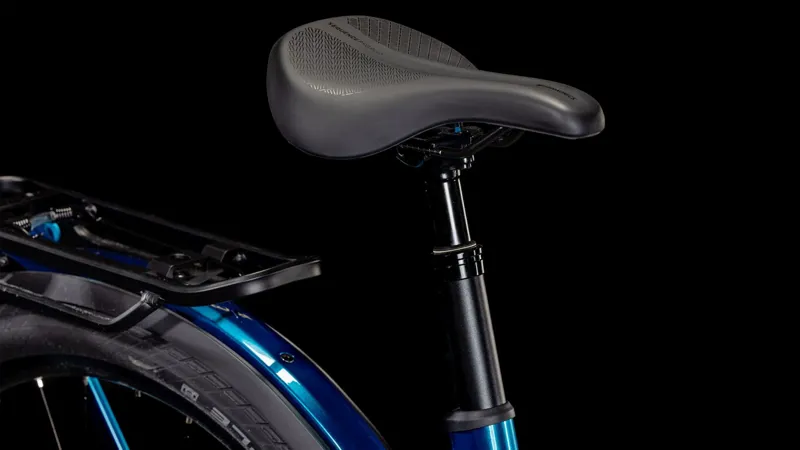

- Seatpost: Cube Suspension Seatpost HD, 31.6mm

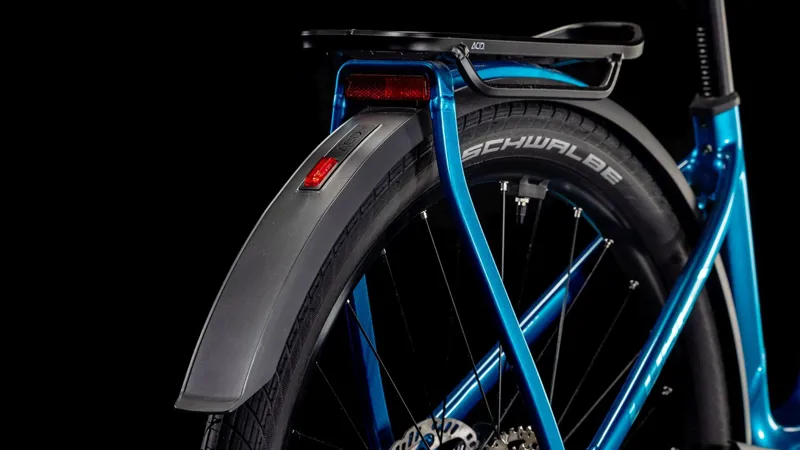

- Accessories: Front light: Acid Front Light PRO-E 60 X-Connect, 12V, DC, Rear light: Acid Mudguard Rear Light PRO-E, 12V, DC, Stand: Acid FM Pure Kickstand, Mudguards: Acid 65 Integrated Carrier 3.0, Bell: Cube Easy Bell, Carrier: Acid Integrated Carrier 3.0, Adapter Compatible
- Weight: 29.3 kg
