Mountain biking with a boost.
Mountain biking with a boost.
Marin

EX DEMO Marin Alpine Trail E Large Electric Full Suspension Mountain Bike 2024 in Blue Black

£2,950.00 £4,355.00 32% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

EX DEMO Marin Alpine Trail E Large Electric Full Suspension Mountain Bike 2024 in Blue Black

Season:2024

Brand:Marin

Code:SD736549003

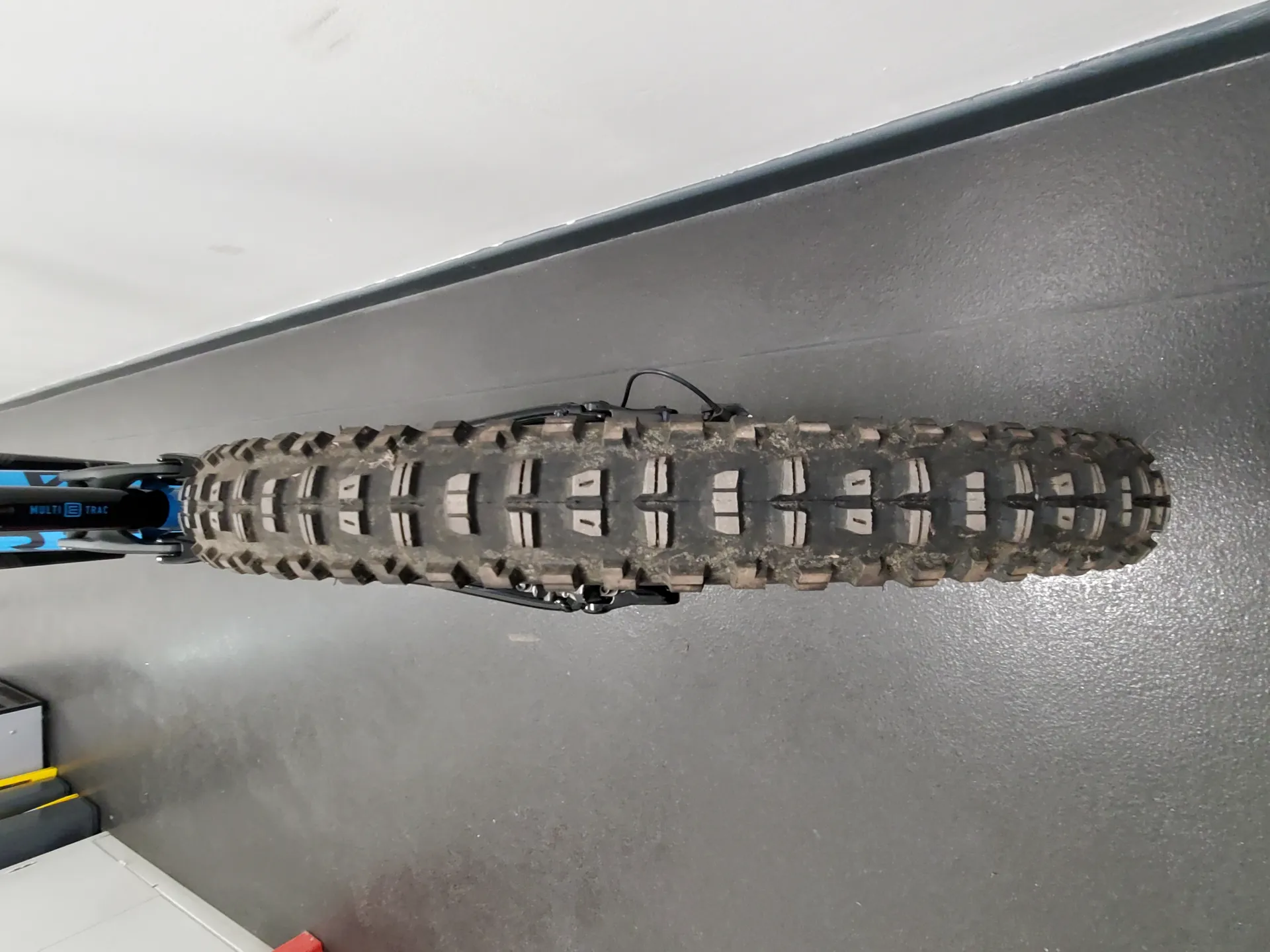

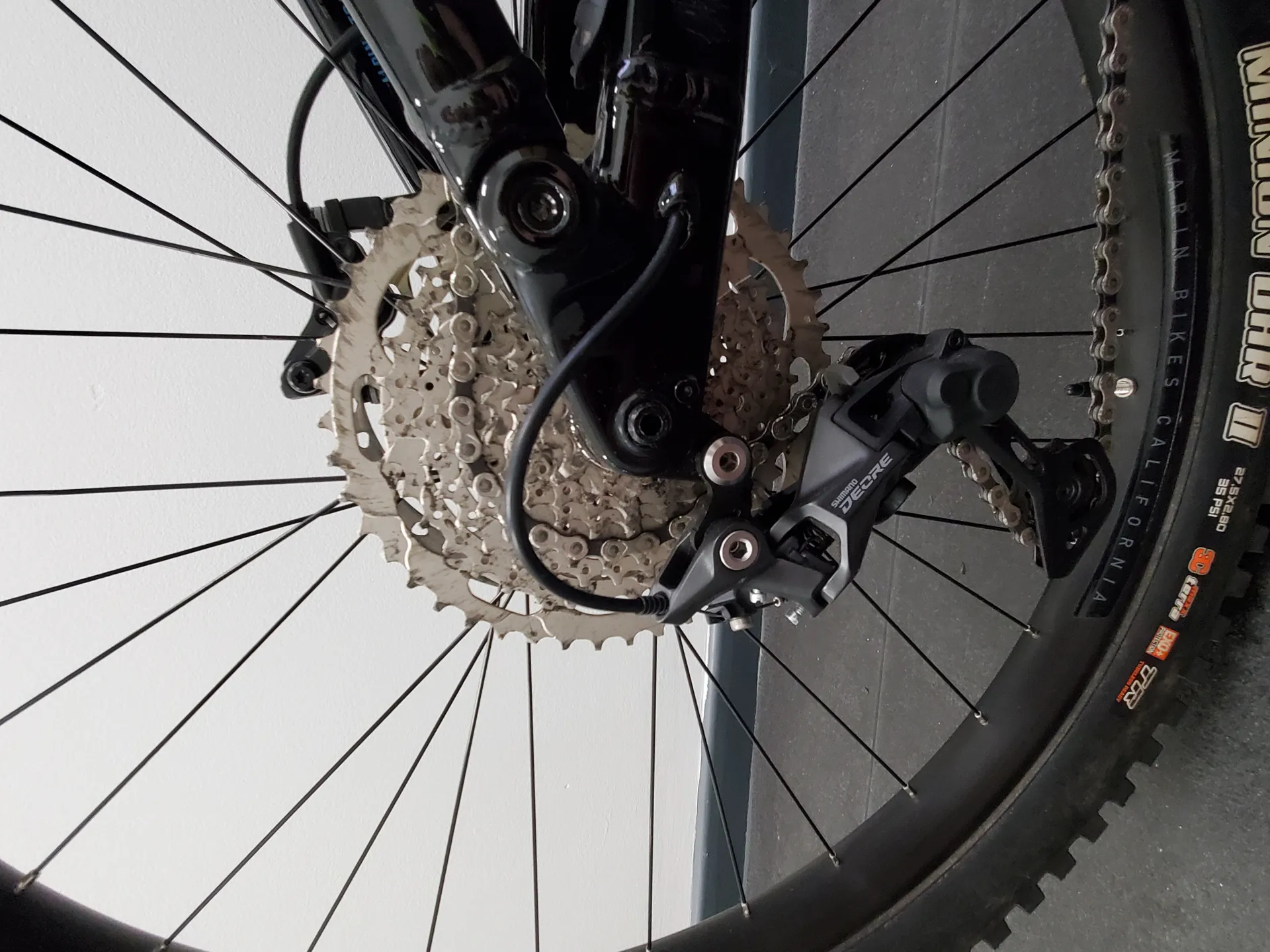

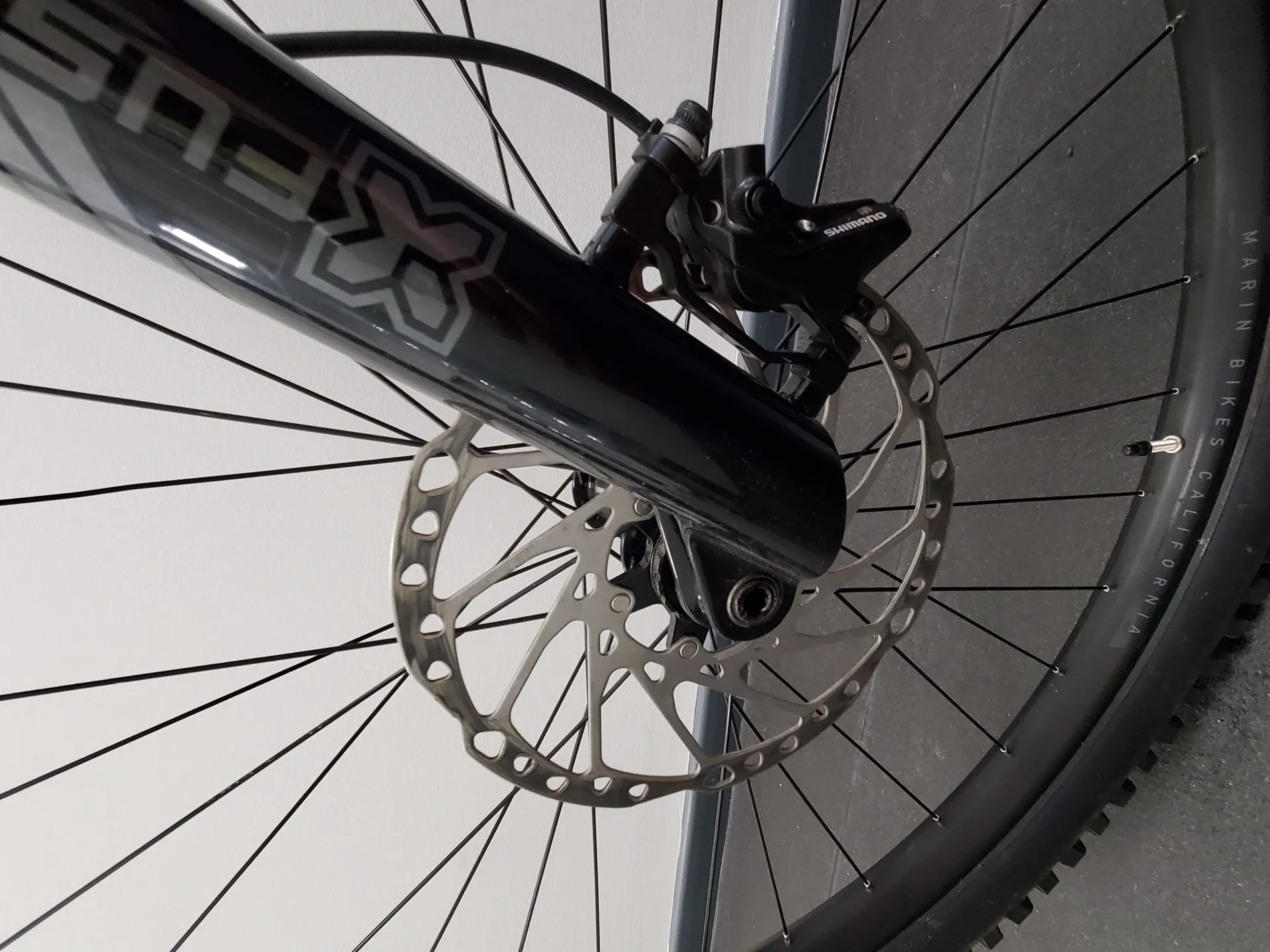

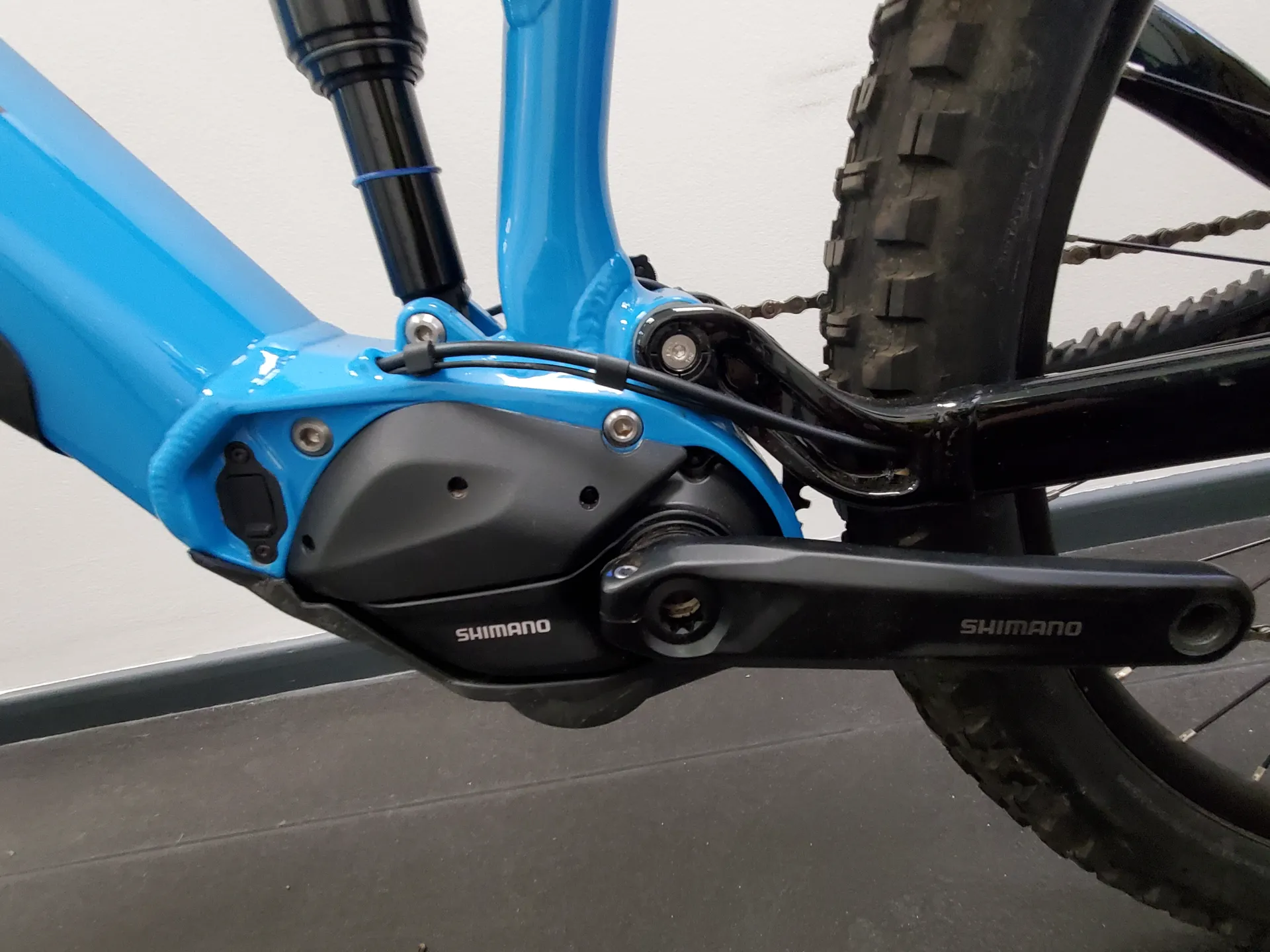

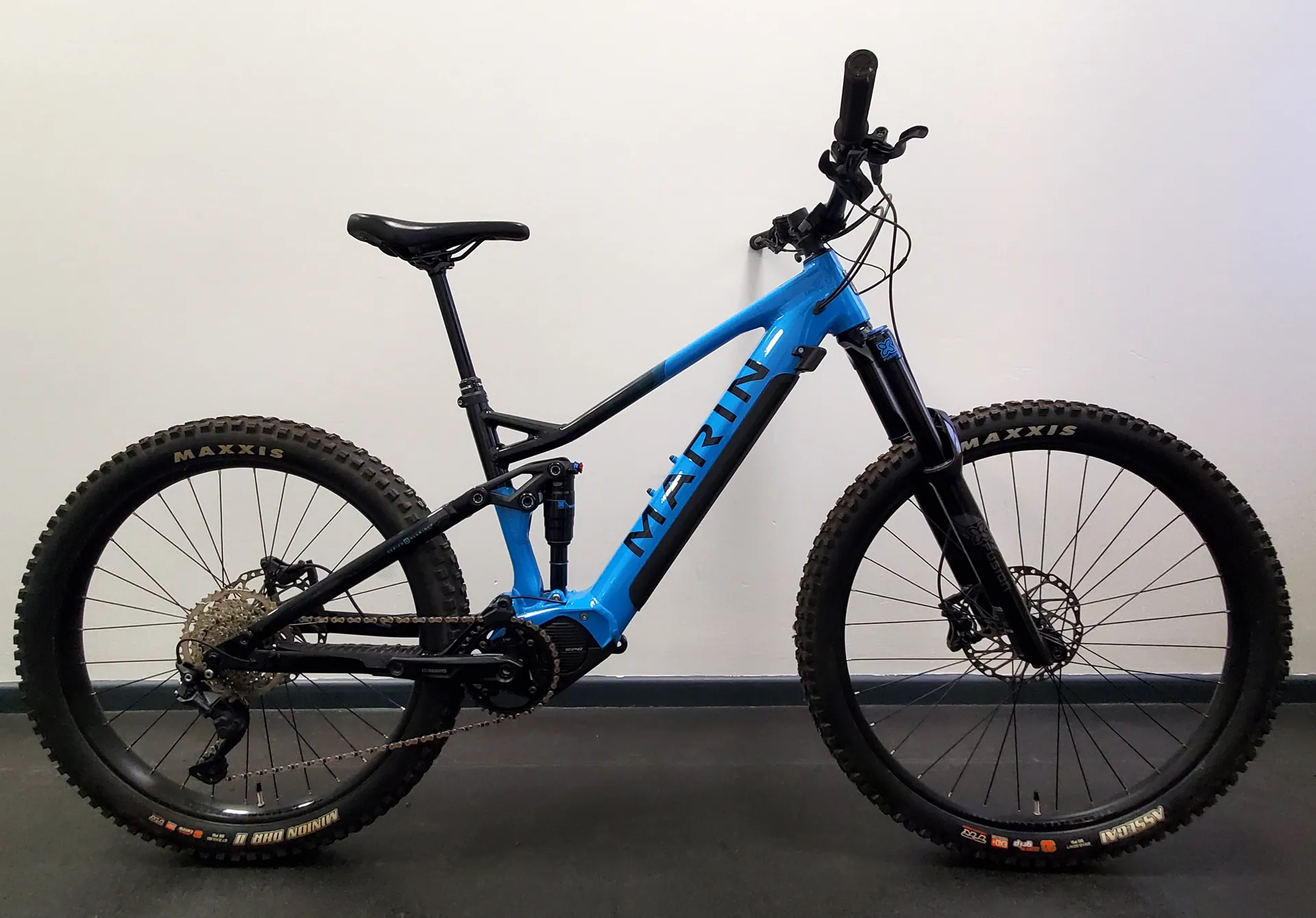

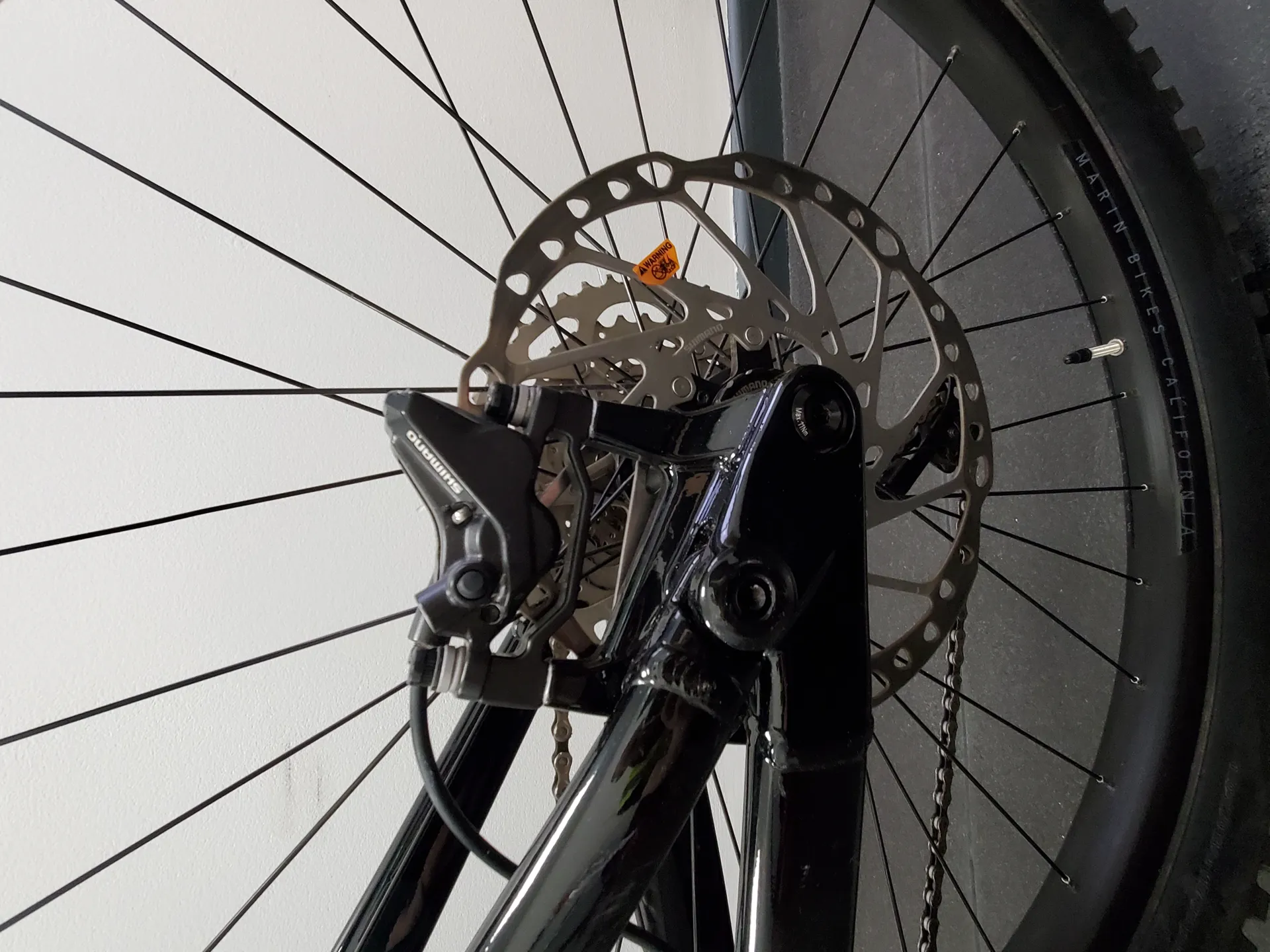

This Marin Alpine Trail E Electric Full Suspension Mountain Bike 2024 in size Large is an ex-demo bike, it may have some light cosmetic damage, but otherwise the bike is as new. It has been used at several demonstration events this season, and shows signs of use on the drivetrain, brakes and tyres. Please see photos for condition of the bike. The Odometer reads 119 miles.

Our ex demo bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

Beyond capable, both up and down, in even the most challenging terrain.

Maximizing fun.

The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.

Marins electric assist mountain bikes are for riders who need a boost, either to cover more distance in a shorter amount of time or to go farther or higher than they might be able to accomplish on their own. Designed from the ground up around durable Shimano motor and battery units, the 2023 Marin electric mountain bike lineup is their most capable to date.

Key Features & Benefits:

  • Multitrac Suspension:The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system.
  • Mixed Wheel Sizes:29” front and 27.5”+ rear wheel sizes are the ideal combination for the Alpine Trail E, with larger front wheel easily rolling over most any trail obstacle and offering the best cornering traction, while the burly 27.5” x 2.8” rear setup adds playfulness and enhances acceleration and braking traction.
  • Series 4 Aluminium Frame:Alpine Trail E models are built upon their Series 4 aluminium frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

Full Specification:

  • Frame:Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
  • Rear Shock:X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount
  • Fork:X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
  • Motor:Shimano Steps EP6 Drive Unit, 250W, 85Nm, 25 km/h Top Assisted Speed
  • Battery:BT-EN805-L, Internal 504Wh
  • Controller:Shimano SC-E600, SW-EN600L Left Hand Switch for Assist Mode Change
  • Charger:Shimano Battery Charger EC-E6002
  • Number of Gears:10
  • Gear Shifters:Shimano Deore, 10-Speed, I-Spec EV
  • Chainset:Shimano EM600, 160mm Length, 38t Chainring
  • Chainrings:38T
  • Rear Cassette:Shimano Deore 10-speed 11-46T
  • Chain:KMC X-10E, Silver
  • Rear Derailleur:Shimano CUES 10-Speed
  • Bottom Bracket:N/A
  • Pedals:Not supplied:Shop pedals here
  • Rims:Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
  • Front Hub:Shimano FH-TC500, 110x15mm, Centerlock, 32H
  • Rear Hub:Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
  • Front Tyre:Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible
  • Rear Tyre:Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
  • Brakes:TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick, with Magnet
  • Handlebars:Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Handlebar Grips:Marin Grizzly Lock On
  • Stem:Marin 3D Forged Alloy, 35mm
  • Saddle:Marin eMTB Saddle
  • Seatpost:TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
  • Accessories:Shimano CS-EN800 Chainguide
  • Weight:N/A
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Marin Alpine Trail E

SizeRider height range
S5'3" - 5'6"
M5'6" - 5'10"
L5'10" - 6'2"
XL6'2" - 6'4"

Geometry for Marin Alpine Trail E
Alpine Trail E2 geometry diagram

SMLXL
A - STACK613622631640
B - REACH445465485505
C - HEADTUBE ANGLE63°63°63°63°
D - HEADTUBE LENGTH100110120130
E - SEATTUBE ANGLE78°78°78°78°
F - SEATTUBE LENGTH390400425430
G - TOPTUBE EFFECTIVE575597619641
H - BB HEIGHT340.5340.5340.5340.5
I - BB DROP28282828
J - CHAINSTAY435435435435
K - WHEELBASE1215123912641288
L - STANDOVER HEIGHT681.6681.4686.8689.8
M - FORK OFFSET44444444
SEATPOST DIAMETER30.930.930.930.9
HANDLEBAR WIDTH780780780780
STEM LENGTH50505050
CRANK LENGTH165165165165

Warranty Information for Marin:

Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods below

FRAMES WARRANTY PERIOD (From date of purchase)
Carbon Fiber Frames and Forks: 5 Years
Rigid Frames and Forks: Lifetime
Full Suspension Frames: 5 Years
COMPLETE BICYCLE
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
For full warranty policy please visit marinbikes.com
