The Surge is the next phase in the evolution of our E.P.O. program. At Orange Bikes it's all about the ride, and we've made substantial improvements to our e-bike chassis which deliver the most engaging trail feel.
The Surge is the next phase in the evolution of our E.P.O. program. At Orange Bikes it's all about the ride, and we've made substantial improvements to our e-bike chassis which deliver the most engaging trail feel.
Orange Bikes

Ex Demo Orange Surge 29 Pro Large Electric Full Suspension Mountain Bike 2021 in Sand

£5,840.00  £7,300.00  20% off
Click & Collect for Free
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

Hassle free returns

Any item, except food or face masks can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with a valid proof of purchase.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below and a member of staff will be in contact within 48 hours to assist. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and be un-used. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Ex Demo Orange Surge 29 Pro Large Electric Full Suspension Mountain Bike 2021 in Sand Information

Season : AYR

Brand : Orange Bikes

Code : ORGSUR29PRODEMO

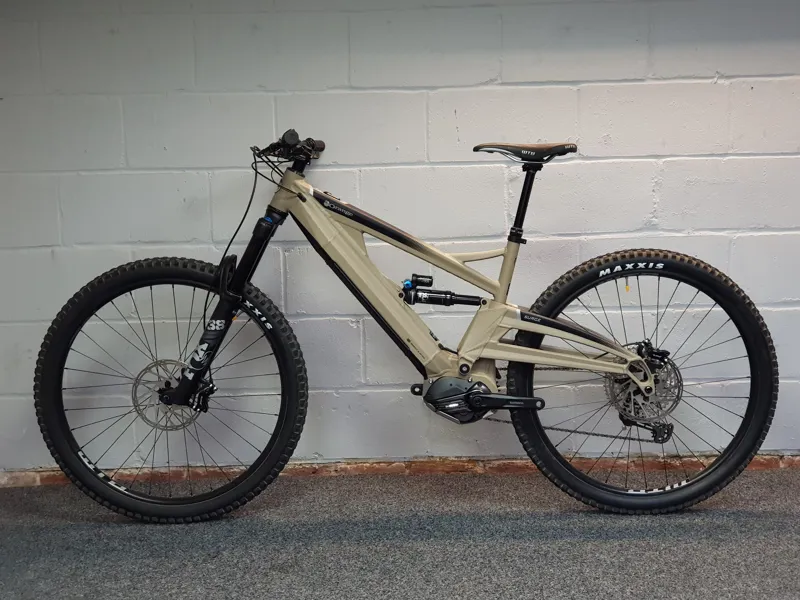

This Orange Surge Pro Large in Sand is an ex-demo, it may show signs of use, eg dirt on tyres, and use on drivetrain, but otherwise the bike is as new. Please see photos for condition of the bike. It has only been on one test ride.

Our ex display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.


At Orange Bikes it's all about the ride, and we've made substantial improvements to our e-bike chassis which deliver the most engaging trail feel, The 170mm travel Surge will take on the biggest terrain, and is not shy when is comes to sending those gaps. Excelling where the uplift doesn't go. Some of the best trails lie beyond where your lift pass takes you – enter the Surge. Big adventures and an e-bike with big ideas, way above the lift station. Fast and sure footed, the stability in the Surge's geometry will give you confidence on any trail.

The new Surge is a revelation and we urge you to try one. E-bikes can be a devisive topic, but once you are bitten by the bug they are hard to resist.

The Surge 29 takes many of its traits from the new Stage 6, 64° head angle, 76° seat angle, reduced offset fork, increased reach and a metric shock but it also incorporates Shimano’s newest battery technology – 8035. The revised battery has meant that we are now able to considerably reduce the size of the down tube, add an On/Off switch to the top tube and the battery is now removable without a key.

With 29” wheels, 160mm travel at the front and 150mm at the rear this bike is prepared to go wherever you are willing to take it.

Orange full suspension bikes are handbuilt in the UK, due to the myriad of colours and customisation avaialbe we can't list them all on our website. So if you can't find the model, specification or colour you're looking for then please call our contact centre team or Reigate store. Even better, swing by our Reigate store and book a ride on one of our range of Orange Demo bikes before you buy from us.

Most Orange full suspension bikes have manufacturing leadtime of around 4 weeks, after placing your order we'll keep you updated with the progress of your bike and have you riding as soon as possible.

Key Features & Benefits:

Handbuilt frameset:Made in the UK for UK riding with a 5 year warranty and lifetime crash replacement guarantee.
Orange Race Tuned Geometry:Progress your riding with the latest geomentry, developed with athletes for the masses.
Single Pivot simplicity:Less bearings means less time in the workshop and more time riding.

Full Specification:

  • Frame:Unique monocoque aluminium chassis, 150mm travel

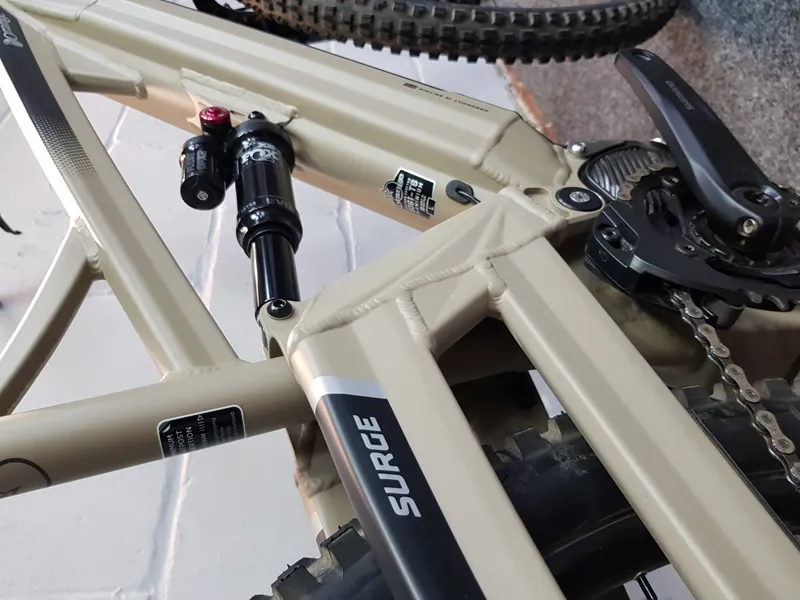

  • Rear Shock (If Applicable):Fox Float DPX2 Performance 230x57.5
  • Fork:Fox Performance 38 Float 160mm 29

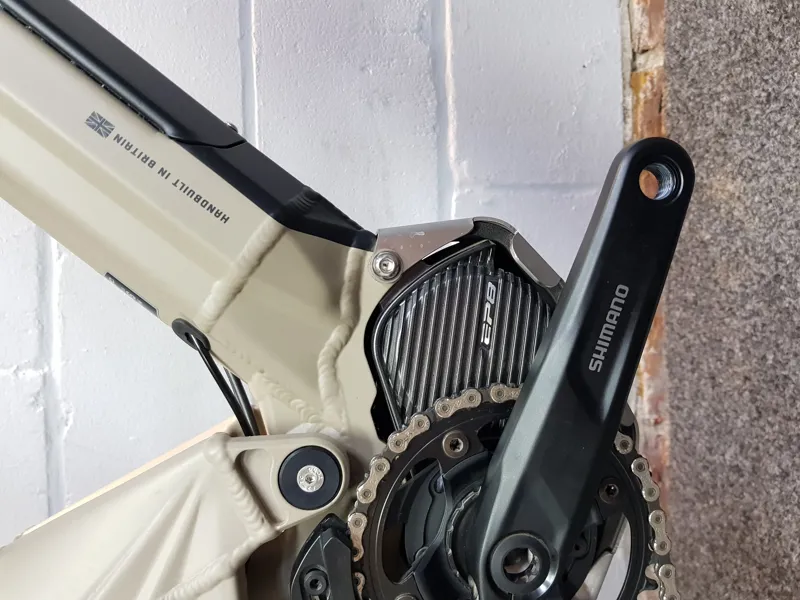

  • Motor: Shimano EP8
  • Battery:Shimano 8035 504wh
  • Number of Gears:12
  • Gear Shifters:Shimano SLX 12spd
  • Chainset:Shimano M600 165 E 34t
  • Chainrings:34T
  • Rear Cassette:Shimano SLX 10-51T 12spd
  • Chain:KMC 12spd
  • Front Derailleur:Shimano CDE80

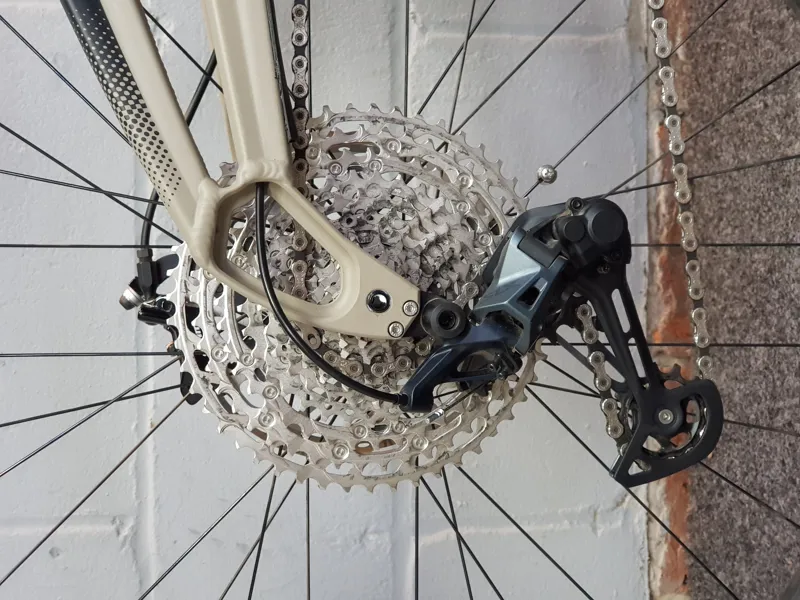

  • Rear Derailleur:Shimano SLX 12spd
  • Bottom Bracket:Shimano EP8 DU Integrated
  • Pedals:Not Included
  • Rims:WTB ST Light i30 29
  • Front Hub:Strange Front

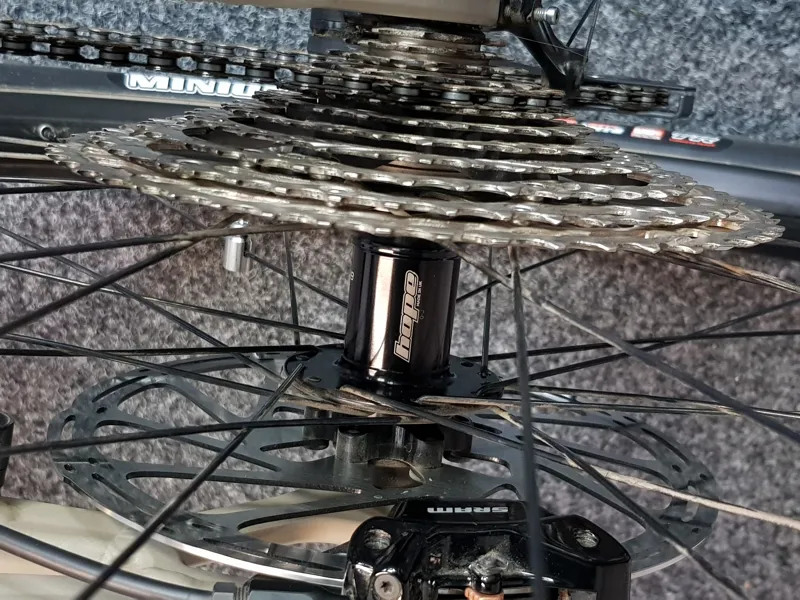

  • Rear Hub:Hope Pro 4 Rear
  • Front Tyre:Maxxis Minion DHF II 2.5 EXO+29
  • Rear Tyre:Maxxis Minion DHR II 2.4 EXO+29
  • Brakes:SRAM Guide RE 200/200

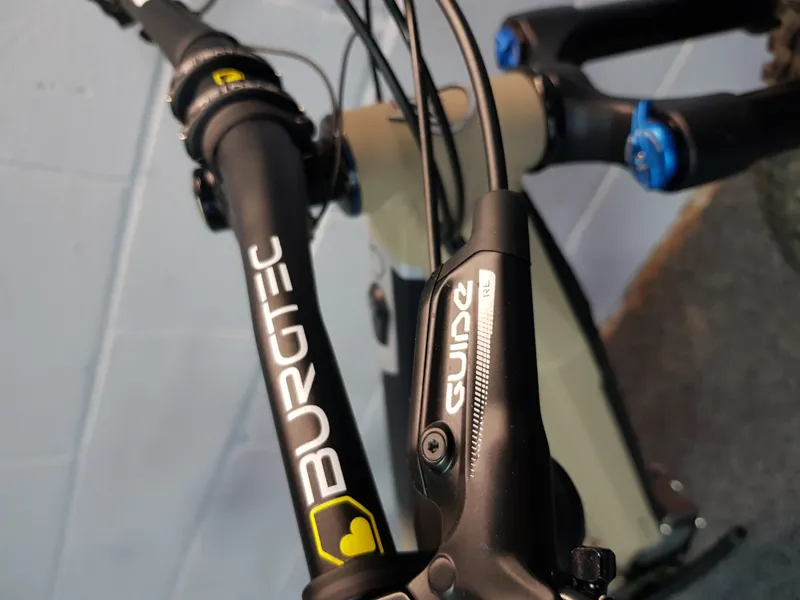

  • Handlebars:Burgtec RideWide Enduro DB 800mm
  • Handlebar Grips:Strange Grappler Lock-On
  • Headset:Cane Creek 49mm for Tapered Steerer
  • Stem:Burgtec Enduro Black 42.5mm
  • Saddle:WTB Silverado Comp
  • Seatpost:SDG Tellis 150mm
  • Weight:NA
