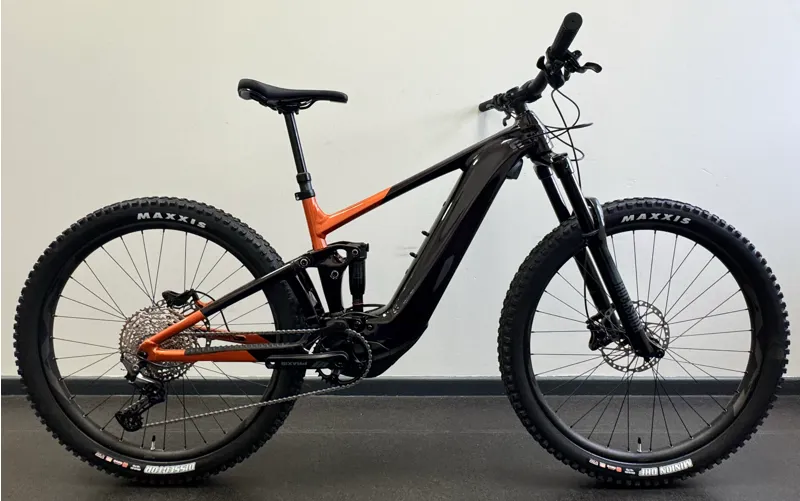

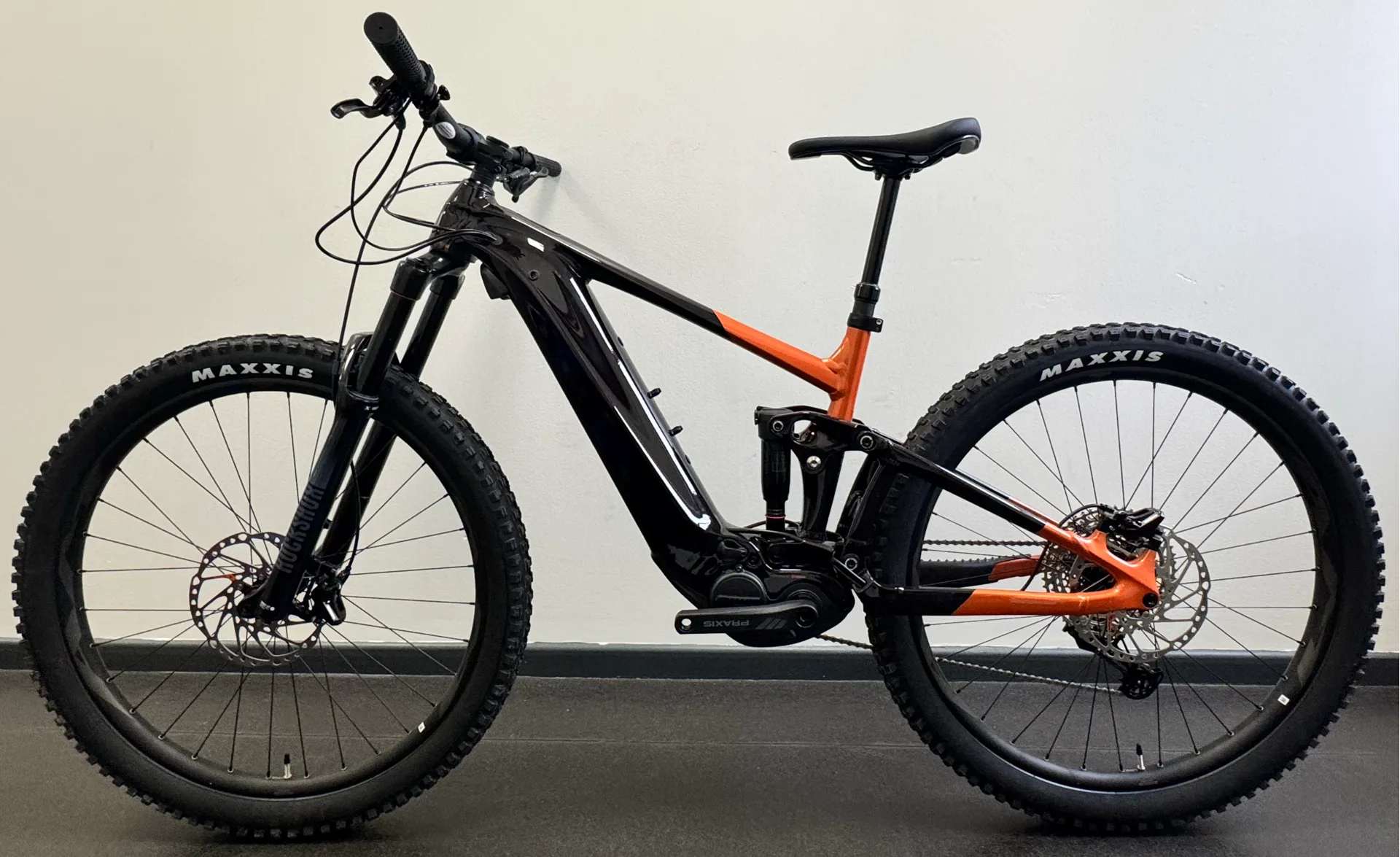

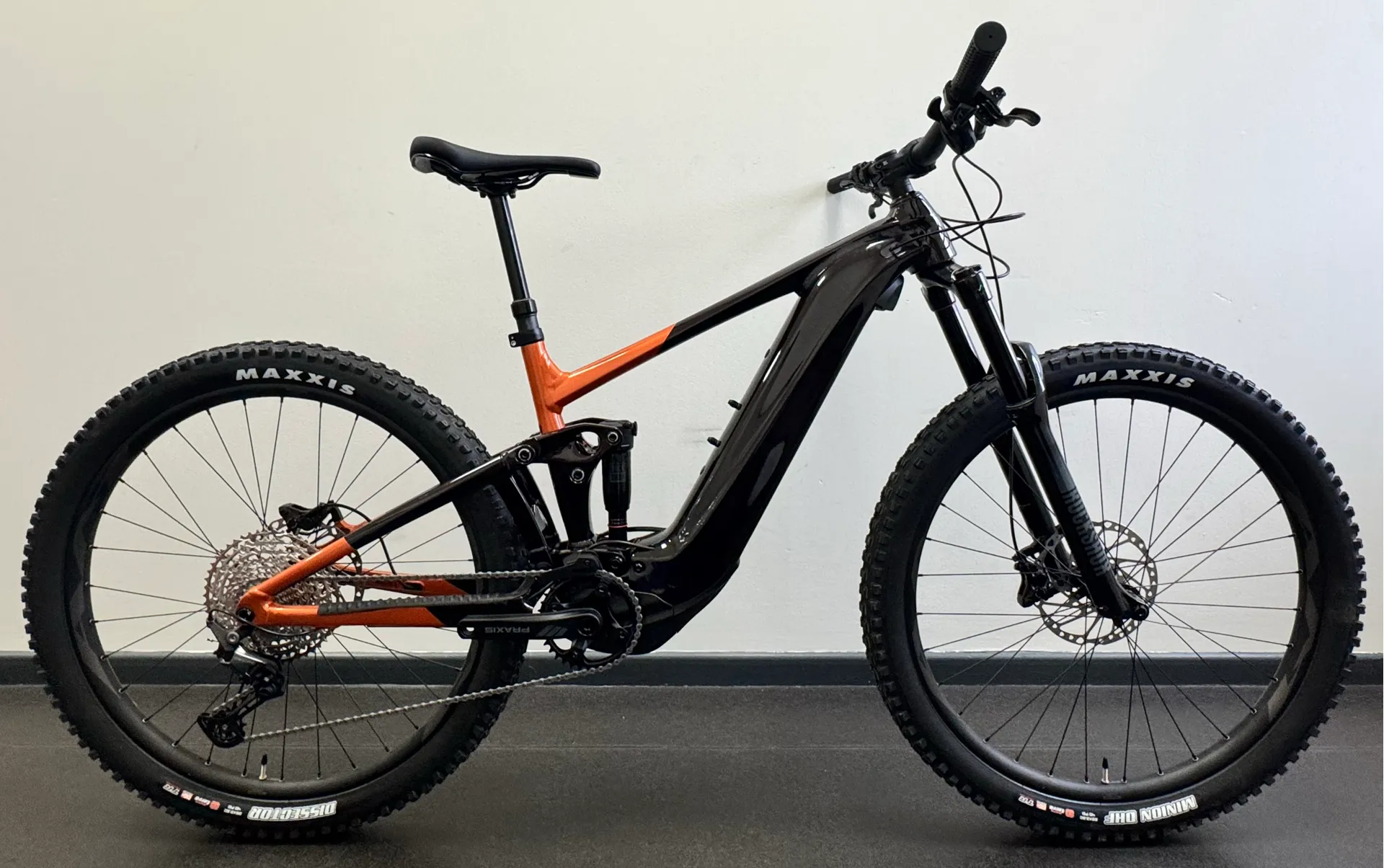

EX DISPLAY Giant Trance X E+ 3 Medium Full Suspension Electric Mountain Bike 2024 in Cordovan

Season:2024

Brand:Giant

Code:SD2303311105

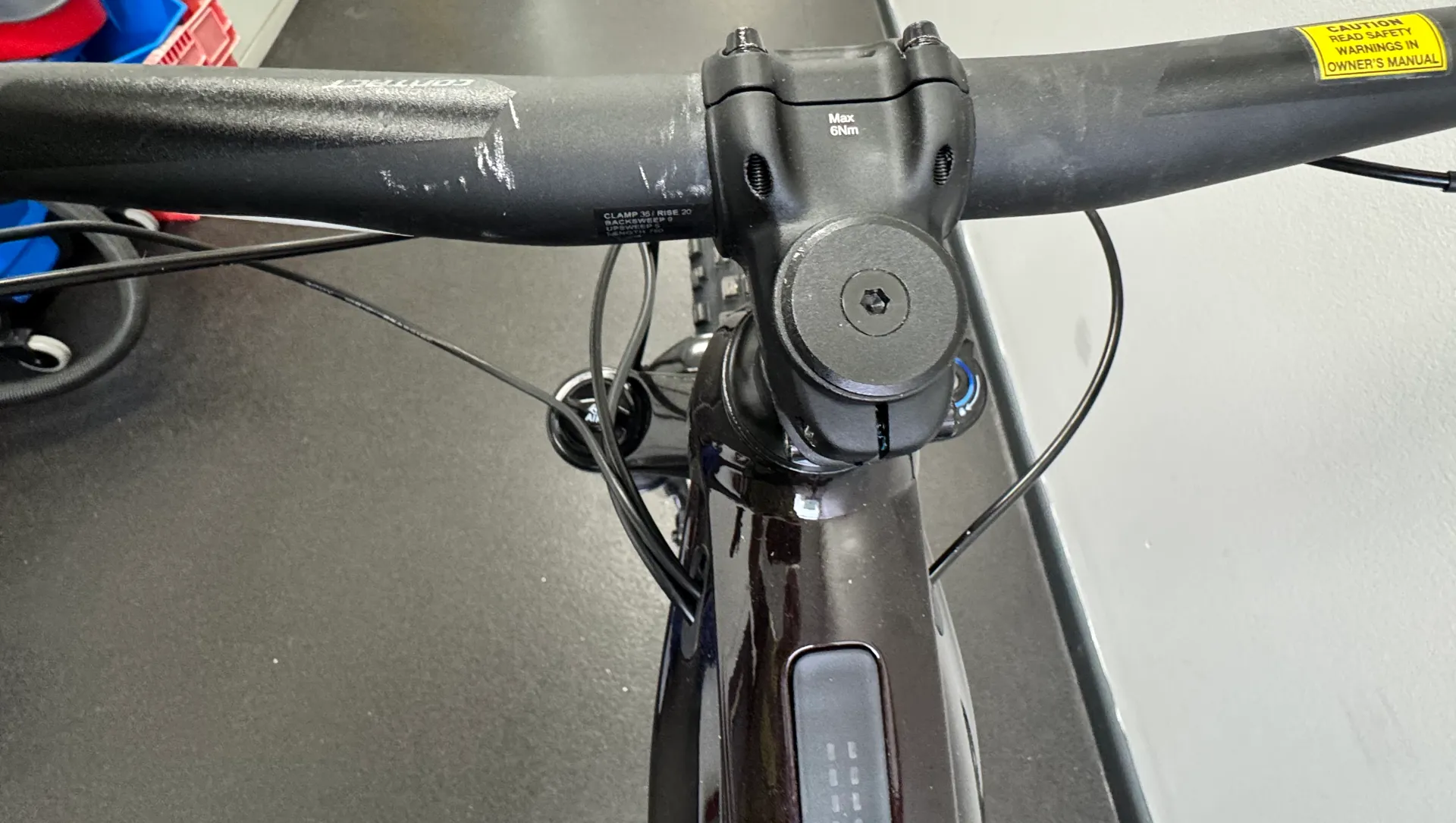

This Giant Trance X E+ 3 in size Medium is an ex-display bike, it has some light cosmetic damage to the handlebars, but otherwise the bike is as new. Please see photos for condition of the bike.

Our ex display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

Faster up the climbs, longer loops, more singletrack fun on any given day.

Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding E-bike.

Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

Flip-chip - You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Key Features & Benefits:

  • Smooth, Powerful Support:SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent.
  • Trail Riding Control:Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
  • Adaptable to the Terrain:Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

Full Specification:

  • Frame:ALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
  • Fork:RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised
  • Rear Shock:Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
  • Motor:Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
  • Controller:Giant RideControl Ergo3, grip integrated remote
  • Display:Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
  • Battery:Giant EnergyPak 750Wh, Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
  • Charger:Giant EnergyPak 6A smart charger, 60% in 3:00h
  • Number of Gears:12
  • Gear Shifters:Shimano Deore 1x12
  • Chainset:Praxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T
  • Chainrings:36T
  • Rear Cassette:Shimano CS-M6100-12, 10-51T, 12-speed
  • Chain:KMC e.12 Turbo, EcoProteq, e-bike optimised
  • Front Derailleur:MRP HD2 co-moulded chain guide
  • Rear Derailleur:Shimano Deore, 12-speed
  • Bottom Bracket:Giant Integrated
  • Pedals:Flatpedal
  • Rims:Giant AM 29", Tubeless ready, 30mm inner width
  • Front Hub:Shimano MT410 Boost, Center-Lock
  • Rear Hub:148x12mm Micro-Spline Drive Body Thru-axle
  • Front Tyre:Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra
  • Rear Tyre:Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra
  • Brakes:Shimano BR-M420, 4-piston, hydraulic disc, 203mm
  • Handlebars:Giant Contact 35 Trail, 35x780mm
  • Handlebar Grips:Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
  • Stem:Giant Contact SL 35
  • Saddle:Giant Romero
  • Seatpost:Giant Contact Switch, dropper, 30,9mm (S:125mm, M:150mm, L/XL:170mm)
  • Accessories:Tubeless kit (liquid, valves, levers, manual, tool)
  • Weight:N/A
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Giant Trance X E+ Size Guide

SizeHeight (cm)
S163 - 174cm
M171 - 182cm
L179 - 190cm
XL187 - 198cm

Geometry Guide

SMLXL
LOW|HIGHLOW|HIGHLOW|HIGHLOW|HIGH
SEAT TUBE LENGTH(mm)400425450475
SEAT TUBE ANGLE77.2°|78.0°76.0°|76.7°76.0°|76.7°76.0°|76.7°
TOP TUBE LENGTH(mm)577|575607|605637|635667|665
HEAD TUBE LENGTH(mm)95100110120
HEAD TUBE ANGLE65.7°|66.5°65.8°|66.5°65.8°|66.5°65.8°|66.5°
FORK RAKE(mm)44444444
TRAIL(mm)117|122.4117|122.4117|122.4117|122.4
WHEELBASE(mm)1220|12211239|12371268|12691300|1301
CHAIN STAY LENGTH(mm)473|473473|473473|473473|473
BOTTOM BRACKET DROP(mm)30|2030|2030|2030|20
STACK(mm)606|601611|605621|614630|624
REACH(mm)439|447457|462482|489510|517
STAND OVER HEIGHT(mm)740|746727|734718|726715|723
HANDLEBAR WIDTH(mm)780780780780
STEM LENGTH(mm)40405050
CRANK LENGTH(mm)160165165170
WHEEL SIZE29"29"29"29"

Warranty Information for Giant

ComponentWarranty Period
Bicycle frame (Downhill excluded)Lifetime
Rigid Forks10 Years
Downhill frame3 Years
Giant own brand components, Pedals, grips, bar tape, saddle, Paint & Decals2 Years
Electronic E-bike components including battery2 Years (or 600 charge cycles)
For full warranty policy please visit giant-bicycles.com
