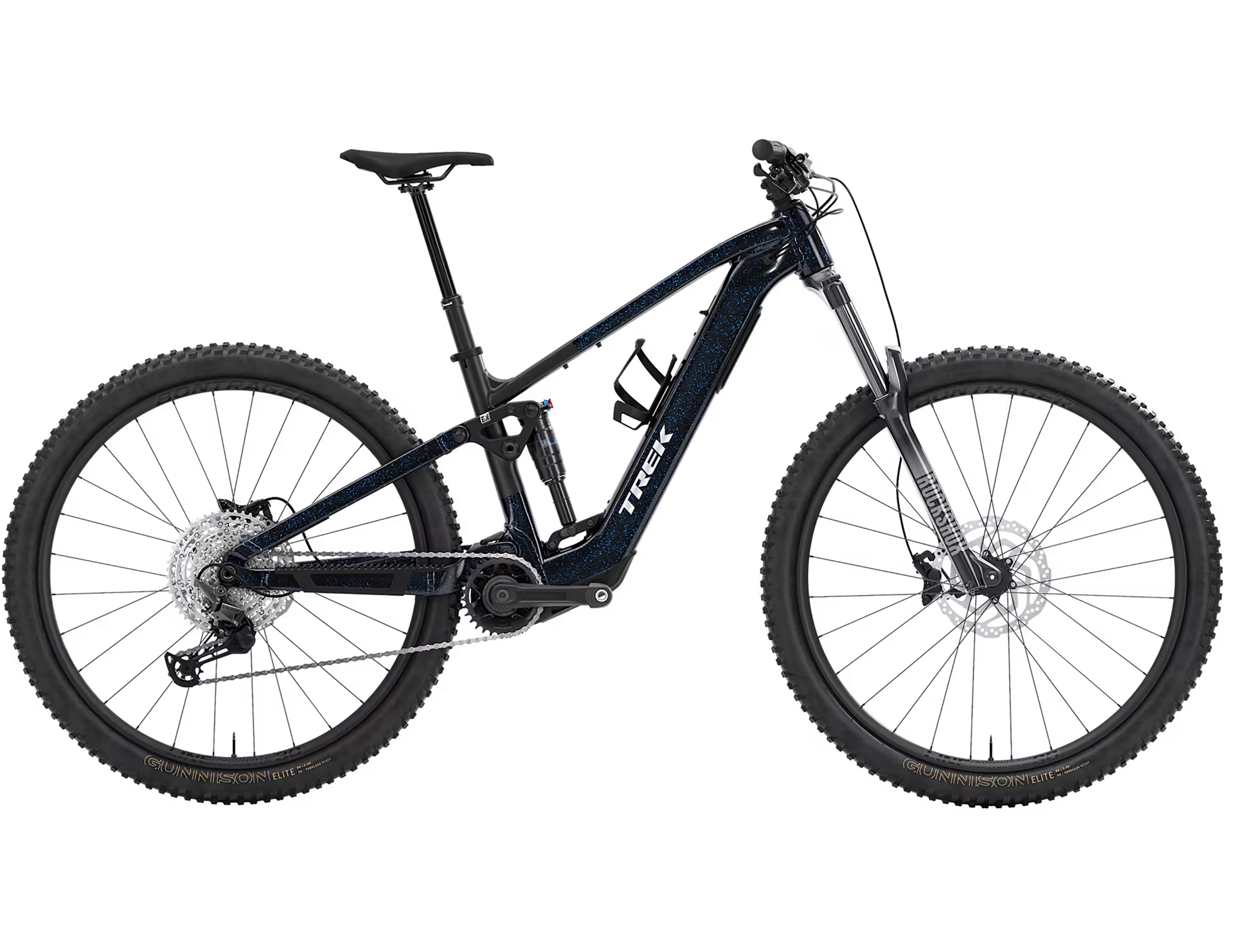

EX DISPLAY Trek Fuel+ EX 5 Gen 2 Electric Full Suspension MTB Large 2026 in Trek Black/Purple Splatter

Season:2026Sale

Brand:Trek

Code:SD-5335684A

This Trek Fuel+ EX 5 Gen 2 in size Large is an ex-display bike, it has been displayed on the shop floor, but otherwise the bike is as new.
Our ex demo/display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

The Fuel+ EX 5 is a quiet and capable electric mountain bike that's up for any trail, at any time. Its Alpha NEXT Platinum aluminium frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock (145 mm rear, 150 mm front) provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.

Key Features & Benefits:

  • Full Suspension:For precise control out on the trails and jumps
  • Aluminium Frame:Progressive geometry built to tackle steep and gnarly descents and punchy climbs alike
  • 12-Speed Shimano Deore:Reliable mechanical shifting without the faff of electronics

Full Specification:

  • Frame:Alpha NEXT Platinum, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
  • Rear Shock:X-Fusion Pro 2, 2-position damper, 205 mm x 60mm
  • Fork:Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
  • Motor:TQ HPR60
  • Battery:TQ 580 Wh
  • Controller:TQ LED display with Bluetooth & ANT+ connectivity
  • Number of Gears:12
  • Gear Shifters:Shimano Deore M6100, 12-speed
  • Chainset:E*thirteen E*spec Plus, 160 mm length
  • Chainrings:E*Thirteen Helix Core Steel 32t steel, 55mm chainline
  • Rear Cassette:Shimano Deore M6100, 10-51, 12-speed
  • Chain:Shimano Deore M6100, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano Deore M6100, long cage
  • Bottom Bracket:
  • Pedals:Not supplied:Shop pedals here
  • Front Wheel:Bontrager Line TLR 30
  • Rear Wheel:Bontrager Line TLR 30
  • Front Tyre:Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.50"
  • Rear Tyre:Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.50" (Size S 27.5)
  • Brakes:Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper, RT64, CentreLock, 203 mm
  • Handlebars:Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
  • Handlebar Grips:Trek Line Comp, Nylon Lock On
  • Headset:FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5 crown
  • Stem:Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
  • Saddle:Bontrager Verse Short, Stainless Steel Rails
  • Seatpost:TranzX JD-YSI34, internal routing, 34.9 mm. 170mm Travel (Size S 150mm)
  • Accessories:TQ 4A charger
  • Weight:M - 21.92 kg / 48.33 lbs (with TLR sealant, no tubes)


Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly
.

Sizing Chart for Trek Fuel+ Gen 2

SizeRider HeightInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry for Trek Fuel+ Gen 2 (EX)


Frame size number15.5"17.5"19.5"21.5"23"
Frame size letterSMLXLXXL
Wheel size29"/27.5"29"29"29"29"
A — Seat tube37404245.547.5
B — Seat tube angle72.7°72.6°72.6°76.9°76.4°
Effective seat tube angle78.2°77.8°77.3°76.9°76.4°
C — Head tube length111112.51415.5
D — Head angle64.6°64.5°64.5°64.5°64.5°
E — Effective top tube55.958.961.365.168.0
F — Bottom bracket height33.933.933.933.933.9
G — Bottom bracket drop3.43.53.53.53.5
H — Chainstay length44.144.444.444.745.2
I — Offset4.44.44.44.44.4
J — Trail12.912.912.912.912.9
K — Wheelbase120.0123.2125.8129.8133.0
L — Standover (carbon)75.474.775.075.576.4
L — Standover
(aluminium)
75.474.674.375.3-
M — Frame reach43.146.048.551.053.0
N — Frame stack62.462.463.865.166.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
