The new Trekking 4 has everything you need for cruising in the city, or for extended rides in the countryside.
The new Trekking 4 has everything you need for cruising in the city, or for extended rides in the countryside.
Haibike

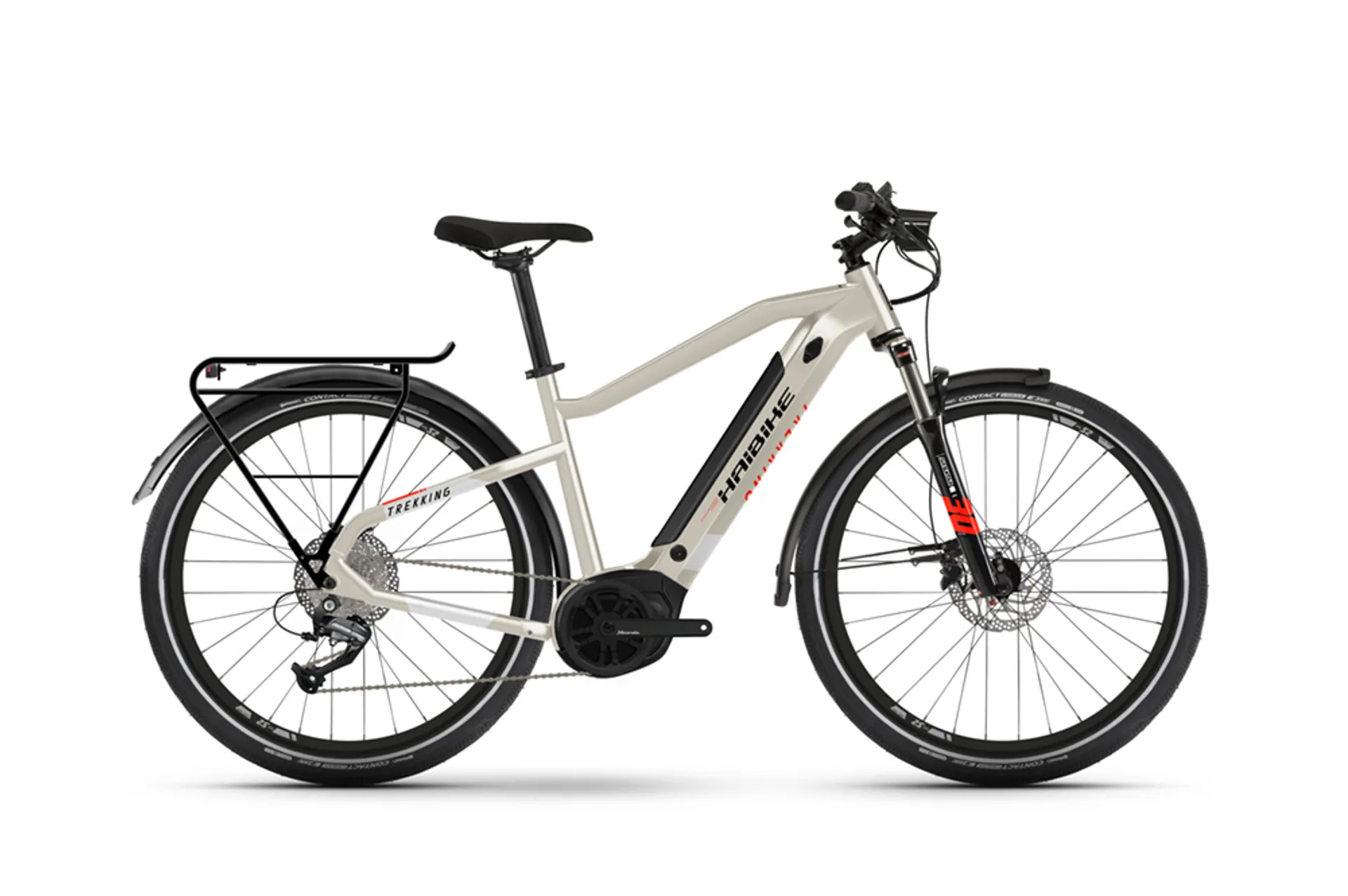

Haibike Trekking 4 500Wh Electric Hybrid Bike High 2022 in Brown

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Haibike Trekking 4 500Wh Electric Hybrid Bike High 2022 in Brown

Season:2022

Brand:Haibike

Code:28765desertWHT

The new Trekking 4 has everything you need for cruising in the city, or for extended rides in the countryside.

The Yamaha PW-TE motor allows you to accelerate smoothly and with power, the integrated 500Wh battery providing ample reserves. Equipped with a luggage rack, lights, mudguards and a kickstand, this eBike is truly ready for everyday use. Your entry into the eTrekking bike world!

Key Features & Benefits:

  • Drive Unit:Yamaha PW-TE System, 60Nm, 20km/h
  • Hydraulic Disc Brakes:Reliable braking performance to keep you in control, whatever the weather.
  • Fork:SR Suntour, NEX E25, Travel: 63mm

Full Specification:

  • Frame:Haibike, Haibike, Trekking Yamaha i500/i400, Aluminium 6061
  • Fork:SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
  • Motor:Yamaha, PW-TE System, 250 Wh, 60 Nm, 25 km/h
  • Controller:Yamaha, Side Switch, 1.7" LCD, 7 functions
  • Battery:Yamaha, InTube, 500 Wh
  • Number of Gears:9
  • Gear Shifters:Shimano, Alivio M3100, Trigger switch, 9 Speed
  • Chainset:Haibike, forged, Aluminium
  • Chainrings:Steel, 38 teeth
  • Rear Cassette:Shimano, HG200, 11 - 36 teeth
  • Chain:KMC, e9S
  • Rear Derailleur:Shimano, Altus M2000
  • Bottom Bracket:Integrated in the motor
  • Pedals:VP, E461, Aluminium, with Reflector
  • Rims:Aluminium
  • Front Hub:Haibike, TheHub ++, 6-bolt standard
  • Rear Hub:Haibike, TheHub ++, 6-bolt standard
  • Front Tyre:Continental, Contact Urban, 55-584, 27.5 x 2.2 inch
  • Rear Tyre:Continental, Contact Urban, 55-584, 27.5 x 2.2 inch
  • Brakes:Alhonga, DXR1806, 180 mm
  • Handlebars:XLC, Topflat, 720 mm
  • Grips:XLC Comfort bo3
  • Headset:Feimin, A-Head Tapered, Ball bearing
  • Stem:XLC, Alu, A-head
  • Saddle:Selle Royal, Wave
  • Seatpost:XLC, Aluminium, Patent, 31.6 mm
  • Seatclamp:Quick release, 34.9 mm
  • Max Weight Limit:130.0 kg
  • Headlight: Trelock, Bike - i Veo LS230, 20 lm
  • Rear light: AXA, Juno Ebike
  • Carrier:Massload, Systemgepäckträger
  • Mudguards:Eurofender, Tempo, ChromoplasticsSKS, Chromoplastics
  • Stand:Ursus, Mooi, Rear stand
Technical Information
  • ENGINE
    Yamaha, PW-TE System, 250W, 60 Nm, 25 km/h
  • DISPLAY
    Yamaha, Side Switch, 1.7" LCD, 7 functions
  • BATTERY
    Yamaha, InTube, 500 Wh
  • FRAME FAMILY
    Haibike, Trekking Yamaha i500/i400, Aluminium 6061
  • FORK
    SR Suntour, NEX E25, Steel spring, Travel = 63 mm, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
  • CRANK ARM
    Haibike, forged, Aluminium
  • BRAKE (FRONT)
    Tektro, T275, 180 mm, 2-piston disc brake
  • BRAKE (REAR)
    Tektro, T275, 160 mm, 2-piston disc brake
  • TUBE
    Presta valve
  • RIM
    Schürmann, Yak25, with eyelets, hollow rim, Aluminium
  • CLAMPING RING
    Quick release, 34.9 mm
  • REAR DERAILLEUR
    Shimano, Altus M2000
  • SHIFT LEVER
    Shimano, Alivio M3100, Trigger switch, 9 Speed
  • BOTTOM BRACKET
    Integrated in the motor
  • SPROCKET
    Shimano, HG200, 11 - 36 teeth
  • CHAIN
    KMC, e9S
  • CHAINRING
    Steel, 38 teeth
  • BRAKE LEVER
    Tektro, T275, Aluminium
  • BRAKE DISC (FRONT)
    Tektro, TR180
  • BRAKE DISC (REAR)
    Tektro, TR160
  • TYRE
    Continental, Contact Urban, 55-584, 27.5" x 2.2"
  • FRONT WHEEL HUB
    Haibike, 6-bolt standard
  • REAR WHEEL HUB
    Haibike, 6-bolt standard
  • SPOKES
    Sapim, Leader, Black
  • HANDLEBAR
    XLC, Topflat, 720 mm
  • GRIPS
    XLC, Comfort bo3
  • STEM
    XLC, Alu, A-head
  • HEADSET
    Cane Creek, Viscoset, Aluminium
  • SADDLE
    Selle Royal, Wave
  • SEAT POST
    XLC, Aluminium, Patent, 31.6 mm
  • PEDALS
    VP, E461, Aluminium, with Reflector
  • HEADLIGHT
    Trelock, Bike - i Veo LS230, 20 lm
  • REAR LIGHT
    AXA, Blueline
  • DYNAMO
    Via system battery
  • CARRIER
    Massload, system carrier
  • FENDERS
    Eurofender, Tempo, Chromoplastics
  • STAND
    Ursus, Mooi , Rear stand
  • PERMITTED TOTAL WEIGHT
    130.0 kg
