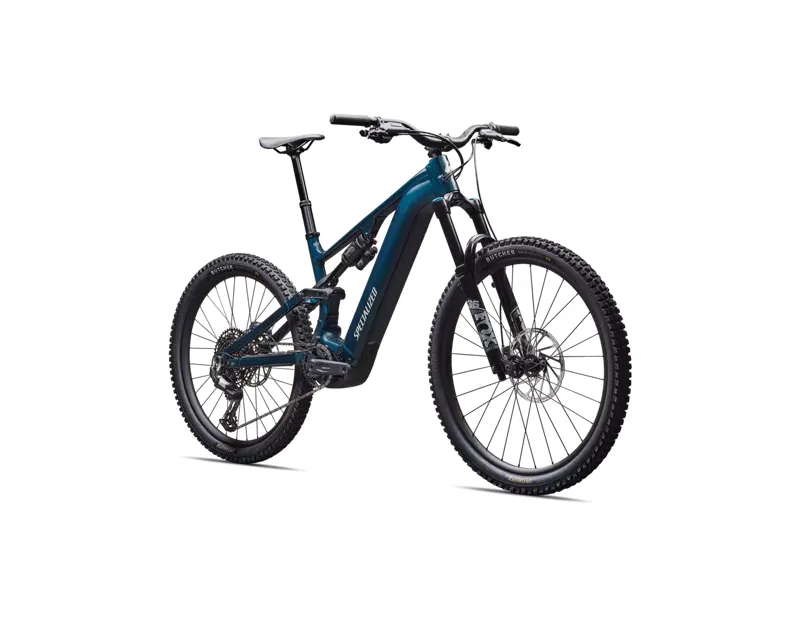

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
A frame with 150mm of futuristic suspension and honed geometry, granting Super Control while traversing extreme terrain at mach speed. With SuperNatural power delivery for Super Traction to conquer climbs where others spin out. And while you’re an exemplar of human endurance, you’ll tire before the bike does thanks to the Super Range of the Turbo Levo 4.Use - Full Power E-MTB Trail
E-System - Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range
Frame - Alloy, Geo Adj & SWAT Storage
Suspension - Front: 160mm FOX 36 Rhythm GRIP, Rear: 150mm GENIE - FOX FLOAT X Performance
Drivetrain - SRAM S1000 Eagle T-Type
Wheels - Specialized Alloy / Bear Pawls hubs
Key Features & Benefits:
- Alloy frame:Designed for 1,120Wh of on-bike battery capacity from the 840Wh downtube battery and optional 280Wh Range Extender

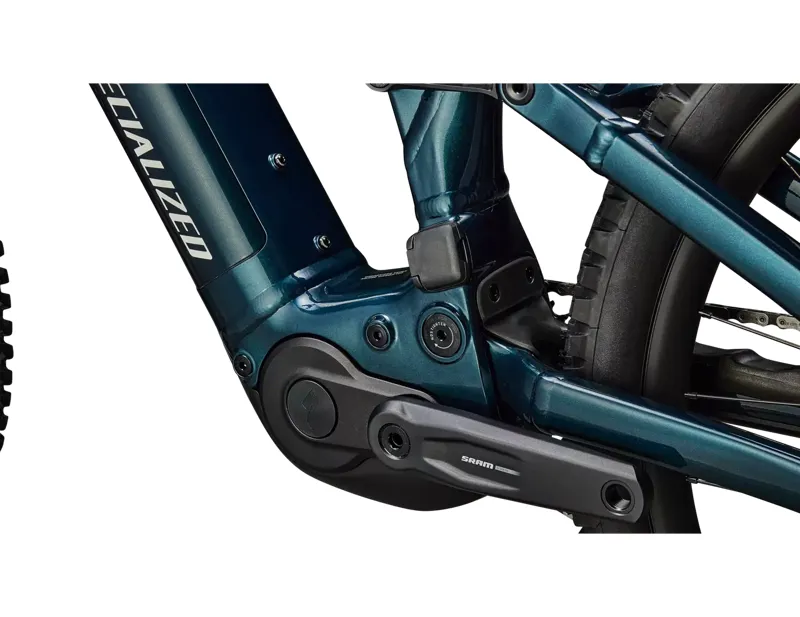

- Specialized 3.1 Motor:All New Specialized 3.1 Motor, 101Nm torque, 666W power, up to 5.33 hour range

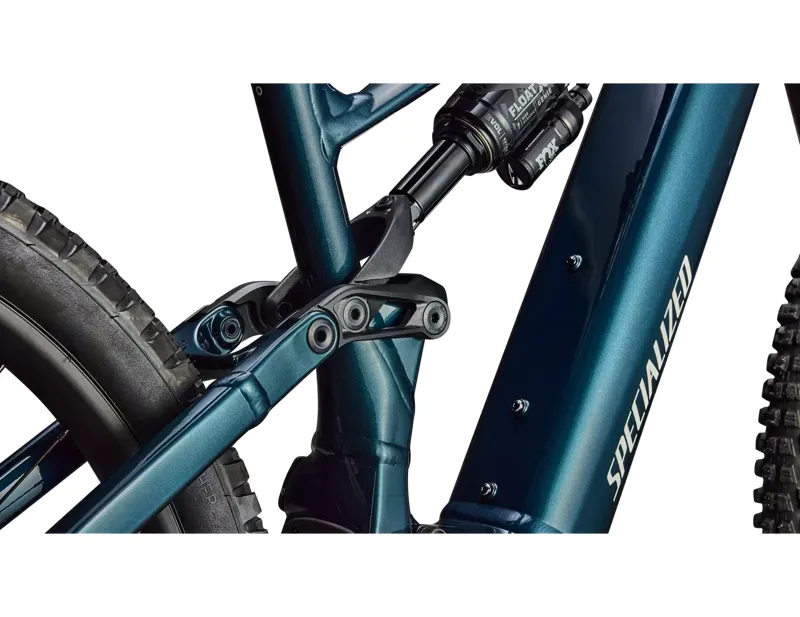

- GENIE suspension:150mm of Ride Dynamics tuned rear suspension and first-of-its-kind SWAT e-MTB downtube storage
Full Specification:
- Frame:All new Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm

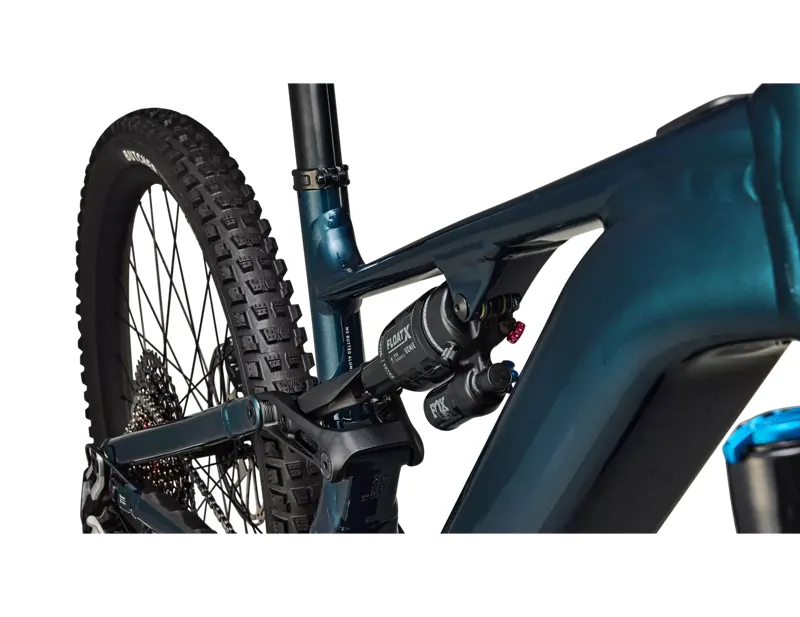

- Rear Suspension:FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR
adjustment - Fork:FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel
- Motor:New Specialized 3.1 Motor, 101Nm torque, 666W power, up to 5.33 hour range
- Battery:Specialized Integrated battery, 840Wh

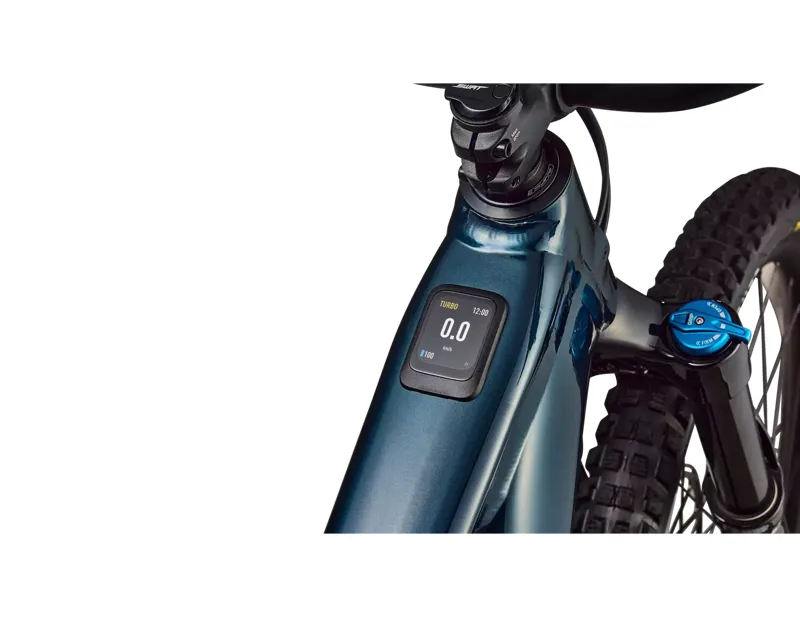

- Controller:Mastermind TCU, 2.2" highres screen, fully customizeable with Specialized app, Apple Find My integrated in display
- Charger:Specialized 4 Amp charger
- Number of Gears:12
- Gear Shifters:SRAM 90 trigger, 12-speed, single click
- Chainset:SRAM S1000 Crankset, Integrated Guard, 55mm Chainline, 155mm
- Chainrings:SRAM T-type ring, 34T
- Rear Cassette:SRAM XS-1275, 12-speed, 10-52t
- Chain:SRAM GX Eagle Chain
- Rear Derailleur:SRAM Eagle 90 T-Type
- Pedals:Not supplied:Shop pedals here
- Rims:Specialized 29, hookless alloy, 30mm inner width, tubeless ready
- Front Hub:Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Rear Hub:Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Front Tyre:Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3"
- Rear Tyre:Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3"
- Brakes:SRAM Maven Bronze, 4-piston caliper, hydraulic disc

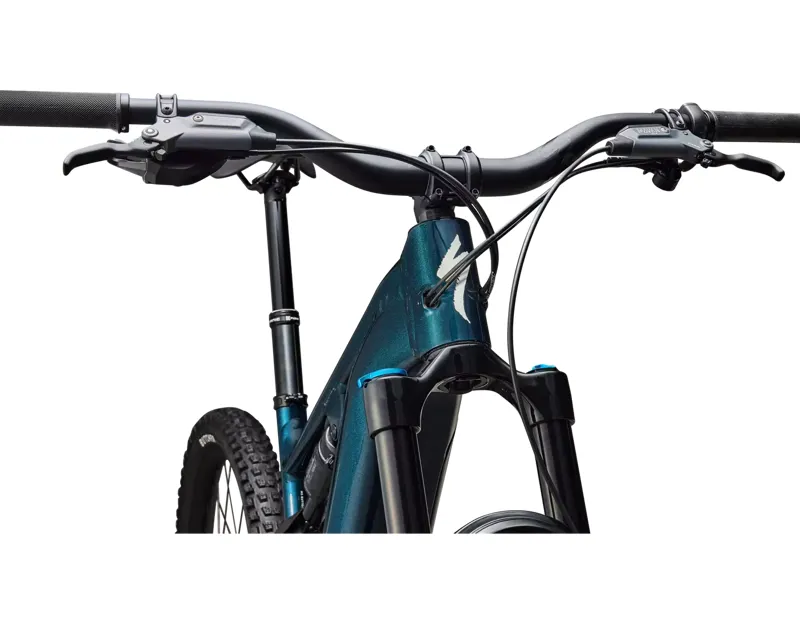

- Handlebars:Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S2: 780 width, 30mm rise: S3-S4: 800 width, 35mm rise: S5-S6: 800 width, 50mm rise
- Grips:Specialized Trail Grips
- Stem:Alloy Trail Stem, 35mm bar boreAlloy Trail Stem, 35mm bar bore
- Saddle:Bridge Comp, Hollow Cr-mo rails, 155/143mm
- Seatpost:X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
- Accessories:SWAT internal downtube storage
- Weight:25.70 kg (56 lb, 11.2 oz)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.
This bike is compatible with
optional 280Wh Range Extender which is available to purchase separately - Code: 98924-5680There are some assocaited accesories required to run the extender, they are:
98924-5660 3.1 Full Power Range Extender Cable for X2-280 battery, 210mm length
S249900016 MSC SPECIALIZED FULL POWER 3.1 SYSTEM, ZEE CAGE FOR RANGE EXTENDER
S246800006 ELE BATTERY, SPECIALIZED FULL POWER 3.1 SYSTEM, RANGE EXTENDER, LOWER MOUNTING BRACKET
S240500012 BLT SPECIALIZED FULL POWER 3.1 SYSTEM, RANGE EXTENDER, DOWNTUBE ANCHOR BOLT
Size Guide for Specialized Levo Gen 4
Tip:
Size down for More Manoeuvrability
Size up for More Stability
| Frame Size | Height (cm) | Height (Inches) |
| S1 - XS | 150 - 160 | 4'11" - 5'3" |
| S2 - S | 157 - 173 | 5'2" - 5'8" |
| S3 - M | 165 - 180 | 5'5" - 5'11" |
| S4 - L | 173 - 188 | 5'8" - 6'2" |
| S5 - XL | 178 - 193 | 5'10" - 6'4" |
| S6 - XXL | 188 - 203 | 6'2" - 6'8" |
Geometry Information for Specialized Levo Gen 4
| Frame Size: | S2 | S3 | S4 | S5 | S6 |
| Stack (mm) | 618 | 626 | 638 | 652 | 667 |
| Reach (mm) | 435 | 455 | 480 | 505 | 535 |
| Headtube Length (mm) | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle (degrees) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height (mm) | 350 | 350 | 350 | 350 | 350 |
| BB Drop (mm) | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail (mm) | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full) (mm) | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset (mm) | 44 | 44 | 44 | 44 | 44 |
| Front Center (mm) | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) (mm) | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height (mm) | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length(mm) | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle (degrees) | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle (mm) | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion (mm) | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion (mm) | 80 | 80 | 80 | 80 | 80 |
| Crank Length (mm) | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width (mm) | 800 | 800 | 800 | 800 | 800 |
| Stem Length (mm) | 40 | 40 | 40 | 40 | 40 |
| Saddle Width (mm) | 155 | 143 | 143 | 143 | 143 |
| Seatpos Length (mm) | 125 | 175 | 200 | 200 | 200 |
Check out our Blog Post here for our guide for which type of e-bike is best!
Warranty Information for Specialized Bikes and Wheels
| Policy Term | Coverage for Registered Products | Coverage if Not Registered |
Lifetime warranty* to the original owner against structural defects in material or workmanship on ALL models of Specialized-branded frames and forks • Includes seatstays and chainstays on full-suspension bikes
• Does not include suspension forks and suspension parts
• Does not include paint and graphics (these are covered below) | Lifetime | 2 Years |
| Lifetime warranty* on Roval wheels | Lifetime | 2 Years |
Other Specialized-branded products are covered by a two-year warranty • Paint and graphics on frames and frame set
• Specialized branded components
• Co-branded suspension (BRAIN)
• Motors & Drive systems components on e-bikes
• Equipment
• Helmets
• Shoes | 2 Years | 2 Years |
Turbo batteries have a warranty for 2 years or 300 charge cycles— whichever comes first. | 2 years | 2 years |
*Register your bike, frameset, or Roval wheels within the first 90 days of purchase for a lifetime warranty to the original owner. For Full warranty policy please visit specialized.com
