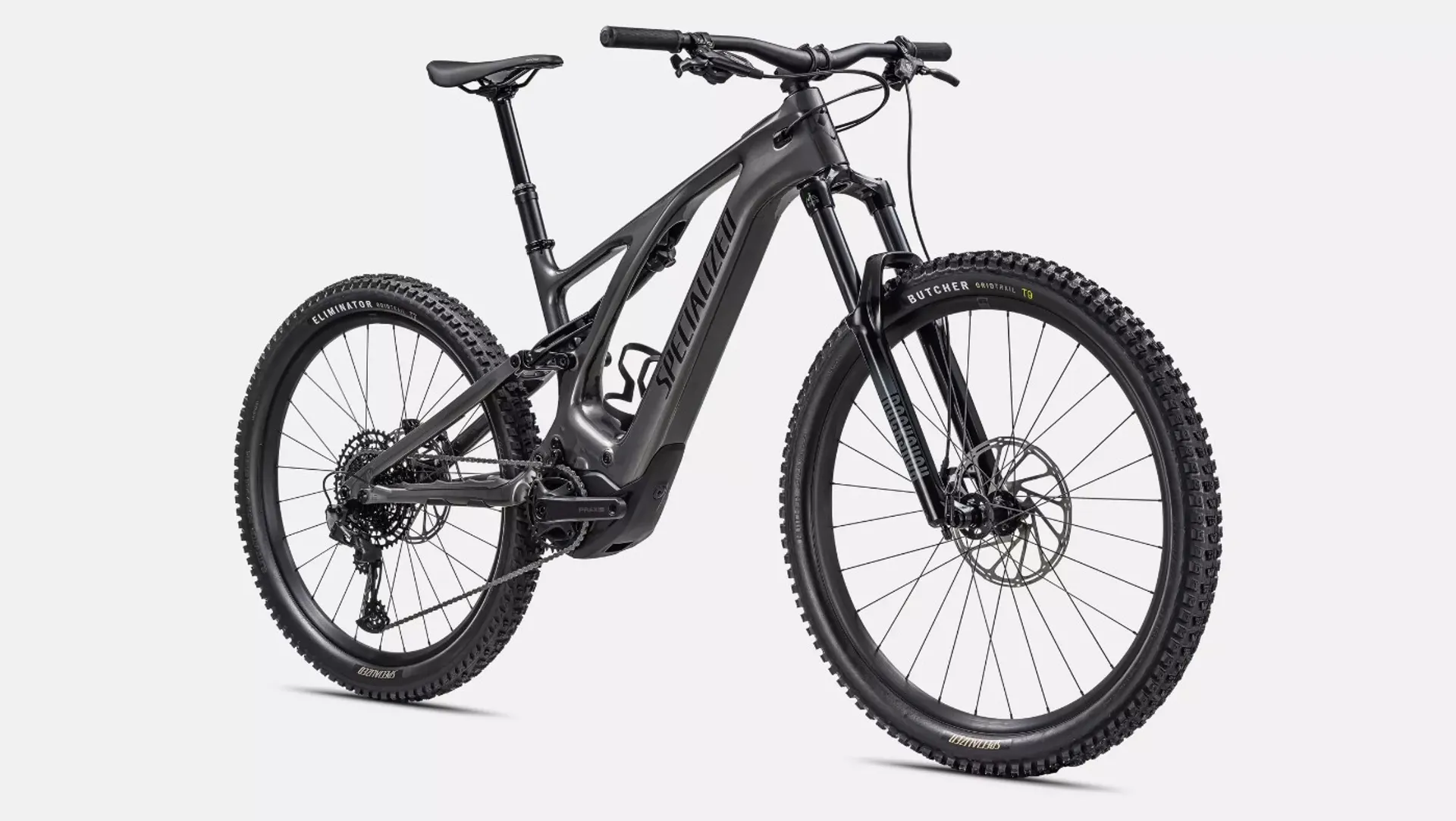

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

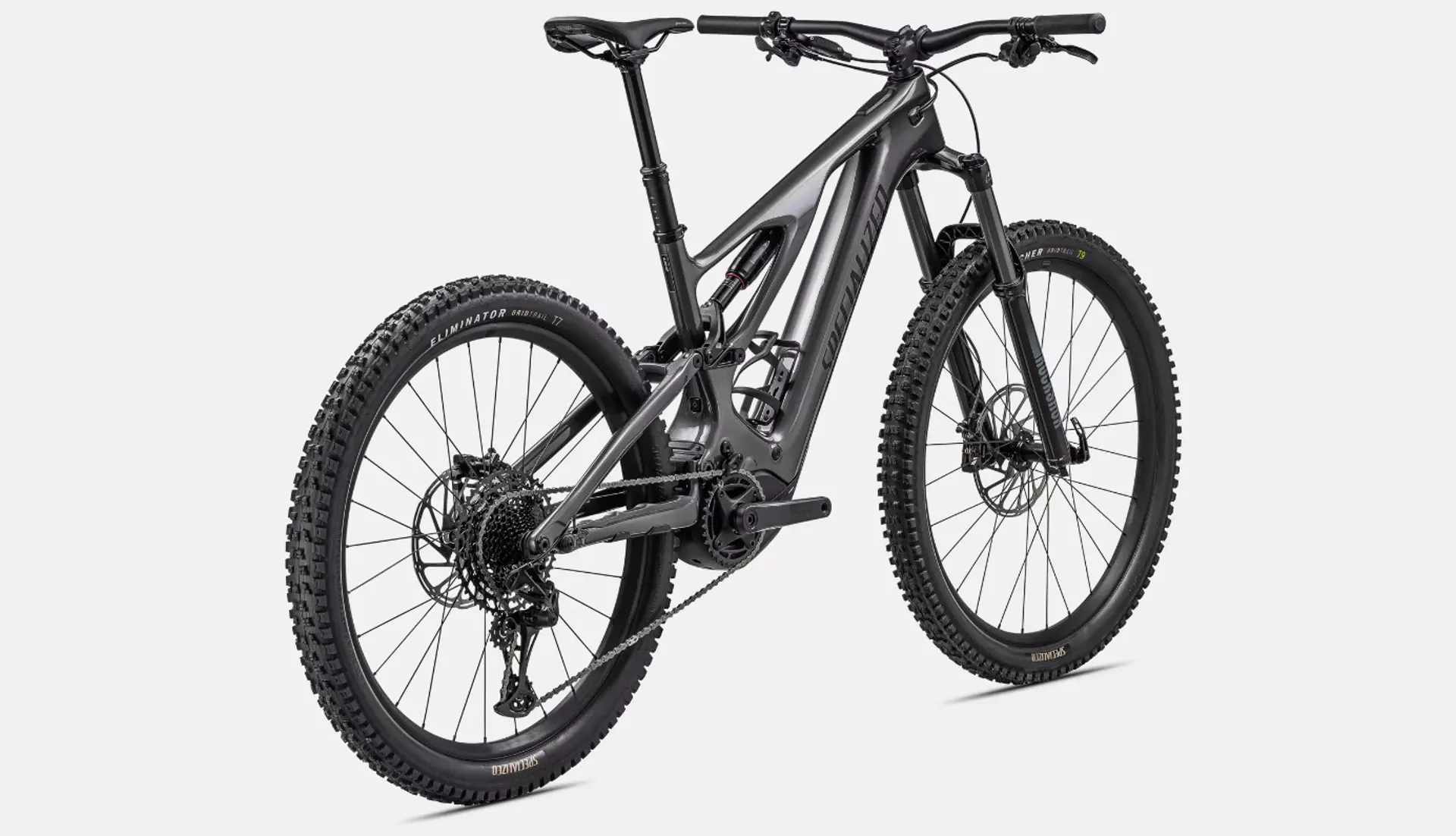

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo Carbon delivers more of everything that you love about trail riding.

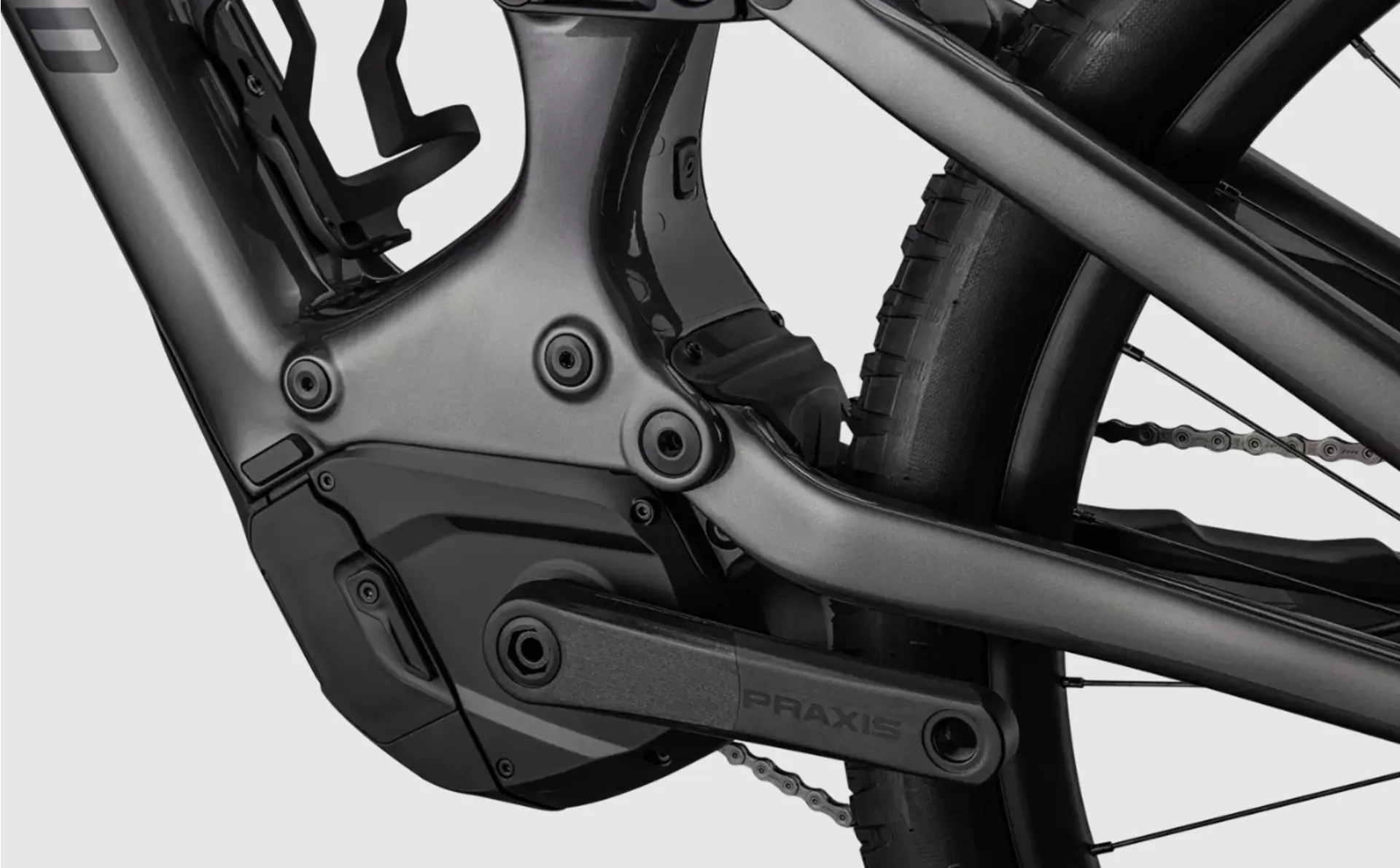

Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

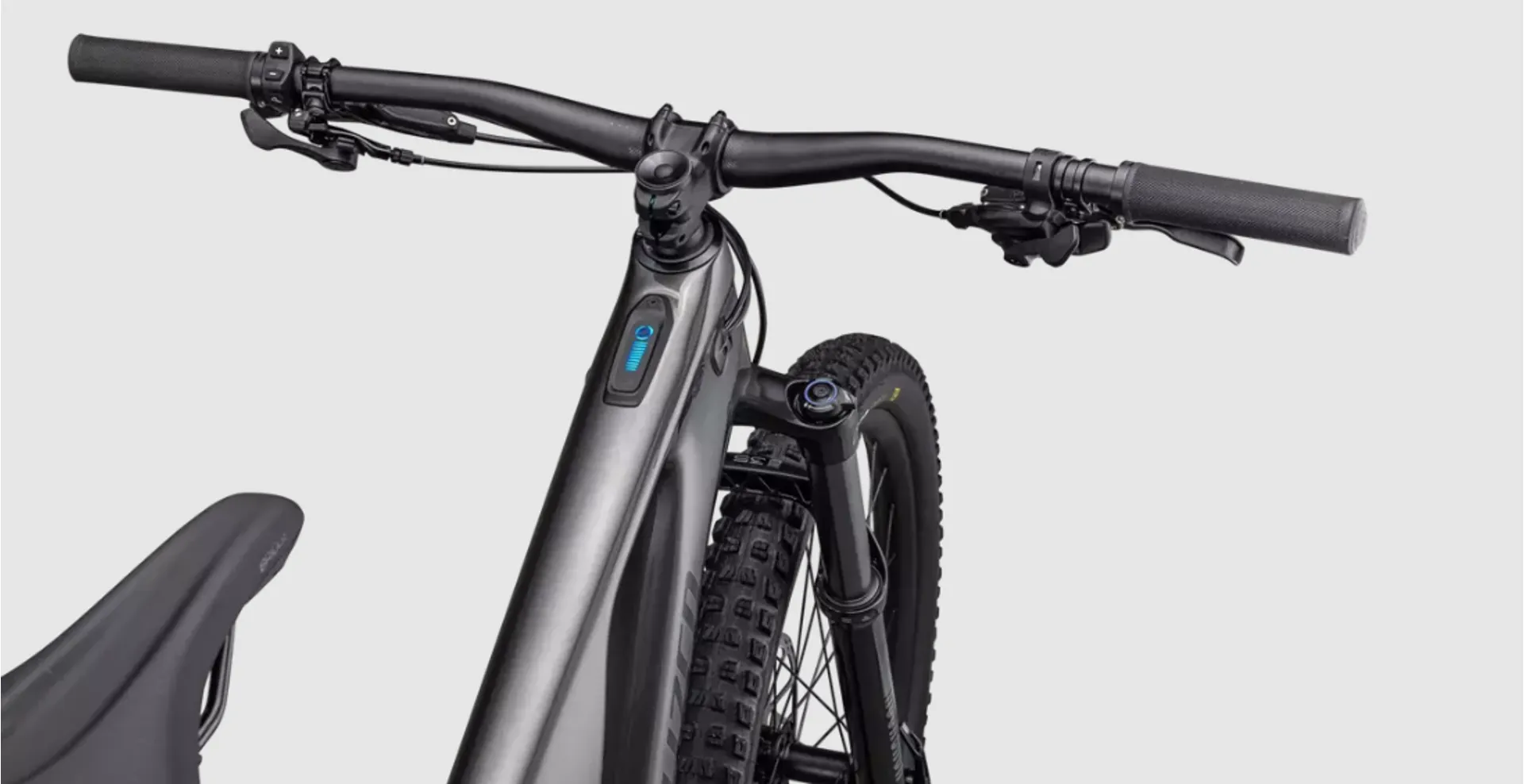

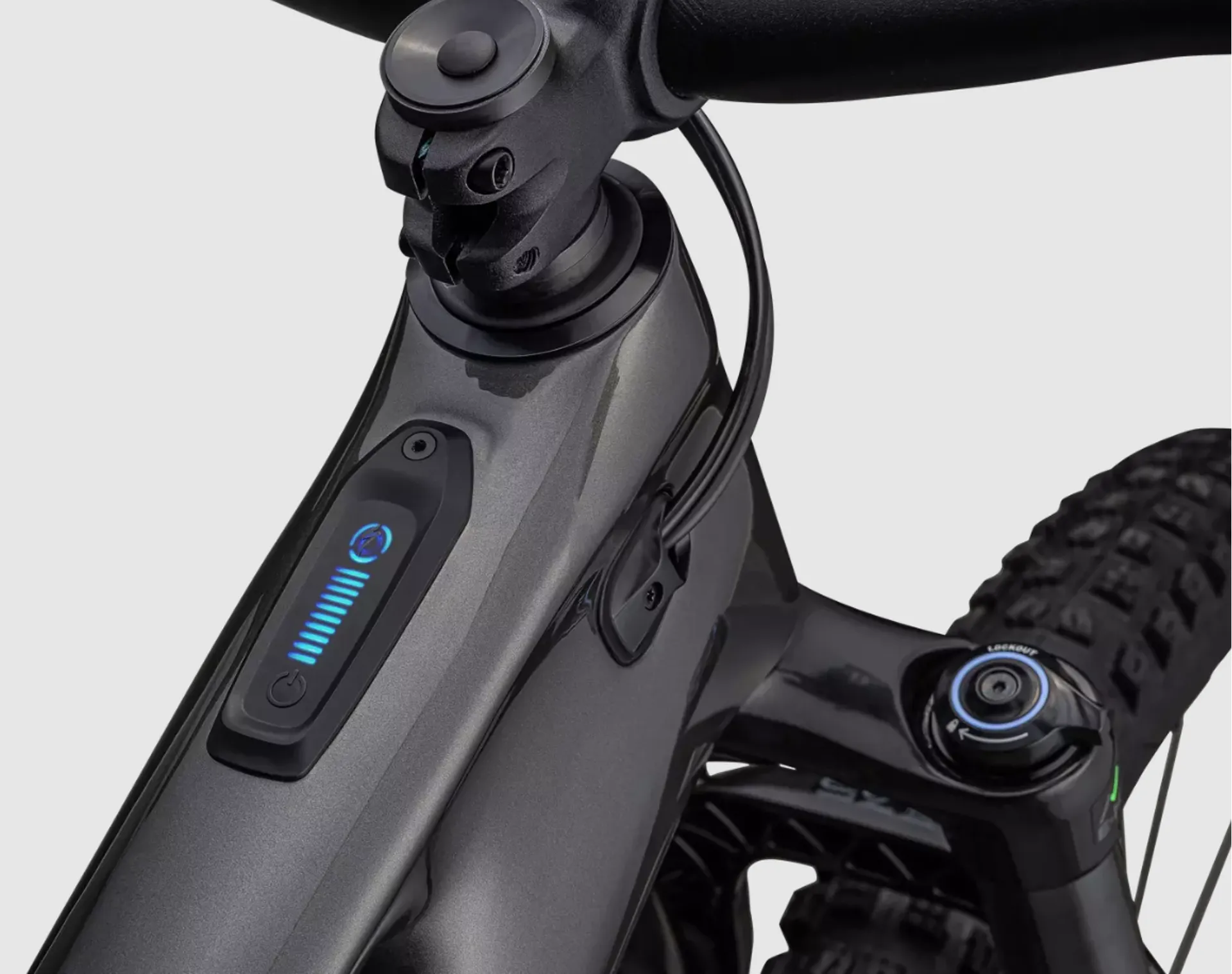

The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.

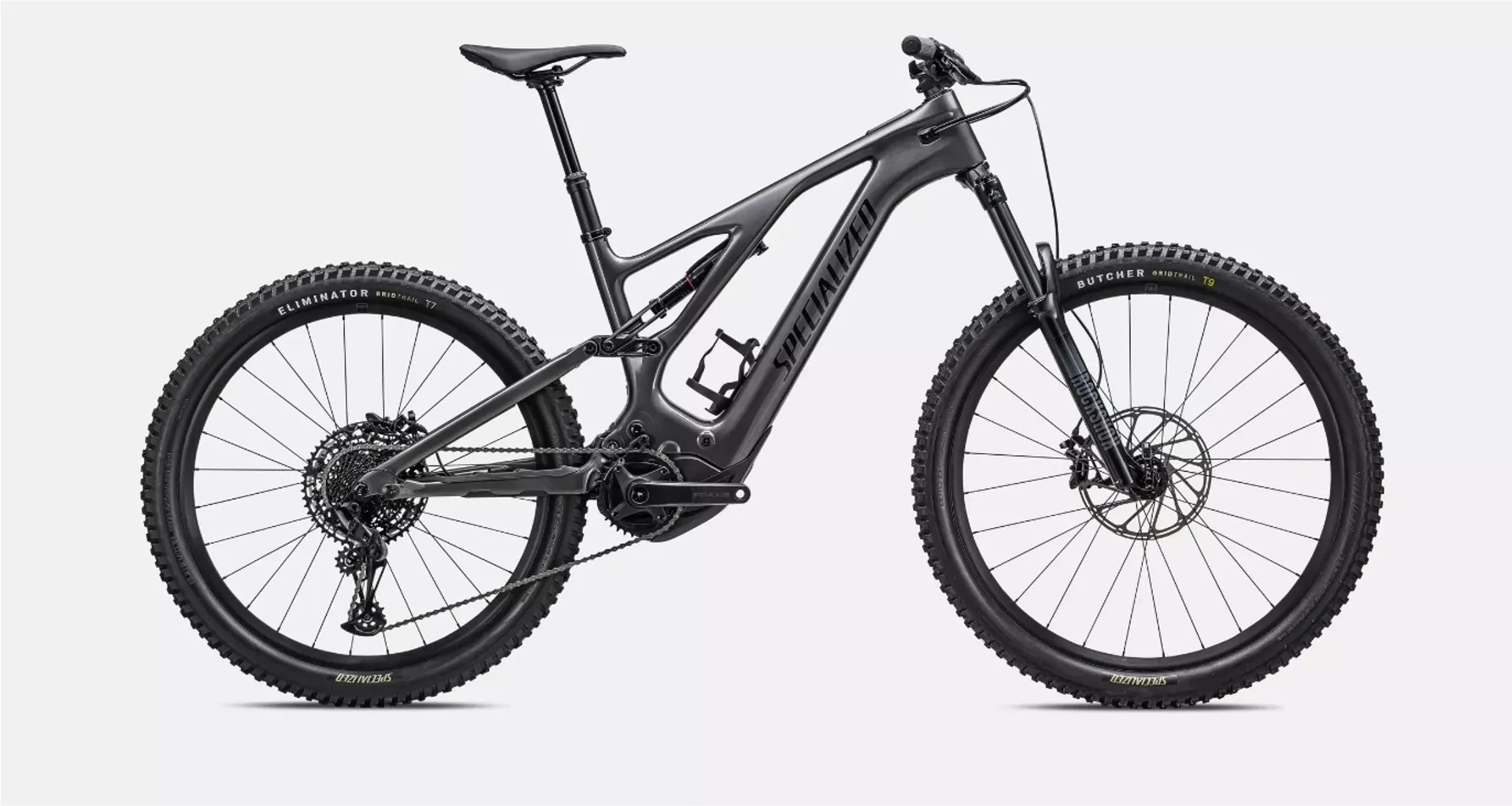

A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.

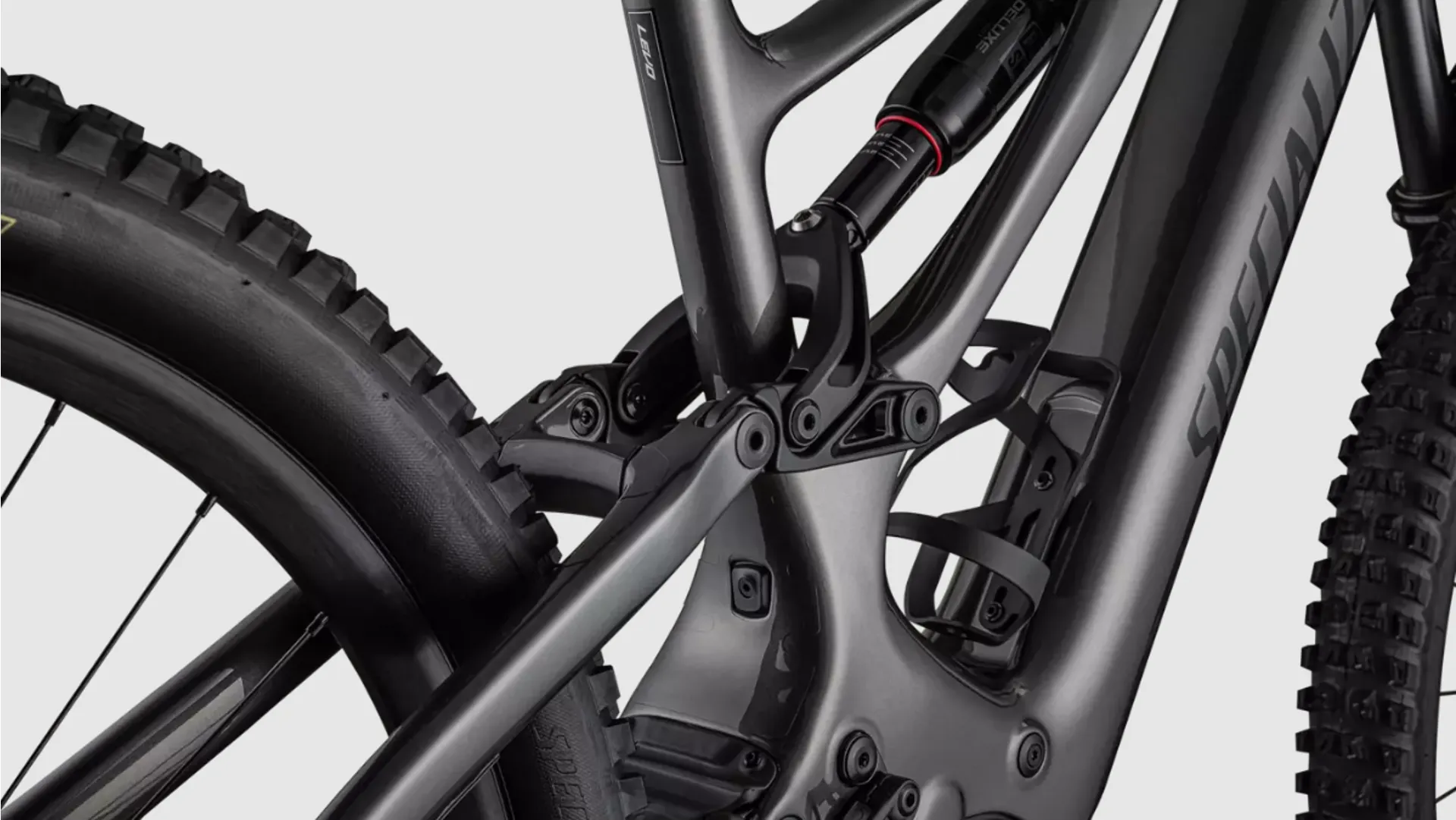

Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Key Features & Benefits:
- Specialized 2.2 Motor: 90 Nm of torque and 565 watts of power for up to five hours of ride time
- Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
- 12 SRAM Gears: Wide range of gears suitable for a range of terrain, with the simplicity of a single shifter.
Full Specification:
- Frame:FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
- Fork:RockShox 35 Silver 29, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
- Rear Shock:RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
- Motor:Specialized 2.2, Custom Rx Trail Tuned Motor
- Battery:Specialized M3-700, Integrated battery, 700Wh
- Charger:Custom charger, 42V4A w/ Rosenberger plug
- Controller:Specialized MasterMind TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
- Charger:Custom charger, 42V4A w/ Rosenberger plug
- Number of Gears:12
- Gear Shifters:SRAM SL SX Eagle, 12-speed
- Chainset:SRAM X-Sync Eagle, 104 BCD, 34T, steel
- Chainrings:34T
- Rear Cassette:SRAM NX Eagle PG-1230, 12-speed, 11-50t
- Chain:SRAM NX Eagle, 12-speed
- Rear Derailleur:Sram SX Eagle, 12-speed
- Pedals:Not supplied:Shop pedals here
- Front Wheel:Specialized 29 - 30mm inner rim width, tubeless ready
- Rear Wheel: Specialized 27.5 - 30mm inner rim width, tubeless ready
- Front Tyre:Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
- Rear Tyre:Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
- Brakes:SRAM Guide RE, 4-piston caliper, hydraulic disc, Front S1-S3: 200mm, S4-S6: 220mm, Rear 200mm

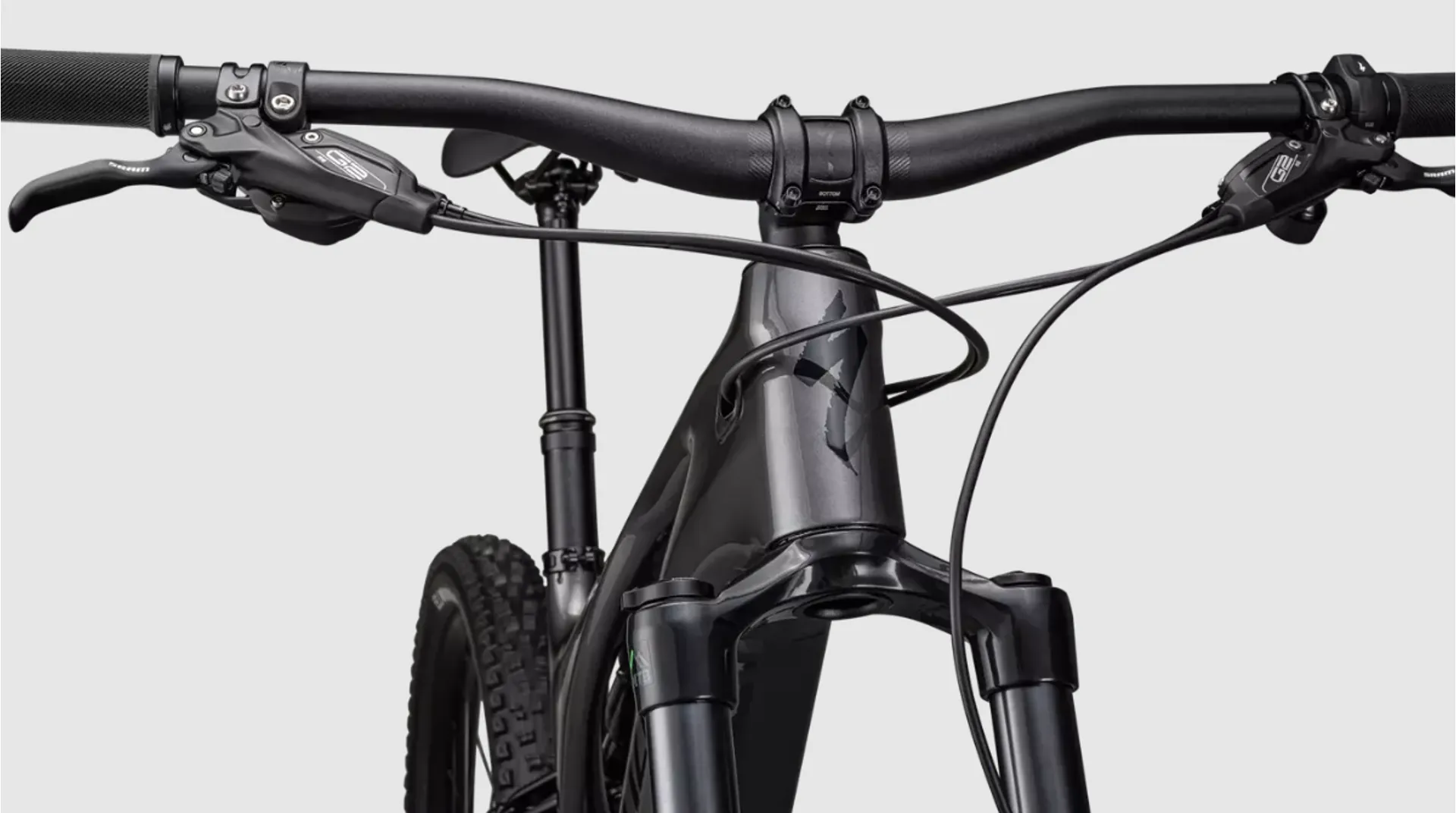

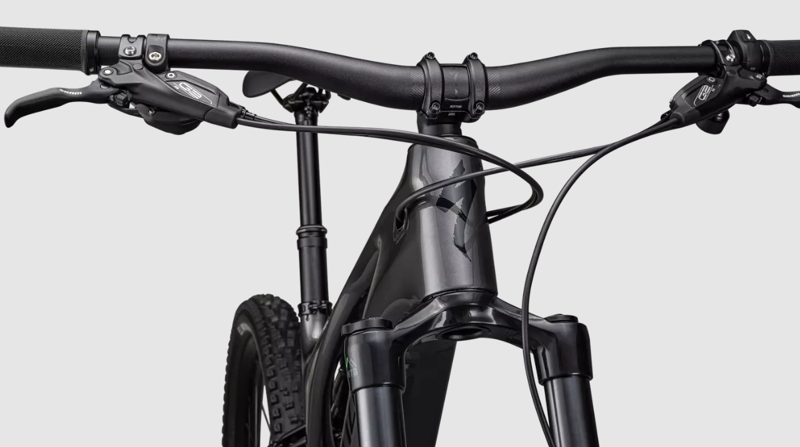

- Handlebars:Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
- Grips:Specialized Trail Grips
- Stem:Alloy Trail Stem, 35mm bar bore
- Saddle:Body Geometry Bridge Saddle, steel rails
- Seatpost:TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
- Seatclamp:Alloy, 38.6mm
- Weight:23.4kg, S4
