Carbon e-gravel bike, TQ HPR 60 hub motor 60 Nm, 360 Wh battery, SRAM GX AXS 12-speed, 700x42 mm tubeless-ready tires, Bontrager gravel cockpit, 13.76 kg
Carbon e-gravel bike, TQ HPR 60 hub motor 60 Nm, 360 Wh battery, SRAM GX AXS 12-speed, 700x42 mm tubeless-ready tires, Bontrager gravel cockpit, 13.76 kg
Trek

Trek Checkpoint+ SL 6 AXS Electric Gravel Bike in Fjord Blue/Cobalt Blue

£5,000.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

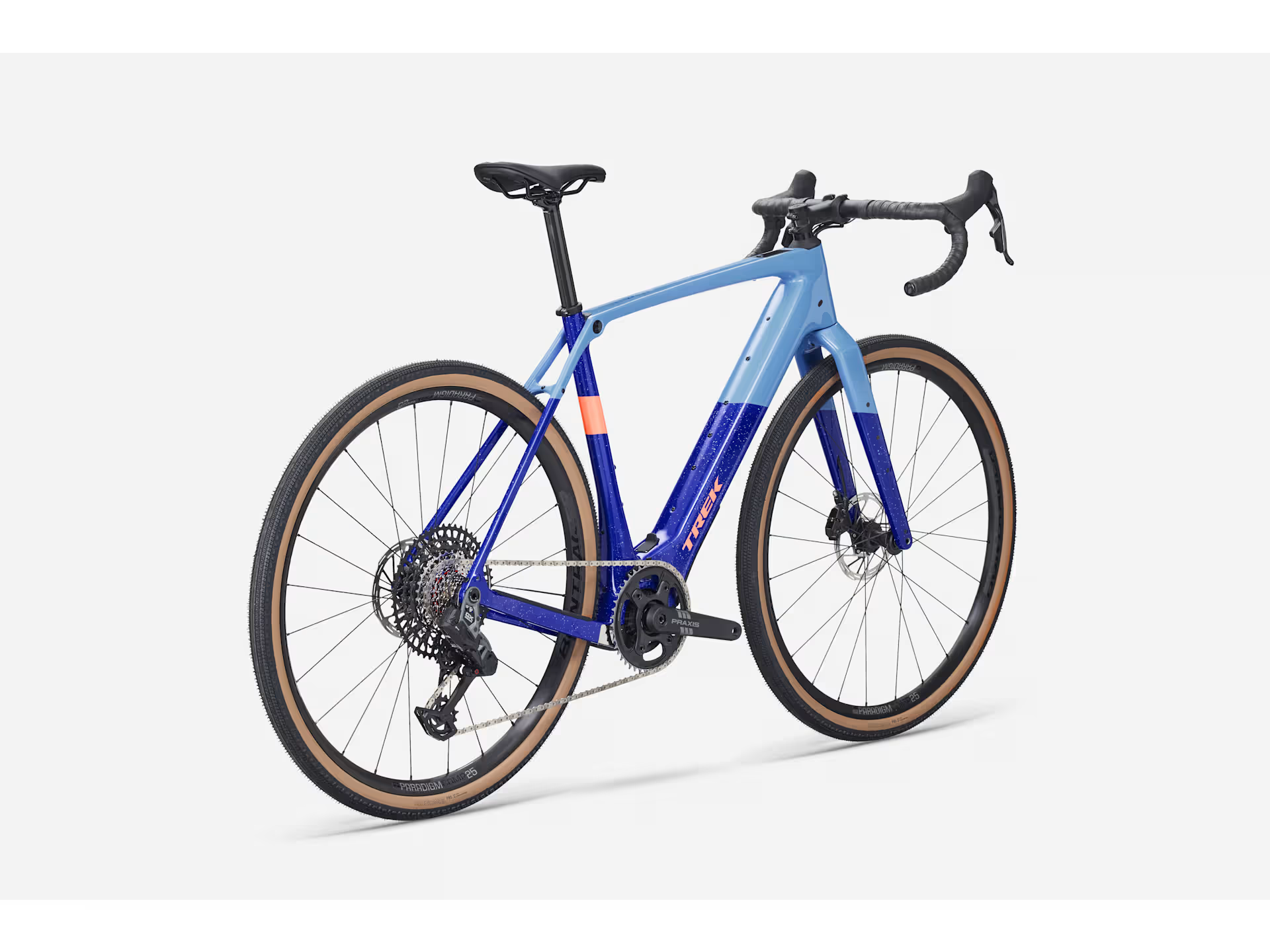

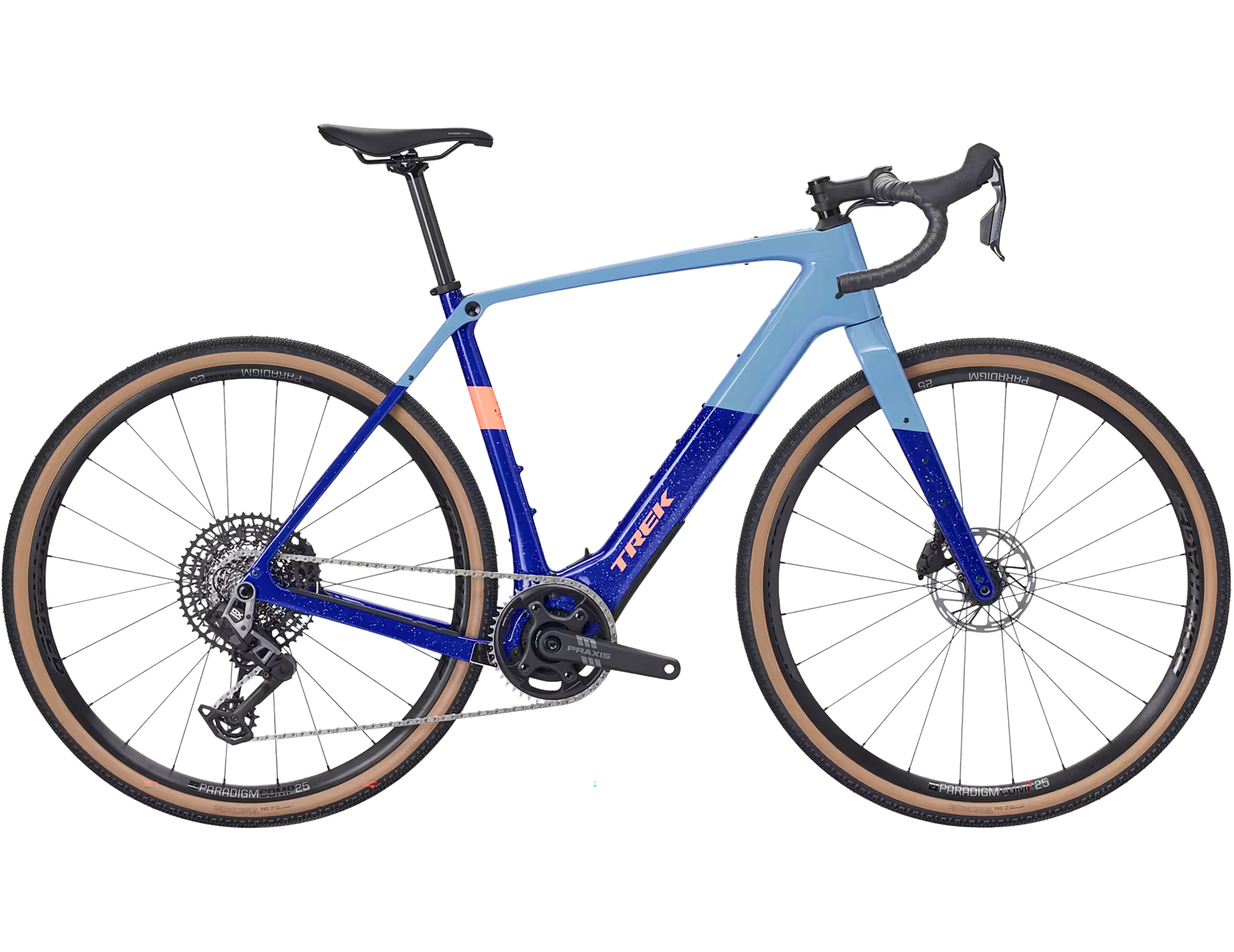

Trek Checkpoint+ SL 6 AXS Electric Gravel Bike in Fjord Blue/Cobalt Blue

Season:2026

Brand:Trek

Code:57441BL

The Checkpoint+ SL 6 AXS is a carbon electric gravel bike for extending your adventures. It's ready to explore anywhere, with a smooth-and-quiet TQ HPR 60 motor, SRAM GX AXS wireless 12-speed drivetrain, clearance for 50 mm tyres and loads of mounts for gear.

Key Features and Benefits:

  • Range extender compatible:You can add on a Range Extender that fits neatly in the bottle cage
  • TQ harmonic pin ring motor Motor:Discreet, compact, light and whisper-quiet, and offers a powerful assist up to 15.5 mph
  • Adventure-ready SRAM drivetrain:GX AXS wireless electronic drivetrain provides precise shifting

Full Specification:

  • Frame:500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

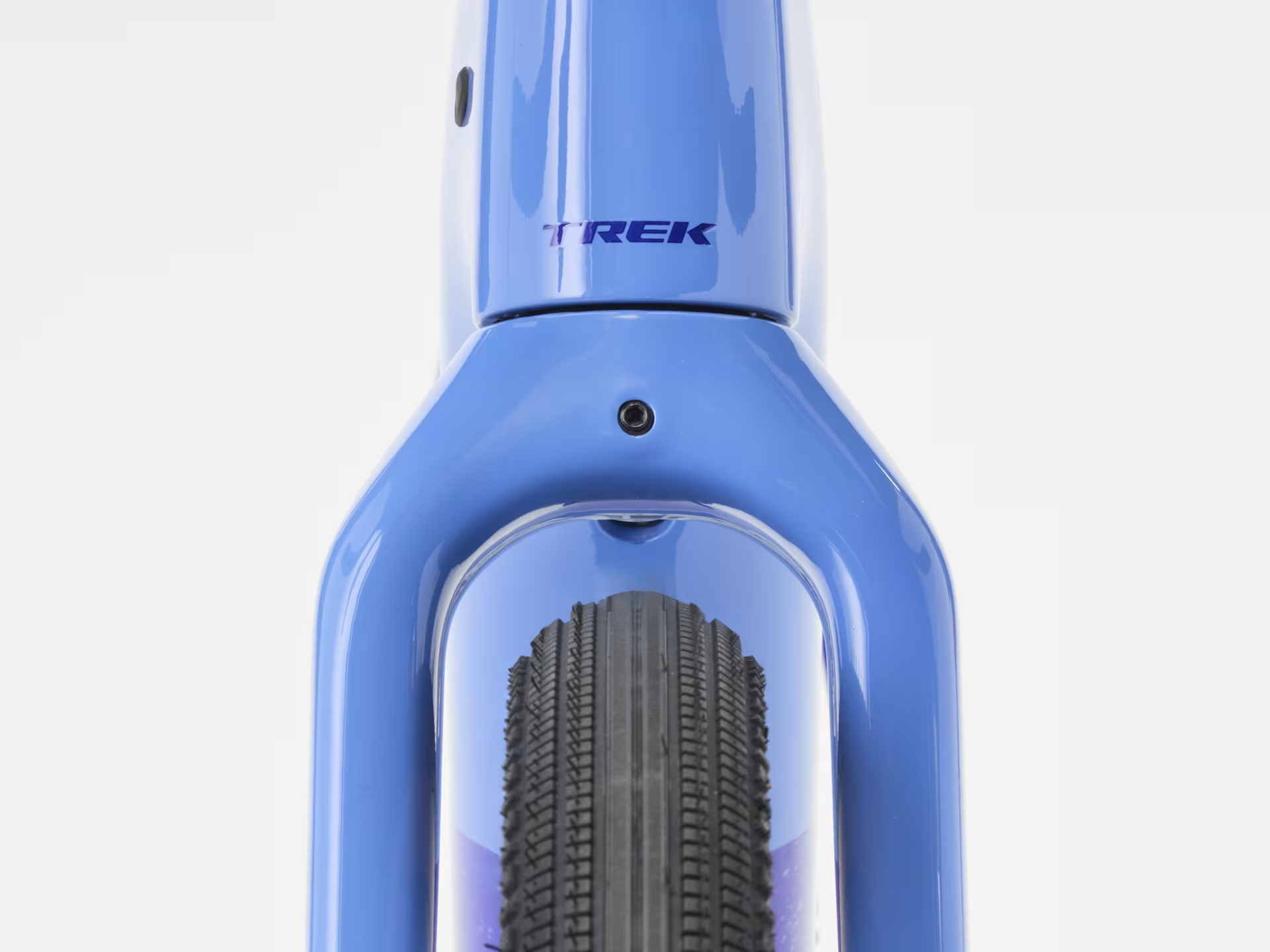

  • Fork:Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle

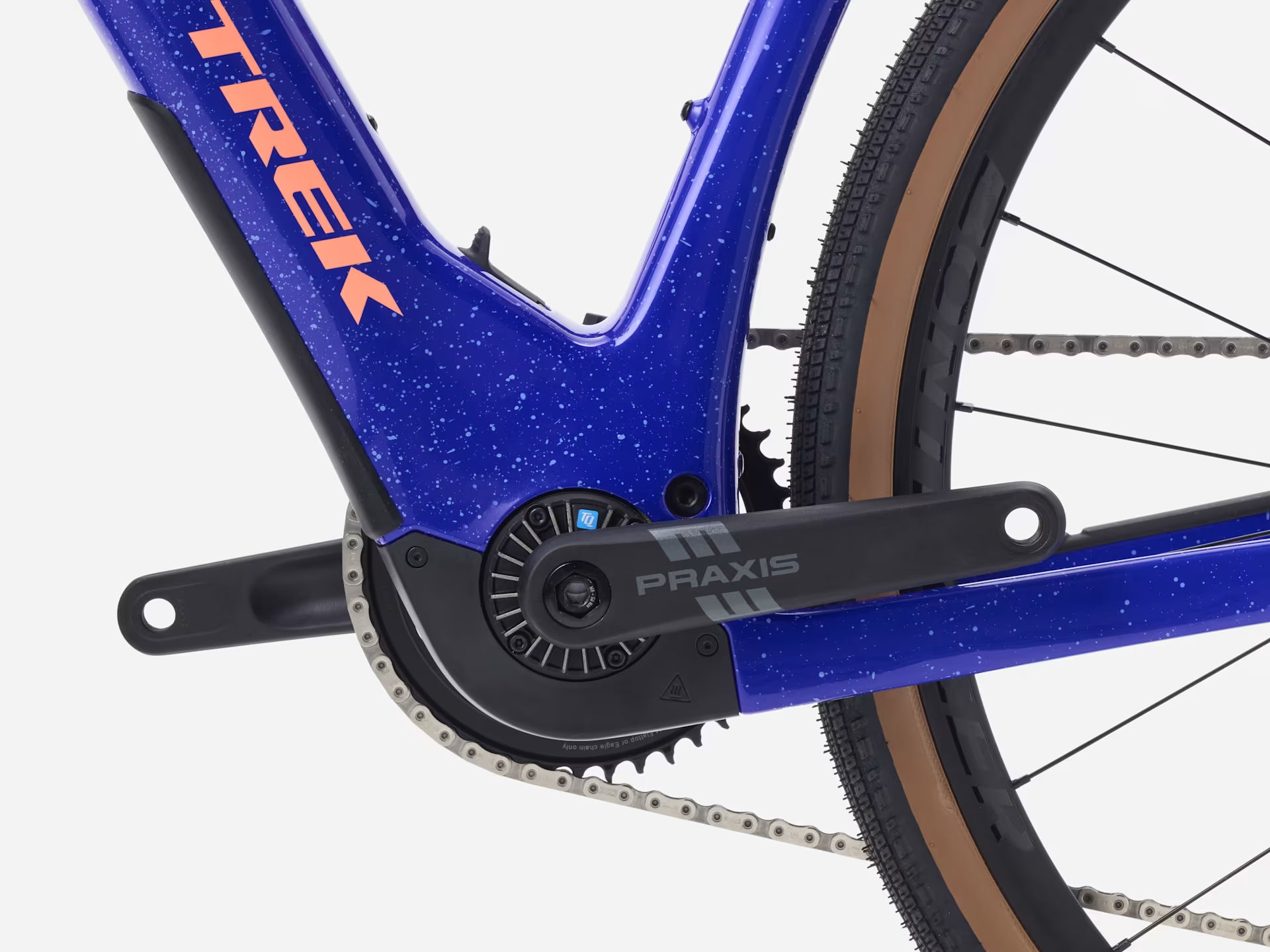

  • Motor:TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
  • Battery:TQ 360Wh
  • Controller:TQ LED display with Bluetooth & ANT+ connectivity
  • Number of Gears:12
  • Gear Shifters:SRAM Rival AXS, 13-speed
  • Chainset:Praxis Alloy, XS/S 165mm, M/ML 170mm, L/XL 172.5mm
  • Rear Cassette:SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
  • Chain:SRAM GX Eagle, T-Type, 12-speed
  • Front Derailleur:
  • Rear Derailleur:SRAM GX Eagle AXS, T-Type
  • Bottom Bracket:N/A
  • Pedals: Not supplied:Shop pedals here
  • Rims:Bontrager Paradigm Comp 25
  • Front Tyre:Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Rear Tyre:Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Brakes:SRAM Paceline, rounded, CentreLock, 160 mm

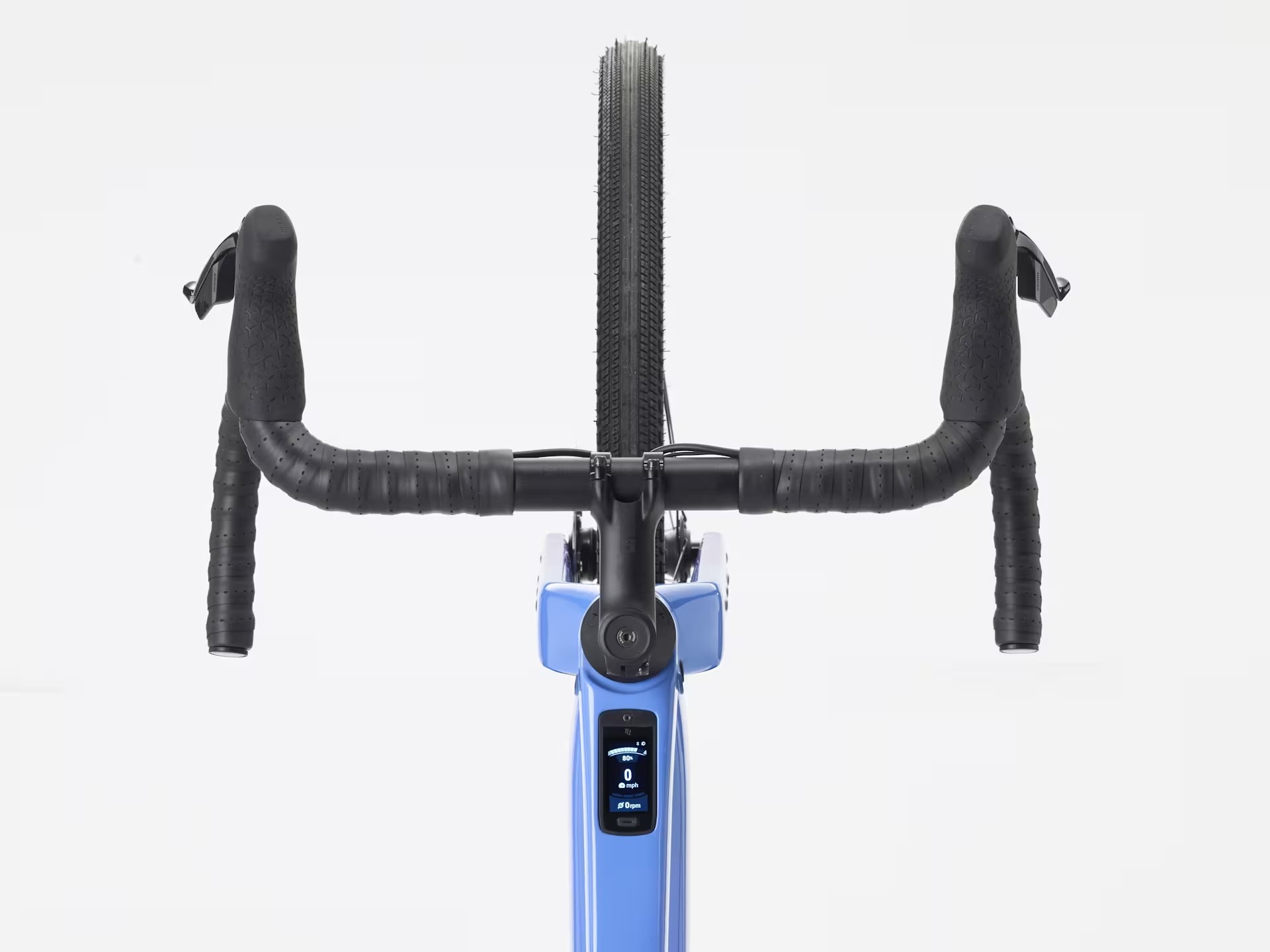

  • Handlebars:Bontrager Elite Gravel, Alloy. XS/S 40cm, M/ML 42cm, L 44cm, XL 46cm
  • Tape:Bontrager Supertack Perf tape
  • Stem:Trek Pro, -7-degree, XS 70mm, S/M 80mm, ML/L 90mm, XL 100mm
  • Seatpost:Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Saddle:Verse Short Comp 145mm, Steel Rails
  • Accessories:TQ 4A chargercharger, Max Tyre size 50c without mudguards, 42c with mudguards, Bontrager TLR sealant, 180 ml/6 oz
  • Weight: ML - 13.76 kg / 30.34 lbs (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Checkpoint+

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
SizeRider Height (cm)Rider Height (")Inseam (cm)Inseam (")
XS143 - 158 cm4'8" - 5'2"67 - 74 cm26" - 29"
S (49cm)158 - 164 cm5'2" - 5'5"74 - 77 cm29" - 30"
M (52-54cm)164 - 177 cm5'5" - 5'10"77 - 83 cm30" - 33"
ML (56cm)177 - 188 cm5'10" - 6'2"83 - 88 cm33" - 35"
L (58cm)188 - 194 cm6'2" - 6'4"88 - 91 cm35" - 36"
XL (61cm)194 - 203 cm6'4" - 6'8"91 - 95 cm36" - 37"

Geometry for Trek Checkpoint Gen 3


Frame size letterWheel sizeA —Seat tubeB —Seat tube angleEffective seat tube angleC —Head tube lengthD —Head angleE —Effective top tubeG —Bottom bracket dropH —Chainstay lengthI —OffsetJ —TrailK —WheelbaseL —StandoverM —Frame reachN —Frame stack
S700c48.074.0°73.0°10.671.4°54.77.644.04.96.8103.277.238.655.6
M700c50.573.3°72.8°13.071.6°56.67.644.04.96.8104.479.939.157.9
ML700c53.073.3°72.8°15.172.0°57.87.644.04.96.4105.281.339.760.1
L700c55.073.3°72.8°17.172.1°58.97.644.04.96.4106.383.740.262.0
XL700c57.573.3°72.8°19.172.4°60.17.644.04.96.2107.286.140.864.0

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
