The Domane+ ALR is an aluminium drop-bar electric bike designed for roadies who want an authentic road bike experience with an extra boost. The sleek and efficient Fazua drive system kicks things up a notch when you need it.
The Domane+ ALR is an aluminium drop-bar electric bike designed for roadies who want an authentic road bike experience with an extra boost. The sleek and efficient Fazua drive system kicks things up a notch when you need it.
Trek

Trek Domane+ ALR Electric Road Bike 2022 in Voodoo Trek Black

£3,700.00 £3,900.00 5% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Domane+ ALR Electric Road Bike 2022 in Voodoo Trek Black

Season:2024

Brand:Trek

Code:333222021VoodooBLK

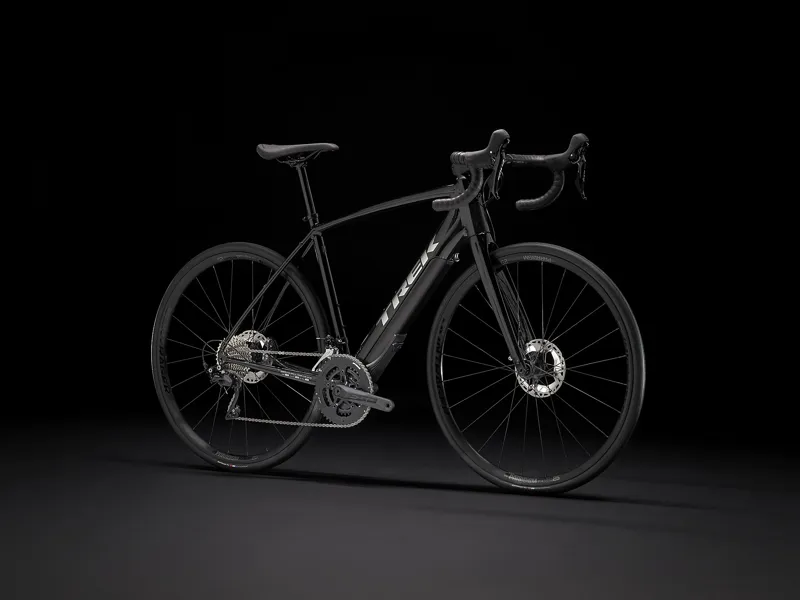

The Trek Domane+ ALR is an aluminium drop-bar electric bike designed for roadies who want an authentic road bike experience with an extra boost. The sleek and efficient Fazua drive system kicks things up a notch when you need it – like riding into a headwind or keeping pace with your mates – but doesn't drag or hold you back when it's not in use.

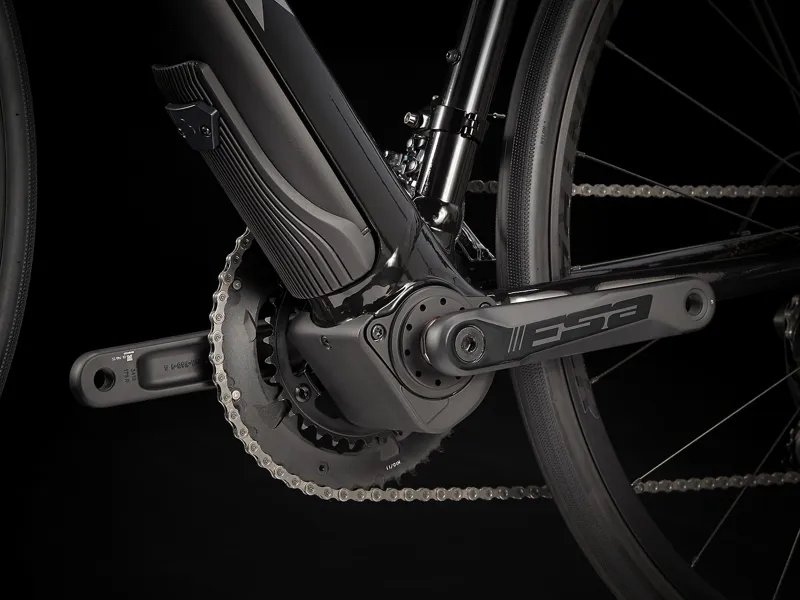

A 300 Series Alpha Aluminium frame and fork, a light, fast and efficient Fazua Evation motor and a 250 Wh battery that assists up to 20 mph (25 km/h in Europe). You can easily remove the Fazua drivepack (the battery and motor) from the frame and ride the bike with or without it. Plus, a Fazua controller, 2x11 Shimano 105 drive train and hydraulic disc brakes.

Key Features and Benefits:

  • 300 Series Alpha Aluminium frame: The pinnacle of Aluminium technology
  • Fast and efficient Fazua Evation Motor: Assists up to 25km/h.
  • Shimano 105 drivetrain: Delivers exceptional shifting, with a wide range of gears suitable for all terrain.

Full Specification:

  • Frame: 300 Series Alpha Aluminium, Fazua Evation integrated drive system, tapered head tube, internal routing, flat-mount disc, mudguard mounts, 148x12 mm thru axle
  • Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Motor: Fazua Evation Drive Pack, 25 km/h max assist
  • Battery: Fazua Evation 1.0, 250 Wh
  • Controller: Fazua Evation touch remote
  • Number of Gears: 2x11
  • Gear Shifters: Shimano 105 R7020, 11-speed
  • Chainset: FSA for Fazua, 50/34, 170 mm length
  • Rear Cassette: Shimano 105 HG700-11, 11-34, 11-speed
  • Chain: Shimano 105 HG601, 11-speed
  • Front Derailleur: Shimano 105 R7000, braze-on
  • Rear Derailleur: Shimano 105 R7000, long cage, 34T max cog
  • Rims: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width
  • Front Hub: Bontrager Paradigm Comp 100x12 mm thru axle
  • Rear Hub: Bontrager Paradigm Comp Shimano 11-speed freehub, 148x12 thru axle
  • Front Tyre: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
  • Rear Tyre: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
  • Brakes: Shimano 105 hydraulic disc
  • Handlebars: Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop
  • Tape: Bontrager Supertack Perf tape
  • Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
  • Saddle: Bontrager Arvada Comp, 138 mm width
  • Accessories: Fazua Evation charger
  • Weight:15.21 kg, 33.53 lbs

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Domane+ AL Electric Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
49156 - 163 cm5'1" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
61185 - 191 cm6'1" - 6'3"86 - 90 cm34" - 35"

Geometry for Trek Domane+ AL


Frame size number49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c
A — Seat tube4447.55052.554.856.7
B — Seat tube angle74.6°74.2°73.7°73.3°73.0°72.7°
C — Head tube length111314.5161822
D — Head angle70.8°71.3°71.3°71.9°72.0°72.1°
E — Effective top tube51.75354.255.456.758.6
G — Bottom bracket drop8887.87.87.8
H — Chainstay length434343434343
I — Offset5.35.35.34.84.84.8
J — Trail6.76.46.46.56.56.4
K — Wheelbase100.7101.3102.1101.8102.7104.3
L — Standover72.775.377.279.480.982.5
M — Frame reach36.837.137.437.73838.5
N — Frame stack5456.157.559.161.164.6
Stem length809090100100110

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
