The Trek Domane + LT 9 is a high-end electric road bike that looks, rides and feels more like a traditional road bike. You won't feel much drag or resistance from the Fazua System when you turn it off or pass the maximum level of assist.
The Trek Domane + LT 9 is a high-end electric road bike that looks, rides and feels more like a traditional road bike. You won't feel much drag or resistance from the Fazua System when you turn it off or pass the maximum level of assist.
Trek

Trek Domane + LT 9 Electric Road Bike in Red/Blue

£8,560.00 £10,700.00 20% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Domane + LT 9 Electric Road Bike in Red/Blue

Season:2021

Brand:Trek

Code:edaFULBDotDERegaR02028752

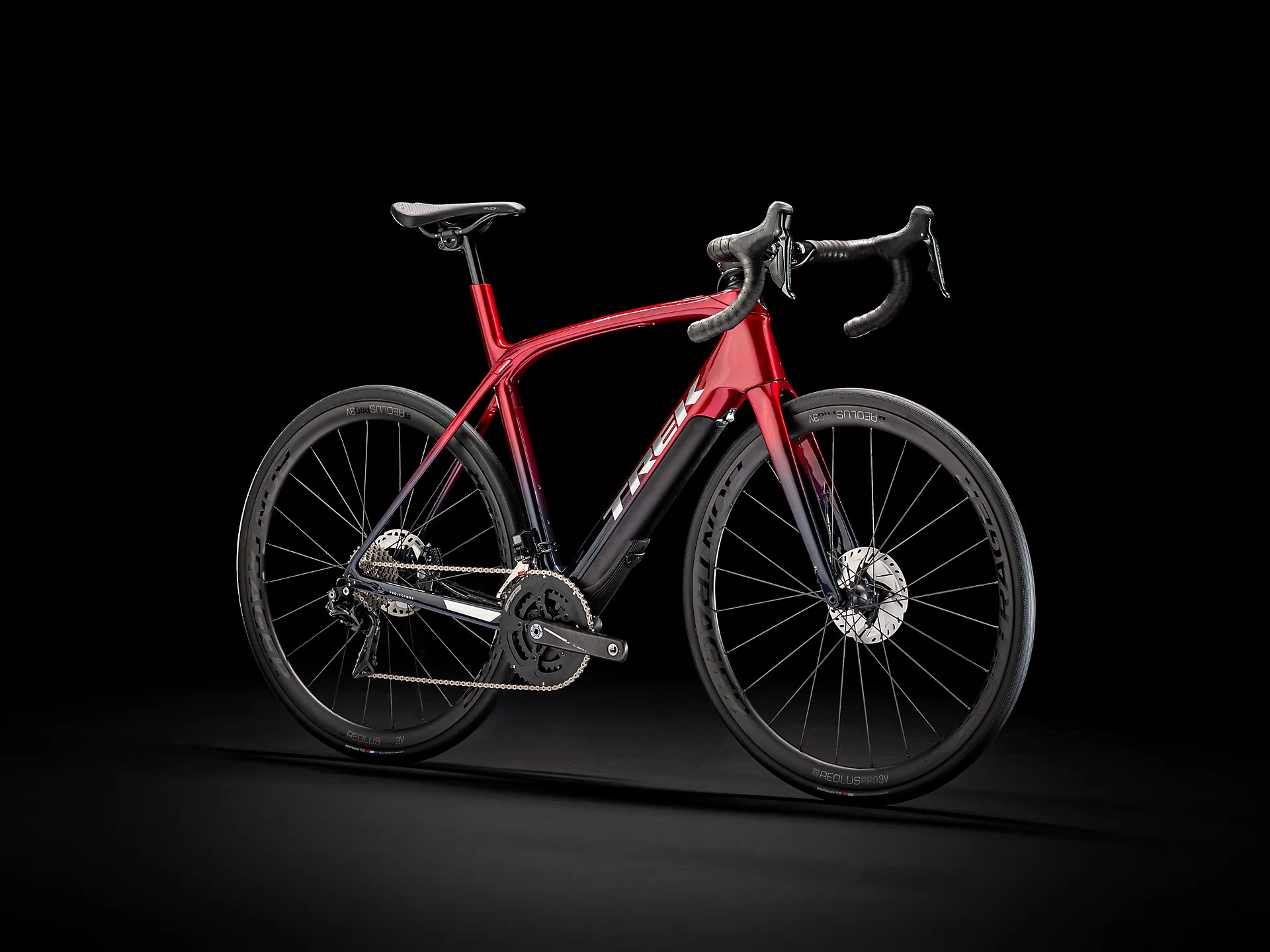

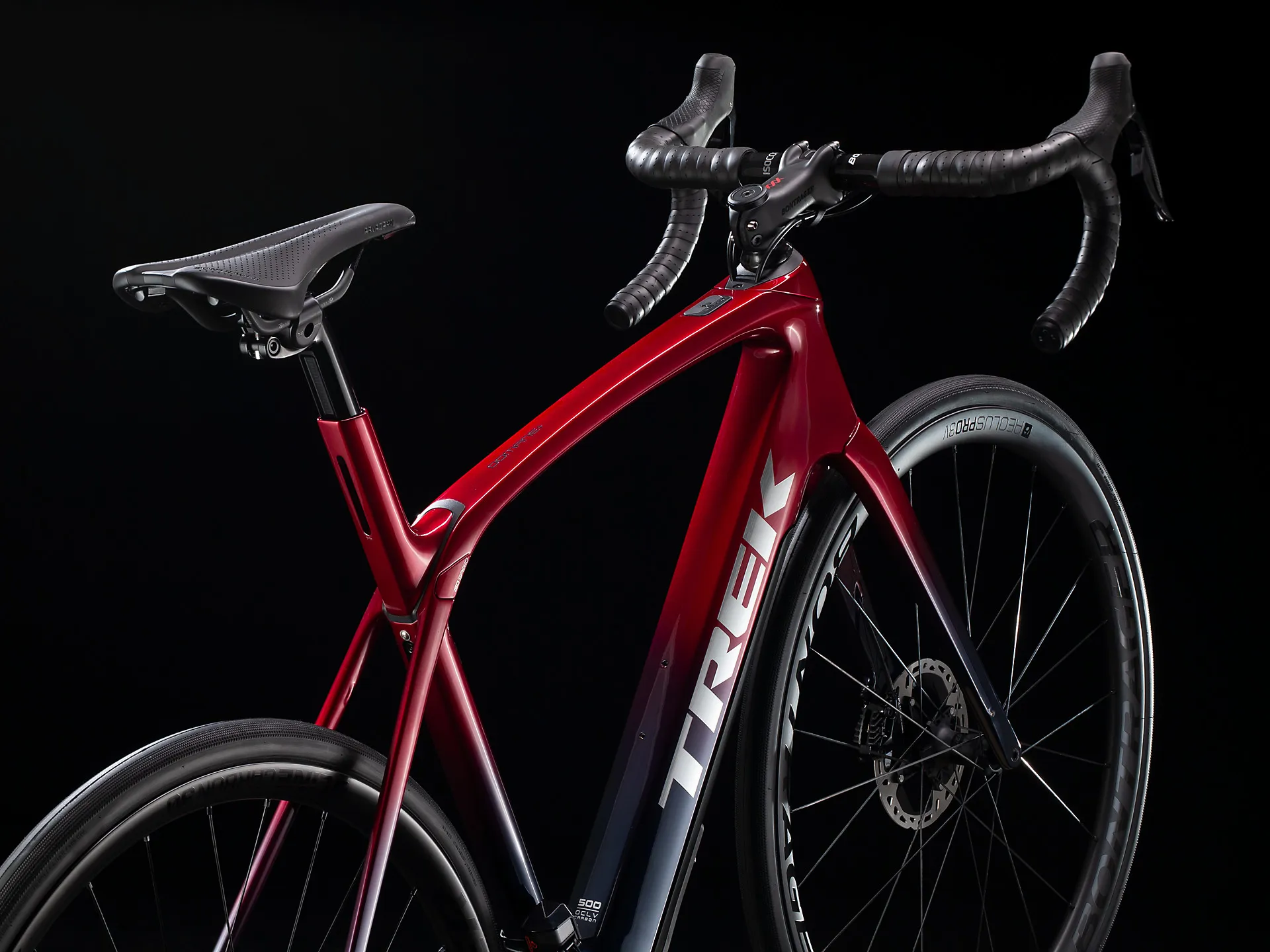

The Trek Domane+ LT 9 is a high-end carbon drop-bar electric bike designed for roadies who want an authentic road bike experience with an extra boost.

The sleek and efficient Fazua drive system kicks things up a notch when you need it – like riding into a headwind or beating your buddy up a climb – but doesn't drag or hold you back when it's not in use. You also get the high-performance benefits of a 500 series OCLV Carbon frame, road-smoothing front and rear IsoSpeed which absorbs fatiguing bumps and Shimano Dura Ace Di2 components.

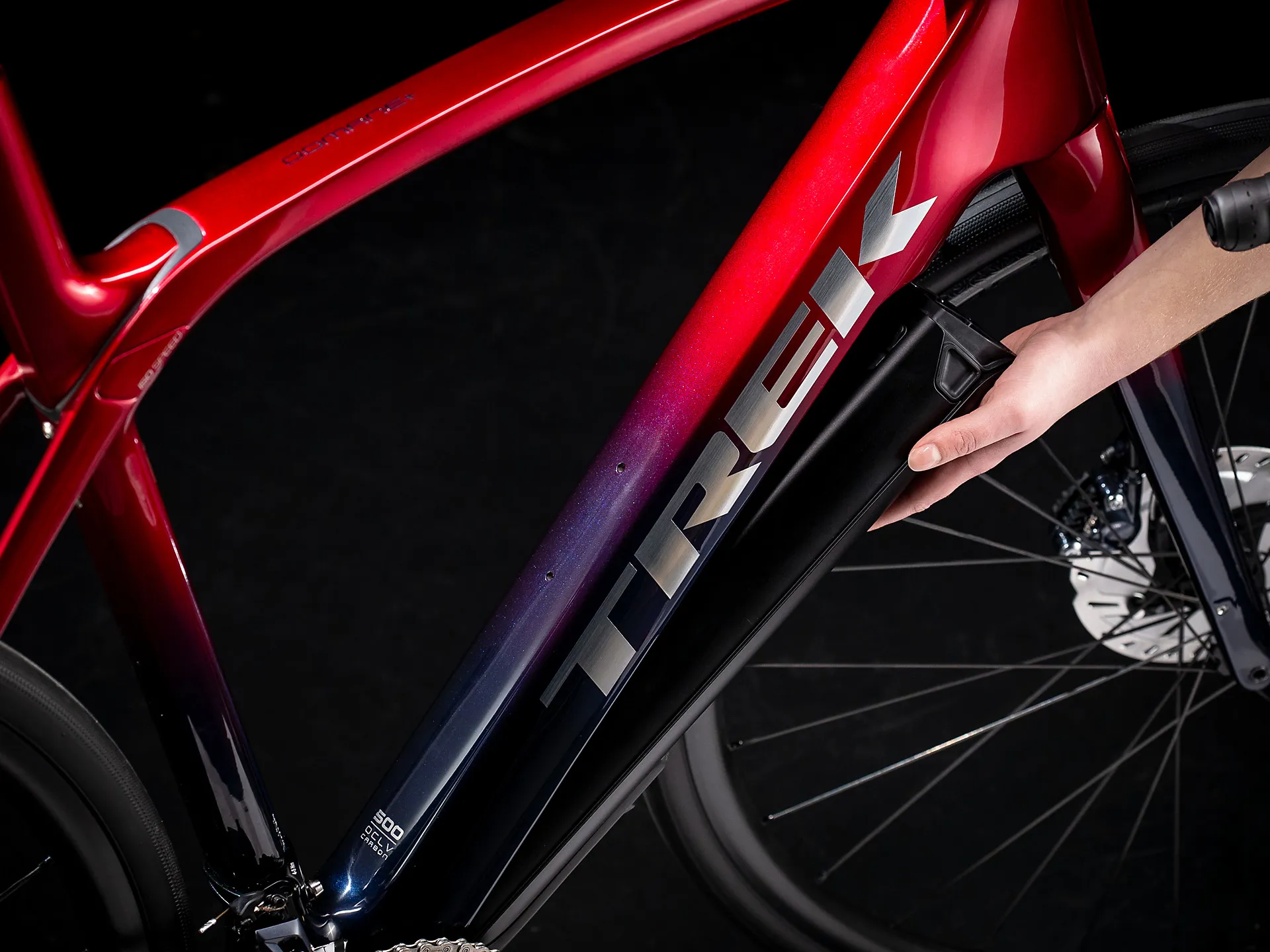

The light, fast and efficient Fazua Evation motor and a 250 Wh battery that assists up to 25 km/h. You can easily remove the Fazua drivepack (the battery and motor) from the frame and ride the bike with or without it. Plus, a Fazua controller, Bontrager Aeolus Pro 3V carbon wheels, and hydraulic disc brakes.

The road-smoothing Domane+ frame paired with a streamlined and efficient electric drive system, plus the precision of 2 x 11 Shimano Dura Ace Di2 electronic shifting, is the best of two worlds – a true road bike feel with an additional thrust of power when you want to crush a climb or push yourself to pop off a few more miles.

Key Features and Benefits:

500 Series OCLV Carbon frame: Trek's strongest and lightest carbon.

Fast and efficient Fazua Evation Motor: Assists up to 25km/h.

Shimano Ultegra Di2 drivetrain: Delivers exceptional shifting, with a wide range of gears suitable for all terrain.

Full Specification:

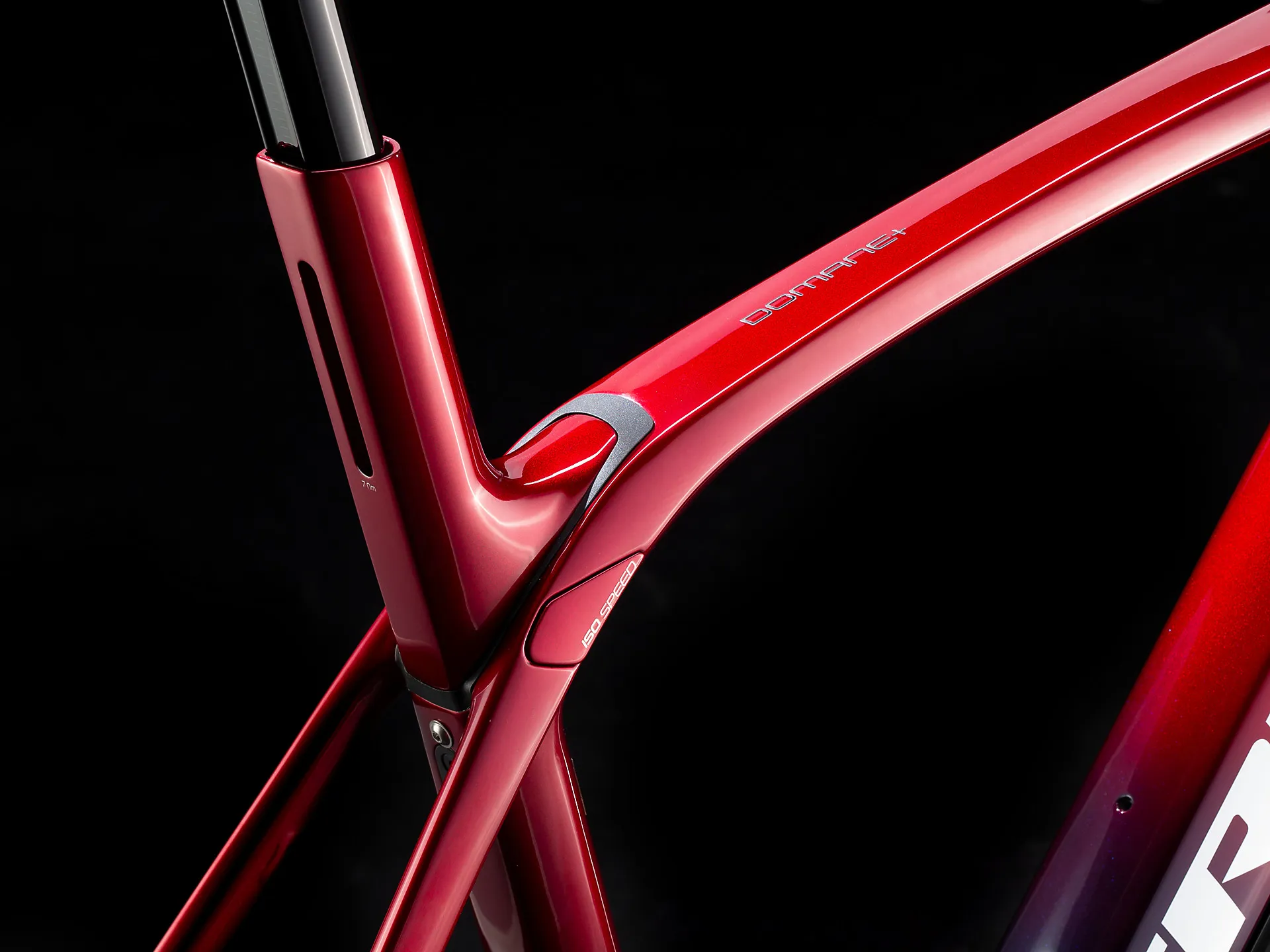

  • Frame:  500 Series OCLV Carbon, Fazua Evation integrated drive system, tapered head tube, rear IsoSpeed, internal routing, flat-mount disc, mudguard mounts, 148x12 mm thru axle
  • Fork:  Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle

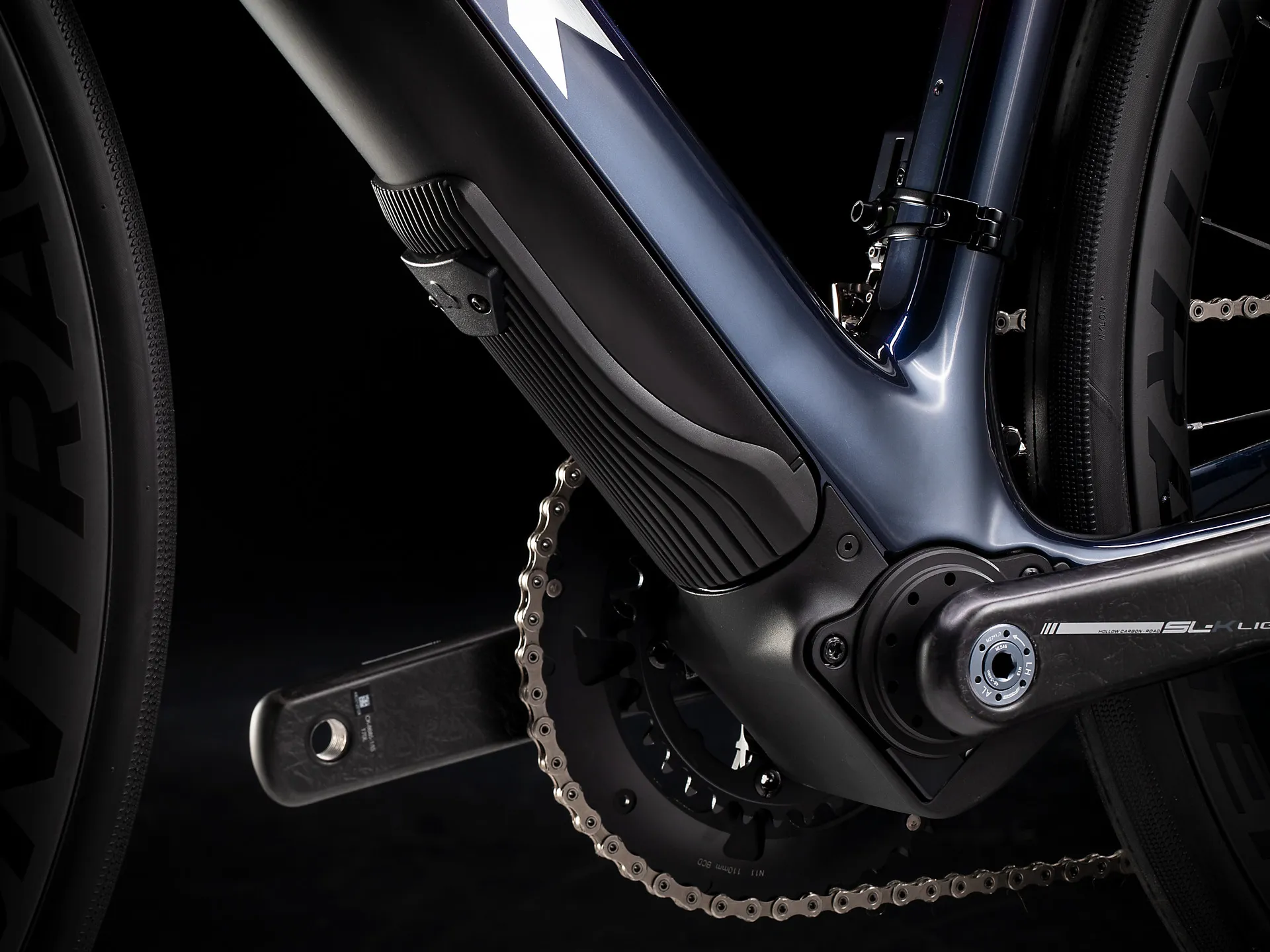

  • Motor:  Fazua Evation Drive Pack, 25 km/h max assist
  • Battery:  Fazua Evation 1.0, 250 Wh

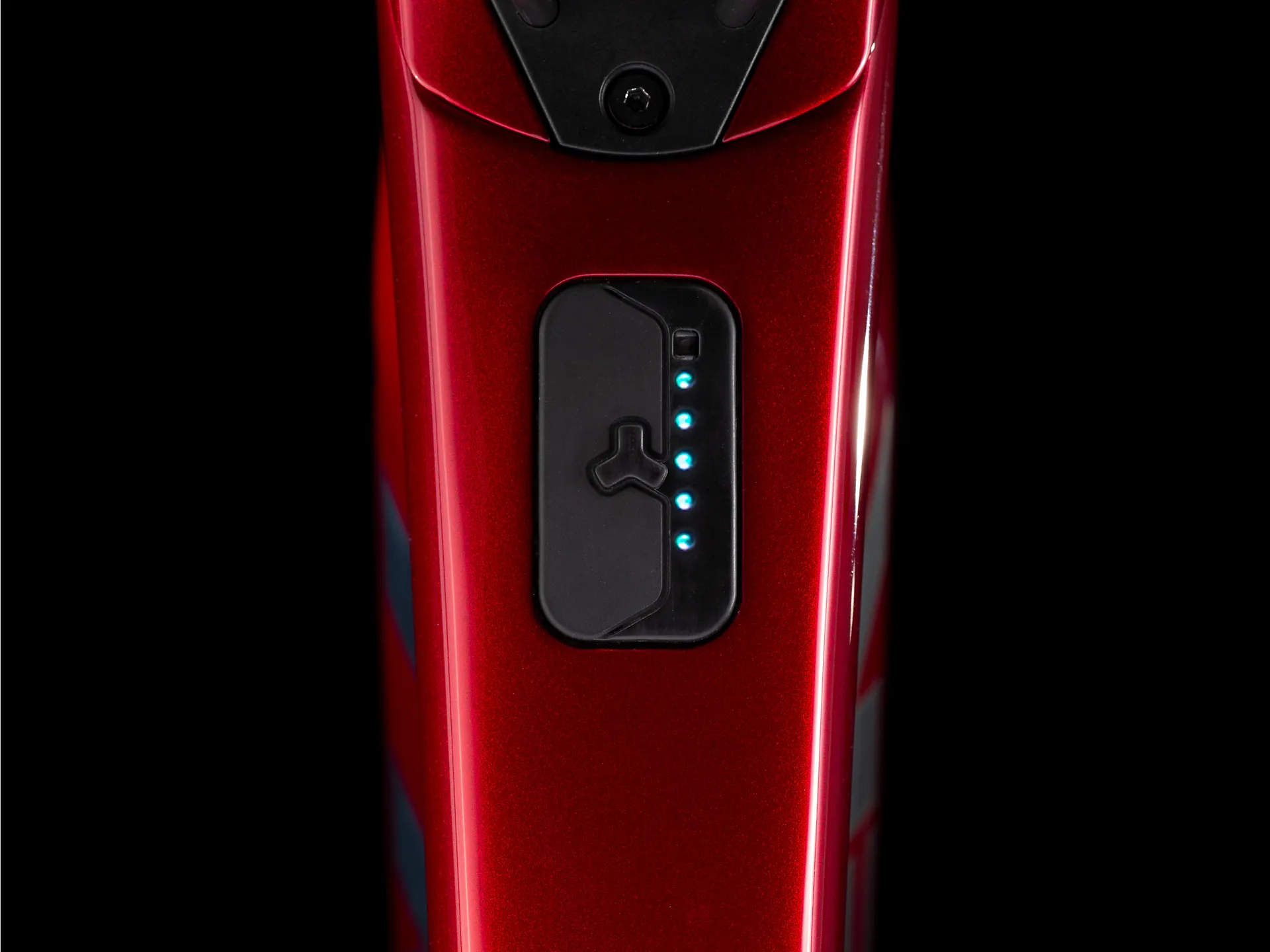

  • Controller:  Fazua Evation touch remote
  • Number of Gears:  2x11
  • Gear Shifters:  Shimano Dura-Ace Di2 R9170, 11-speed

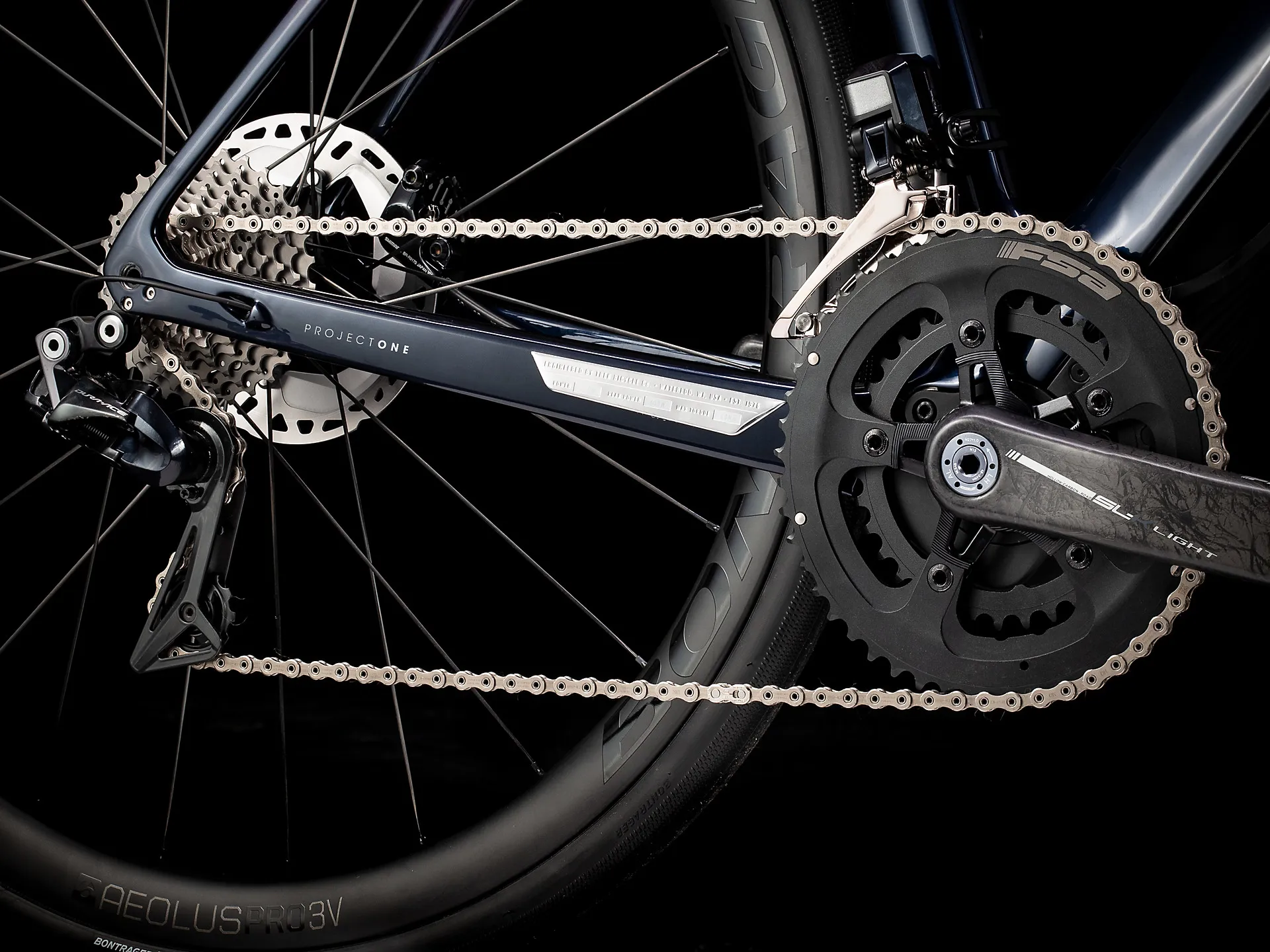

  • Chainset:  FSA Carbon for Fazua, 50/34, 170 mm length
  • Rear Cassette:  Shimano Dura-Ace R9100, 11-30, 11-speed
  • Chain:  Shimano Dura-Ace HG900, 11-speed
  • Front Derailleur:  Shimano Dura-Ace Di2 R9150, braze-on
  • Rear Derailleur:  Shimano Dura-Ace Di2 R9150, short cage, 30T max cog
  • Rims:  Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width
  • Front Hub:  Bontrager Aeolus Pro 3V, 100x12 mm thru axle
  • Rear Hub:  Bontrager Aeolus Pro 3V, Shimano 11-speed freehub, 142x12 mm thru axle
  • Front Tyre:  Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
  • Rear Tyre:  Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c

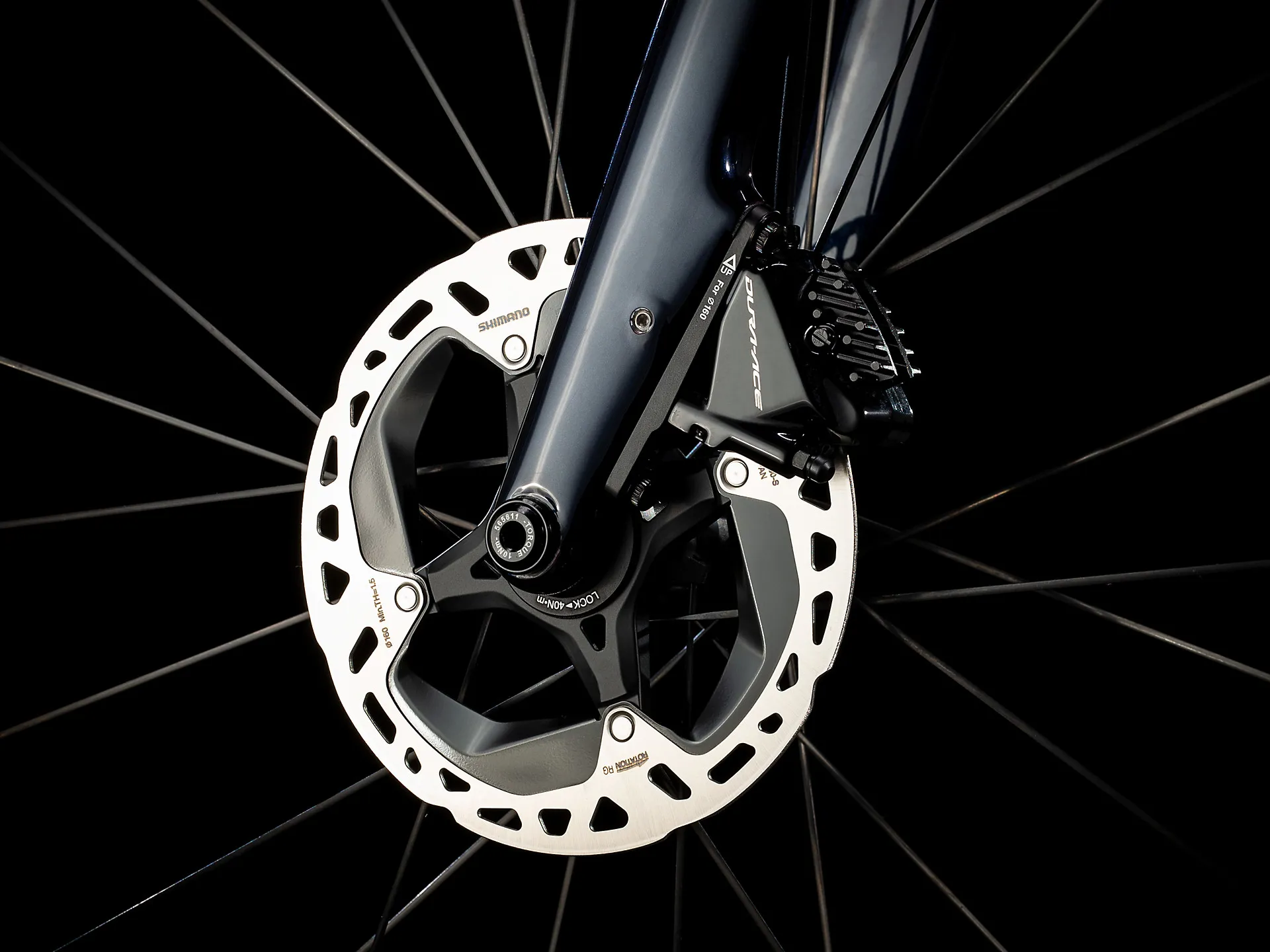

  • Brakes:  Shimano EM910, 160mm, centerlock

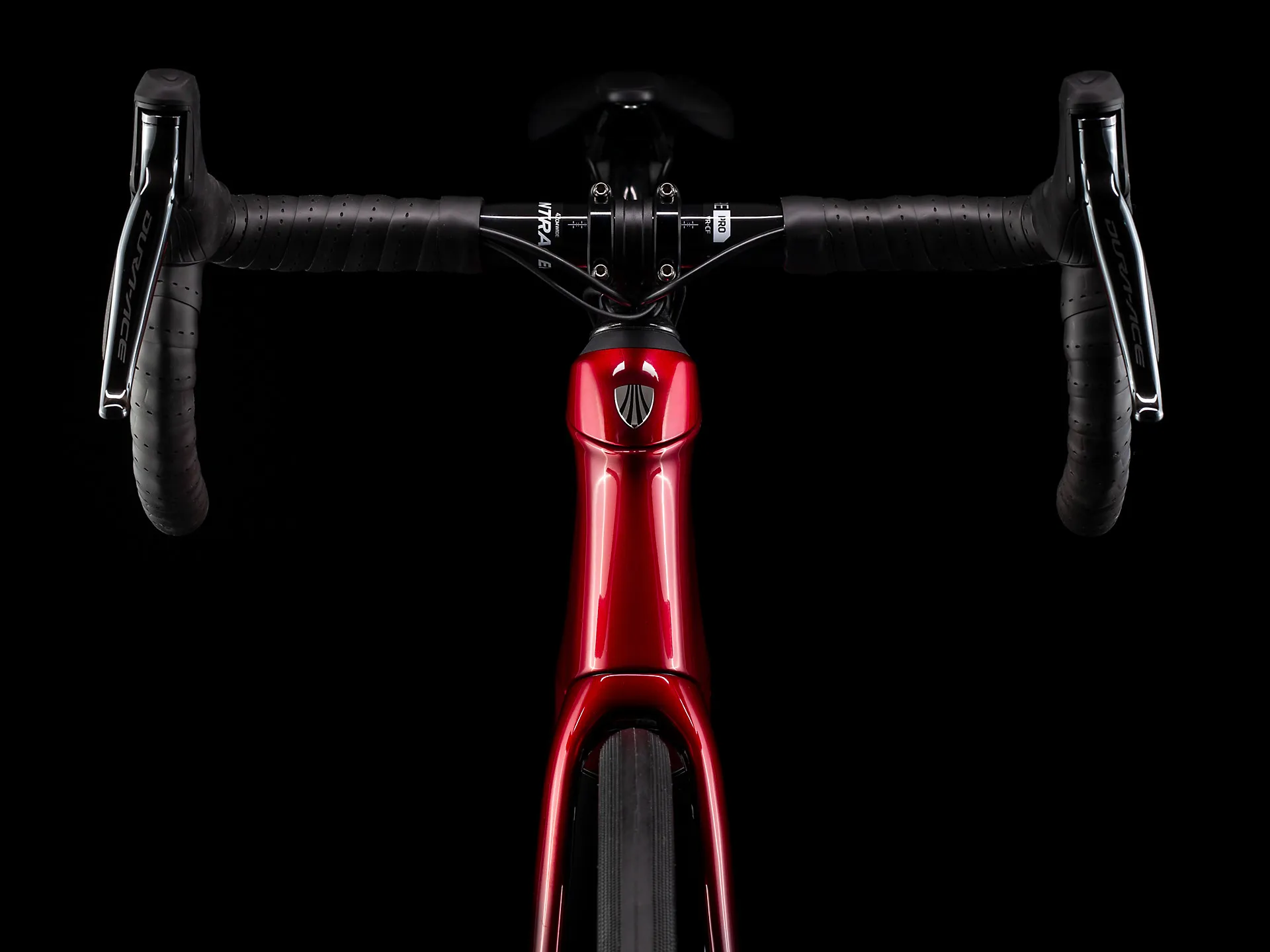

  • Handlebars:  Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop
  • Tape: Bontrager Supertack Perf tape
  • Stem:  Bontrager XXX, 31.8 mm, Blendr compatible, 7-degree
  • Saddle:  Bontrager Arvada Pro, carbon rails, 138 mm width
  • Accessories:  N/A
  • Weight:  13.6 kg with drivepack, 10.7 kg without drivepack



Trek Electric Bikes: Domane+ LT

Technical Information

Geometry for Trek Domane+ LT 9 Electric Bike

All measurements provided in cm unless otherwise stated.

Trek Domane + LT 9 Electric Bike Geometry Chart

Frame Size Number 50 52 54 56 58 60 62
Wheel Size  700c 700c 700c 700c 700c 700c 700c
A - Seat Tube 45.0 47.5 50.0 52.5 54.8 56.7 58.6
B - Seat Tube Angle 74.6° 74.2° 73.7° 73.3° 73.0° 72.8° 72.5°
C -  Head Tube Length 13.0 14.5 16.0 17.5 19.5 22.0 24.5
D -  Head Angle 71.1° 71.3° 71.3° 71.9° 72.0° 72.1° 72.1°
E - Effective Top Tube 51.9 53.0 54.2 55.4 56.7 57.9 59.3
G - Bottom Bracket Drop 8.0 8.0 8.0 7.8 7.8 7.5 7.5
H - Chainstay Length  42.0 42.0 42.0 42.0 42.5 42.5 42.5
I - Offset 5.3 5.3 5.3 4.8 4.8 4.8 4.8
J - Trail 6.0 5.9 5.9 6.1 6.0 5.9 5.9
K - Wheelbase 99.6 100.3 101.0 100.8 102.2 103.2 104.2
L - Standover 71.6 73.5 75.4 77.6 79.6 81.7 83.5
M - Frame Reach 36.8 37.1 37.4 37.7 38.0 38.3 38.6
N - Frame Stack 54.6 56.1 57.5 59.1 61.1 63.2 65.6
Saddle Rail Height Min (w/ Short mast) 58.5 61.5 64.0 67.0 69.0 71.0 73.0
Saddle Rail Height Max (w/ Short Mast) 64.5 67.5 70.0 73.0 75.0 77.0 79.0
Saddle Rail Height Min (w/ Tall Mast) 62.0 65.0 67.5 70.5 72.5 74.5 76.5
Saddle Rail Height Max (w/ Tall Mast) 68.0 71.0 73.5 76.5 78.5 80.5 82.5
