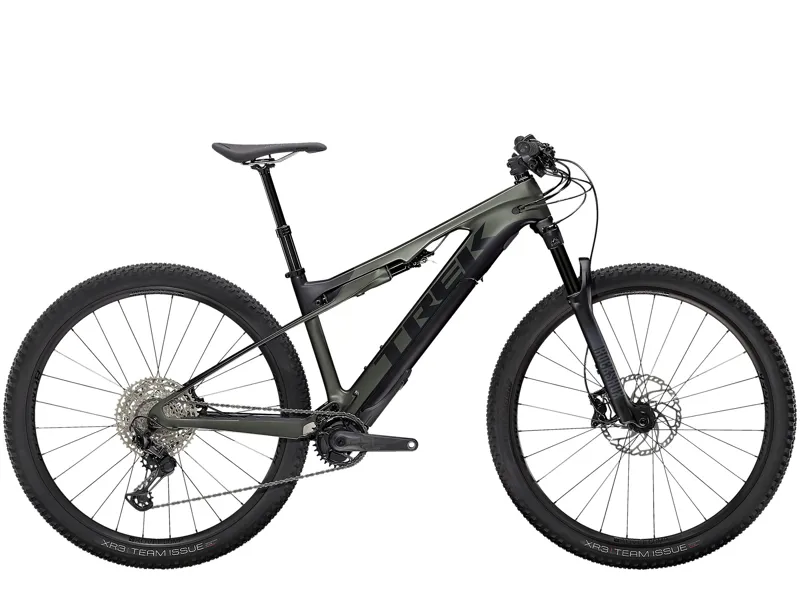

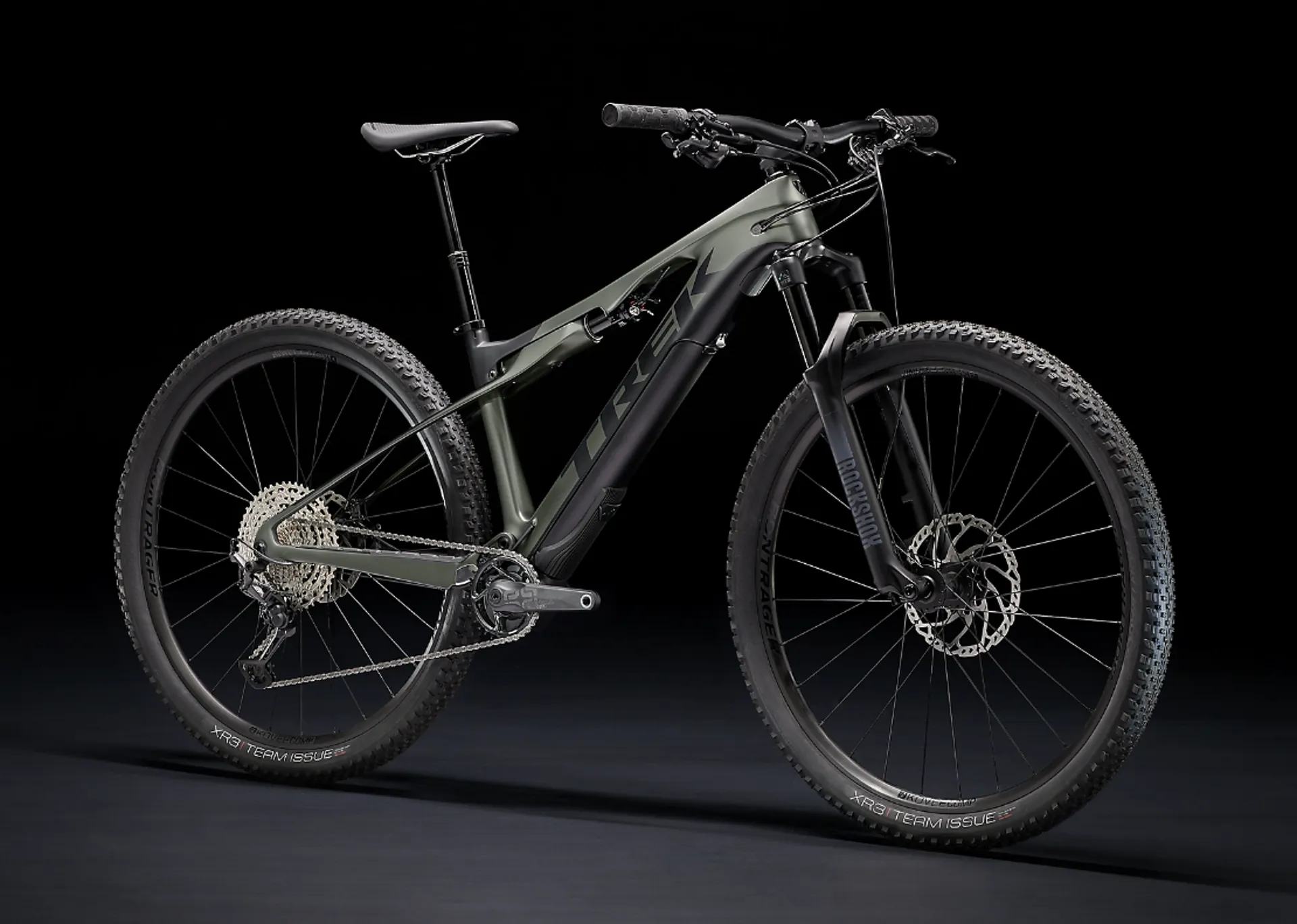

Trek E-Caliber 9.6 eMountain Bike 2022 in Lithium Grey/Black

Trek E-Caliber 9.6 eMountain Bike 2022 in Lithium Grey/Black-1

Trek E-Caliber 9.6 eMountain Bike 2022 in Lithium Grey/Black-2

Trek E-Caliber 9.6 eMountain Bike 2022 in Lithium Grey/Black-3

Trek E-Caliber 9.6 eMountain Bike 2022 in Lithium Grey/Black-4

The E-Caliber 9.6 is a carbon electric mountain bike that rides – and looks – like a traditional cross-country bike.

Trek

Trek E-Caliber 9.6 eMountain Bike 2022 in Lithium Grey/Black

£4,370.00 £6,500.00 33% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.

Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek E-Caliber 9.6 eMountain Bike 2022 in Lithium Grey/Black

Season:2024

Brand:Trek

Code:35141SATLithiumGRYBLK

The E-Caliber 9.6 is a carbon electric mountain bike that rides – and looks – like a traditional cross-country bike.

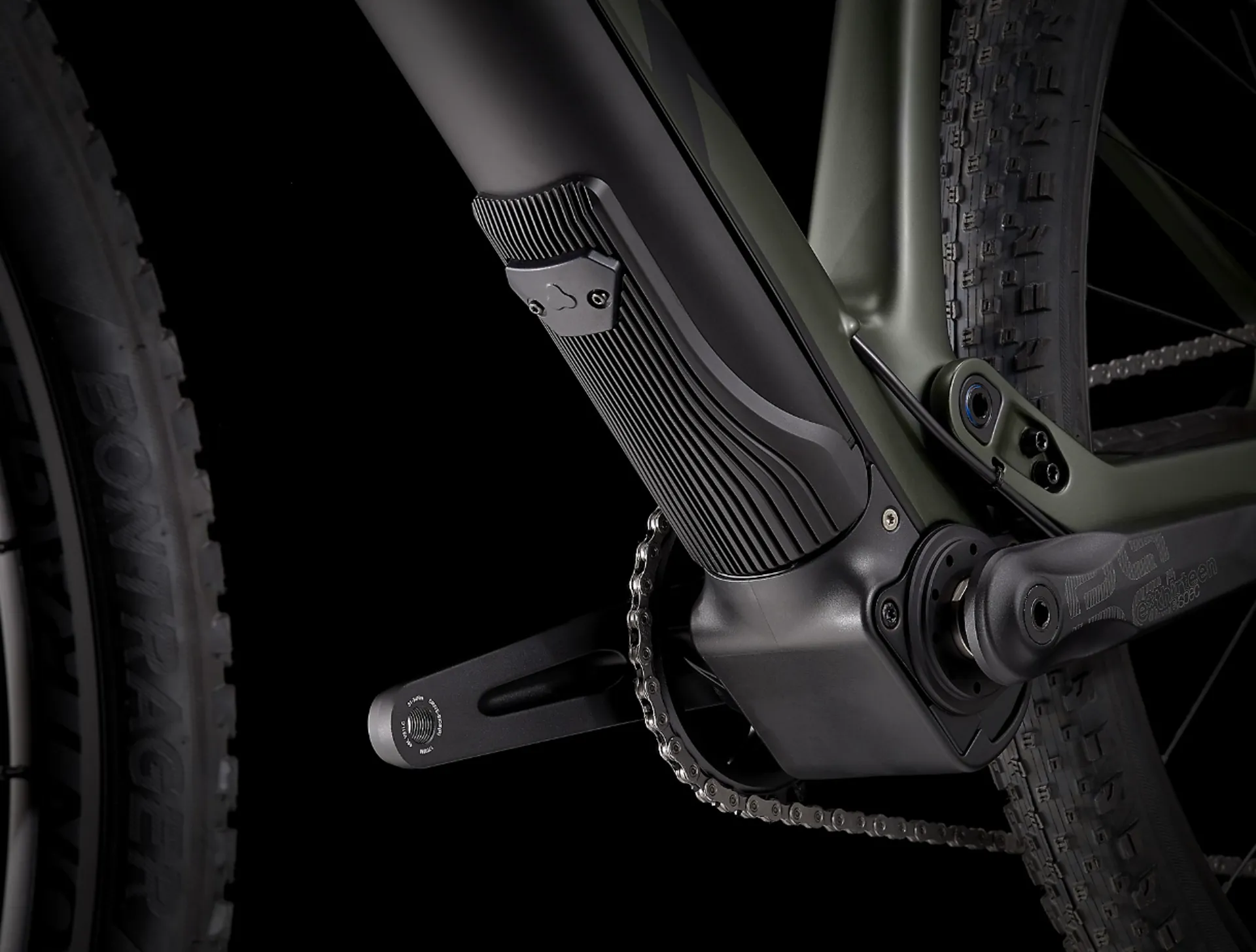

The compact Fazua drive system lets you do more of what you love with subtle, natural-feeling assist that doesn't overpower the physical and technical challenges of the trail.

You get a helping hand from the motor on climbs and long rides, but it's a more natural-feeling assist that gives you an overall experience that's closer to riding an analogue bike than a typical e-MTB

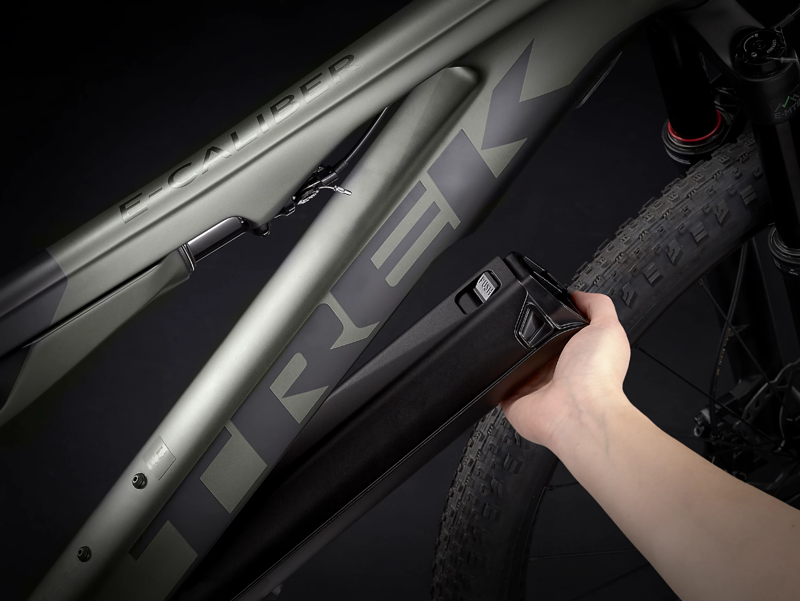

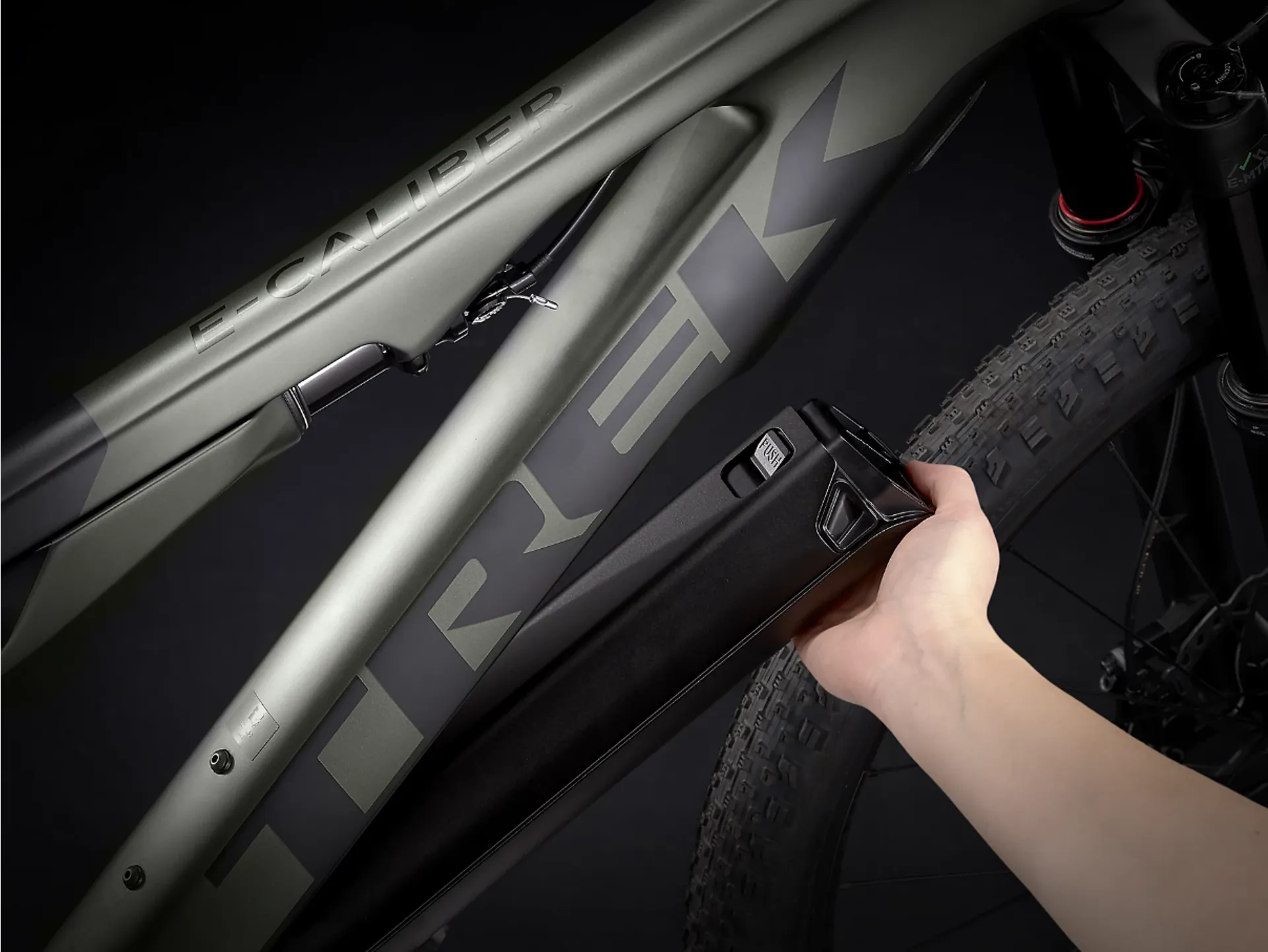

The drive system, including the motor, is easily removable. Just take it out, pop on the included cover, and you’ll have a standard mountain bike that weighs 2.9 kg less than before

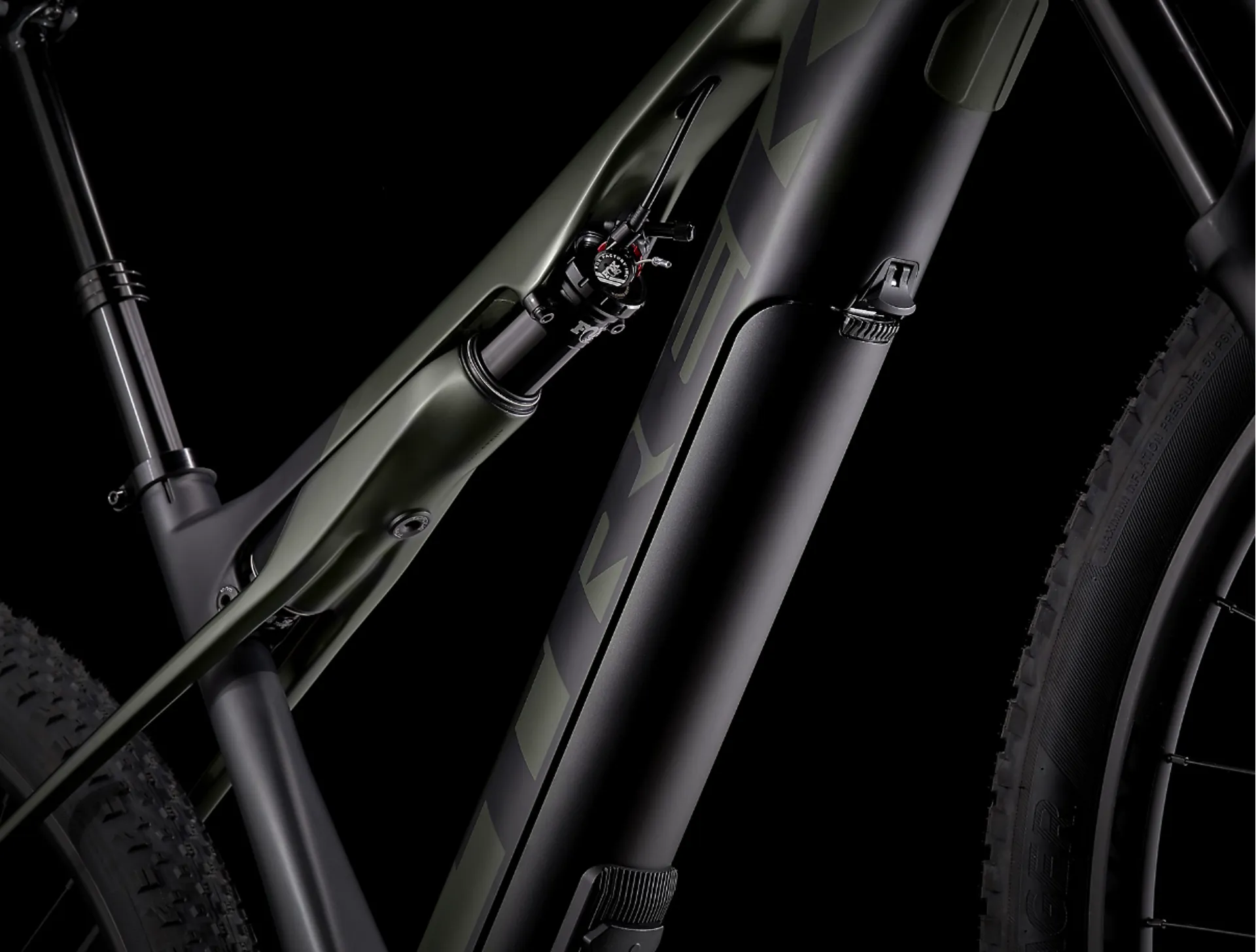

IsoStrut gives you just enough rear suspension for cross-country traction and comfort with less weight and more efficiency
Pivotless seat stays save on weight and actively bend to help soak up trail chatter

Key Features & Benefits:

OCLV Carbon frame:Ultra Lightweight & Durable.
Fazua Evation motor:Perfect for the rider who wants a motor to suppor their ride, not rule it.
RockShox and Fox suspension:Absorbs trail vibration for a more comfortable ride.

Full Specification:

Frame:OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Rear Suspension:Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm
Fork:RockShox 35 Gold RL, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Motor:Fazua Evation removable motor system
Battery:Fazua 250w removable battery

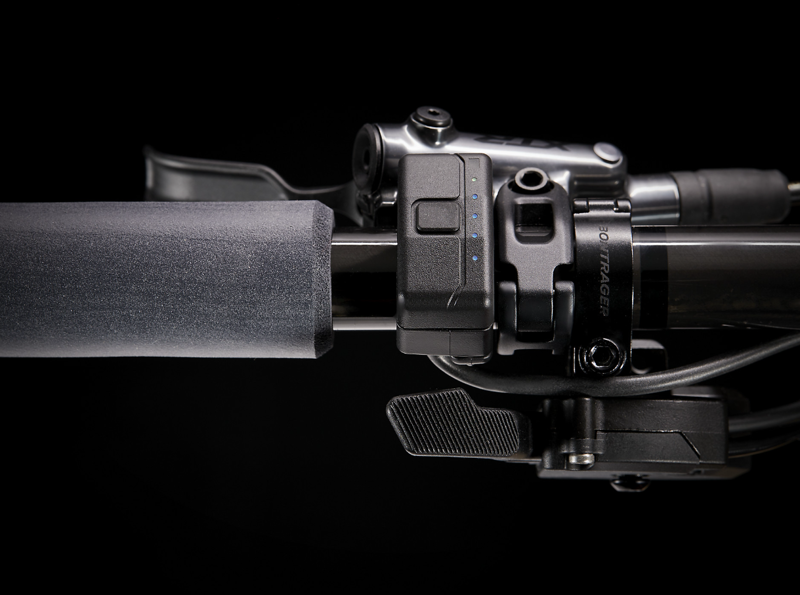

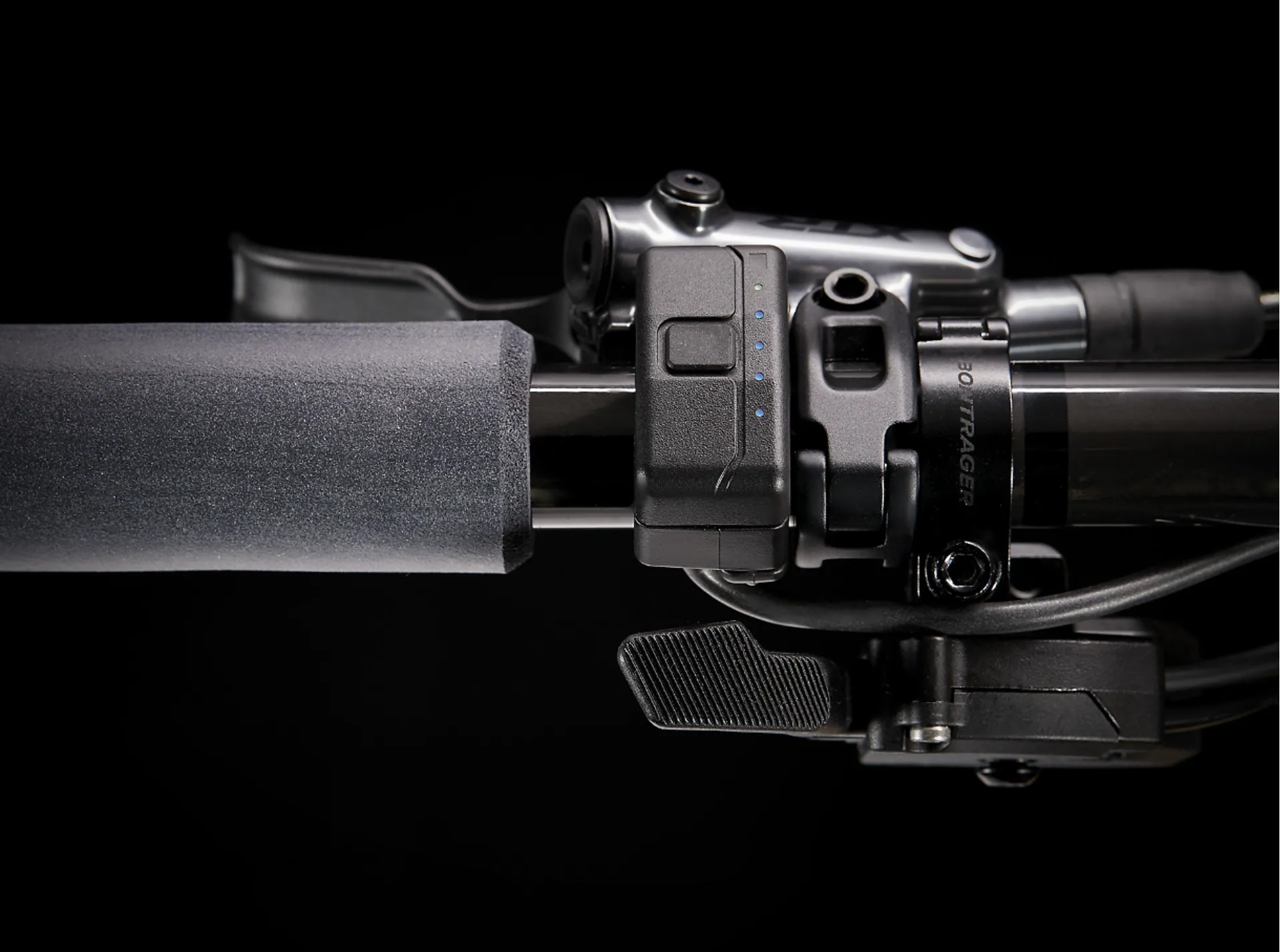

Controller:Fazua bar remote, 3 modes and Bluetooth enabled.
Number of Gears:12
Gear Shifters:Shimano Deore M6100, 12-speed
Chainset:E*thirteen E*spec Race
Chainrings:34T
Rear Cassette:Shimano Deore M6100, 10-51, 12-speed
Chain:Shimano Deore M6100
Front Derailleur:N/A
Rear Derailleur:Shimano XT M8100, long cage, 51T max cog
Bottom Bracket:Fazua
Pedals:NA
Rims:Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Front Hub:Bontrager alloy, sealed bearing, 6-bolt, Boost110, 15 mm thru axle
Rear Hub:Bontrager alloy, sealed bearing, 6-bolt, Shimano MS driver, Boost148, 12 mm thru axle
Front Tyre:Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Rear Tyre:Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Brakes:Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Handlebars:Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Handlebar Tape:Bontrager XR Trail Comp, lock-on
Headset:Knock Block Integrated, sealed cartridge bearing
Stem:Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length
Saddle:Bontrager Arvada, austenite rails, 138 mm width
Seatpost:TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Accessories:N/A
Weight:M - 18.48 kg / 40.75 lbs (with TLR sealant, no tubes)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek E-Caliber

Frame Size	Rider Height (cm)	Rider Height (')	Inseam (cm)	Inseam (")
S	153 – 166	5’0″ – 5’5″	72 - 79	28 - 31
M	161 - 175	5’3″ – 5’9”	76 - 82	30 - 32
L	174 – 188	5’9” – 6’1″	82 - 88	32 - 34
XL	186 – 196	6’1” – 6’5″	87 - 93	34 - 36

Geometry for Trek E-Caliber

Frame size letter	S	M	L	XL
Actual frame size	15.5	17.5	19.5	21.5
Wheel size	29"	29"	29"	29"
A — Seat tube	39.4	41.9	47	50.8
B — Seat tube angle	72.3°	72.6°	72.8°	72.8°
C — Head tube length	9	10	10.5	11
D — Head angle	67.5°	67.5°	67.5°	67.5°
E — Effective top tube	58	61.7	64.8	67
F — Bottom bracket height	32.3	32.3	32.3	32.3
G — Bottom bracket drop	5	5	5	5
H — Chainstay length	44.7	44.7	44.7	44.7
I — Offset	4.2	4.2	4.2	4.2
J — Trail	10.9	10.9	10.9	10.9
K — Wheelbase	112.6	116.5	119.7	121.9
L — Standover	76.8	76.8	76.8	76.8
M — Frame reach	40.5	44	47	49
N — Frame stack	60.9	61.8	62.2	62.7

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information

Frame
OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Shock
Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm
Max compatible fork travel
120mm (531mm axle-to-crown)
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rearBontrager Switch thru axle, removable lever
Bontrager Switch thru axle, removable leverBontrager Switch thru axle, removable lever
Rim
Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
Frame: 29x2.40" Fork: See manufacturer
Shifter
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano XT M8100, long cage, 51T max cog
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100
Max. chainring size
32T with 52mm chainline, 36T with 55mm chainline
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size: S, TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M/L/XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Size: S, Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Size: M/L/XL, Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
GripsBontrager XR Trail Comp, nylon lock-on
Bontrager XR Trail Comp, nylon lock-onBontrager XR Trail Comp, nylon lock-on
Stem
Size: S/M, Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length
Size: L/XL, Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length
Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor
Shimano RT66, 6-bolt, 180mm
E-bike system
Fazua Ride Trail 50 motor
Battery
Fazua Evation battery, 250 Wh
Charger
Fazua Evation charger, 220-240V
Controller
Fazua Remote bX
Weight
M - 18.48 kg / 40.75 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
