The Verve+ 5 is a deluxe high-power electric hybrid bike built for riders who want to kick their daily commutes and recreational rides up to a whole new level.

Trek

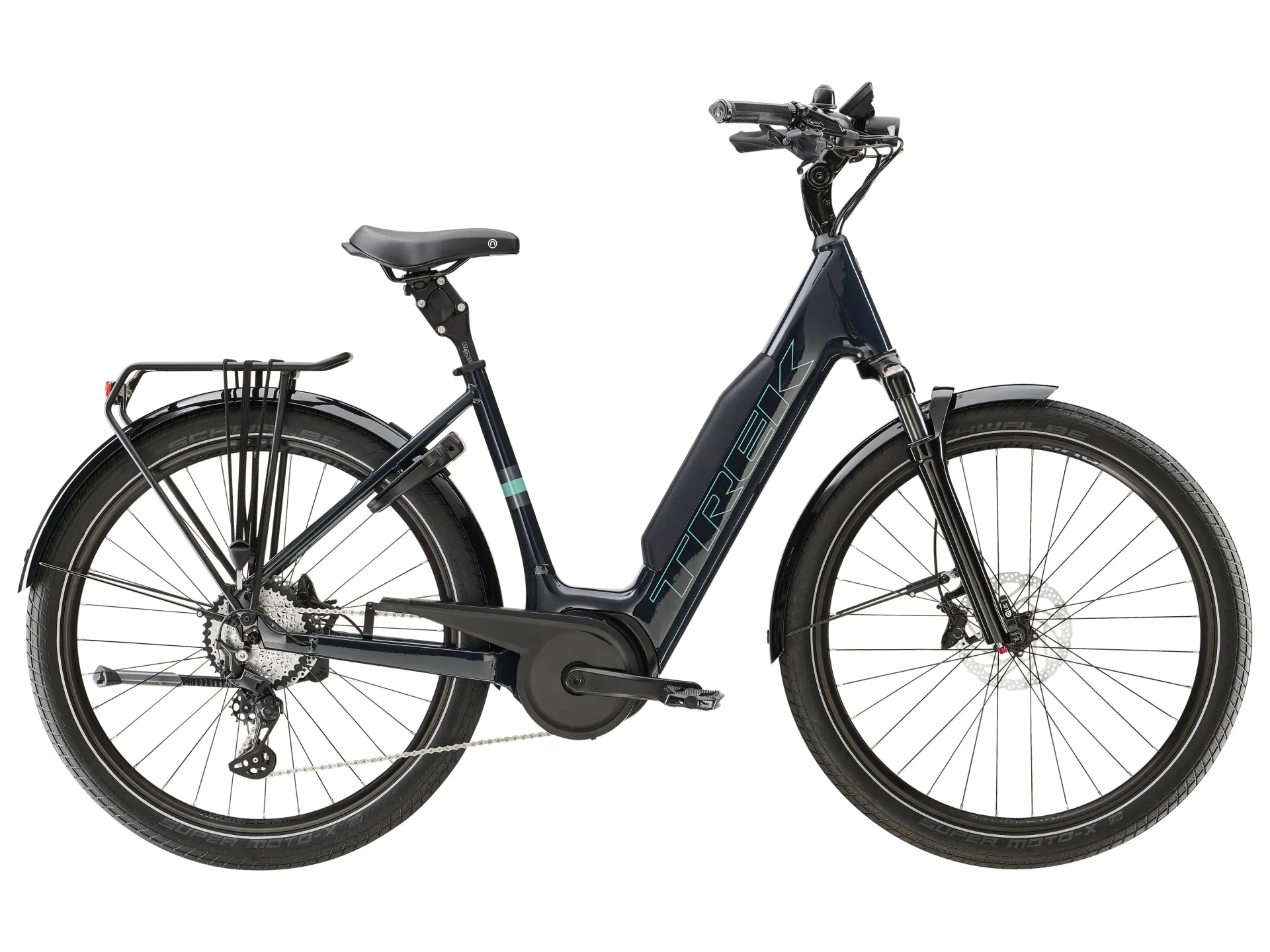

Trek Verve+ 5 800Wh Lowstep Electric Hybrid Bike 2023 in Nautical Navy

£3,540.00 £4,450.00 20% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.

Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Verve+ 5 800Wh Lowstep Electric Hybrid Bike 2023 in Nautical Navy

Season:2024

Brand:Trek

Code:36946NAVY800LOWSTEP

The Verve+ 5 is a deluxe high-power electric hybrid bike built for riders who want to kick their daily commutes and recreational rides up to a whole new level.

It features a reliable and powerful Bosch BES3 drive unit with smart system integration, and four different battery options ranging from 400 Wh to 800 Wh for you to choose from. This e-bike comes equipped with parts that put your comfort first, like a suspension fork and seat post, racks and integrated lights.

You want to pedal to new horizons with full power to help you get there. You love spinning with speed through your commutes and joyrides, and know that you can trust Bosch's motor to carry you as fast and far as you want to journey. User-friendly features are important to you, so the step-thru frame for easy on and off, and suspension fork and seat post are just the icing on the cake

A lightweight high-performance hydroformed aluminium frame with step-thru geometry, a Bosch BES3 Performance Line Sport drive unit capable of sustaining speeds up to 20 mph (25 km/h in Europe), your choice of 400 to 800 Wh batteries that are easy to install and remove from the frame, smart system integration for use with the e-Bike Flow app and a Bosch Kiox controller. Plus, a 10-speed Shimano Deore drivetrain with link guide, hydraulic disc brakes for all-weather stopping power, a suspension seat post, wide, upgraded, puncture-resistant tyres for extra stability, ergonomic grips, a kickstand, lights, and a rack and mudguards.

The Verve+5 is built to make every ride a pleasure. It eases long commutes and rides on the bike trail, and offers plenty of power for pedalling up steep hills. It features your choice of long-range battery, a powerful Bosch motor, an intuitive controller, smart system for logging rides and mapping routes, and a road-smoothing suspension fork and seat post. Plus, upgraded components where it matters most, and a Bosch BCM anti-theft feature for added security when parked.

Key Features & Benefits:

250W Bosch Motor:Most reliable pedal-assist motor, capable of sustaining up to 25 km/h
Hydraulic Disc Brakes:Reliable braking performance to keep you in control, whatever the weather.
10 Shimano Deore Gears:Wide range of gears suitable for a range of terrain, with the simplicity of a single shifter.

Full Specification:

Frame:Alpha Smooth Aluminium, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR
Fork:SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15mm thru axle, 60mm travel
Motor:Bosch Performance Line Cruise, 250 W, 75 Nm, 25 km/h
Battery:Bosch Powertube 800Wh
Controller:Bosch Kiox 300, smart system
Charger:Bosch standard 4A, 230V, smart system
Number of Gears:10
Gear Shifters:Shimano Deore M5130, 10-speed
Chainset:Prowheel alloy 170-175mm length
Chainrings:38T steel ring
Rear Cassette:Shimano LG400, 11-43, 10-speed
Chain:Shimano LG500
Front Derailleur:N/A
Rear Derailleur:Shimano Deore M5130
Bottom Bracket:N/A
Pedals:Bontrager City pedals
Rims:Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Front Hub:Bontrager sealed bearing, 32-hole 15 mm alloy thru-axle
Rear Hub:Formula CL-52 alloy, 135x5 mm QR
Front Tyre:Schwalbe Super Moto-X, reflective, wire bead, Greenguard protection, 650x62c
Rear Tyre:Schwalbe Super Moto-X, reflective, wire bead, Greenguard protection, 650x62c
Brakes:Shimano MT401 / MT420 hydraulic disc, 180 mm rotor
Handlebars:Bontrager Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Handlebar Grips/Tape:Bontrager Satellite Elite, alloy lock-on
Headset:Integrated
Stem:Adjustable aluminium, 31.8 mm, 90 - 110 mm length
Saddle:Selle Royal ON relaxed
Seatpost:Ergotec PM705-N suspension
Accessories:Spanninga Solo front light, AXA compactline rear light, SKS mudguards, kickstand, rear carrier
Weight:M – 27.70 kg / 61.07 lb (with 545 Wh battery)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Verve+

Frame Size	Rider Height (cm)	Rider Height (')	Inseam (cm)	Inseam (")
XS	147 – 155	4’10″ – 5’1″	69 - 73	27 - 29
S	155 – 165	5’1″ – 5’5″	72 - 78	28 - 30
M	165 - 175	5’5″ – 5’9”	77 - 83	30 - 32
L	175 – 186	5’9” – 6’1″	82 - 88	32 - 34
XL	186 – 197	6’1” – 6’5″	87 - 93	34 - 36

Geometry Information for Trek Verve+ (All 27.5" Wheel versions)

Frame size number	45 cm	50 cm	55 cm	60 cm
Frame size letter	S	M	L	XL
Wheel size	27.5"	27.5"	27.5"	27.5"
A — Seat tube	44	50	55	60
B — Seat tube angle	71.0°	71.0°	71.0°	71.0°
C — Head tube length	16	18	20	22
D — Head angle	68.2°	68.2°	68.2°	68.2°
E — Effective top tube	58.7	59.8	61	62.1
F — Bottom bracket height	29.4	29.4	29.4	29.4
G — Bottom bracket drop	6.5	6.5	6.5	6.5
H — Chainstay length	48.7	48.7	48.7	48.7
I — Offset	4.5	4.5	4.5	4.5
J — Trail	9.5	9.5	9.5	9.5
K — Wheelbase	112.7	114	115.2	116.5
L — Standover	43.3	81.8	85.3	88.7
M — Frame reach	38.5	37.5	38	38.5
N — Frame stack	63	64.9	66.8	68.6
Stem length	9	9	11	11

Geometry Information for Trek Verve+ (700c Lowstep Wheel versions)

Frame size letter	XS	S	M	L
Wheel size	700c	700c	700c	700c
A — Seat tube	39	44	50	55
B — Seat tube angle	71.0°	70.0°	70.0°	70.0°
C — Head tube length	16	16	18	18
D — Head angle	68.5°	68.5°	68.5°	68.5°
E — Effective top tube	58.2	58.8	60.9	62.4
F — Bottom bracket height	30.2	28.6	30.2	30.2
G — Bottom bracket drop	4.5	6.2	6.2	6.2
H — Chainstay length	47.7	50.2	50.2	50.2
I — Offset	4.5	4.5	4.5	4.5
J — Trail	8.2	9.5	9.5	9.5
K — Wheelbase	111.5	114.1	115	116.5
L — Standover	42.1	44	44	44
M — Frame reach	38.5	37.6	37.8	39.3
N — Frame stack	57.1	61.6	63.5	63.5

Geometry Information for Trek Verve+ (700c Step-over Wheel versions)

Frame size number	50 cm	55 cm	60 cm
Frame size letter	M	L	XL
Wheel size	700c	700c	700c
A — Seat tube	50	55	60
B — Seat tube angle	70.5°	70.0°	70.0°
C — Head tube length	16	16	18
D — Head angle	68.5°	68.5°	68.5°
E — Effective top tube	60.1	60.7	61.9
F — Bottom bracket height	30.2	30.2	30.2
G — Bottom bracket drop	6.2	6.2	6.2
H — Chainstay length	50.2	50.2	50.2
I — Offset	4.5	4.5	4.5
J — Trail	9.5	9.5	9.5
K — Wheelbase	114.8	114.8	116
L — Standover	79.1	81.9	85.5
M — Frame reach	38.3	38.3	38.8
N — Frame stack	61.6	61.6	63.5

Please note due to the large variety of Frame shapes, battery sizes and variations between model years, we recommend to double-check all geometry information on each specific product page on Trek's website.

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information

Frame
High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5mm QR
Fork
SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel
Max compatible fork travel
63mm
Hub front
Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle
Hub rear
Formula CL-52 alloy, 135x5 mm QR
Skewer rear
148x5 mm bolt-on
Rim
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre
Schwalbe G-One, 650x57 mm
Max tyre size
27.5 x 2.40"
Charger
Bosch standard 4A, 230V, smart system
*Computer
Size: S, M, L, XL
Bosch Kiox 300, smart system
Size: S, M, L, XL
Bosch LED remote, smart system
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Shifter
Shimano Deore M5130, 10-speed
Rear derailleur
Shimano Deore M5130
*Crank
Size: S, M
ProWheel alloy, 170 mm length
Size: L, XL
ProWheel alloy, 175 mm length
Chainring
ProWheel 40T narrow/wide steel, w/alloy guard
Cassette
Shimano LG400, 11-43, 10-speed
Chain
Shimano LG500, 9/10/11-speed
Pedal
slip-proof pedals with reflectors
Max. chainring size
1x: 48T
Saddle
Bontrager Commuter Comp
*Seatpost
Size: S, M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: L, XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips
Bontrager XR Endurance Elite
*Stem
Size: S, M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Size: L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Brake
Shimano MT401 / MT420 hydraulic disc, 180 mm rotor
*Brake rotor
Size: S, M, L, XL
Shimano RT30, CentreLock, 203 mm
Size: S, M, L, XL
Shimano EM300, CentreLock, 180 mm
Rotor size
Max brake rotor sizes: 180 mm front and rear
*Light
Size: S, M, L, XL
Spanninga SOLO for e-bike
Size: S, M, L, XL
Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight
Kickstand
Pletscher Comp Flex 18
Cargo rack
MIK-compatible alloy rear rack, maximum load 25 kg
*Mudguard
Size: S, M, L, XL
SKS plastic, rear
Size: S, M, L, XL
SKS plastic, front
Weight
M – 23.10 kg / 50.93 lb (with 545 Wh battery)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
