The E-160 RSX is a versatile and involving mid-travel full suspension electric mountain bike.
The E-160 RSX is a versatile and involving mid-travel full suspension electric mountain bike.
Whyte Bikes

Whyte Bikes E-160 RSX Trail/Enduro Electric Mountain Bike 2024 in Black/Matt Black

£6,999.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Whyte Bikes E-160 RSX Trail/Enduro Electric Mountain Bike 2024 in Black/Matt Black

Season:2024

Brand:Whyte Bikes

Code:E-160RSXGLSBLKWhitehBLK

The E-160 RSX is a versatile and involving mid-travel full suspension electric mountain bike.

For trail riding, epic rides out in the hills, pushing your envelope racing e-enduro between the tapes, or having a blast on techy trails and singletrack. However you ride, with the confidence-inspiring E-160 RSX you can turn up the fun on every trail.

The lowered centre of gravity concept optimises the distribution of the E-160 RSX's battery and motor mass within the chassis so you can experience exceptional cornering agility and a planted feel on any trail while 29” wheels deliver you even more grip, stability and confidence over rough terrain. Combine this all with the ‘Total Geometry’ system with its generous reach, reassuring head angle and short offset fork gives you the most confidence-inspiring and agile e-bike we have ever made.

Wherever you ride, the latest Bosch 750Wh PowerTube battery and Performance Line CX motor – combined with efficient and fast-rolling 29” wheels – have your back with more range, performance, and outstanding reliability than ever before so you can go even further.

With the Bosch Smart System – which links up the E-160 RSX’s bar-mounted LED Remote, battery and motor via the companion 'eBike Flow' app – you can have even more information at your fingertips to manage, tailor and personalise your bike just how you want: tune the motor support levels; keep track of your bike’s performance and battery consumption; plan and navigate routes; keep your software up to date. And much, much more.

Whyte bikes have engineered the E-160 RSX not just to perform today but for every day you want to ride it – for years to come. Everything from making the day-to-day tasks simple and easy – like hassle-free battery installation/removal, keeping room for a water bottle in the main frame, and in-the-bike-charging – to standing behind you for the long haul with the best rider support out there, four-year frame warranty and our lifetime warranty on bearings for total peace of mind. Because when a bike is this good you’ll want to ride it as much as possible.

Key Features and Benefits

  • Bosch Performance Line CX:is super-compact with exceptionally smooth power delivery.
  • Fox 38 Grip 2 forks:perfectly complement the geometry for maximum steering control.
  • 750Wh battery:gives you increased range.

Full Specification

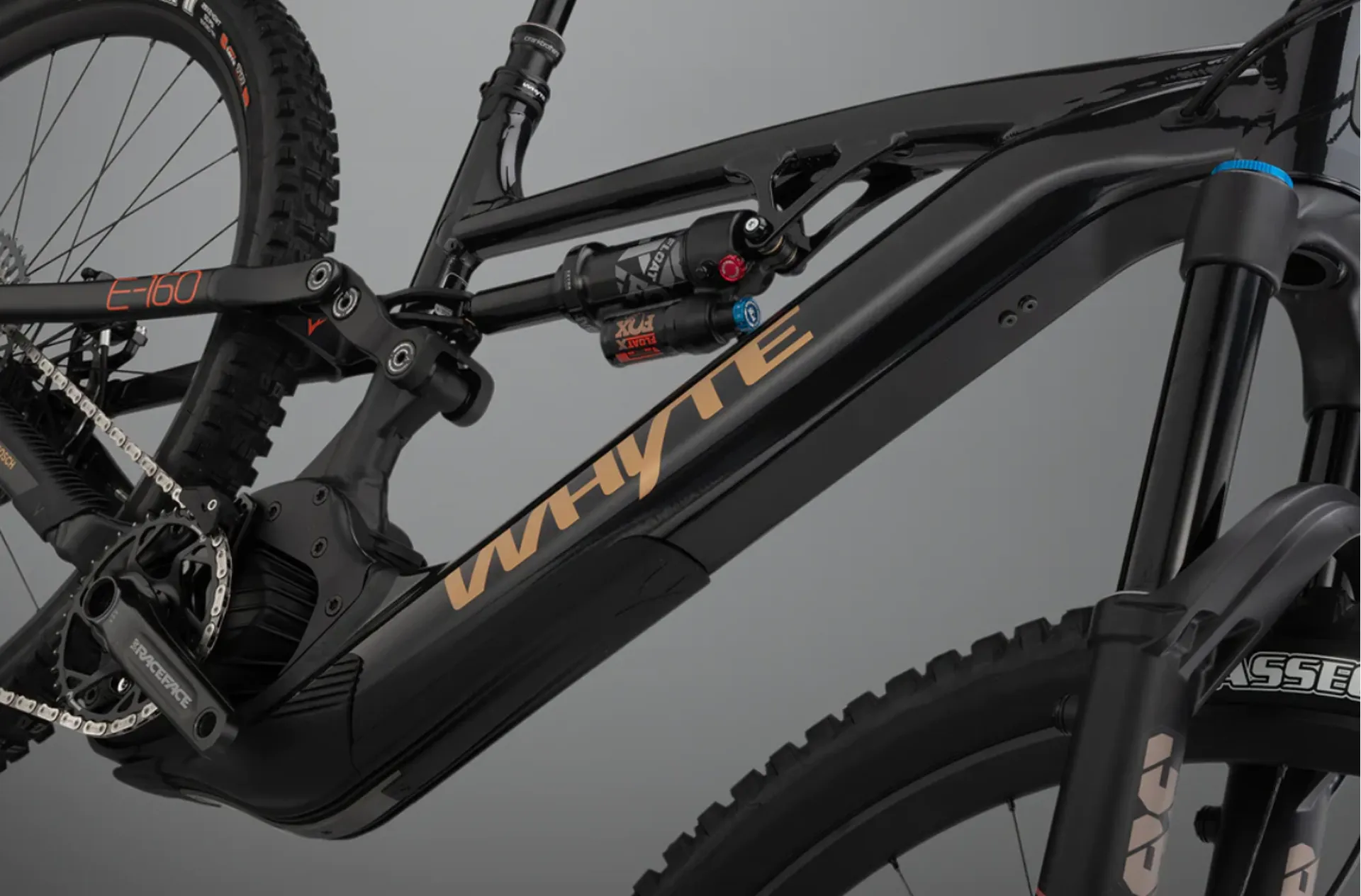

  • Frame:6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
  • Rear Suspension:Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte
  • Fork:Fox Float 38, Performance 29", 160mm Travel, 44mm Offset with Grip Damper, 3pos Adjust, Tapered Steerer, 110mm x 15mm Boost, E-Thru Axle
  • Motor:Performance CX 85Nm
  • Battery:Bosch 750 Wh internal PowerTube. 4 Amp Charger

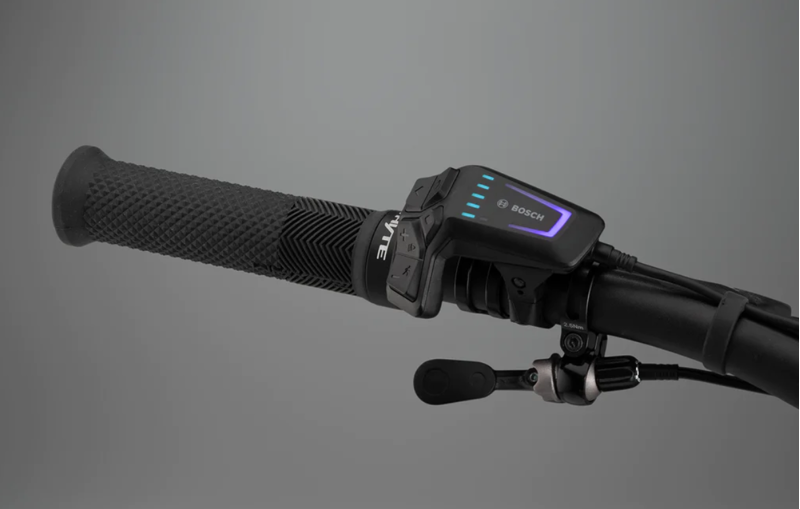

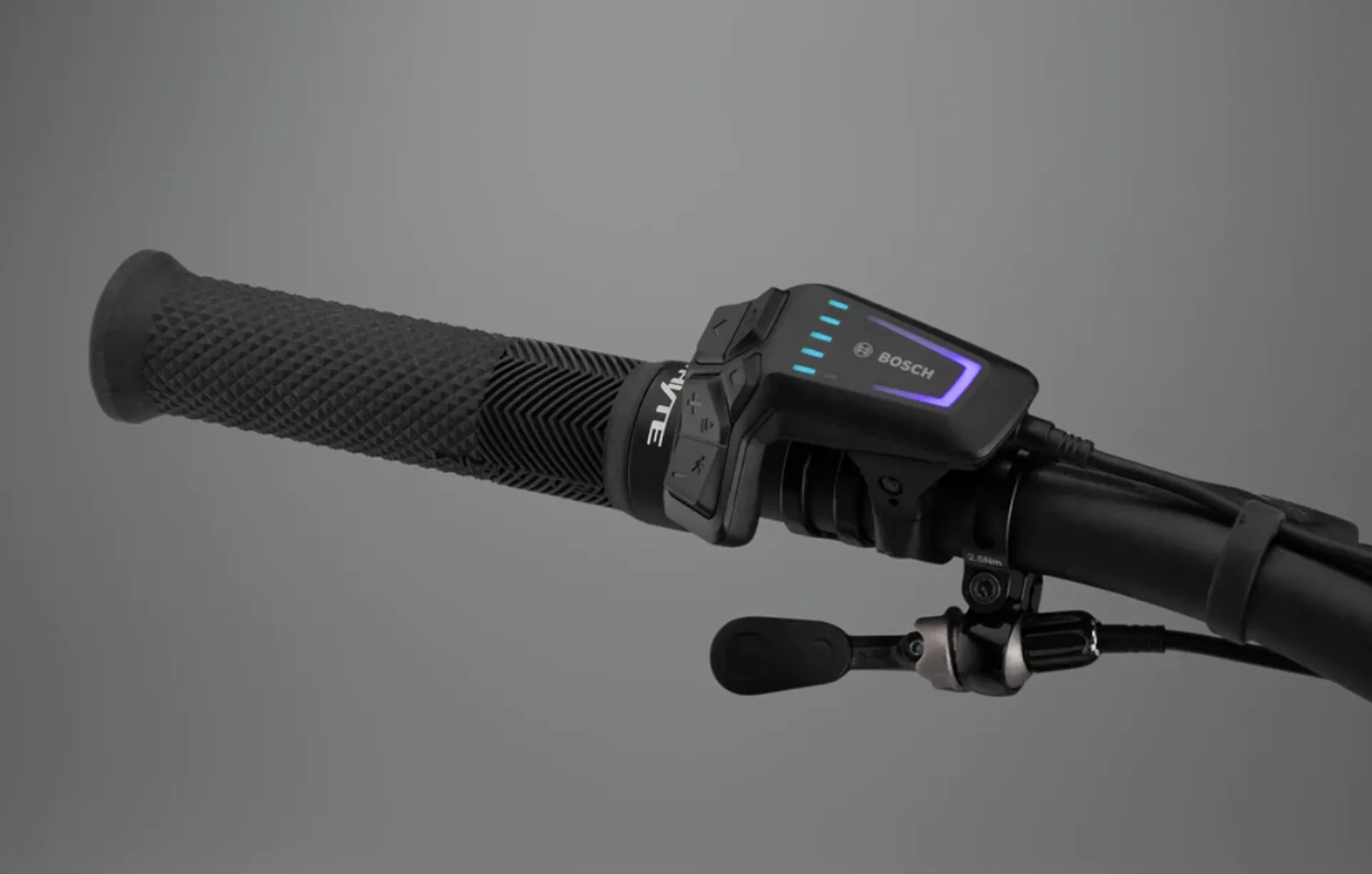

  • Controller:Bosch LED Remote BES 3
  • Number of Gears:12
  • Gear Shifters:SRAM AXS Pod, two button MMX, 12 speed
  • Chainset:Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T chainring for Bosch Performance Line CX, black
  • Chainrings:36T
  • Rear Cassette:SRAM XG1275 12 Speed 10-50T
  • Chain:SRAM GX T-Type Eagle, 12 speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM GX T-Type AXS, 12 speed
  • Bottom Bracket:N/A
  • Pedals:Not supplied:Shop pedals here
  • Rims:DT HX 1700 alloy, hooked 30mm internal width
  • Front Hub:DT Swiss 350, 15mm x 110mm Boost spacing, six bolt
  • Rear Hub:DT Swiss 350, 24T hardened steel ratchet, six bolt, 12mm x 148mm Boost spacing
  • Front Tyre:Maxxis Assigai WT, TR, 29" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound
  • Rear Tyre:Maxxis Minion DHR II WT, TR, 27.5" x 2.4" 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead
  • Brakes:SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220/200mm Disc
  • Handlebars:Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 800mm Wide
  • Handlebar Grips:Whyte Lock-on Enduro Grip
  • Headset:FSA No. 55R/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge Bearings
  • Stem:Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
  • Saddle:Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
  • Seatpost:Crank Bro High-Line 3, 30.9mm, M/L 150mm, XL 170mm Travel. High-Line Ball Socket Remote Lever
  • Accessories:Bosch 4A charger
  • Weight:26.3kg (size M)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Whyte Full Suspension MTB:

Frame SizeRider Height (cm)Rider Height (')
XS (T-140 SR only)140 – 1604’7″ – 5’3″
S160 – 1695’3″ – 5’7″
M169 – 1795’7″ – 5’11”
L179 – 1895'11" – 6'3"
XL189 – 1976'3" – 6'6"

Warranty Information for Whyte:

Whyte Bikes Ltd warrants with the purchaser of a new Whyte bike,or a Whyte Certified Refurbished bike,that the frame will be free from defects in materials and workmanship for a period of two years from the date of purchase. The duration of the limited frame warranty can be extended to four years by registering your purchase online here(excludingWhyteCertified Refurbished bikes). Registration must occur within 28 days of the purchase dateviathe registration form, together with a valid proof of purchase. The cosmetic finish of the frame, including all paint and graphics is warrantied for a period of one year from date of purchase.

The Main Pivot Bearings fitted to Whyte Full Suspension bikes are warrantied for life (original owner onlyfor both new and Whyte Certified Refurbished bikes)).

For Full warranty policy, please visit https://whytebikes.com/pages/registration

Technical Information
  • COLOUR
    Gloss black with matt black
  • CASSETTE
    SRAM XS-1275 Eagle, 10-52T, 12 speed
  • FRAME
    6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts
  • FORK
    Fox Float 38 Performance Elite 29in, 160mm travel, 44mm offset with Grip 2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle
  • CRANKSET
    Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T chainring for Bosch Performance Line CX, black
  • REAR SHOCK
    Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte
  • BOTTOM BRACKET
    N/A
  • HEADSET
    FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings
  • SEATPOST
    Crank Brothers HighLine 3, 30.9mm (sizes M/L 150mm travel; size XL 170mm travel), Highline ball socket remote lever
  • REAR HUB
    DT Swiss 350, 24T hardened steel ratchet, six bolt, 12mm x 148mm Boost spacing
  • SADDLE
    Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
  • FRONT HUB
    DT Swiss 350, 15mm x 110mm Boost spacing, six bolt
  • HANDLEBAR
    Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
  • SPOKES
    DT Swiss Hybrid straight pull
  • STEM
    Whyte Enduro, 35mm extension, 35mm bar bore
  • RIMS
    DT HX 1700 alloy, hooked 30mm internal width
  • GRIPS
    Whyte Enduro lock-on
  • TYRE
    Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, Dual Compound, front; Maxxis Minion DHR II WT, TR, 29in x 2.4in 120TPI, Double Down, 3C Maxx Terra, Dual Compound, folding bead, rear
  • BRAKES FRONT
    SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor
  • SHIFT LEVERS
    SRAM AXS Pod, two button MMX, 12 speed
  • BRAKES REAR
    SRAM Code RSC, four piston hydraulic with sintered metal pads, 200mm diameter disc rotor
  • FRONT MECH
    N/A
  • BRAKE LEVERS
    SRAM Code RSC, MMX
  • REAR MECH
    SRAM GX T-Type AXS, 12 speed
  • WEIGHT
    26.3kg (size M)
