The E-Lyte 140 Works is Whyte's lightest ever electric mountain bike (E-MTB).
The E-Lyte 140 Works is Whyte's lightest ever electric mountain bike (E-MTB).
Whyte Bikes

Whyte Bikes E-Lyte 140 Works XC/Trail Electric Mountain Bike 2024 in Carbon/Black

£10,999.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Whyte Bikes E-Lyte 140 Works XC/Trail Electric Mountain Bike 2024 in Carbon/Black

Season:2024

Brand:Whyte Bikes

Code:KLBSLGhetihWNBCDUlanoitce

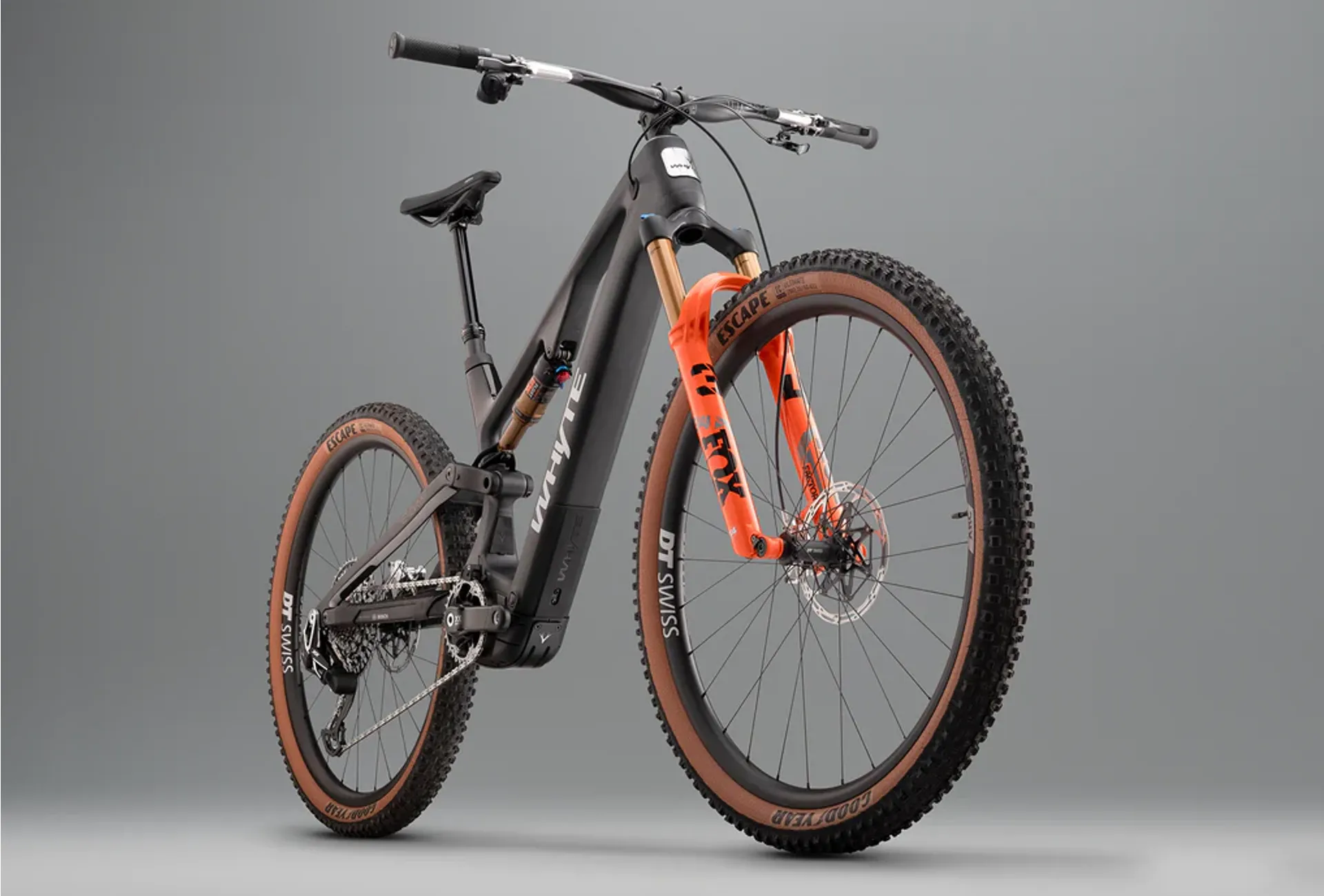

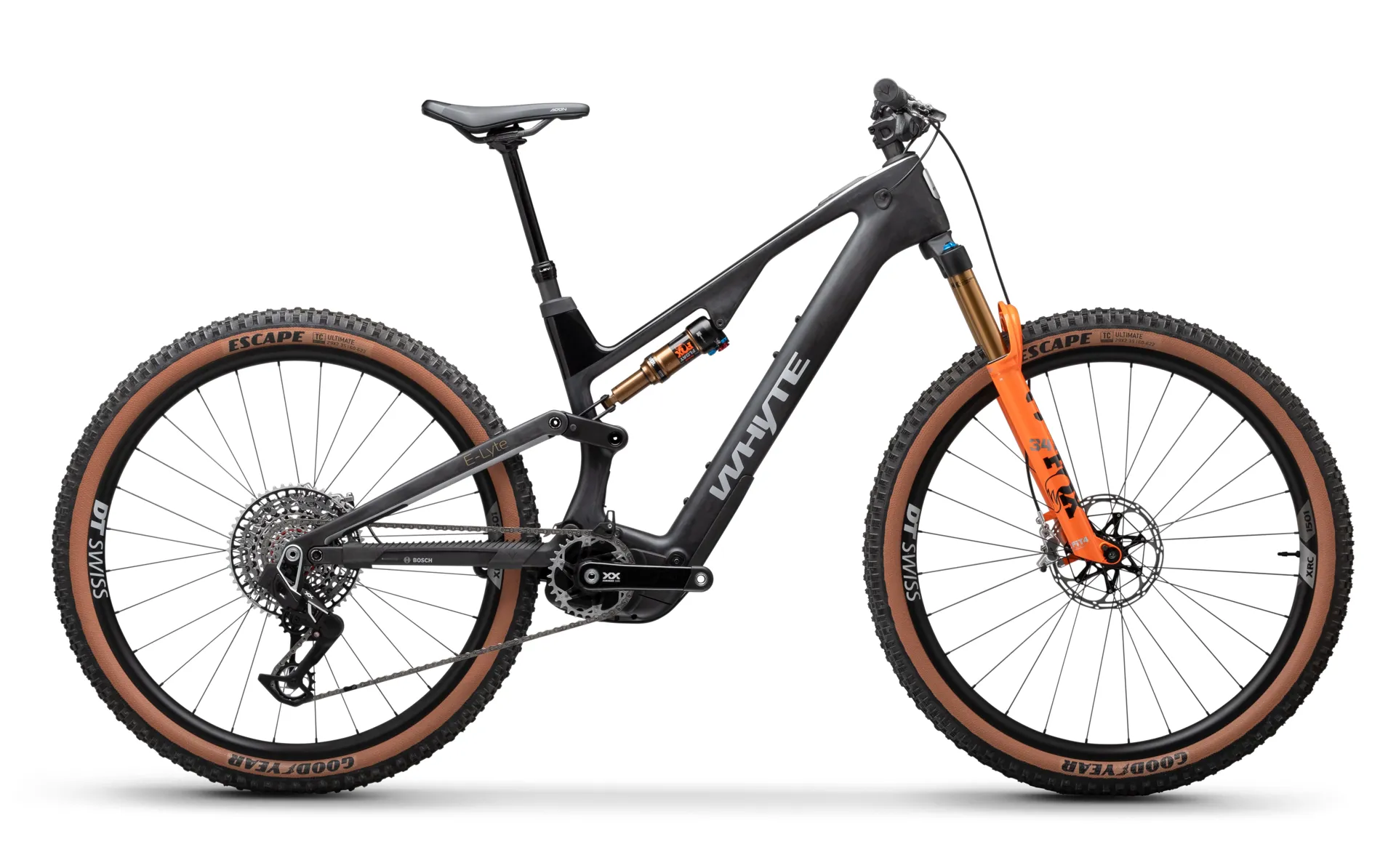

The E-Lyte 140 Works is Whyte's lightest ever electric mountain bike (E-MTB).

At 16.4kg complete (size M) with 55Nm of torque, together with 600W of peak power, it perfectly blends lightweight cross country (XC)/trail bike performance with the capability of full-fat E-MTBs to deliver an unparalleled and uncompromised ride, wherever the trail leads you: the singletrack, the all-day epic, the home trail hot laps, the descents and the climbs back out – and with a total combined battery capacity of 650Wh, it has the range to do it all.

140mm front + 135mm rear of efficient custom-tuned suspension travel
Uni-directional carbon fibre frame is light and reassuringly strong
Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor
650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further
29er wheels front and rear for balanced handling
250Wh PowerMore range extender included

Key Features and Benefits

  • Bosch Performance Line SX:New full-power (600W) lightweight motor is super-compact with exceptionally smooth power delivery.
  • Lightweight Build:Lightest ever electric mountain bike from Whyte at 16.4kg, no upgrades needed out the box on this build!
  • Total of 650Wh battery:gives you increased range, with the Bosch250Wh PowerMore range extender included.

Full Specification

  • Frame:Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

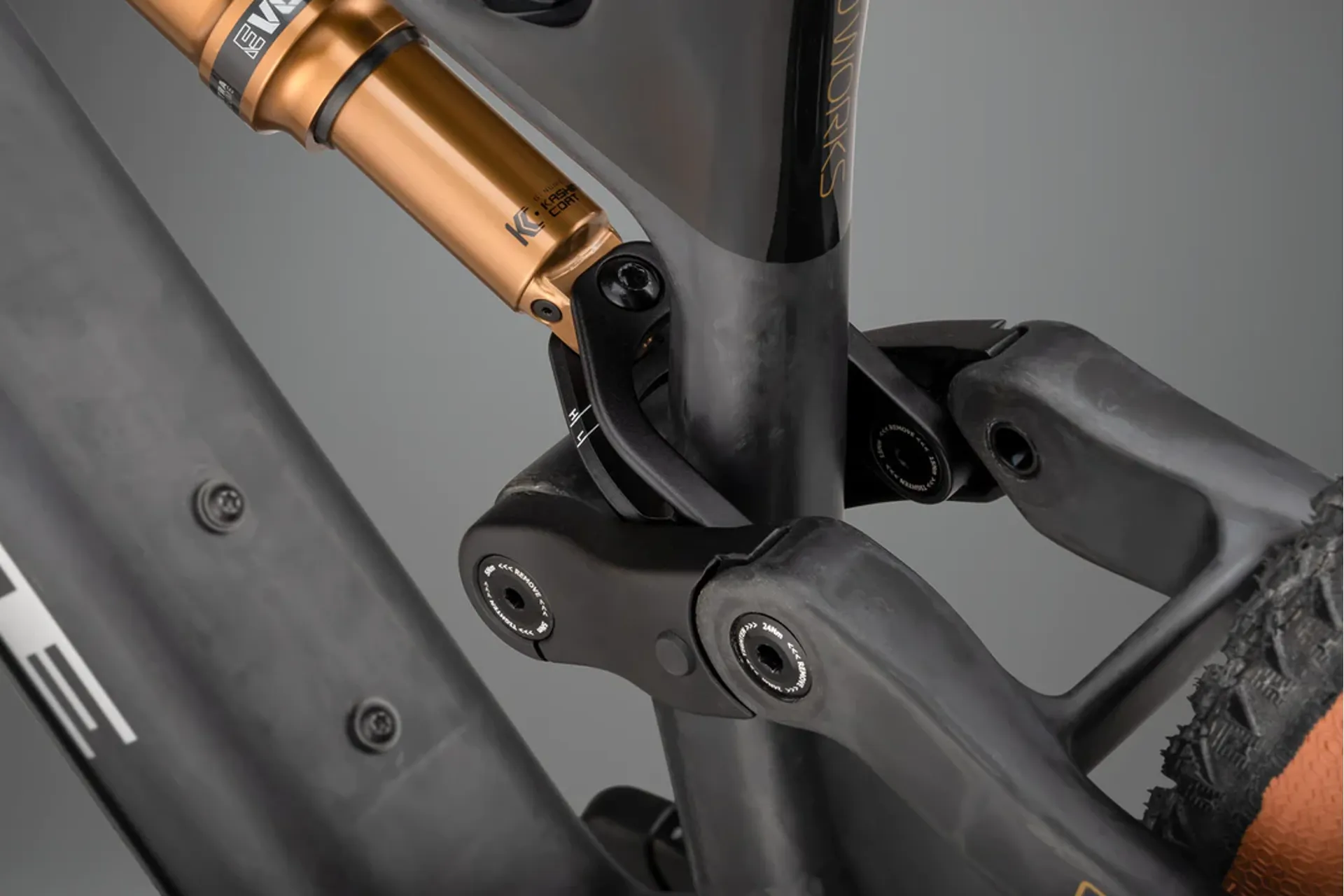

  • Rear Suspension:Fox Float Factory, Evol LV, adjustable rebound and two position compression adjustment
  • Fork:Fox Float 34 Factory 29in, 140mm travel, 44mm offset, FIT4 damper, tapered steerer, 110mm x 15mm Boost Kabolt axle
  • Motor:Bosch Performance Line SX 55Nm
  • Battery:Bosch 400Wh internal battery, 250Wh Power more extender
  • Controller:Bosch LED Mini Remote
  • Number of Gears:12
  • Gear Shifters:SRAM AXS Pod, right, MMX, 12 speed

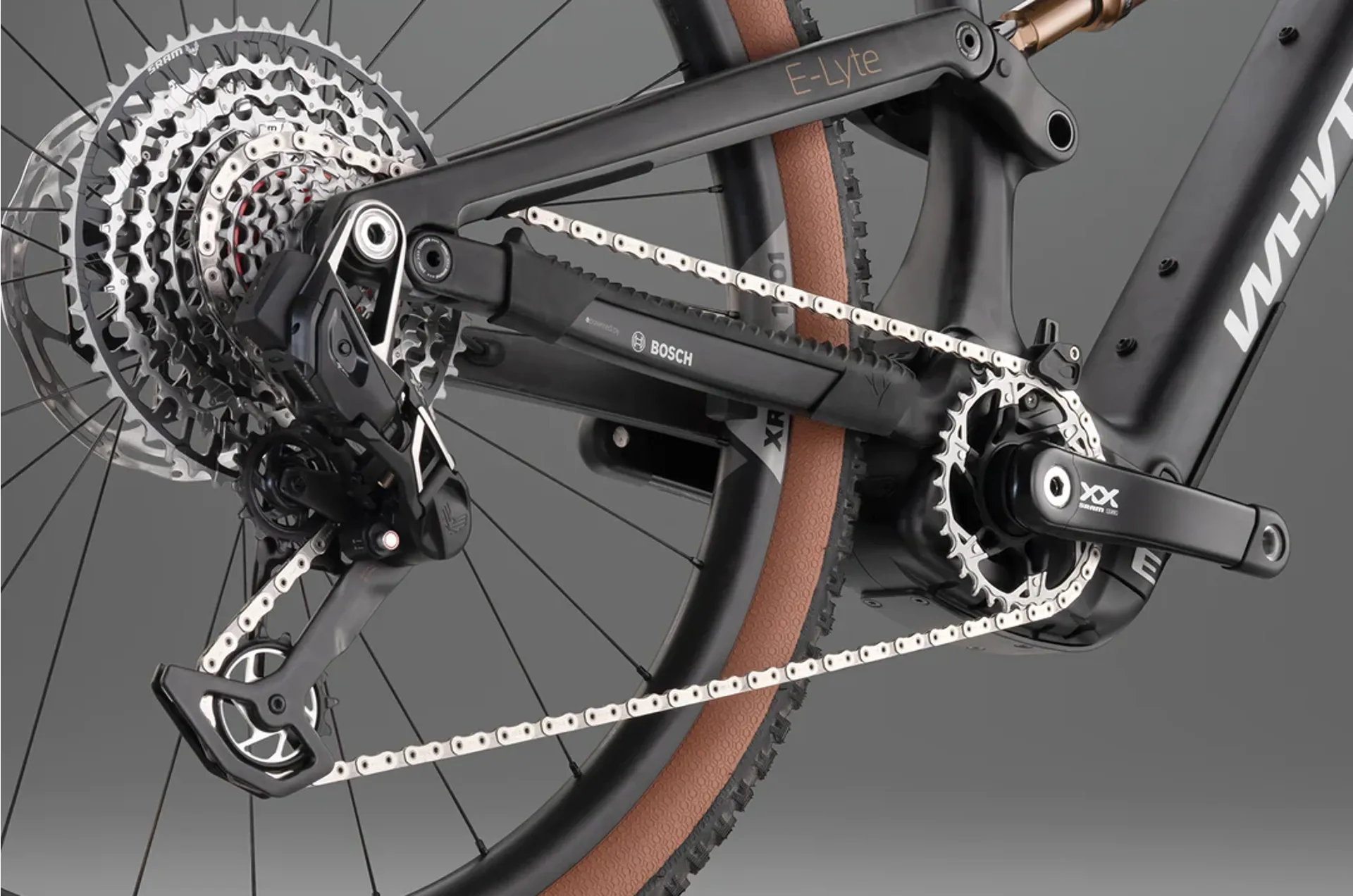

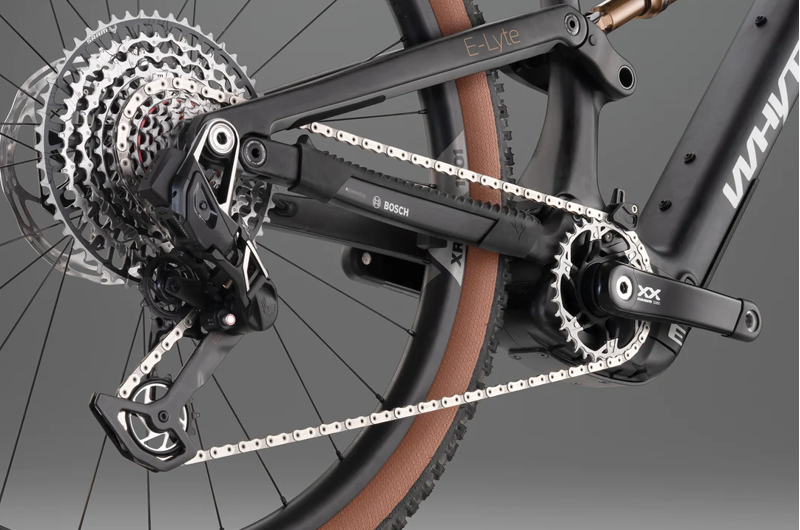

  • Chainset:SRAM XX Isis Carbon, 165mm arms, XX Gen4 Direct Mount 32T chainring, T-Type Light eMTB
  • Chainrings:36T
  • Rear Cassette:SRAM XS 1297, T-Type, 10-52T, 12 speed
  • Chain:SRAM XX T-Type, 12 speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM XX SL T-Type AXS, 12 speed
  • Bottom Bracket:N/A
  • Pedals:Fibre reinforced composite platform
  • Rims:DT Swiss XRC 1501 Spline
  • Front Hub:DT Swiss 240, straight pull, six bolt, 15mm x 110mm Boost spacing
  • Rear Hub:DT Swiss 240, e-bike specific, double sealed cartridge bearings, straight pull, 12mm x 148mm Boost spacing, six bolt, XD driver
  • Front Tyre:Good Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and rear
  • Rear Tyre:Good Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and rear

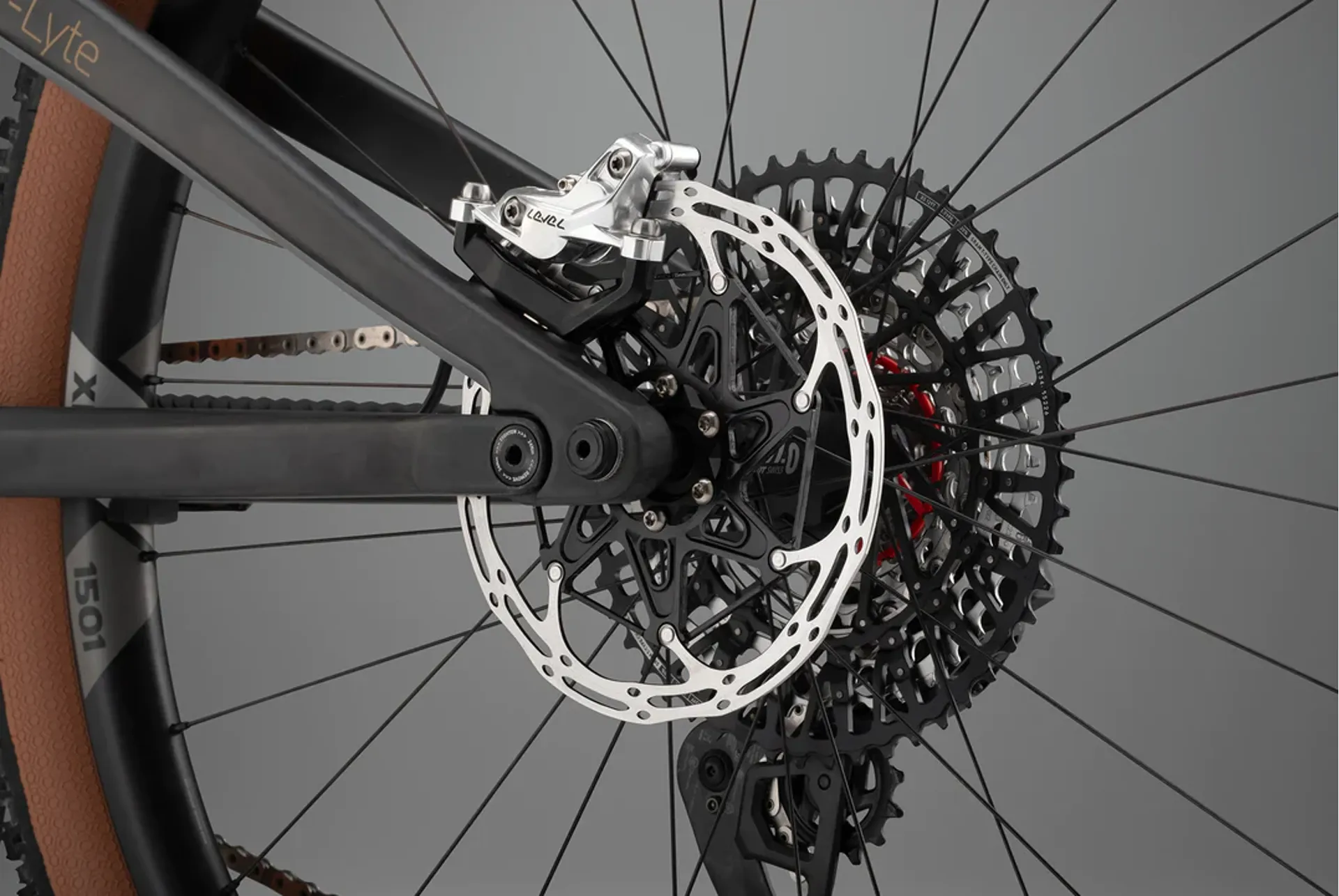

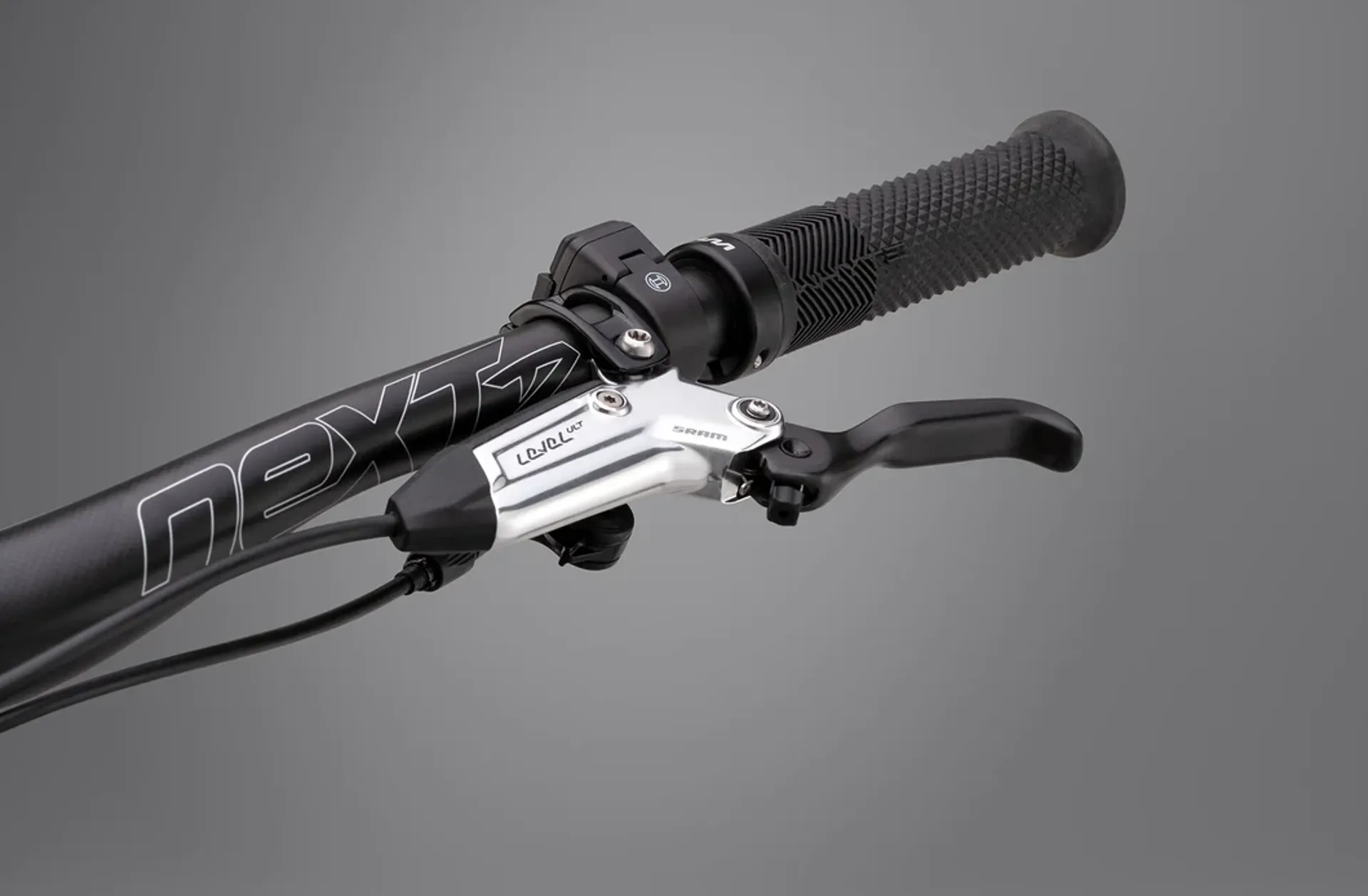

  • Brakes:SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor
  • Handlebars:Race Face Next R Carbon, 20mm rise, 35mm bar bore, 800mm width
  • Handlebar Grips:Whyte Lock-on Enduro Grip
  • Headset:FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing
  • Stem:Whyte Trail full CNC, 32mm extension, 35mm bar bore
  • Saddle:Terra Aidon X1, 145mm, fibre reinforced nylon with Wingflex, Carbon 7x7mm rail
  • Seatpost:KS Lev Ci, 30.9mm, 175mm drop, with Southpaw remote lever
  • Accessories:Bosch 4A charger
  • Weight:16.4kg (size M)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Whyte Full Suspension MTB:

Frame SizeRider Height (cm)Rider Height (')
XS (T-140 SR only)140 – 1604’7″ – 5’3″
S160 – 1695’3″ – 5’7″
M169 – 1795’7″ – 5’11”
L179 – 1895'11" – 6'3"
XL189 – 1976'3" – 6'6"

Warranty Information for Whyte:

Whyte Bikes Ltd warrants with the purchaser of a new Whyte bike,or a Whyte Certified Refurbished bike,that the frame will be free from defects in materials and workmanship for a period of two years from the date of purchase. The duration of the limited frame warranty can be extended to four years by registering your purchase online here(excludingWhyteCertified Refurbished bikes). Registration must occur within 28 days of the purchase dateviathe registration form, together with a valid proof of purchase. The cosmetic finish of the frame, including all paint and graphics is warrantied for a period of one year from date of purchase.

The Main Pivot Bearings fitted to Whyte Full Suspension bikes are warrantied for life (original owner onlyfor both new and Whyte Certified Refurbished bikes)).

For Full warranty policy, please visit https://whytebikes.com/pages/registration

Technical Information
  • COLOUR
    Matt uni-directional (UD) carbon with gloss black
  • CASSETTE
    SRAM XS 1297, T-Type, 10-52T, 12 speed
  • FRAME
    Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
  • CHAIN
    SRAM XX T-Type, 12 speed
  • FORK
    Fox Float 34 Factory 29in, 140mm travel, 44mm offset, FIT4 damper, tapered steerer, 110mm x 15mm Boost Kabolt axle
  • CRANKSET
    SRAM XX Isis Carbon, 165mm arms, XX Gen4 Direct Mount 32T chainring, T-Type Light eMTB
  • REAR SHOCK
    Fox Float Factory, Evol LV, adjustable rebound and two position compression adjustment
  • BOTTOM BRACKET
    N/A
  • HEADSET
    FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing
  • SEATPOST
    KS Lev Ci, 30.9mm, 175mm drop, with Southpaw remote lever
  • REAR HUB
    DT Swiss 240, e-bike specific, double sealed cartridge bearings, straight pull, 12mm x 148mm Boost spacing, six bolt, XD driver
  • SADDLE
    Terra Aidon X1, 145mm, fibre reinforced nylon with Wingflex, Carbon 7x7mm rail
  • FRONT HUB
    DT Swiss 240, straight pull, six bolt, 15mm x 110mm Boost spacing
  • HANDLEBAR
    Race Face NEXT R Carbon, 20mm rise, 35mm bar bore, 800mm wide
  • SPOKES
    DT Swiss Competition spokes straight pull (SP)
  • STEM
    Whyte Trail full CNC, 40mm extension, 35mm bar bore
  • RIMS
    DT Swiss XRC 1501 Spline
  • GRIPS
    Whyte Enduro lock-on
  • TYRE
    Good Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and rear
  • BRAKES FRONT
    SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor
  • SHIFT LEVERS
    SRAM AXS Pod, right, MMX, 12 speed
  • BRAKES REAR
    SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor
  • FRONT MECH
    N/A
  • BRAKE LEVERS
    SRAM Level Ultimate Stealth
  • REAR MECH
    SRAM XX SL T-Type AXS, 12 speed
  • PEDALS
    Fibre reinforced composite platform
  • WEIGHT
    16.4kg (size M)
