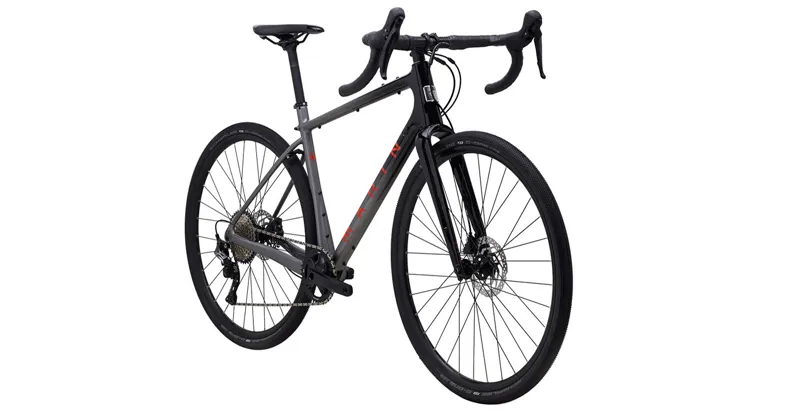

Named after one of the most iconic sections of coastline and Insta-inspiring gravel riding of the American West, the Marin Headlands embodies everything about this beautiful and rugged terrain. A full unidirectional carbon chassis is purpose- built for multi-surface adventures, be they short days or long weeks in the saddle.
The 1x specific construction of the frame means short chainstays that still fit up to 700x45mm/650Bx47mm tires, and paired with the longer top tube and shorter stems the bike takes cues from modern mountain bikes on technical off-road trail, while stillmaintaining a comfortable, fast, and efficient ride on flatter terrain. Internal housing routing and tons of mounts on the frameallow you to fit the bike with anything from water and tubes, to a full custom frame bag from your favorite maker using the attachments found around the front triangle, while conventional rack and fender mounts can transition the bike into a capable winter commuter.
ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING
The Headlands takes what we have learned with the alloy Gestalt X line, and brings the spirit to an all-new, full carbon fiber frameset. Modern geometry, generous tire clearance, and sublime ride quality, all combine to make an incredibly capable, lightweight bike that’ll exceed your expectations.
The Headlands features a seattube port for internal dropper routing, with the Headlands 2 coming stock with a 105mm/85mm dropper post.
The removable seat stay brace makes it super easy to add fenders for foul weather riding and commuting, while maintaining a clean smooth look when you don’t need the coverage.
Key Features & Benefits
- Unidirectional carbon fiber frame:Witha 142x12mm thru-axle, and multiple frame eyelets for customized hydration and frame bag needs.
- Powerful Disc brakes:For minimalmaintenance and all-conditions stopping power.
- Adventure ready tyre clearance:The Headlands was designed with clearance for up to 700Cx45 or 650Bx50 tires to handle even the roughest “roads.”
Full Specification
- Frame:Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
- Fork:Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Number of Gears:11
- Gear Shifters:Shimano GRX RX600

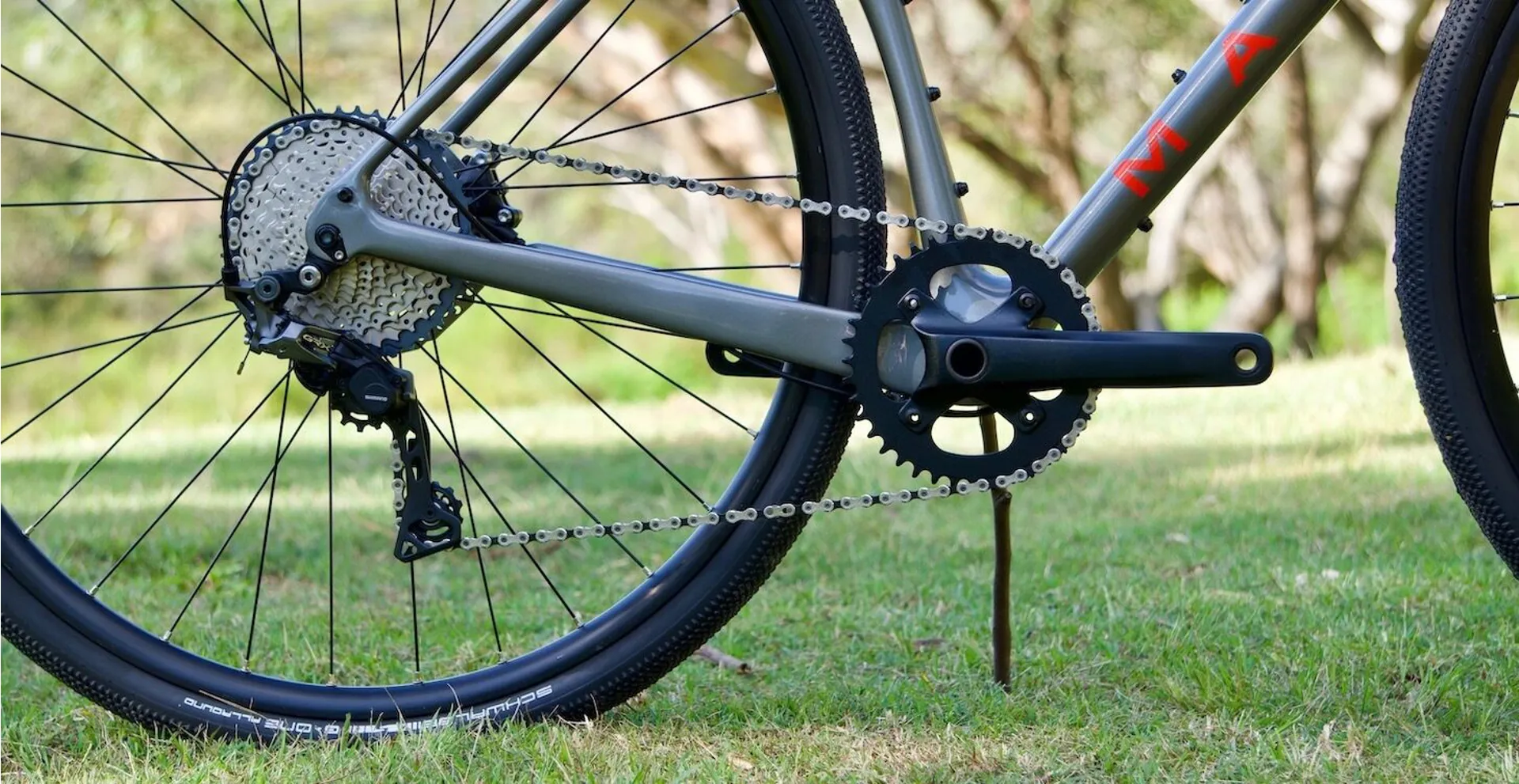

- Chainset:Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T
- Chainrings:40T
- Rear Cassette:Shimano CS-M700 11-Speed, 11-42T
- Chain:KMC X11
- Front Derailleur:N/A
- Rear Derailleur:Shimano GRX RDX812 Shadow Plus w/ Clutch
- Bottom Bracket:External Sealed Cartridge Bearings
- Pedals:N/A
- Rims:Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
- Front Hub:Forged Aluminum Alloy, 32H
- Rear Hub:ForgedAluminum Alloy, 32H
- Front Tyre:Schwalbe G-One Performance, 700Cx40mm, Folding Bead
- Rear Tyre:Schwalbe G-One Performance, 700Cx40mm, Folding Bead
- Brakes:Shimano GRX Hydraulic Disc, 160mm Rotors
- Handlebar Grips:Marin Shock Absorbing Tape
- Handlebar:Marin Butted Alloy, Flat Top, Compact 12º Flared Drop, Flat Top
- Headset:FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
- Stem:Marin 3D Forged Alloy
- Saddle:Marin Beyond Road Concept Elite
- Seatpost:Marin Alloy, 27.2mm
- Accessories:Bolt-On Thru-Axles F and R
- Weight:N/A
