The Trek Checkpoint ALR 5 is the best value gravel road bike in Trek'sline-up. It's a high-quality build with a Simano 105 22-speed drivetrain and hydraulic disc brakes that will hold up for long, rugged miles.
The Trek Checkpoint ALR 5 is the best value gravel road bike in Trek'sline-up. It's a high-quality build with a Simano 105 22-speed drivetrain and hydraulic disc brakes that will hold up for long, rugged miles.
Trek

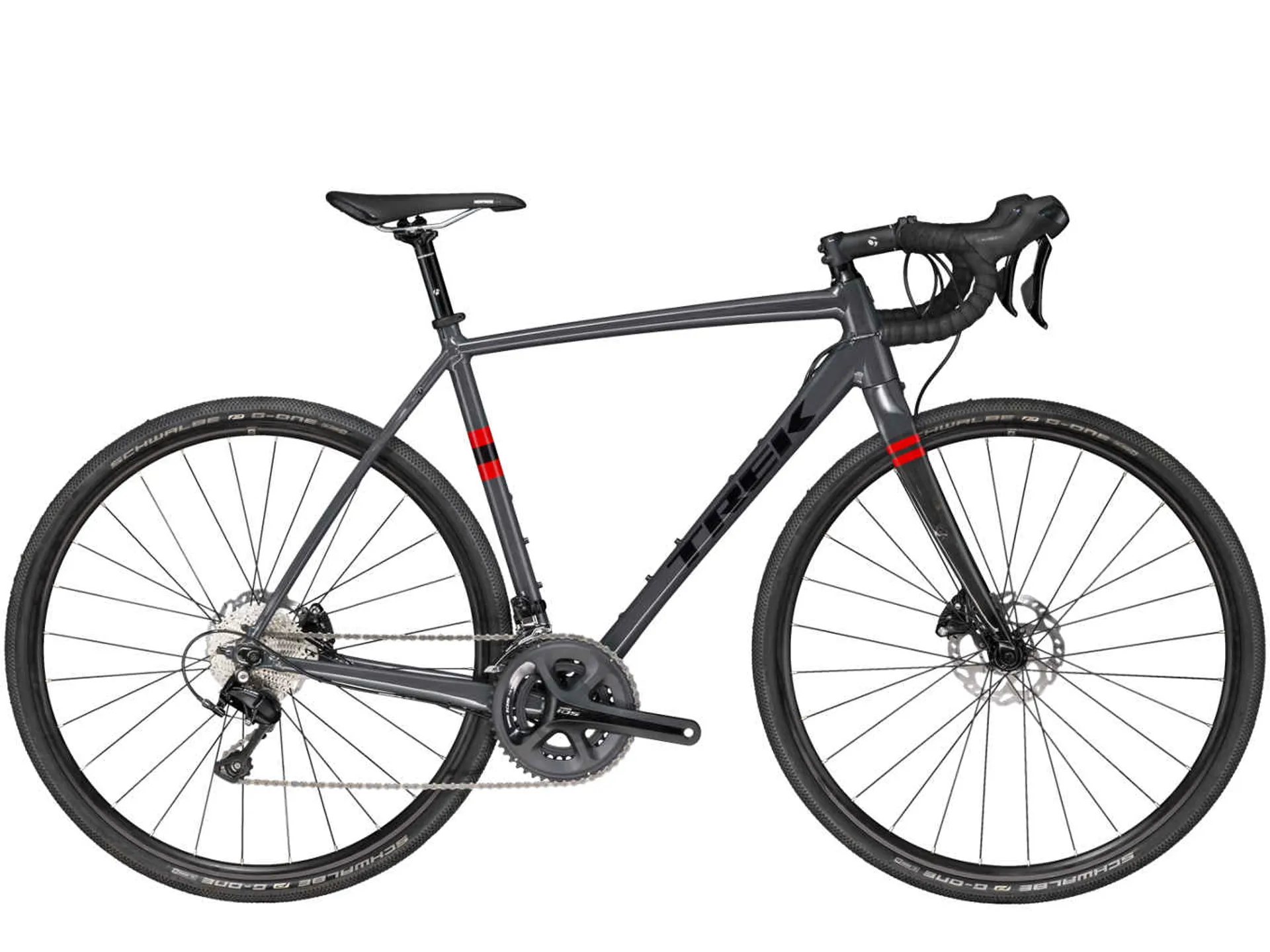

Trek Checkpoint ALR 5 Mens Gravel Road Bike 2020 in Charcoal

£1,700.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Checkpoint ALR 5 Mens Gravel Road Bike 2020 in Charcoal

Season:2020

Brand:Trek

Code:243852020CHA

The Checkpoint ALR 5 is the best value gravel bike in Trek'sline-up. It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. But what sets this model apart is the performance parts and the wealth of features like adjustable Stranglehold dropouts, massive tyre clearance and extra mounts that make it easy to customise for your kind of adventure.

Key Features & Benefits

  • A 300 Series Alpha Aluminium frame, with massive tyre clearance and adjustable Stranglehold dropouts, a carbon fork, 12 mm thru axles, with mudguard and rack mounts for comfort and load carrying capability.
  • A 2x11 Shimano 105 drivetrain, for proven reliable shifting, Shimano BR-7070 flat mount hydraulic disc brakes for all-weather stopping power.
  • Tubeless Ready wheels and massive Bontrager GR1 Comp 700x40 Bontrager tyres for a comfortable ride.

Full Specification

  • Frame:  300 Series Alpha Aluminium, tapered head tube, BB86.5, flat-mount disc brakes, Stranglehold dropouts, 12 mm thru-axle, Control Freak, internal cable routing, 3S chain keeper
  • Fork:  Checkpoint carbon disc, alloy tapered steerer, flat-mount disc brakes, rack mounts, hidden
  • Number of Gears:  22
  • Gear Shifters:  Shimano 105, 11-speed
  • Chainset:  Shimano 105
  • Chainrings:  50/34T
  • Rear Cassette:  Shimano HG800, 11-34, 11-speed
  • Chain:  Shimano 105 HG601, 11-speed
  • Front Derailleur:  Shimano 105
  • Rear Derailleur:  Shimano 105
  • Bottom Bracket:  Shimano press-fit
  • Pedals:  Not Included
  • Rims:  Bontrager Tubeless Ready, 28-hole, 17 mm width, Presta valve
  • Front Hub:  Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Rear Hub:  Bontrager alloy, sealed bearing, CenterLock disc, 142x12 mm thru axle
  • Front Tyre:  Bontrager GR1 Comp, 60 tpi, wire bead, 700x40 c
  • Rear Tyre:  Bontrager GR1 Comp, 60 tpi, wire bead, 700x40 c
  • Brakes:  Shimano BR-R7070 flat-mount hydraulic disc
  • Handlebars:  Bontrager RL IsoZone VR-CF, 31.8 mm
  • Handlebar Tape:  Bontrager tape
  • Headset:  Integrated, cartridge bearing, sealed, 1-1/8˝ top, 1.5˝ bott
  • Stem:  Bontrager Elite, 31.8 mm, 7-degree, w/computer and light mou
  • Saddle:  Bontrager Montrose Comp
  • Seatpost:  Bontrager Approved, 2-bolt head, 27.2 mm, 8 mm offset
  • Accessories:  N/A
  • Weight:  Not Available
Technical Information

Geometry for Trek Checkpoint ALR 5 Gravel Road Bike

Trek Checkpoint ALR 5 Gravel Road Bike Geometry Chart

  49cm 52cm 54cm 56cm 58cm 61cm
A. Seat Tube 490mm 520mm 540mm 560mm 580mm 610mm
B. Seat Tube Angle 75.0° 74.0° 73.5° 73.0° 73.0° 73.0°
C. Head Tube Length 90mm 107mm 126mm 145mm 171mm 200mm
D. Head Angle 71.4° 71.6° 71.8° 72.2° 72.3° 72.6°
E. Effective Top Tube 515mm 536mm 551mm 566mm 577mm 592mm
G. Bottom Bracket Drop 78mm 78mm 76mm 76mm 74mm 74mm
H. Chainstay Length 425mm 425mm 425mm 425mm 425mm 425mm
I. Offset 49mm 49mm 49mm 49mm 49mm 49mm
J. Trail 66mm 65mm 64mm 61mm 61mm 59mm
K. Wheelbase 995mm 1005mm 1014mm 1020mm 1032mm 1044mm
L.Standover 749mm 770mm 789mm 808mm 829mm 858mm
M. Frame Reach 373mm 379mm 383mm 387mm 391mm 397mm
N. Frame Stack 532mm 549mm 567mm 586mm 609mm 638mm
