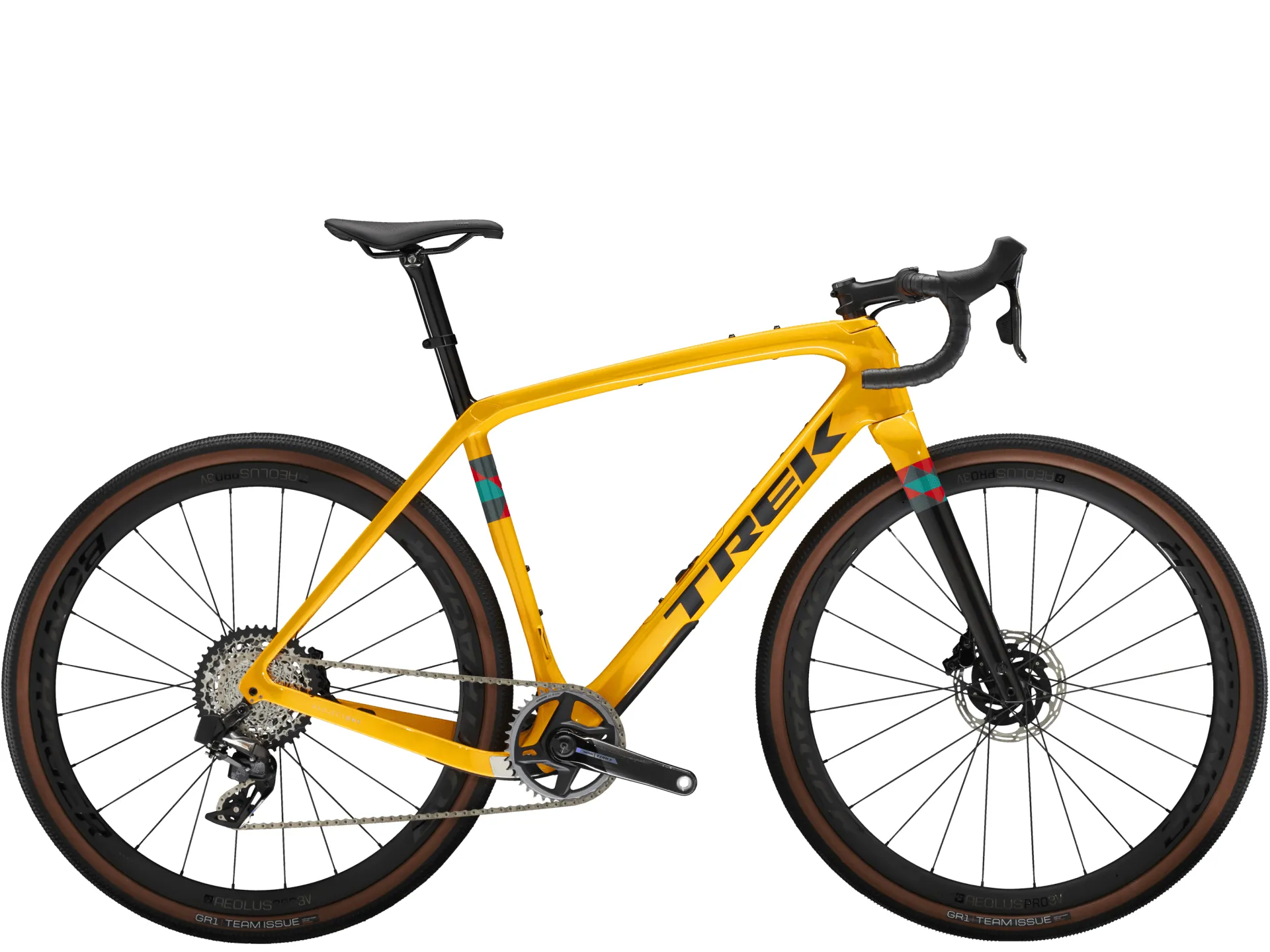

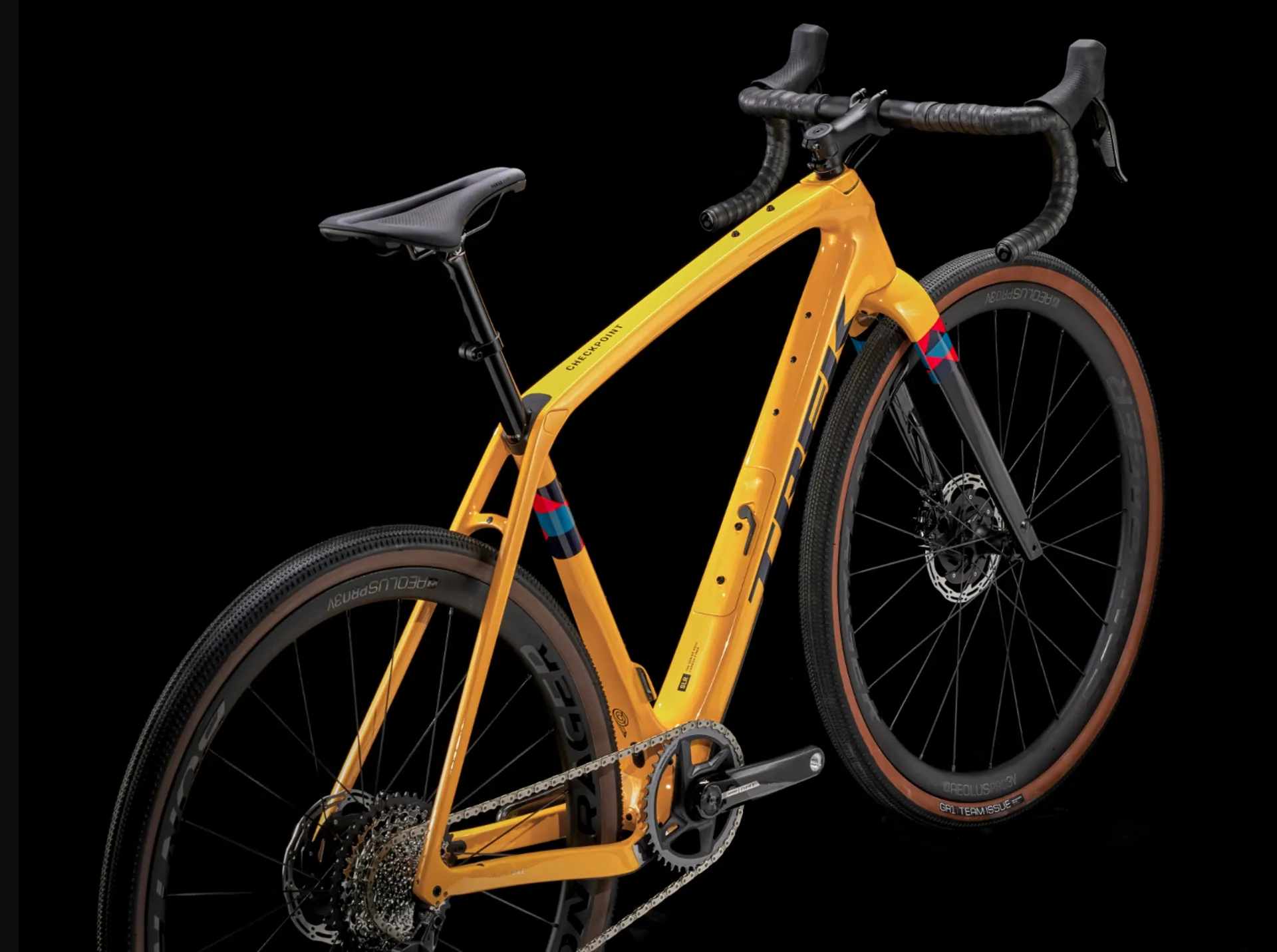

Trek Checkpoint SLR 7 AXS Carbon Gravel Bike 2024 in Marigold/Nautical Navy

Season:2024

Brand:Trek

Code:41349YEL

The Checkpoint SLR 7 AXS is a high-end carbon gravel bike that's built for crushing the world's greatest gravel races.

The lightweight 700 Series OCLV Carbon frame has gravel-smoothing IsoSpeed and a nimble yet stable progressive geometry capable of handling the gnarliest gravel rides. Plus, a smart and smooth SRAM Force XPLR AXS D2 wireless electronic drivetrain for blazing-fast shifts, and mounts for gear and accessories.

Key Features & Benefits:

  • Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • ISO Speed:The controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around.
  • SRAM Force XPLR AXS:Smart, smooth and completely wireless drivetrain.

Full Specification:

  • Frame:700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru axle
  • Fork:Trek Checkpoint carbon, tapered carbon steerer, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Number of Gears:12
  • Gear Shifters:SRAM Force AXS D2, 12-speed
  • Chainset:SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, length
  • Chainrings:4oT
  • Rear Cassette:SRAM XG-1271, 10-44, 12-speed
  • Chain:SRAM Force, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM Force XPLR AXS D2, 44T max cog
  • Bottom Bracket:SRAM DUB, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Front Wheel:Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Rear Wheel:Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142x12 mm thru axle
  • Front Tyre:Bontrager GR1 Team Issue, 700x40
  • Rear Tyre:Bontrager GR1 Team Issue, 700x40
  • Brakes:SRAM Force AXS hydraulic disc
  • Handlebars:Bontrager Pro IsoCore VR-SF
  • Handlebar Tape:Bontrager Supertack Perforated
  • Stem:Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree
  • Saddle:Bontrager P3 Verse Elite, stainless steel rails
  • Seatpost:Bontrager carbon seat mast cap, 5 mm offset

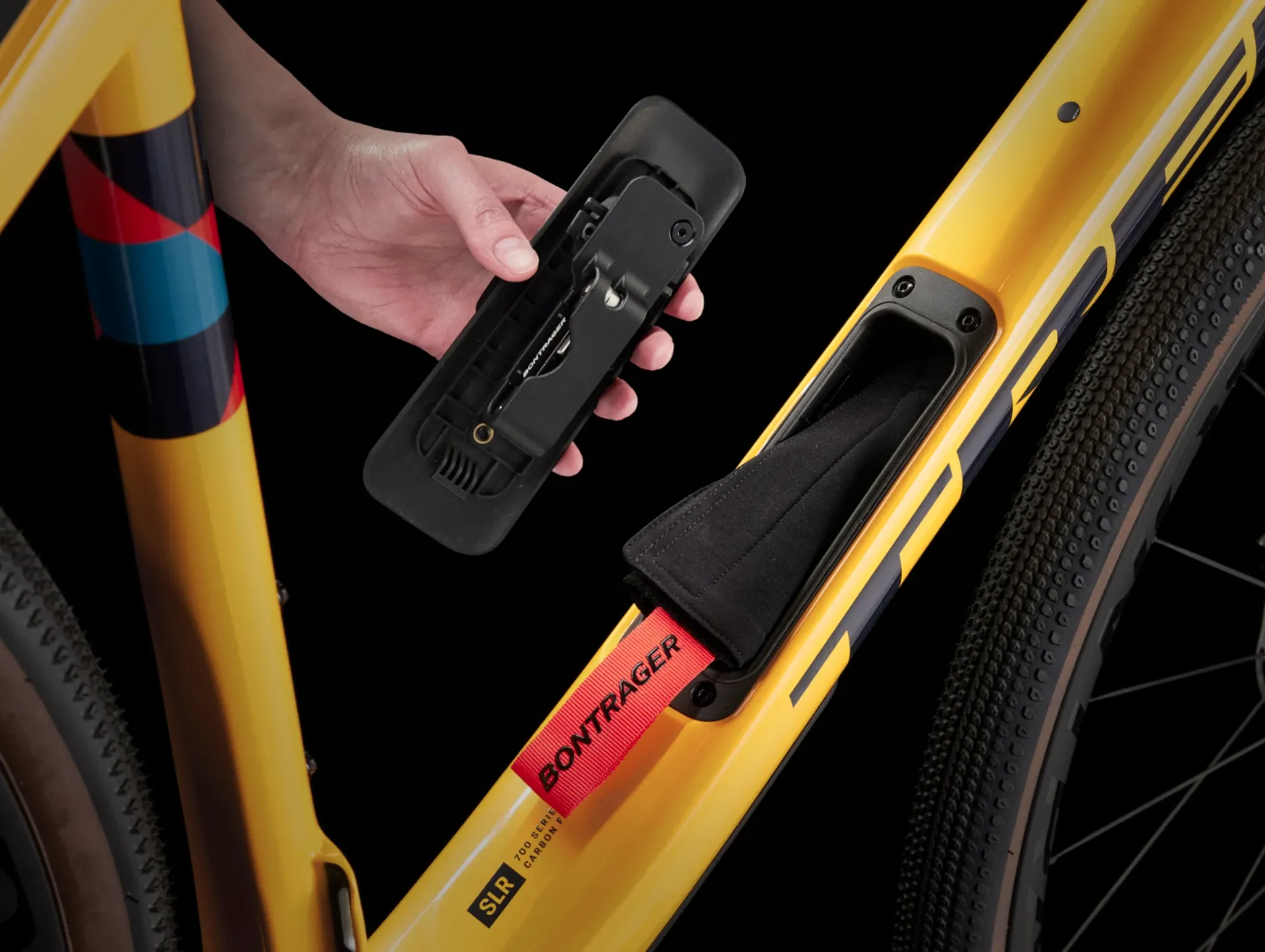

  • Accessories:Bontrager BITS Internal Frame Storage Bag, SRAM eTap battery pack (with charger)
  • Weight:N/A
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Checkpoint

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
49156 - 163 cm5'1" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
61185 - 191 cm6'1" - 6'3"86 - 90 cm34" - 35"

Geometry for Trek Checkpoint AL, ALR, SL

Frame size number49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c
A — Seat tube495254565861
B — Seat tube angle74.1°73.7°73.2°72.8°72.5°72.1°
C — Head tube length910.512.514.516.519.5
D — Head angle71.2°71.6°71.8°72.2°72.3°72.6°
E — Effective top tube54.155.55758.459.761.7
G — Bottom bracket drop7.87.87.67.67.47.4
H — Chainstay length43.543.543.543.543.543.5
I — Offset4.54.54.54.54.54.5
J — Trail7.47.176.76.66.5
K — Wheelbase102.5103.3104.1104.8105.8107
L — Standover73.576.578.980.982.985.9
M — Frame reach39.339.940.340.741.141.7
N — Frame stack53.855.357.159.260.963.9
Stem length7080809090100

Geometry for Trek Checkpoint SLR

Frame size number49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c
A — Seat tube495254565861
B — Seat tube angle74.1°73.7°73.2°72.8°72.5°72.1°
C — Head tube length910.512.514.516.519.5
D — Head angle71.2°71.6°71.8°72.2°72.3°72.6°
E — Effective top tube54.155.55758.459.761.7
G — Bottom bracket drop7.87.87.67.67.47.4
H — Chainstay length43.543.543.543.543.543.5
I — Offset4.54.54.54.54.54.5
J — Trail7.47.176.76.66.5
K — Wheelbase102.5103.3104.1104.8105.8107
L — Standover73.576.578.980.982.985.9
M — Frame reach39.339.940.340.741.141.7
N — Frame stack53.855.357.159.260.963.9
Stem length7080809090100
Saddle rail height min (w/short mast)57.561.564676972
Saddle rail height max (w/short mast)63.567.570737578
Saddle rail height min (w/tall mast)60.564.567707275
Saddle rail height max (w/tall mast)66.570.573767881

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru axle

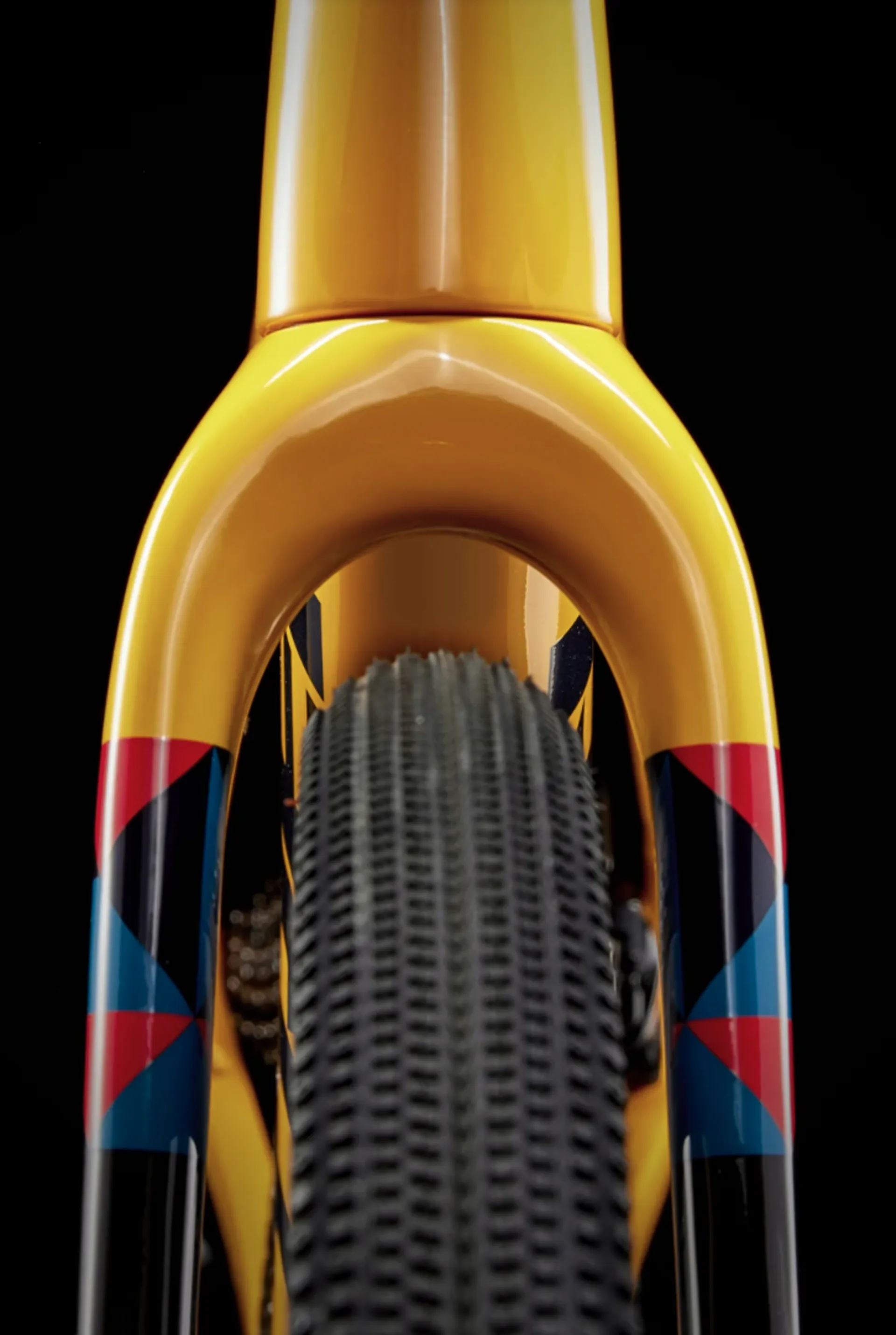

  • Fork
    Checkpoint carbon, tapered carbon steerer, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Weight
    8.50 kg / 18.74 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery
    SRAM eTap battery pack (with charger)
  • Shifter
    SRAM Force AXS D2, 12-speed

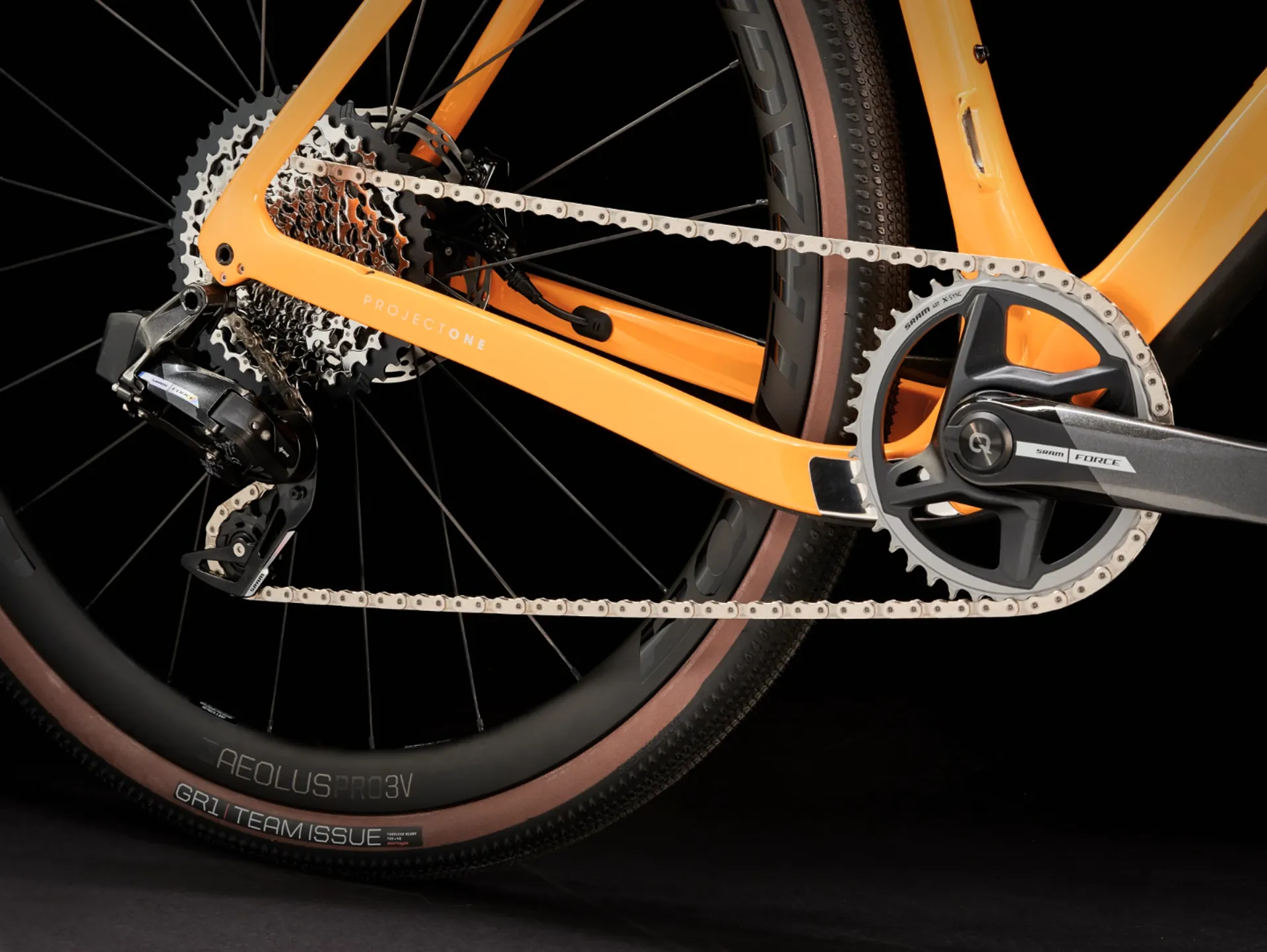

  • Rear derailleur
    SRAM Force XPLR AXS D2, 44T max cog
  • Crank
  • Size: 49
    SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 165 mm length
  • Size: 52
    SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 170 mm length
  • Size: 54, 56, 58, 61
    SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 172.5 mm length

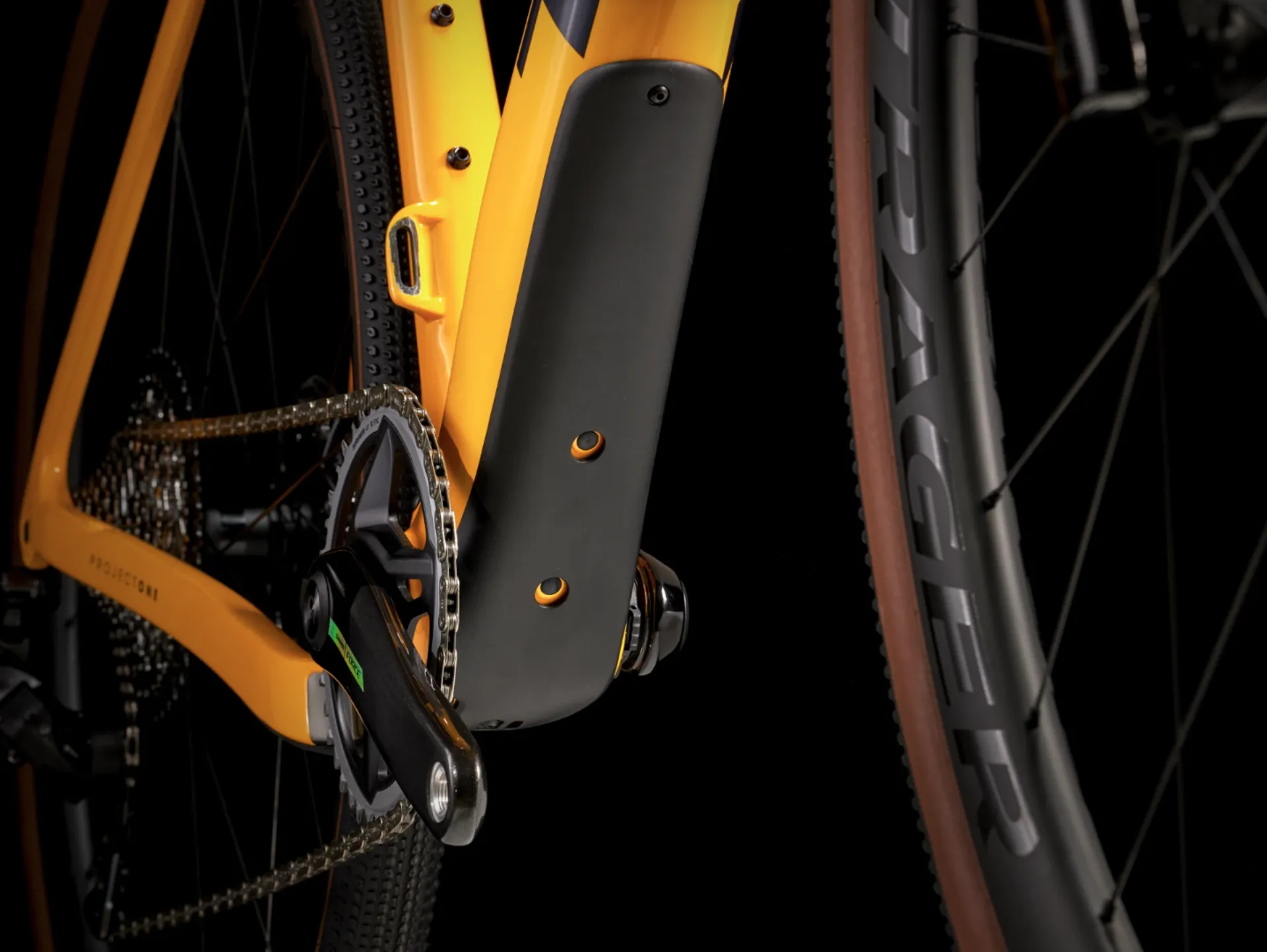

  • Bottom bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM XG-1271, 10-44, 12-speed
  • Chain
    SRAM Force, 12-speed
  • Max. chainring size
    1x: 46T, 2x: 50/37
  • Wheel front
    Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Wheel rear
    Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142x12 mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
    Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Saddle
  • Saddle
  • Size: 49, 52
    Verse Short Elite, hollow magnesium rails, 155 mm width
  • Size: 54, 56, 58, 61
    Verse Short Elite, hollow magnesium rails, 145 mm width
  • Seatpost
    Size: 49, 52, 54, 56
  • Size: 49, 52, 54, 56
    Bontrager carbon seat mast cap, 5 mm offset, short length
  • Size: 58, 61
    Handlebar

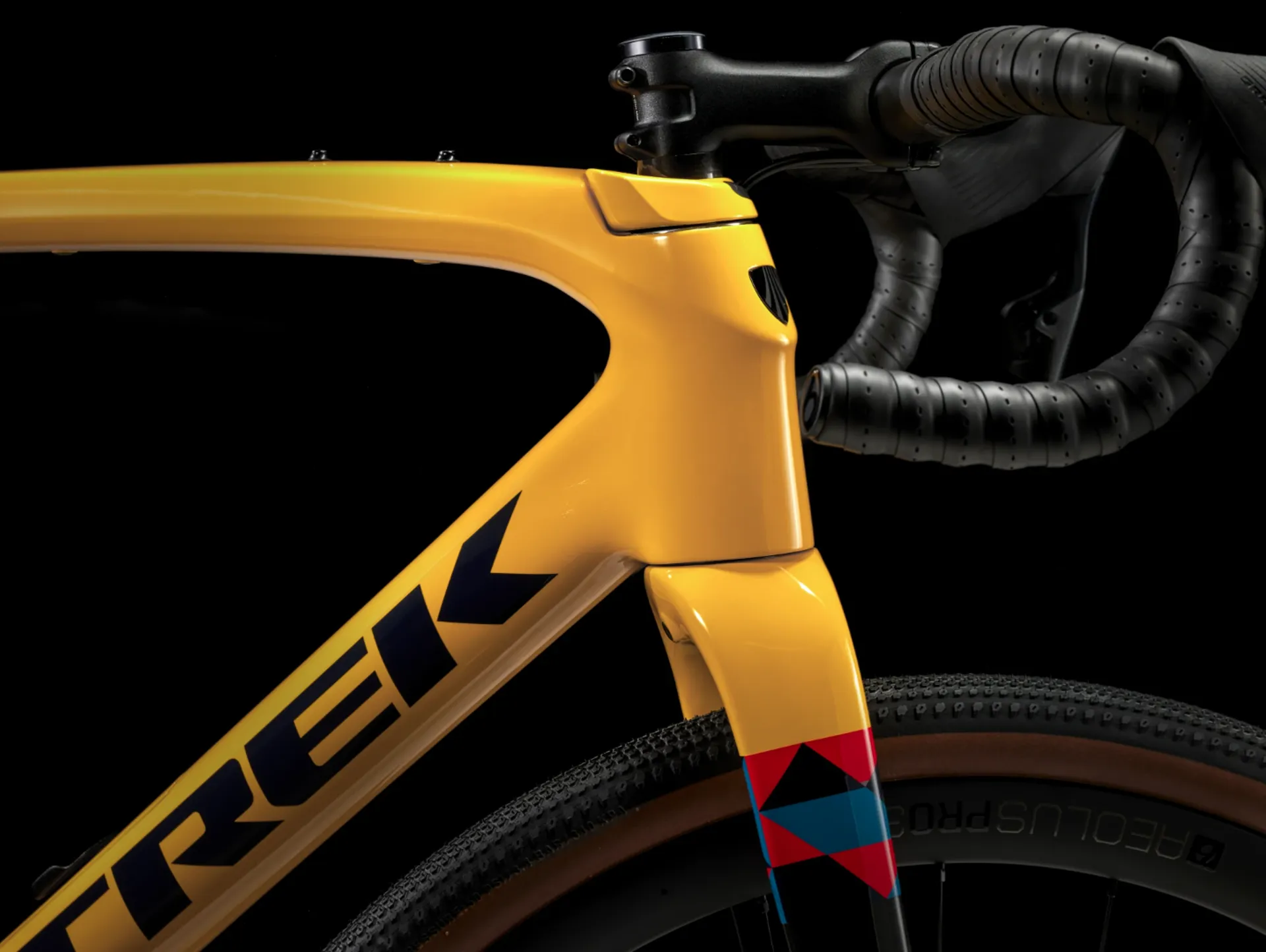

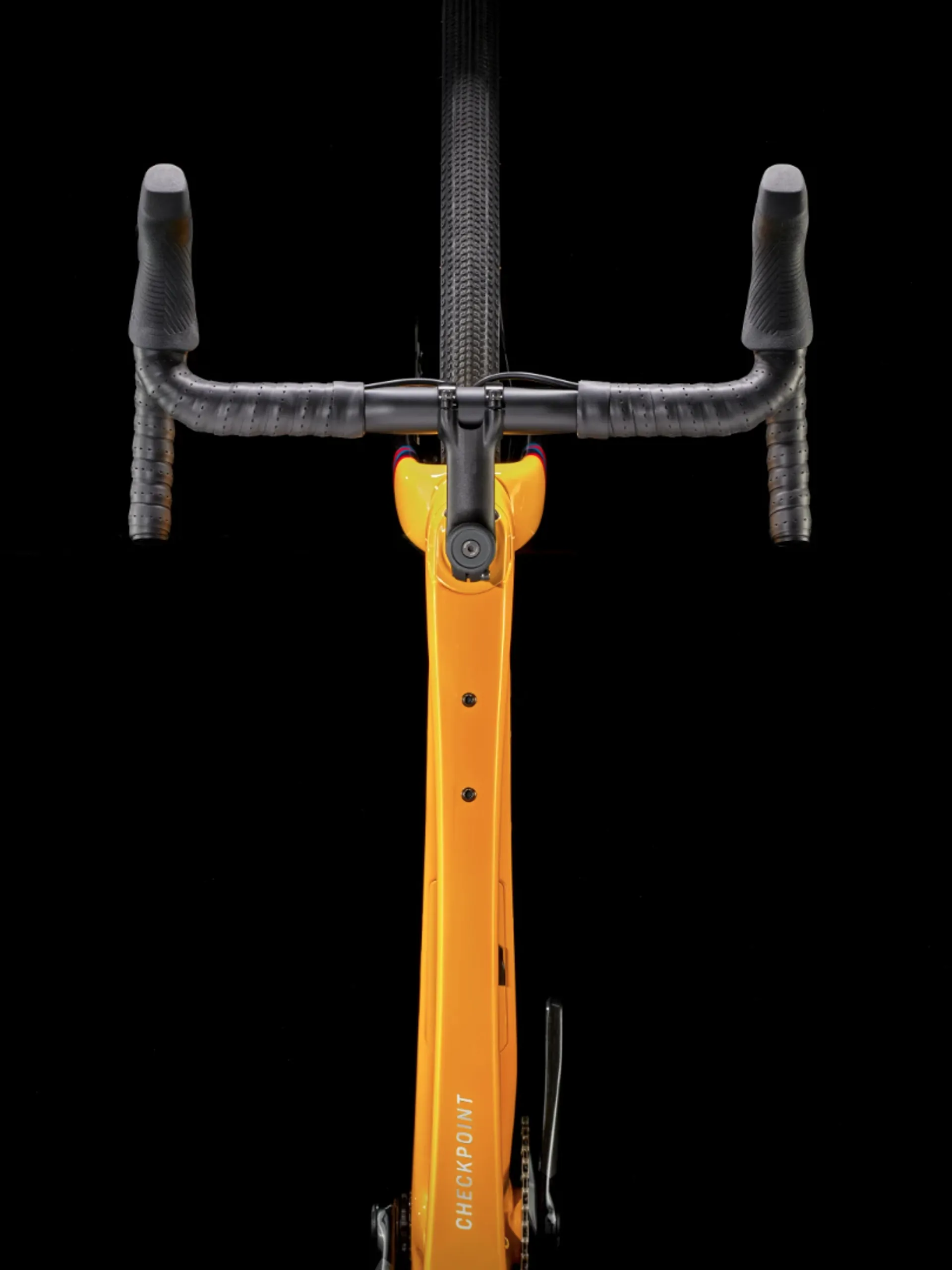

  • Handlebar
  • Size: 49
    Bontrager Pro IsoCore VR-SF, 38cm
  • Size: 52
    Bontrager Pro IsoCore VR-SF, 40cm
  • Size: 54, 56
    Bontrager Pro IsoCore VR-SF, 42cm
  • Size: 58, 61
    Bontrager Pro IsoCore VR-SF, 44cm
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
  • Size: 49
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
  • Size: 52, 54
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Size: 56, 58
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Size: 61
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Brake rotor
    SRAM CentreLine X, CentreLock, round edge, 160 mm
  • Rotor size
    Max brake rotor sizes: 160mm front & rear
