The Cube Kathmandu EXC Hybrid is a versatile touring e-bike with 22-speed Shimano gears, air suspension, and full equipment for all-weather adventures.
The Cube Kathmandu EXC Hybrid is a versatile touring e-bike with 22-speed Shimano gears, air suspension, and full equipment for all-weather adventures.
Cube

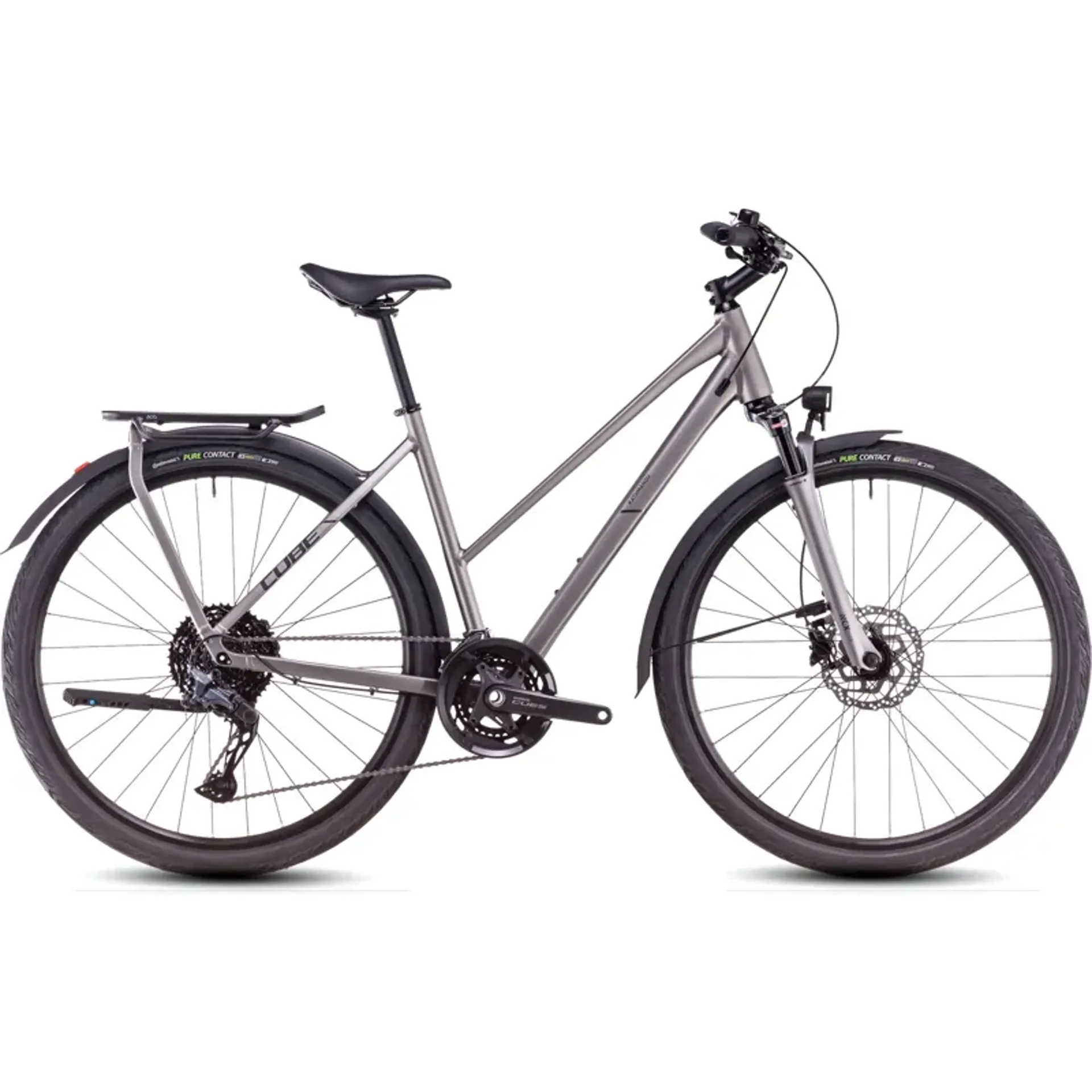

Cube Kathmandu EXC Hybrid Bike 2025 in Grey/Black

£1,499.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Cube Kathmandu EXC Hybrid Bike 2025 in Grey/Black

Season:2025

Brand:Cube

Code:862401GRY

CUBE design expertise is the name of the game for the Kathmandu's Trapeze frame. Its Integrated Carrier 3.0 is designed to work seamlessly with Cube's ACID mudguard. Cube havefitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. Cube also equipped the rear end with a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to keep your gear shifts smooth with minimal maintenance, Cube reckon they've thought of everything. Just don't forget your toothbrush.

From zipping across town to tackling mountain passes you've never ridden before, the Kathmandu EXC from CUBE is designed to get you there – and back – in comfort and style. Cube chose Shimano's Cues 2x11 gears for their ease of use and reliability. Then Cube added powerful Shimano hydraulic disc brakes and Continental's Pure Contact tyres made from sustainably sourced rubber, so you know you're in full control at all times. Finally, Cube selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With Cube's Integrated Carrier 3.0 and a full complement of accessories – including mudguards, kickstand and lights – you've everything you need. Just jump on and go.

Key Features & Benefits:

  • Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • Aluminium Frame:Lightweight & durable.
  • 22 Shimano Gears:Reliable, and a huge range of gears for all terrains.

Full Specification:

  • Frame:Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted
  • Fork:SR Suntour NCX E RL Air T, 63mm, Remote Lockout
  • Number of Gears:22
  • Gear Shifters:Shimano Cues SL-U8000, Rapidfire-Plus
  • Chainset:Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard
  • Chainrings:46x32T
  • Cassette:Shimano Cues CS-LG700, 11-45T
  • Chain:KMC xGlide
  • Front Derailleur:Shimano Cues FD-U6010, Top-Swing, 31.8mm
  • Rear Derailleur:Shimano Cues RD-U8020-SGS, 11-Speed
  • Bottom Bracket:Shimano
  • Pedals:ACID PP MTB
  • Rims:Cube EX25, 32H, Disc, Tubeless Ready
  • Front Hub:Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
  • Rear Hub:Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
  • Front Tyre:Continental Pure Contact, 47x622, Foldable
  • Rear Tyre:Continental Pure Contact, 47x622, Foldable
  • Brakes:Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180)
  • Handlebars:Cube Comfort Trail Bar, 680mm
  • Handlebar Grips:Acid TravelComfort
  • Headset:VP Integrated 1 1/8", Bottom 1 1/2"
  • Stem:Cube Performance Stem Pro, 31.8mm
  • Saddle:ACID Sequence Pro 160
  • Seatpost:Cube Performance Post, 27.2mm
  • Front Light: Cube IQ-XS-Friendly N plus
  • Rear Light: Acid Mudguard Rear Light PRO-D, 6V, AC
  • Stand: Acid FM Pure Kickstand
  • Mudguards: Acid 56 Integrated Carrier 3.0
  • Bell: Cube Easy Bell
  • Carrier: Acid Integrated Carrier 3.0, Adapter Compatible
  • Weight:15.9 kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

If you are unsure which size Cube bike would be best for you, Cube do provide an online sizing calculator on each bike product page, which requires you to enter your height and inside leg. This can give a recommendation on which size may be best for you, however for the best results, please visit your local Balfe’s store for a personal consultation and test ride.

Geometry for Cube Kathmandu Trapeze (step through)

46 cm / XS50 cm / S54 cm / M
Seat tube460500540
Top Tube Horizontal563578593
Seat angle73°73°73°
Head tube angle70.5°71°71°
Chainstays455455455
Head tube153153188
Wheelbase106810781094
BB-Height to Hub606060
Protrusion height - 80mm691731754
Reach367382386
Stack641643676
Length seat post350350350
Diameter seatpost27.227.227.2
Angle stem17°17°17°
Crank length175175175
Diameter tire maximum728728728
Width tire maximum484848
Stem length909090
Handlebar width660660660

Geometry for Cube Kathmandu

Slack/Moderate
46 cm50 cm54 cm58 cm62 cm
Seat tube460500540580620
Top Tube Horizontal558569583598613
Seat angle73°73°73°73°73°
Head tube angle70°70°70°70°71°
Chainstays455455455455455
Head tube113133153173193
Wheelbase10671079109411101114
BB-Height to Hub6060606060
Protrusion height - 80mm785817848879911
Reach374380388397405
Stack601620638657681
Length seat post350350350350350
Diameter seatpost27.227.227.227.227.2
Angle stem17°17°17°17°17°
Crank length170170175175175
Diameter tire maximum728728728728728
Width tire maximum4848484848
Stem length9090909090
Handlebar width700700700700700

Warranty Information for Cube:

Your CUBE bike is warranted to be free from manufacturing defects for 2 years with effect from the date of sale. In addition, we provide our customers with the following warranty in the event of frame breakage outside the statutory warranty period as follows:
For all frames and rigid forks from model year 2012 and onwards Cube guarantee from the date of sale from the dealer:
Aluminium: 6-year guarantee
Carbon fibre, aluminium-carbon fibre: 3-year guarantee
If a break occurs during this period (from date of sale), Cube will replace the item with the same or similar.
BOSCH Warranty (E-Bikes): The warranty period is 24 months.
For full warranty policy please visit cube.eu

Technical Information
  • Frame
    Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted
  • Size
    Trapeze: 46cm, 50cm, 54cm
  • Suspension
    Suspension fork, SR Suntour NCX E RL Air T, 63mm, Remote Lockout
  • Brake System
    Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180)
  • Rear Derailleur
    Shimano Cues RD-U8020-SGS, 11-Speed
  • Shifters
    Shimano Cues SL-U6000, Rapidfire-Plus
  • Front Derailleur
    Shimano Cues FD-U6010, Top-Swing, 31.8mm
  • Bottom Bracket
    Shimano BB-MT501, 68mm BSA
  • Crankset
    Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard
  • Cassette
    Shimano Cues CS-LG700, 11-45T
  • Chain
    KMC xGlide
  • Headset
    VP Integrated, Top 1 1/8", Bottom 1 1/2"
  • Stem
    CUBE Performance Stem Pro, 31.8mm
  • Handlebar
    CUBE Comfort Trail Bar, 680mm
  • Grips
    ACID Travel Comfort
  • Rims
    CUBE EX25, 32H, Disc, Tubeless Ready
  • Front Hub
    Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
  • Rear Hub
    Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
  • Tyres
    Continental Pure Contact, 47x622, Foldable
  • Saddle
    ACID Sequence Pro 160
  • Seat Post
    CUBE Performance Post, 27.2mm
  • Pedals
    CUBE PP MTB
  • Front Light
    CUBE IQ-XS-Friendly N plus
  • Rear Light
    ACID Mudguard Rear Light PRO-D, 6V, AC
  • Kickstand
    ACID FM Pure Kickstand
  • Mudguards
    ACID 56 Integrated Carrier 3.0
  • Bell
    Easy Bell
  • Carrier
    ACID Integrated Carrier 3.0, CUBE Adapter Compatible
  • Colour
    Grey'n'black
  • Weight
    15.9 kg
