The Trek Roscoe 9 is Trek's best trail hardtail, built for lap after lap of dirt-filled fun.
The Trek Roscoe 9 is Trek's best trail hardtail, built for lap after lap of dirt-filled fun.
Trek

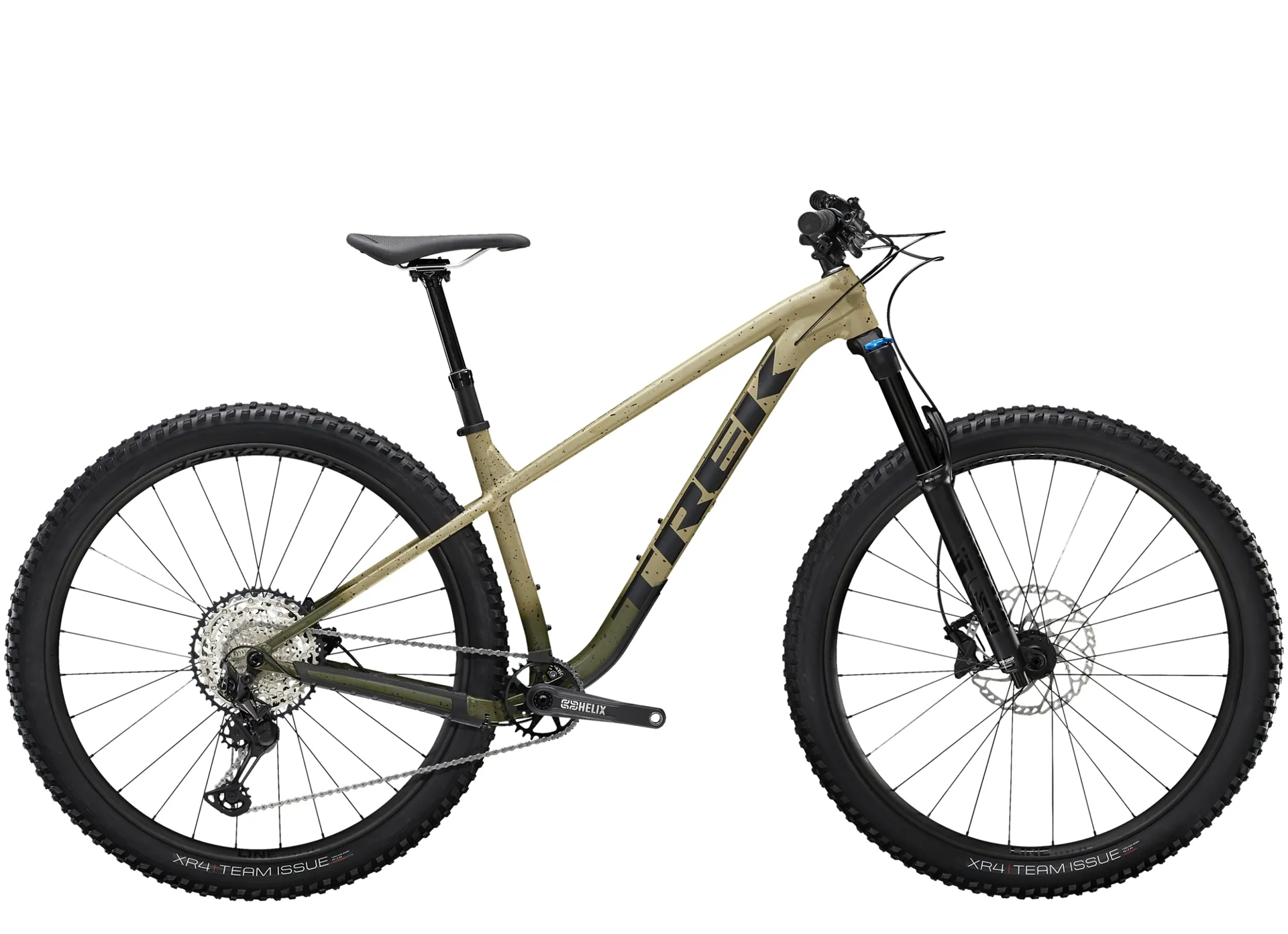

EX DISPLAY Trek Roscoe 9 Hardtail Mountain Bike Medium 2023 in Matte Quicksand

£1,260.00 £1,850.00 32% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

EX DISPLAY Trek Roscoe 9 Hardtail Mountain Bike Medium 2023 in Matte Quicksand

Season:2024

Brand:Trek

Code:SD5260395B

This Trek Roscoe 9 Hardtail Mountain Bike in Size Medium is an ex-display bike, it may have some light cosmetic damage, but otherwise the bike is as new.
Our ex-display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex-display bikes.

The Roscoe 9 is Trek's best trail hardtail, built for lap after lap of dirt-filled fun. A 140 mm FOX Rhythm 36 fork, powerful 4-piston brakes and a fast-and-grippy wheel and tyre combo deliver incredible capability whether you're nailing jumps or picking through gnarly rock gardens.


29er wheels and wide 2.6" tyres make for a grippy, confident and fast-rolling ride; bigger, stiffer 36 mm fork stanchions won't flex, so you can push harder with more precise, confident steering that helps you stay on your line; the Fox fork's air-spring can easily be adjusted for specific rider weight, and it's lighter than a coil spring; the dropper post lets you lower your saddle on the fly so it's out of the way on descents.

Key Features & Benefits:

  • Aluminium Frame: Lightweight & Durable.
  • Shimano 1x12 Drivetrain: Delivers a wide range of gearing with the simplicity of a single shifter.
  • Hydraulic Disc Brakes: Powerful braking capacity to keep you in control.

Full Specification:

  • Frame: Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR
  • Rear Shock (If Applicable): N/A
  • Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
  • Number of Gears:12
  • Gear Shifters: Shimano SLX M7100, 12-speed
  • Chainset: E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chain line, 170-5mm length
  • Chainrings:30T Steel
  • Rear Cassette:Shimano SLX M7100, 10-51, 12-speed
  • Chain: Shimano Deore M6100, 12-speed
  • Front Derailleur: N/A
  • Rear Derailleur:Shimano XT M8100, long cage, 51T max cog
  • Bottom Bracket: Shimano SM-BB52, 73 mm, threaded external bearing
  • Pedals:Not supplied:Shop pedals here
  • Rims: Bontrager Line 30, Tubeless Ready, 28-hole, Presta valve
  • Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru-axle
  • Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle
  • Front Tyre: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 TPI, 29x2.60"
  • Rear Tyre: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 TPI, 29x2.60"
  • Brakes: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
  • Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise
  • Handlebar Grips: Bontrager XR Trail Comp, nylon lock-on
  • Headset:FSA IS-2, 1-1/8" top, 1.5" bottom
  • Stem:Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
  • Saddle: Bontrager Arvada, hollow Chromoly rails, 138 mm width
  • Seatpost: TranzX JD-YSP18, 100-150 mm travel, internal routing, 31.6 mm
  • Accessories: N/A
  • Weight: Not Available
Please note the XS comes with 27.5 x 2.6 Wheels and Tyres
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Roscoe Hardtail Mountain Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
XS145 - 1554'9" - 5'1"69 - 7327 - 29
S155 - 1655'1" - 5'5"74 - 7829 - 31
M165 - 1735'5" - 5'8"79 - 8131 - 32
M/L173 - 1805'8" - 5'11"81 - 8632 - 34
L180 - 1885'11" - 6'2"86 - 8934 - 35
XL188 - 1956'2" - 6'5"89 - 9135 - 36
XXL195 - 2036'5" - 6'8"91 - 9736 - 38

Geometry for Trek Roscoe 6 Hardtail Mountain Bike

All measurements provided in cm unless otherwise stated.

Frame size number13.5"15.5"17.5"18.5"19.5"21.5"23.0"
Frame size letterXSSMMLLXLXXL
Wheel size27.5+27.5+27.5+27.5+27.5+27.5+27.5+
A — Seat tube34.336.841.944.44752.155.9
B — Seat tube angle69.7°70.2°69.6°69.6°69.7°69.7°69.7°
Effective seat tube angle71.1°71.2°70.7°70.8°70.8°70.9°70.9°
C — Head tube length9999101212
D — Head angle67.1°67.2°67.2°67.3°67.3°67.4°67.4°
E — Effective top tube55.857.460.962.564.566.668
F — Bottom bracket height313231.931.931.931.831.8
G — Bottom bracket drop544.14.14.14.24.2
H — Chainstay length43.843.843.843.843.843.843.8
I — Offset4.24.24.24.24.24.24.2
J — Trail15.215.215.115.115.11515
K — Wheelbase105.9108.1111112.6114.6116.8118.2
L — Standover73.175.475.174.876.37681.5
M — Frame reach35.136.439.44142.844.245.7
N — Frame stack60.561.461.461.562.564.464.4

Geometry for Trek Roscoe 7, 8, and 9 (XS comes with 27.5" Wheel)

Frame size letterXSSMMLLXL
Wheel size27.5"29"29"29"29"29"
A — Seat tube34364243.54550
B — Seat tube angle73.1°73.1°73.1°73.1°73.1°73.1°
Effective seat tube angle74.7°74.7°74.7°74.7°74.7°74.7°
C — Head tube length991010.51113.5
D — Head angle65.0°65.0°65.0°65.0°65.0°65.0°
E — Effective top tube55.258.661.46364.667.7
F — Bottom bracket height31.8532.1532.1532.1532.1532.15
G — Bottom bracket drop4.56.16.16.16.16.1
H — Chainstay length434343434343
I — Offset4.24.24.24.24.24.2
J — Trail12.213.113.113.113.113.1
K — Wheelbase112115.1118.1119.8121.5125
L — Standover72.974.174.874.275.576.5
M — Frame reach3941.54445.54749.5
N — Frame stack59.162.663.563.964.466.6




Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
