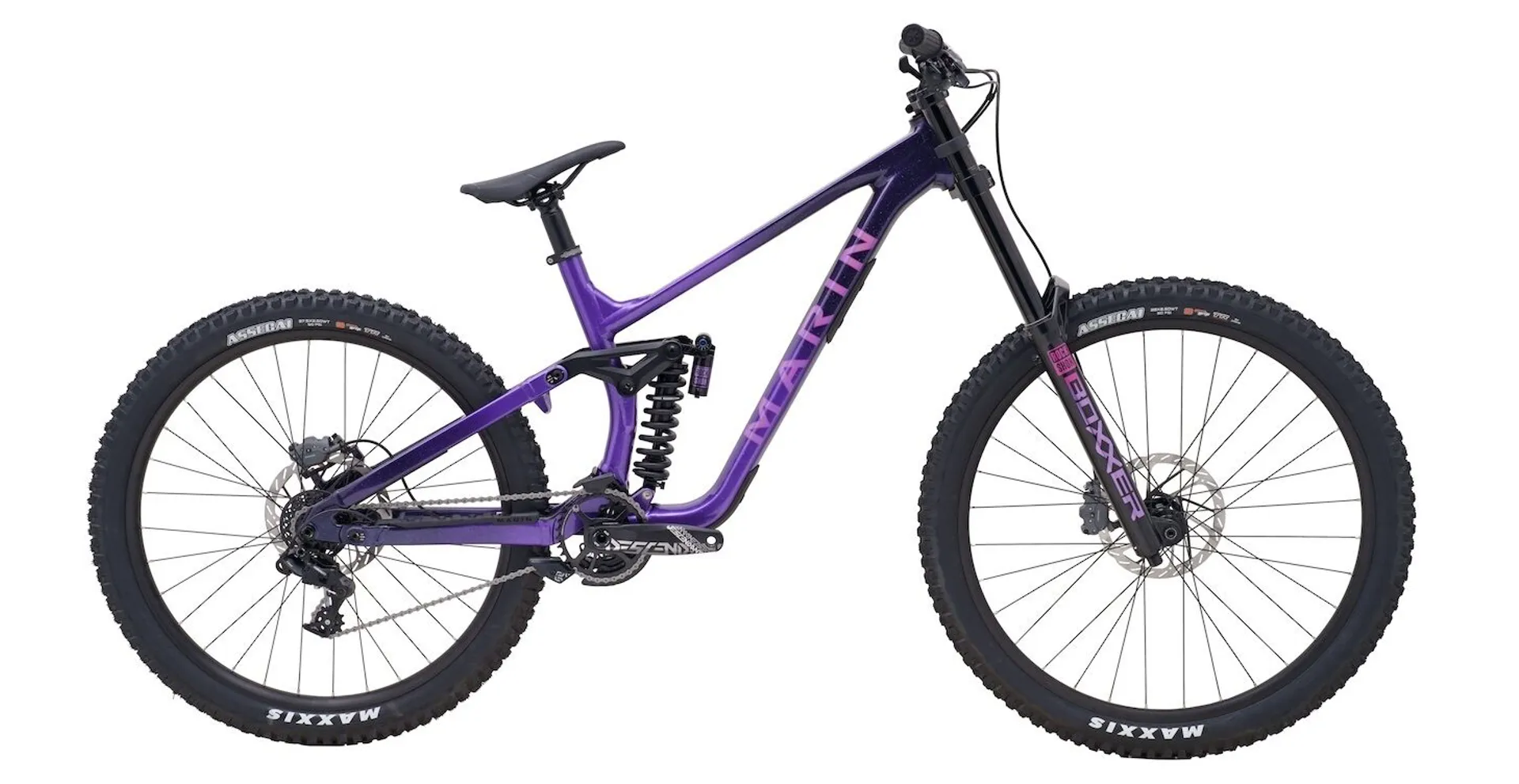

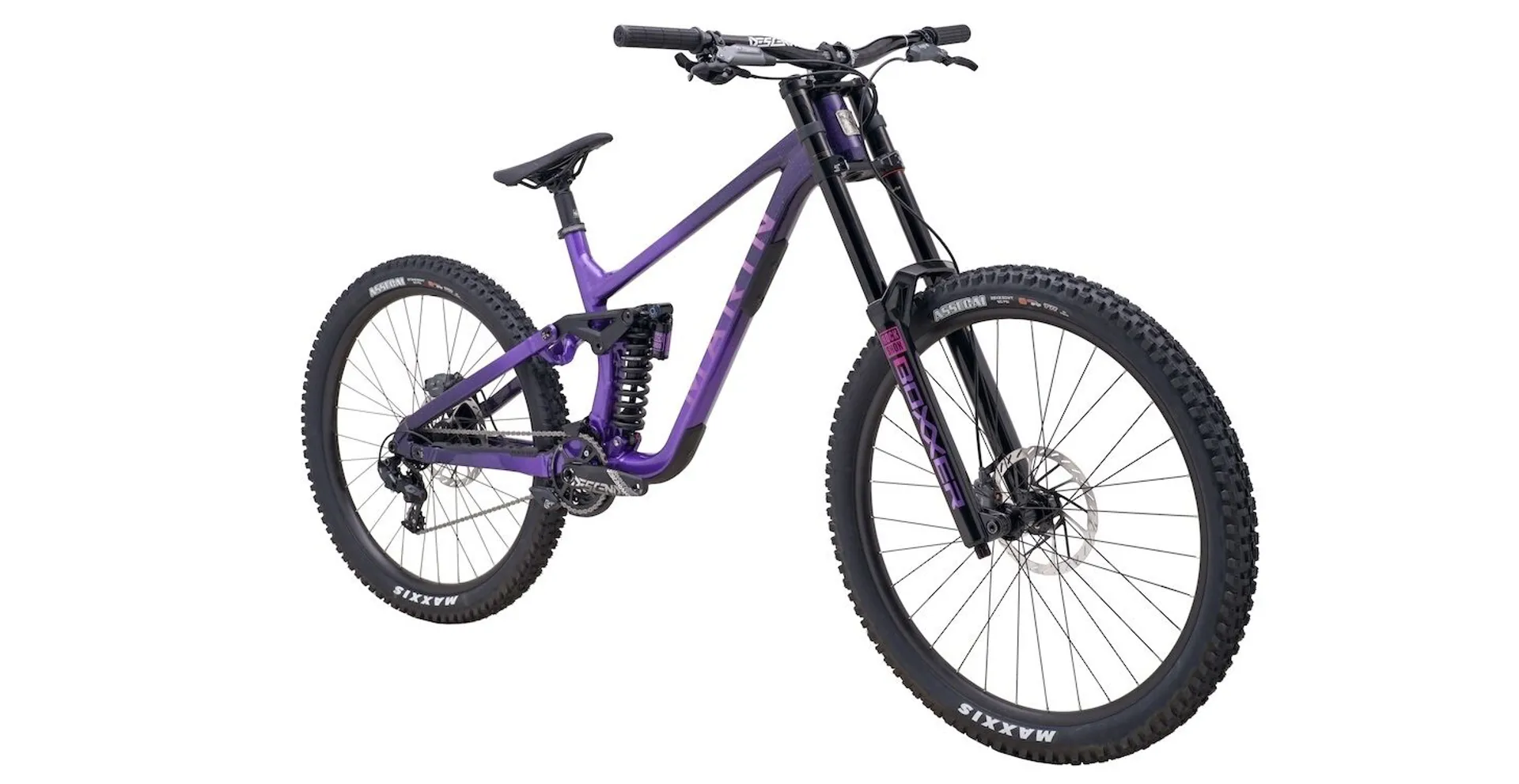

Marin Quake Full Suspension Mountain Bike 2026 in Purple

Season:2026

Brand:Marin

Code:7390730PURFADE

Designed for bike park laps and the DH course, the all-new Quake has benefited from an immersive development cycle where top riders have provided invaluable feedback over multiple generations of development samples.

During this time, it was proven both strong and capable by some of the best riders in the sport, including Matt Jones, Mark Matthews, and Vinnie Moonen at some of the most demanding events, including Darkfest and Hardline, along with some of the steepest and most challenging tracks on earth

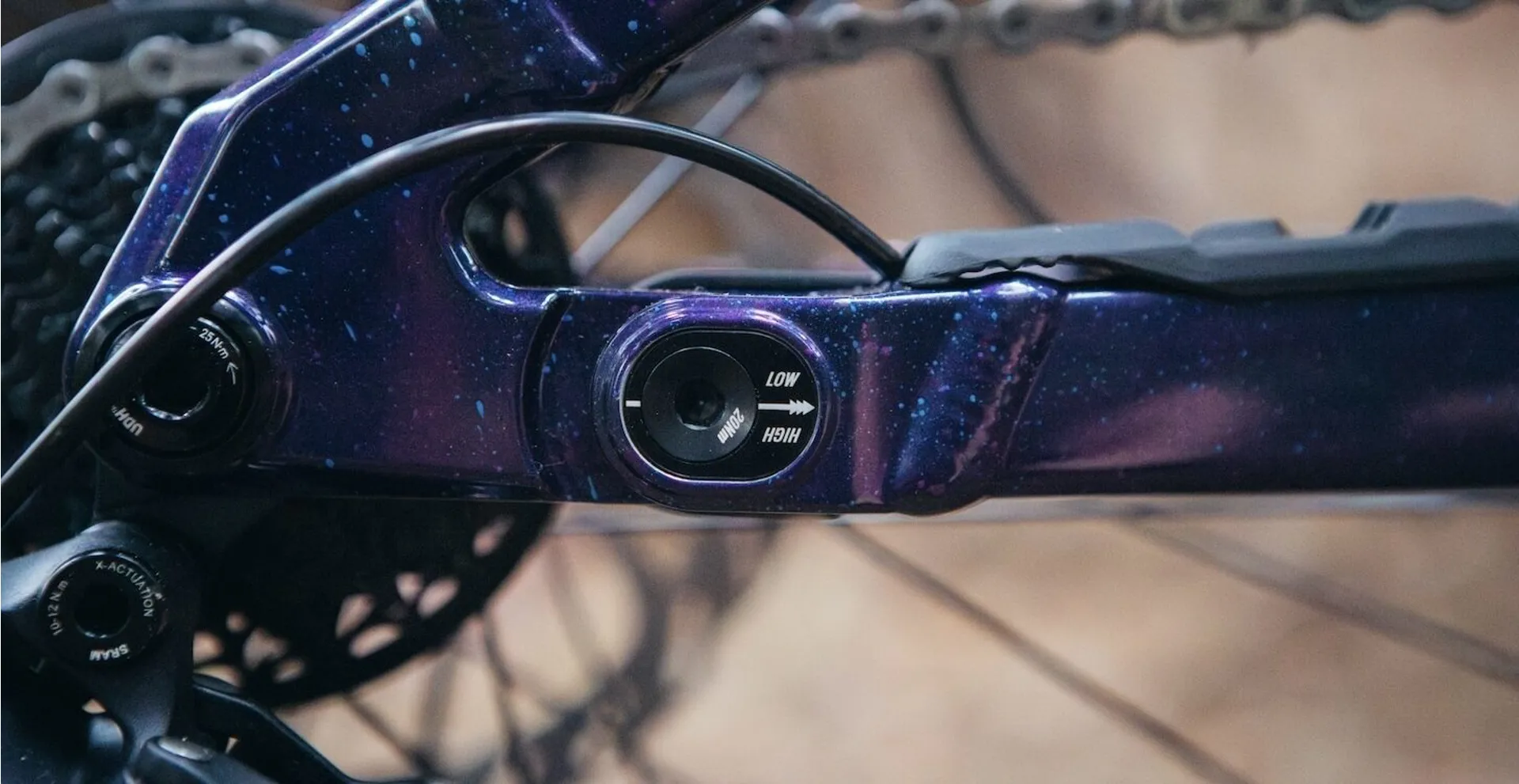

An all-new Series 4 MultiTrac 2 frame features 180mm rear wheel travel and flip chips that allow the rider to select the bottom bracket height and chainstay length, along with the ability to run a 29" rear wheel. Marin have chosen a no-nonsense build kit, starting with RockShox’s storied Boxxer fork paired with a Vivid Coil Ultimate DH shock. The Boxxer is renowned for its balance of performance and durability, and it is quickly and relatively affordably upgradable to a Charger 3 damper for riders who demand the utmost adjustability. Out back, the shock has hydraulic bottom out and adjustable low and high-speed compression damping to dial in the perfect ride. SRAM’s gravity-specific GX DH 7-speed drivetrain has the tight range needed in gravity applications, while powerful Maven Bronze four-piston brakes and 200mm HS2 rotors rein speed. Maxxis DH-rated rubber and SRAM’s venerable Descendant crankset, handlebar, and direct-mount stem round out the stout parts mix, designed for long life in some of the harshest riding conditions.


Key Features & Benefits:

  • Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • Adjustable Geometry:Series 4 MultiTrac 2 frame features 180mm rear wheel travel and flip chips that allow the rider to select the bottom bracket height and chainstay length, along with the ability to run a 29" rear wheel
  • SRAM 7-Speed Drivetrain:High performance gears for all-terrain – even the biggest of hills

Full Specification:

  • Frame:All New Series 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDHSeries 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Rear Shock:RockShox Vivid Coil Ultimate DH, 225x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune
  • Fork:RockShox Boxxer, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset
  • Number of Gears:7
  • Gear Shifters:SRAM GX DH, 7-Speed

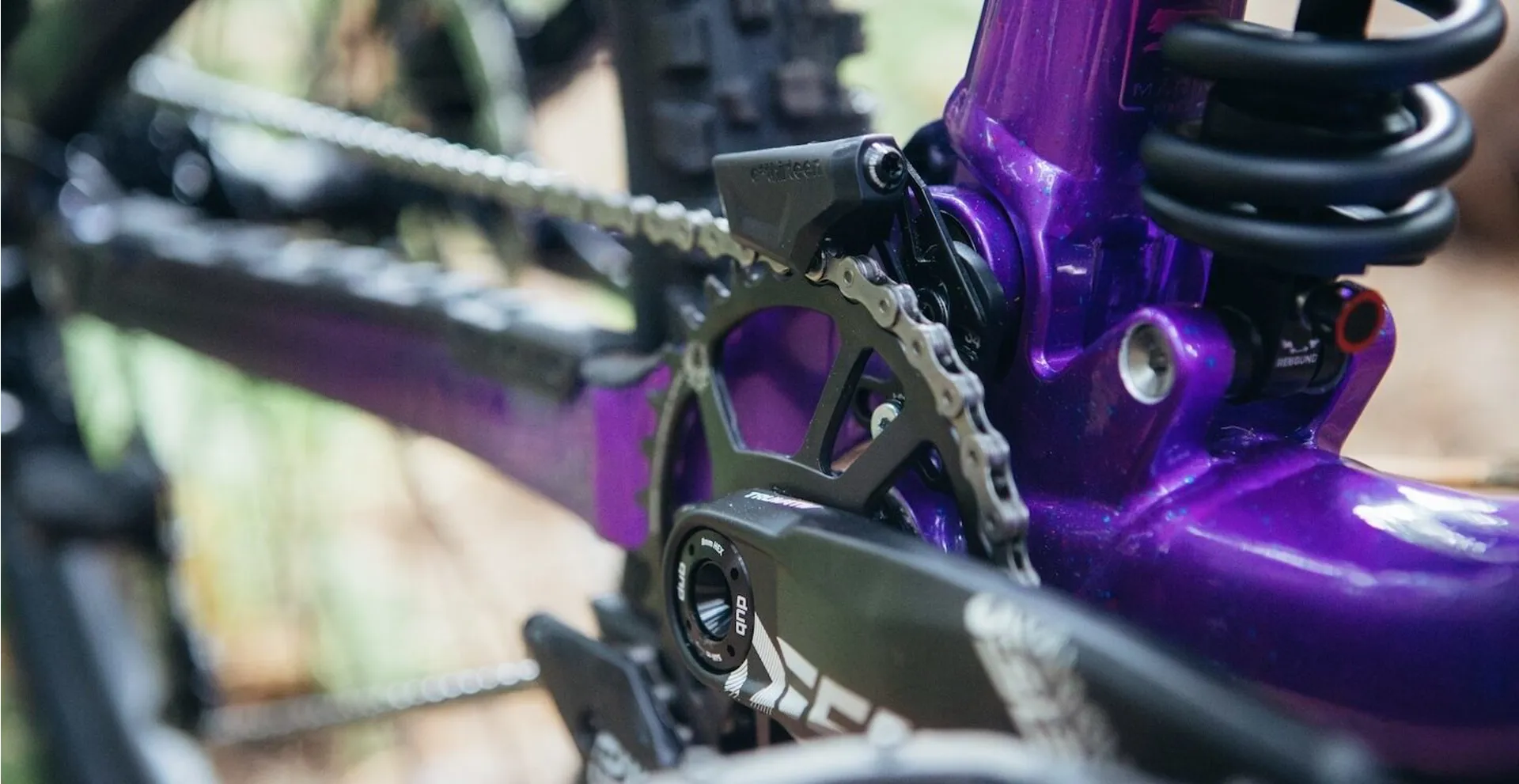

  • Chainset:SRAM Descendant Alloy 34T, 165mm
  • Chainrings:34T
  • Rear Cassette:SRAM GS DH, 11-25T
  • Chain:SRAM PC-1110
  • Rear Derailleur:SRAM GX DH
  • Bottom Bracket:SRAM DUB BSA
  • Pedals:Not supplied:Shop pedals here
  • Rims:Marin Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
  • Front Hub:Marin Forged, 110x20mm, 6-Bolt Disc, 32H
  • Rear Hub:Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body
  • Front Tyre:Maxxis Assegai, 2.5", Tubeless Ready, 3C MaxxGrip, DH Casing
  • Rear Tyre:Maxxis Assegai, 2.5", Tubeless Ready, 3C MaxxGrip, DH Casing
  • Brakes: SRAM Maven Bronze, SRAM Maven Bronze, 200mm HS2 Rotor
  • Handlebars:SRAM Descendant DH, 31.8mm Clamp, 25mm Rise, 9 Degree Backsweep, 5 Degree Upsweep
  • Handlebar Grips:Marin Grizzly Lock-On
  • Stem:SRAM Descendant DH Direct Mount, 31.8mm Clamp, 50mm Length
  • Saddle:Marin Short Nose
  • Seatpost:Marin Alloy, 34.9mm

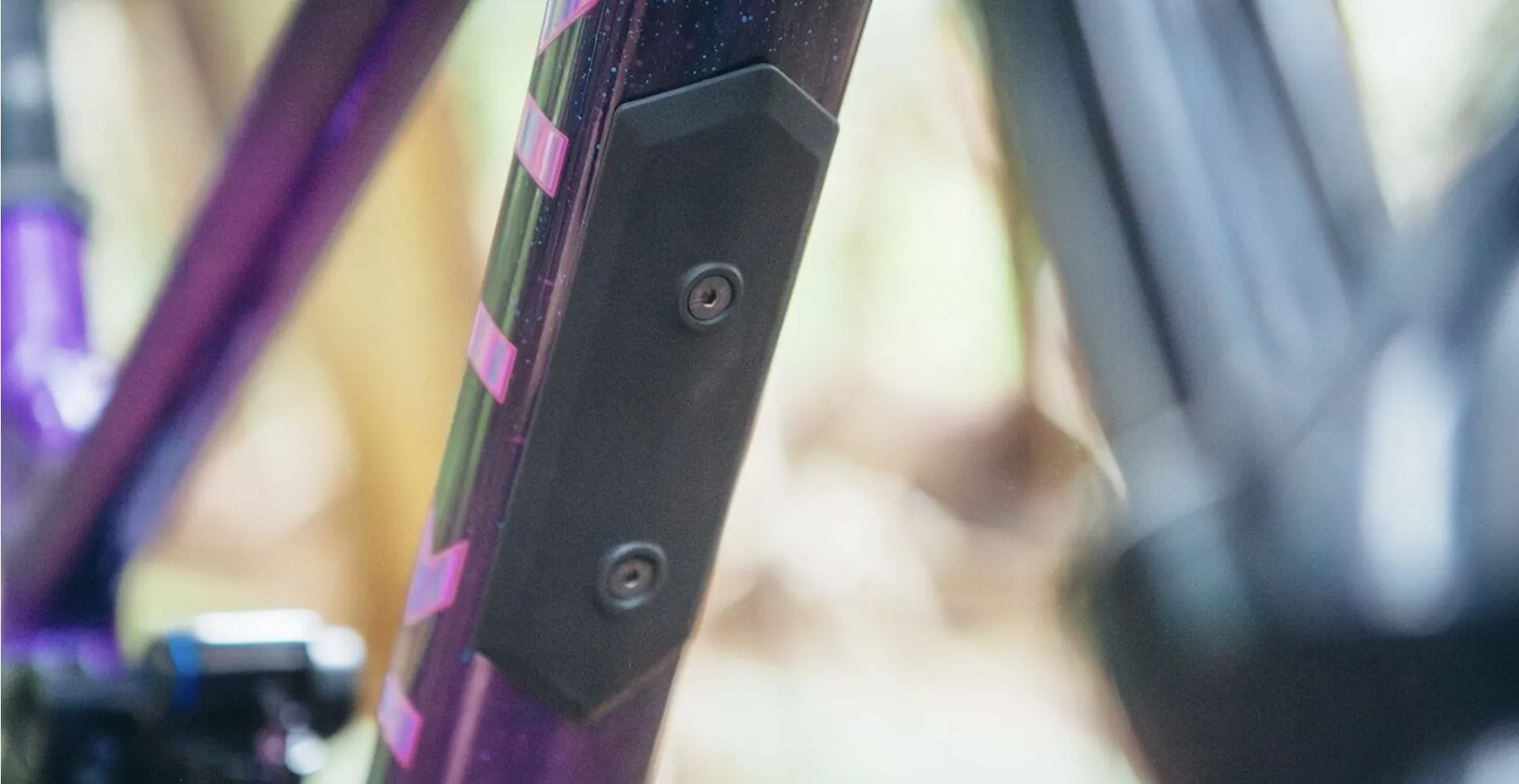

  • Accessories:Downtube & Shuttle Guards
  • Weight:N/A

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Marin Quake:

SizeRider height range
S5'1" - 5'5" / 155-165cm
M5'5" - 6'0" / 165-182cm
L6'0" - 6'4" / 182-193cm

Geometry for Marin Quake:

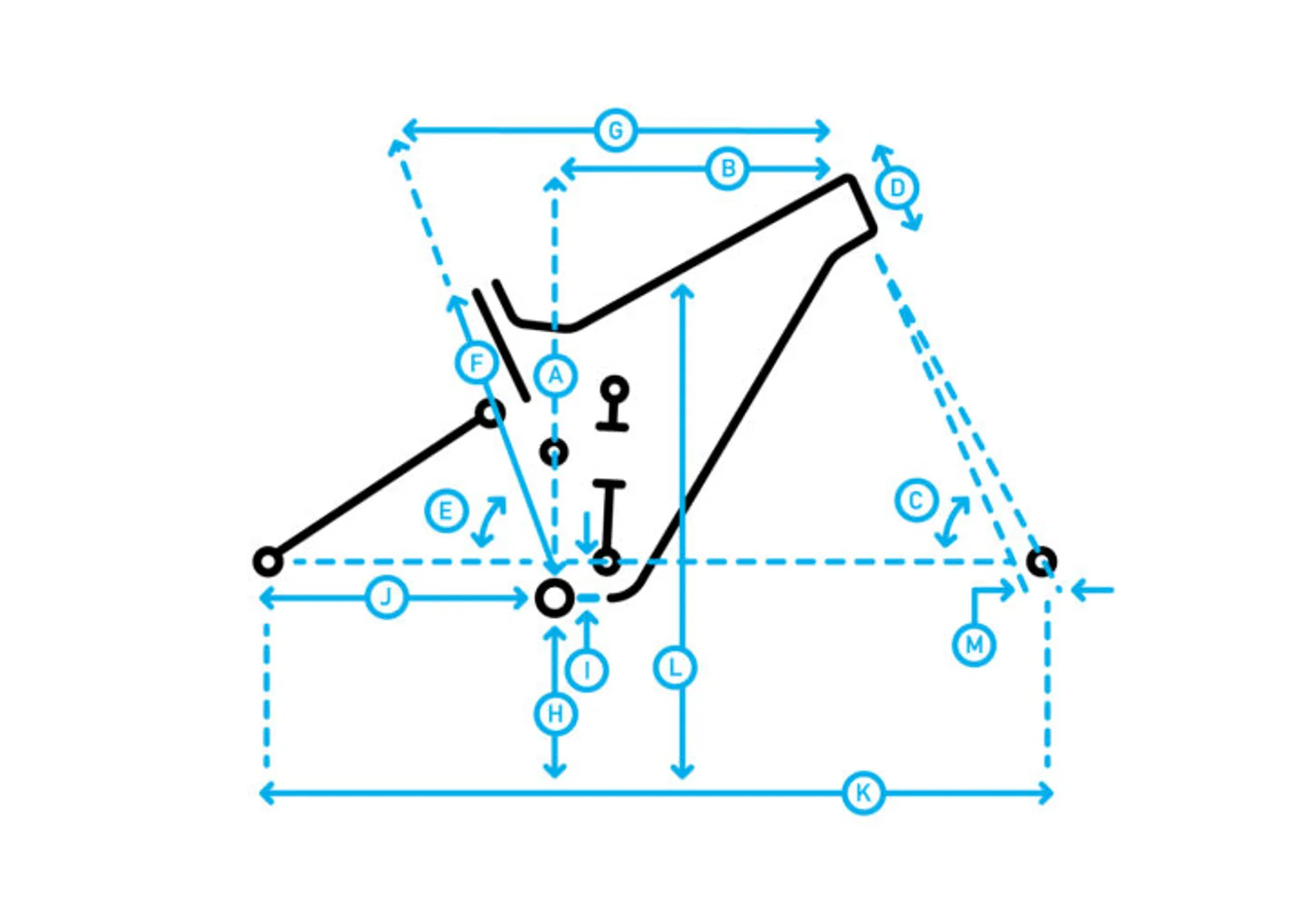

Geometry Diagram for Marin Quake Full Suspension Mountain Bike


SML
AStack630639639
BReach418438478
CHeadtube Angle62.3°62.3°62.3°
DHeadtube Length100110110
EToptube Effective577599639
FSeattube Angle75.8°75.8°75.8°
GSeattube Length390415430
HBB Height353353353
IBB Drop (Rear/Front)4.4/26.44.4/26.44.5/26.4
JChainstay440440440
KWheelbase123012551295
LStandover Height683690695
MFork Offset525252
Seatpost Diameter34.934.934.9
Stem Length505050
Crank length165165165


Warranty Information for Marin:

Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods below

FRAMES WARRANTY PERIOD (From date of purchase)
Carbon Fiber Frames and Forks: 5 Years
Rigid Frames and Forks: Lifetime
Full Suspension Frames: 5 Years
COMPLETE BICYCLE
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
For full warranty policy please visit marinbikes.com
