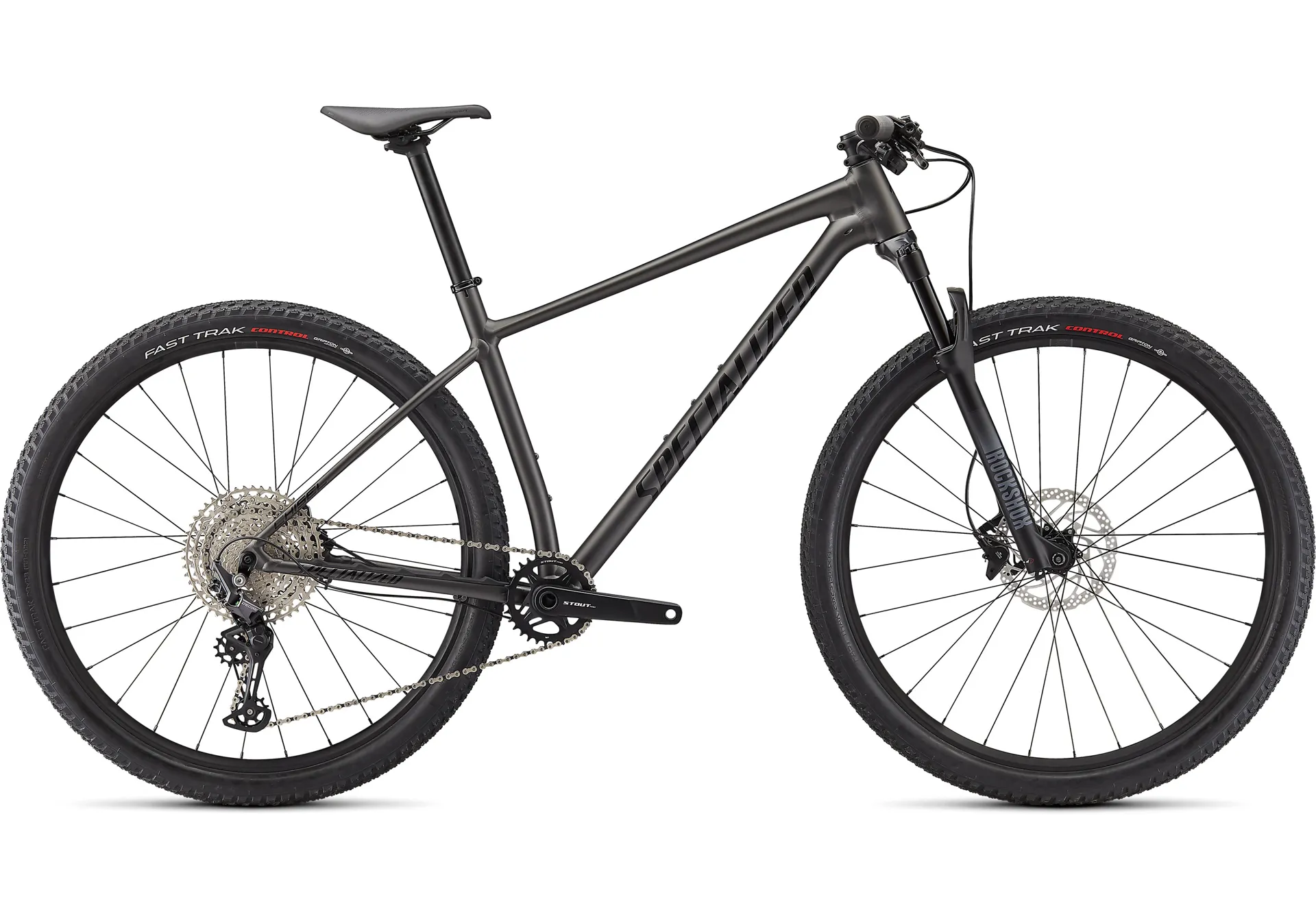

The all-new Specialized Chisel is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive "top step" at a price that leaves some jingle jangle leftover for race entries.
The Chisel's all-new frame utilizes our D'Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame's balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames coming in as light as 1,400g, but it also allows for tuned frame stiffness across all sizes.
The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Key Features and Benefits
Smartweld D'Alusio M5 alloy frame: is ultralight and compliant.
RockShox Judy Silver fork: keeps things under control.
Shimano Deore gears: for accurate and reliable shifting.
Full Specification
- Frame: Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
- Fork: RockShox Judy Silver, Turnkey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
- Number of Gears: 12
- Gear Shifters: Shimano Deore, M6100, I-Spec EV, 12 speed
- Chainset: Stout Pro, 2-Piece Forged Alloy, Direct Mount chainring
- Chainrings: 32T
- Rear Cassette: Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
- Chain: KMC X12, 12-speed w/ Missing Link
- Front Derailleur: N/A
- Rear Derailleur: Shimano Deore, M6100, 12pd, Shadow Plus
- Bottom Bracket: BSA for 24mm spindle
- Pedals: NA
- Rims: Alloy, Offset Design, Tubeless Ready, 25mm internal width, 28h
- Front Hub: Shimano MT410-B, Centerlock 28h, 15x110 Boost
- Rear Hub: Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline
- Front Tyre: Fast Trak, Control casing, GRIPTON compound, 60 TPI, 2Bliss Ready, 29x2.3
- Rear Tyre: Fast Trak, Control casing, GRIPTON compound, 60 TPI, 2Bliss Ready, 29x2.3
- Brakes: Shimano M4100, 2-piston caliper, hydraulic disc
- Handlebars: Stout XC, double-butted alloy, 8-degree back sweep, 6-degree upsweep, 10mm rise, 31.8mm
- Handlebar Grips: Specialized Trail Grips
- Headset: Not Available
- Stem: Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
- Saddle: Specialized Power, steel rails
- Seatpost: Specialized, alloy, single-bolt, 30.9mm
- Accessories: N/A
- Weight: Not Available
