The Fuel EX 9.9 combines a light and nimble carbon frame with Shimano's best drivetrain and top-shelf suspension for a ride that's ready to rally wherever you point it.
The Fuel EX 9.9 combines a light and nimble carbon frame with Shimano's best drivetrain and top-shelf suspension for a ride that's ready to rally wherever you point it.
Trek

Trek Fuel EX 9.9 XTR Full Suspension Mountain Bike 2023 in Baja Yellow

£8,545.00 £9,275.00 8% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Fuel EX 9.9 XTR Full Suspension Mountain Bike 2023 in Baja Yellow

Season:2024

Brand:Trek

Code:36954SATBajaYEL

The Fuel EX 9.9 combines a light and nimble carbon frame with Shimano's best drivetrain and top-shelf suspension for a ride that's ready to rally wherever you point it.

It's dripping with high-end upgrades like buttery-smooth Kashima coat, quick-engaging carbon wheels, a super-slick one-piece bar and stem, and handy multi-tool hidden in the steerer tube.

A light and stiff OCLV Mountain Carbon frame with a 150 mm FOX Factory 36 fork with EVOL air spring and GRIP2 damper and FOX Factory Float X rear shock with 2-position damper that makes light work of the gnarliest rock gardens on the mountain. Carbon wheels that keep weight down while offering stiff and reliable tracking through rowdy terrain, and Shimano's finest drivetrain with the lightweight, reliable and precise XTR component package. Plus, you'll get adjustable geometry for fine-tuning your ride and in-frame storage that lets you keep your set-up tidy without leaving behind trail essentials.

You want a do-it-all mountain bike that’s second to none. You care about it all – from a pristine carbon frame and wheels to the lightest and best drivetrain from Shimano, and you don't want to sacrifice suspension performance for anything. You have good taste, and you know it.

The Fuel EX 9.9 is a top-tier trail bike that's built for riders with an affinity for the finer things in life. It's a complete package, with the industry's best components from the ground up, with Shimano's XTR drivetrain, FOX Factory fork, carbon wheels and frame, and geometry that's ready to be tuned for how you ride.

Key Features & Benefits:

  • Fox Factory 36 fork:140mm Suspension with 36mm stanchions for greater steering precision
  • Carbon fibre 140mm travel Frame with downtube storage:Progressive geometry built to tackle steep and gnarly descents and punchy climbs alike
  • 12-Speed Shimano XTR Gears:Shimano's top-tier group set.

Full Specification:

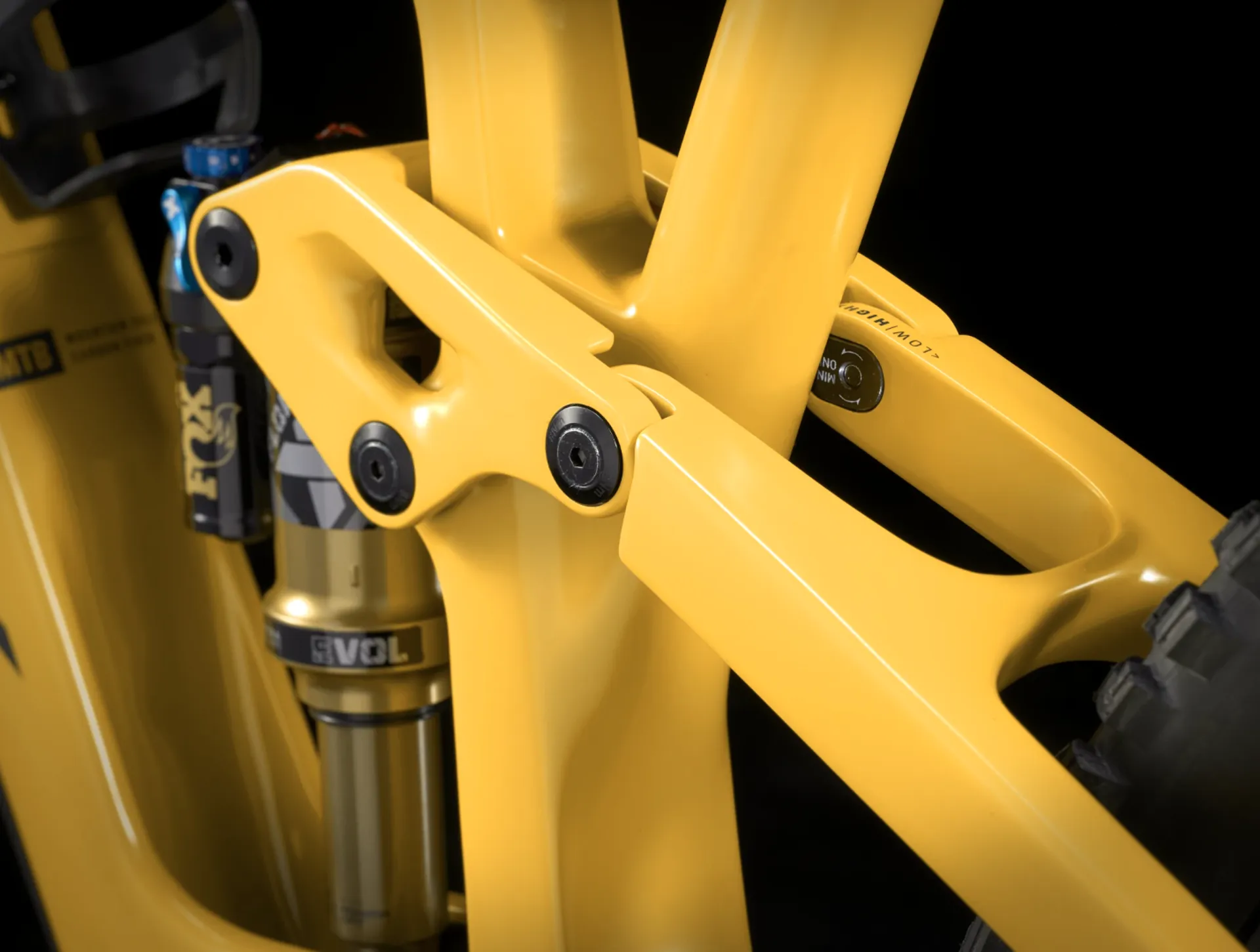

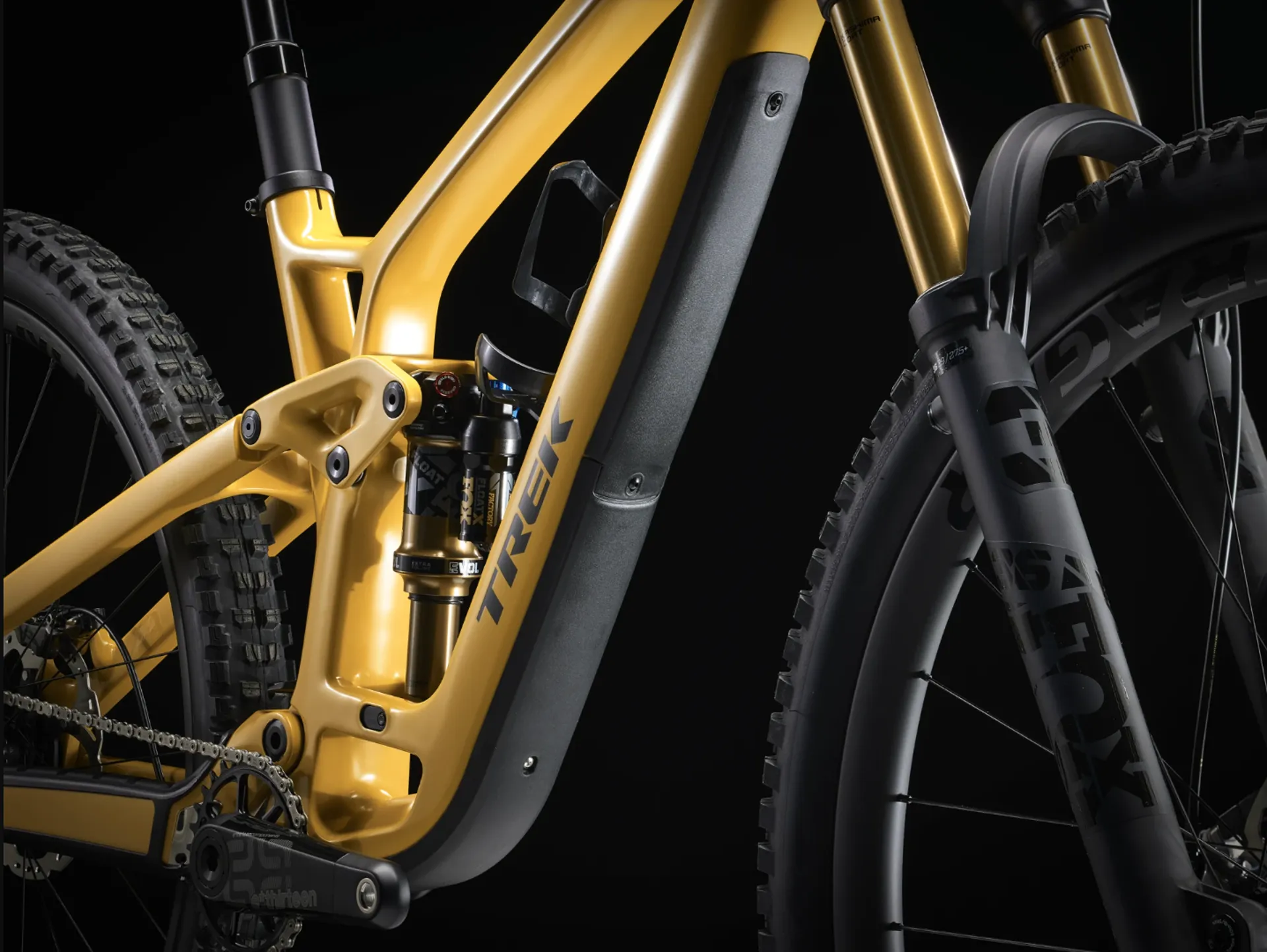

  • Frame:OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel

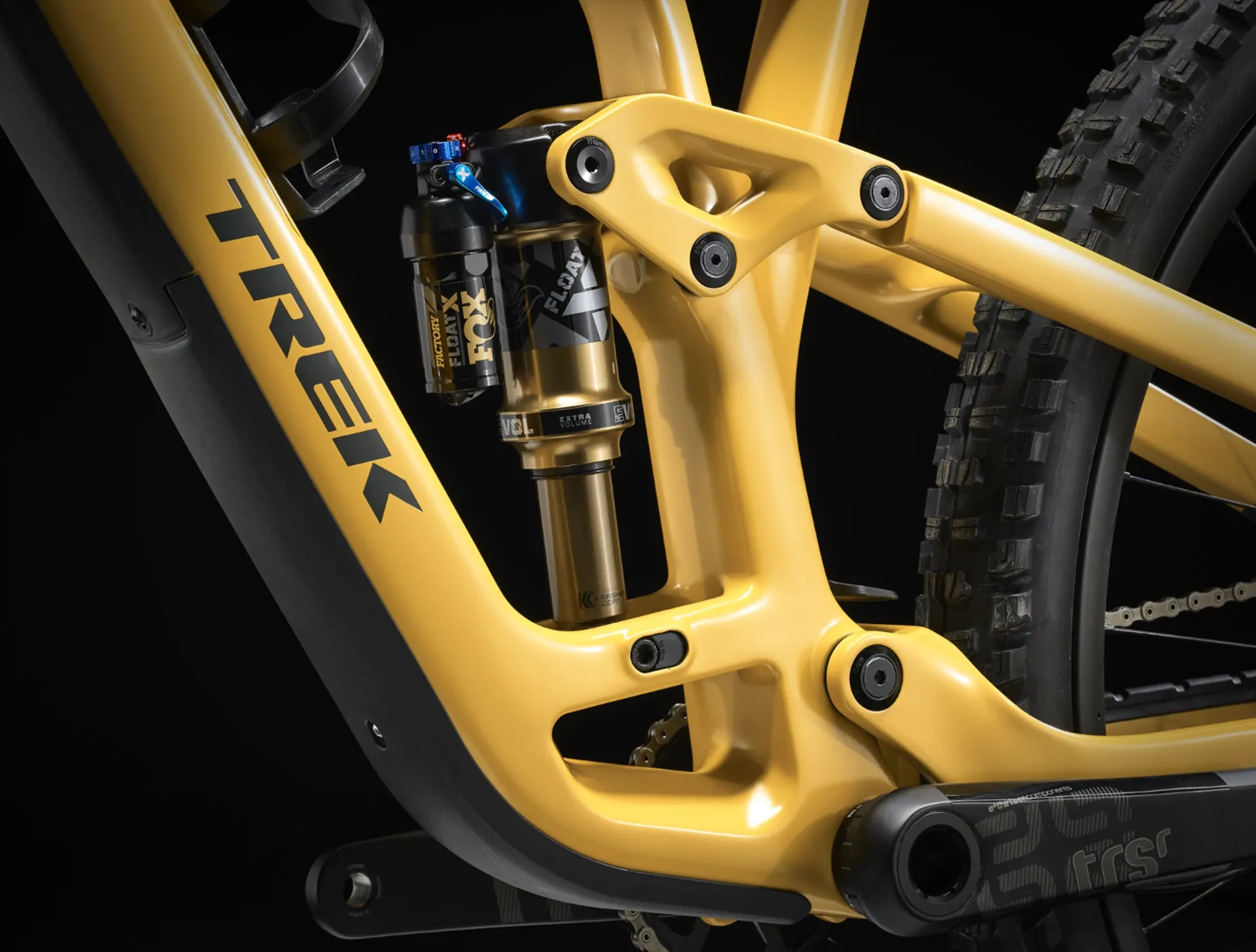

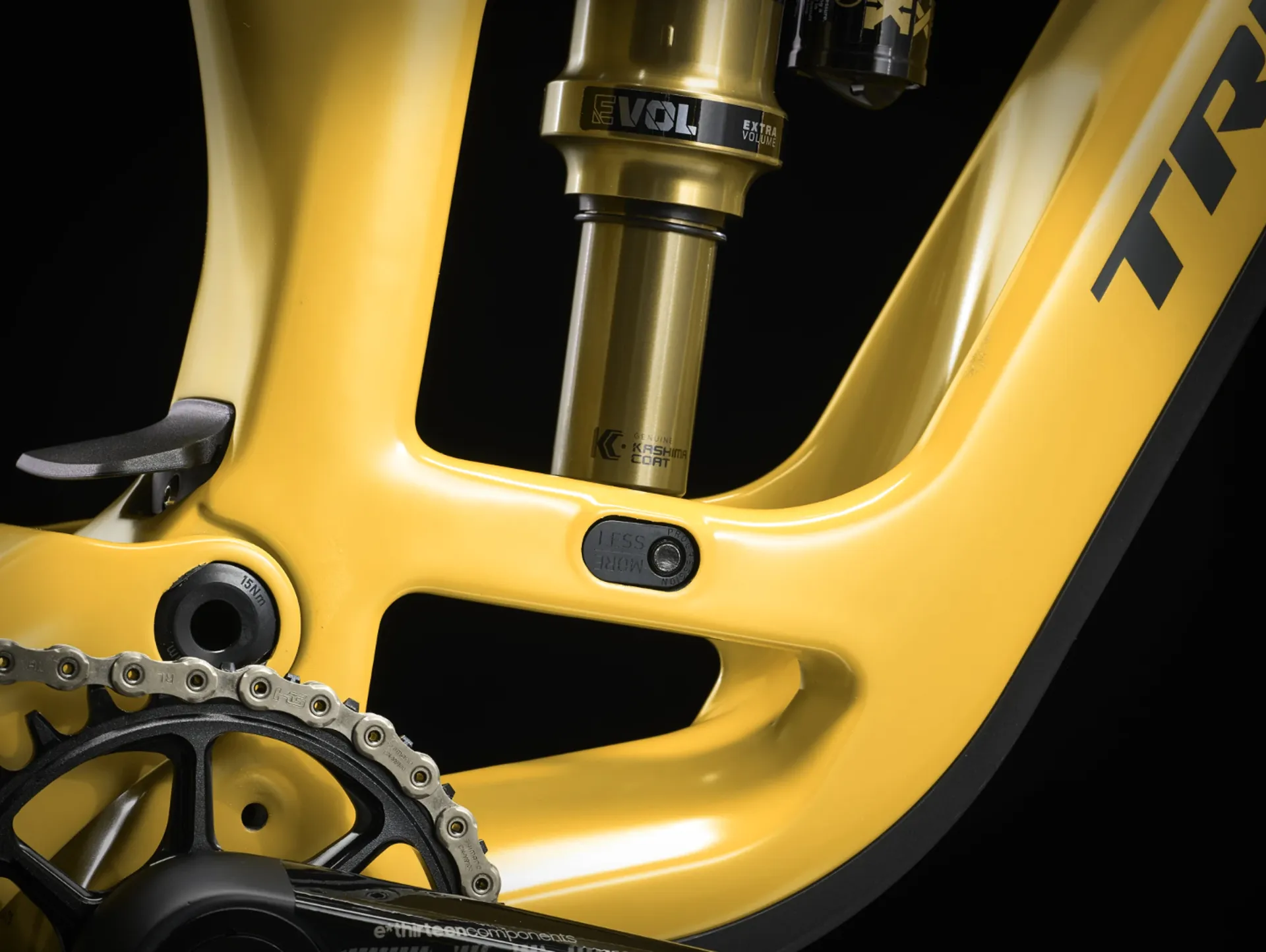

  • Rear Shock:Fox Factory Float X, 2-position damper, 185 mm x 55 mm
  • Fork:Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150mm travel
  • Number of Gears:12
  • Gear Shifters:Shimano XTR M9100, 12-speed
  • Chainset:E*thirteen TRS Race Carbon, 30T, 55mm chain line, 170mm length
  • Chainrings:30T alloy
  • Rear Cassette:Shimano XTR M9101, 10-51, 12-speed
  • Chain:Shimano Dura-Ace/XTR M9100, 12-speed
  • Front Derailleur:N/A

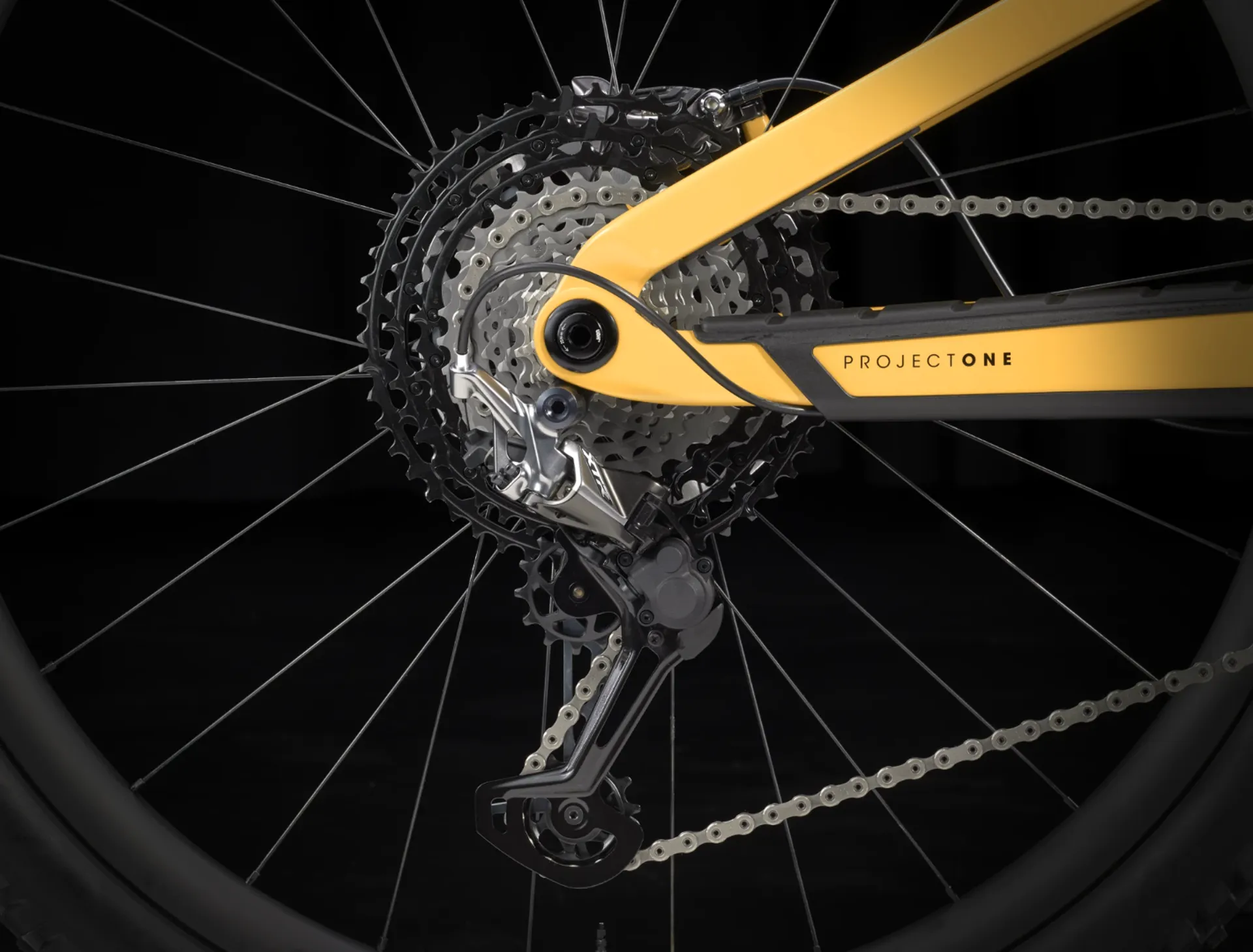

  • Rear Derailleur:Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
  • Bottom Bracket: E*thirteen BB20-P, BSA threaded, 73mm width
  • Pedals: Not supplied:Shop pedals here
  • Front Wheel:Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
  • Rear Wheel:Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

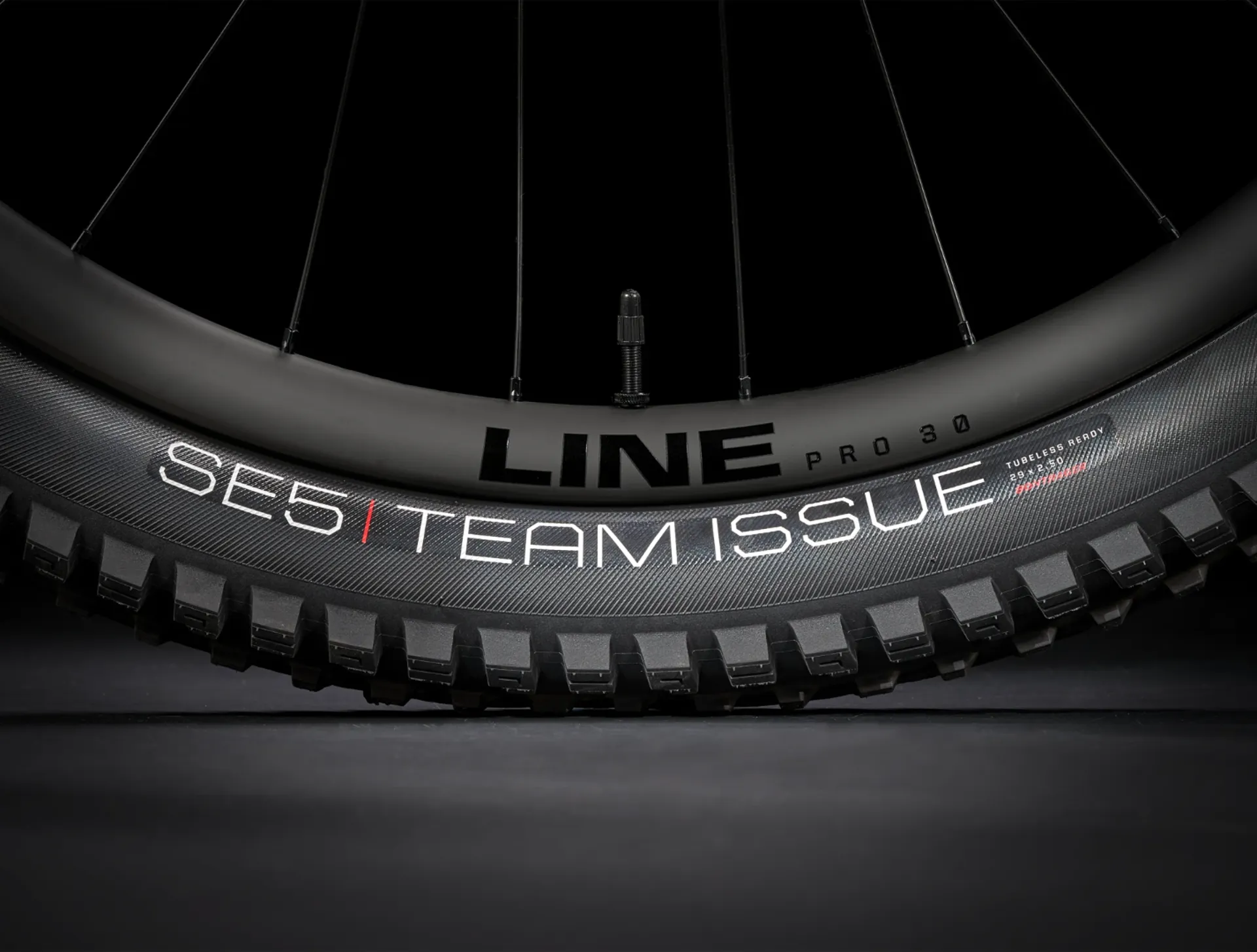

  • Front Tyre:Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" or 27.5x2.50"(Size small and Xsmall)
  • Rear Tyre:Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" or 27.5x2.50" (Size Small and Xsmall)

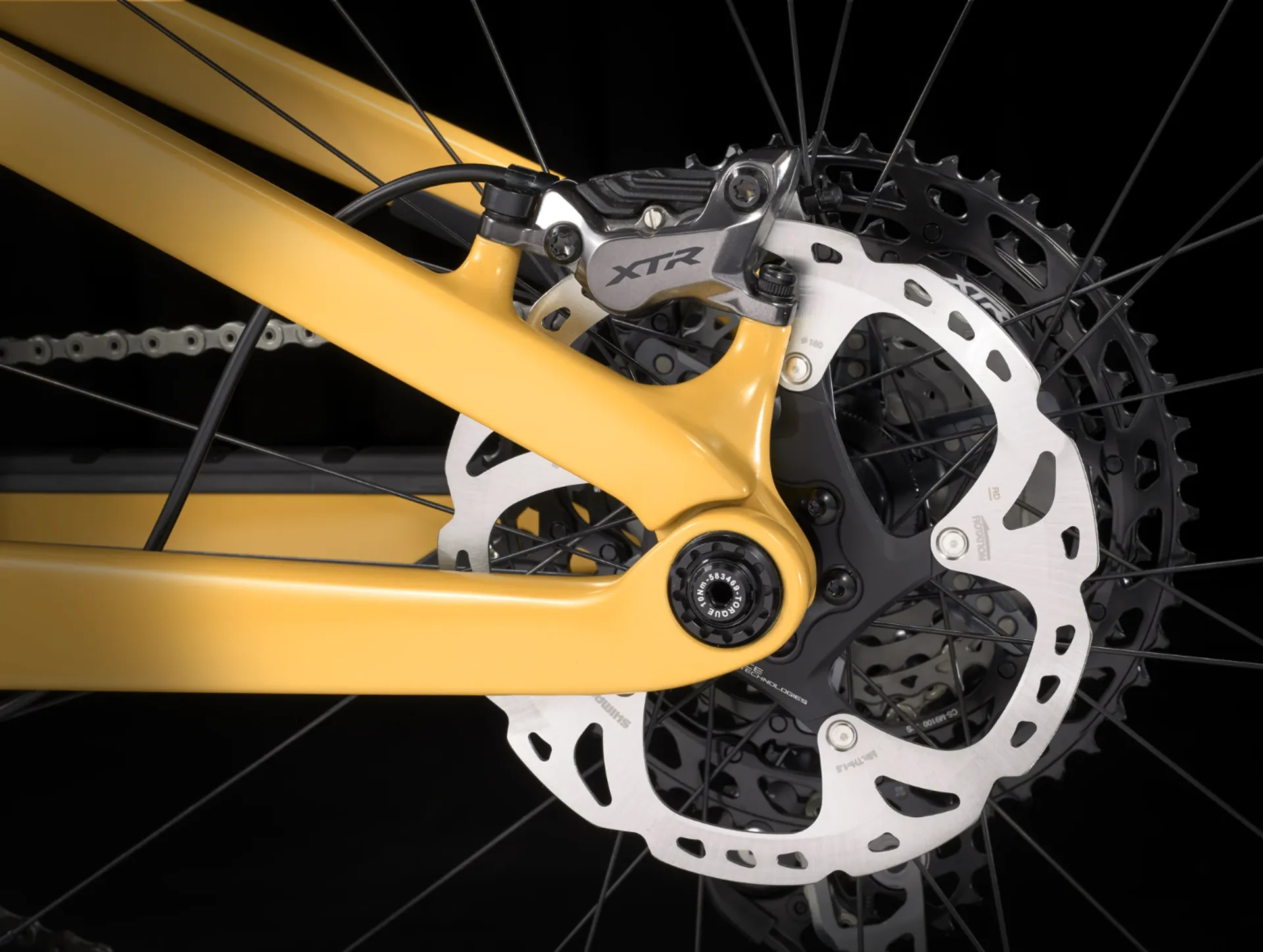

  • Brakes:Shimano XTR M9120 4-piston hydraulic disc
  • Handlebars:Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35-45mm stem length
  • Handlebar Grips:Bontrager XR Trail Elite, lock-on
  • Headset:Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Stem:See handlebar
  • Saddle:Bontrager Arvada, austenite rails
  • Seatpost:Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length

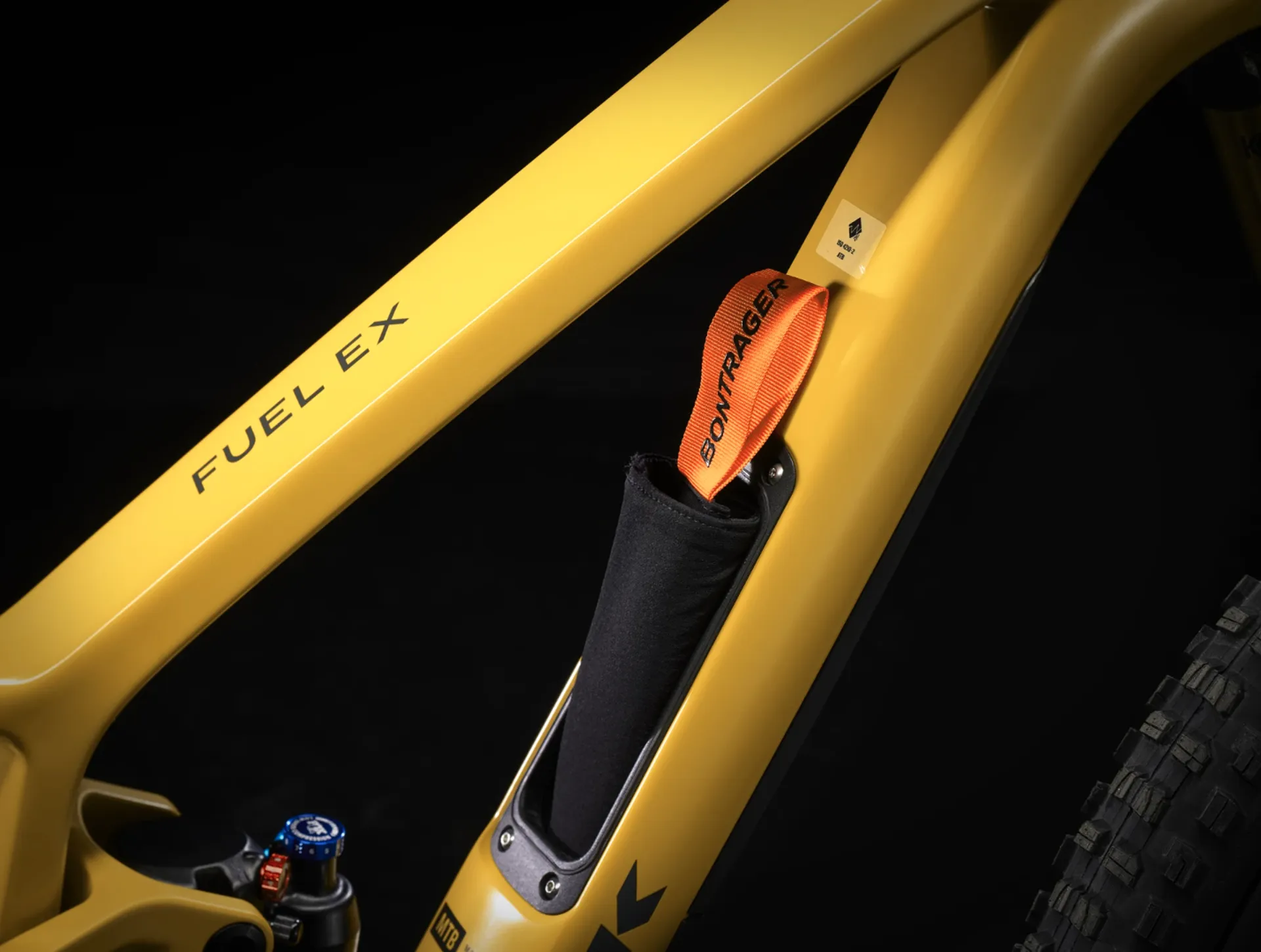

  • Accessories:Bontrager Bits frame storage bag
  • Weight:M - 13.70 kg / 30.21 lb (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Fuel EX Gen 5 & 6

SizeRider HeightInseam
XS145 - 155 cm4'9" - 5'1"69 - 73 cm27" - 29"
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry for Trek Fuel EX Gen 6

The shown starting point for geometry is the stock geometry as it arrives. To view a Dynamic Geometry Chart that accounts for Headset angle, Mino Link position, and Wheel configuration, please visit Trek's website.
XSS 27.5S 29MMLLXL

WHEEL SIZE

27.5

27.5

29

29

29

29

29

FRAME REACH

400.2

430.2

425

450

470

485

515

EFFECTIVE TOP TUBE

516.2

550.5

553.8

584.1

607.4

626.9

661.8

SEAT TUBE

360

380

380

410

420

435

470

SEAT TUBE ANGLE

70.8

70.8

70.8

70.8

70.8

70.8

70.8

EFFECTIVE SEAT TUBE ANGLE

78.6

78.2

78.6

78.2

77.5

77.2

76.6

FRAME STACK

574.1

574.1

612.3

616.8

616.8

621.3

634.9

HEAD TUBE LENGTH

95

95

95

100

100

105

120

HEAD ANGLE

64.5

64.5

64.5

64.5

64.5

64.5

64.5

FORK AXLE-TO-CROWN

533

533

561

561

561

561

561

BOTTOM BRACKET HEIGHT

332

332

335

335

335

335

335

BOTTOM BRACKET DROP

25

25

38

38

38

38

38

CHAINSTAY LENGTH

435

435

435

435

440

440

445

WHEELBASE

1144.8

1174.8

1185.9

1213

1233.1

1250.2

1286.7

STANDOVER

716.8

723.8

736.8

736.8

741.8

747.8

766.8

OFFSET

44

44

44

44

44

44

44

TRAIL

121.6

121.6

129.2

129.2

129.2

129.3

129.3



Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
  • Fork
    Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
  • Shock
    Fox Factory Float X, 2-position damper, 185 mm x 55 mm
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready
  • Tyre
  • Size: XS , S
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50"
  • Size: S , M , ML , L , XL
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Shifter
    Shimano XTR M9100, 12-speed
  • Rear derailleur
    Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
  • Crank
    E*thirteen TRS Race Carbon, 30T, 55 mm chainline, 170 mm length
  • Bottom bracket
    E*thirteen BB20-P, BSA threaded, 73 mm width
  • Cassette
    Shimano XTR M9101, 10-51, 12-speed
  • Chain
    Shimano Dura-Ace/XTR M9100, 12-speed
  • Saddle
    Bontrager Arvada Pro, carbon rails, 138 mm width
  • Seatpost
  • Size: XS , S
    Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Size: M , ML
    Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
  • Size: L
    Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Size: XL
    Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
  • Integrated Bar Stem
  • Size: XS , S
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35mm stem length
  • Size: M , ML , L , XL
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Head set
    Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Brake
    Shimano XTR M9120 4-piston hydraulic disc
  • Brake rotor
  • Size: XS , S , M , ML , L , XL
    Shimano RT86, 6-bolt, 180 mm
  • Size: M , ML , L , XL
    Shimano RT86, 6-bolt, 203 mm
  • Bag
    Bontrager BITS Internal Frame Storage Bag
