The Trek Fuel EX 9.9 XTR is the single best choice for riders who want an all-mountain ripper that excels at everything from marathon races to burly technical terrain to singletrack.
The Trek Fuel EX 9.9 XTR is the single best choice for riders who want an all-mountain ripper that excels at everything from marathon races to burly technical terrain to singletrack.
Trek

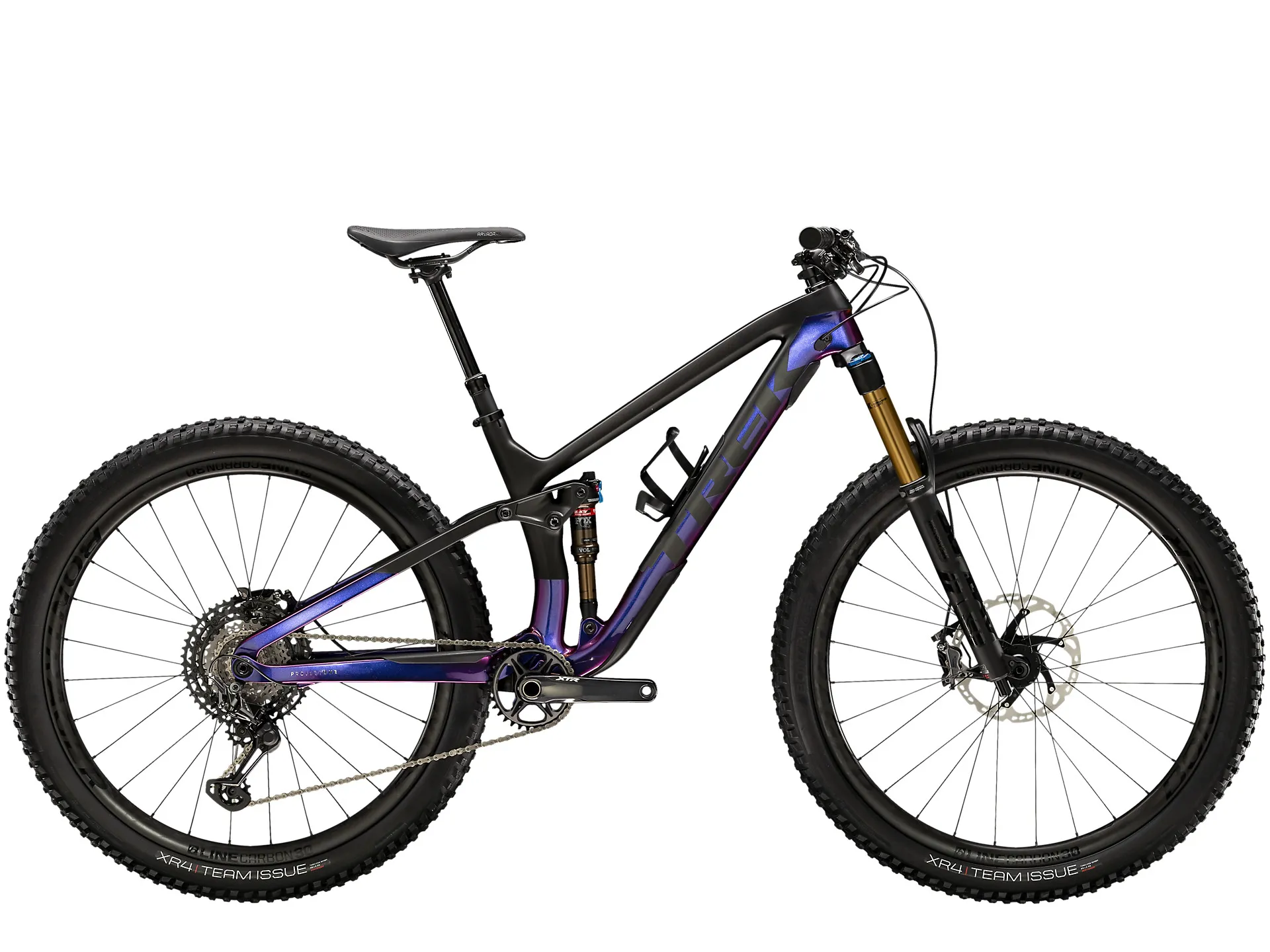

Trek Fuel EX 9.9 XTR Mens Full Suspension Mountain Bike in Purple

£7,050.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

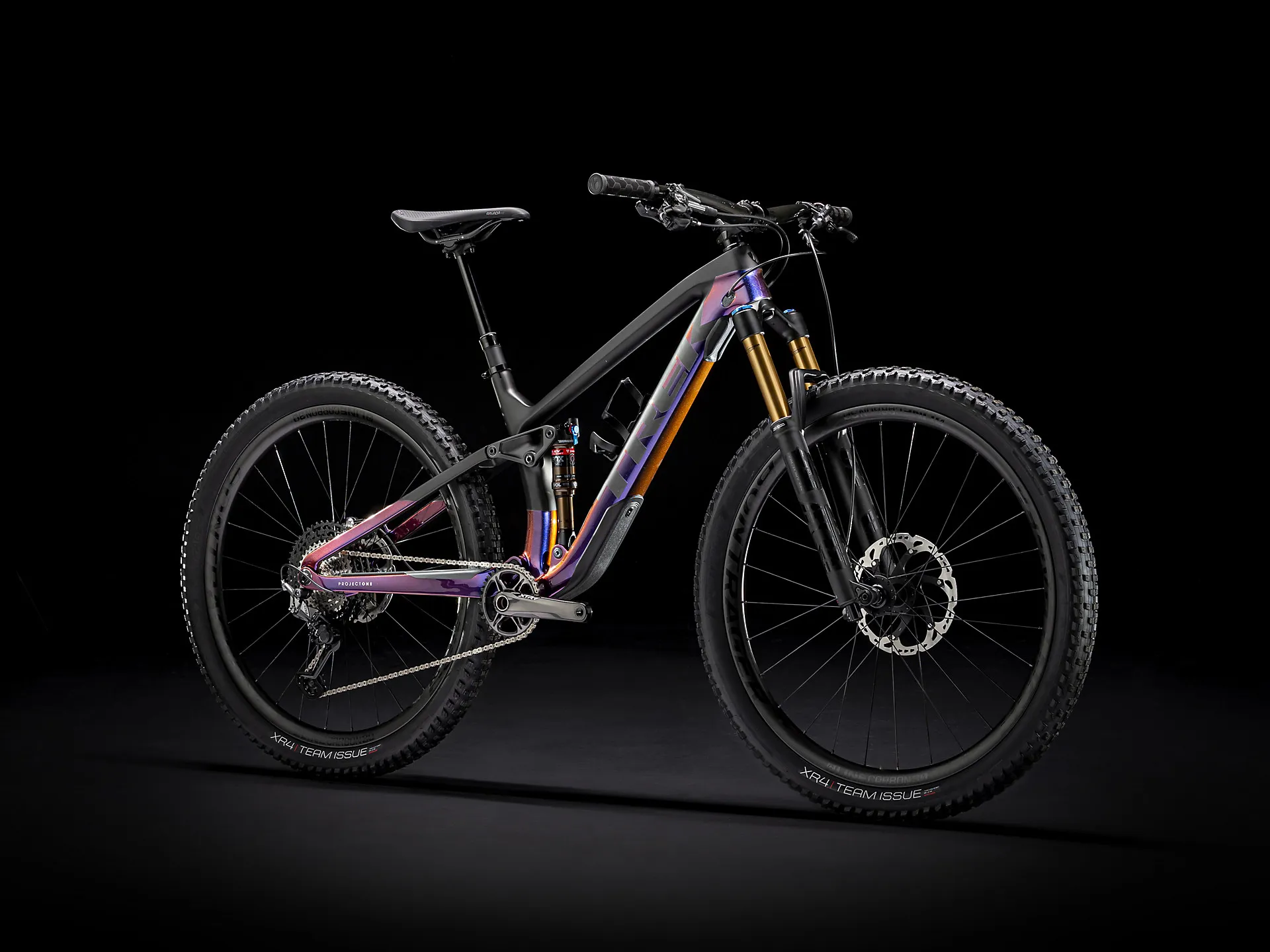

Trek Fuel EX 9.9 XTR Mens Full Suspension Mountain Bike in Purple

Season:2024

Brand:Trek

Code:595349

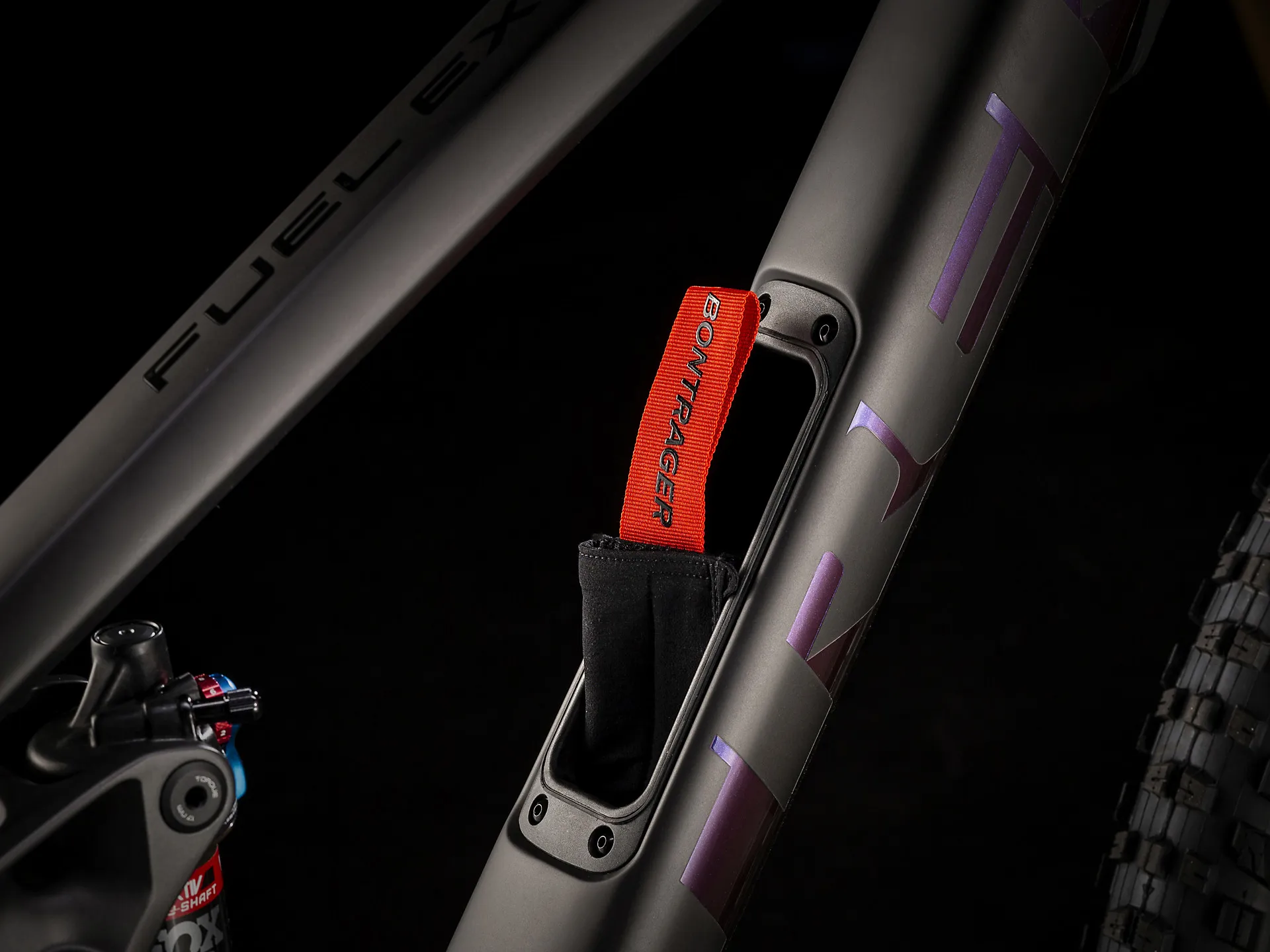

The Trek Fuel EX 9.9 XTR is right for you if you’re a mountain biker through and through, and want a carbon bike for the best performance on everything from marathon races to gnarly descents and technical trail. The Fuel EX 9.9 XTR makes no compromises: a carbon frame, carbon wheels, a Shimano XTR 1x12 drivetrain and FOX Factory Float suspension make this the one carbon full suspension mountain bike that rules every trail. It's fast on singletrack, light on climbs and stable through the rowdiest terrain you can find. Re:aktiv with thru shaft works faster than a normal shock, so it tracks the ground better and keeps you in control, and a sleek internal storage compartment gives you a versatile spot to stow tools and gear. Fuel EX 9.9 has the highest-end parts on the best OCLV Mountain Carbon frame that Trek make. It's equally at home on fast singletrack, gnarly trail and laying down miles on your next multi-stage race.

Key Features & Benefits:

Hydraulic Disc Brakes: Powerful braking ability & 4 pistons for less fade.

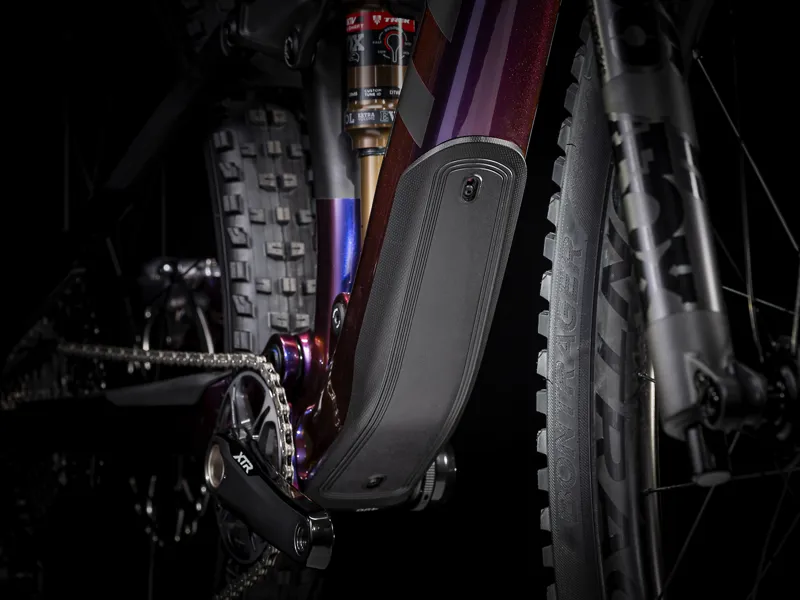

Carbon Fibre Frame: Super lightweight & better at absorbing trail vibration for a more comfortable ride.

Tubeless Tyres: Less Rolling Resistance & fewer flat tyres.

Full Specification:

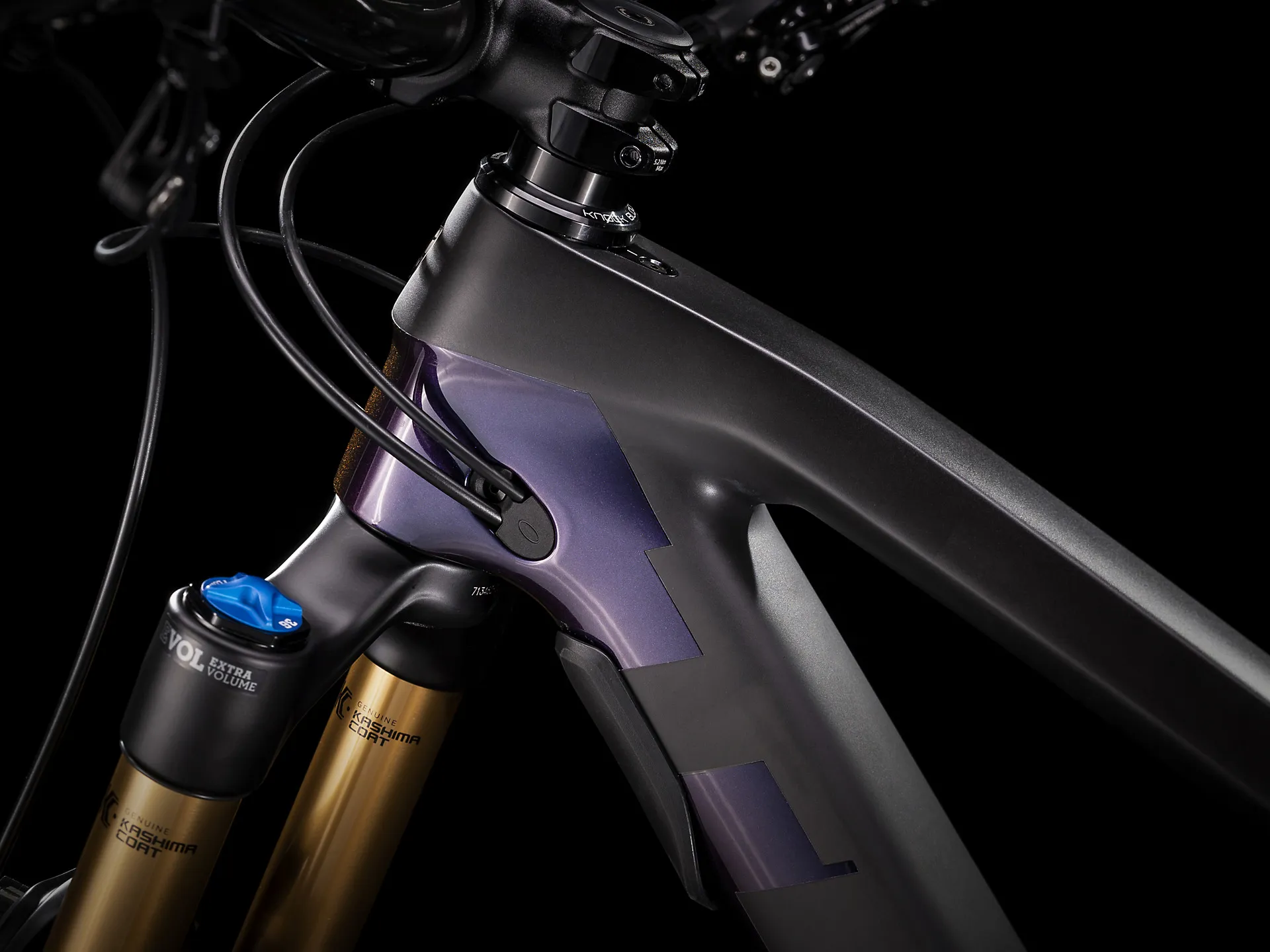

  • Frame:  OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel

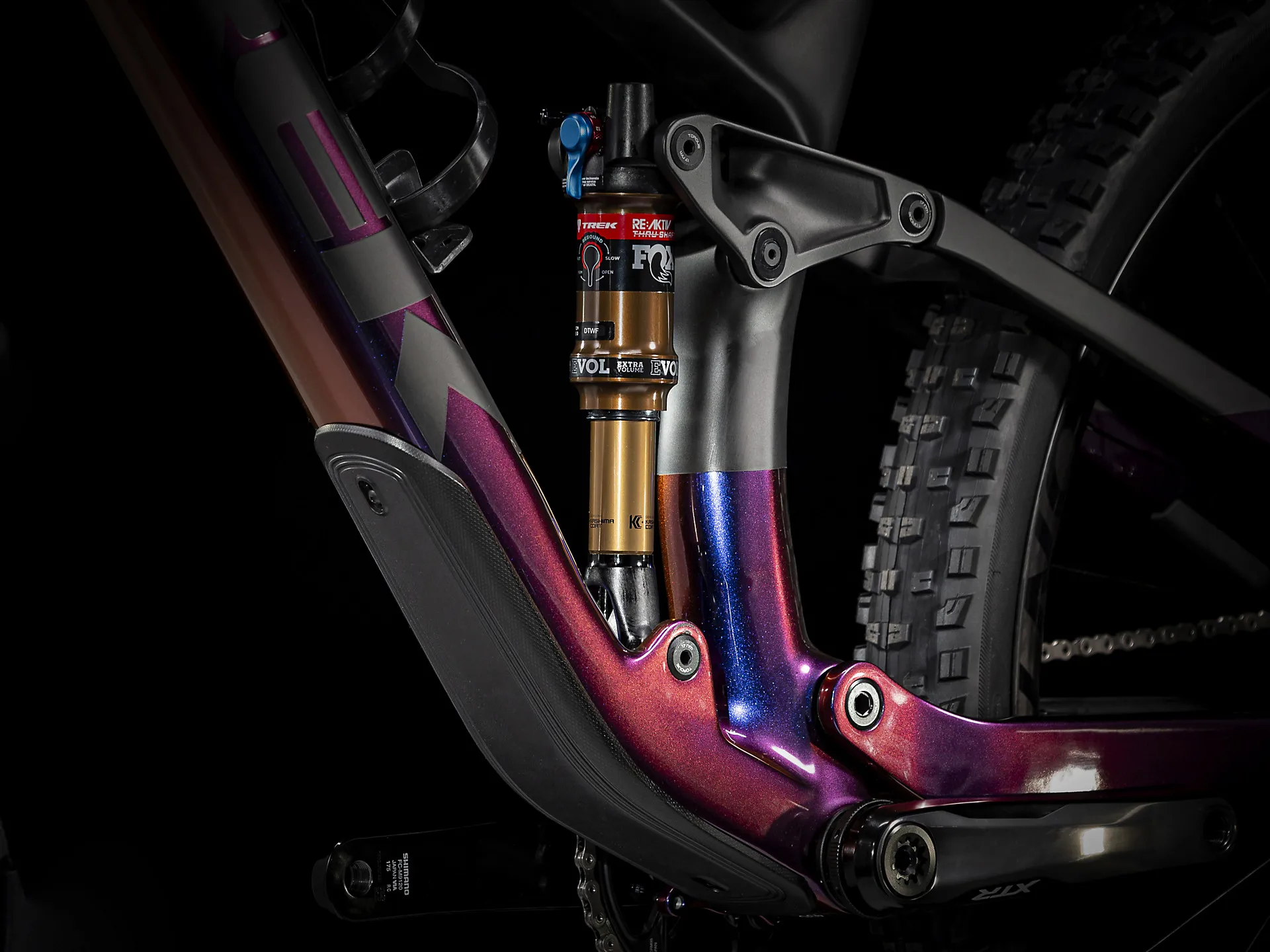

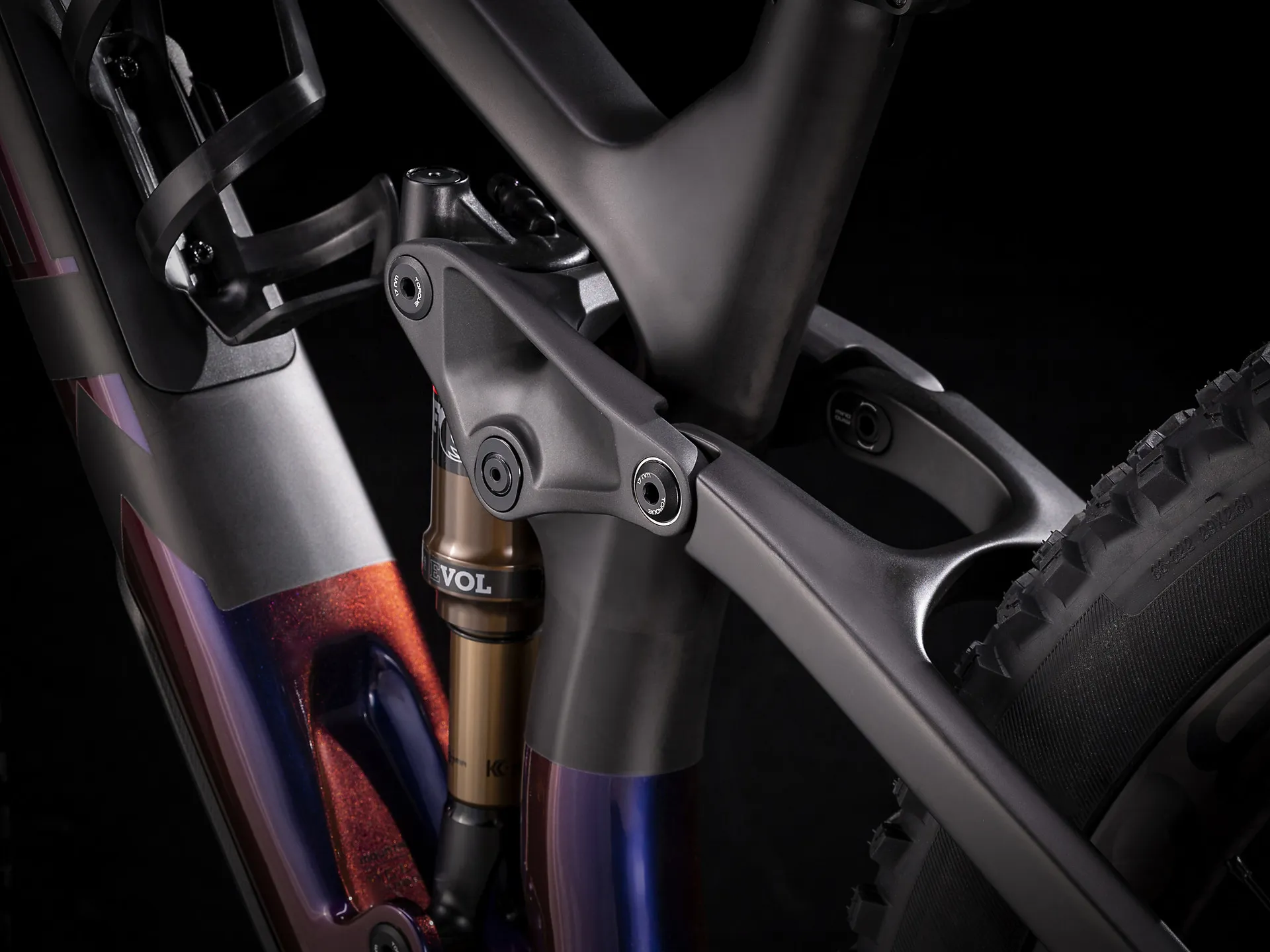

  • Rear Shock (If Applicable):  Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab
  • Fork:  Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Kashim
  • Number of Gears:  12
  • Gear Shifters:  Shimano XTR M9100, 12-speed

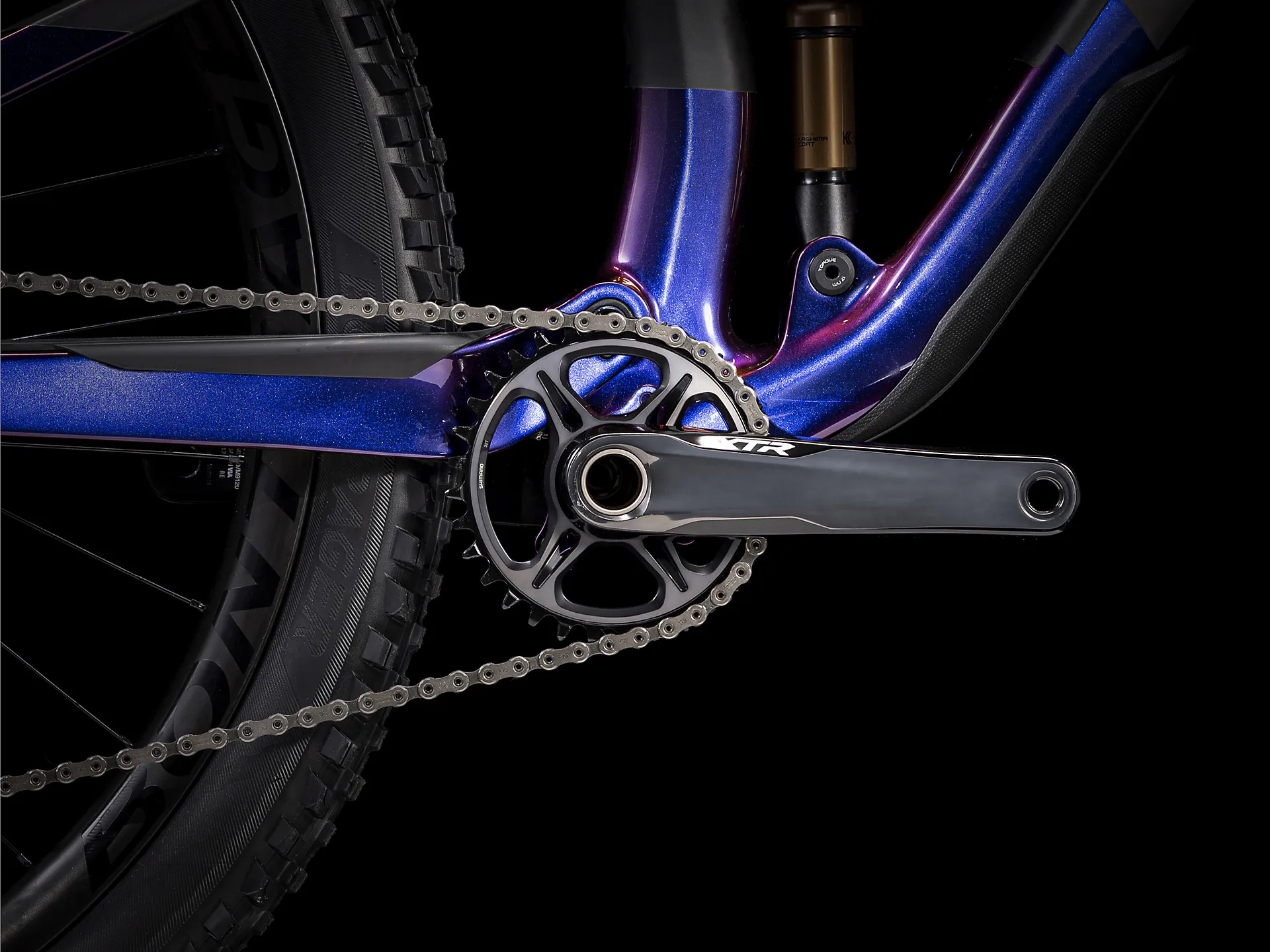

  • Chainset:  Shimano XTR 9120
  • Chainrings:  32T
  • Rear Cassette:  Shimano XTR M9100, 10-51, 12-speed
  • Chain:  Shimano XTR M9100, 12 speed
  • Front Derailleur:  N/A

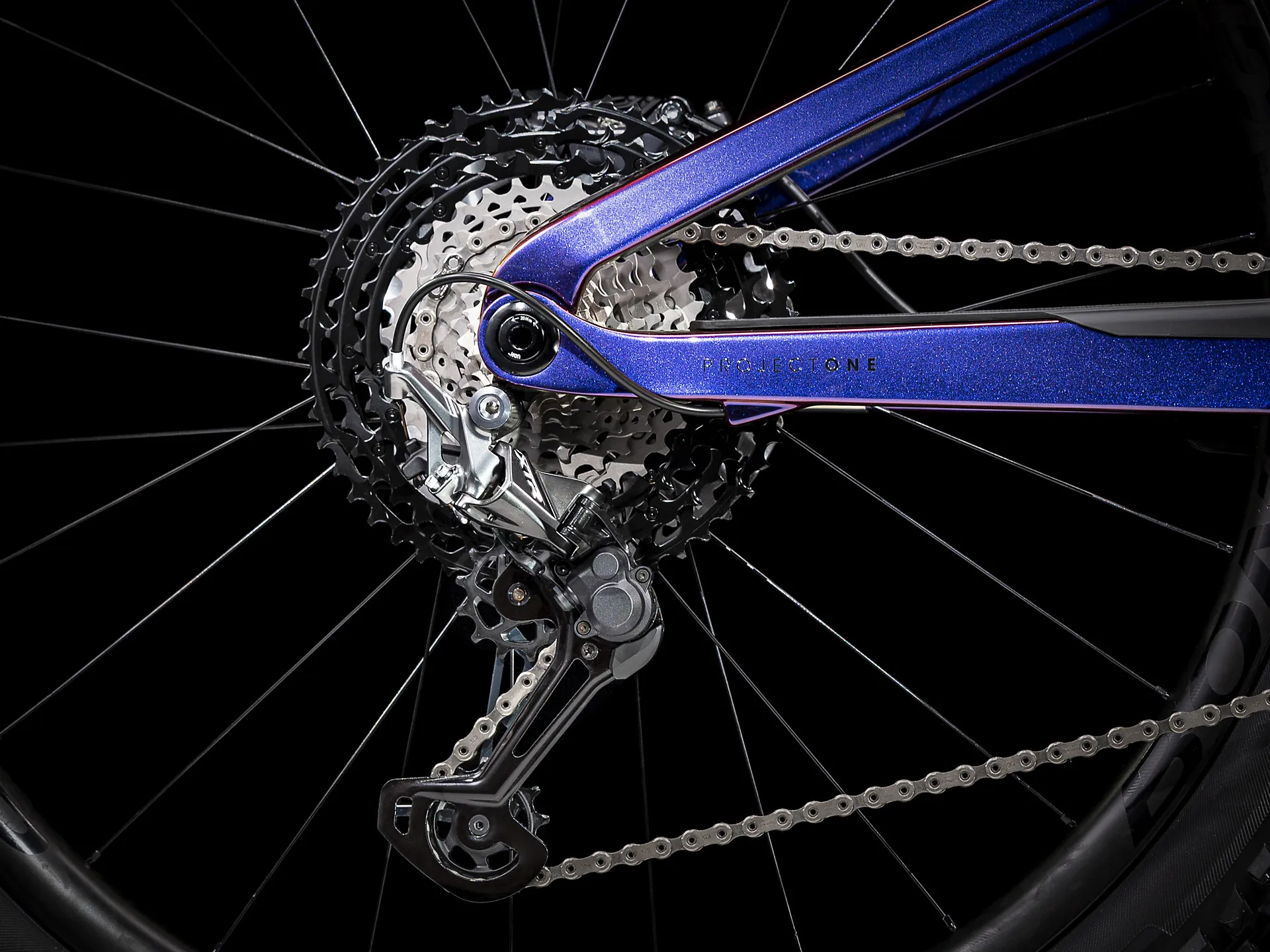

  • Rear Derailleur:  Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
  • Bottom Bracket:  Shimano XTR PF92
  • Pedals:  Not Included
  • Rims:  Bontrager Line Carbon 30, Tubeless Ready,
  • Front Hub:  Bontrager Line Carbon 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub:  Bontrager Line Carbon 30, 54T Rapid Drive, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
  • Front Tyre:  Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi
  • Rear Tyre:  Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi

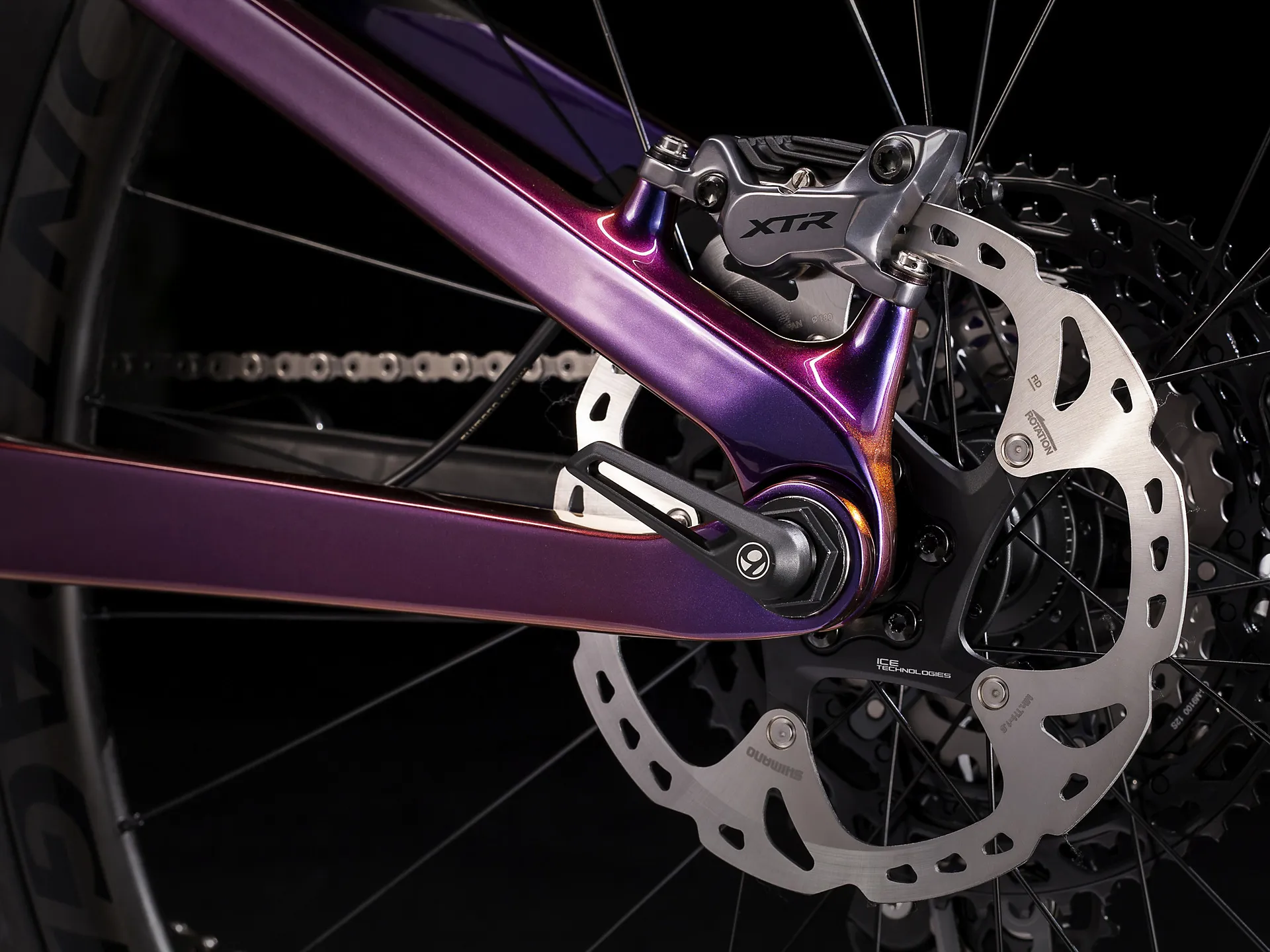

  • Brakes:  Shimano XTR M9120 4-piston hydraulic disc
  • Handlebars:  Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise
  • Handlebar Grips:  Bontrager XR Trail Elite, alloy lock-on
  • Headset:  Knock Block Integrated, sealed cartridge bearing, 1-1/8"" to

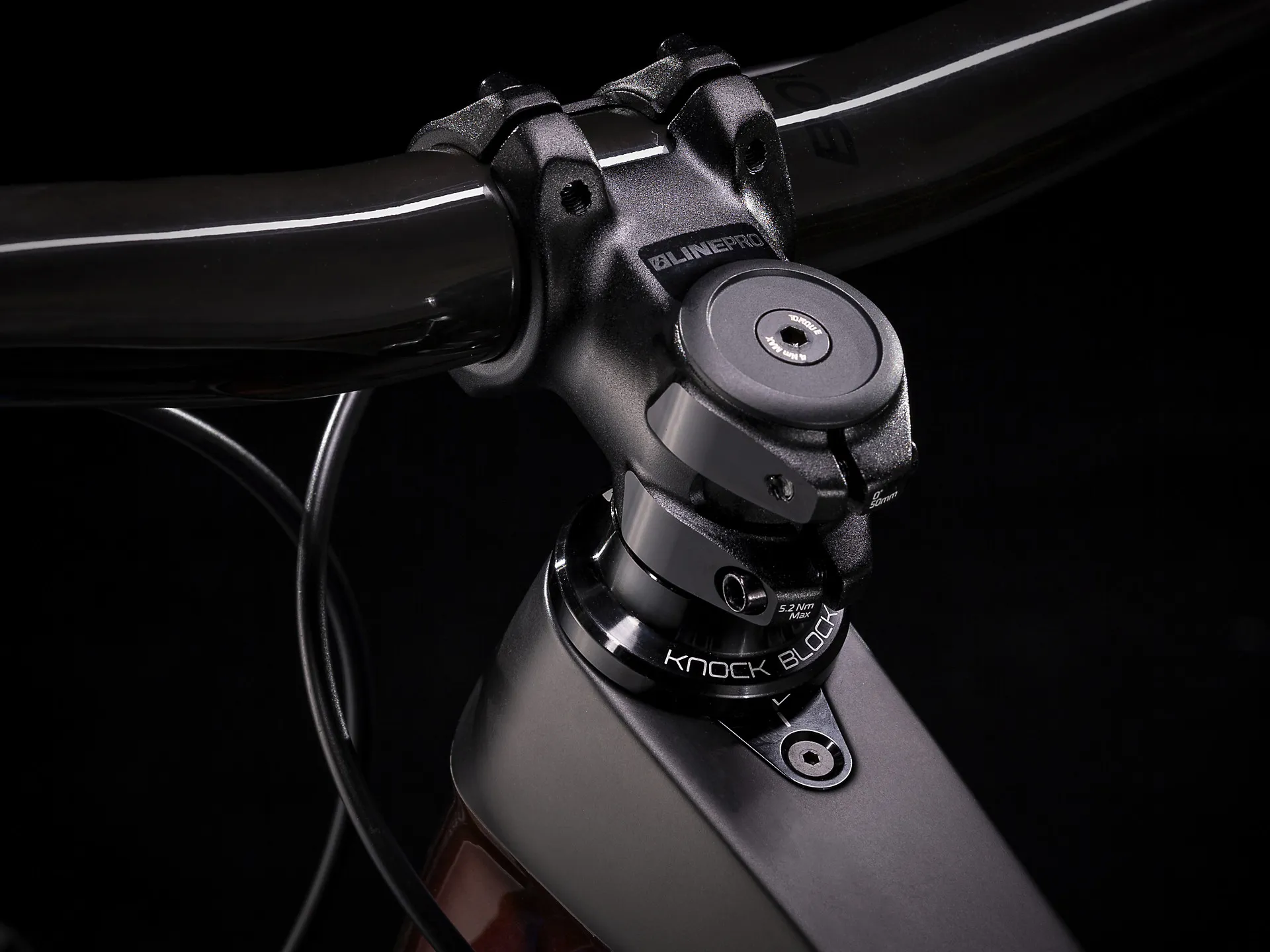

  • Stem:  Bontrager Line Pro, 35 mm, Knock Block, 0-degree
  • Saddle:  Bontrager Arvada Pro, carbon rails, 138 mm width
  • Seatpost:  Bontrager Line Elite Dropper, internal routing, 31.6 mm
  • Accessories:  N/A
  • Weight:  M - 13.20 kg / 29.1 lbs (with tubes)



Trek Full Suspension Mountain Bikes: Fuel EX Range

Technical Information

Geometry for Trek Fuel EX 9.9 XTR Full Suspension Mountain Bike

All measurements provided in cm unless otherwise stated.

Trek Fuel EX 9.9 XTR Full Suspension Mountain Bike Geometry Chart

Frame Size Number 13.5 13.5 15.5 15.5 15.5 15.5 17.5 17.5 18.5 18.5 19.5 19.5 21.5 21.5
Wheel Size  XS XS S S S S M M ML ML L L XL XL
Geometry Position High Low High Low High Low High Low High Low High Low High Low
Wheel Size 27.5" 27.5" 27.5" 27.5" 29" 29" 29" 29" 29" 29" 29" 29" 29" 29"
A - Seat Tube 35.5 35.6 35.5 39.5 39.5 39.5 42.0 42.0 43.5 43.5 45.0 45.0 50.0 50.0
B - Seat Tube Angle 75.5° 70.0° 75.5° 70.0° 75.5° 70.0° 75.5° 70.0° 75.5° 70.0° 75.5° 70.0° 75.5° 70.0°
C -  Head Tube Length 9.0 9.0 10.0 10.0 10.0 10.0 10.0 10.0 10.5 10.5 10.5 10.5 12.0 12.0
D -  Head Angle 66.5° 66.0° 66.5° 66.0° 66.5° 66.0° 66.5° 66.0° 66.5° 66.0° 66.5° 66.0° 66.5° 66.0°
E - Effective Top Tube 54.5 55.0 56.7 56.8 57.7 57.8 60.2 60.3 61.8 61.9 63.3 63.4 66.1 66.3
F - Bottom Bracket Height 34.1 33.5 34.1 33.5 34.6 33.9 34.6 33.9 34.6 33.9 34.6 33.9 34.6 33.9
G - Bottom Bracket Drop 1.4 2.1 1.4 2.1 2.8 3.4 2.8 3.4 2.7 3.4 2.7 3.4 2.7 3.4
H - Chainstay Length  43.5 43.7 43.5 43.7 43.5 43.7 43.5 43.7 43.5 43.7 43.5 43.7 43.5 43.7
I - Offset 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3
J - Trail 10.7 11.1 10.8 11.1 11.5 11.9 11.6 11.9 11.6 11.6 11.9 11.6 11.9 11.6
K - Wheelbase 111.9 112.0 114.3 114.4 115.3 115.4 117.8 117.9 119.5 119.6 121.0 121.1 124.1 124.2
L - Standover 70.0 69.5 70.7 70.2 70.7 70.2 74.7 74.1 75.2 74.6 75.4 74.8 77.6 77.0
M - Frame Reach 40.0 39.5 42.0 41.5 42.0 41.5 44.5 44.0 46.0 45.5 47.5 47.0 50.0 49.5
N - Frame Stack 55.9 56.3 56.8 57.2 60.5 60.8 60.5 60.8 60.9 61.3 60.9 61.3 62.3 62.7
