Trek Supercaliber 9.7 Cross Country Full Suspension Mountain Bike in 2023 Hex Blue Deep Dark Blue Fade

Season:2024

Brand:Trek

Code:35149HexBLUtoDBLUFade

With Supercaliber 9.7 you no longer have to choose between hardtail and full-suspension on race day.

Every element of this bike is developed for fast capability, from the efficient IsoStrut shock to weight-saving pivotless seat stays that cut down on trial chatter. A lightweight parts spec completes this XC-crushing machine.

An ultra-lightweight, full OCLV Mountain Carbon frame with 60 mm of travel, a 100 mm RockShox Reba RL fork and Trek's exclusive lightweight IsoStrut FOX Performance shock designed specifically for Supercaliber. Plus, a Shimano SLX/XT 1x12 drivetrain, and Bontrager Kovee Elite 30 carbon wheels with a 108-tooth rear hub for instant engagement.

Key Features & Benefits:

  • Hydraulic Disc Brakes:Reliable brakes to keep your child in control in all weather conditions, ideal for leaning.
  • Carbon Frame:Lightweight and easy to manoeuvre for small children.
  • 12 Shimano Gears:Perfect for all-terrain, with the simplicity of a single shifter.

Full Specification:

  • Frame:OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel

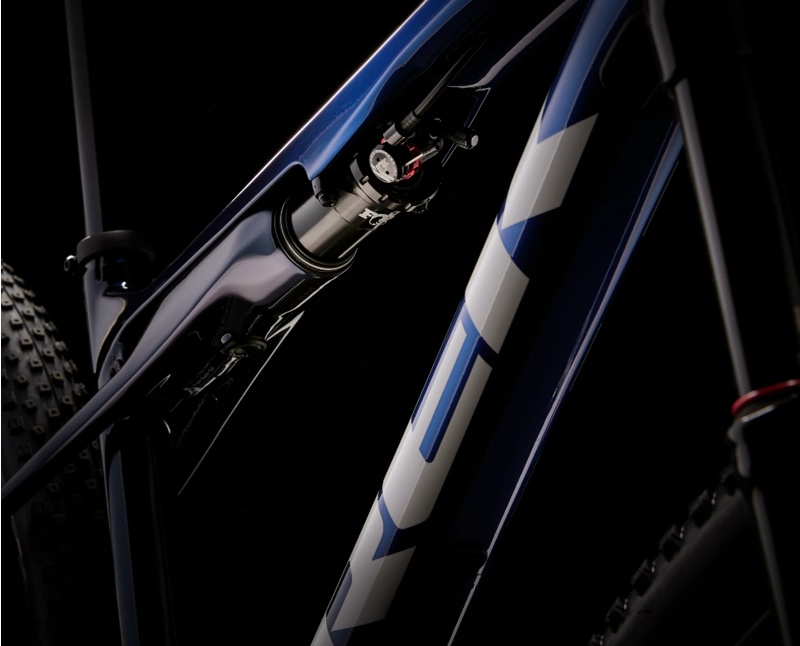

  • Rear Shock:Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm
  • Fork:RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
  • Number of Gears:12
  • Gear Shifters:Shimano SLX M7100, 12-speed
  • Chainset:e*Thirteen Crankset Helix Base, 52 mm chainline, 170-5 mm length
  • Chainrings:32T
  • Rear Cassette:Shimano SLX M7100, 10-51, 12-speed
  • Chain:Shimano SLX M7100, 12-speed
  • Rear Derailleur:Shimano XT M8100, long cage, 51T max cog
  • Bottom Bracket:Shimano MT500, 92 mm, PressFit
  • Pedals:Not Supplied
  • Wheelset:Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready
  • Front Tyre:Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 TPI, 29x2.20"
  • Rear Tyre:Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 TPI, 29x2.20"
  • Brakes:Shimano hydraulic disc, MT501 lever, MT500 caliper, Shimano RT56, 6-bolt
  • Handlebars:Bontrager Kovee Elite, alloy, 35 mm, 5 mm rise
  • Handlebar Grips:ESI Chunky
  • Stem:Bontrager Elite, 35 mm clamp, Blendr-compatible, 13-degree, 60-90 mm length
  • Saddle:Bontrager Verse Elite, austenite rails, 145 mm width
  • Seatpost:Bontrager Comp, 6061 alloys, 31.6 mm, 8 mm offset
  • Weight:M - 11.52 kg / 25.41 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Supercaliber

SizeRider HeightRider HeightInseamInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry information for Trek Supercaliber

Frame size number15.5"17.5"18.5"19.5"21.5"
Frame size letterSMMLLXL
Wheel size29"29"29"29"29"
A — Seat tube39.441.944.54750.8
B — Seat tube angle70.0°70.5°70.5°71.0°71.0°
Effective seat tube angle74.0°74.0°74.0°74.0°74.0°
C — Head tube length999910.5
D — Head angle69.0°69.0°69.0°69.0°69.0°
E — Effective top tube56.559.56162.565.9
F — Bottom bracket height3232323232
G — Bottom bracket drop5.35.35.35.35.3
H — Chainstay length4343434343
I — Offset4.44.44.44.44.4
J — Trail9.69.69.69.69.6
K — Wheelbase107.9110.6112.1113.6117.2
L — Standover75767678.778.7
M — Frame reach39.542.54445.548.5
N — Frame stack59.459.459.459.460.8


Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
  • Fork
    RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
  • Shock
    Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm
  • Max compatible fork travel
    120 mm (531 mm axle-to-crown)
  • Wheel front
    Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost 110, 15 mm thru axle
  • Wheel rear
    Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano Microspline freehub, 6-bolt, Boost148, 12 mm thru-axle
  • Hub front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Rim
    Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready
  • Tyre
    Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.20" Fork: See manufacturer
  • Shifter
    Shimano SLX M7100, 12-speed
  • Rear derailleur
    Shimano XT M8100, long cage
  • *Crank
  • Size: S, M
    E*thirteen Helix, 32T alloy ring, 52 mm chainline, 170 mm length
  • Size: M/L, L, XL, XXL
    E*thirteen Helix, 32T alloy ring, 52 mm chainline, 175 mm length
  • Bottom bracket
    Shimano MT500, 92 mm, PressFit
  • Cassette
    Shimano SLX M7100, 10-51, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Max. chainring size
    36T
  • Saddle
    *Seatpost
  • *Seatpost
  • Size: S
    Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length
  • Size: M, M/L, L, XL, XXL
    Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length
  • *Handlebar
    Size: S, M, M/L
  • Size: S, M, M/L
    Bontrager Kovee Elite, alloy, 35 mm, 5 mm rise, 720 mm width
  • Size: L, XL, XXL
    Bontrager Line, alloy, 35 mm, 15 mm rise, 750 mm width
  • Grips
    ESI Chunky
  • *Stem
  • Size: S
    Bontrager Elite, 35 mm, 13-degree, 60 mm length
  • Size: M, M/L
    Bontrager Elite, 35 mm, 13-degree, 70 mm length
  • Size: L, XL
    Bontrager Elite, 35 mm, 13-degree, 80 mm length
  • Size: XXL
    Bontrager Elite, 35 mm, 0-degree, 90 mm length
  • Brake
    Shimano hydraulic disc, MT501 lever, MT500 caliper
  • *Brake rotor
  • Size: S, M, M/L, L, XL, XXL
    Shimano RT56, 6-bolt, 180 mm
  • Size: S, M, M/L, L, XL, XXL
    Shimano RT56, 6-bolt, 160 mm
  • Rotor size
    Max brake rotor sizes: 180 mm front, 160 mm rear
  • Weight
    M - 11.52 kg / 25.41 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
