The Supercaliber 9.8 is a cross-country racing bike developed for podium-topping World Cup speed
The Supercaliber 9.8 is a cross-country racing bike developed for podium-topping World Cup speed
Trek

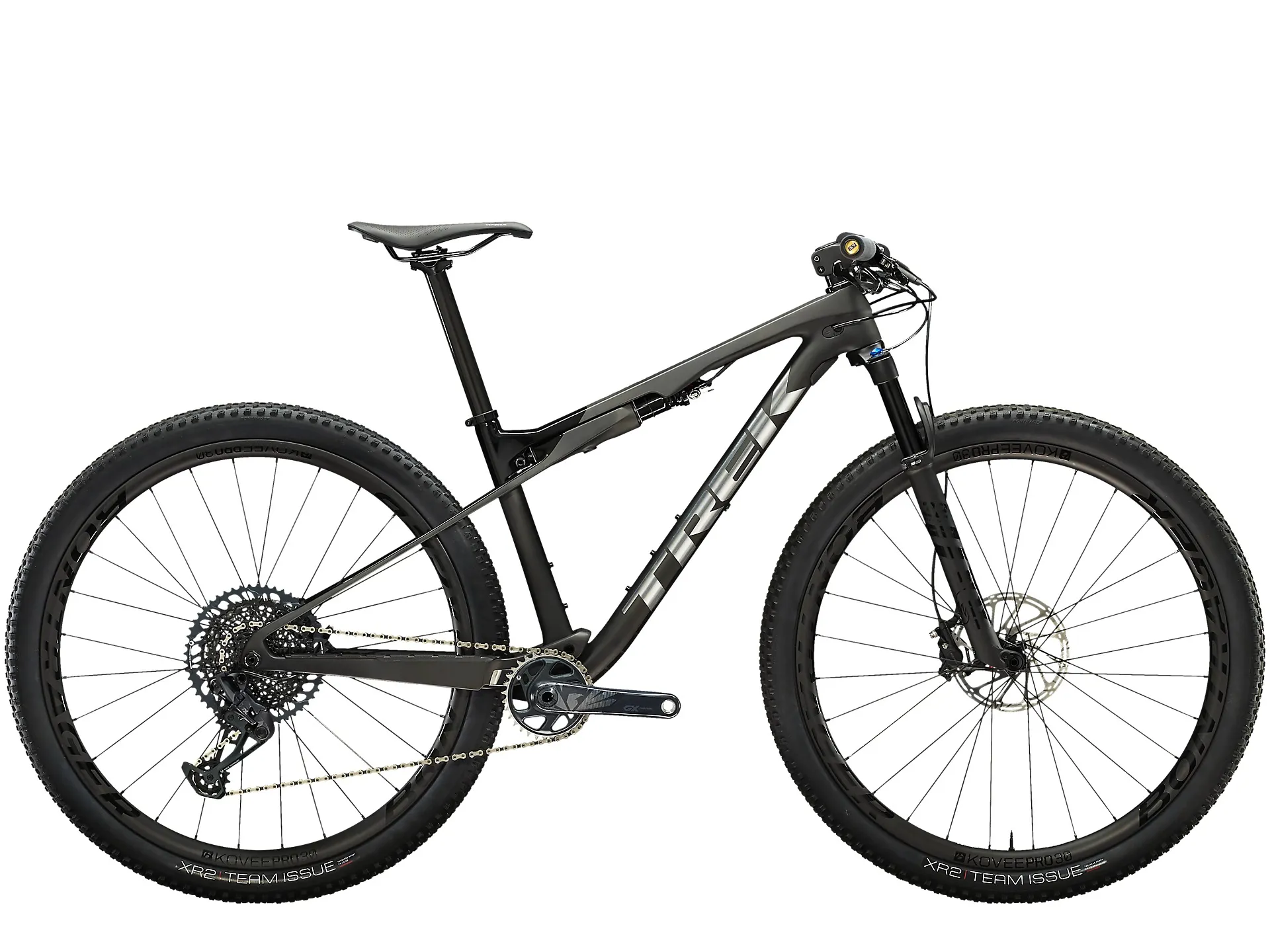

Trek Supercaliber 9.8 GX XC Mountain Bike 2022 in Matte Raw Carbon

£3,528.00 £5,600.00 37% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Supercaliber 9.8 GX XC Mountain Bike 2022 in Matte Raw Carbon

Season:2024

Brand:Trek

Code:35147MATRawCBNGLSBLK

The Supercaliber 9.8 is a cross-country racing bike developed for podium-topping World Cup speed.

Its category-defining set-up features our exclusive IsoStrut integrated shock and a lightweight FOX fork for a capable ride that's flat-out fast and soaks up technical terrain.

The Supercaliber is a World Cup-worthy bike that’s quick, capable of soaring through techy terrain and nearly as light as a hardtail
Our exclusive IsoStrut shock provides tunable, damped suspension for a smooth and efficient ride
Pivotless seat stays save on weight and actively bend to help soak up trail chatter
Wider Kovee Pro 30 wheels provide better tyre support so you can run lower pressure and get more traction
The OCLV Carbon RSL integrated bar/stem is ultralight, ultra-comfortable, and it looks awesome

Key Features & Benefits:

  • Hydraulic Disc Brakes:Superb Braking Power.
  • 12 SRAM GX Eagle Gears:Perfect for all terrain.
  • Carbon Fibre Frame:Super Lightweight & Durable.

Full Specification:

  • Frame:OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
  • Rear Shock (If Applicable):Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position damper, 235x32.5 mmTrek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5 mm
  • Fork:Fox Performance 32 Step cast, Evol Air spring, Grip 2 position damper, tapered steerer, 42mm offset,
  • Number of Gears:12
  • Gear Shifters:SRAM GX Eagle, 12 speed
  • Chainset:SRAM GX Eagle, DUB, Boost
  • Chainrings:32T Alloy
  • Rear Cassette:SRAM XG-1275 Eagle, 10-52, 12 speed
  • Chain:SRAM GX Eagle, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM GX Eagle
  • Bottom Bracket:SRAM DUB, 92mm, PressFit
  • Pedals:Not Included
  • Rims:Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, 110x20 mm Boost thru axle
  • Front Hub:Bontrager Kovee Pro, 6-bolt, Boost110
  • Rear Hub:Bontrager Kovee Pro, Boost148, 12 mm thru axle
  • Front Tyre:Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20""
  • Rear Tyre:Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20""
  • Brakes:SRAM Level TLM hydraulic disc
  • Handlebars:Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70-90mm length
  • Handlebar Grips:ESI Chunky Silicone
  • Headset:Knock Block Integrated, sealed cartridge bearing, 1-1/8"" to
  • Stem:Bontrager see handlbar
  • Saddle:Bontrager P3 Verse Elite, stainless steel rails, 145 mm width
  • Seatpost:Bontrager Pro Carbon, 31.6mm, 400mm
  • Accessories:N/A
  • Weight:M - 10.45 kg (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Supercaliber

SizeRider HeightRider HeightInseamInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry information for Trek Supercaliber

Frame size number15.5"17.5"18.5"19.5"21.5"
Frame size letterSMMLLXL
Wheel size29"29"29"29"29"
A — Seat tube39.441.944.54750.8
B — Seat tube angle70.0°70.5°70.5°71.0°71.0°
Effective seat tube angle74.0°74.0°74.0°74.0°74.0°
C — Head tube length999910.5
D — Head angle69.0°69.0°69.0°69.0°69.0°
E — Effective top tube56.559.56162.565.9
F — Bottom bracket height3232323232
G — Bottom bracket drop5.35.35.35.35.3
H — Chainstay length4343434343
I — Offset4.44.44.44.44.4
J — Trail9.69.69.69.69.6
K — Wheelbase107.9110.6112.1113.6117.2
L — Standover75767678.778.7
M — Frame reach39.542.54445.548.5
N — Frame stack59.459.459.459.460.8


Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
  • Fork
    Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel
  • Shock
    Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm
  • Suspension lever
    Fox 2-position dual lockout lever
  • Wheel front
    Bontrager Kovee Pro 30 Carbon, Tubeless Ready, 6-bolt, Boost 110, 15 mm thru axle
  • Wheel rear
    Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, XD Driver, 6-bolt, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
    Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
  • Tyre part
    Size: S/M/ML/L/XL, Bontrager TLR sealant, 180 ml/6 oz
    Size: S/M/ML/L/XL, Bontrager TLR valve, 50 mm
  • Rim strip
    Bontrager TLR
  • Shifter
    SRAM GX Eagle, 12-speed
  • Rear derailleur
    SRAM GX Eagle
  • Crank
    Size: S, SRAM GX Eagle Carbon, DUB, 32T alloy ring, Boost, 170 mm length
    Size: M/ML/L/XL, SRAM GX Eagle Carbon, DUB, 32T alloy ring, Boost (52 mm chain line), 175mm length
  • Bottom bracket
    SRAM DUB, 92 mm, PressFit
  • Cassette
    SRAM Eagle XG-1275, 10-52, 12-speed
  • Chain
    SRAM GX Eagle, 12-speed
  • Saddle
    Bontrager P3 Verse Elite, stainless steel rails, 145 mm width
  • Seatpost
    Size: S, Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
    Size: M/ML/L/XL, Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length
  • Integrated Bar Stem
    Size: S/M, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70mm length
    Size: ML/L, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length
    Size: XL, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
  • Grips
    ESI Chunky
  • Head set
    Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • Brake
    SRAM Level TLM hydraulic disc
  • Brake rotor
    Size: S/M/ML/L/XL, SRAM CenterLine, 6-bolt, round-edge, 160 mm
    Size: S/M/ML/L/XL, SRAM CenterLine, 6-bolt, round edge, 180 mm
  • Weight
    M - 23.04 lbs / 10.45 kg (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
