The Supercaliber 9.8 is an efficient and capable cross-country race bike trimmed with an upgraded, high-performance parts spec.
The Supercaliber 9.8 is an efficient and capable cross-country race bike trimmed with an upgraded, high-performance parts spec.
Trek

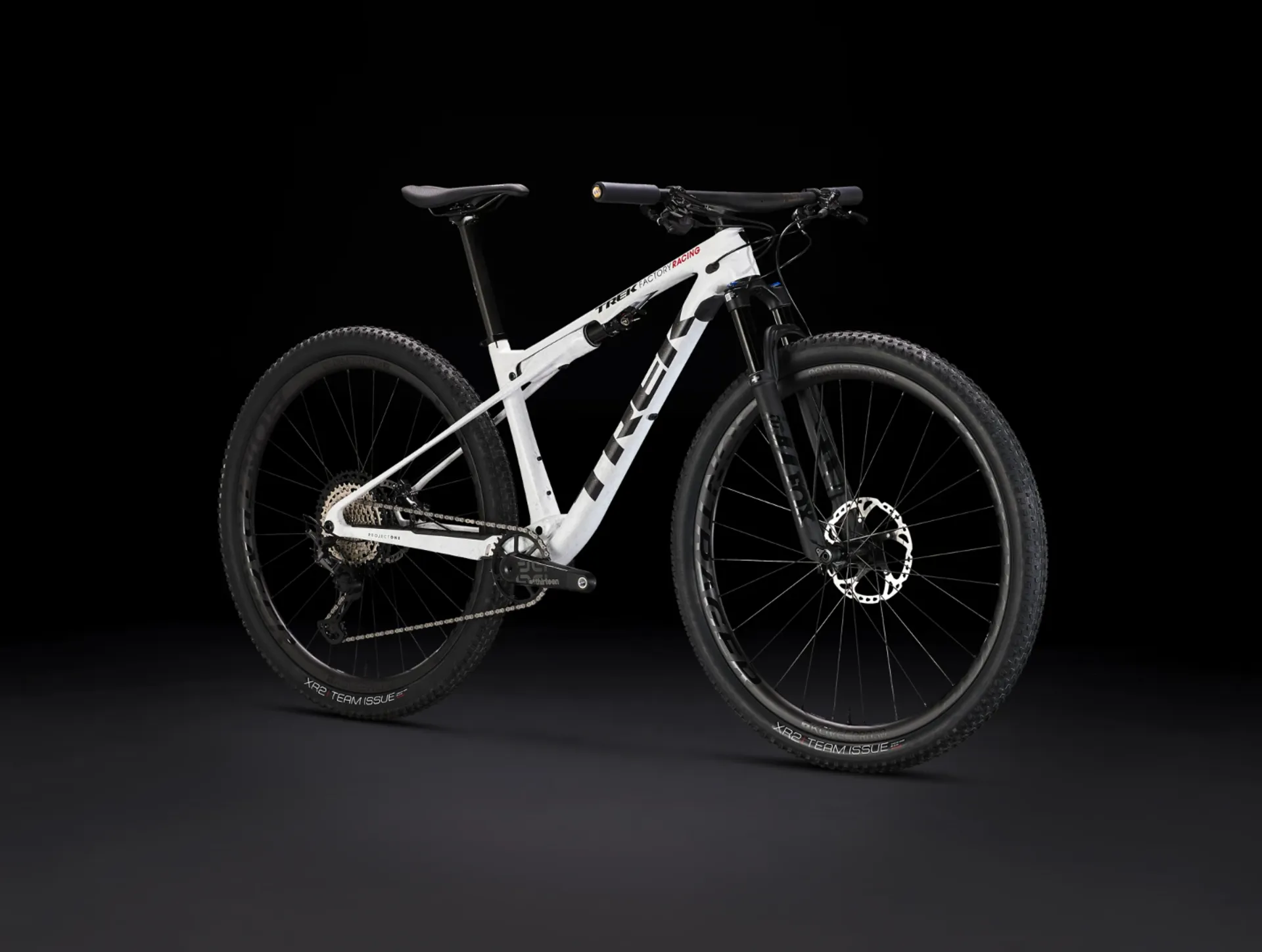

Trek Supercaliber 9.8 XT Full Suspension Mountain Bike 2023 in White/Gravel

£5,727.00 £6,025.00 5% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Supercaliber 9.8 XT Full Suspension Mountain Bike 2023 in White/Gravel

Season:2024

Brand:Trek

Code:37038WHTGravel

The Supercaliber 9.8 is an efficient and capable cross-country race bike trimmed with an upgraded, high-performance parts spec.

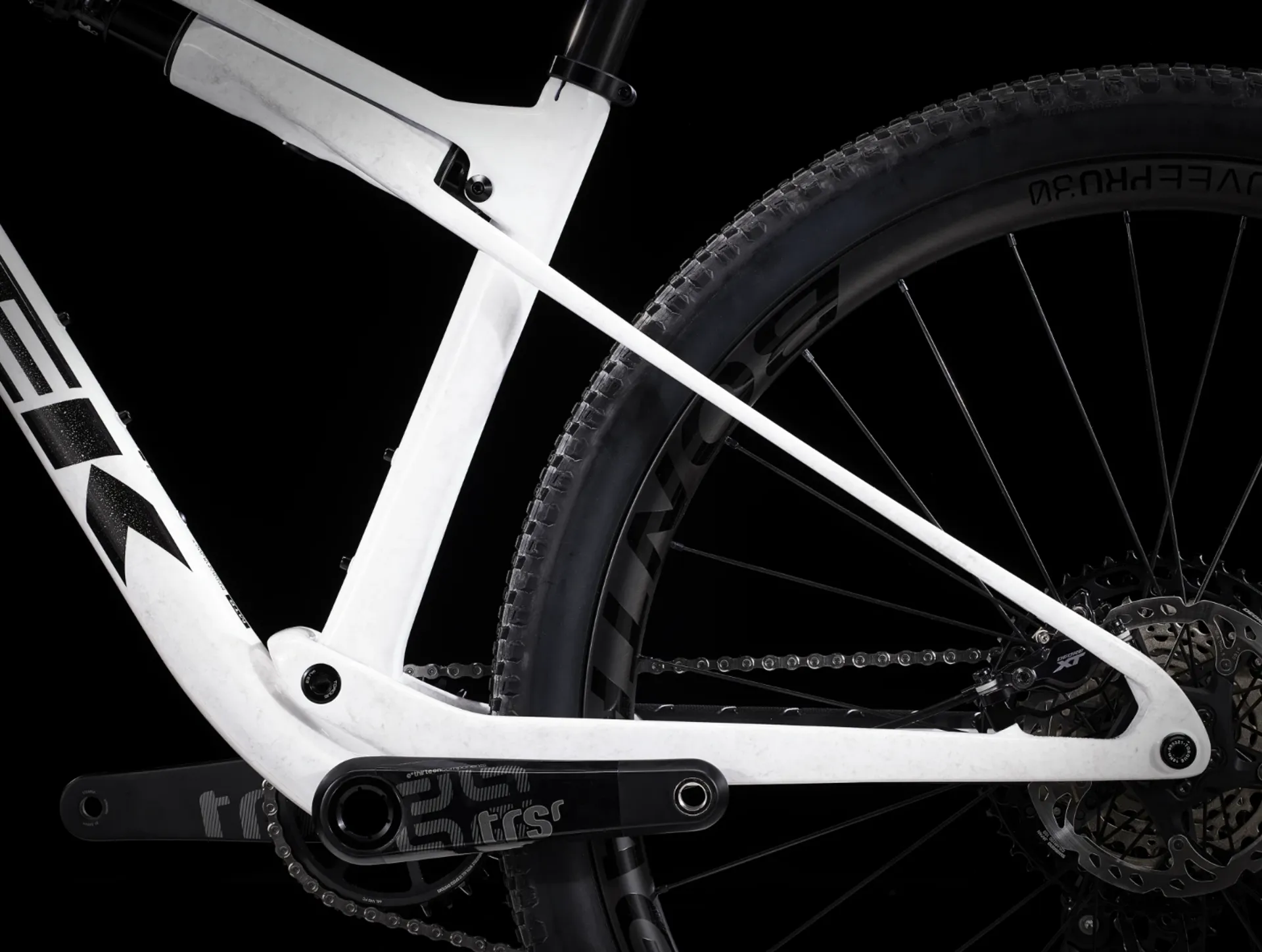

It's everything you love about a hardtail plus the added capability of IsoStrut – our exclusive integrated shock.

An ultra-lightweight, full OCLV Mountain Carbon frame with 60 mm of travel, a 100 mm FOX Performance 32 Step-Cast fork and Trek's exclusive IsoStrut FOX Performance shock designed specifically for Supercaliber. Plus, remote suspension lockout, the smooth, precise shifting of a Shimano XT drivetrain, a Bontrager RSL integrated bar/stem and Bontrager Kovee Pro 30 carbon wheels with 108-tooth Rapid Drive rear hub for fast engagement.

You want to ride what the pros ride and you want to win. You’re looking for a bike that's built for shocking speed and capability on even the hardest cross-country courses, and comes decked out with light, fast upgrades on everything from the fork to the drivetrain.

The Supercaliber 9.8 is an efficient and capable cross-country race bike trimmed with an upgraded, high-performance parts spec. It's everything you love about a hardtail plus the added capability of IsoStrut – our exclusive integrated shock.

Key Features & Benefits:

  • IsoStrut:Gives you tunable, damped suspension without missing out on efficiency for hammering up climbs at top speed
  • OCLV Mountain Carbon Frame:Intensely light, stiff and responsive.
  • Shimano XT Drivetrain:A huge range of gears, so you can ease the ups in the big ring or stomp to the front in the flats.

Full Specification:

  • Frame:OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel

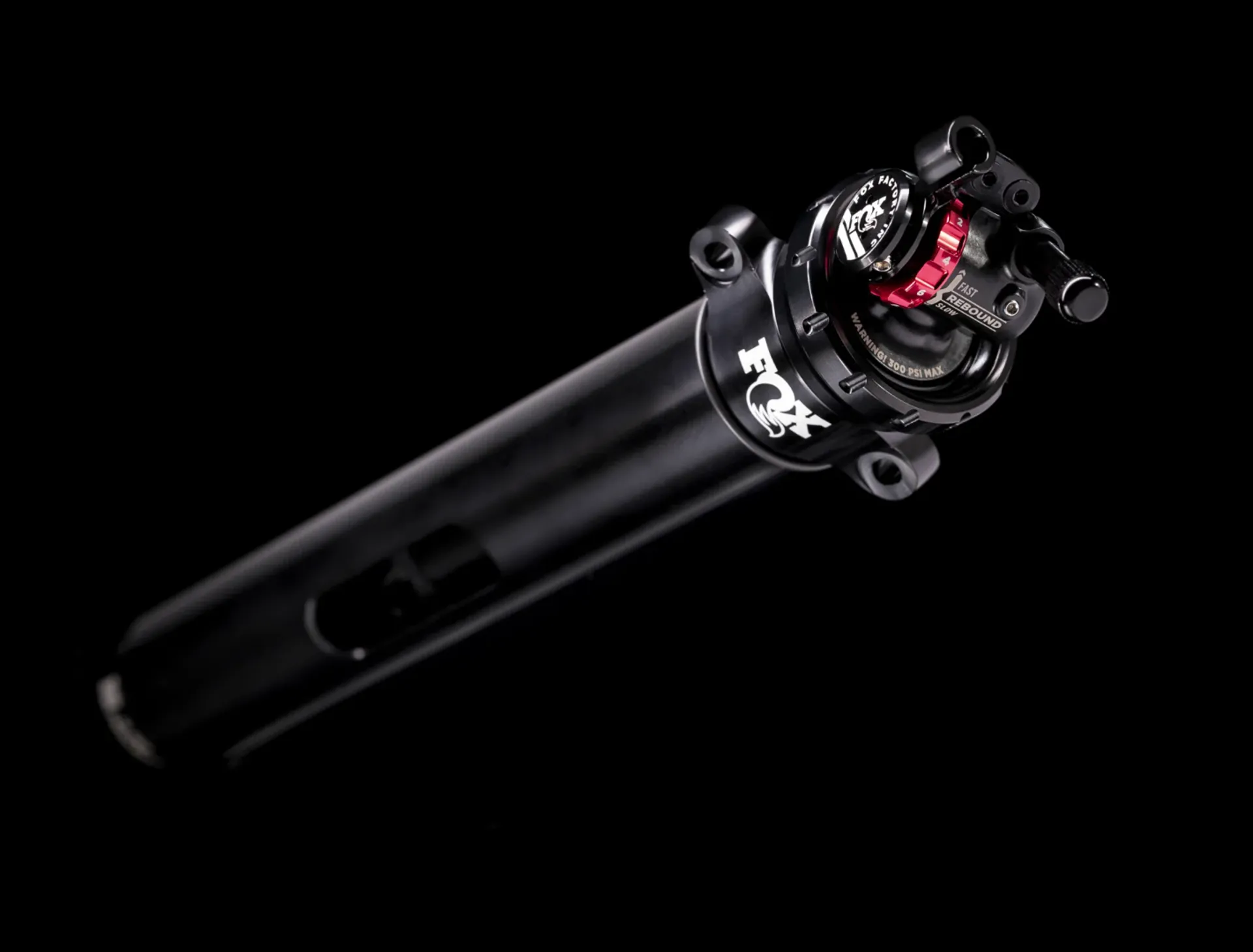

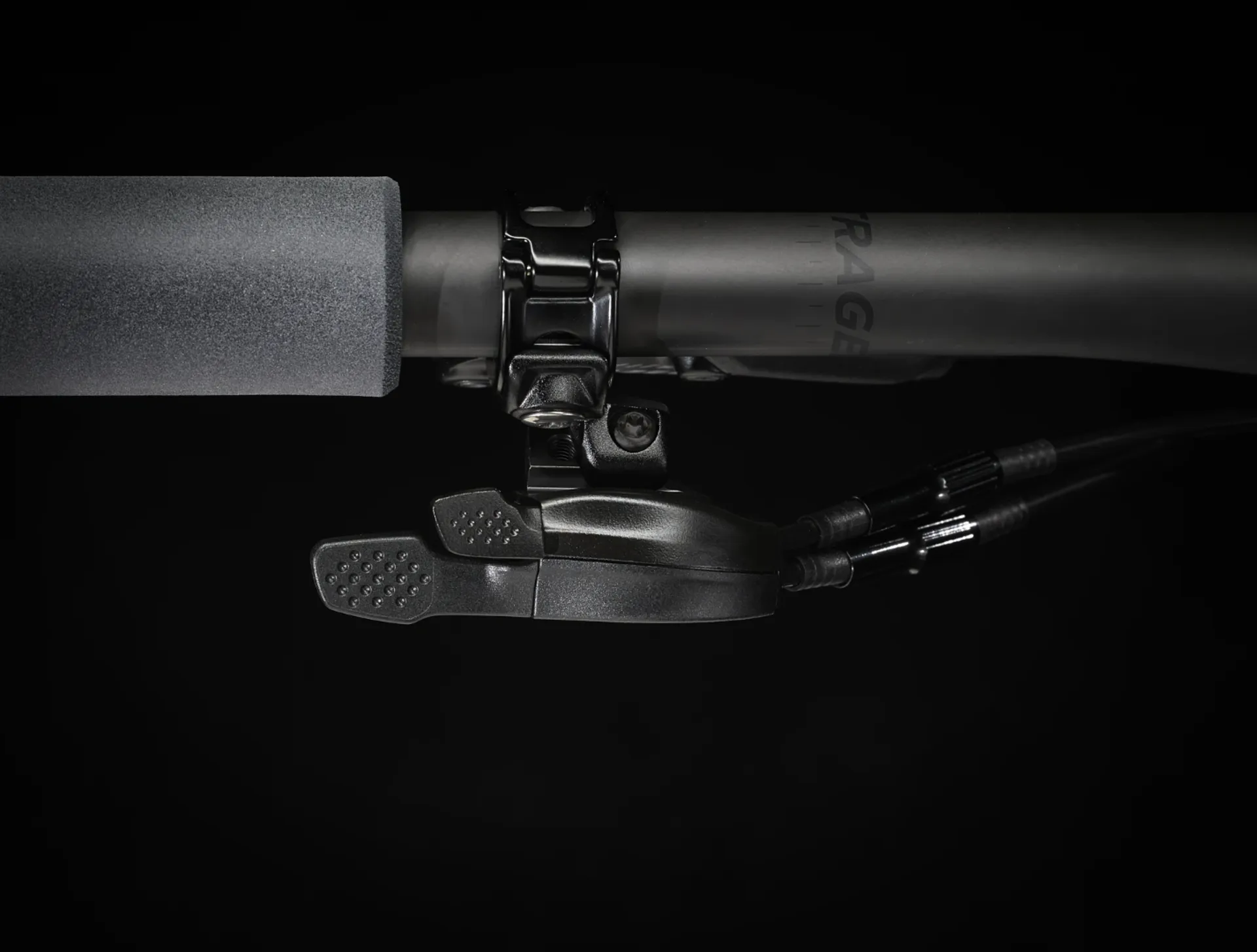

  • Rear Shock:Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
  • Fork:Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel
  • Number of Gears:12

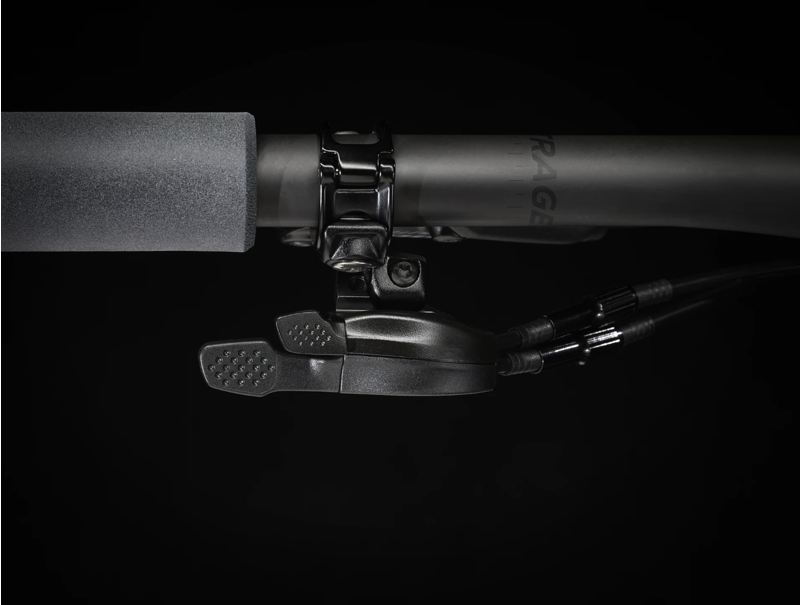

  • Gear Shifters:Shimano XT M8100, 12-speed

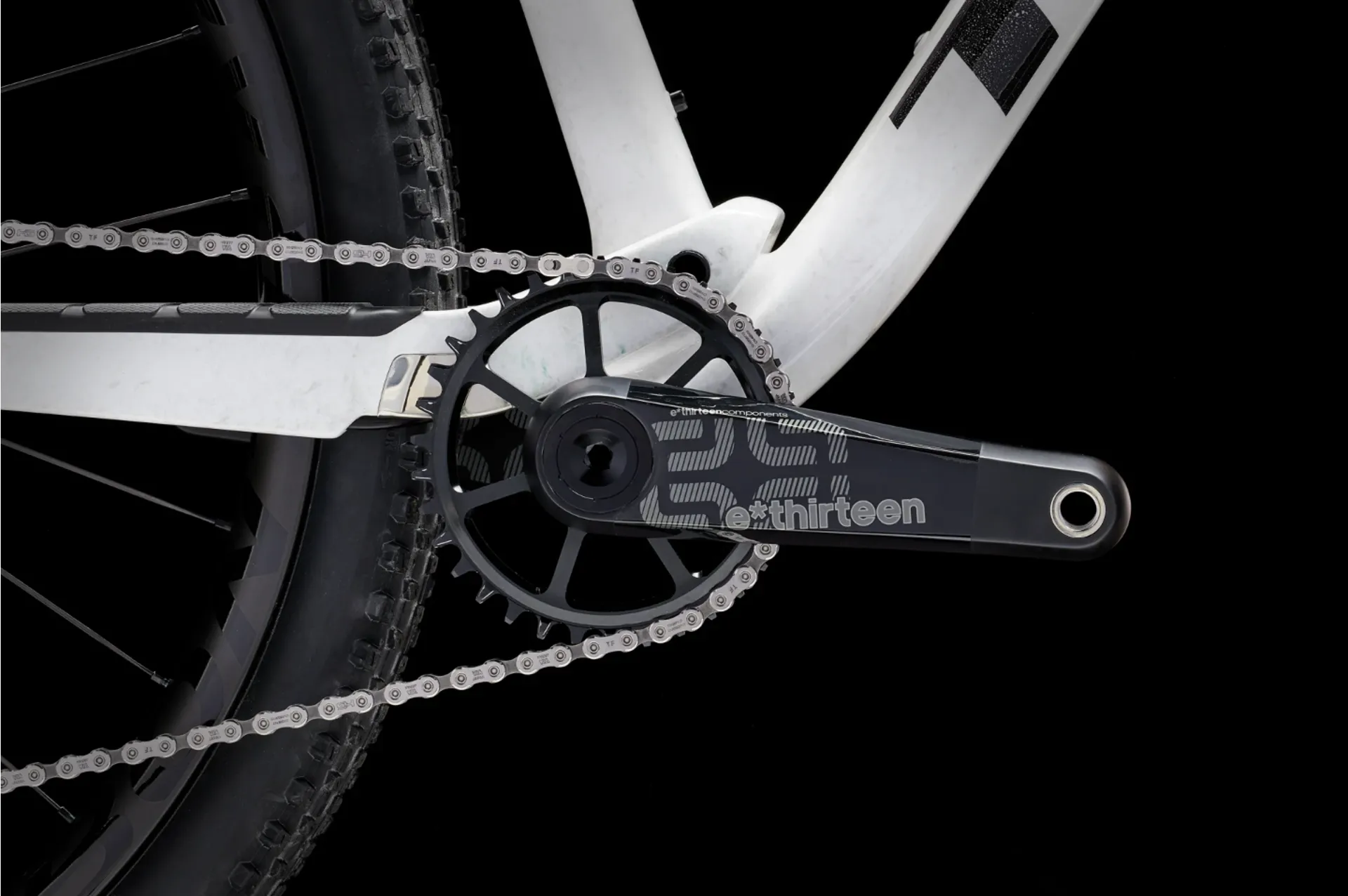

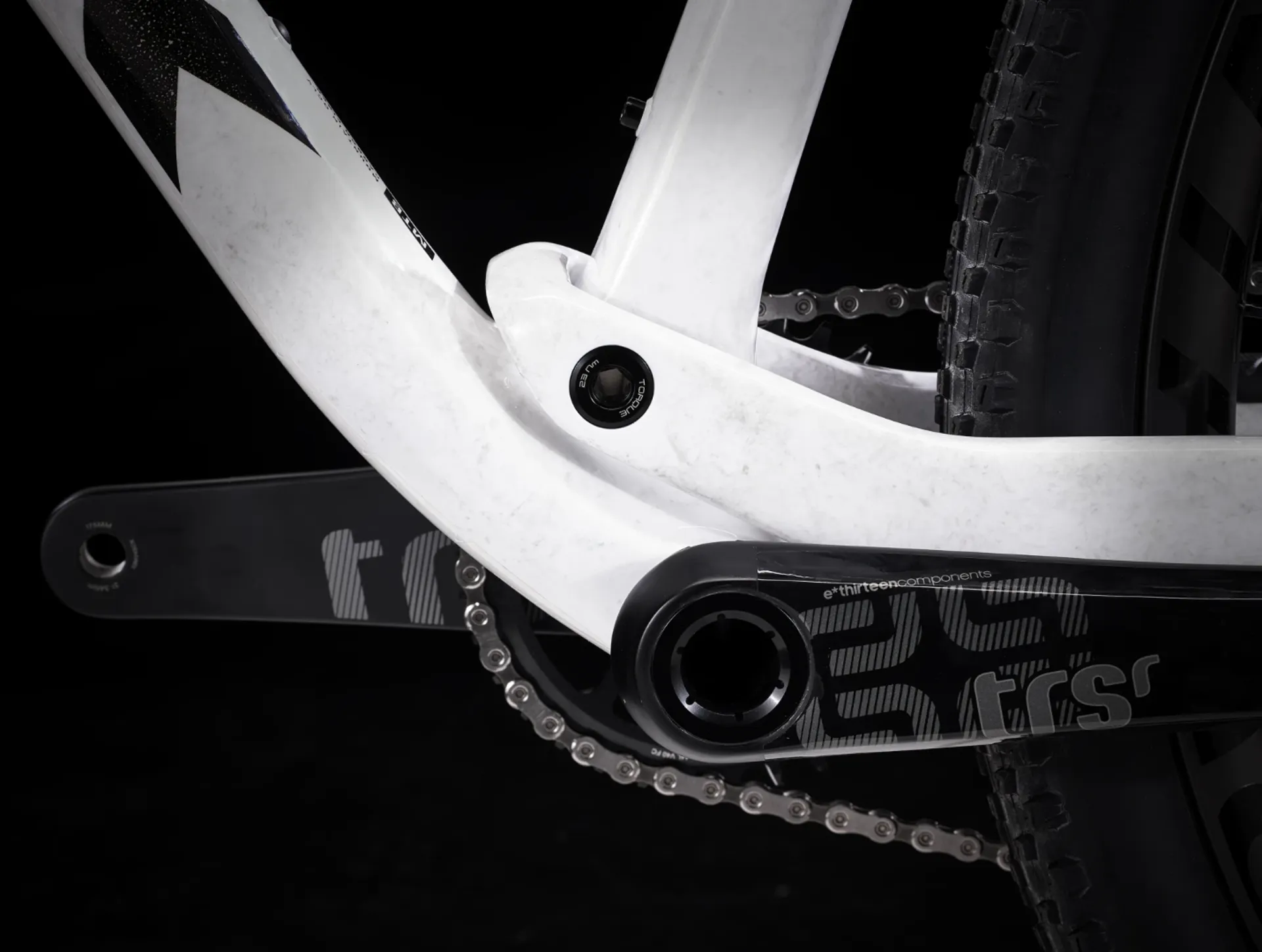

  • Chainset:E*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 55mm chain line, 170 - 175 mm length
  • Chainrings:34T

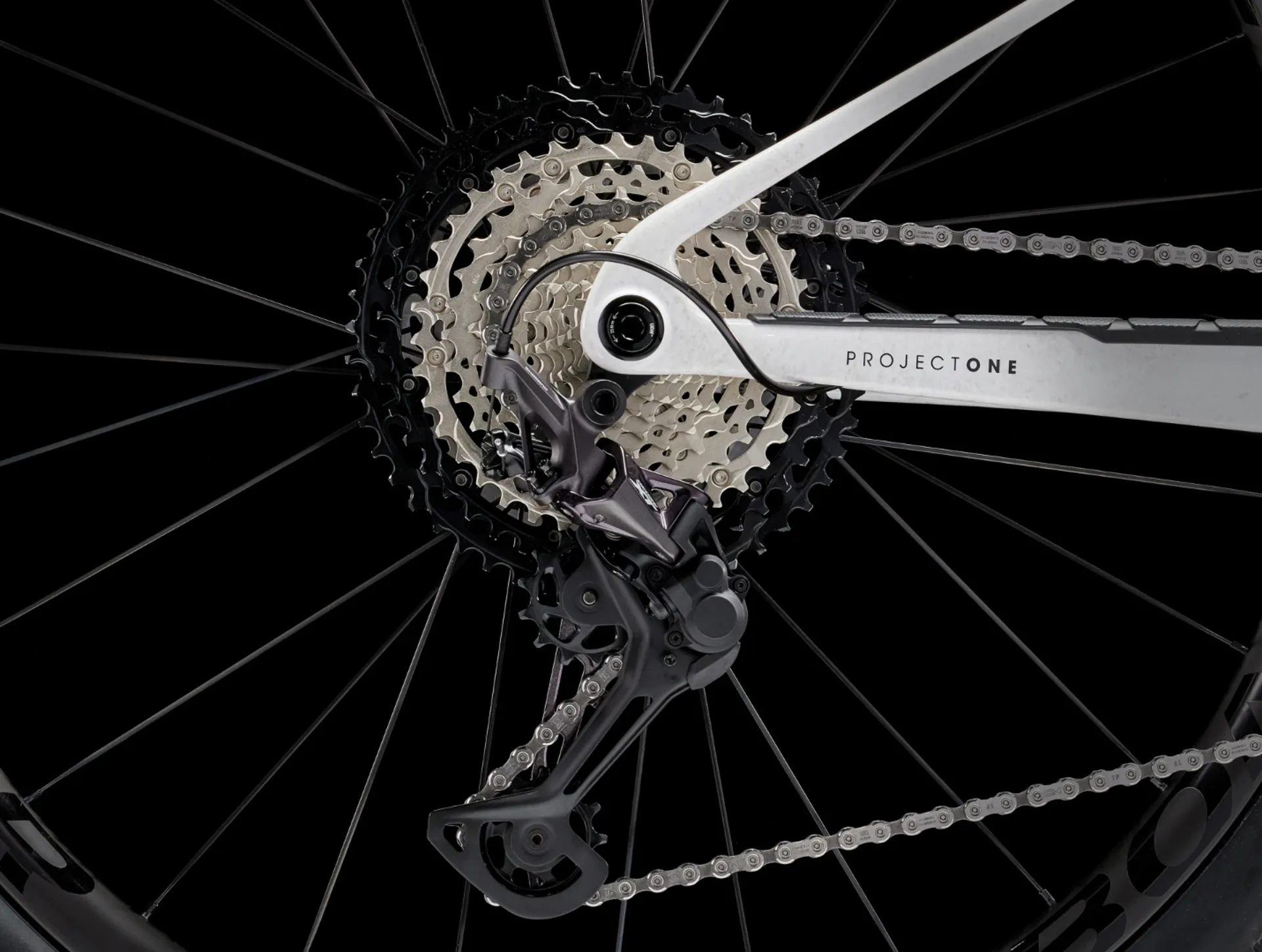

  • Rear Cassette:Shimano XT M8100, 10-51, 12-speed
  • Chain:Shimano Ultegra/XT M8100, 12-speed
  • Rear Derailleur:Shimano XT M8100, long cage
  • Bottom Bracket:E*thirteen BB20-92
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless-Ready
  • Front Wheel:Bontrager Kovee Pro 30 Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
  • Rear Wheel:Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano MicoSpline, 6-bolt, Boost148, 12 mm thru axle

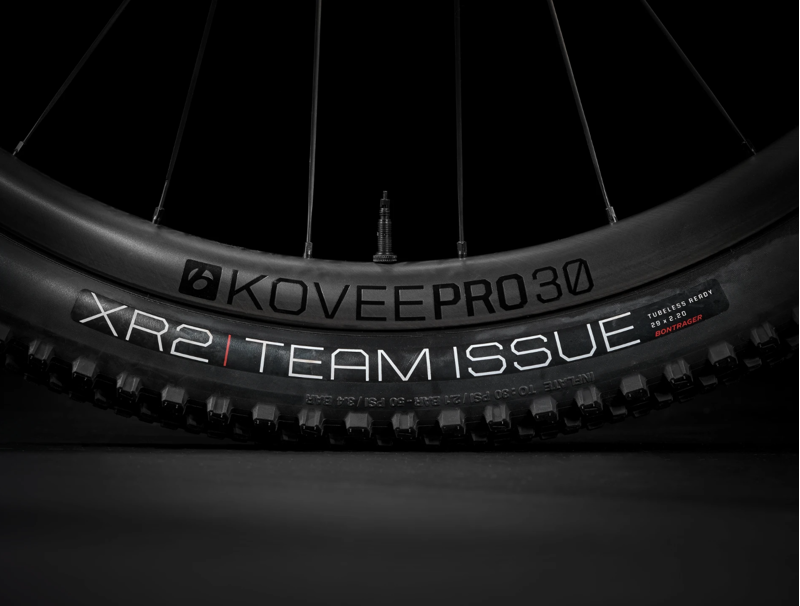

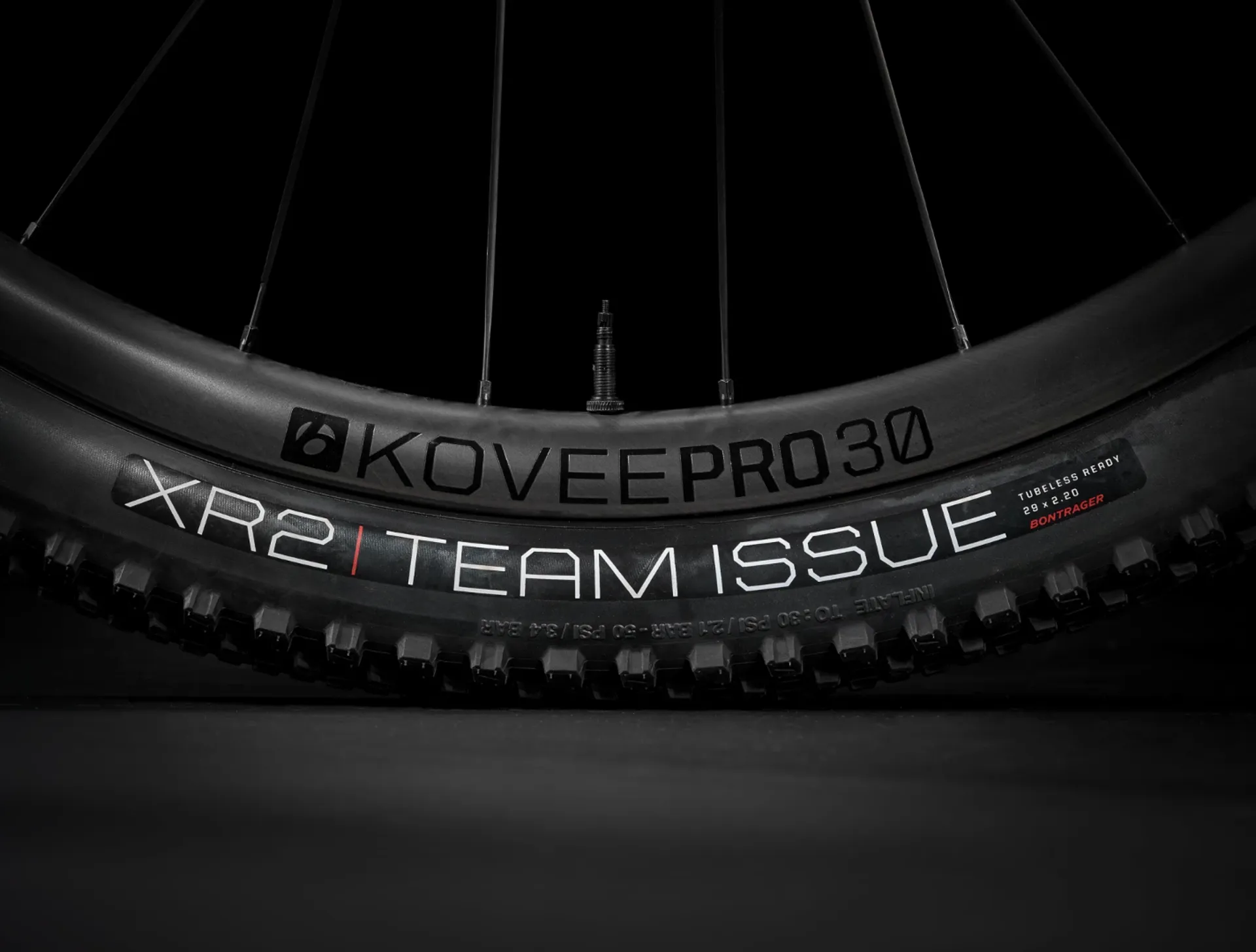

  • Front Tyre:Bontrager XR2 Team Issue, Tubeless-Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.20"
  • Rear Tyre:Bontrager XR2 Team Issue, Tubeless-Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.20"
  • Brakes:Shimano Deore XT M8100 hydraulic disc

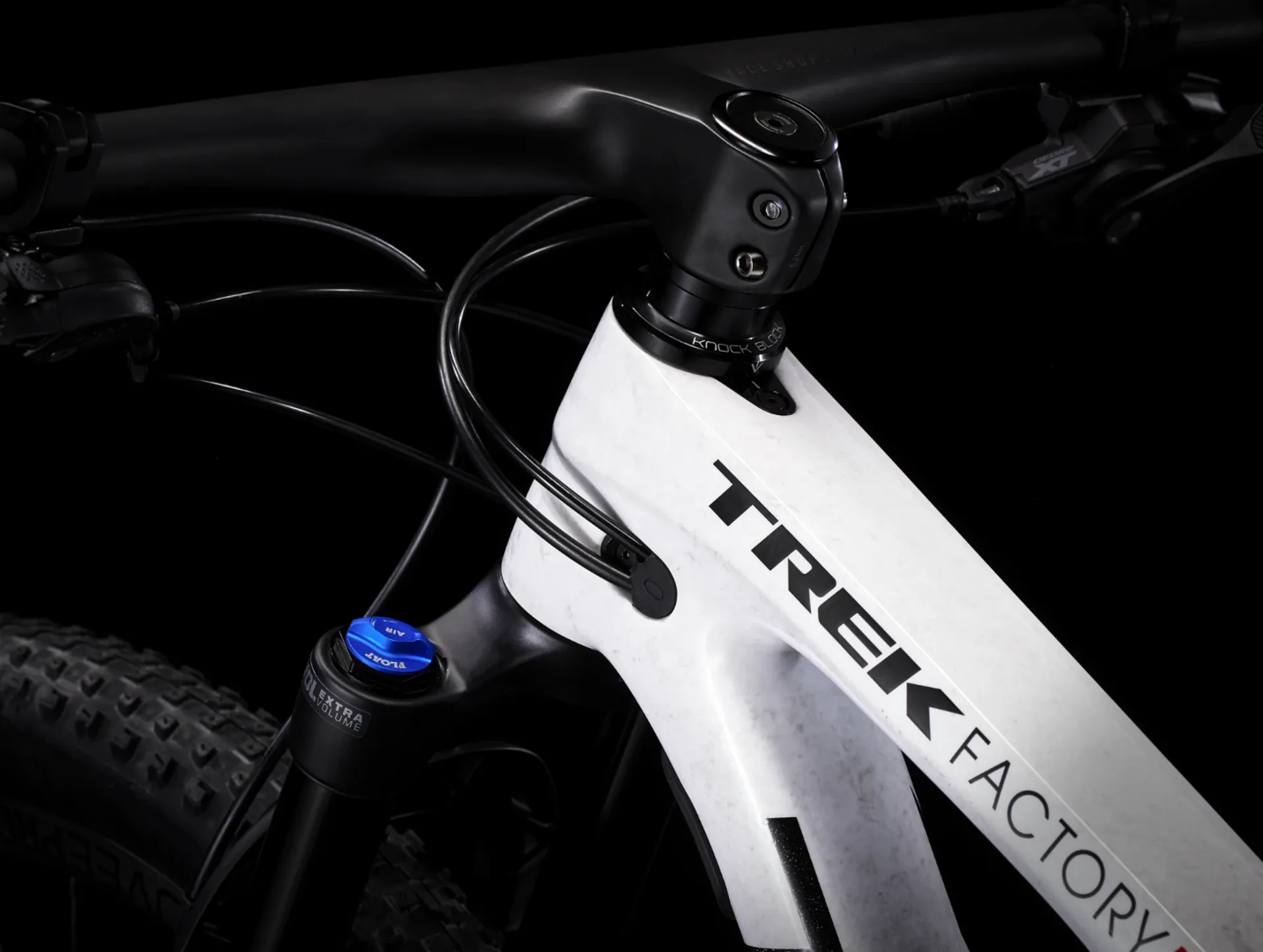

  • Handlebars:Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 - 90 mm length
  • Handlebar Grips:ESI Chunky
  • Headset:Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • Stem:Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 - 90 mm length
  • Saddle:Bontrager Verse Elite, austenite rails, 145 mm width
  • Seatpost:Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 - 400 mm length
  • Weight:M- 10.55 kg / 23.26 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Supercaliber

SizeRider HeightRider HeightInseamInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry information for Trek Supercaliber

Frame size number15.5"17.5"18.5"19.5"21.5"
Frame size letterSMMLLXL
Wheel size29"29"29"29"29"
A — Seat tube39.441.944.54750.8
B — Seat tube angle70.0°70.5°70.5°71.0°71.0°
Effective seat tube angle74.0°74.0°74.0°74.0°74.0°
C — Head tube length999910.5
D — Head angle69.0°69.0°69.0°69.0°69.0°
E — Effective top tube56.559.56162.565.9
F — Bottom bracket height3232323232
G — Bottom bracket drop5.35.35.35.35.3
H — Chainstay length4343434343
I — Offset4.44.44.44.44.4
J — Trail9.69.69.69.69.6
K — Wheelbase107.9110.6112.1113.6117.2
L — Standover75767678.778.7
M — Frame reach39.542.54445.548.5
N — Frame stack59.459.459.459.460.8


Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
  • Fork
    Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel
  • Shock
    Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm
  • Max compatible fork travel
    120 mm (531 mm axle-to-crown)
  • Wheel front
    Bontrager Kovee Pro 30 Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano MicoSpline, 6-bolt, Boost 148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready
  • Tyre
    Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.20" Fork: See manufacturer
  • Shifter
    Shimano XT M8100, 12-speed
  • Rear derailleur
    Shimano XT M8100, long cage
  • *Crank
  • Size: S
    e*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chainline, 170 mm length
  • Size: M, M/L, L, XL
    e*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chainline, 175 mm length
  • Bottom bracket
    e*thirteen BB20-92
  • Cassette
    Shimano XT M8100, 10-51, 12-speed
  • Chain
    Shimano Ultegra/XT M8100, 12-speed
  • Max. chainring size
    36T
  • Saddle
    Bontrager P3 Verse Elite, stainless steel rails, 145 mm width
  • *Seatpost
  • Size: S
    Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
  • Size: M, M/L, L, XL
    Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length
  • *Integrated Bar Stem
  • Size: S, M
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70mm length
  • Size: M/L, L
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length
  • Size: XL
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
  • Grips
    ESI Chunky
  • Head set
    Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • Brake
    Shimano Deore XT M8100 hydraulic disc
  • *Brake rotor
  • Size: S, M, M/L, L, XL
    Shimano RT76, 6-bolt, 160 mm
  • Rotor size
    Max brake rotor sizes: 180 mm front, 160 mm rear
  • Weight
    M - 10.55 kg / 23.26 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
