Trek Top Fuel 5 Full Suspension Mountain Bike 2022 in Red

Season:2022

Brand:Trek

Code:35071RED

The Top Fuel 5 is a full-suspension mountain bike that’s equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for performance and value, making this bike perfect for your first full-suspension trail bike. A lightweight aluminium frame with internal storage, 120 mm RockShox Recon fork, 120 mm of rear travel with an X-Fusion Pro 2 shock and a wide-range 1x12 Shimano Deore drivetrain. Plus, tubeless-ready rims, hydraulic disc brakes and a dropper post.

Key Features & Benefits:

  • Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • Frame Storage: A sleek internal storage compartment gives you a versatile spot to stow tools and gear

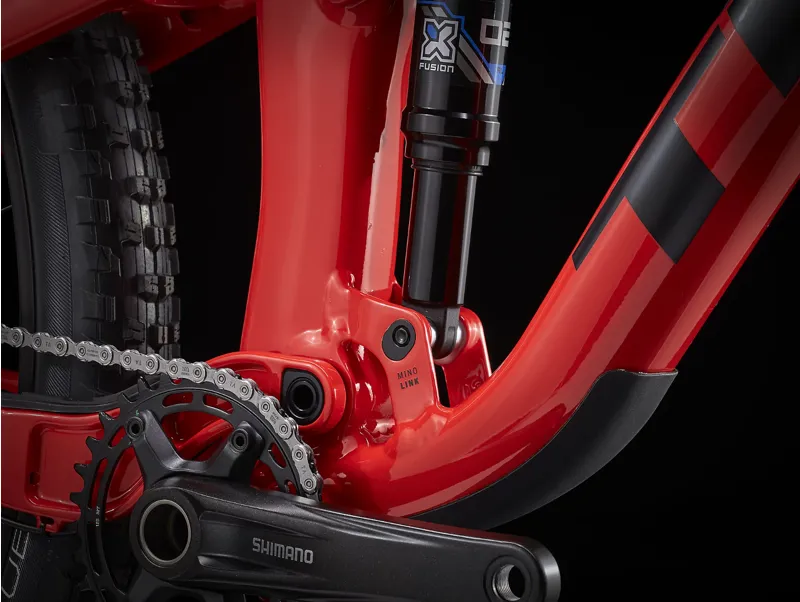

  • Mino Link: Lets you make small adjustments to your geometry quickly and easily, even mid-ride

Full Specification:

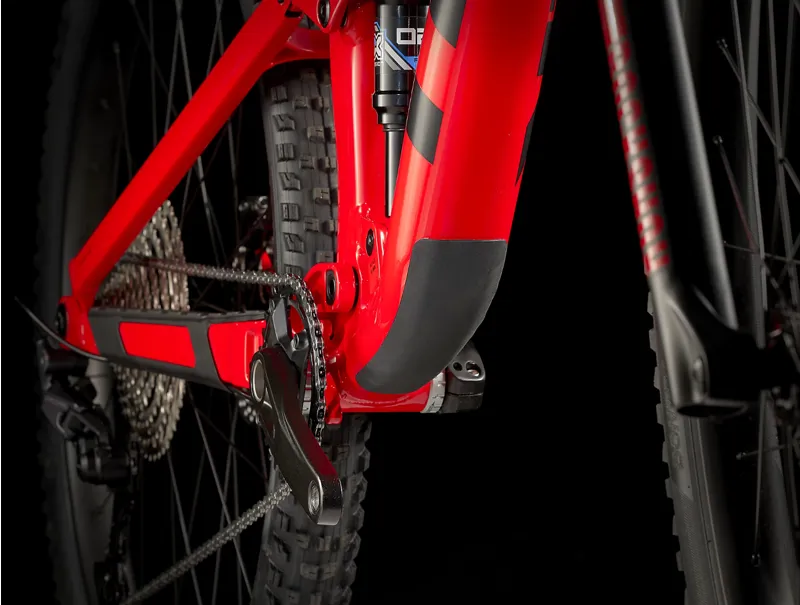

  • Frame:Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel

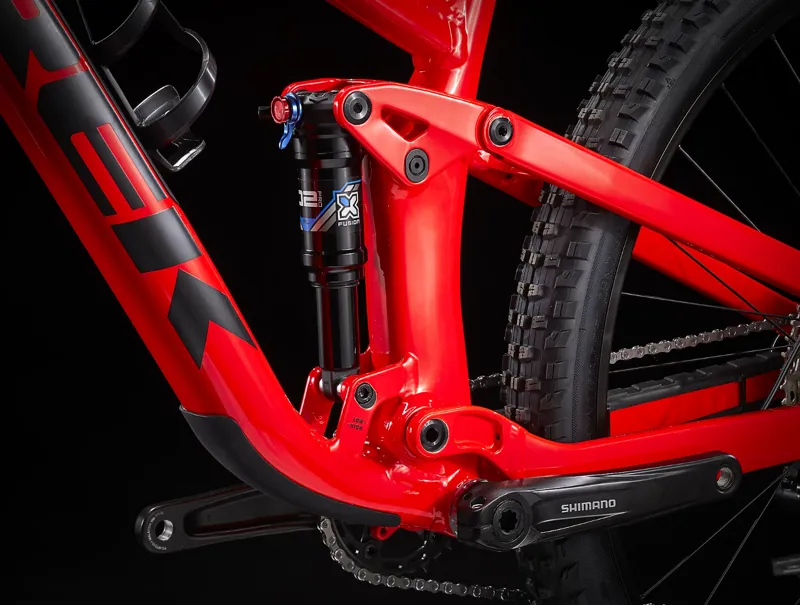

  • Rear Shock:X-Fusion Pro 2, 2-position damper, 185x50 mm
  • Fork:RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
  • Number of Gears:12
  • Gear Shifters:Shimano Deore M6100, 12-speed
  • Chainset:Shimano MT512, 30T ring, 55 mm chain line, 170 - 175mm length
  • Chainrings:30T

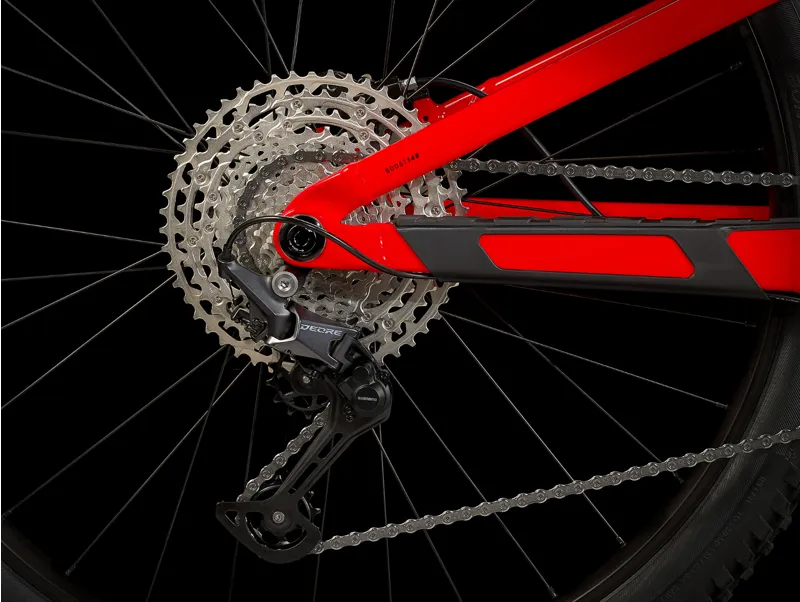

  • Rear Cassette:Shimano Deore M6100, 10-51, 12-speed
  • Chain:Shimano Deore M6100
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano Deore M6100, long cage

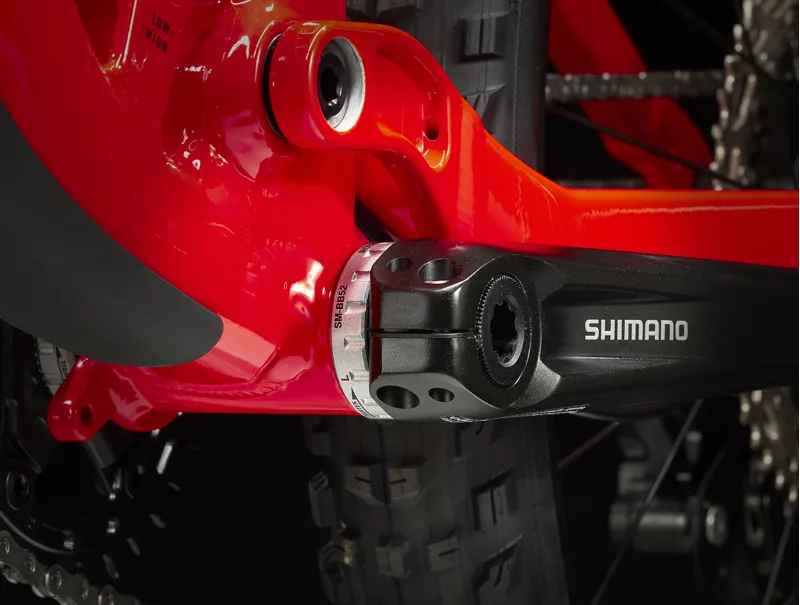

  • Bottom Bracket:Shimano SM-BB52, 73 mm, threaded external bearing
  • Pedals:Not supplied:Shop pedals here
  • Rims:Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
  • Front Hub:Bontrager alloy, 6-bolt, Boost110, 15mm thru-axle
  • Rear Hub:Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle

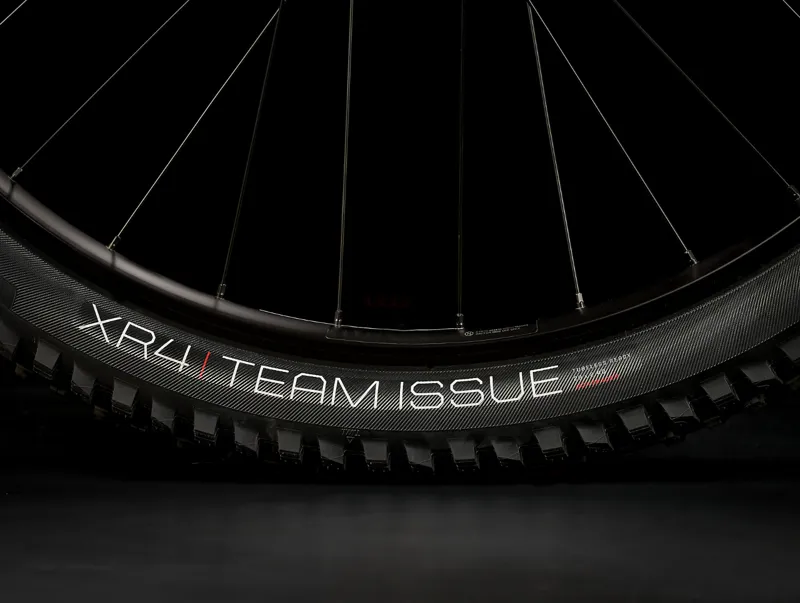

  • Front Tyre:Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
  • Rear Tyre:Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"

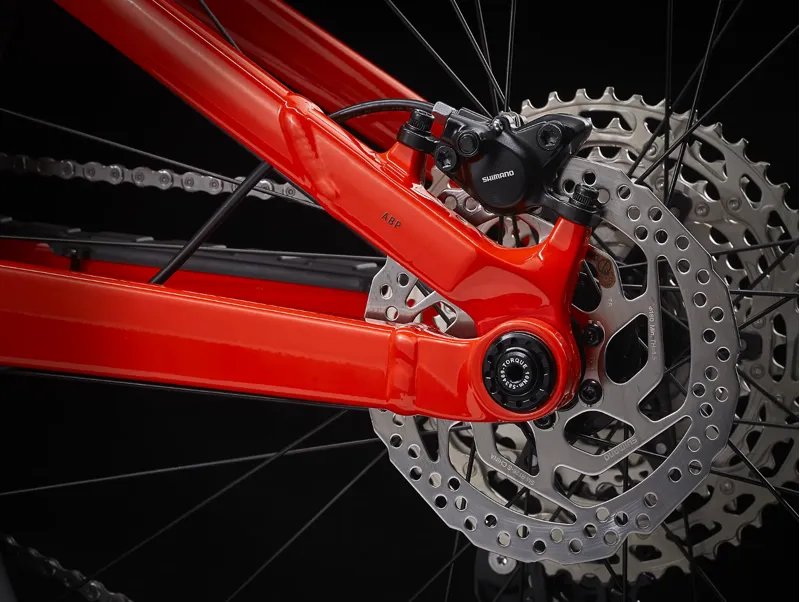

  • Brakes:Shimano MT200 hydraulic disc
  • Handlebars:Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
  • Handlebar Grips:Bontrager XR Trail Comp, nylon lock-on

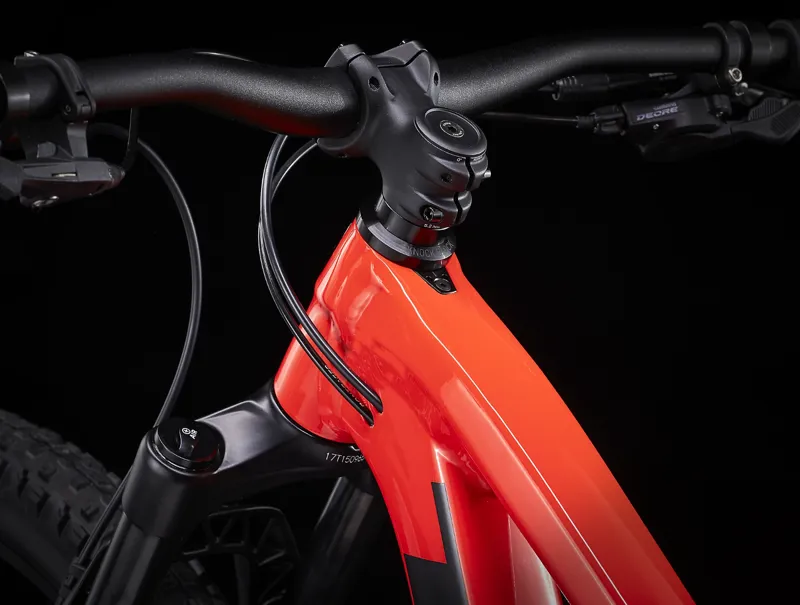

  • Stem:Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
  • Saddle:Bontrager Arvada, steel rails, 138 mm width
  • Seatpost:TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm
  • Weight:M - 34.22 lbs / 15.52 kg
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Top Fuel

SizeRider HeightRider HeightInseamInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry Information for Trek Top Fuel 5, 7, & 8

Frame size number15.5"15.5"17.5"17.5"18.5"18.5"19.5"19.5"21.5"21.5"21.5"23.0"23.0"
Frame size letterSSMMMLMLLLXLXLXLXXLXXL
Geometry positionHighLowHighLowHighLowHighLowHighHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"29"29"29"29"29"
A — Seat tube39.539.5424243.543.545455050505454
B — Seat tube angle70.4°70.0°70.4°70.0°70.4°70.0°70.4°70.0°70.4°70.4°70.0°70.4°70.0°
Effective seat tube angle76.4°76.0°76.4°76.0°76.4°76.0°76.4°76.0°76.4°76.4°76.0°76.4°76.0°
C — Head tube length1010101010.510.5111112.512.512.513.513.5
D — Head angle66.4°66.0°66.4°66.0°66.4°66.0°66.4°66.0°66.4°66.4°66.0°66.4°66.0°
E — Effective top tube56.756.859.759.861.461.56363.165.365.365.467.567.6
F — Bottom bracket height34.333.834.333.834.333.834.333.834.334.333.834.333.8
G — Bottom bracket drop3.13.63.13.63.13.63.13.63.13.13.633.6
H — Chainstay length43.443.543.443.543.443.543.443.543.443.443.543.443.5
I — Offset4.44.44.44.44.44.44.44.44.44.44.44.44.4
J — Trail11.511.811.511.811.511.811.511.811.511.511.811.511.8
K — Wheelbase115115.1118118.1119.7119.8121.4121.5124124124.1126.5126.5
L — Standover71.971.57473.574.5747574.5767675.57776.5
M — Frame reach42.44245.44546.946.548.44850.450.45052.452
N — Frame stack59.259.559.259.559.76060.160.561.561.561.862.462.7

Geometry Information for Trek Top Fuel Carbon Frames

Frame size number15.5"15.5"17.5"17.5"18.5"18.5"19.5"19.5"21.5"21.5"
Frame size letterSSMMMLMLLLXLXL
Geometry positionHighLowHighLowHighLowHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"29"29"
A — Seat tube39.539.5424243.543.545455050
B — Seat tube angle69.9°69.5°69.9°69.5°69.9°69.5°69.9°69.6°69.9°69.6°
Effective seat tube angle75.9°75.5°75.9°75.5°75.9°75.5°75.9°75.6°75.9°75.6°
C — Head tube length1010101010.510.5111112.512.5
D — Head angle65.9°65.5°65.9°65.5°65.9°65.5°65.9°65.6°65.9°65.6°
E — Effective top tube56.95759.96061.561.663.163.265.465.5
F — Bottom bracket height34.634.134.634.134.634.134.634.134.634.1
G — Bottom bracket drop2.73.22.73.32.73.32.73.32.73.3
H — Chainstay length43.443.543.443.543.443.543.443.543.443.5
I — Offset4.34.34.34.34.34.34.34.34.34.3
J — Trail1212.31212.31212.31212.31212.3
K — Wheelbase115.3115.4118.3118.4120120.1121.7121.8124.4124.4
L — Standover72.471.974.473.974.974.475.474.976.475.9
M — Frame reach41.941.544.944.546.44647.947.549.949.5
N — Frame stack59.659.959.659.96060.460.560.861.962.2

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
