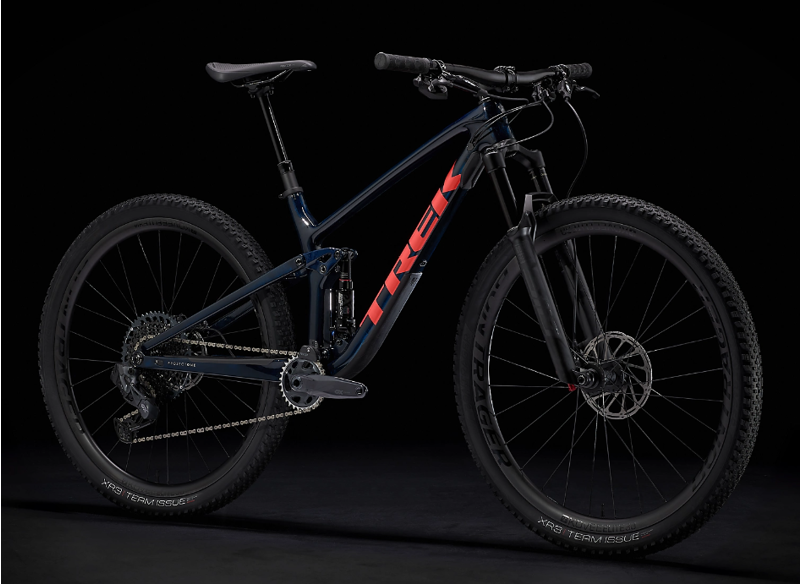

Trek Top Fuel 9.8 GX AXS Full Suspension Mountain Bike 2021 in Blue

Trek Top Fuel 9.8 GX AXS Full Suspension Mountain Bike 2021 in Blue-1

Trek Top Fuel 9.8 GX AXS Full Suspension Mountain Bike 2021 in Blue-2

Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don't settle

Trek

Trek Top Fuel 9.8 GX AXS Full Suspension Mountain Bike 2021 in Blue

£6,390.00 £6,825.00 6% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.

Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Top Fuel 9.8 GX AXS Full Suspension Mountain Bike 2021 in Blue

Season:2024

Brand:Trek

Code:351942021CBNBLUSMKWHT

Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don't settle

Not for parts nor for one style of riding. It combines a high-end parts package and wireless electronic drivetrain with a low-weight carbon frame for an unbelievably fun rig that's fast on flow and still fun to ride on techy singletrack.

The SRAM GX Eagle AXS drivetrain is smart, smooth and completely wireless
You get a Straight Shot downtube for extra-stiff, responsive handling without added weight and a Knock Block headset that protects against spinning bars and fork crowns
Bontrager DropLock's shifter-style lever lets you easily lock out both front and rear shocks at the same time for added sprinting or climbing efficiently. Plus, it controls your dropper post too
Wider Kovee Elite 30 wheels provide better tyre support so you can run lower pressure and get more traction
This short-travel bike has a killer suspension set-up reminiscent of the all-mighty mullet – it's both efficient and ready to party

Key Features & Benefits:

SRAM AXS Wireless Groupset:Combines with Control Freak internal routing makes a very clean set-up
Carbon Wheelset:Bontrager Kovee Elite 30 wheels provide better tyre support so you can run lower pressure and get more traction
Knock Block:New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius

Full Specification:

Frame:OCLV Mountain Carbon main frame and stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel

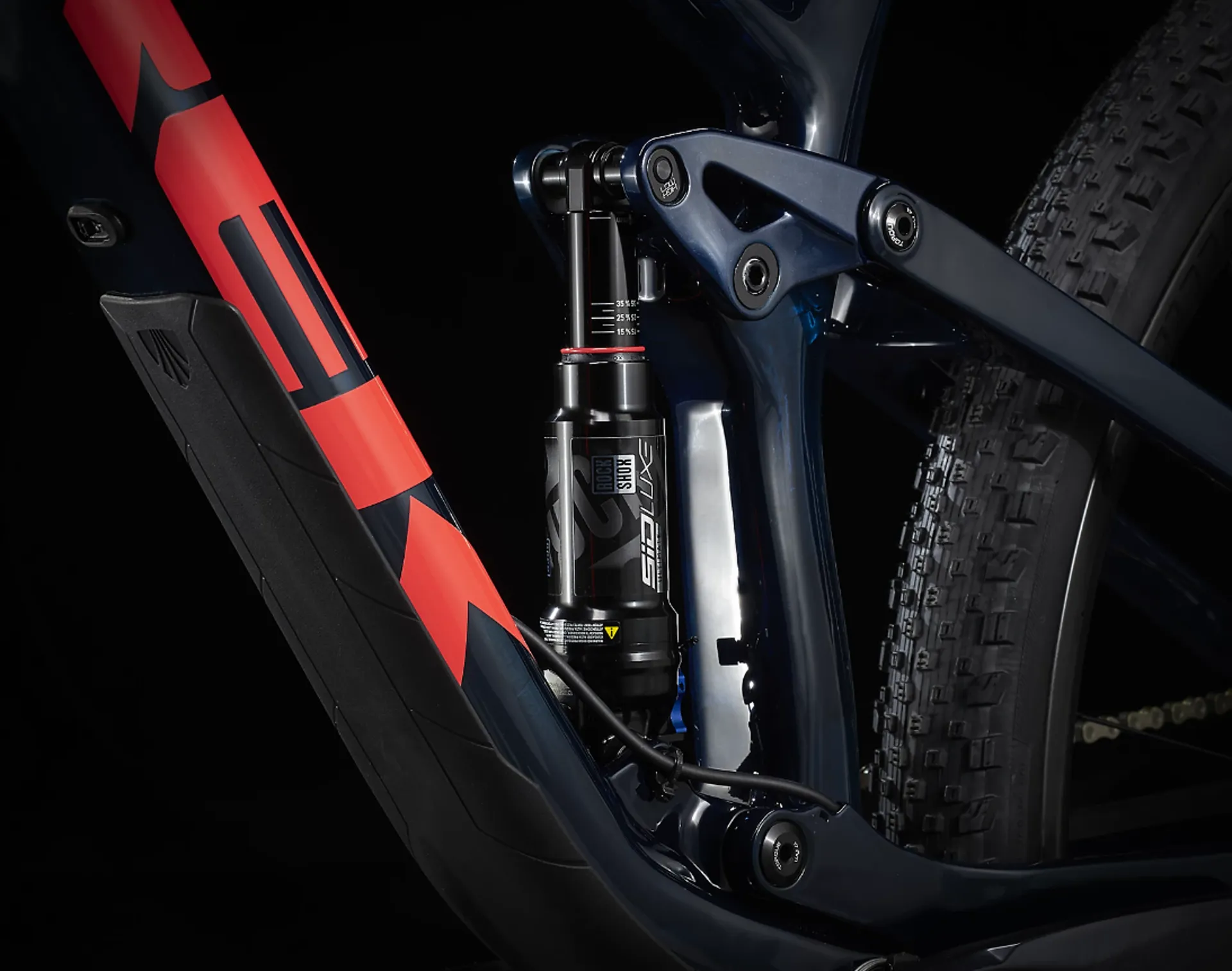

Rear Shock:RockShox SID Luxe Ultimate, DebonAir spring, Ultimate RL damper, 190x45 mm
Fork:RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Number of Gears:12
Gear Shifters:SRAM GX Eagle AXS, 12-speed
Chainset:SRAM GX 7K Eagle, DUB, 32T alloy ring, Boost, 175 mm length
Chainrings:32T
Rear Cassette:SRAM Eagle XG-1275, 10-52, 12-speed
Chain:SRAM GX Eagle, 12-speed
Rear Derailleur:SRAM GX Eagle AXS
Bottom Bracket:SRAM DUB MTB Wide, 73 m, BSA threaded
Pedals:Not Supplied
Wheelset:Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost 110, 15 mm thru axle
Tyres:Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Brakes:SRAM G2 RS hydraulic disc, 160/180
Handlebars:Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
Handlebar Grips:Bontrager XR Trail Elite, nylon lock-on
Stem:Bontrager Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60-70 mm length
Saddle:Bontrager Montrose Elite, titanium rails, 138 mm width
Seatpost:Bontrager Line Elite Dropper, 100-170 mm travel, MaxFlow, internal routing, 31.6 mm
Weight:M - 11.88 kg / 26.2 lbs

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Top Fuel

Size	Rider Height	Rider Height	Inseam	Inseam
S	155 - 165 cm	5'1" - 5'5"	74 - 78 cm	29" - 31"
M	165 - 176 cm	5'5" - 5'9"	79 - 83 cm	31" - 33"
M/L	173 - 180 cm	5'8" - 5'11"	81 - 86 cm	32" - 34"
L	177 - 188 cm	5'10" - 6'2"	84 - 89 cm	33" - 35"
XL	188 - 195 cm	6'2" - 6'5"	89 - 91 cm	35" - 36"
2XL	195 - 203 cm	6'5" - 6'8"	91 - 97 cm	36" - 38"

Geometry Information for Trek Top Fuel 5, 7, & 8

Frame size number	15.5"	15.5"	17.5"	17.5"	18.5"	18.5"	19.5"	19.5"	21.5"	21.5"	21.5"	23.0"	23.0"
Frame size letter	S	S	M	M	ML	ML	L	L	XL	XL	XL	XXL	XXL
Geometry position	High	Low	High	Low	High	Low	High	Low	High	High	Low	High	Low
Wheel size	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"
A — Seat tube	39.5	39.5	42	42	43.5	43.5	45	45	50	50	50	54	54
B — Seat tube angle	70.4°	70.0°	70.4°	70.0°	70.4°	70.0°	70.4°	70.0°	70.4°	70.4°	70.0°	70.4°	70.0°
Effective seat tube angle	76.4°	76.0°	76.4°	76.0°	76.4°	76.0°	76.4°	76.0°	76.4°	76.4°	76.0°	76.4°	76.0°
C — Head tube length	10	10	10	10	10.5	10.5	11	11	12.5	12.5	12.5	13.5	13.5
D — Head angle	66.4°	66.0°	66.4°	66.0°	66.4°	66.0°	66.4°	66.0°	66.4°	66.4°	66.0°	66.4°	66.0°
E — Effective top tube	56.7	56.8	59.7	59.8	61.4	61.5	63	63.1	65.3	65.3	65.4	67.5	67.6
F — Bottom bracket height	34.3	33.8	34.3	33.8	34.3	33.8	34.3	33.8	34.3	34.3	33.8	34.3	33.8
G — Bottom bracket drop	3.1	3.6	3.1	3.6	3.1	3.6	3.1	3.6	3.1	3.1	3.6	3	3.6
H — Chainstay length	43.4	43.5	43.4	43.5	43.4	43.5	43.4	43.5	43.4	43.4	43.5	43.4	43.5
I — Offset	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4
J — Trail	11.5	11.8	11.5	11.8	11.5	11.8	11.5	11.8	11.5	11.5	11.8	11.5	11.8
K — Wheelbase	115	115.1	118	118.1	119.7	119.8	121.4	121.5	124	124	124.1	126.5	126.5
L — Standover	71.9	71.5	74	73.5	74.5	74	75	74.5	76	76	75.5	77	76.5
M — Frame reach	42.4	42	45.4	45	46.9	46.5	48.4	48	50.4	50.4	50	52.4	52
N — Frame stack	59.2	59.5	59.2	59.5	59.7	60	60.1	60.5	61.5	61.5	61.8	62.4	62.7

Geometry Information for Trek Top Fuel Carbon Frames

Frame size number	15.5"	15.5"	17.5"	17.5"	18.5"	18.5"	19.5"	19.5"	21.5"	21.5"
Frame size letter	S	S	M	M	ML	ML	L	L	XL	XL
Geometry position	High	Low	High	Low	High	Low	High	Low	High	Low
Wheel size	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"
A — Seat tube	39.5	39.5	42	42	43.5	43.5	45	45	50	50
B — Seat tube angle	69.9°	69.5°	69.9°	69.5°	69.9°	69.5°	69.9°	69.6°	69.9°	69.6°
Effective seat tube angle	75.9°	75.5°	75.9°	75.5°	75.9°	75.5°	75.9°	75.6°	75.9°	75.6°
C — Head tube length	10	10	10	10	10.5	10.5	11	11	12.5	12.5
D — Head angle	65.9°	65.5°	65.9°	65.5°	65.9°	65.5°	65.9°	65.6°	65.9°	65.6°
E — Effective top tube	56.9	57	59.9	60	61.5	61.6	63.1	63.2	65.4	65.5
F — Bottom bracket height	34.6	34.1	34.6	34.1	34.6	34.1	34.6	34.1	34.6	34.1
G — Bottom bracket drop	2.7	3.2	2.7	3.3	2.7	3.3	2.7	3.3	2.7	3.3
H — Chainstay length	43.4	43.5	43.4	43.5	43.4	43.5	43.4	43.5	43.4	43.5
I — Offset	4.3	4.3	4.3	4.3	4.3	4.3	4.3	4.3	4.3	4.3
J — Trail	12	12.3	12	12.3	12	12.3	12	12.3	12	12.3
K — Wheelbase	115.3	115.4	118.3	118.4	120	120.1	121.7	121.8	124.4	124.4
L — Standover	72.4	71.9	74.4	73.9	74.9	74.4	75.4	74.9	76.4	75.9
M — Frame reach	41.9	41.5	44.9	44.5	46.4	46	47.9	47.5	49.9	49.5
N — Frame stack	59.6	59.9	59.6	59.9	60	60.4	60.5	60.8	61.9	62.2

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information

Frame
OCLV Mountain Carbon main frame and stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel
Fork
RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Shock
RockShox SID Luxe Ultimate, DebonAir spring, Ultimate RL damper, 190x45 mm
Suspension lever
Bontrager Drop Lock remote
Wheel front
Bontrager Kovee Elite 30 Carbon, Tubeless Ready, 6-bolt, Boost 110, 15 mm thru axle
Wheel rear
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 54, XD Driver, 6-bolt, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Tyre
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
Tyre part
Size: S/M, Bontrager TLR sealant, 180 ml/6 oz
Size: S/M, Bontrager TLR valve, 50 mm
Shifter
SRAM GX Eagle AXS, 12-speed
Rear derailleur
SRAM GX Eagle AXS
Crank
SRAM GX 7K Eagle, DUB, 32T alloy ring, Boost, 175 mm length
Bottom bracket
SRAM DUB, 92 mm, PressFit
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Chain
SRAM GX Eagle, 12-speed
Saddle
Bontrager Montrose Elite, titanium rails, 138 mm width
Seatpost
Size: M, Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length
Size: S, Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Stem
Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60 mm length
Head set
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brake
SRAM G2 RS hydraulic disc
Brake rotor
Size: S/M, SRAM CenterLine, 6-bolt, round-edge, 160 mm
Size: S/M, SRAM CenterLine, 6-bolt, round edge, 180 mm
Weight
26.19 lbs / 11.88 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
