The Trek Top Fuel 9.8 XT carbon full suspension mountain bike boasts a bunch of performance upgrades like the Shimano XT drivetrain, Fox fork, Shimano SLX brakes and Bontrager carbon wheels.
The Trek Top Fuel 9.8 XT carbon full suspension mountain bike boasts a bunch of performance upgrades like the Shimano XT drivetrain, Fox fork, Shimano SLX brakes and Bontrager carbon wheels.
Trek

Trek Top Fuel 9.8 XT Mens Full Suspension Mountain Bike in Viper Red

£5,350.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Top Fuel 9.8 XT Mens Full Suspension Mountain Bike in Viper Red

Season:2020

Brand:Trek

Code:310632020VIPRED

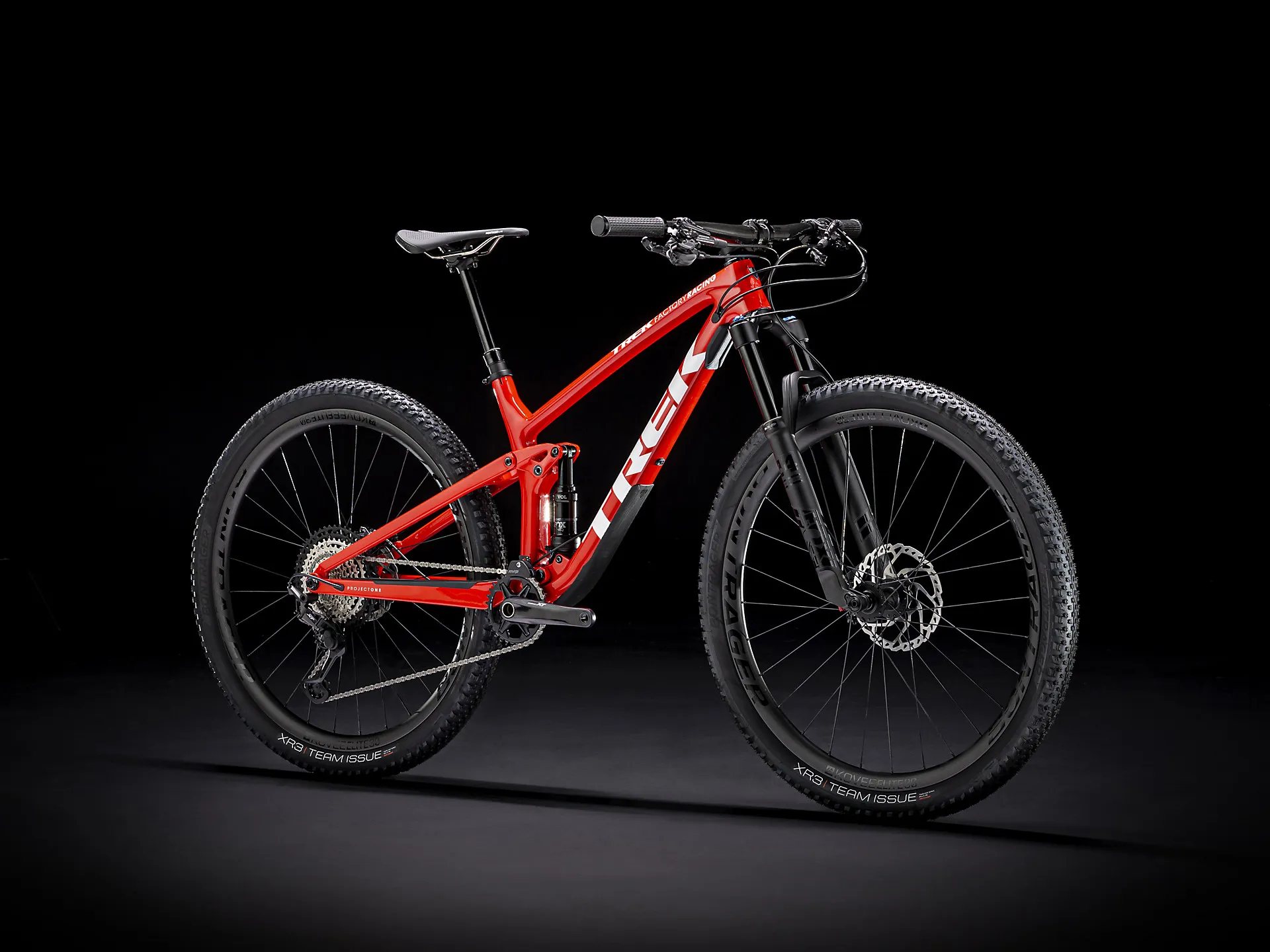

The Trek Top Fuel 9.8 XT carbon full suspension mountain bike is a high-performance ride for endurance racers and riders who don't settle for one style of riding. It combines the best qualities of XC and trail bikes for an unbelievably fun, efficient, and capable rig. It's fast on flow, shreds big singletrack and conquers endurance events.

The 9.8 XT is built with an OCLV Mountain Carbon frame and across-the-board parts upgrades, including an upgraded 120 mm Fox Performance 34 Step-Cast Float fork with GRIP damper, 115 mm of rear travel with a Fox Performance Float shock and a 1x12 Shimano XT drivetrain. Plus, wide carbon Bontrager Kovee Elite 30 wheels with a 54-tooth Rapid Drive hub for fast engagement, TwistLoc dual remote suspension lockout, Bontrager Line Elite Dropper, Bontrager Line Pro OCLV Carbon handlebars and upgraded Shimano SLX brakes.

The Top Fuel 9.8 XT is an efficient, capable, and ridiculously fun short-travel carbon trail bike with the performance boost of upgraded parts like the drivetrain, fork, and brakes. It's built to rip technical terrain and descents, speed through flow sections and withstand the beating that endurance races dole out.

Key Features and Benefits:

OCLV Carbon Frame: Lightweight & Durable.

Fox Performance suspension: Deals with rougher tarrain.

Carbon Wheels: Light and Fast rolling.

Full Specification:

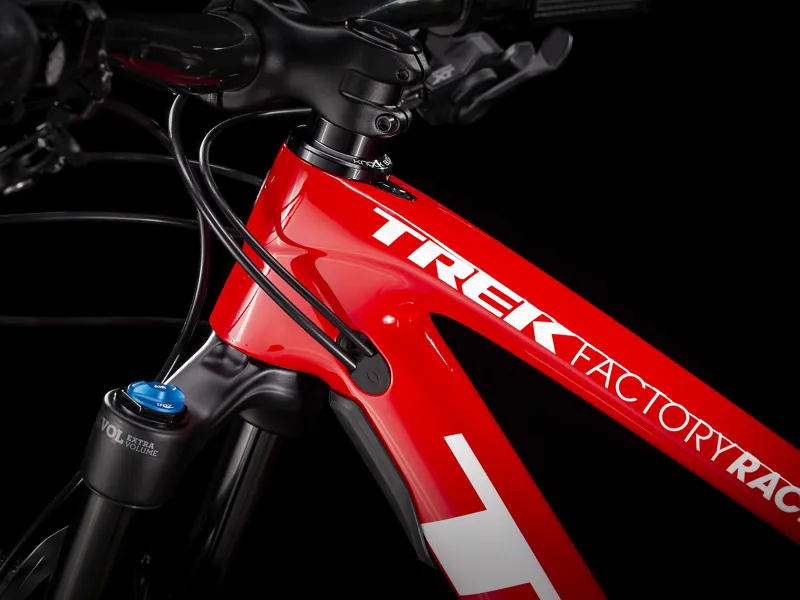

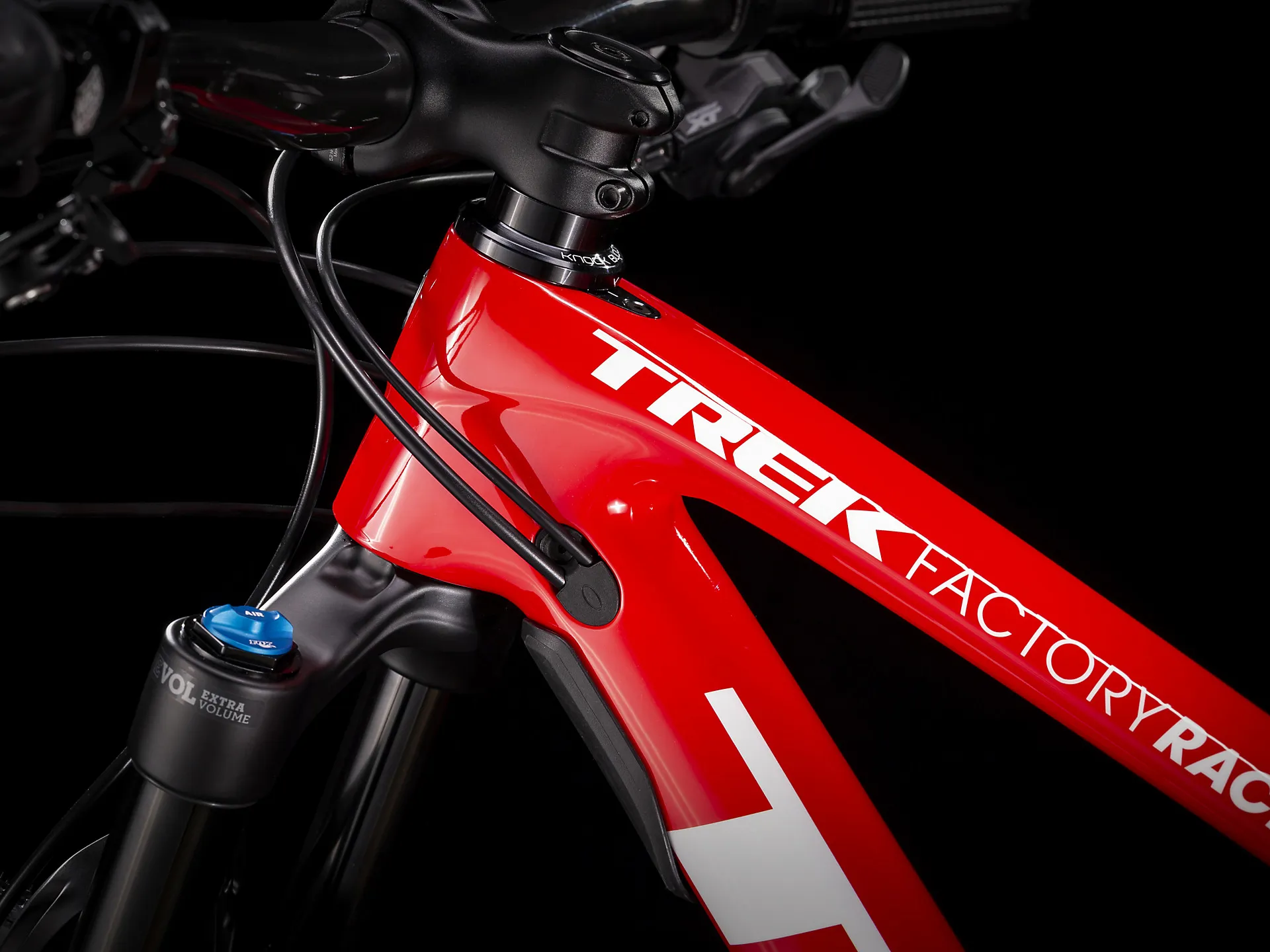

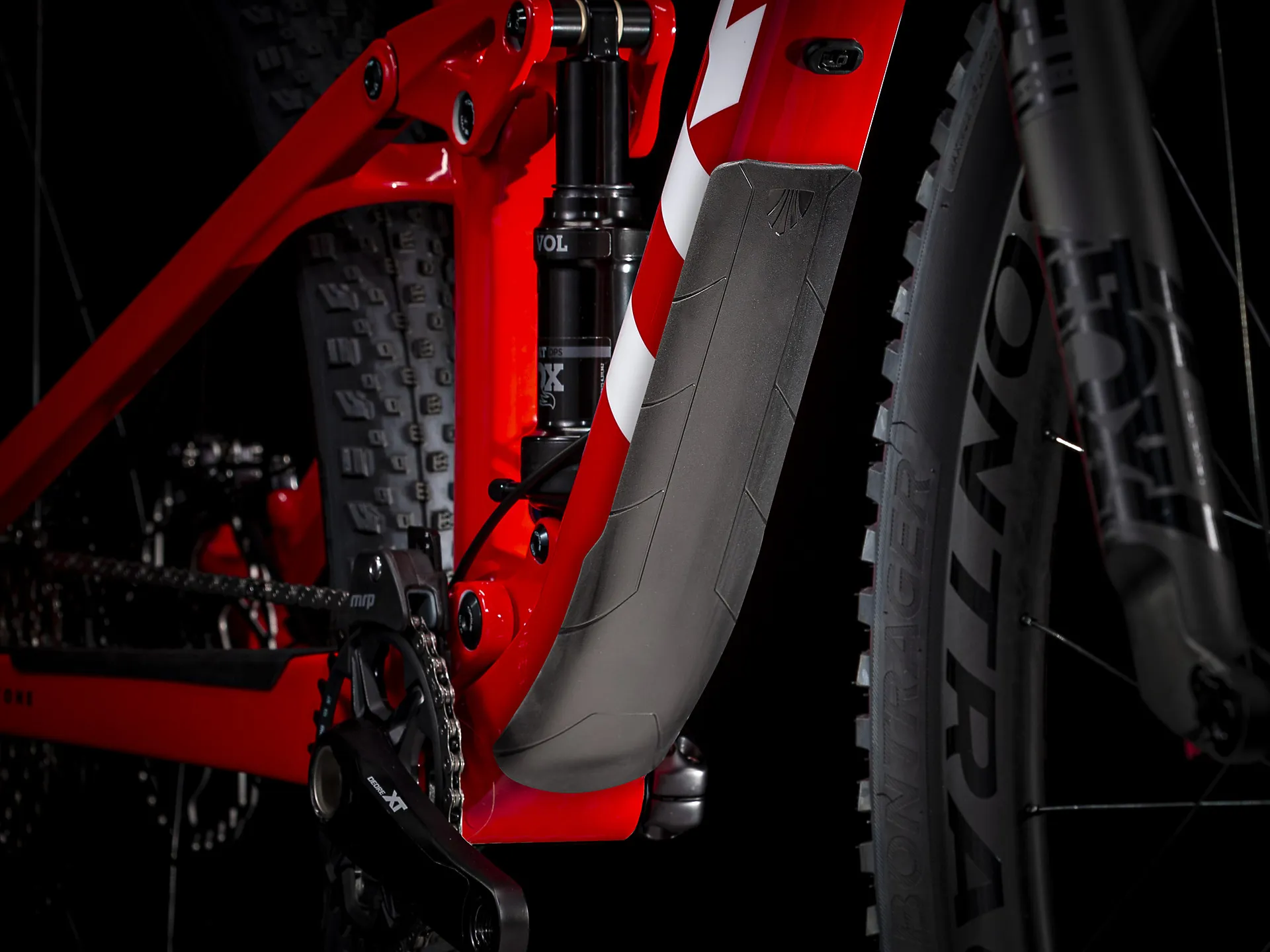

  • Frame:  OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115mm travel

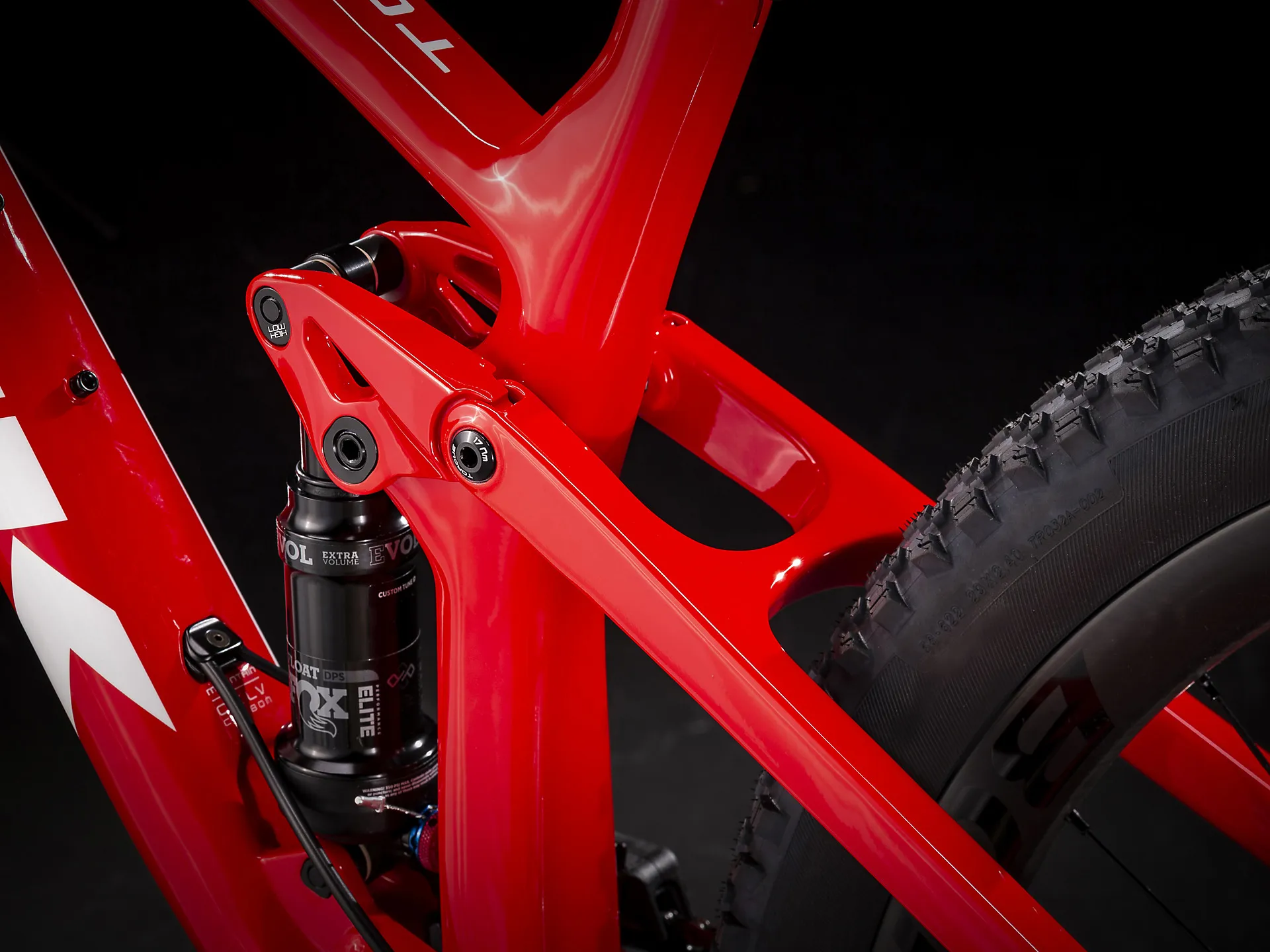

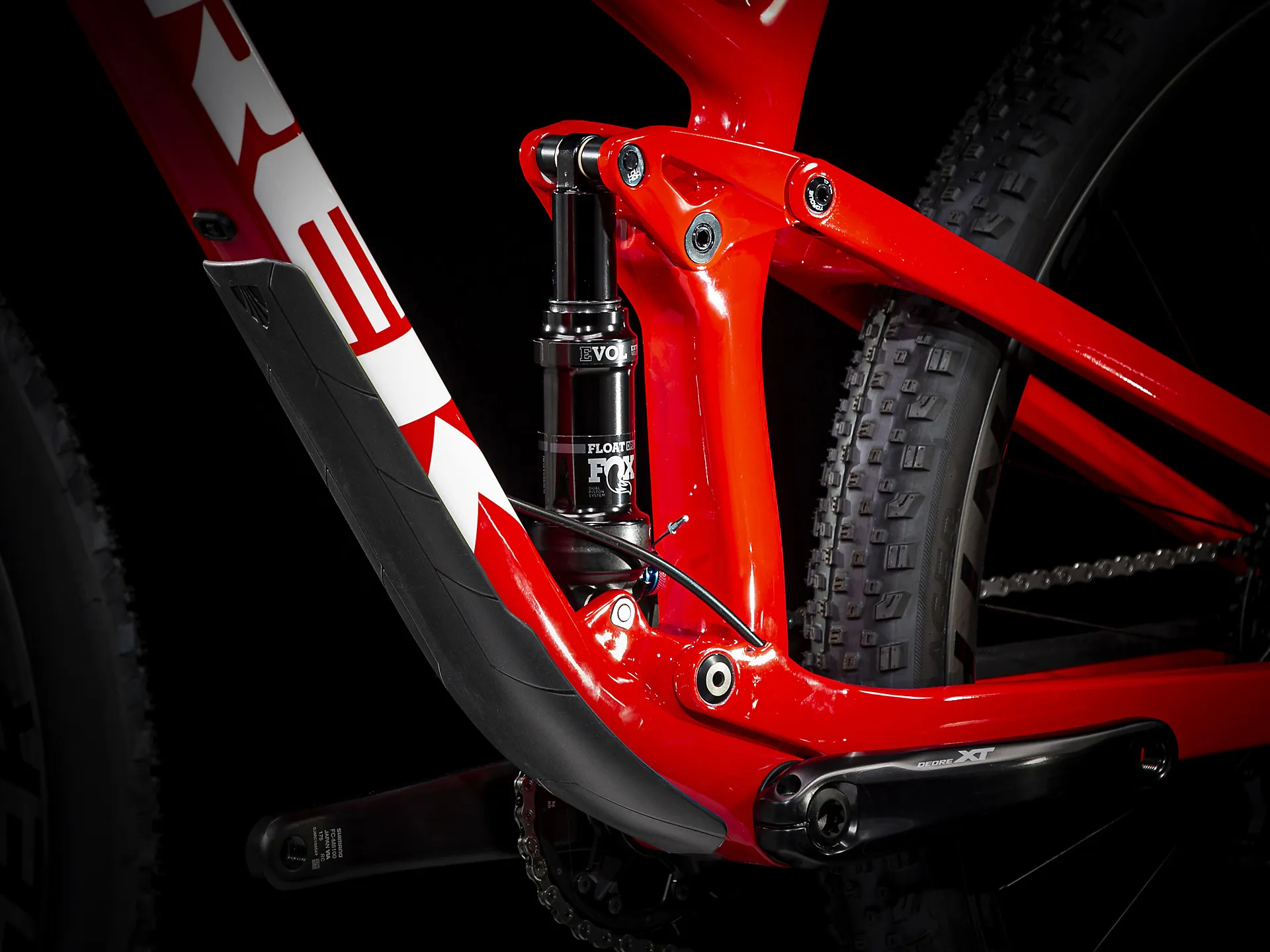

  • Rear Shock (If Applicable):  Fox PerfoFox Performance Float, 2-position DPS damper, TwistLoc remote, tuned by Trek Suspension Lab, 190x45 mmrmance Float, 2-position DPS damper, TwistLoc remote, tuned by Trek Suspension Lab, 190x45 mm
  • Fork:  Fox Performance 34 Step-Cast, Float EVOL air spring, GRIP 2-position damper, dual remote,
  • Number of Gears:  12
  • Gear Shifters:  Shimano XT M8100, 12 speed

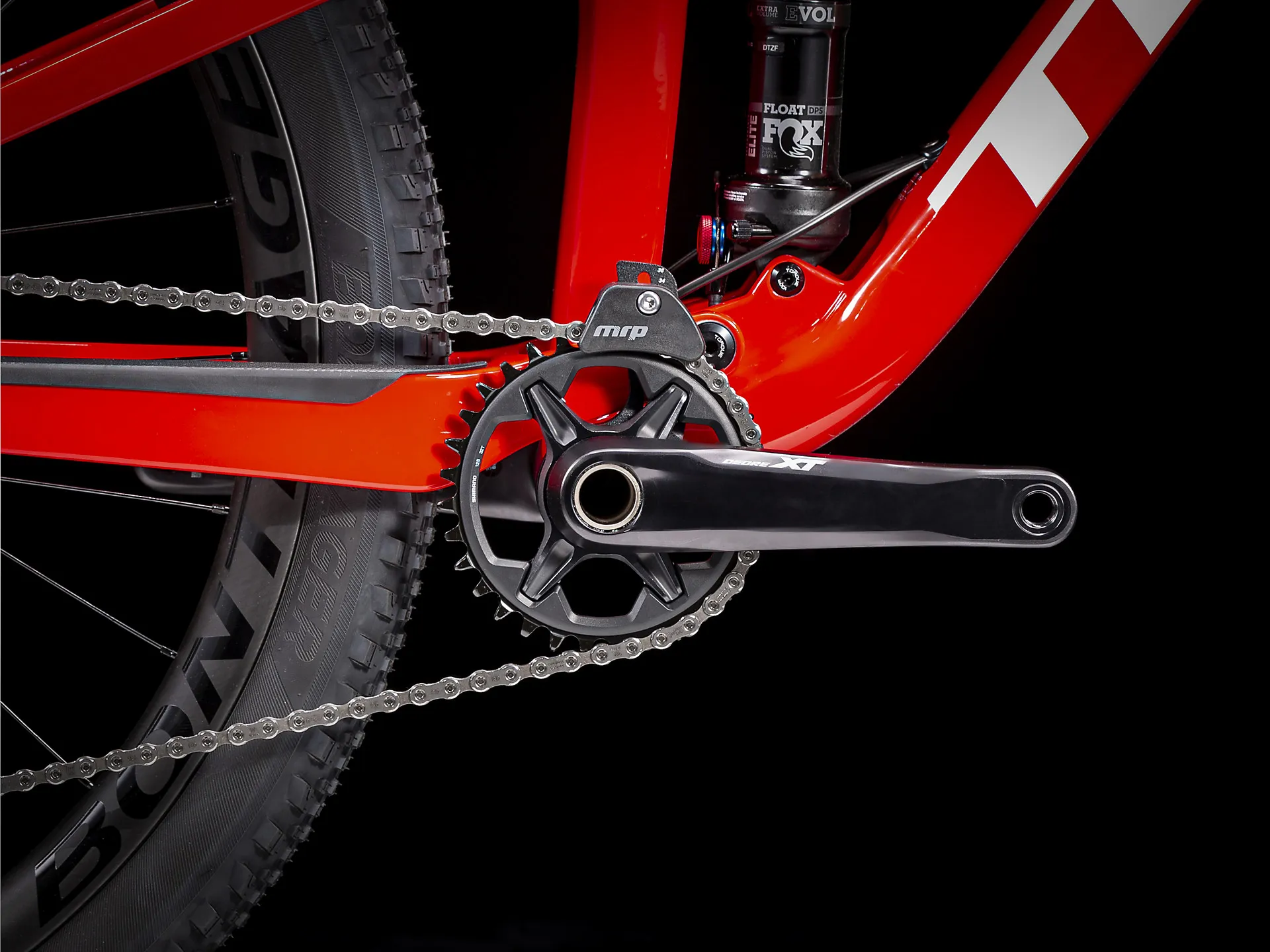

  • Chainset:  Shimano XT M8100, Boost
  • Chainrings:  32 Alloy Ring
  • Rear Cassette:  Shimano XT M8100, 10-51, 12 speed
  • Chain:  Shimano XT M8100, 12-speed
  • Front Derailleur:  N/A

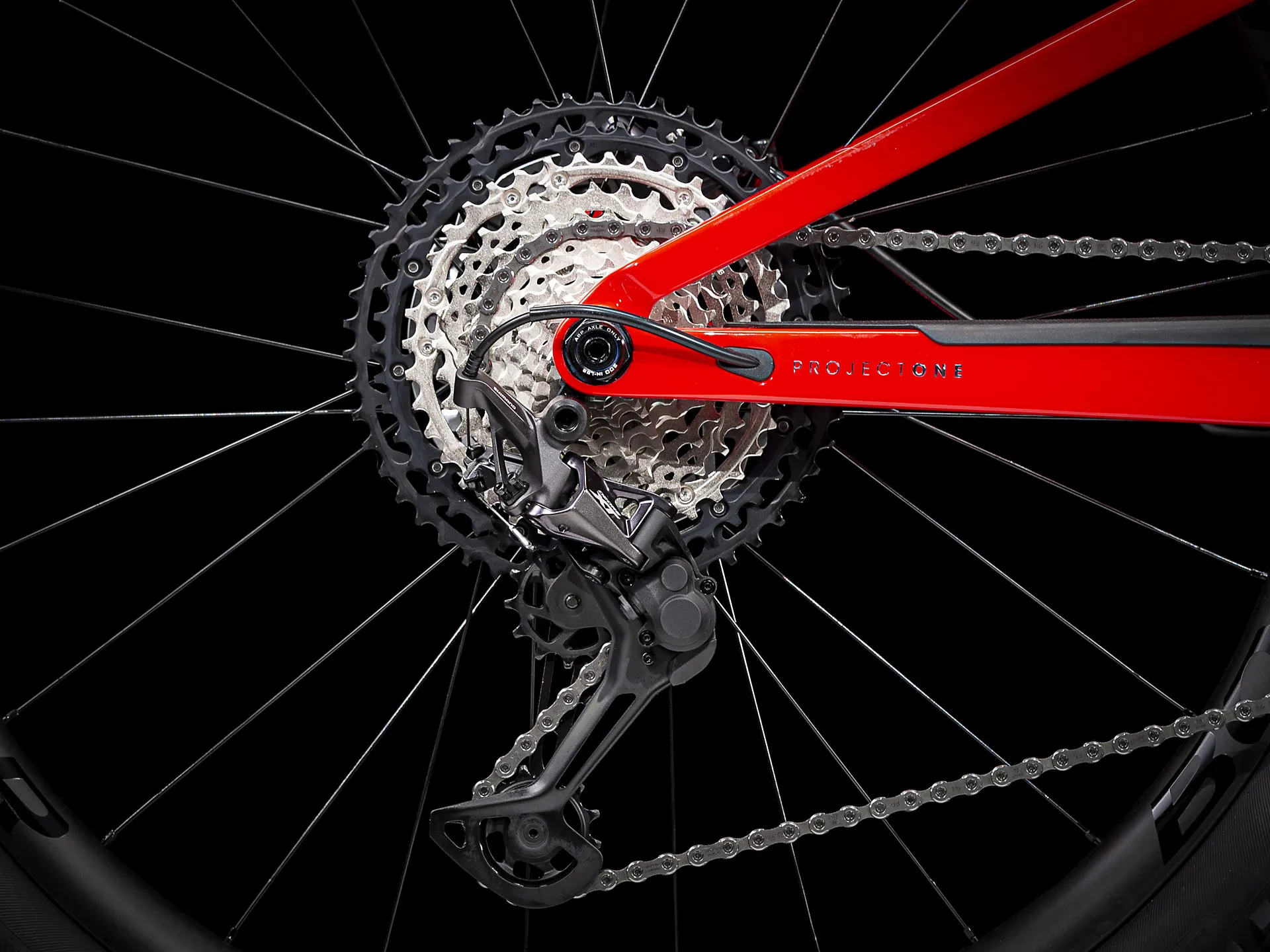

  • Rear Derailleur:  Shimano XT M8100, long cage, 51T max cog
  • Bottom Bracket:  Shimano MT500, 92mm, PressFit
  • Pedals:  Not Included

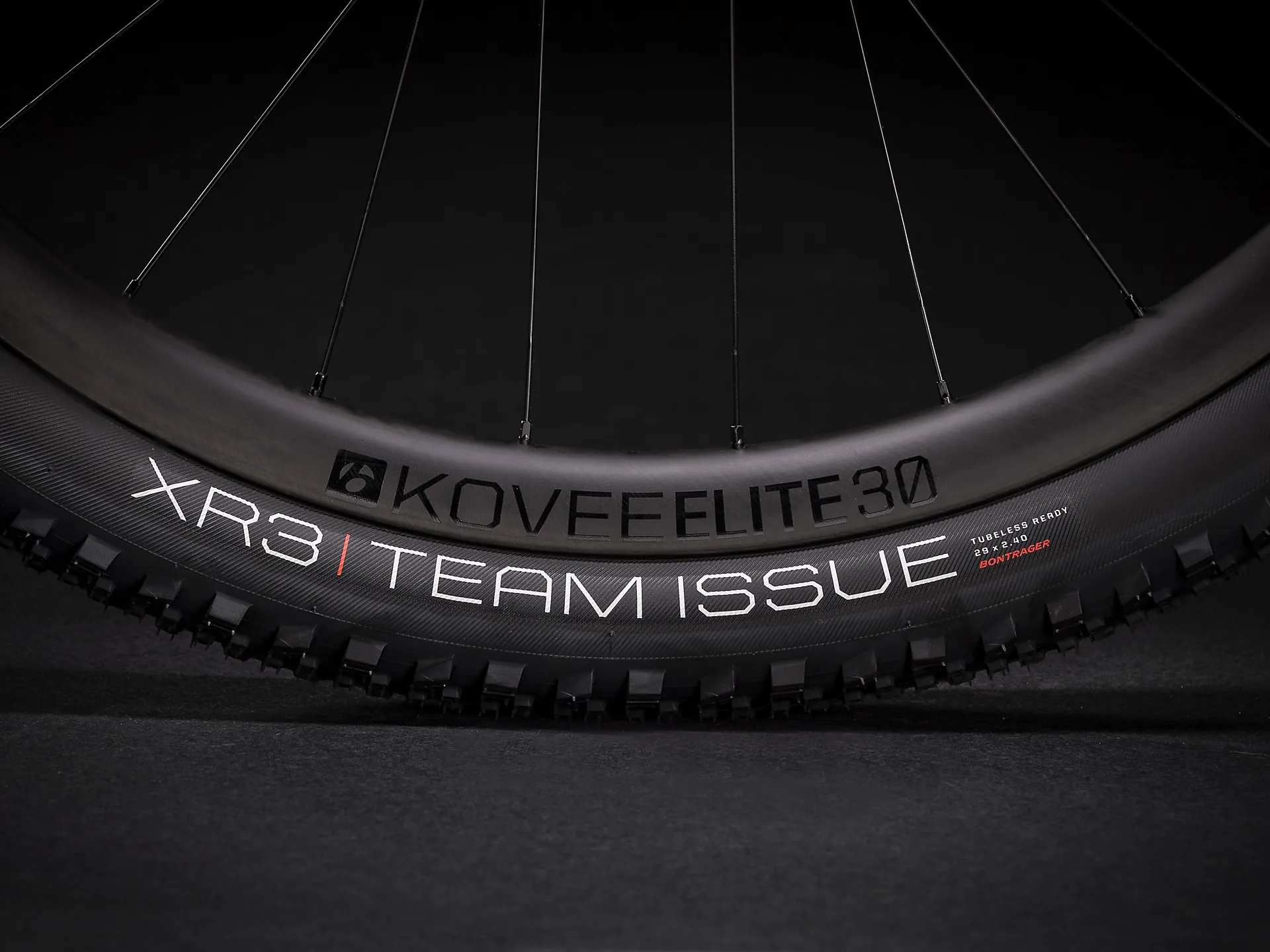

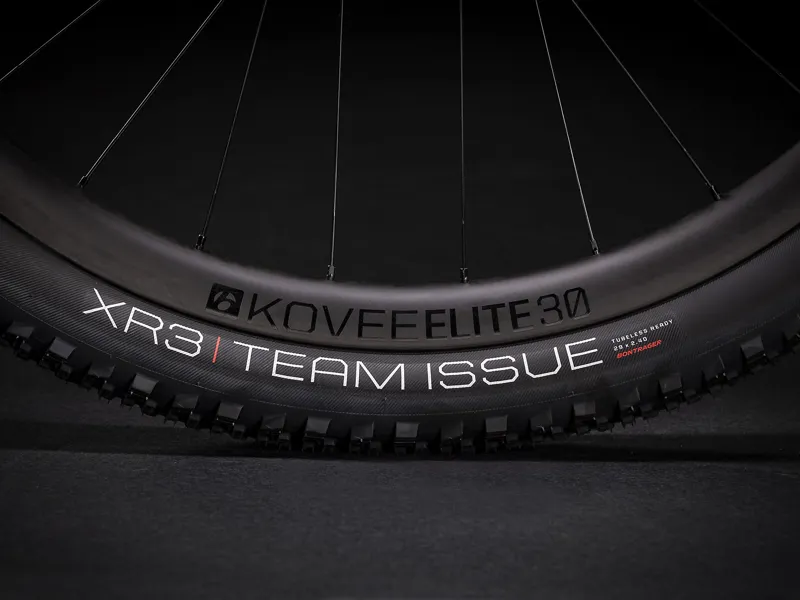

  • Rims:  Bontrager Kovee Elite 30 carbon, Tubeless Ready
  • Front Hub:  Bontrager Kovee Elite 6-bolt, Boost110
  • Rear Hub:  Bontrager Kovee Elite, 6-bolt, Boost148
  • Front Tyre:  Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40""
  • Rear Tyre:  Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40""

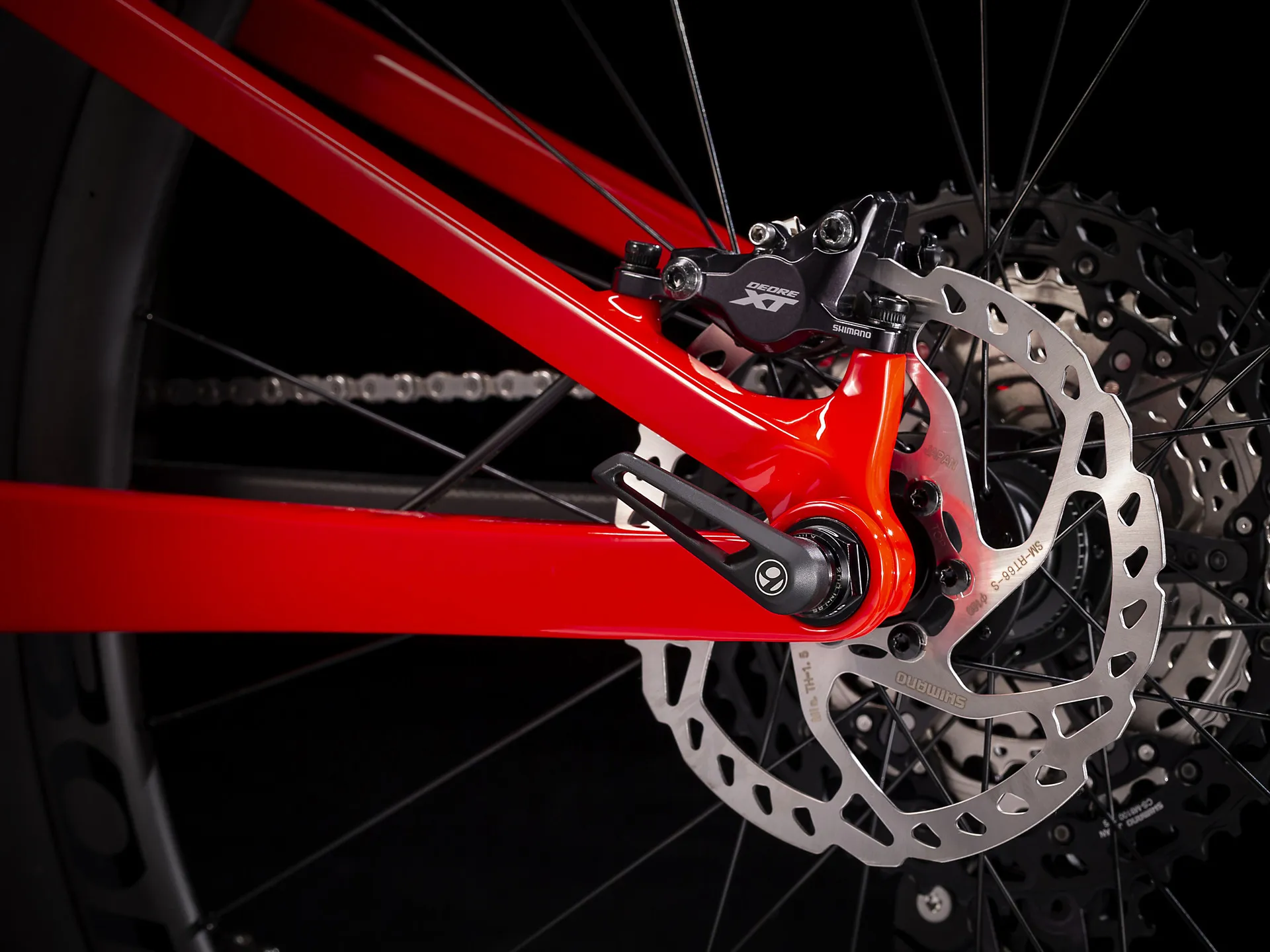

  • Brakes:  Shimano SLX M7000 hydraulic disc, 180mm front rotor, 160mm rear rotor

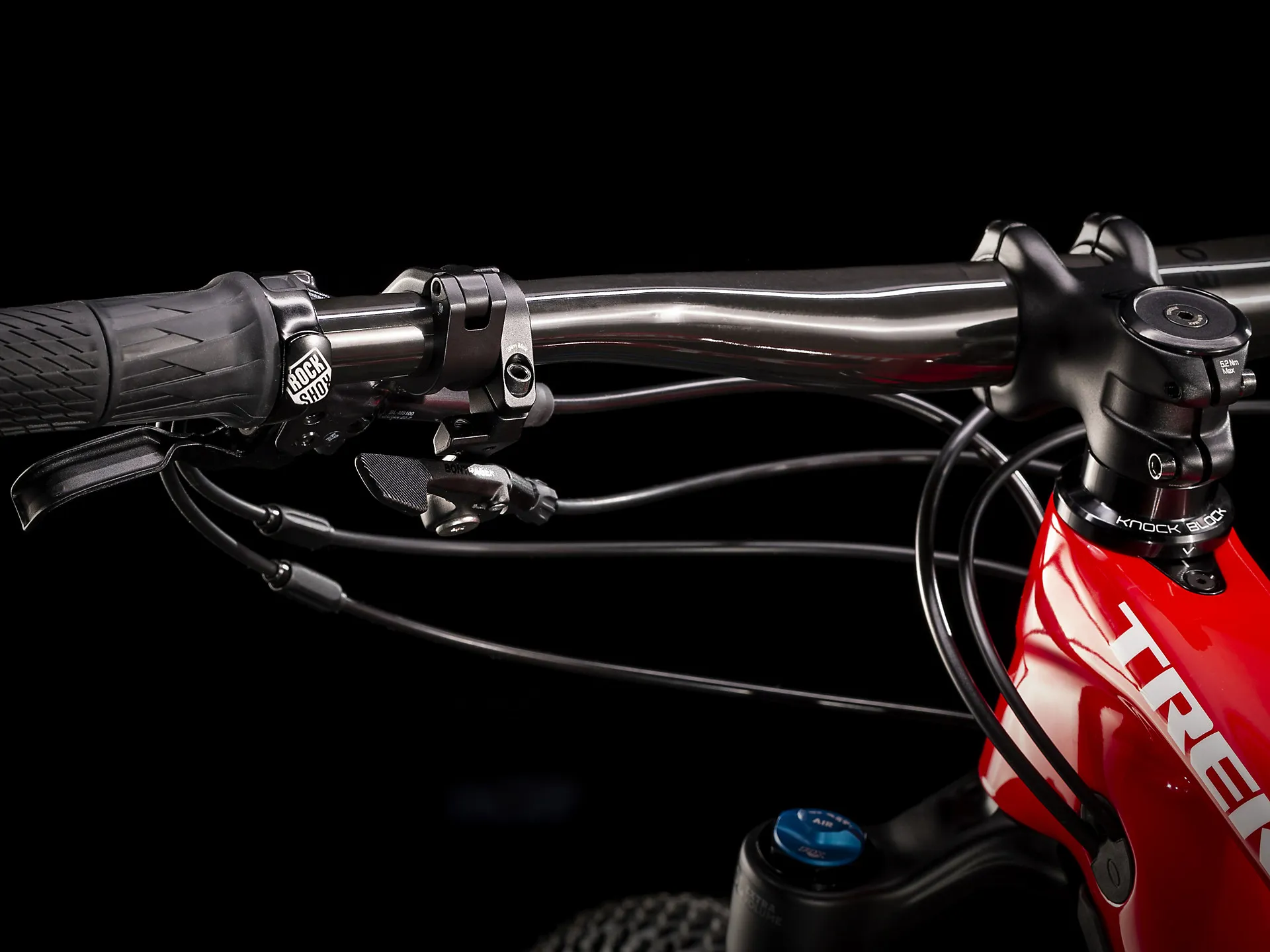

  • Handlebars:  Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise
  • Handlebar Grips:  SRAM TwistLoc
  • Headset:  Knock Block Integrated, sealed cartridge bearing, 1-1/8"" to
  • Stem:  Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 1
  • Saddle:  Bontrager Montrose Elite, titanium rails, 138mm width
  • Seatpost:  Bontrager Line Elite Dropper, internal routing, 31.6mm
  • Accessories:  N/A
  • Weight:  M - 12.36 kg / 27.26 lbs (with tubes)

Trek Full Suspension Mountain Bikes: Top Fuel Range

Technical Information

Geometry for Trek Top Fuel 9.8 XT Full Suspension Mountain Bike

All measurements provided in cm unless specified otherwise.

Trek Top Fuel 9.8 XT Unisex Full Suspension MTB Geometry Chart

Frame Size Number 15.5 15.5 17.5 17.5 18.5 18.5 19.5 19.5 21.5 21.5 23.5 23.5
Frame Size Letter S S M M ML ML L L XL XL XXL XXL
Geometry Position High Low High Low High Low High Low High Low High Low
A - Seat Tube 39.4 39.4 41.9 41.9 44.5 44.5 47.0 47.0 52.1 52.1 57.0 57.0
B - Seat Tube Angle  68.5° 68.0° 68.5° 68.0° 68.5° 68.0° 68.5° 68.0° 68.5° 68.0° 68.5° 68.0°
Effective Seat Tube Angle 75.5° 75.0° 75.5° 75.0° 75.5° 75.0° 75.5° 75.0° 75.5° 75.0° 75.5° 75.0°
C - Head Tube Length 9.0 9.0 9.0 9.0 9.0 9.0 10.0 10.0 11.0 11.0 12.0 12.0
D - Head Angle 68.0° 67.5° 68.0° 67.5° 68.0° 67.5° 68.0° 67.5° 68.0° 67.5° 68.0° 67.5°
E - Effective Top Tube 56.3 56.4 59.8 59.9 61.4 61.5 63.0 63.2 65.0 65.1 67.5 67.7
F - Bottom Bracket Height 34.3 33.7 34.3 33.7 34.3 33.7 34.3 33.7 34.3 33.7 34.3 33.7
G - Bottom Bracket Drop 3.0 3.6 3.0 3.6 3.0 3.6 2.9 3.6 2.9 3.6 2.9 3.6
H - Chainstay Length 43.4 43.5 43.4 43.5 43.4 43.5 43.4 43.5 43.4 43.5 43.4 43.5
I - Offset  4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4
J - Trail  10.3 10.7 10.3 10.7 10.3 10.7 10.3 10.7 10.3 10.7 10.3 10.7
K - Wheelbase 111.7 111.7 115.2 115.2 116.8 116.8 118.5 118.6 120.6 120.7 123.3 123.4
L - Standover 73.0 72.5 73.5 73.0 74.1 73.5 75.1 74.5 77.1 76.5 78.6 78.0
M - Frame Reach 41.0 40.5 44.5 44.0 46.1 45.6 47.5 47.0 49.2 48.7 51.5 51.0
N - Frame Stack 59.0 59.4 59.0 59.4 59.0 59.4 59.9 60.3 60.8 61.2 61.7 62.2
