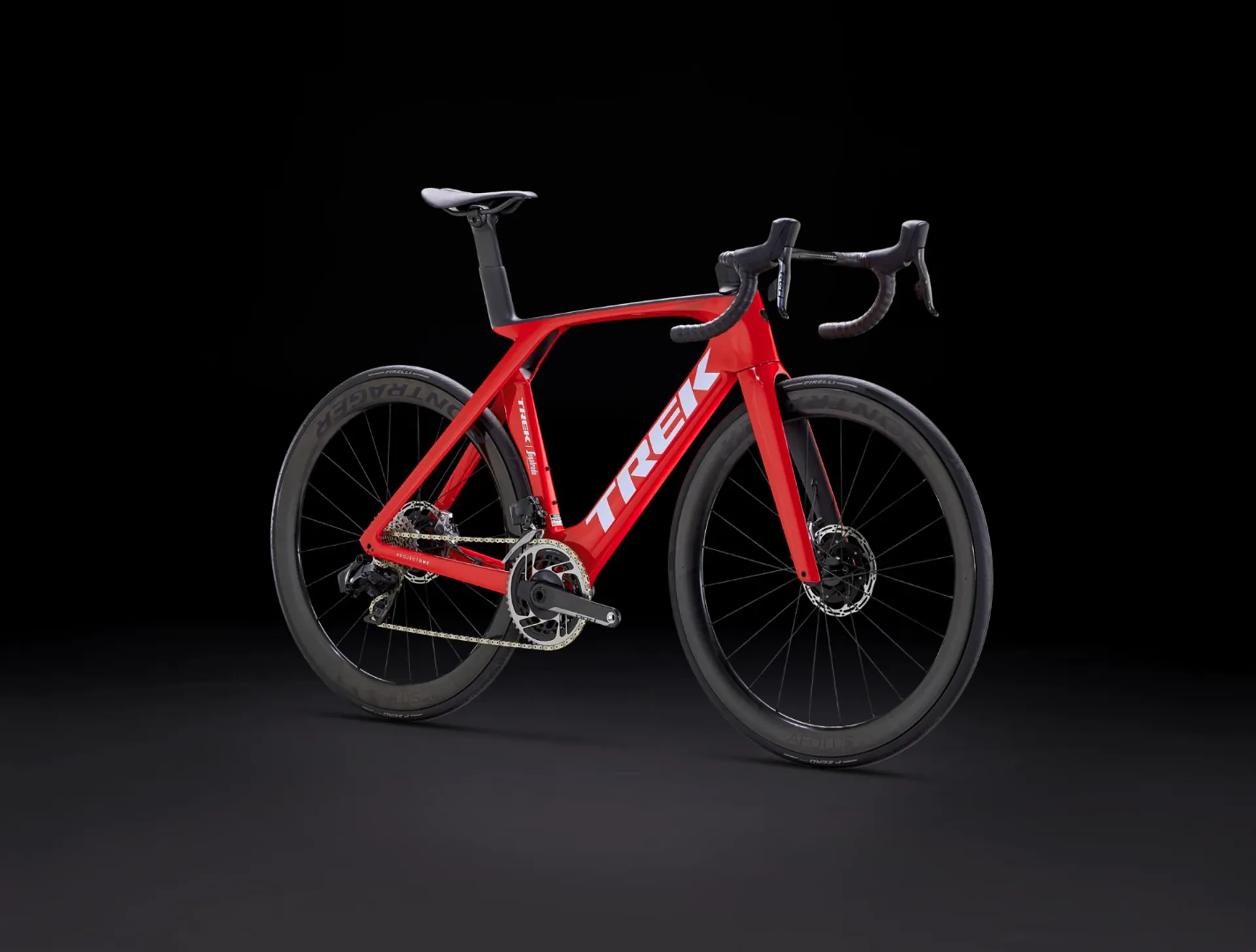

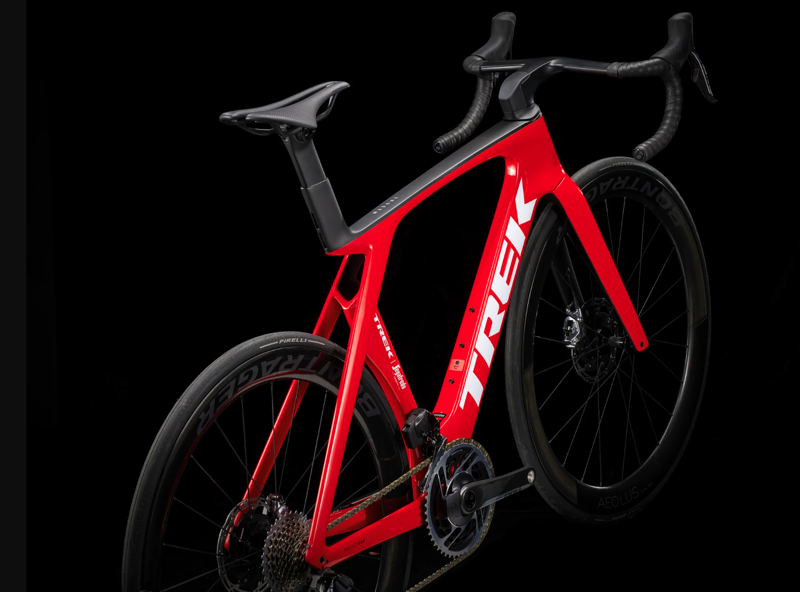

ONE OFF Trek Madone SLR 9 Gen 7 Etap Road Bike 56cm 2023 in Replica Viper Red

Season:2024

Brand:Trek

Code:SD5282897

This Trek Madone SLR 9 Gen 7 Etap Road Bike in Size 56 is a ONE OFF bike, this bike is offered at a special deal price, which may be for a limited time only and is applicable to this exact model and size only. The bike is brand new and unused.

All bikes are fully inspected to ensure they are free of any damage, and we offer full manufacturer's warranty on all ONE OFF bikes.

The Madone SLR 9 AXS is ultra-light, insanely fast and super smooth.

It's the ride you reach for on race day when every watt counts and your eyes are on the top step. This road race bike is built with an 800 Series OCLV Carbon frame and new IsoFlow technology that adds an aerodynamic advantage, cuts weight and smooths the road ahead.

As an official Trek-Segafredo race team replica bike, it's built from the ground up with cream-of-the-crop components, like a SRAM RED AXS wireless drivetrain with a power meter and carbon wheels with a deep rim for even more aerodynamic gains.

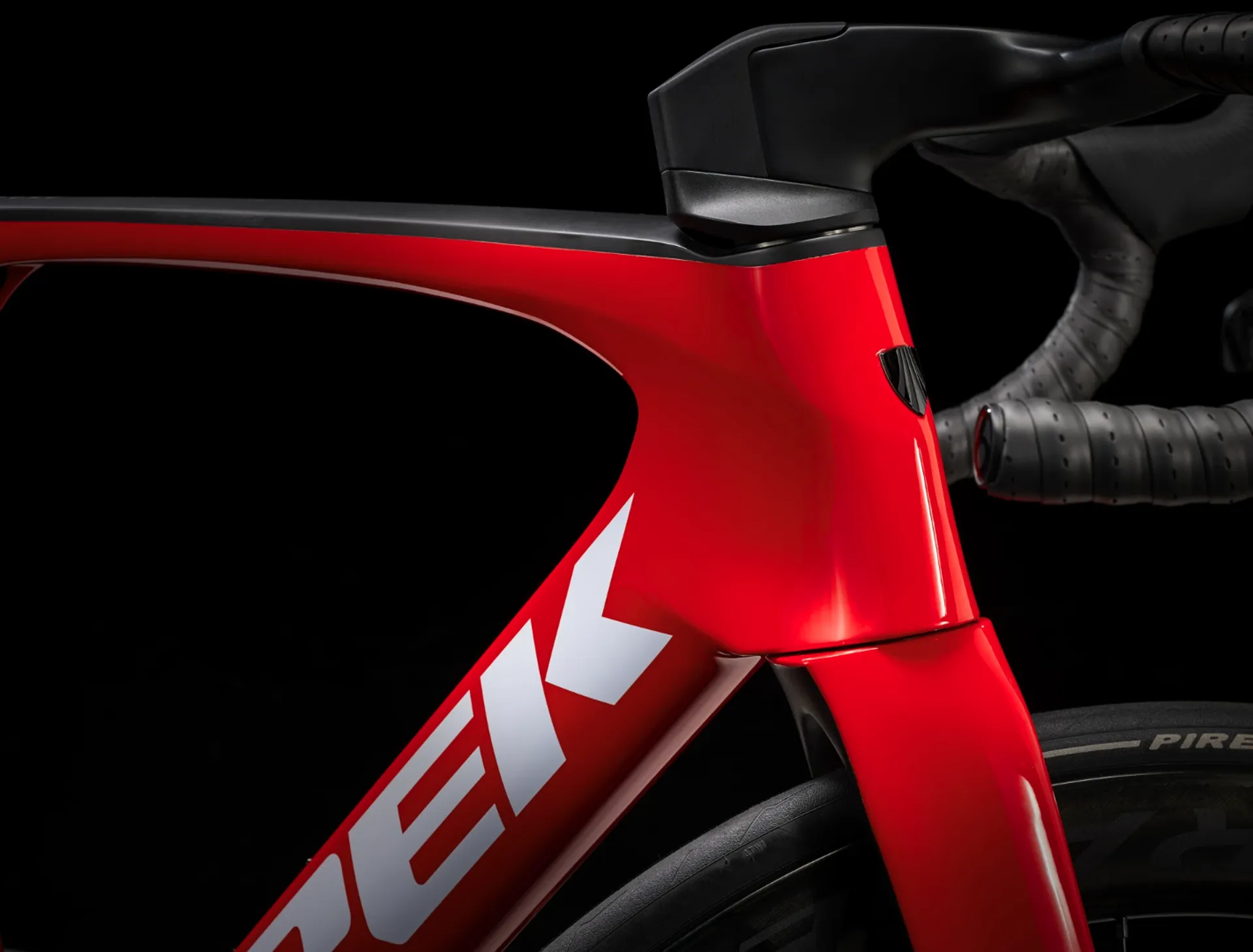

A lightweight frame with our highest-level 800 Series OCLV Carbon, all-new generation of Kammtail aerodynamic tube shaping, aerodynamic and road-smoothing IsoFlow technology and invisible cable routing. A wireless electronic SRAM RED AXS drivetrain and flat-mount hydraulic disc brakes, power meter cranks for performance metrics, tubeless-ready Bontrager Aeolus RSL 51 carbon wheels and an integrated OCLV Carbon bar/stem combo.


Speed is your top priority, and you want a super-light aero road-racing frame with all-new aero IsoFlow comfort tech to shed grams and watts. You care about the finer things, like a clean wireless cockpit and the customised tunability of SRAM's Force AXS D2 electronic drivetrain.

The Madone SLR 9 AXS features an insanely fast road race frame paired with race-focused IsoFlow technology for a compliant ride with impressive aerodynamics.

Key Features:

  • 800 Series OCLV Carbon Frame:Trek's lightest carbon laminate combines aero performance with low-weight

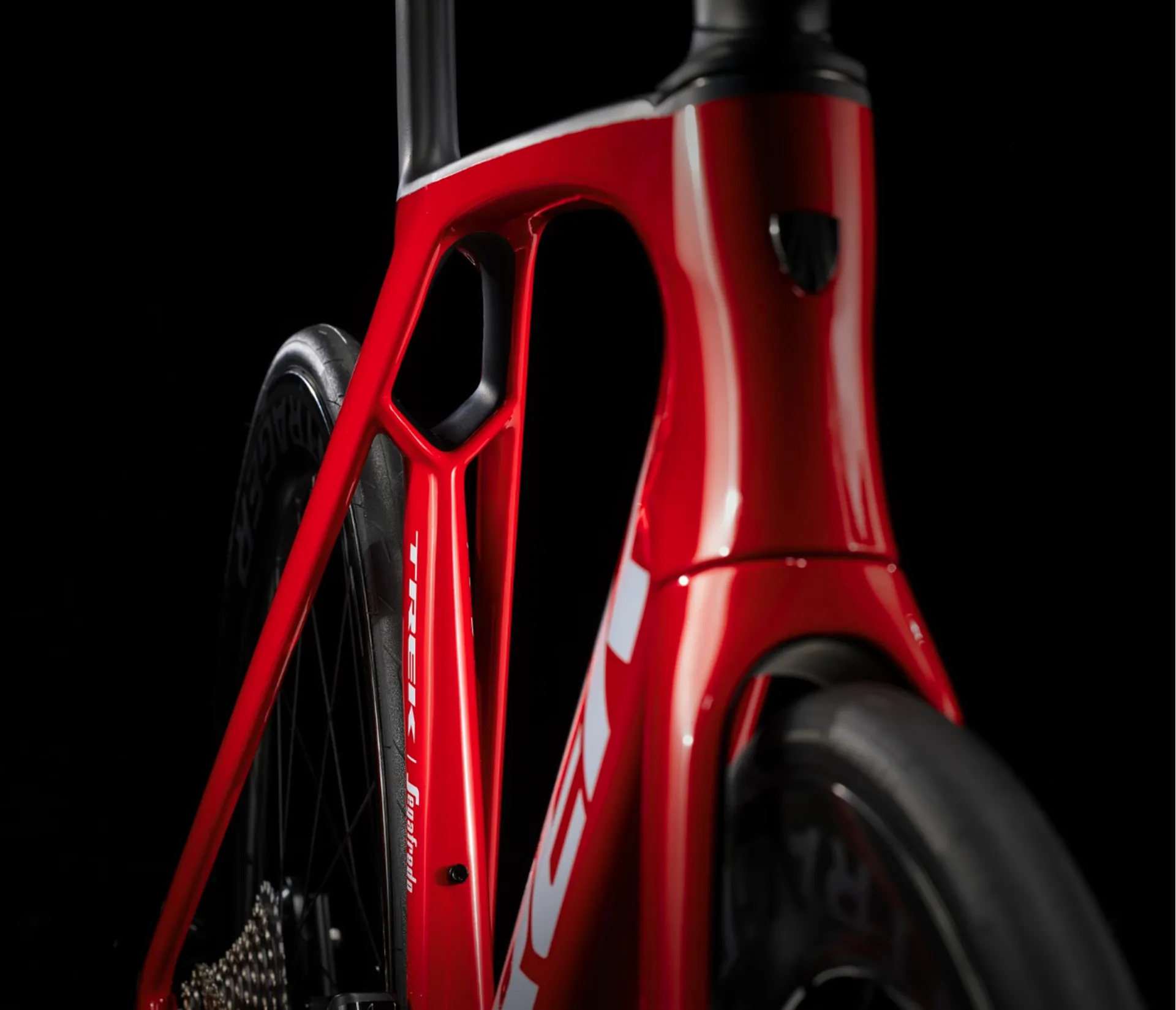

  • IsoFlow technology:Specifically designed for the seventh-generation Madone SLR shaves weight, improves aerodynamics and smooths your ride.
  • Wireless SRAM Red AXS drivetrain:Keeps your cockpit clean and tidy while allowing custom tuning – plus, power meter cranks make it easy to track performance metrics

Full Specifications:

  • Frame:800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
  • Fork:Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
  • Number of Gears:24
  • Gear Shifters:SRAM RED eTap AXS, 12-speed

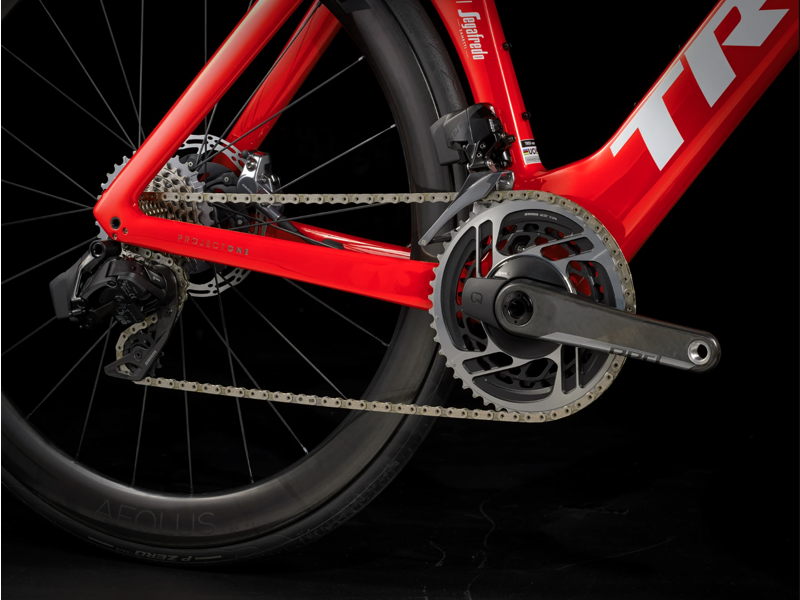

  • Chainset:SRAM RED AXS w/ power meter, 48/35, DUB
  • Chainrings:48/35T
  • Rear Cassette:SRAM XG-1290, 10-33, 12-speed
  • Chain:SRAM RED D1, 12-speed
  • Front Derailleur:SRAM RED eTap AXS, braze-on
  • Rear Derailleur:SRAM RED eTap AXS, 36T max cog
  • Bottom Bracket:SRAM DUB, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Front Wheel:Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
  • RearWheel:Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru axle
  • Front Tyre:Pirelli P Zero Race, 127 tpi, 700x26c
  • Rear Tyre:Pirelli P Zero Race, 127 tpi, 700x26c

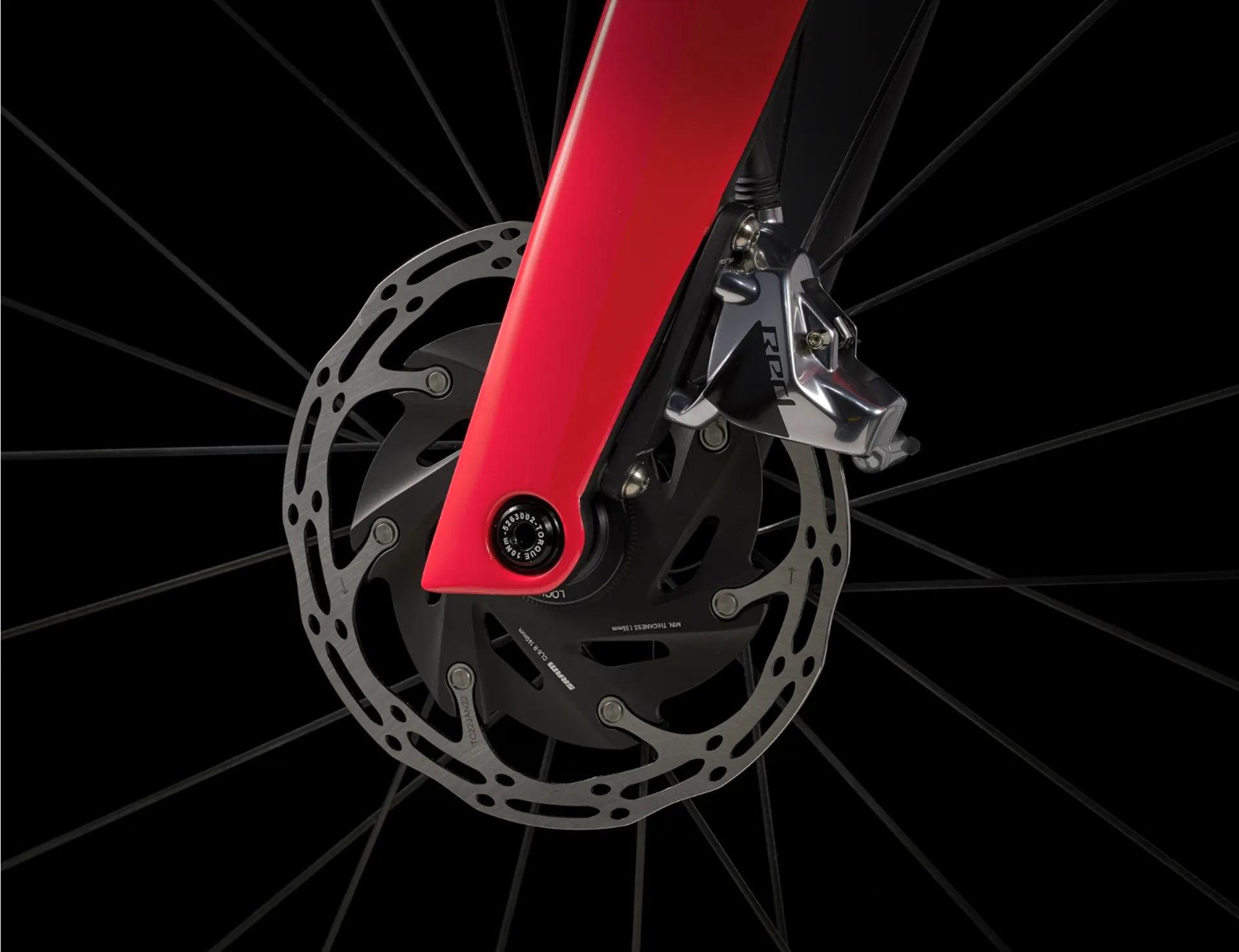

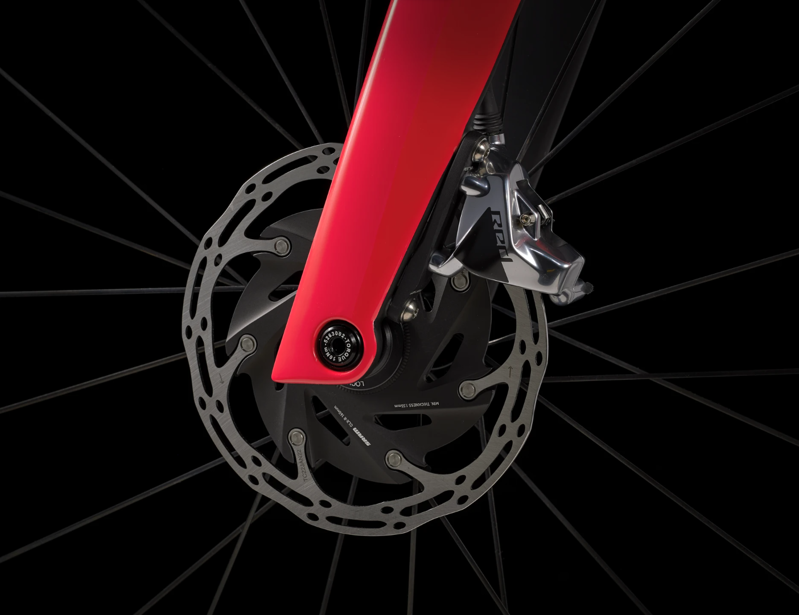

  • Brakes:SRAM Red AXS hydraulic disc

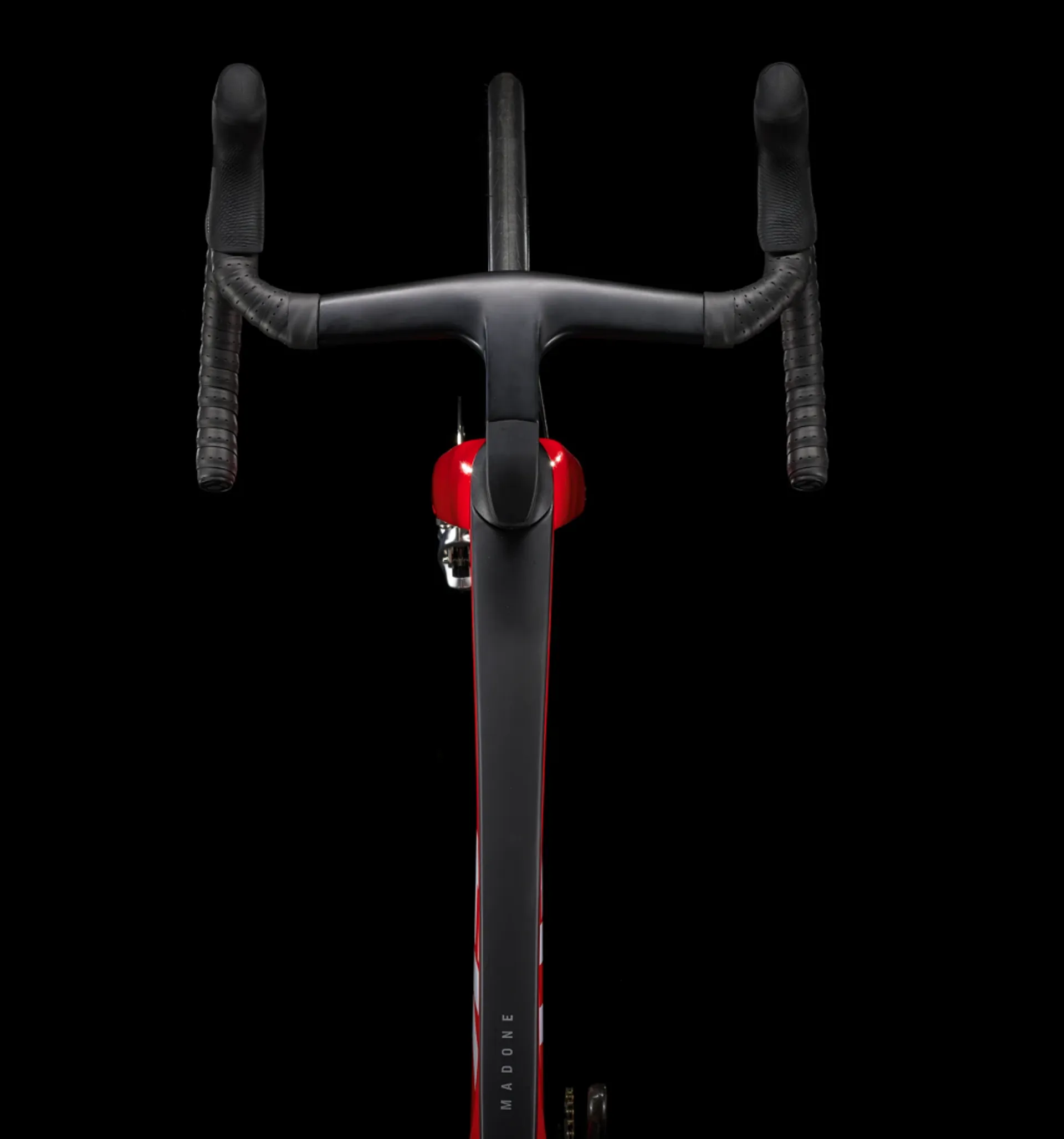

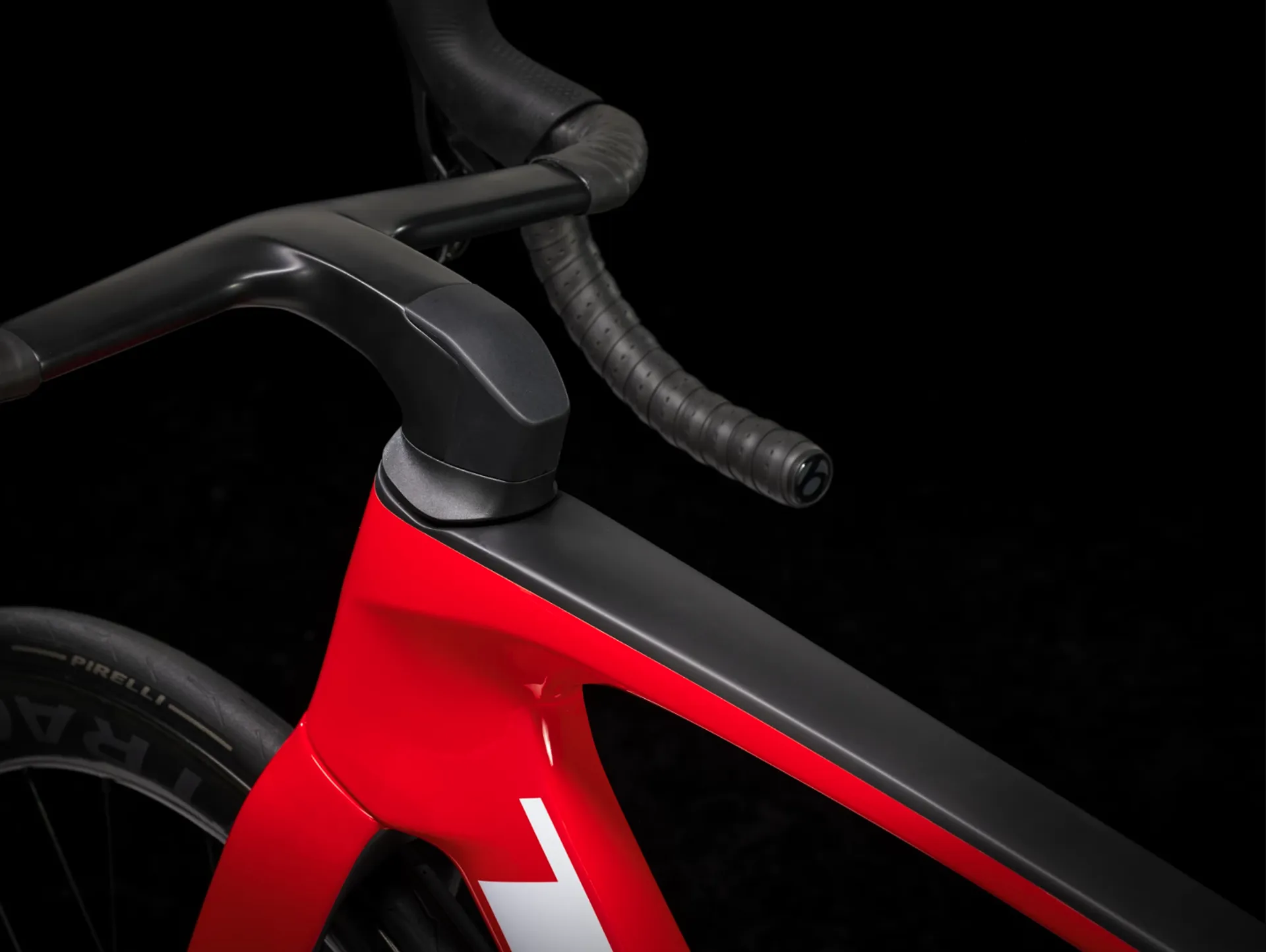

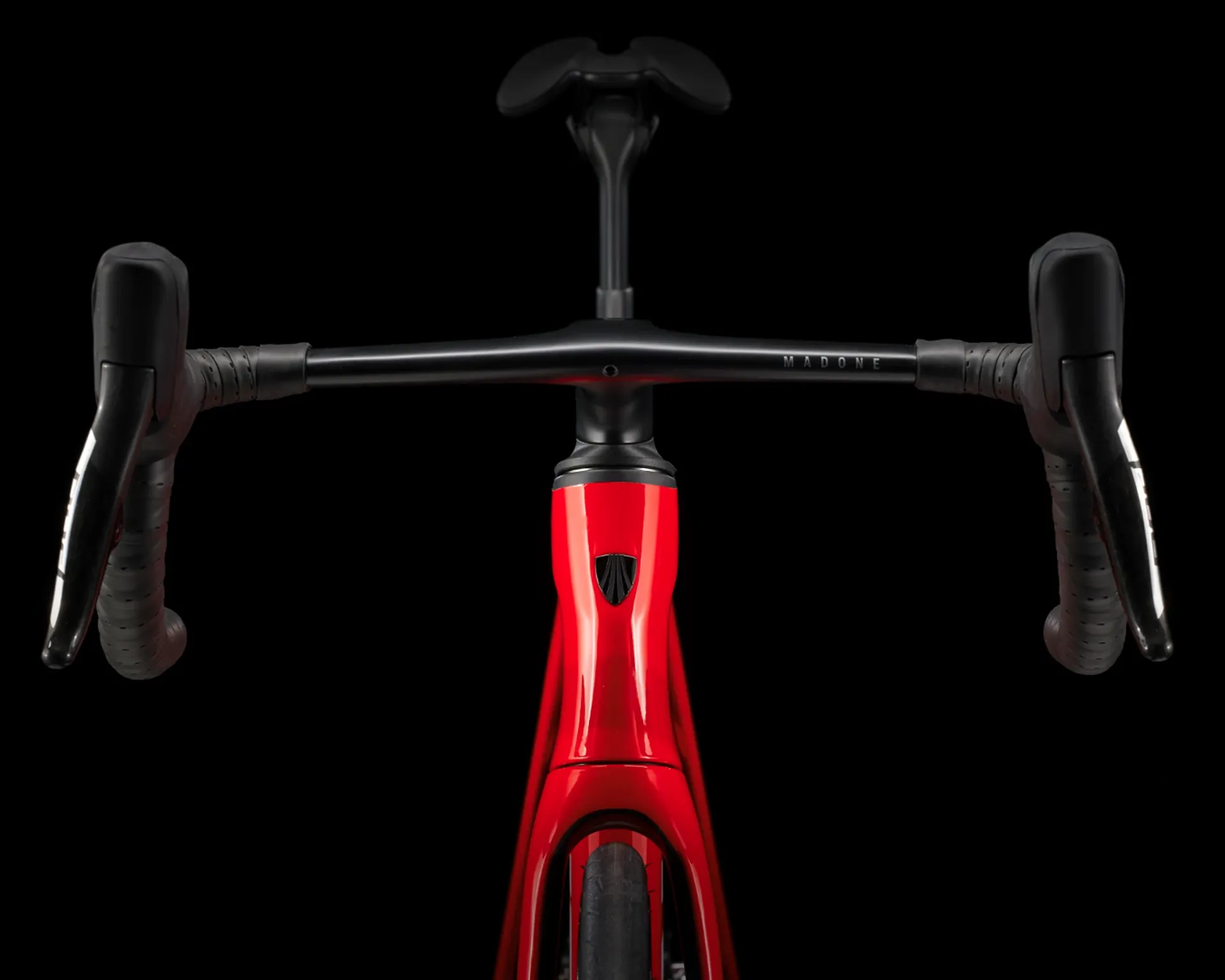

  • Handlebars:Trek Madone Integrated handlebar/stem, OCLV Carbon
  • Stem:Trek Madone Integrated handlebar/stem, OCLV Carbon
  • Saddle:Bontrager Aeolus P2 RSL, carbon rails, 145 - 155mm width
  • Seatpost:Madone aero carbon seat post, integrated light mount, 0 mm offset
  • Weight:56 – 7.36 kg/16.23 lb
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes


Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Stem length80909090100100110110
Saddle rail height min (w/short mast)55586163.566.568.570.573
Saddle rail height max (w/short mast)62656870.57375.577.580.5
Saddle rail height min (w/tall mast)58.561.564.56770727476.5
Saddle rail height max (w/tall mast)65.568.571.57476.5798184

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
