The Trek Emonda ALR 5 Disc road race bikes is a light and responsive bike with an advanced alloy frame a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather.
The Trek Emonda ALR 5 Disc road race bikes is a light and responsive bike with an advanced alloy frame a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather.
Trek

Trek Emonda ALR 5 Disc Road Race Bike 2022 in Grey

£2,090.00 £2,200.00 5% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Emonda ALR 5 Disc Road Race Bike 2022 in Grey

Season:2022

Brand:Trek

Code:241662020toBLKFade

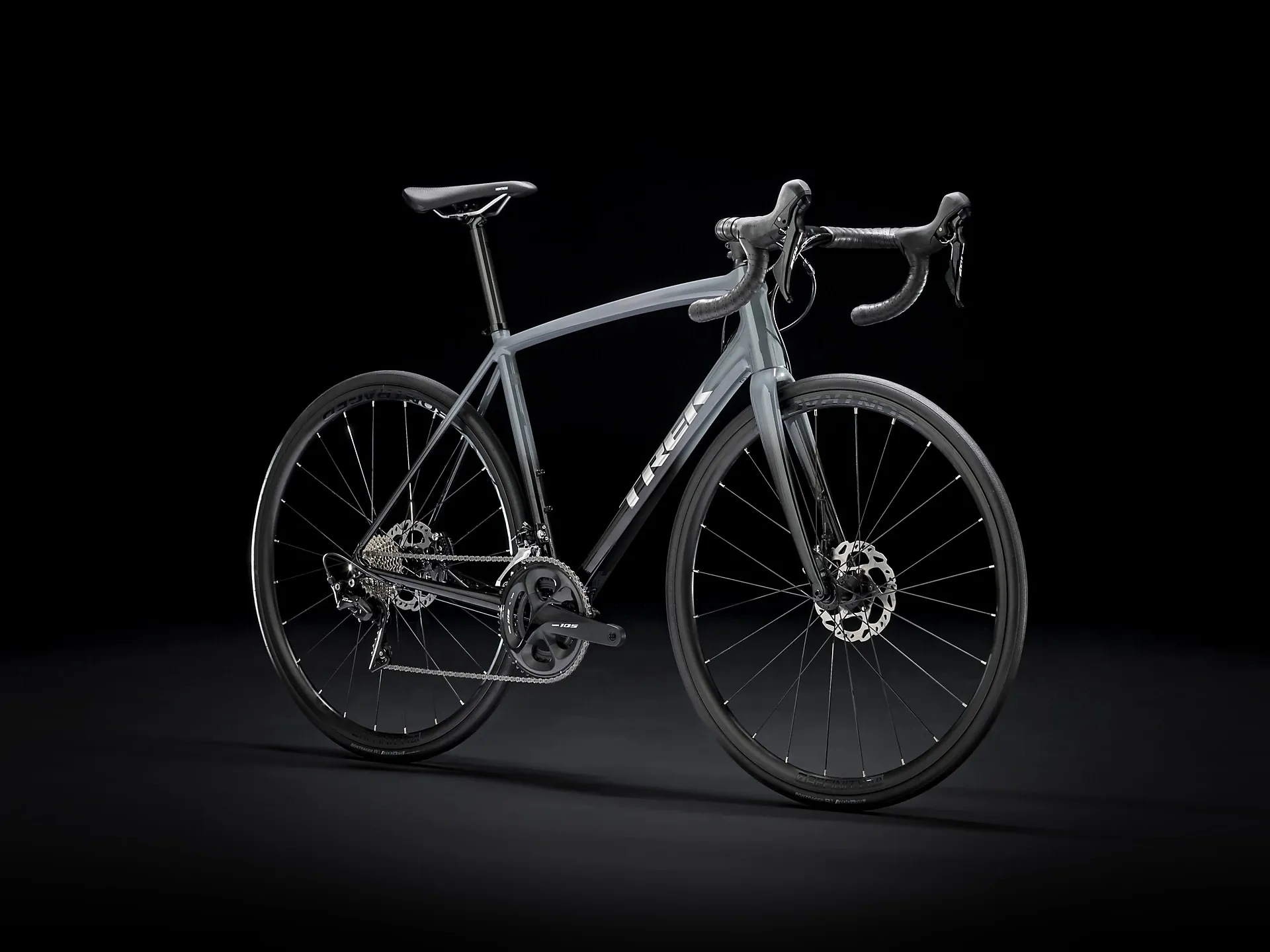

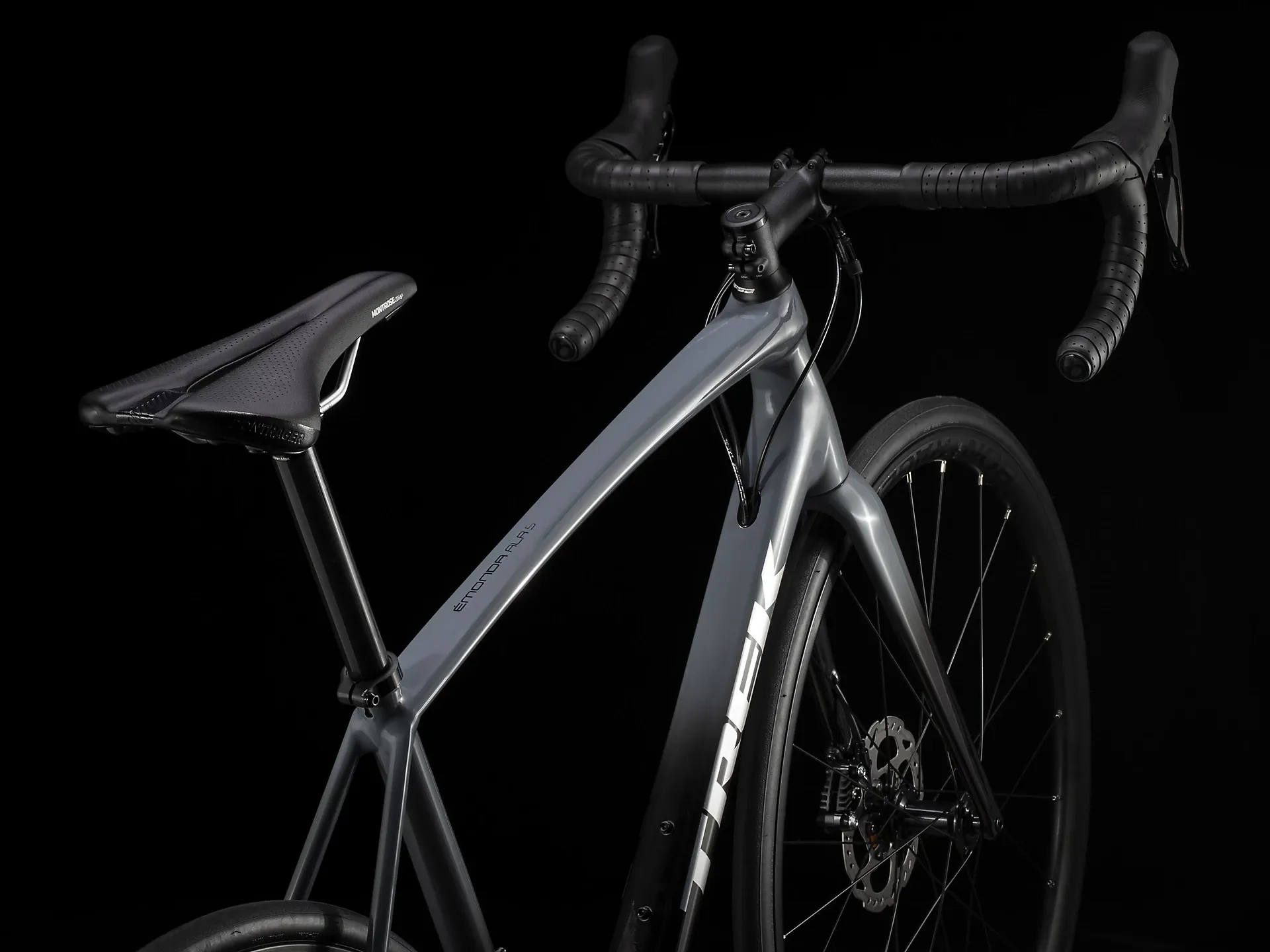

The Emonda ALR 5 Disc is a light and responsive road bike with an advanced alloy frame that gives it the sleek looks and handling of a far more expensive carbon bike. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.

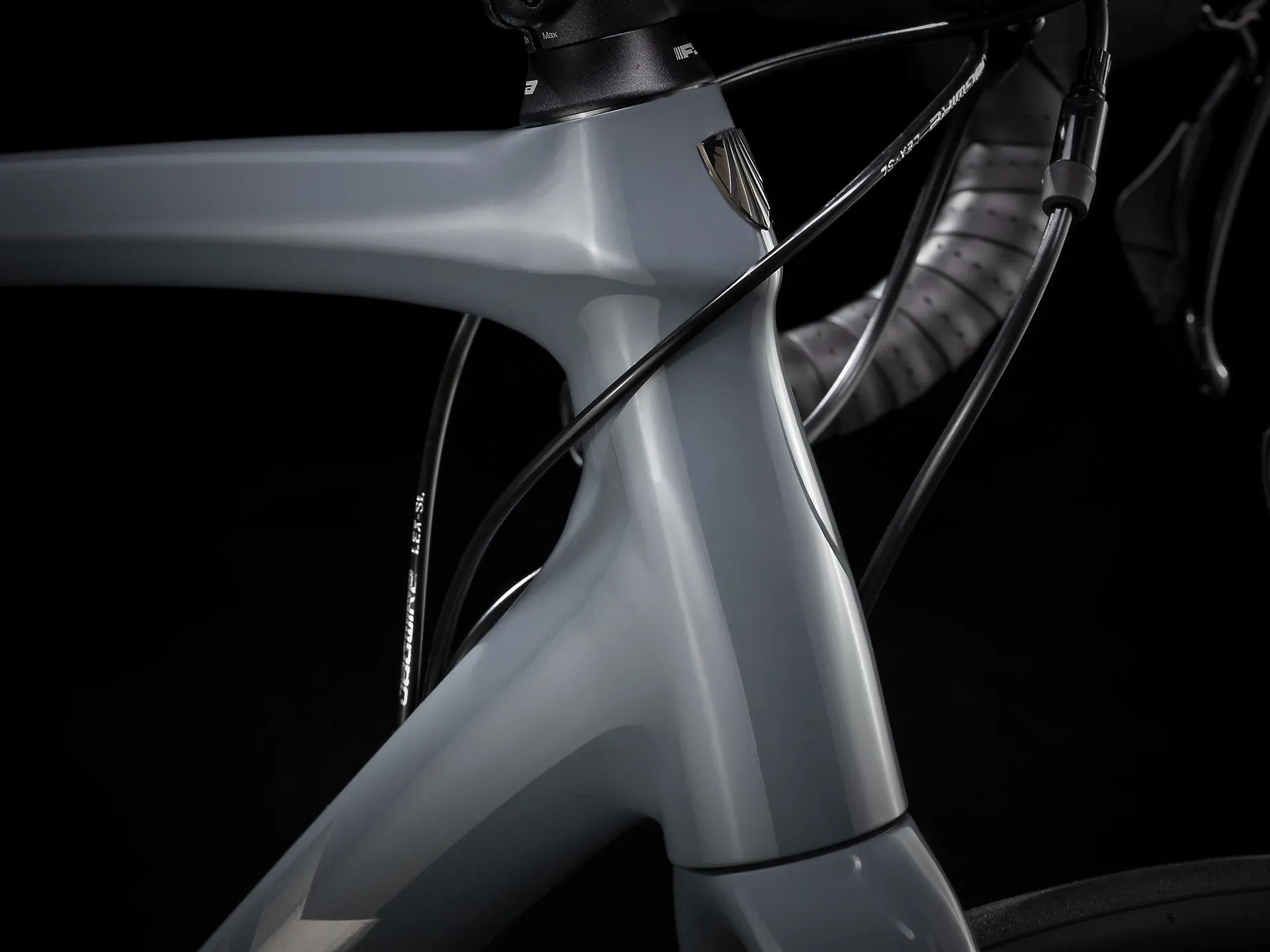

The ALR 5 Disc features a lightweight 300 Series Alpha Aluminium frame,with carbon fibre forks with shaped tubes and Invisible Weld Technology for the looks and handling of a far more expensive carbon bike. Internal cable routing in frame and forks for a sleek look and Bontrager Affinity Tubeless Ready Disc ready wheel package,with Bontrager Hardcase 700x25c tyres to minimise the risk of punctures.

Key Features & Benefits:

  • Aluminium Frame:Lightweight & Durable.
  • 22 Shimano 105 Gears:Time tested & proven reliable over many years, with a large range of gears to make light work of hills.
  • Hydraulic Disc Brakes:To keep you in control, whatever the weather.

Full Specification:

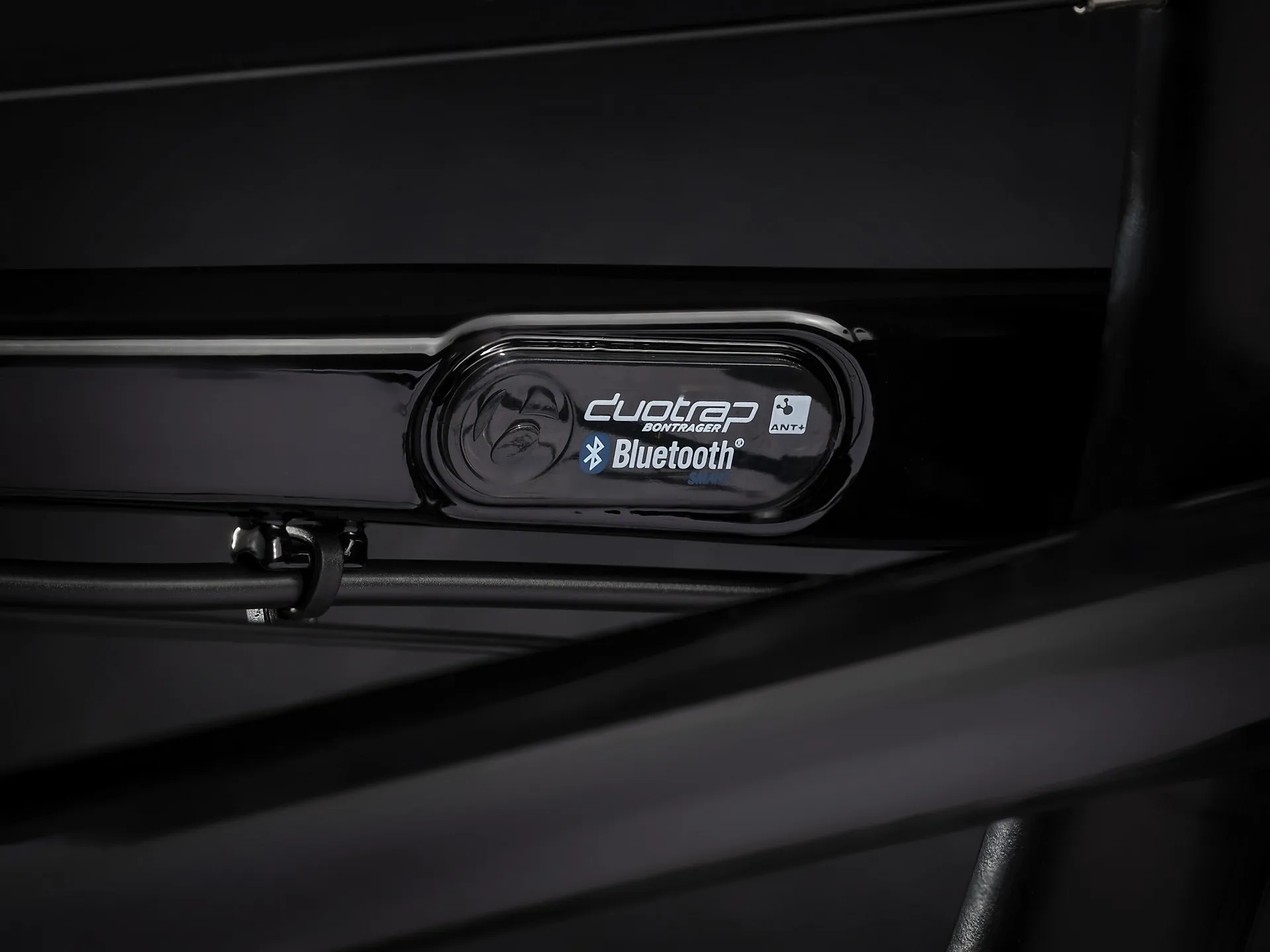

  • Frame:Ultralight 300 Series Alpha Aluminium, Invisible Weld Technology, tapered head tube, BB86.5, flat mount disc brakes, 12mm thru-axle, internal cable routing, DuoTrap S compatible

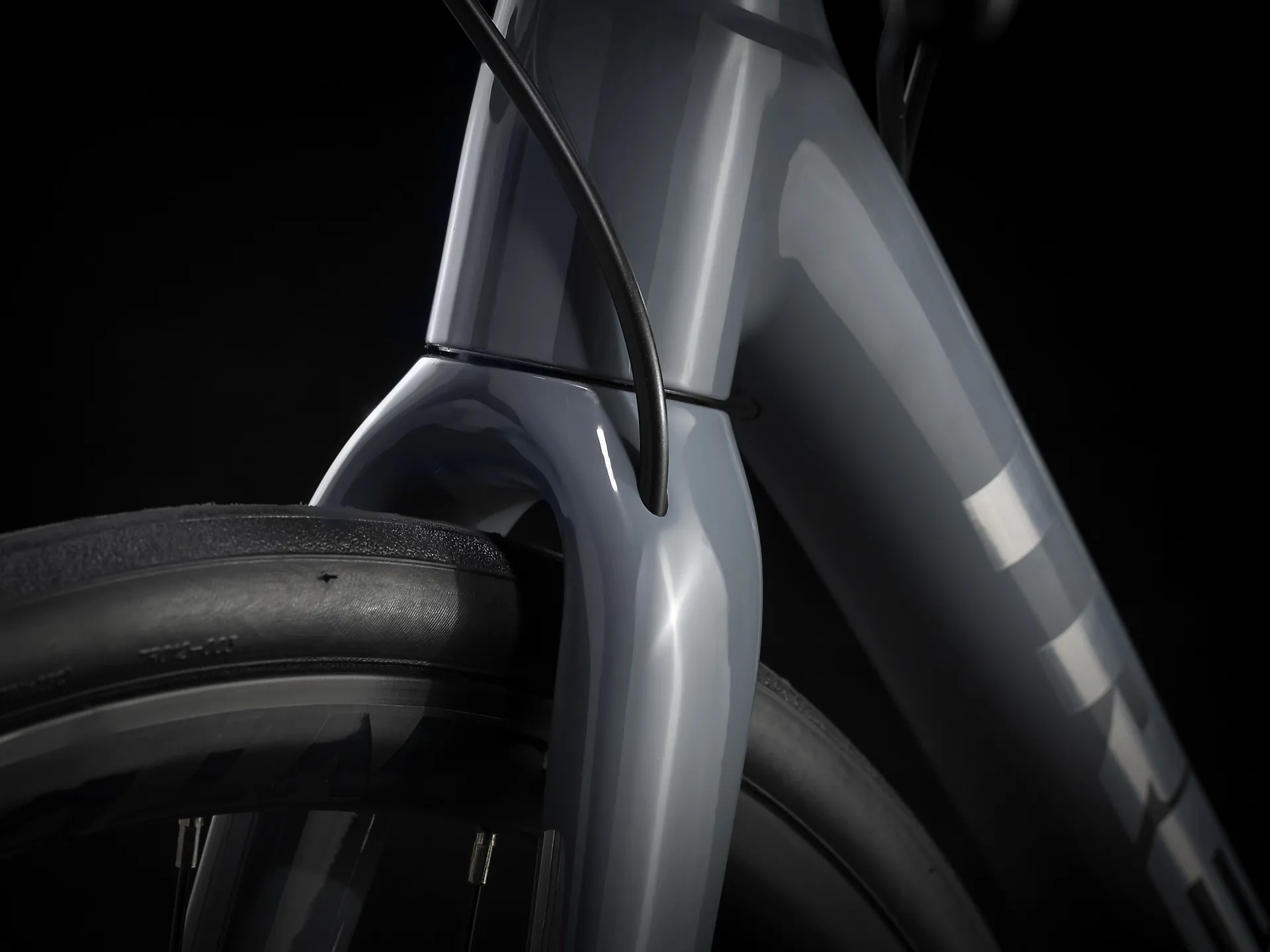

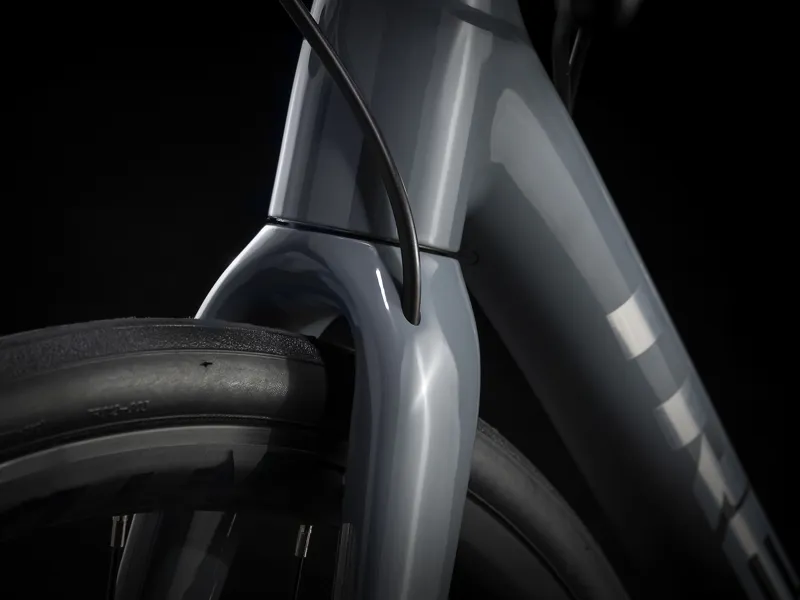

  • Fork:Emonda carbon disc, carbon tapered steerer, flat-mount disc brakes, 12 mm thru-axle
  • Number of Gears:22

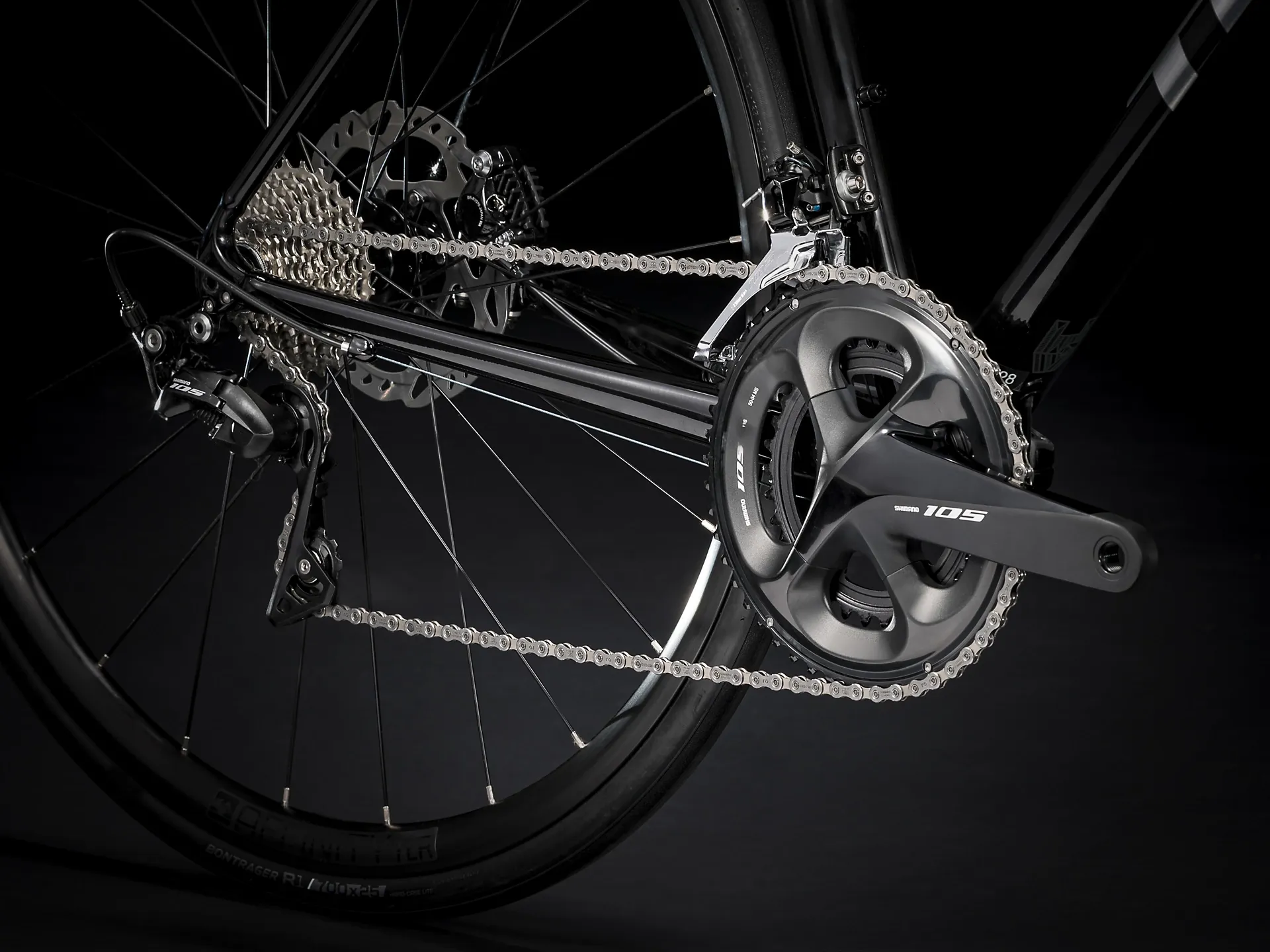

  • Gear Shifters:Shimano 105, 11-speed
  • Chainset:Shimano 105
  • Chainrings:50/34T
  • Rear Cassette:Shimano 105, 11-28, 11-speed
  • Chain:Shimano 105 HG601, 11-speed
  • Front Derailleur:Shimano 105, braze-on
  • Rear Derailleur:Shimano 105
  • Bottom Bracket:Press Fit BB86.5
  • Pedals:Not included
  • Rims:Bontrager Affinity, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Front Hub:Bontrager alloy, sealed bearing, CenterLock, 100x12 mm thru axle
  • Rear Hub:Bontrager alloy, sealed bearing, CenterLock, Shimano 11-speed freehub, 142x12 mm thru axle
  • Front Tyre:Bontrager R1 Hard-Case Lite, 700x 25c
  • Rear Tyre:Bontrager R1 Hard-Case Lite, 700x 25c

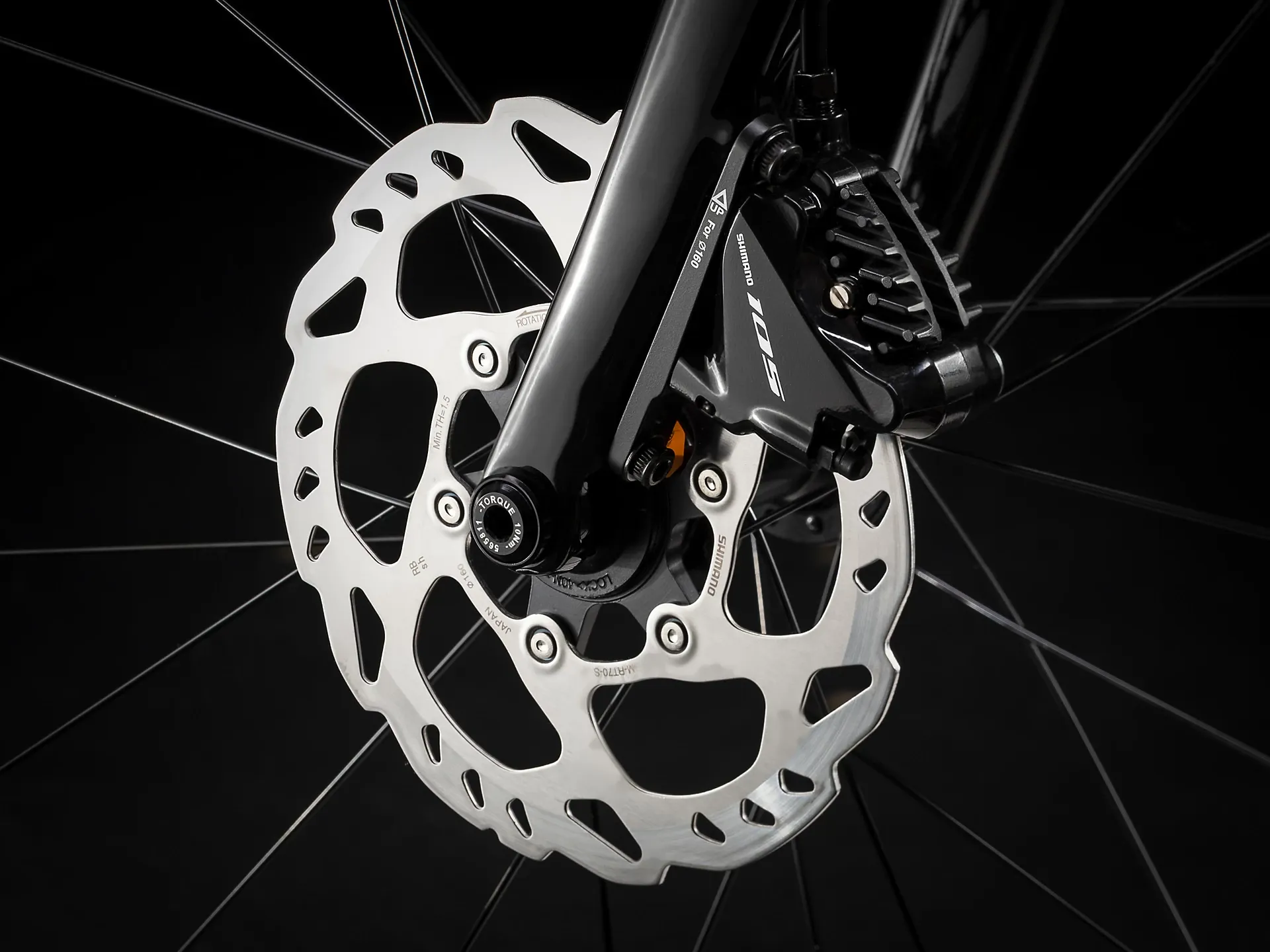

  • Brakes:Shimano 105 flat-mount hydraulic disc

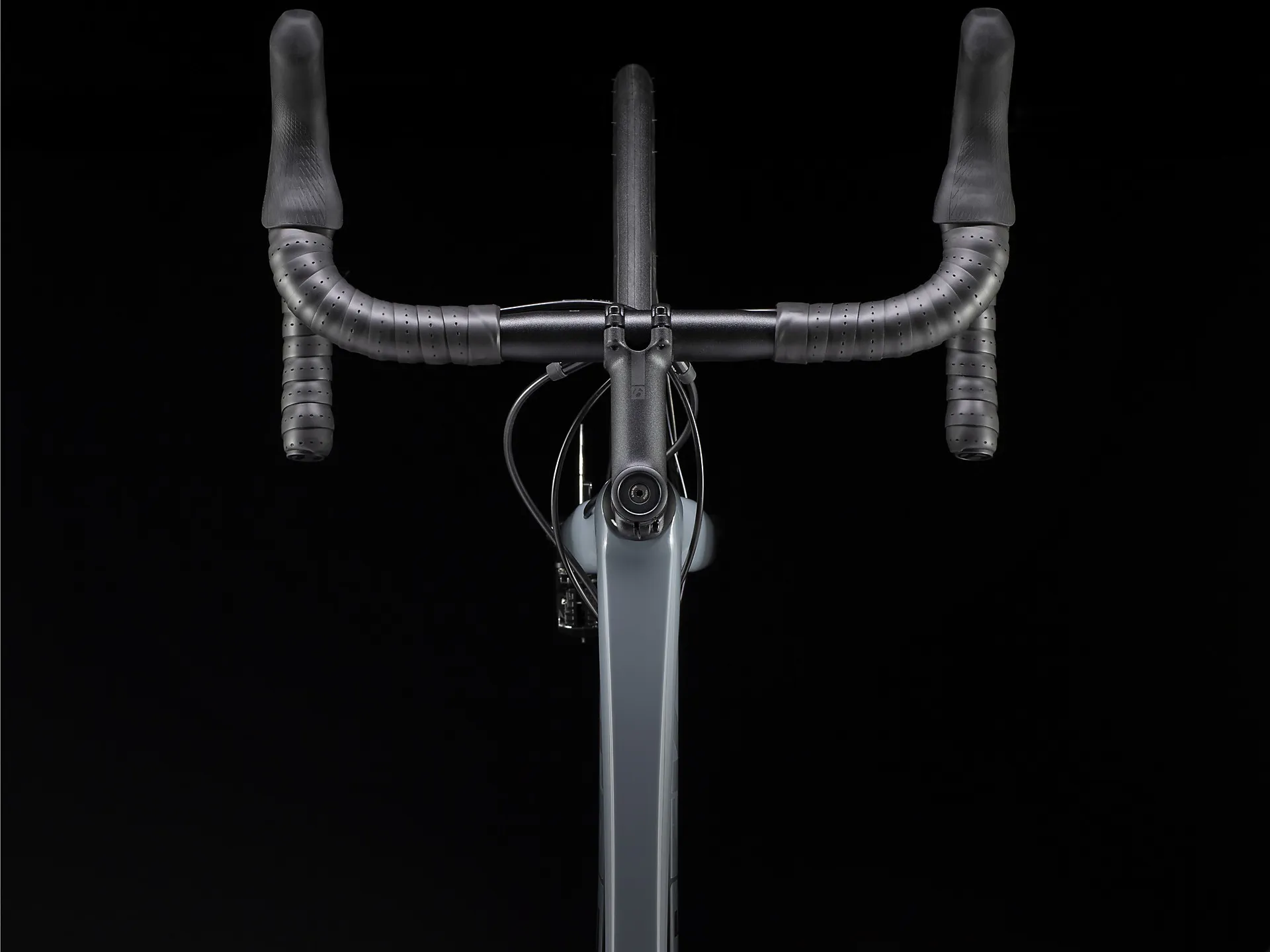

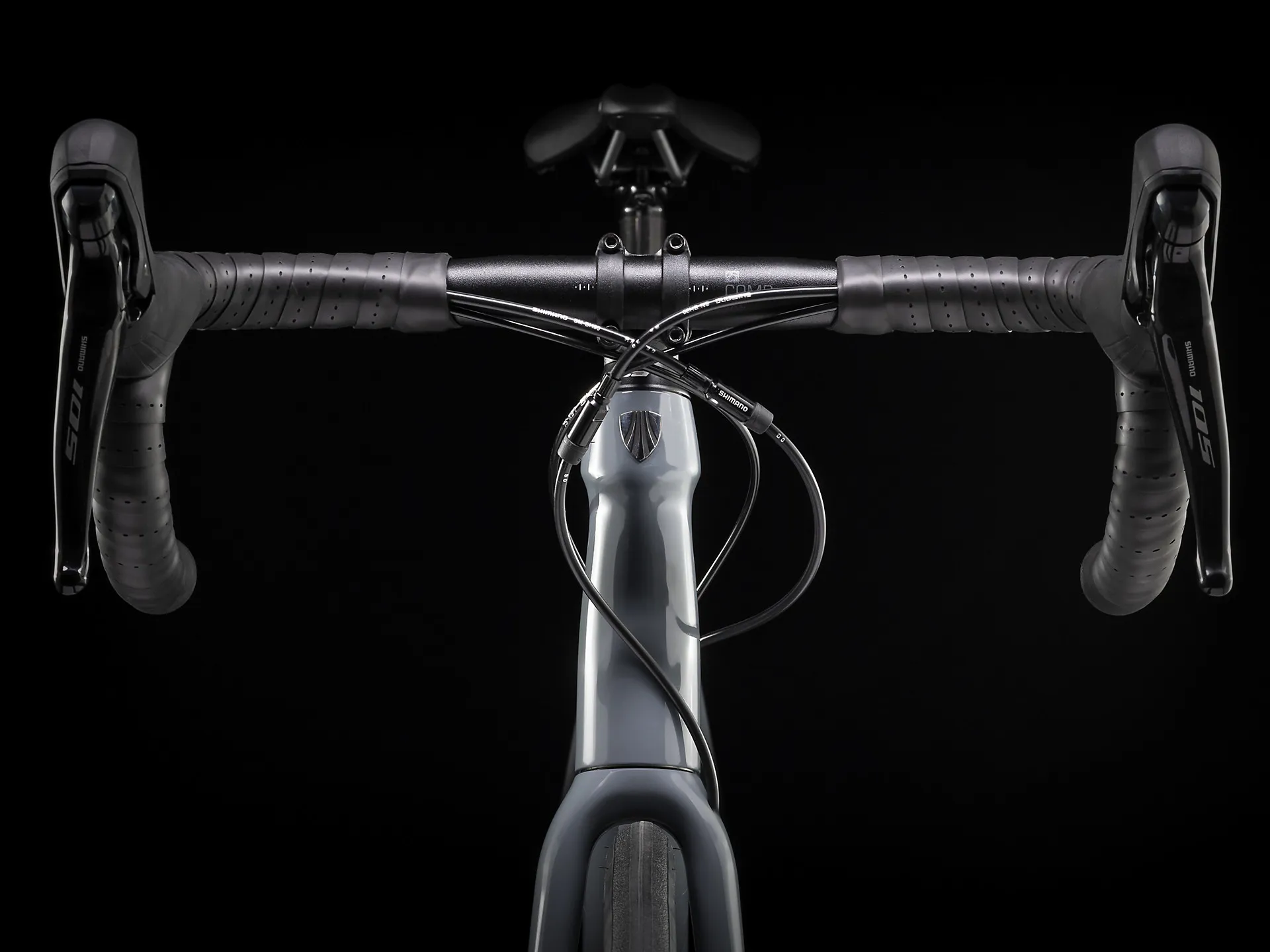

  • Handlebars:Bontrager Comp VR-C, 31.8 mm
  • Handlebar Tape:Bontrager tape

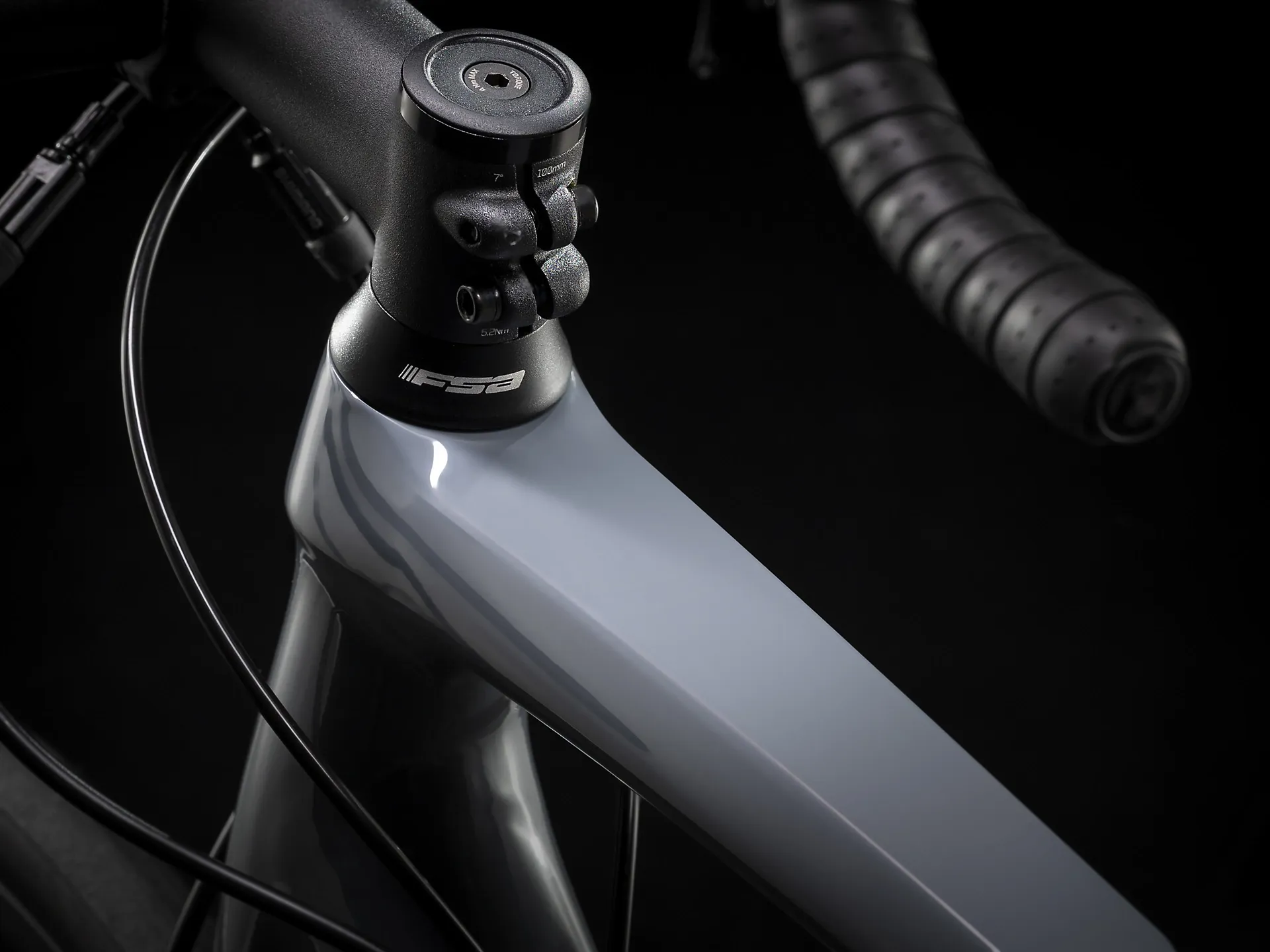

  • Headset:Integrated, cartridge bearing, sealed, 1-1/8˝ top, 1.5˝ bott

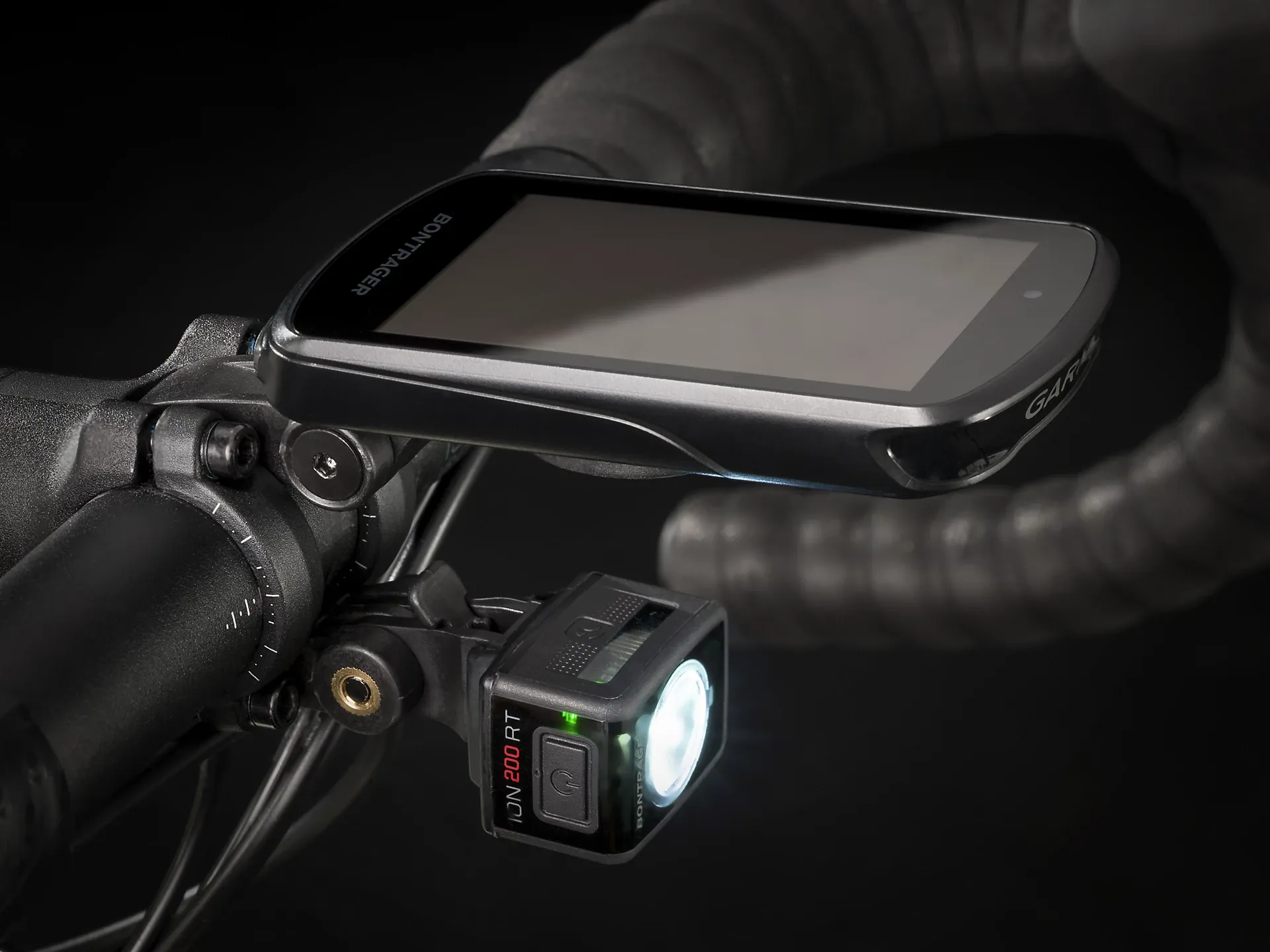

  • Stem:Bontrager Elite, 31.8 mm, 7-degree, w/computer and light mou
  • Saddle:Bontrager Montrose Comp, chromoly rails
  • Seatpost:Bontrager carbon, 2-bolt head, 27.2 mm, 8 mm offset
  • Accessories:N/A
  • Weight:Not Available


Sizing Chart for Trek Emonda ALR Disc Unisex Road Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152-1584'11.8" - 5'2.2"71-7528-29.5
50158-1635'2.2" - 5'4.2"74-7729.1-30.3
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
60185-1906'0.8" - 6'2.8"86-8933.9-35.4
62190-1956'2.8" - 6'4.8"89-9235.0-36.2
Technical Information

Geometry for Trek Émonda ALR 5 Disc Road Bike

All measurements provided in cm unless otherwise stated.

Trek Emonda ALR 5 Mens Disc Road Racing Bike Geometry Chart

Frame Size Number475052545658606264
Wheel Size700c700c700c700c700c700c700c700c700c
A - Seat Tube44.447.649.350.653.353.357.359.361.3
B - Seat Tube Angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°72.3°
C - Head Tube Length11.513.014.015.517.019.021.023.025.0
D - Head Angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°74.0°
E - Effective Top Tube51.352.153.454.356.057.358.659.861.0
G - Bottom Bracket Drop7.27.27.27.07.06.86.86.86.8
H - Chainstay Length41.041.041.041.041.041.141.141.241.3
I - Offset4.54.54.54.54.04.04.04.04.0
J - Trail6.76.15.75.65.85.65.65.55.5
K - Wheelbase97.497.497.798.198.399.2100.1101.0101.8
L - Standover69.870.772.974.276.778.680.482.284.1
M - Frame Reach36.937.437.938.138.739.139.539.840.1
N - Frame Stack52.253.554.755.557.759.661.563.465.4

Sizing Information

Sizing Chart for Trek Emonda ALR 5 Disc Unisex Road Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152-1584'11.8" - 5'2.2"71-7528-29.5
50158-1635'2.2" - 5'4.2"74-7729.1-30.3
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
60185-1906'0.8" - 6'2.8"86-8933.9-35.4
62190-1956'2.8" - 6'4.8"89-9235.0-36.2

Professional Opinion

Trek Road Bikes: Trek Émonda ALR Family

Question(s) answered about Trek Emonda ALR 5 Disc Road Race Bike 2022 in Grey
Ask a question
Question(s) asked regarding Trek Emonda ALR 5 Disc Road Race Bike 2022 in Grey

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • Would this bike hold out as a light weight gravel bike to, with a different set of wheels on it?
    Question asked by Luke on 24/09/2022 17:46:46
    We would not advise othis bike to be used as a gravel bike. The bike has been designed for road use and as such its resilience to the rigour of off road cycling would be compromised. Please follow this link to the current range of gravel bikes available on our website https://www.balfesbikes.co.uk/bikes/gravel--adventure-bikes

    Take a look at the Trek Checkpoint as an option.
  • What is the maximum tyre width for this bike?
    Question asked by Rpbjn on 28/07/2022 14:25:29
    The maximum tyre width for this bike is 28mm (as advised by Trek)
