The Madone SL 7 Disc eTap combines advanced aerodynamic performance and smooth ride quality with the quick, reliable shifting of a wireless electronic drivetrain.
The Madone SL 7 Disc eTap combines advanced aerodynamic performance and smooth ride quality with the quick, reliable shifting of a wireless electronic drivetrain.
Trek

Trek Madone SL 7 Etap Road Bike 2023 in Battleship Blue

£4,989.00 £6,750.00 26% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

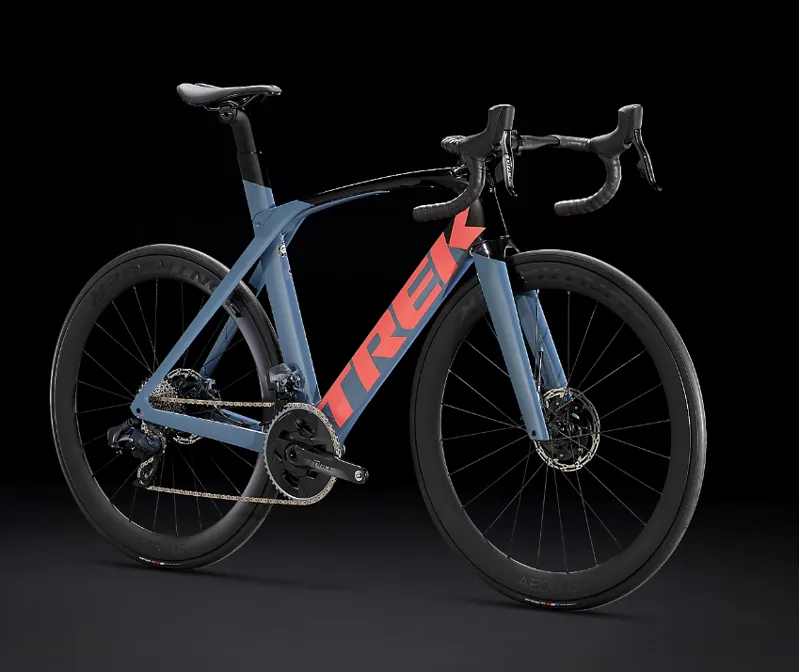

Trek Madone SL 7 Etap Road Bike 2023 in Battleship Blue

Season:2024

Brand:Trek

Code:36980BattleshipBLU

The Madone SL 7 Disc eTap combines advanced aerodynamic performance and smooth ride quality with the quick, reliable shifting of a wireless electronic drivetrain. It's light, fast and incredibly sleek, and it comes with aero carbon wheels, a road-smoothing IsoSpeed decoupler and a SRAM Force power meter.
You're serious about speed and performance, and you want the advantage of crisp wireless electronic shifting, lightweight carbon wheels and the all-weather stopping power that hydraulic disc brakes provide.
A 500 Series OCLV Carbon frame and fork with Kammtail Virtual Foil tubes that cut through the wind and a road-smoothing IsoSpeed decoupler. SRAM Force eTap AXS 2x12 wireless electronic drivetrain, hydraulic disc brakes, a SRAM Force AXS power meter, an aero handlebar that's compatible with clip-on aero bars and a pair of tubeless-ready Bontrager Aeolus Pro 51 OCLV carbon wheels.
You get the free speed, aerodynamic advantage and superior ride quality of our ultimate racing bike, plus the precision of a wireless electronic drivetrain. SRAM Force eTap delivers quick, smooth shifts – and that really matters when you're sprinting for the finish line.

Key Features & Benefits

  • 500 Series OCLV Carbon fibre frame and fork with Kammtail Virtual foil tubes:which achieves a superb balance of aerodymnamics, lightweight, strength and stiffness
  • H 1.5 Geometry:developed in conjunction with the Trek Segafredo and Drops pro cycling teams, puts the rider in the optimal aero race position and is featured on the Madone SLR family. It is the sweet spot for what racers want
  • SRAM Force Etap:Electronic 2x12 wireless shifting, race proven tech for split second shifting.

Full Specification

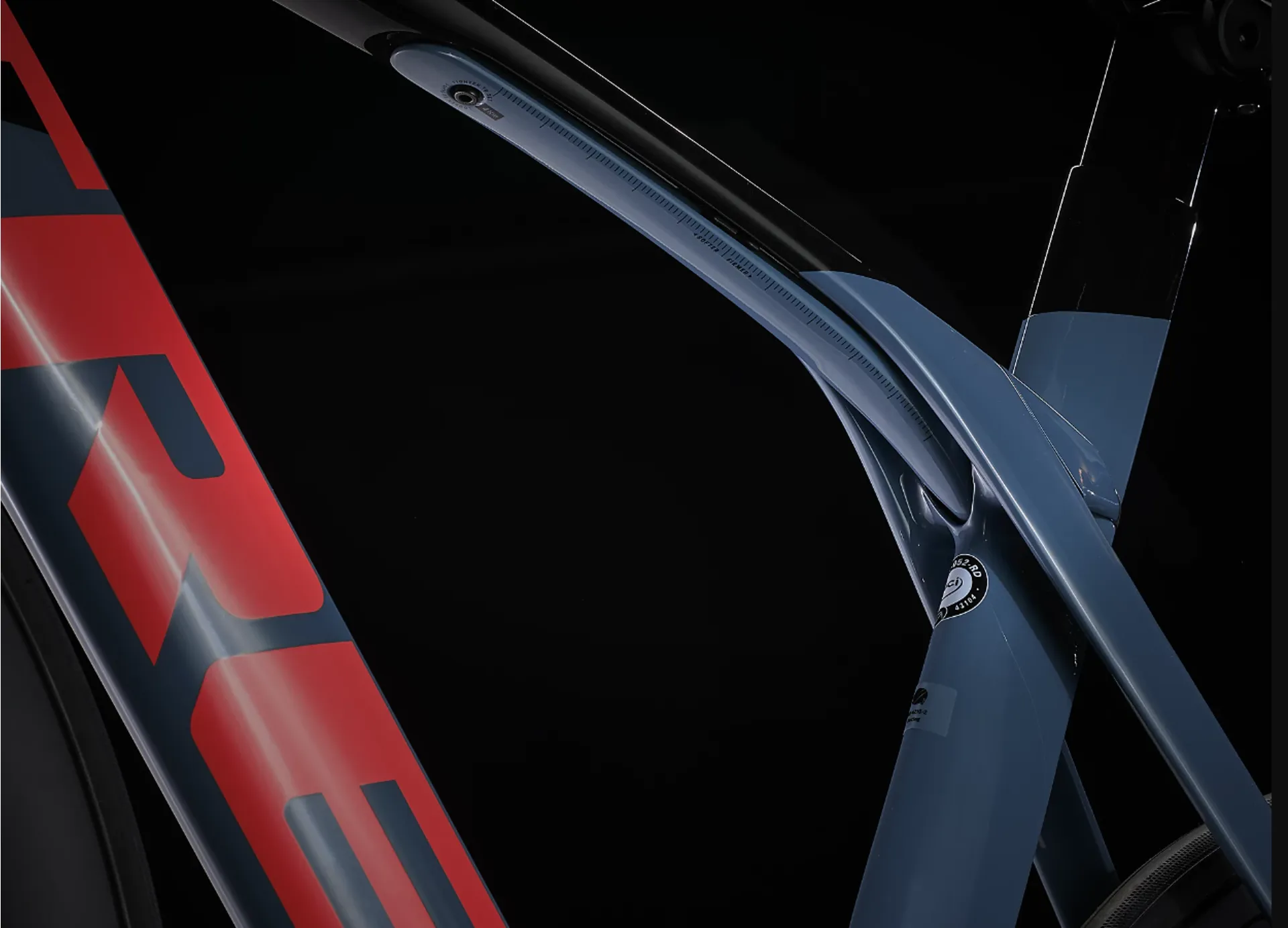

  • Frame:500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, Duo Trap S-compatible, 142x12 mm thru-axle
  • Fork:Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
  • Number of Gears:24
  • Gear Shifters:SRAM Force AXS Wireless

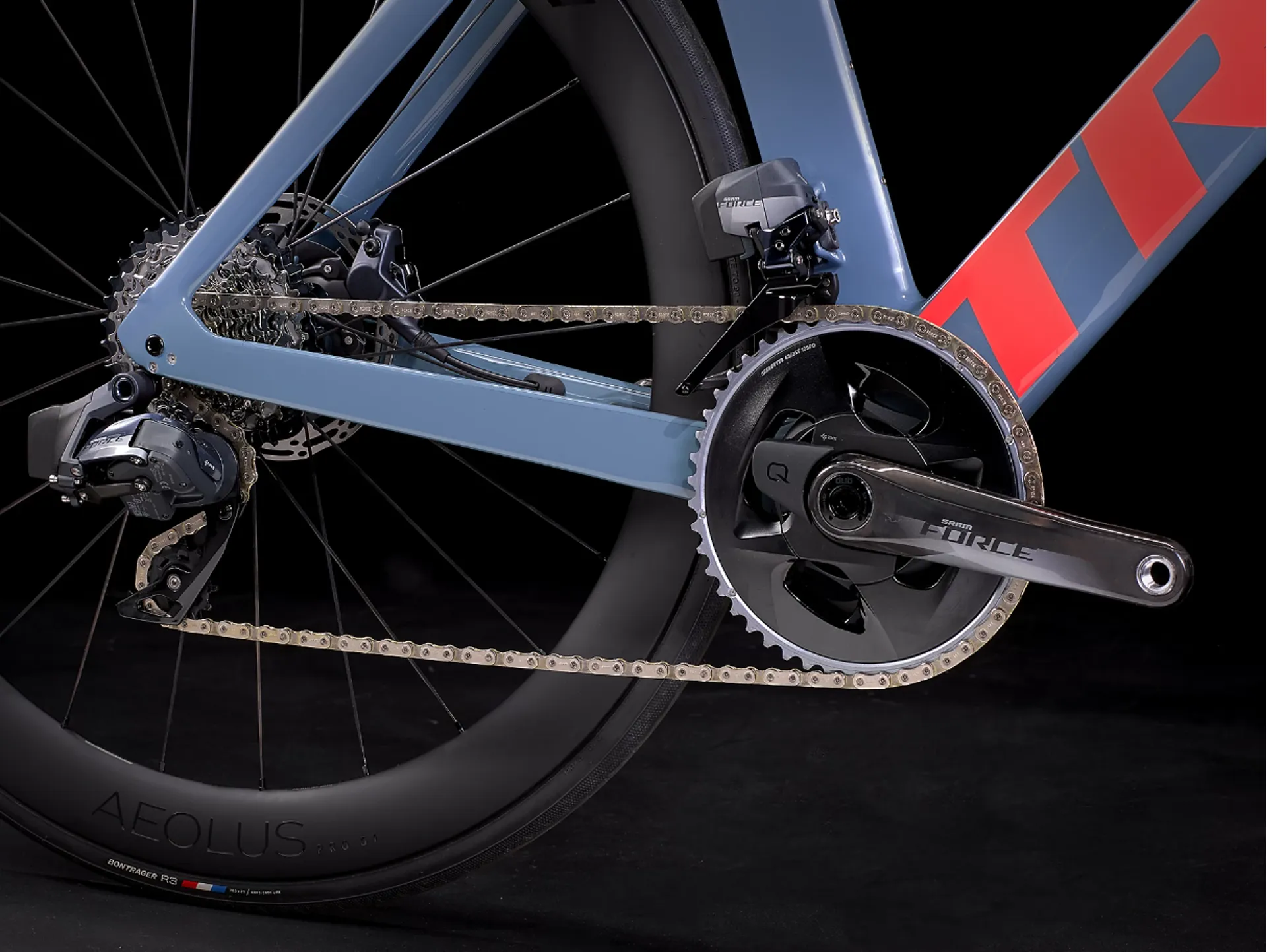

  • Chainset:SRAM Force AXS Power Meter, 48/35, DUB, 170-5 mm length
  • Chainrings:48/35T
  • Rear Cassette:SRAM Force XG-1270, 10-33, 12-speed
  • Chain:SRAM Force, 12-speed
  • Front Derailleur:SRAM Force eTap AXS, braze-on
  • Rear Derailleur:SRAM Force eTap AXS, 36T max cog
  • Bottom Bracket:SRAM DUB, T47 threaded, internal bearing
  • Pedals:Not Included
  • Rims:Bontrager Aeolus Pro 51 Disc OCLV Carbon, 50mm deep 19.5mm wide, Tubeless Ready
  • Front Hub:Bontrager Aeolus Pro Disc, 100x12 mm thru axle
  • Rear Hub:Bontrager Aeolus Pro Disc, SRAM XDR freehub,142x12 mm thru axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c

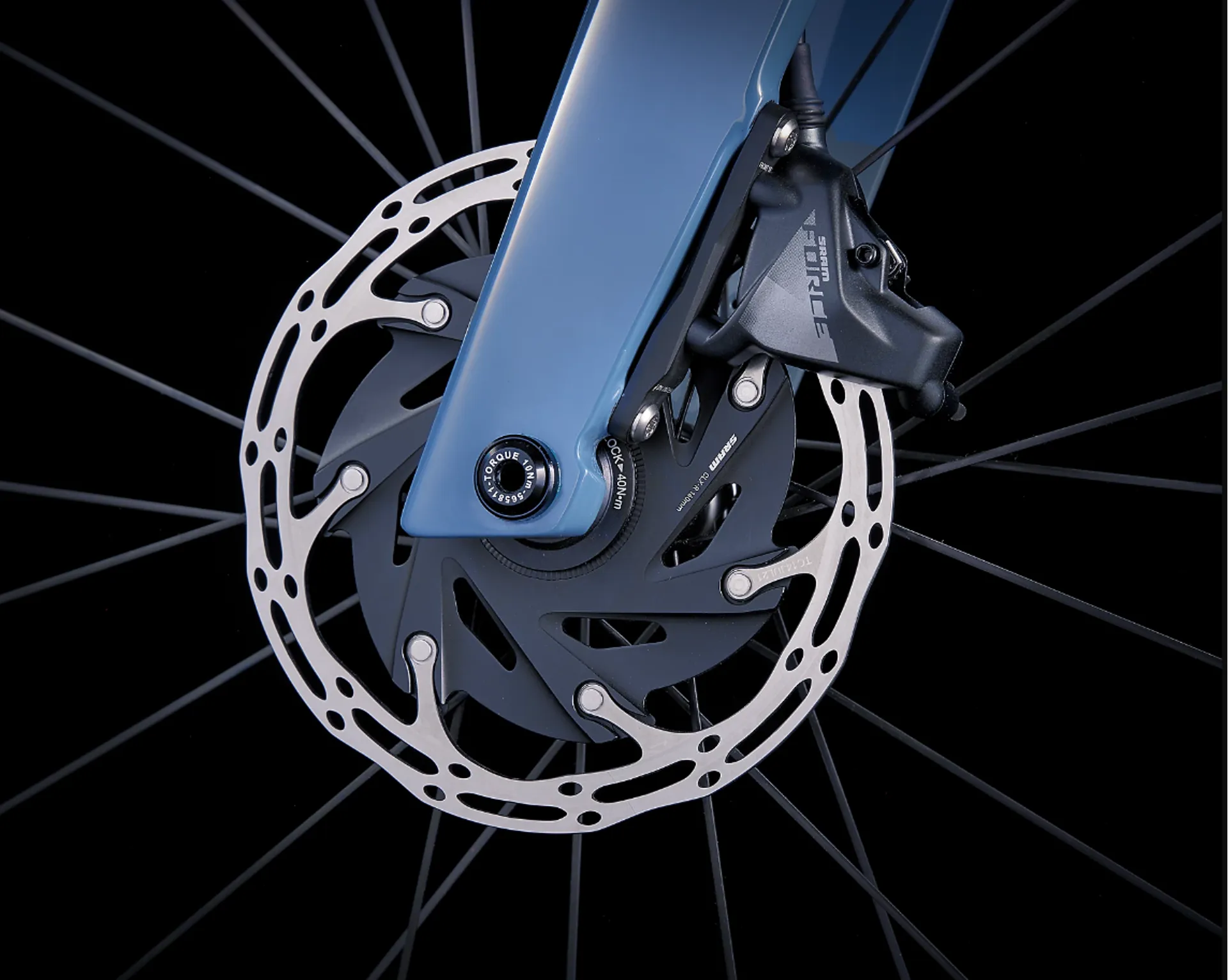

  • Brakes:SRAM Force eTap AXS hydraulic disc, SRAM CenterLine X, CenterLock, round edge, 160 mm
  • Handlebars:Bontrager Elite Aero VR-CF, alloy, 31.8mm, invisible cable routing, 93 mm reach, 123 mm drop, 40-44 cm width
  • Handlebar Tape:Bontrager Supertack Perf tape

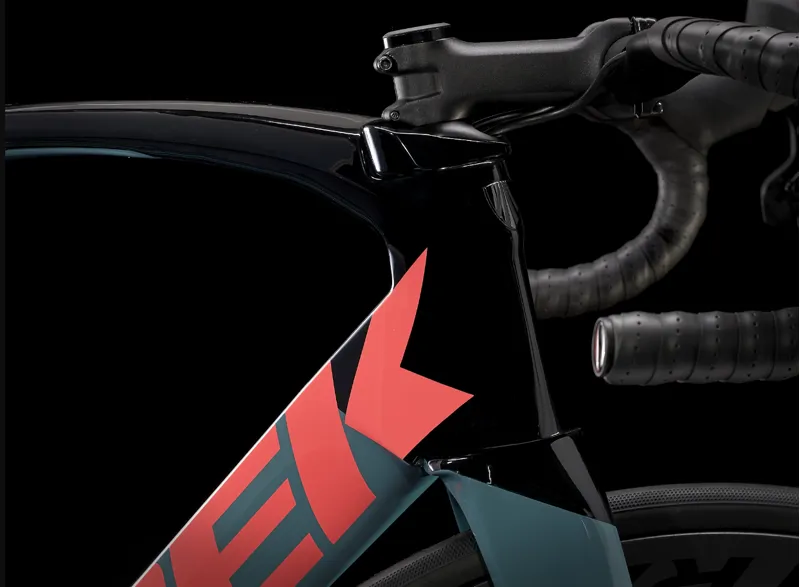

  • Headset:Madone integrated, stainless cartridge bearings, sealed, 1-3

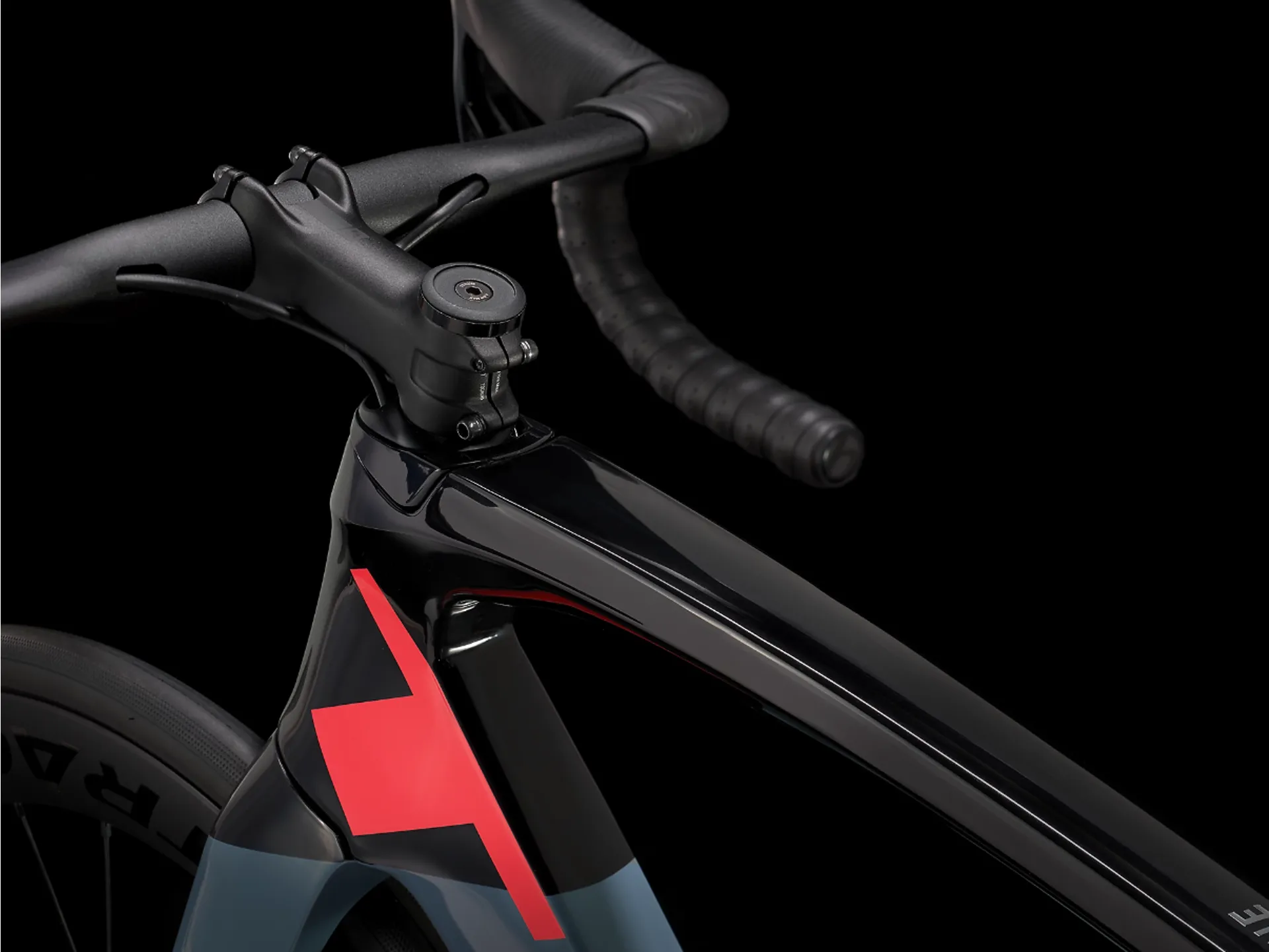

  • Stem:Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80-110mm length
  • Saddle:Bontrager Aeolus Comp, steel rails
  • Seatpost:Madone aero carbon seatmast cap, integrated light mount, 5 mm offset, short length
  • Accessories:Etap charger
  • Weight:56 - 8.48 kg / 18.71 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Saddle rail height min (w/short mast)55.558.561.56467697173
Saddle rail height max (w/short mast)61.564.567.57073757779
Saddle rail height min (w/tall mast)59626567.570.572.574.576.5
Saddle rail height max (w/tall mast)65687173.576.578.580.582.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, Duo Trap S-compatible, 142x12 mm thru-axle
  • Fork
    Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
  • Frame fit
    H1.5 Race
  • Wheel front
    Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • Wheel rear
    Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • Tyre
    Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Max tyre size
    28c
  • Shifter
    SRAM Force eTap AXS, 12-speed
  • Front derailleur
    SRAM Force eTap AXS, braze-on
  • Rear derailleur
    SRAM Force eTap AXS, 36T max cog
  • Size:50, 52
    SRAM Force AXS Power Meter, 48/35, DUB, 170mm length
  • Size:54, 56
    SRAM Force AXS Power Meter, 48/35, DUB, 172.5mm length
  • Size:58, 60, 62
    SRAM Force AXS Power Meter, 48/35, DUB, 175mm length
  • Bottom bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM Force XG-1270, 10-33, 12-speed
  • Chain
    SRAM Force, 12-speed
  • Max. chainring size
    1x: 50T, 2x: 54/40
  • Saddle
    Bontrager Aeolus Comp, steel rails, 145 mm width
  • Size:50, 52, 54, 56
    Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset, short length
  • Size:58, 60, 62
    Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset, tall length
  • Size:50, 52
    Bontrager Elite Aero VR-CF, alloy, 31.8 mm, invisible cable routing, 93 mm reach, 123 mm drop, 40 cm width
  • Size:54, 56
    Bontrager Elite Aero VR-CF, alloy, 31.8 mm, invisible cable routing, 93 mm reach, 123 mm drop, 42 cm width
  • Size:58, 60, 62
    Bontrager Elite Aero VR-CF, alloy, 31.8 mm, invisible cable routing, 93 mm reach, 123 mm drop, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Size:50
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Size:52, 54
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Size:56, 58
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Size:60, 62
    Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
  • Brake rotor
    SRAM CenterLine X, CenterLock, round edge, 160 mm
  • Rotor size
    Max brake rotor sizes: 160 mm front and rear
  • Battery
    SRAM eTap battery pack (with charger)
  • Weight
    56 - 8.48 kg / 18.71 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
