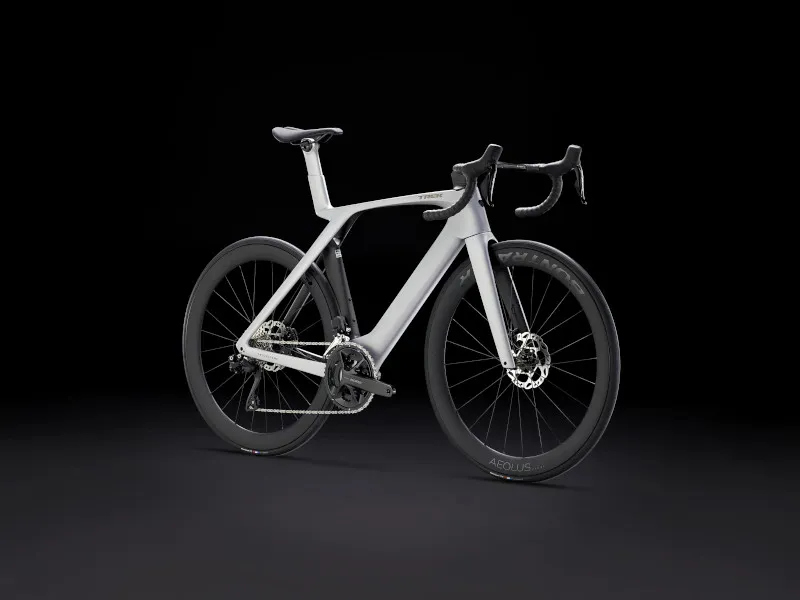

The Madone SLR 6 is a road racing machine that's serious about speed from the second it hits the tarmac.
The Madone SLR 6 is a road racing machine that's serious about speed from the second it hits the tarmac.
Trek

Trek Madone SLR 6 Gen 7 Carbon Road Race Bike 2023 in Quicksilver

£6,400.00 £7,600.00 16% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Madone SLR 6 Gen 7 Carbon Road Race Bike 2023 in Quicksilver

Season:2024

Brand:Trek

Code:37416SATSIL

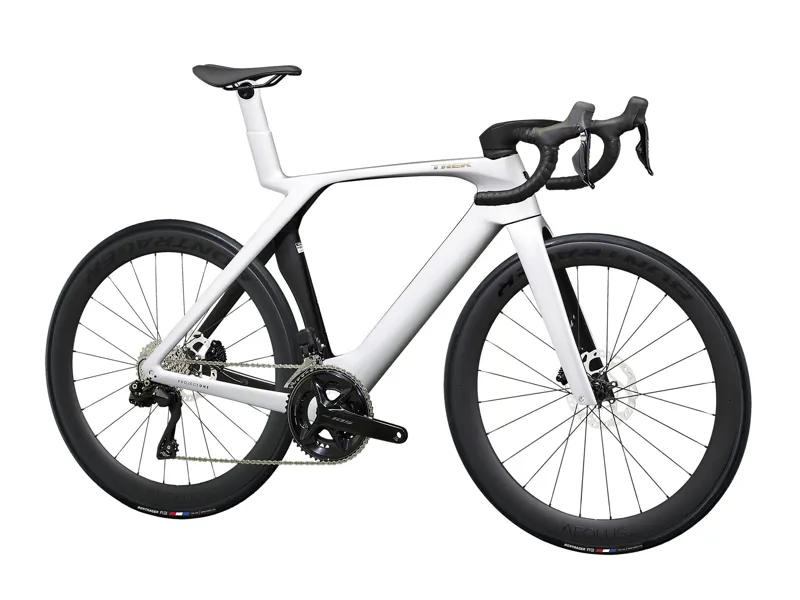

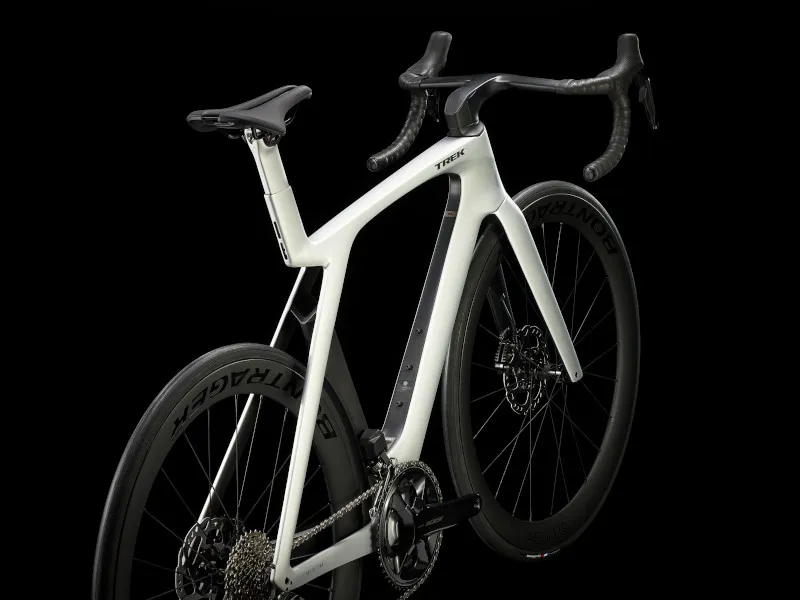

The Madone SLR 6 is a road racing machine that's serious about speed from the second it hits the tarmac.

It all starts with an 800 Series OCLV Carbon frame with exclusive IsoFlow technology that adds an aerodynamic advantage, cuts weight and smooths the road ahead, then is topped with workhorse components, like Shimano's wireless electronic 105 Di2 12-speed drivetrain to handle race day and shifting clean when the going gets tough. Plus, it features upgrades that matter, like carbon wheels with a deep rim for even more aerodynamic gains.

The Madone SLR Gen 7 builds on Trek's legacy of superbikes, taking aero race to the next level with game-changing IsoFlow technology that shaves weight and absorbs chatter, next-gen aerodynamic shapes and a flared handlebar/stem that reduces cockpit and rider drag.

This is the right bike for you if you're serious about speed and you want components that can keep up. You won't settle for anything less than a supremely aero road racing frame with IsoFlow comfort tech and upgrades to components that count most – like carbon wheels. You want the smooth shifting benefits of Shimano's 105 Di2 wireless electronic groupset.

Key Features:

  • 800 Series OCLV Carbon Frame:Trek's lightest carbon laminate combines aero performance with low weight

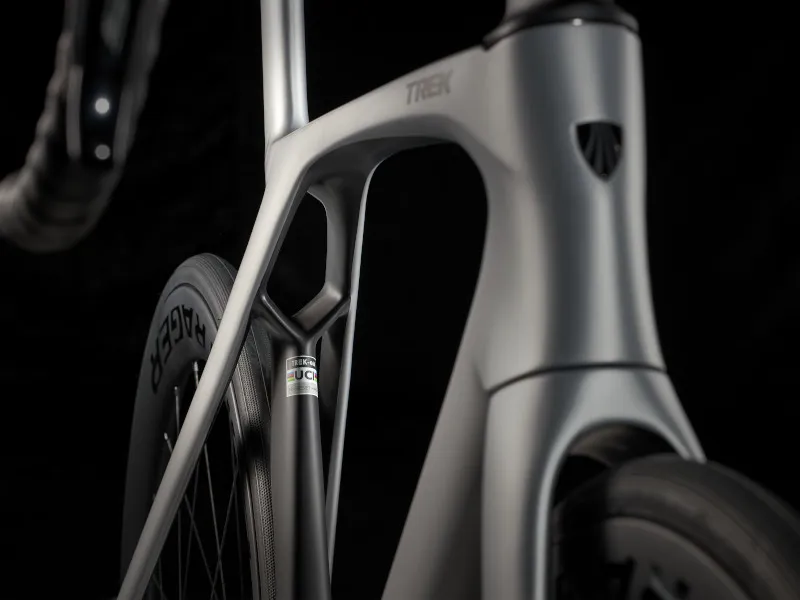

  • IsoFlow technology:Specifically designed for the seventh-generation Madone SLR shaves weight, improves aerodynamics and smooths your ride.
  • Invisible cable routing:it offers a clean look and with a separate bar and stem with an aero faceplate, you can adjust it to your needs without compromising on aerodynamics

Full Specifications:

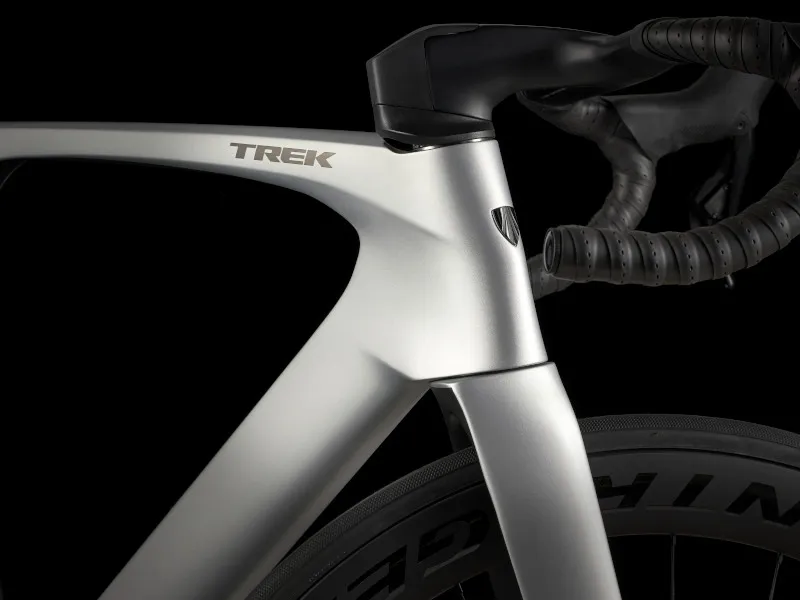

  • Frame:800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
  • Fork:Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
  • Number of Gears:24
  • Gear Shifters:Shimano 105 R7170, 12-speed

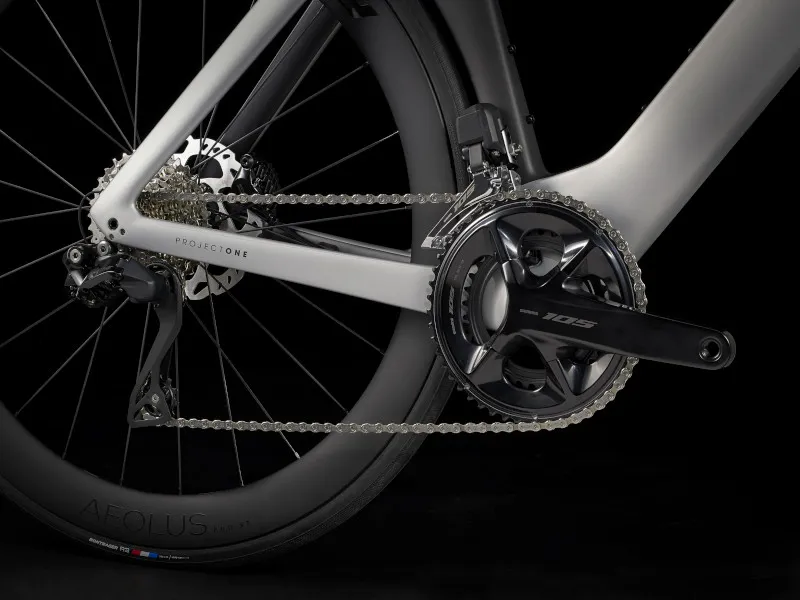

  • Chainset:Shimano 105 R7100, 50/34, 165mm length
  • Chainrings:50/35T
  • Rear Cassette:Shimano 105 7100, 11-34, 12-speed
  • Chain:Shimano SLX M7100, 12-speed
  • Front Derailleur:Shimano 105 R7150 Di2, braze-on, down swing
  • Rear Derailleur:Shimano R7150
  • Bottom Bracket:Praxis, T47 threaded, internal bearing
  • Front Wheel:BontragerAeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • RearWheel:Bontrager Aeolus Pro 51, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru-axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
  • Brakes:Shimano 105 hydraulic disc

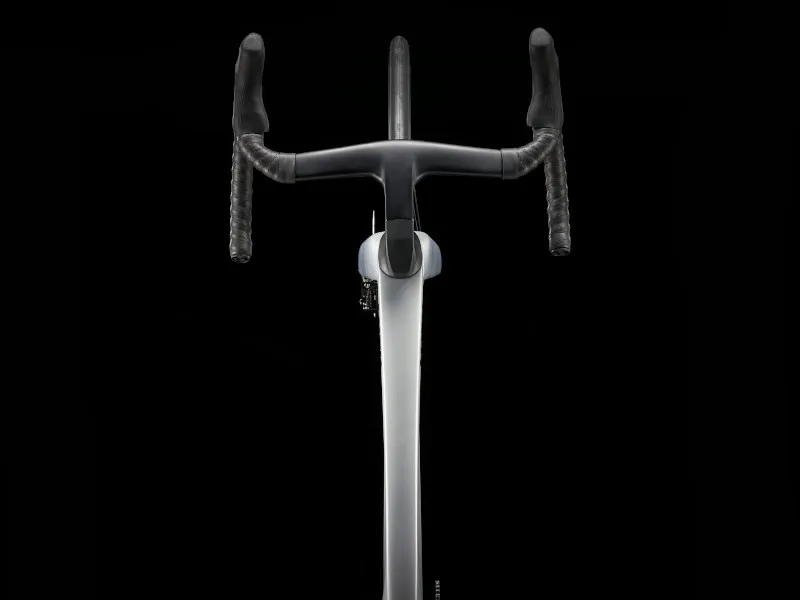

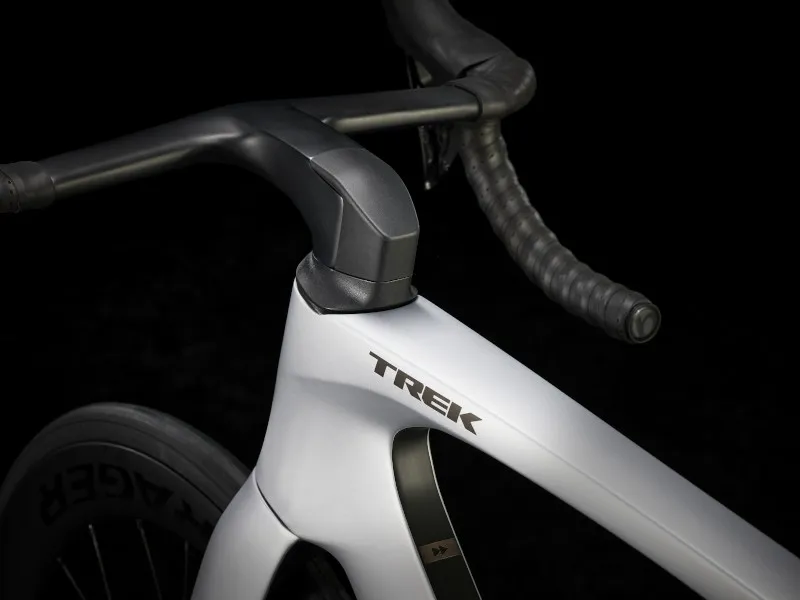

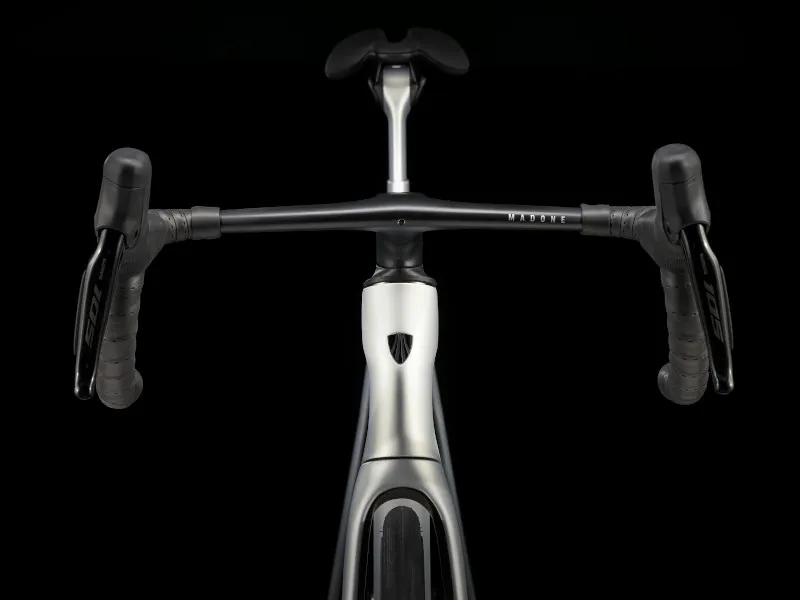

  • Handlebars:Trek Madone Integrated handlebar/stem, OCLV Carbon
  • Stem:Trek Madone Integrated handlebar/stem, OCLV Carbon
  • Saddle:Bontrager Aeolus P2 Elite, 145 - 155mm width
  • Seatpost:Madone aero carbon internal seatmast cap, integrated light mount, 0mm offset
  • Weight:56 - 7.75 kg
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes


Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Stem length80909090100100110110
Saddle rail height min (w/short mast)55586163.566.568.570.573
Saddle rail height max (w/short mast)62656870.57375.577.580.5
Saddle rail height min (w/tall mast)58.561.564.56770727476.5
Saddle rail height max (w/tall mast)65.568.571.57476.5798184

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
  • Fork
    Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
  • Frame fit
    H1.5 Race
  • Wheel front
    Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • Wheel rear
    Bontrager Aeolus Pro 51, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru-axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • Tyre
    Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Max tyre size
    28c
  • Shifter
    Shimano 105 R7170, 12-speed
  • Front derailleur
    Shimano 105 R7150, braze-on, down swing
  • Rear derailleur
    Shimano R7150
  • Size:47
    Shimano 105 R7100, 50/34, 165mm length
  • Size:50, 52
    Shimano 105 R7100, 50/34, 170mm length
  • Size:54, 56, 58
    Shimano 105 R7100, 50/34, 172.5mm length
  • Size:60, 62
    Shimano 105 R7100, 50/34, 175mm length
  • Bottom bracket
    Praxis, T47 threaded, internal bearing
  • Cassette
    Shimano 105 7100, 11-34, 12-speed
  • Chain
    Shimano SLX M7100, 12-speed
  • Max. chainring size
    1x: 50T, 2x: 54/40
  • Size:47, 50, 52
    Bontrager Aeolus P2 Elite, 155 mm width
  • Size:54, 56, 58, 60, 62
    Bontrager Aeolus Elite, austenite rails, 145 mm width
  • Size:47, 50, 52, 54
    Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short length
  • Size:56, 58, 60, 62
    Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, tall length
  • Size:47
    Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length
  • Size:50, 52
    Madone Integrated handlebar/stem, OCLV Carbon, 400mm width, 90mm stem length
  • Size:54
    Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 90mm stem length
  • Size:56, 58
    Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 100mm stem length
  • Size:60, 62
    Madone Integrated handlebar/stem, OCLV Carbon, 440mm width, 110mm stem length
  • Handlebar tape
    Bontrager Supertack Perf tape

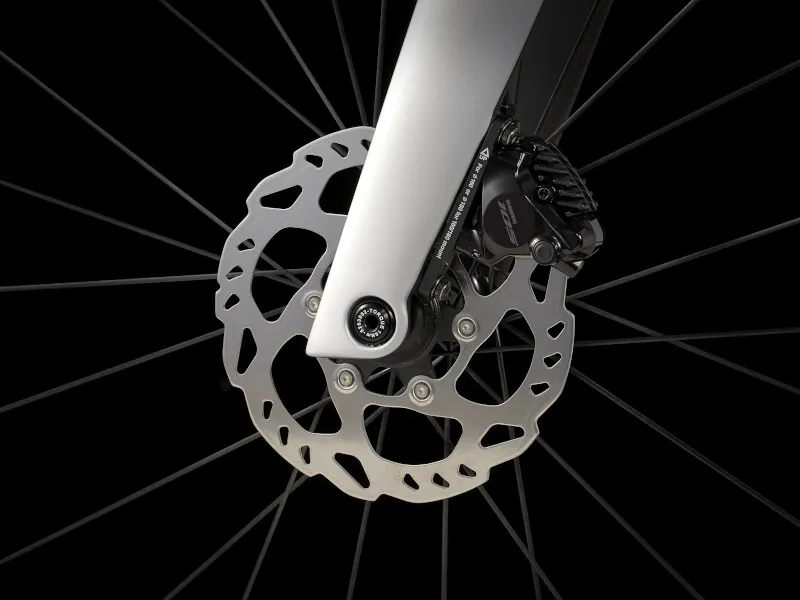

  • Brake rotor
    Shimano SM-RT70, CenterLock, 160 mm
  • Rotor size
    Max brake rotor sizes: 160 mm front and rear
  • Charger
    Charging cable included
  • Weight
    56 - 7.75 kg / 17.09 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
