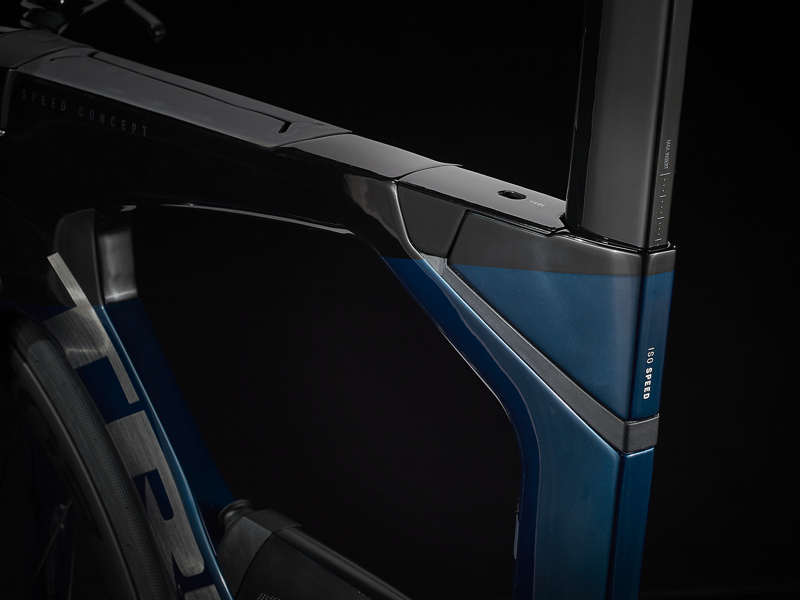

Frame

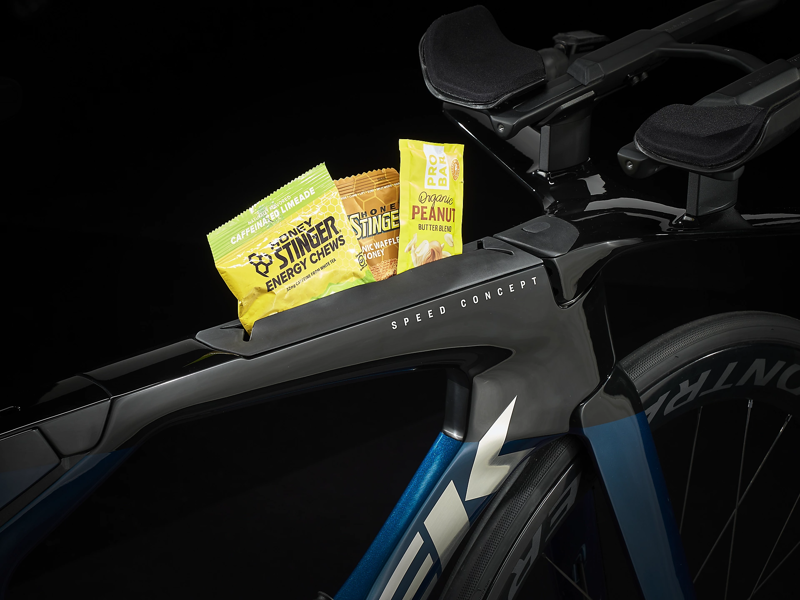

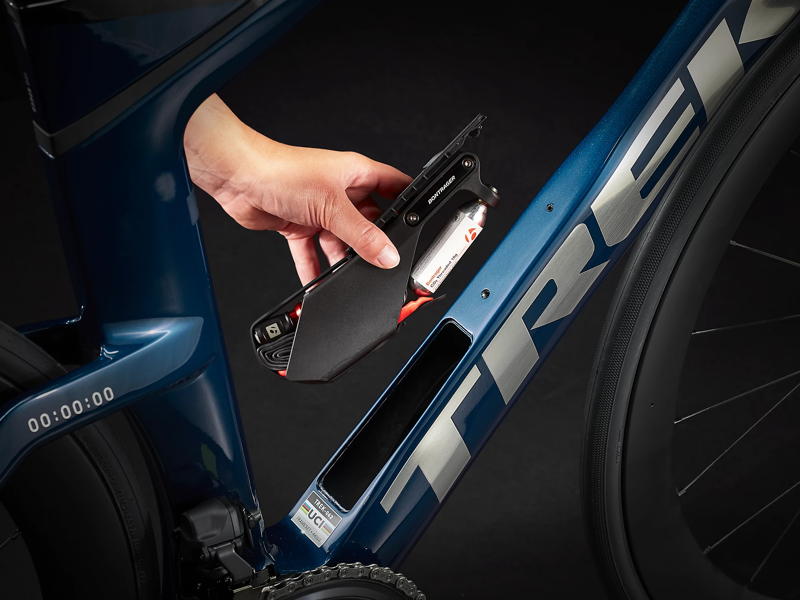

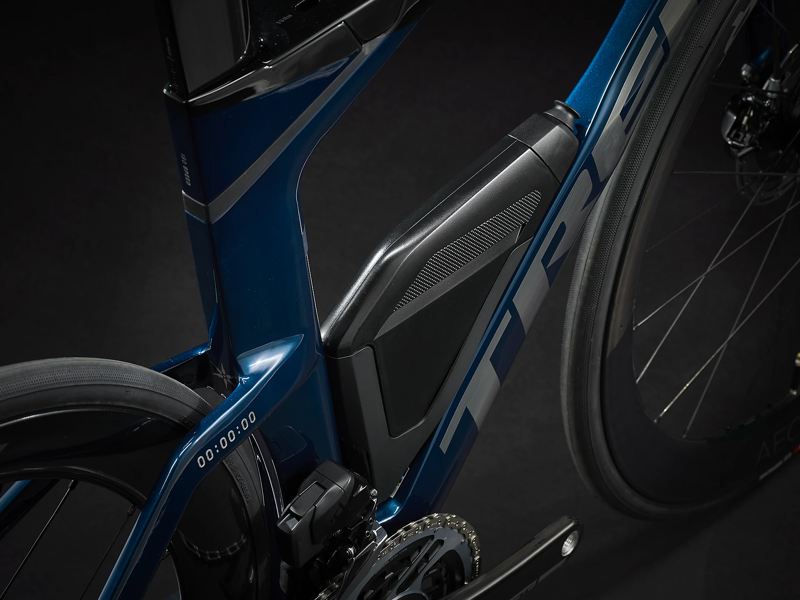

800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage
Fork
SC full foil carbon, integrated brake & stem
Frame fit
Triathlon
Wheel front
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
Max tyre size
28c rear, 25c front
Shifter
Size: S/M/L/XL, SRAM eTap AXS BlipBox
Size: S/M/L/XL, SRAM eTap Clics, 12-speed
Front derailleur
SRAM RED eTap AXS, braze-on
Rear derailleur
SRAM RED eTap AXS, 36T max cog

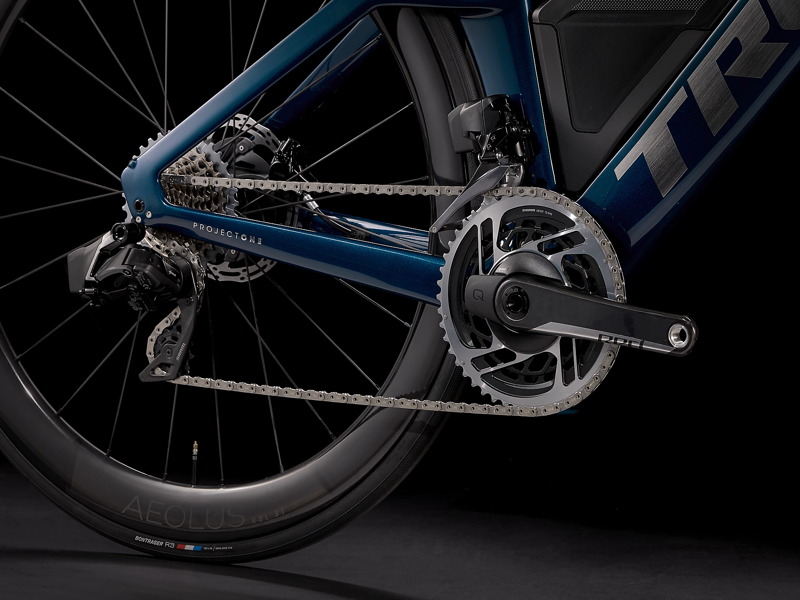

Crank
Size: S, SRAM RED AXS Power Meter, 48/35, DUB spindle, 170 mm length
Size: M/L, SRAM RED AXS Power Meter, 48/35, DUB spindle, 172.5 mm length
Size: XL, SRAM RED AXS Power Meter, 48/35, DUB spindle, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290, 10-33, 12-speed
Chain
SRAM RED D1, 12-speed
SaddleBontrager Hilo Pro Carbon
Bontrager Hilo Pro CarbonBontrager Hilo Pro Carbon
Seatpost
Size: S, Speed Concept SLR, 11.5mm or -20mm offset, short length
Size: M/L/XL, Speed Concept SLR, 11.5mm or -20mm offset, tall length

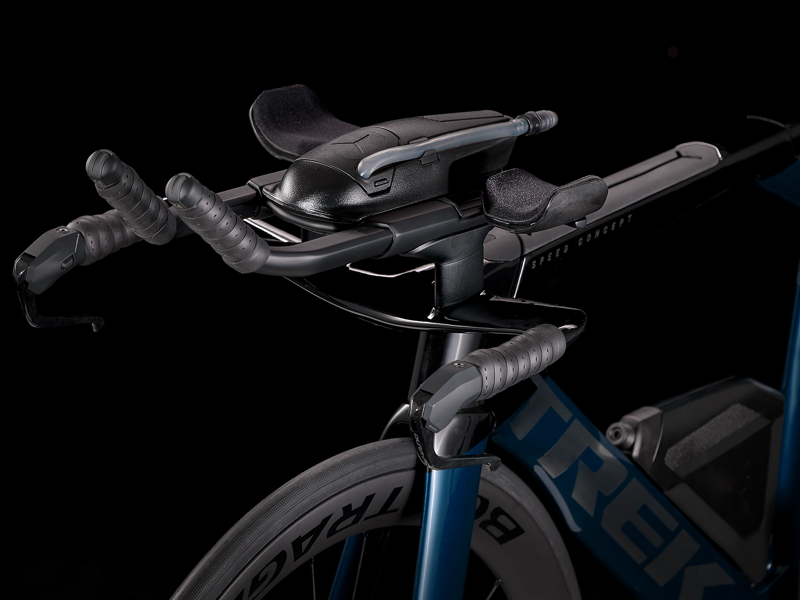

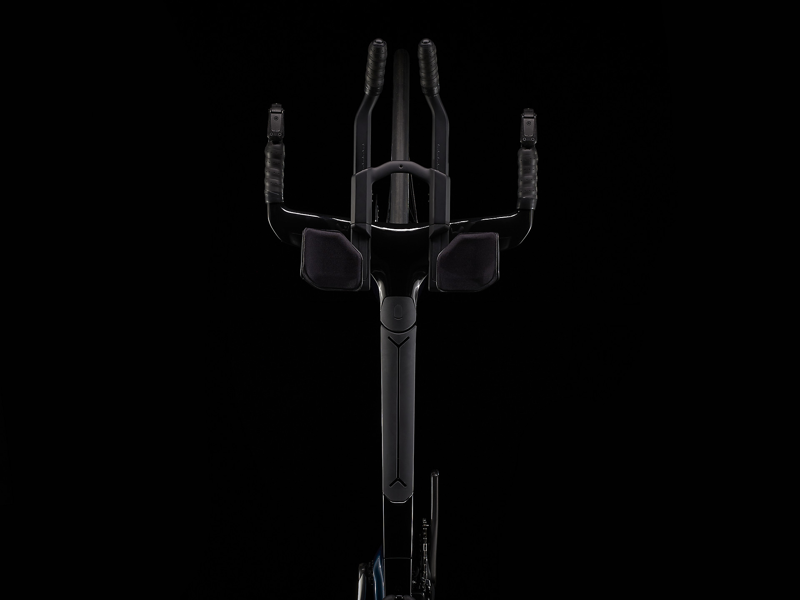

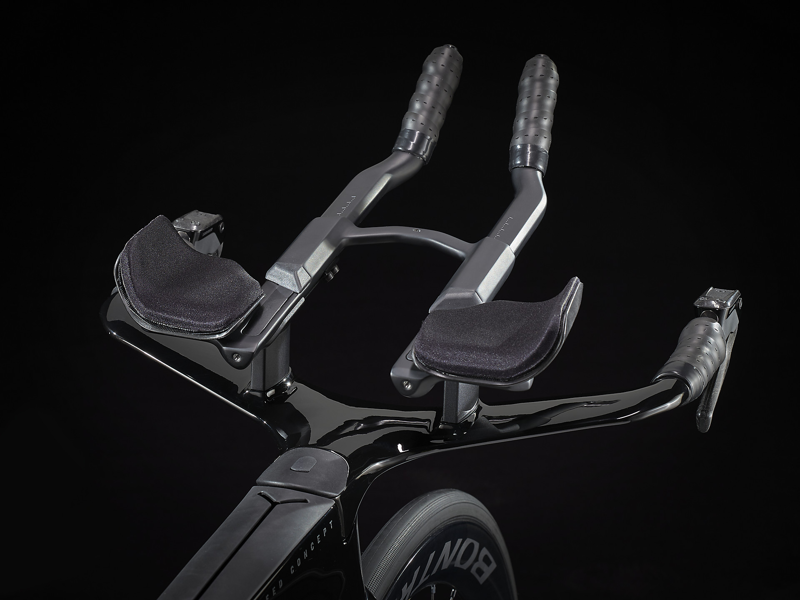

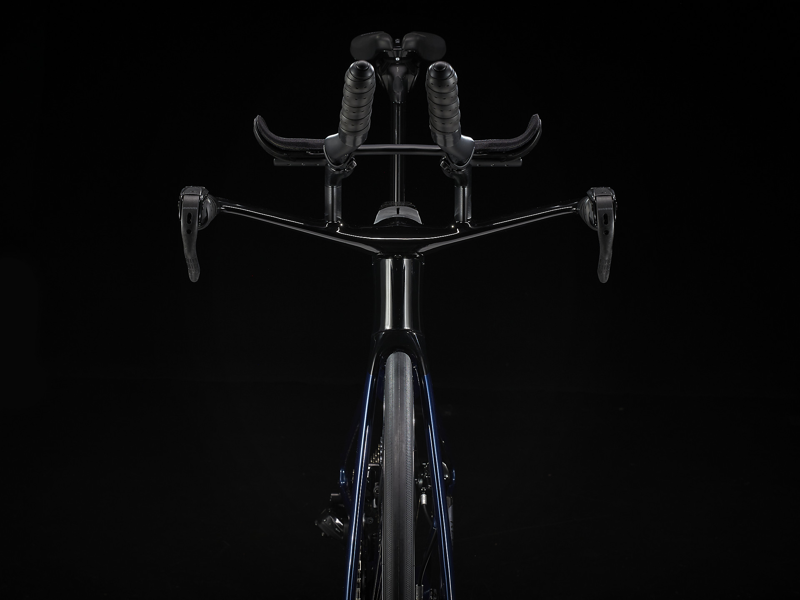

Integrated Bar Stem
Speed Concept mid-rise bar/stem
Handlebar tapeBontrager Supertack Perf tape
Bontrager Supertack Perf tapeBontrager Supertack Perf tape

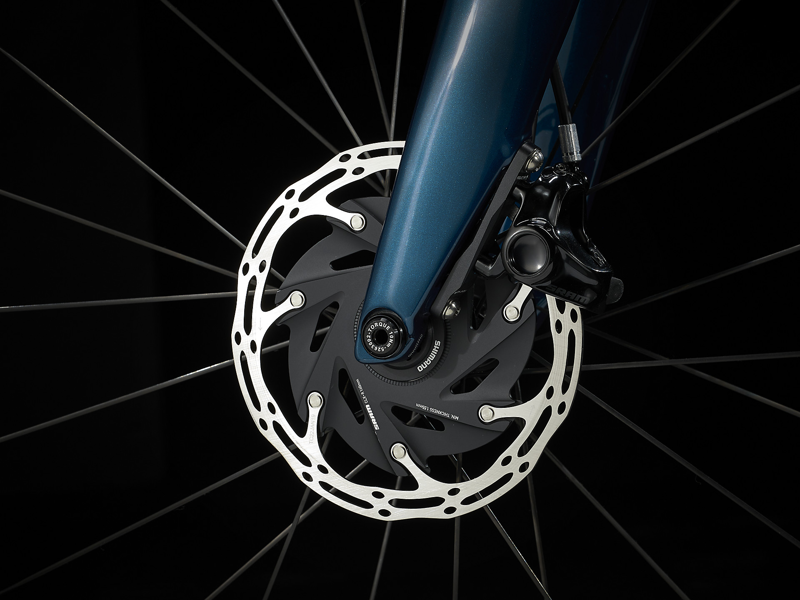

Brake rotor
SRAM CenterLine X, CenterLock, round edge, 160 mm
Brake lever
SRAM S-900 Aero
Battery
SRAM eTap battery pack (with charger)
Cage
Speed Concept Downtube Bottle Cage
Bottle
Speed Concept Downtube Bottle
Weight
M - 18.96 lbs / 8.6 kg
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
