The E-Caliber 9.9 XTR is a light, fun and fast carbon e-MTB. It’s built to ride like a traditional cross-country bike, and it even has the same race-worthy suspension tech as Supercaliber.
The E-Caliber 9.9 XTR is a light, fun and fast carbon e-MTB. It’s built to ride like a traditional cross-country bike, and it even has the same race-worthy suspension tech as Supercaliber.
Trek

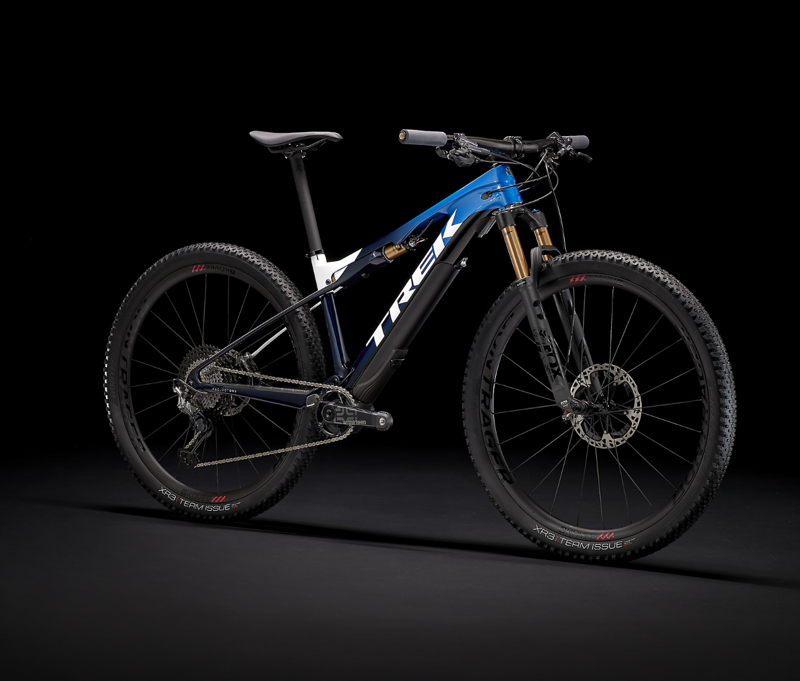

Trek E-Caliber 9.8 XTR Full Suspension Electric Mountain Bike 2021 in Alpine Blue/Navy

£9,895.00 £10,750.00 8% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek E-Caliber 9.8 XTR Full Suspension Electric Mountain Bike 2021 in Alpine Blue/Navy

Season:2024

Brand:Trek

Code:THWKMSYVNeniplASLG1202707

The E-Caliber 9.9 XTR is a light, fun and fast carbon e-MTB. It’s built to ride like a traditional cross-country bike, and it even has the same race-worthy suspension tech as Supercaliber. The sleek and subtle Fazua drive system provides a boost without adding bulk, and you get a spec loaded with high-end parts.

Trek's top-shelf E-Caliber is light, fast and built to rip. It rides like an XC race bike – like a Supercaliber, in fact – until you decide you want a little boost to scramble up a climb or put in a few extra laps.

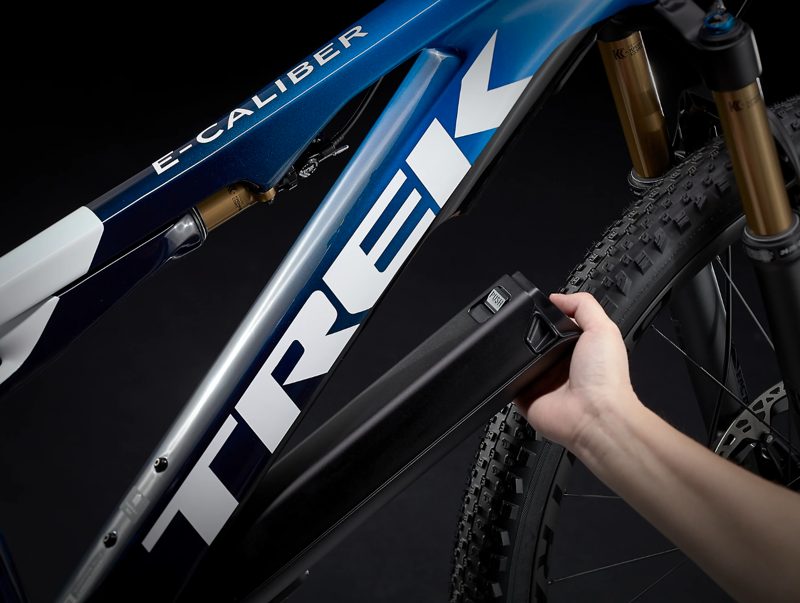

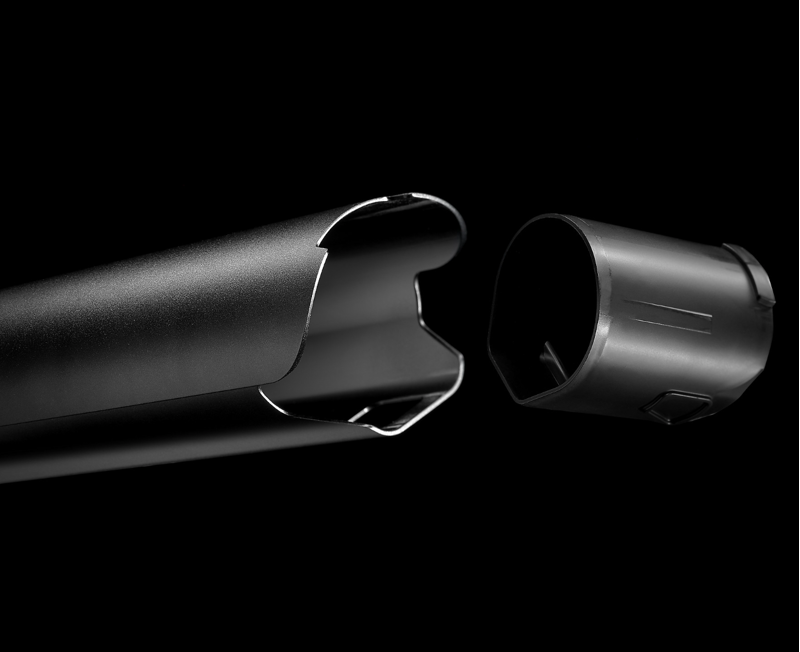

You get a helping hand from the motor on climbs and long rides, but it's a more natural-feeling assist that gives you an overall experience that's closer to riding an analogue bike than a typical e-MTB. The drive system, including the motor, is easily removable. Just take it out, pop on the included cover, and you’ll have a standard mountain bike that weighs 2.9 kg less than before.
You want to ride your heart out on a lightweight e-MTB that rips singletrack just like a regular XC bike, but can give you a leg-saving boost when you want it. You also want the smoothest, lightest, most precise parts spec, filled with carbon and cutting-edge tech like Trek's IsoStrut shock.

Key Features & Benefits:

  • OCLV Carbon frame:Ultra Lightweight & Durable.
  • Fazua Evation motor:Perfect for the rider who wants a motor to support their ride, not rule it.
  • Fox front and rear suspension:Absorbs trail vibration for a more comfortable ride.

Full Specification:

  • Frame:OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel

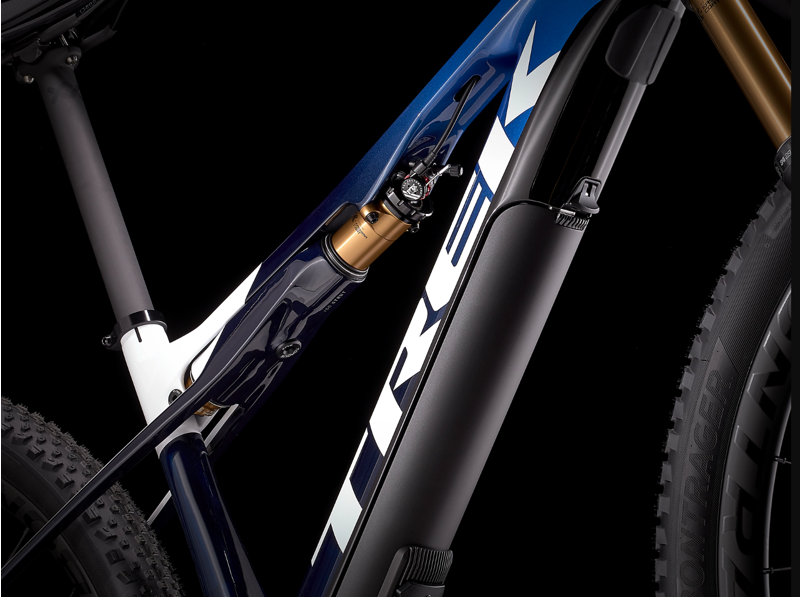

  • Rear Shock:Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm

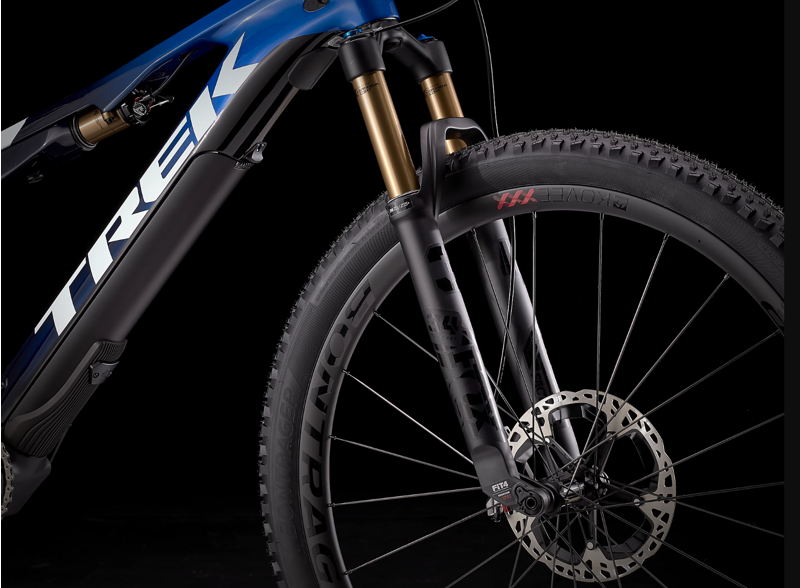

  • Fork:Fox Factory 34 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 120 mm travel

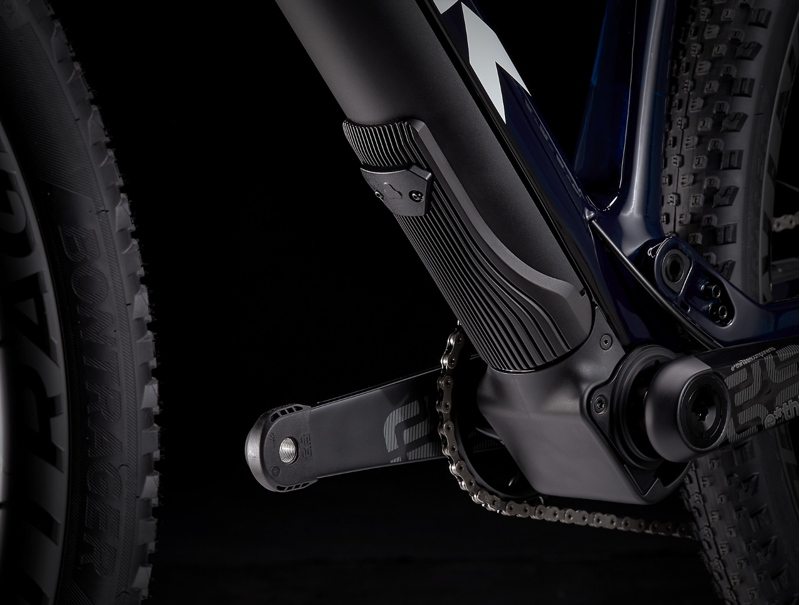

  • Motor:Fazua Evation Drive Pack, 25 km/h (15.5 mph) max assist

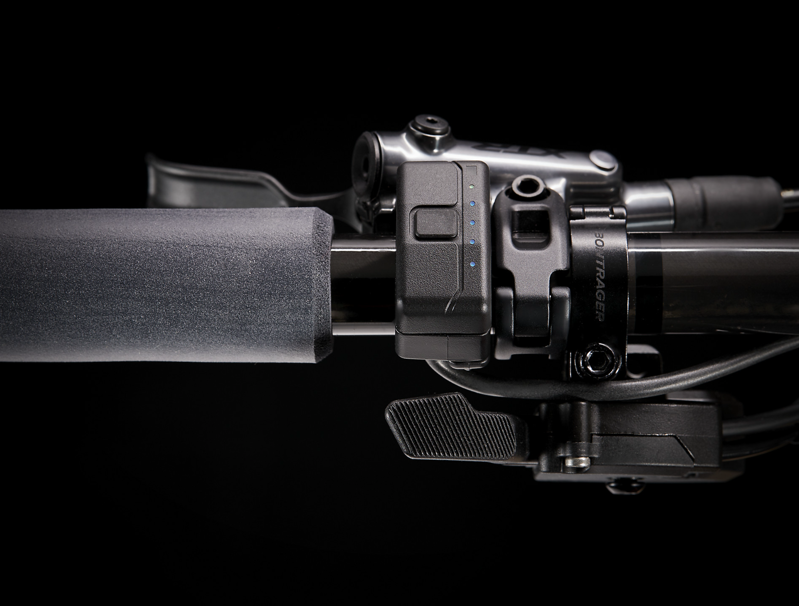

  • Controller:Fazua Remote bX

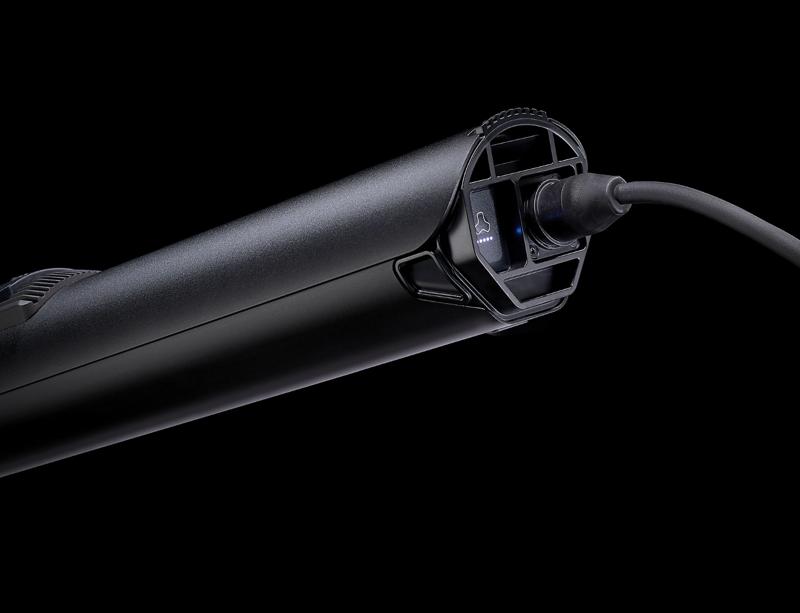

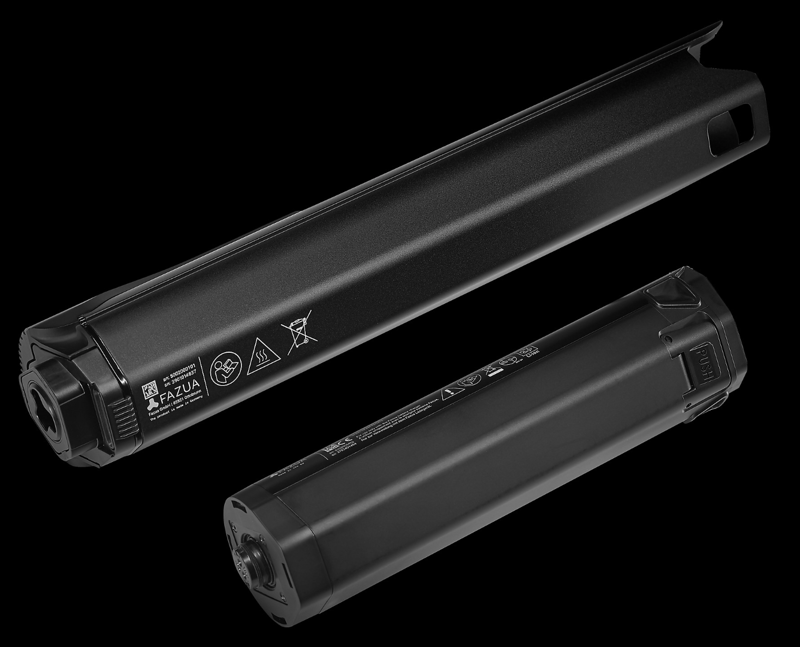

  • Battery:Fazua Evation battery, 250 Wh
  • Charger:Fazua Evation charger, 220-240V
  • Number of Gears:12
  • Gear Shifters:Shimano XTR M9100, 12 speed
  • Chainset:E*thirteen E*spec Race Carbon, 32T, 175mm length
  • Chainrings:32T
  • Rear Cassette:Shimano XTR M9101, 10-51, 12-speed
  • Chain:Shimano Dura-Ace/XTR M9100, 12 speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
  • Pedals:Not supplied
  • Rims:Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready
  • Front Hub:CenterLock, Boost110, 15 mm thru axle
  • Rear Hub:DT Swiss 54T engagement, CenterLock, SRAM XD driver, Boost148, 12 mm thru axle
  • Front Tyre:Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
  • Rear Tyre:Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
  • Brakes:Shimano XTR M9120 4-piston hydraulic disc
  • Handlebars:Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
  • Handlebar Grips:ESI Chunky
  • Headset:Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
  • Stem:Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree, 60 - 70 mm length
  • Saddle:Bontrager Verse Pro, carbon rails, 145 mm width
  • Seatpost:Bontrager XXX, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
  • Accessories:Charger included
  • Weight:16.38kg (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Sizing Chart for Trek E-Caliber

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S153 – 1665’0″ – 5’5″72 - 7928 - 31
M161 - 1755’3″ – 5’9”76 - 8230 - 32
L174 – 1885’9” – 6’1″82 - 8832 - 34
XL186 – 1966’1” – 6’5″87 - 9334 - 36

Geometry for Trek E-Caliber

Frame size letterSMLXL
Actual frame size15.517.519.521.5
Wheel size29"29"29"29"
A — Seat tube39.441.94750.8
B — Seat tube angle72.3°72.6°72.8°72.8°
C — Head tube length91010.511
D — Head angle67.5°67.5°67.5°67.5°
E — Effective top tube5861.764.867
F — Bottom bracket height32.332.332.332.3
G — Bottom bracket drop5555
H — Chainstay length44.744.744.744.7
I — Offset4.24.24.24.2
J — Trail10.910.910.910.9
K — Wheelbase112.6116.5119.7121.9
L — Standover76.876.876.876.8
M — Frame reach40.5444749
N — Frame stack60.961.862.262.7

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
