The Checkpoint SL 6 AXS is a carbon gravel bike designed to take you to places that you'd never reach on a standard road bike.
The Checkpoint SL 6 AXS is a carbon gravel bike designed to take you to places that you'd never reach on a standard road bike.
Trek

Trek Checkpoint SL 6 AXS Gravel Bike 2025 in Lichen Green

£3,625.00 £4,300.00 16% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

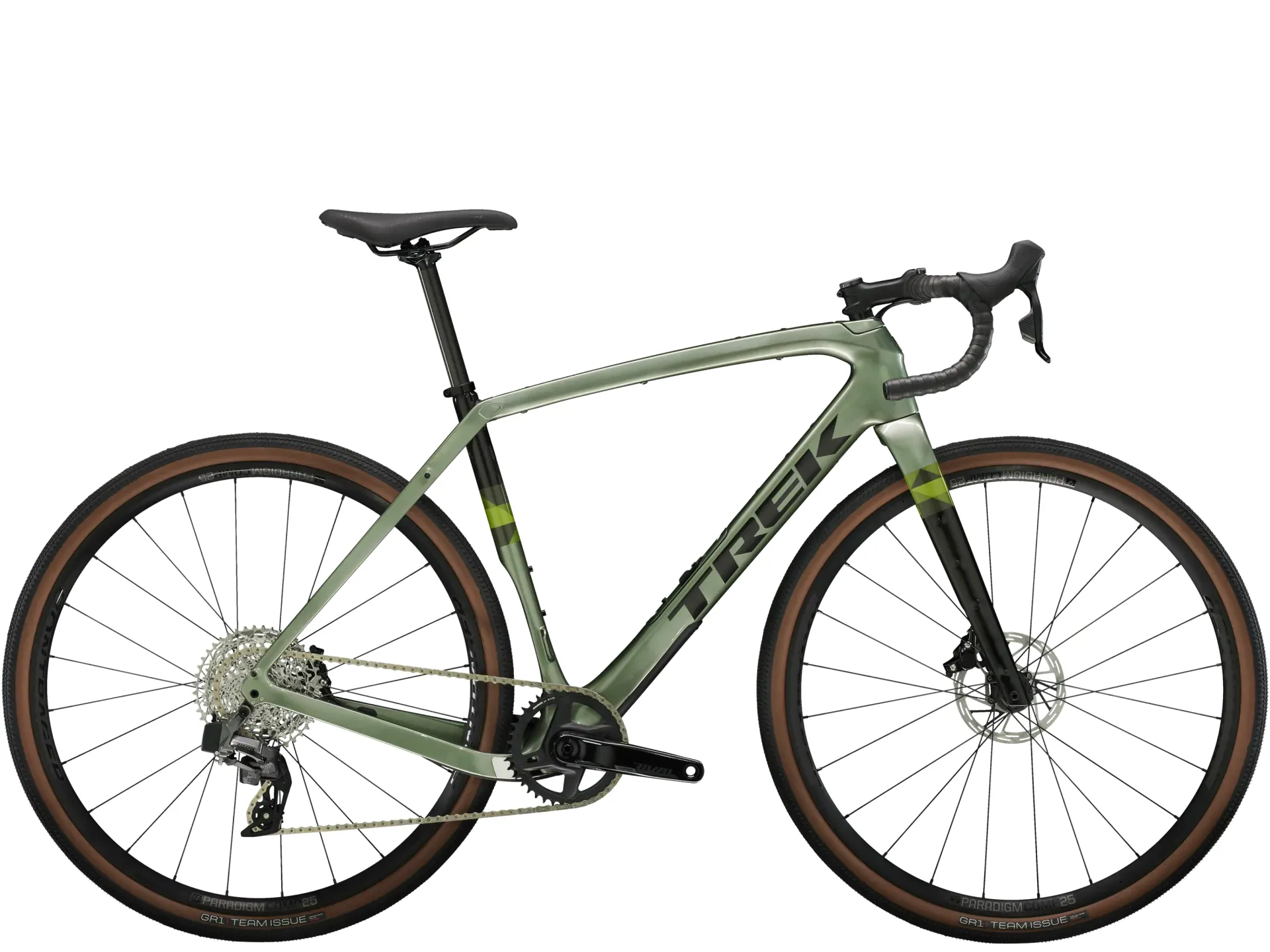

Trek Checkpoint SL 6 AXS Gravel Bike 2025 in Lichen Green

Season:2025Sale

Brand:Trek

Code:41397GRN

The Checkpoint SL 6 AXS is a carbon gravel bike designed to take you to places that you'd never reach on a standard road bike. A lightweight OCLV Carbon frame with gravel-smoothing IsoSpeed, a smart and smooth SRAM Rival XPLR AXS wireless electronic drivetrain, nimble, yet stable progressive geometry, internal storage and loads of mounts for bikepacking make this bike a true gravel powerhouse and a great choice for serious gravel, dirt or all-road adventurers.

You have big gravel dreams, and know you'll need a dialled, capable bike for those epic adventures. You also want the incredible speed, precision and clean looks of SRAM's newest wireless electronic drivetrain.

A 500 Series OCLV Carbon frame with damped rear IsoSpeed and carbon armour, a progressive geometry that's stable at speed and efficient when you're grinding up a climb, internal frame storage, hidden cables that won't interfere with bags, integrated frame bag mounts, and rack and mudguard mounts. Plus, a carbon fork, a 1x12 SRAM Rival XPLR AXS wireless electronic drivetrain with a wide-range cassette and Paradigm Comp 25 wheels. You can even run a dropper post to get low on long descents. Fits up to 45 c tyres.

A carbon gravel bike built for the longest days, roughest roads and biggest adventures. It's light, fast, comfortable and spec'd with parts that perform even in the most rugged terrain, like an advanced wireless electronic drivetrain for lightning fast shifts (even under load) and less maintenance.

Key Features & Benefits:

  • Carbon Fibre Frame:Ultra light and fast – and it's backed by Trek's lifetime warranty.
  • SRAM Rival XPLR AXS Drivetrain:Smart, smooth and completely wireless shifting.
  • Massive tyre clearance:You can use tyres up to 45c for extra traction and stability in any condition.

Full Specification:

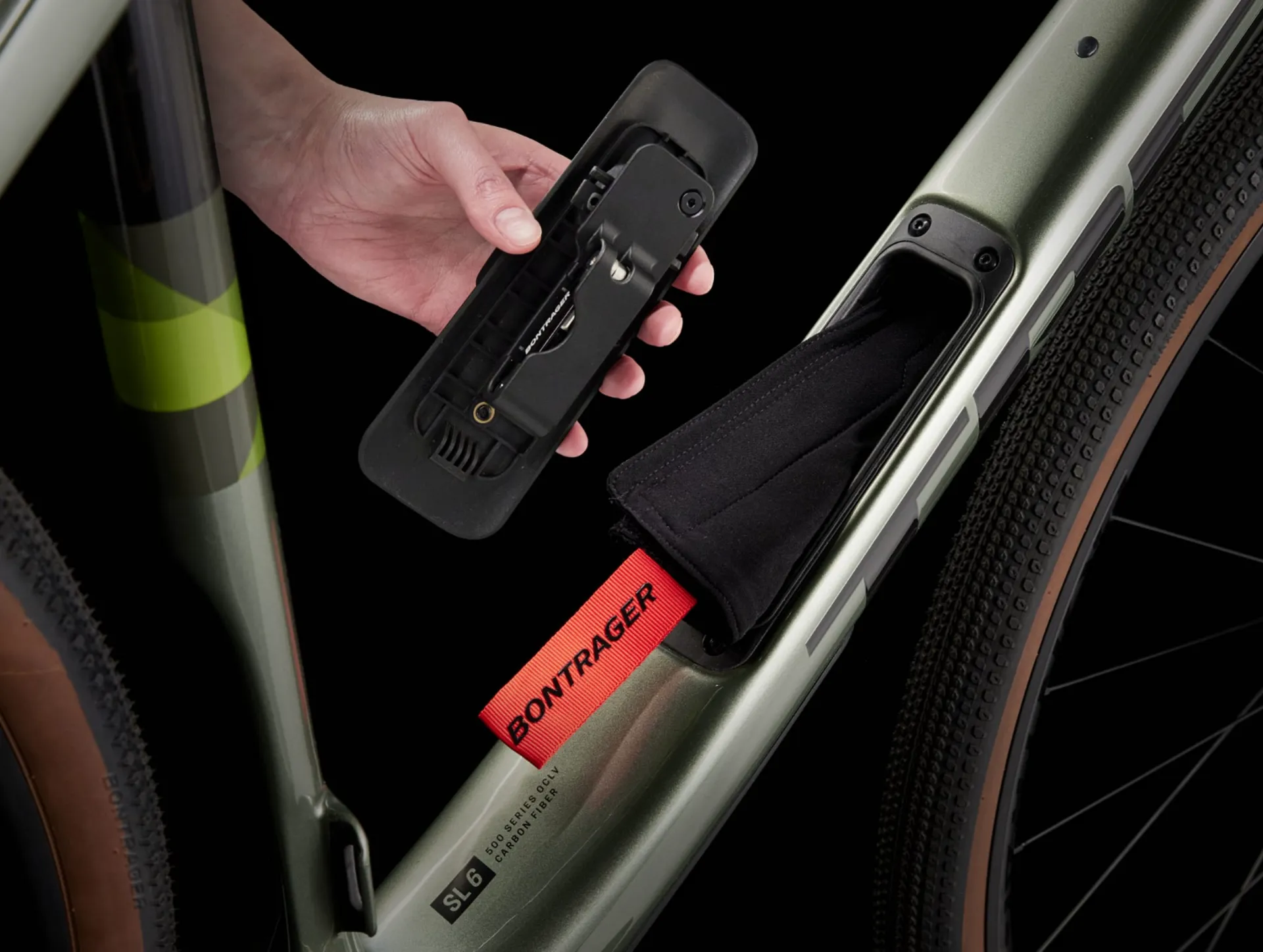

  • Frame:500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle

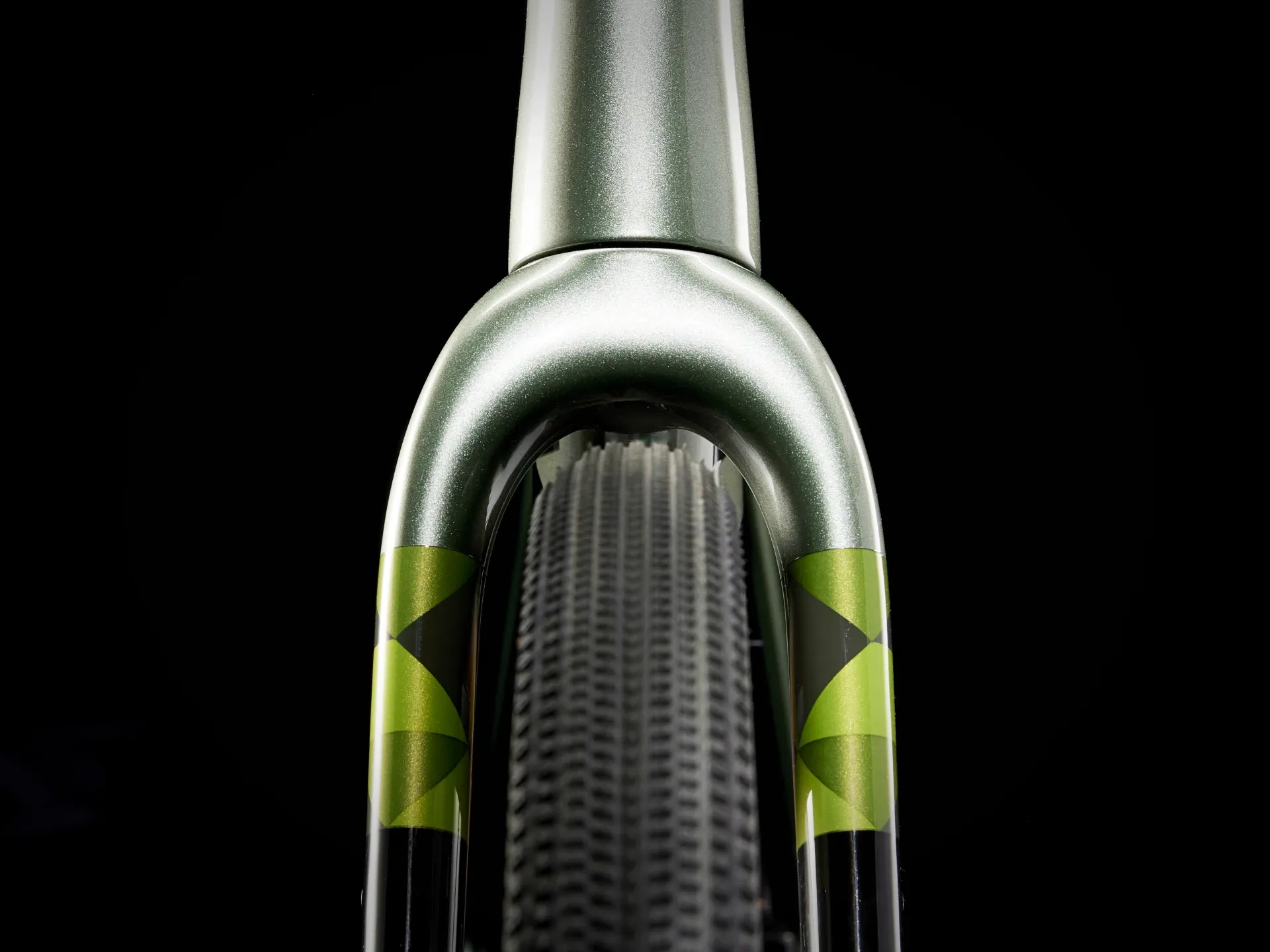

  • Fork:Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
  • Number of Gears:12

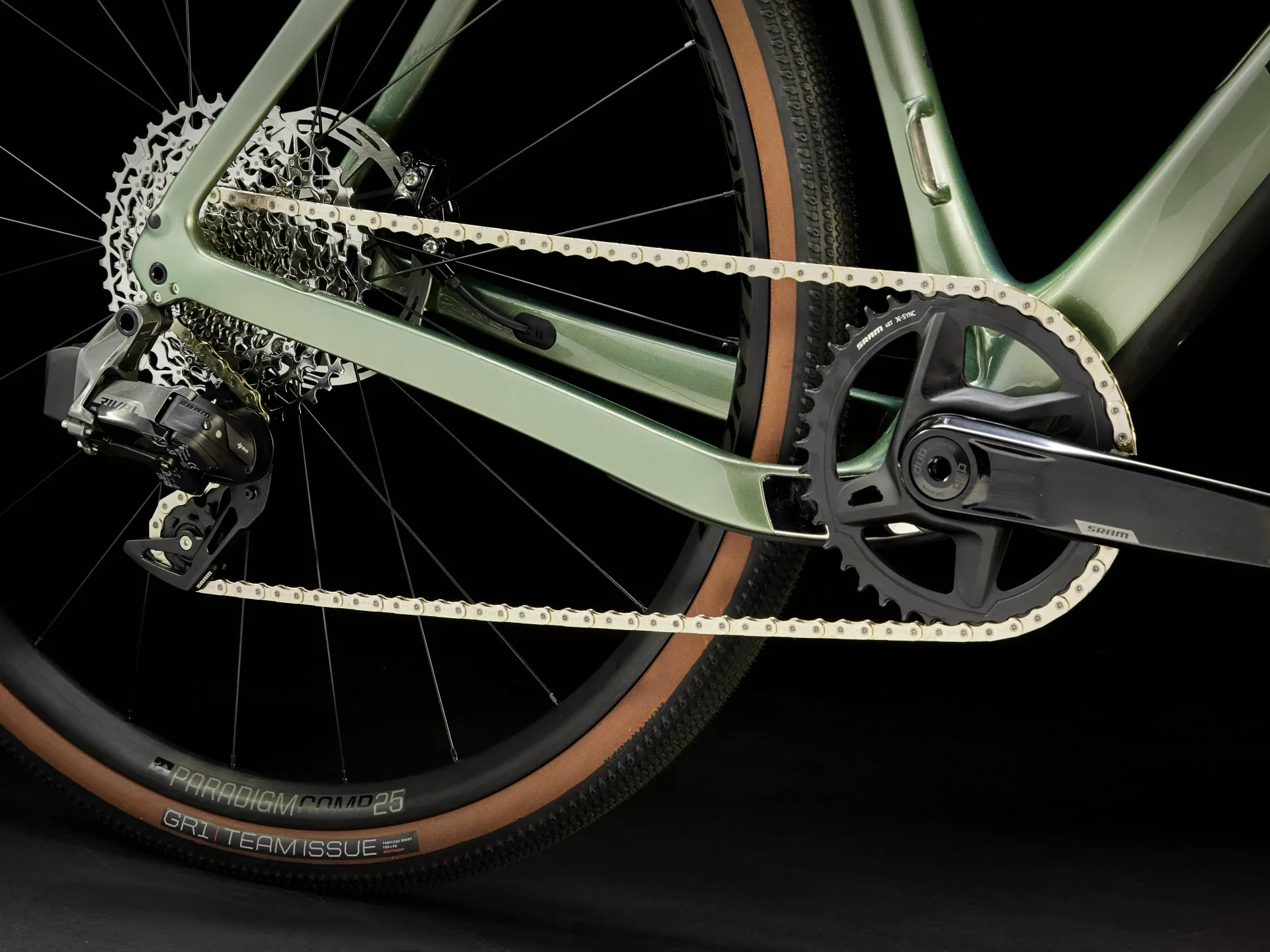

  • Gear Shifters:SRAM Rival eTap AXS, 12-speed
  • Chainset:SRAM Rival, 40T, DUB Wide, 165 - 175 mm length
  • Chainrings:40T
  • Rear Cassette:SRAM XG-1251, 10-44, 12-speed
  • Chain:SRAM Rival, 12 speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM Rival XPLR eTap AXS, 44T max cog
  • Bottom Bracket:SRAM DUB, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager TLR
  • Front Hub:Bontrager Paradigm Comp 25, 100x12 mm thru axle
  • Rear Hub:Bontrager Paradigm Comp 25, SRAM XD-R 12-speed freehub, 142x12 thru axle
  • Front Tyre:Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
  • Rear Tyre:Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
  • Brakes:SRAM Rival hydraulic disc, SRAM Paceline, rounded, CentreLock, 160 mm
  • Handlebars:Bontrager Elite Gravel, 38 - 44 cm width
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Headset:Information not available
  • Stem:Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 - 100 mm length
  • Saddle:Verse Comp, steel rails, 155 - 145 mm width
  • Seatpost:Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Accessories:Bontrager BITS Internal Frame Storage Bag
  • Weight:56 - 9.35 kg / 20.62 lbs (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Checkpoint

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
49156 - 163 cm5'1" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
61185 - 191 cm6'1" - 6'3"86 - 90 cm34" - 35"

Geometry for Trek Checkpoint AL, ALR, SL

Frame size number49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c
A — Seat tube495254565861
B — Seat tube angle74.1°73.7°73.2°72.8°72.5°72.1°
C — Head tube length910.512.514.516.519.5
D — Head angle71.2°71.6°71.8°72.2°72.3°72.6°
E — Effective top tube54.155.55758.459.761.7
G — Bottom bracket drop7.87.87.67.67.47.4
H — Chainstay length43.543.543.543.543.543.5
I — Offset4.54.54.54.54.54.5
J — Trail7.47.176.76.66.5
K — Wheelbase102.5103.3104.1104.8105.8107
L — Standover73.576.578.980.982.985.9
M — Frame reach39.339.940.340.741.141.7
N — Frame stack53.855.357.159.260.963.9
Stem length7080809090100

Geometry for Trek Checkpoint SLR

Frame size number49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c
A — Seat tube495254565861
B — Seat tube angle74.1°73.7°73.2°72.8°72.5°72.1°
C — Head tube length910.512.514.516.519.5
D — Head angle71.2°71.6°71.8°72.2°72.3°72.6°
E — Effective top tube54.155.55758.459.761.7
G — Bottom bracket drop7.87.87.67.67.47.4
H — Chainstay length43.543.543.543.543.543.5
I — Offset4.54.54.54.54.54.5
J — Trail7.47.176.76.66.5
K — Wheelbase102.5103.3104.1104.8105.8107
L — Standover73.576.578.980.982.985.9
M — Frame reach39.339.940.340.741.141.7
N — Frame stack53.855.357.159.260.963.9
Stem length7080809090100
Saddle rail height min (w/short mast)57.561.564676972
Saddle rail height max (w/short mast)63.567.570737578
Saddle rail height min (w/tall mast)60.564.567707275
Saddle rail height max (w/tall mast)66.570.573767881

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
