The Émonda SLR frame set is an ultra-light, aerodynamic carbon road frame that's designed and built to soar up climbs with serious speed.
The Émonda SLR frame set is an ultra-light, aerodynamic carbon road frame that's designed and built to soar up climbs with serious speed.
Trek

EX DISPLAY Trek Emonda SLR Disc Road Framset 52cm 2023 in Iridescent Blue

£3,780.00 £7,100.00 46% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

EX DISPLAY Trek Emonda SLR Disc Road Framset 52cm 2023 in Iridescent Blue

Season:2023

Brand:Trek

Code:SD1207170C

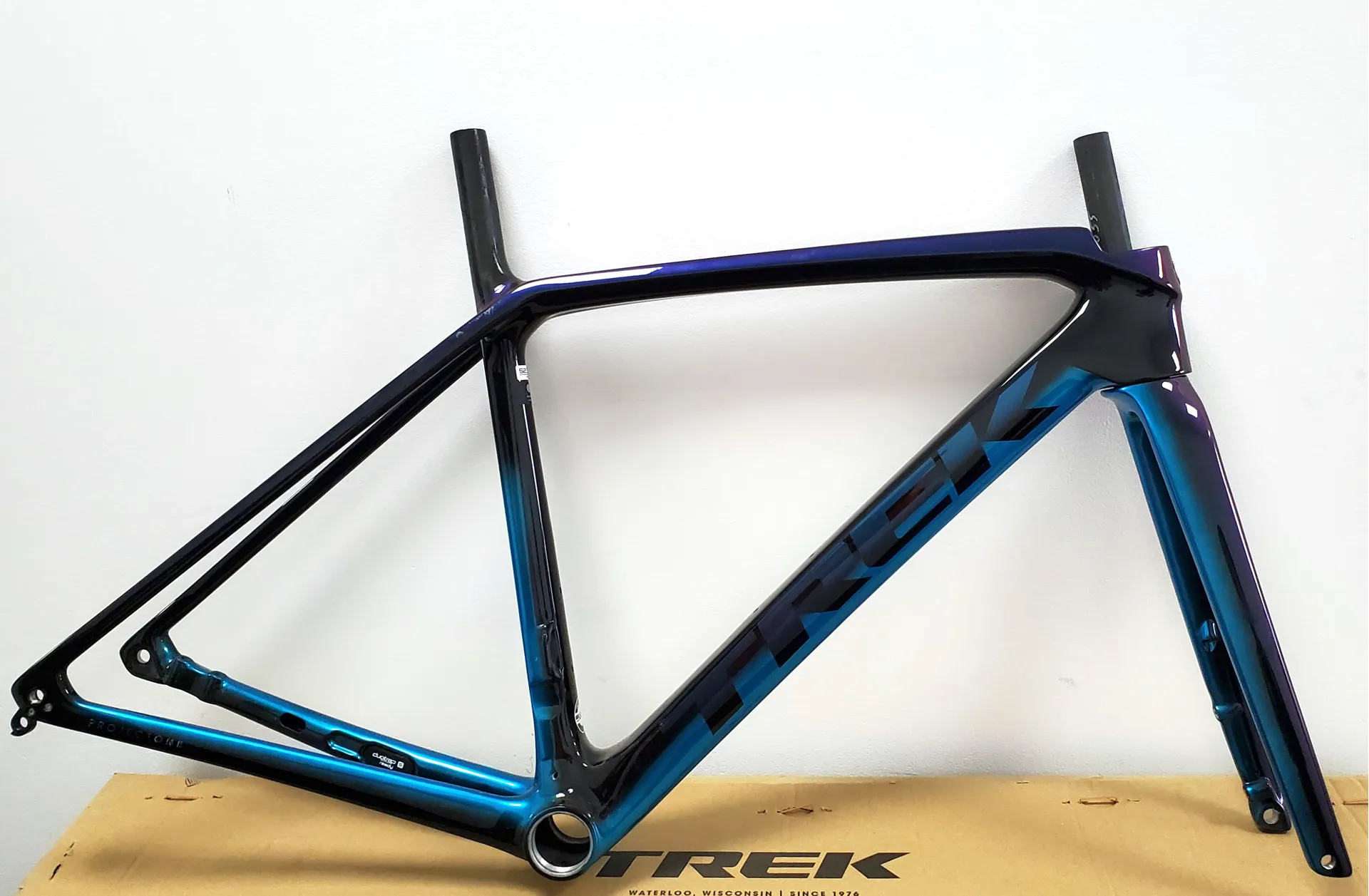

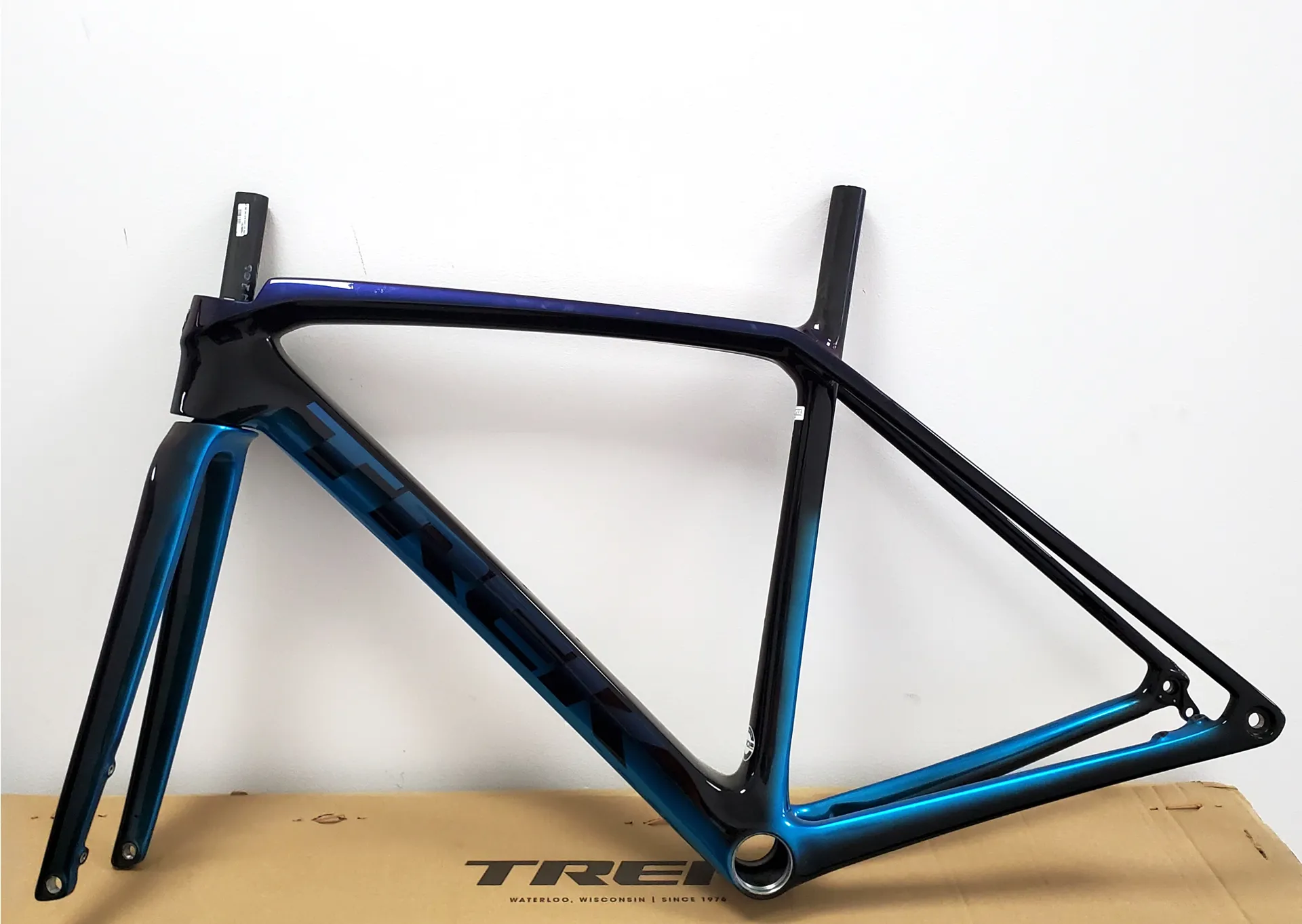

This Trek Emonda SLR Disc Road Frameset in Size 52m is an ex-display bike, it may have some light cosmetic damage, but otherwise the frame is as new. Please see photos for the condition of the bike.

Our ex-demo/display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

The Émonda SLR frameset is an ultra-light, aerodynamic carbon road frame that's designed and built to soar up climbs with serious speed. Trek's most advanced 800 Series OCLV Carbon lay-up delivers amazing ride quality and ultra-light aero performance for more free speed on any grade. Skewers and headset parts are included.

Key Features & Benefits:

  • 800 Series OCLV Carbon Fibre Frame:Trek’s fastest climbing frame is aero, weighs in at less than 700 g and rides like a dream
  • Carbon Fork:Dampen road vibrations for a smoother, more comfortable ride.
  • Aerodynamic Tube Shaping:Makes this the fastest Émonda SLR platform ever – on flats and climbs alike.

Full Specification:

  • Frame:Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork:Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru-axle
  • Max Chainring Size:1x: 50T, 2x: 53/39
  • Weight:760 g – 56 cm (frame-only, painted), 381g (fork-only, painted)
  • Seatpost:Not included
  • Skewers front/rear:Bontrager Switch thru axle, removable lever
  • Max Tyre Size:28mm
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Emonda SL & SLR Disc Road Bike

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152-1584'11.8" - 5'2.2"71-7528-29.5
50158-1635'2.2" - 5'4.2"74-7729.1-30.3
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
60185-1906'0.8" - 6'2.8"86-8933.9-35.4
62190-1956'2.8" - 6'4.8"89-9235.0-36.2

Geometry for Trek Emonda SL & SLR Unisex Carbon Road Bike

All measurements in cm unless stated otherwise

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Stem length70809090100110110110
Saddle rail height min (w/short mast)55.558.561.56467697173
Saddle rail height max (w/short mast)61.564.567.57073757779
Saddle rail height min (w/tall mast)59626567.570.572.574.576.5
Saddle rail height max (w/tall mast)65687173.576.578.580.582.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
