The Kinesis GX Race combines the speed and agility of the race-winning CX Race frameset with the strength and capability of the Tripster AT.
The Kinesis GX Race combines the speed and agility of the race-winning CX Race frameset with the strength and capability of the Tripster AT.
Kinesis Uk

Kinesis GX Race Gravel Bike Frameset 2023 in Purple

£925.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Kinesis GX Race Gravel Bike Frameset 2023 in Purple

Season:2024

Brand:Kinesis Uk

Code:K-FS-GXRACE-R

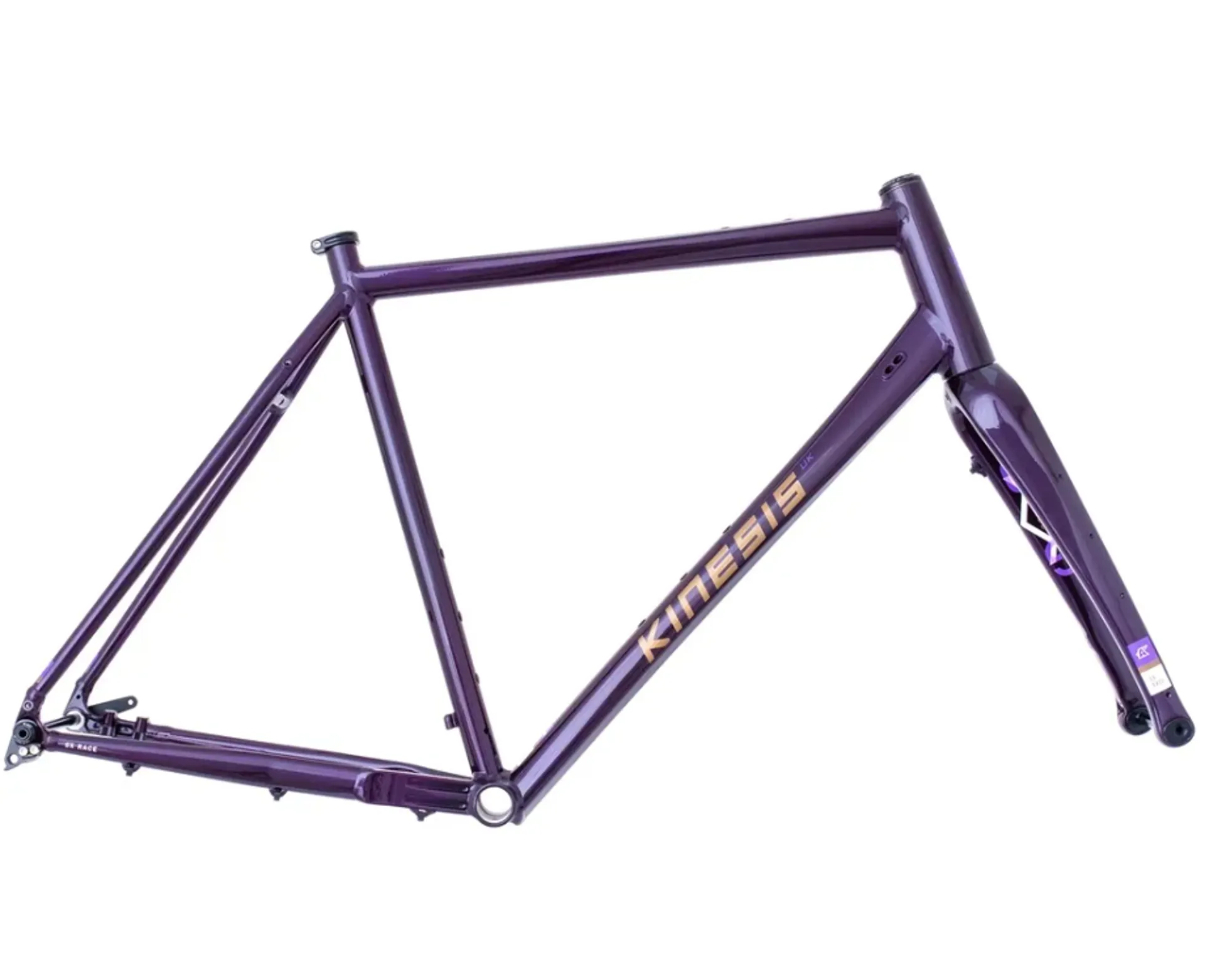

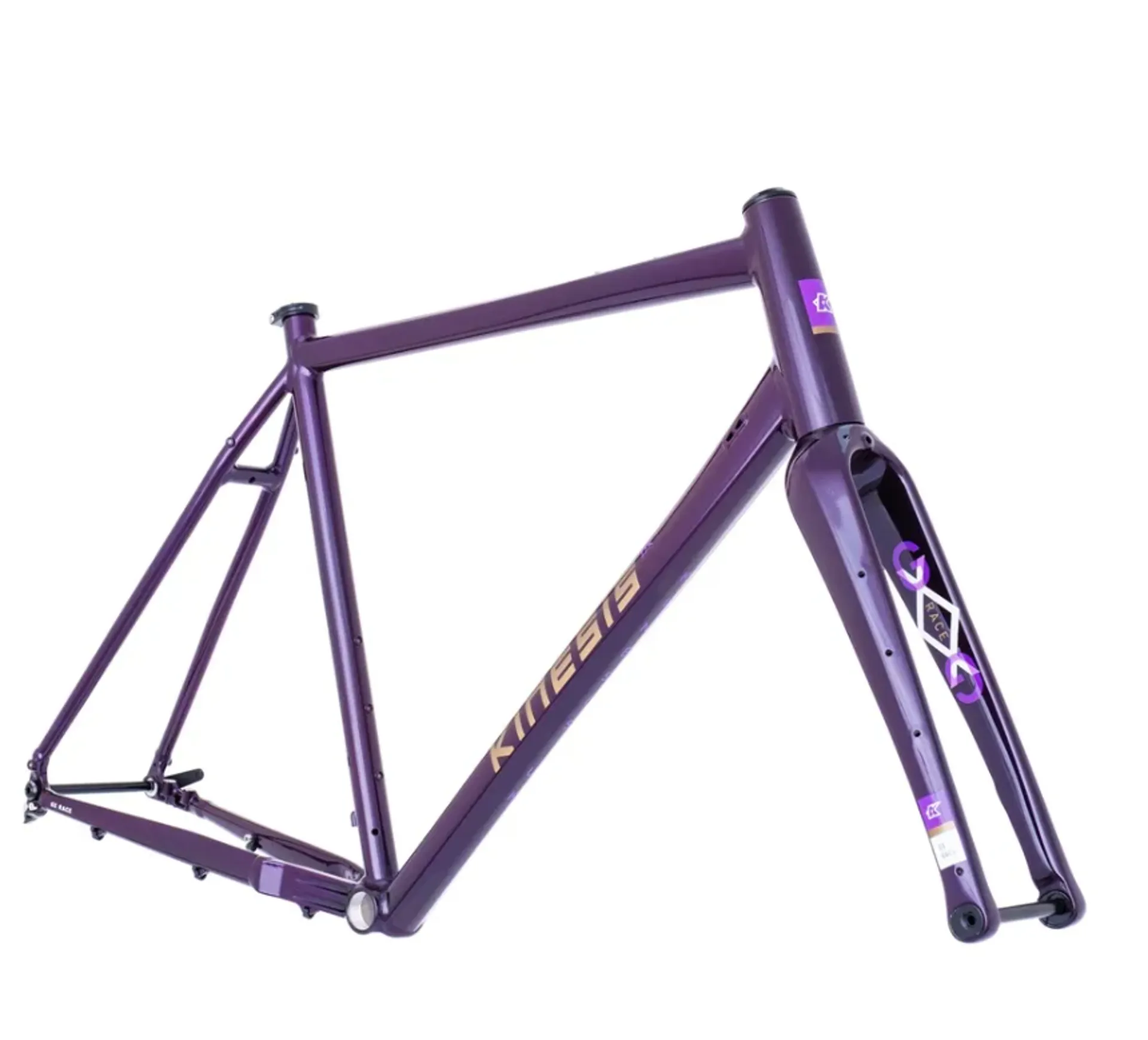

The Kinesis GX Race combines the speed and agility of the race-winning CX Race frameset with the strength and capability of the award-winning Tripster AT frameset. With race-inspired gravel geometry, the rider is more aerodynamic in the drops or the hoods. A longer reach allows for shorter stems to be used for improved and more comfortable off-road handling at high speed. The GX Race premium alloy frame is matched with the Columbus Futura Cross Plus full carbon monocoque fork. The fork features cargo mounts, internal dynamo cable routing, generous tyre clearance, and adjustable offset. The frame uses adaptable cable ports, allowing for builds with wireless, Di2, or mechanical 2x or 1x gearing. Kinesis has partnered with GW Engineering to supply the frame with patented ‘Switch Lever’ lightweight hollow thru axles with a removable lever. If riding extends to swift bike-packing trips, the bike can be loaded up to reach destinations faster.

Tyre Clearance:

With plenty of room front and rear, the frame accommodates 700c x 45mm or 650b x 50mm tyres.

Versatility:

Internal cable routing for mechanical and electronic gear systems and 2 x bottle boss mounts with multi-position points plus top tube mounts for securely fixing a top tube bag make this a versatile frameset.

Escape:

A fast, versatile frameset equally at home with a race number or a luggage set. It has all the attributes associated with the race-winning CX Race frameset combined with an ability to tackle bike-packing trips.

Key Features & Benefits:

  • Premium Alloy Frame & Carbon Fork: Tough yet lightweight 6069 series tubeset paired with a Columbus Futura Cross Plus full carbon monocoque fork for a responsive and capable ride.
  • Versatile Geometry & Handling: Race-inspired gravel geometry with a longer reach allows for shorter stems, providing improved aerodynamics and comfortable off-road handling at high speeds.
  • Adaptable Build Options: Features adaptable cable ports for wireless, Di2, or mechanical 1x/2x drivetrains, plus extensive mounting points for mudguards, racks, and cargo.

Full Specification:

  • Frame: GX Race premium alloy frame
  • Fork: Columbus Futura Cross Plus full carbon monocoque fork
  • Headset: 2.9cm - 3.8cm (1 1/8" - 1 1/2") tapered headtube with integrated headset
  • Thru Axles: GW Engineering ‘Switch Lever’ lightweight hollow thru axles
  • Tyre Clearance: 700c x 45mm / 650b x 50mm
  • Brake Mounts: Inboard Shimano Flat-Mount (max 160mm rotors)
  • Bottom Bracket: 68mm BSA threaded
  • Seatpost: 27.2mm
  • Seat Clamp: 31.8mm
  • Front Mech Compatibility: 31.8mm
  • Weight: 1.69kg (54cm frame)
  • Accessories: Headset, Thru-Axles, seat clamp, and all cable guides

Geometry Chart for Kinesis GX Race

Frame Size48cm (XXS) *50cm (XS) *52cm (S) *54cm (M)56cm (L)58cm (XL)60cm (XXL)
Seat Tube Length440470495540560580600
Top Tube Length (Effective)521531542557569584600
Head Tube Length110120135155175195215
Head Tube Angle707070.570.570.570.571
Seat Tube Angle74747473.7573.7573.573.3
Bottom Bracket Drop75757572727272
Chain Stay Length440440440440440440440
Front Centre590600608621635648657
Wheelbase1018102910371051106410781087
Stack533543559575594612633
Reach368375382389396403410
Fork Axle to Crown395395395395395395395
Fork Rake47474747474747
