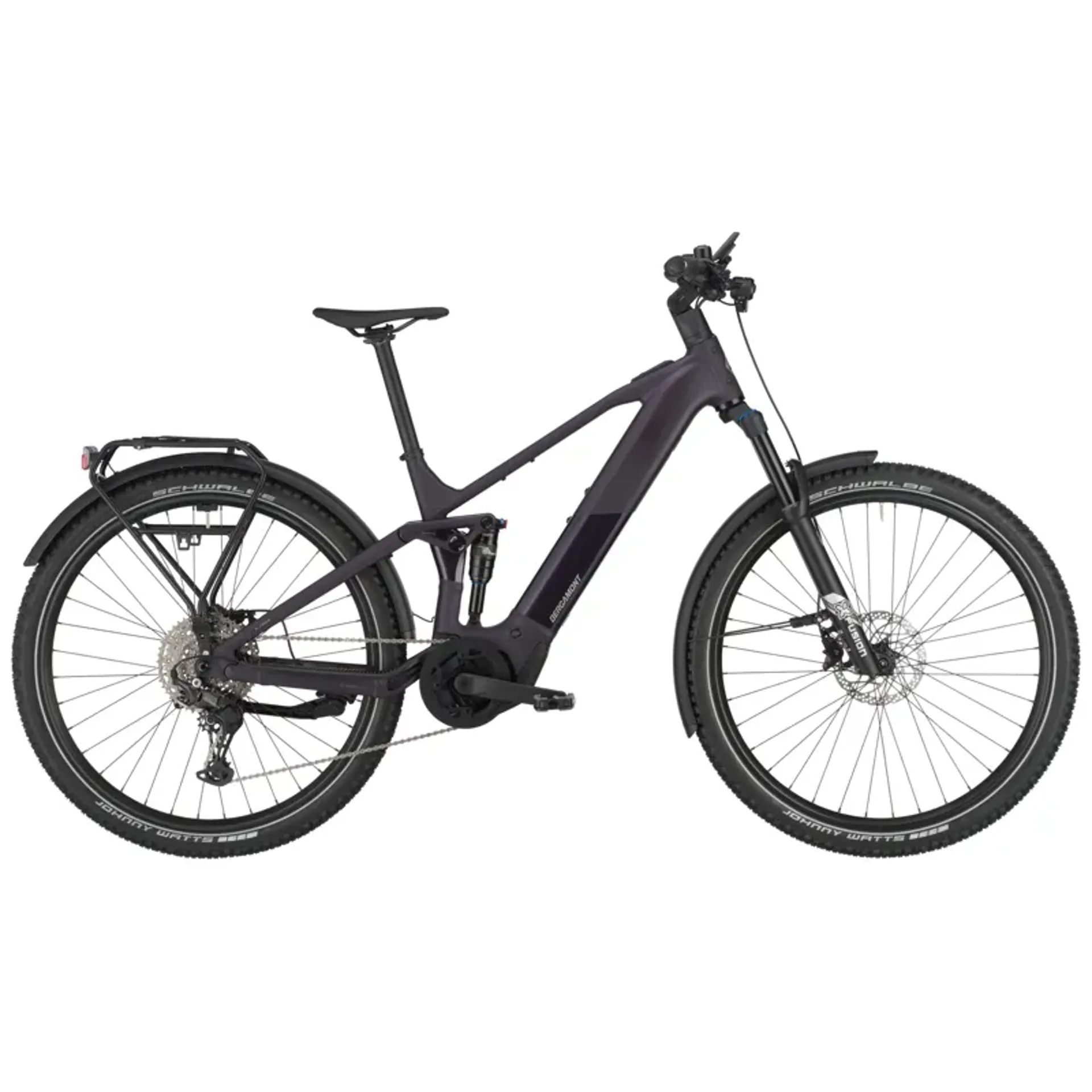

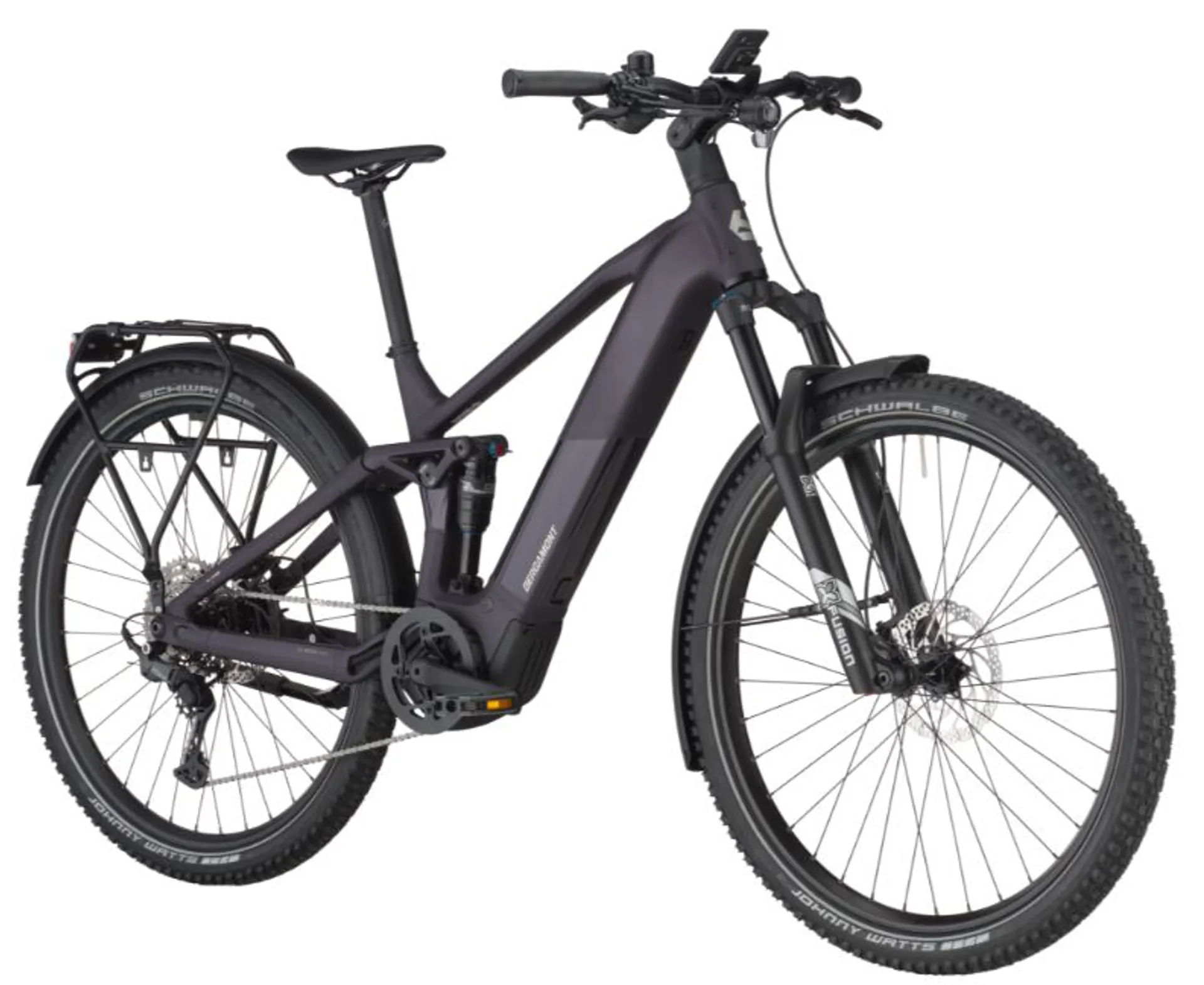

Bergamont E-Horizon SUV FS 10 2025 in Black

Season:2025Sale

Brand:Bergamont

Code:423637BLK

E-MTB genes spliced with Trekking amenities: The Bergamont E-Horizon SUV FS shares its frame with the Bergamont E-Revox FS range of e-mountain bikes. A dual suspension setup with 130 mm of travel ensures a very comfortable and less fatiguing ride. The suspension also improves control over your bike even in adverse riding conditions on paved or gravel roads, which results in a safer ride, especially over longer distances.

The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes and prepare for new adventures. The end of the road is definitely not the end of your ride with the Bergamont E-Horizon SUV FS. To complete the package the E-Horizon SUV FS has an increased maximum system weight of 160 kg and is conveniently equipped with LED lights, fenders, a rear carrier and a kickstand.

The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.

Key Features & Benefits:

  • Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • Aluminium Frame:Lightweight & durable.
  • Shimano Cues Drivetrain:Reliable, with a wide range of gears for all-terrain – even the biggest of hills.

Full Specification:

  • Frame: 28", ultra lite AL-6061 tubing, PowerTube battery, 130 mm travel
  • Rear Suspension (If Applicable):
    X-Fusion O2 Pro RLX, Trunnion, compression-, rebound. Adj., 130 mm
  • Fork: X-Fusion MIG 34 Boost, 130 mm, 15x110 mm axle
  • Motor: Bosch Smart System, Performance Line CX, 250 W, 36 V
  • Battery: Bosch PowerTube, 36 V Li Ion, 800 Wh
  • Controller: Bosch Intuvia 100 / Mini Remote / TT System Controller
  • Number of Gears: 10
  • Gear Shifters: Shimano Cues, SL-U6000, 1x10-speed, rapidfire plus-shifter
  • Chainset: FSA CK-220, 170 mm, 38t
  • Chainrings: 38t
  • Rear Cassette: Shimano Cues, CS-LG400-10, 11-48t
  • Chain: Shimano Linkglide, CN-LG500
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano Cues, RD-U6000, Shadow Plus
  • Bottom Bracket: Bosch, Isis
  • Pedals: Trekking alloy
  • Rims: Syncros MD30, disc, eyelets, tubeless ready
  • Front Hub:
    Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle
  • Rear Hub: Shimano FH-TC500, centerlock, disc, 12x148 mm axle
  • Front Tyre: Schwalbe Johnny Watts LR, Performance, Addix, reflective stripe, 60-622Tube: Schwalbe SV19
  • Rear Tyre: Schwalbe Johnny Watts LR, Performance, Addix, reflective stripe, 60-622Tube: Schwalbe SV19
  • Brakes: Front: Shimano BR-MT420, hydraulic disc brake, 4-pistonRear: Shimano BR-MT410, hydraulic disc brake
  • Handlebars: BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
  • Handlebar Grip: BGM Comfort, Ergo, double density, lock-on
  • Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
  • Stem:
    Satori Python, adjustable
  • Saddle:
    Syncros Tofino 2.5
  • Seatpost:
    BGM Pro
  • Accessories: N/A
  • Weight: 29.2 kg




Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Bergamont Revox Size Guide


Bergamont Revox Geometry Guide

XS7S7M7M9L9XL9XXL9
ABB CENTER TO TOP OF SEATTUBE360 MM405 MM445 MM445 MM485 MM525 MM565 MM
BTOP TUBE PARALLEL570 MM577 MM586 MM587 MM599 MM612 MM632 MM
B*TOP TUBE HORIZONTAL580 MM595 MM610 MM610 MM625 MM640 MM660 MM
CCHAINSTAY435 MM435 MM435 MM458 MM458 MM458 MM458 MM
DHEADTUBE LENGTH110 MM125 MM135 MM110 MM120 MM130 MM145 MM
EHEAD ANGLE69,0 °69,0 °69,0 °69,0 °69,0 °69,0 °69,0 °
FSEAT ANGLE74,0 °74,0 °74,0 °74,0 °74,0 °74,0 °74,0 °
HBB OFFSET-56 MM-56 MM-56 MM-70 MM-70 MM-70 MM-70 MM
KWHEELBASE1.089 MM1.105 MM1.121 MM1.142 MM1.158 MM1.174 MM1.195 MM
LSTANDOVER HEIGHT700 MM734 MM762 MM771 MM798 MM825 MM854 MM
MSTACK597 MM611 MM621 MM629 MM638 MM647 MM661 MM
NREACH404 MM416 MM428 MM426 MM438 MM451 MM466 MM
FORK LENGTH483 MM483 MM483 MM503 MM503 MM503 MM503 MM
FORK RAKE42 MM42 MM42 MM46 MM46 MM46 MM46 MM
GSEATPOST DIAMETER27,2 MM27,2 MM27,2 MM27,2 MM27,2 MM27,2 MM27,2 MM

Warranty Information for Bergamont:

The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the BERGAMONT bicycle is not serviced at least once a year by an authorized BERGAMONT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the BERGAMONT manual and must be confirmed there by the stamp and signature of the authorized BERGAMONT dealer.

For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by BERGAMONT, the duration of the manufacturer's guarantee is limited to two years.

If a defect on the BERGAMONT bicycle is remedied within the scope of a manufacturer’s guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the BERGAMONT bicycle to a third person.
For full warranty policy please visit https://www.bergamont.com/gb/en/support/warranty
