Equipped for on- or off-road rides any time of day or year
Equipped for on- or off-road rides any time of day or year
Bergamont

Bergamont E-Revox Pro EQ Electric Hybrid Bike 2025 in Black

£2,029.00 £3,299.00 38% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Bergamont E-Revox Pro EQ Electric Hybrid Bike 2025 in Black

Season:2025Sale

Brand:Bergamont

Code:291023

Wherever you want to go: With the highest level of integration of the latest Bosch Performance Line CX drive unit and 625 Wh PowerTube battery technology, paired with robust components, you are perfectly equipped for on- or off-road rides any time of day or year.

Key Features & Benefits:

  • 625Wh PowerTube Battery:Keeps you riding all day.
  • Aluminium Frame:Lightweight & durable.
  • Shimano Drivetrain:Reliable, with a wide range of gears for all-terrain - even the biggest of hills.

Full Specification:

  • Frame: 29", super lite AL-6061 tubing, BES III, PowerTube battery
  • Rear Suspension (If Applicable): NA
  • Fork: Suntour XCR34 LOR Air, 120 mm, rebound adjust, 15x110 mm axle
  • Motor: Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
  • Battery: Bosch PowerTube, 36 V Li Ion, 625 Wh
  • Controller: Bosch LED Remote with Kiox 300 display
  • Number of Gears: 11
  • Gear Shifters: Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter
  • Chainset: FSA CK-320, 34t, 170 mm
  • Chainrings: 34T
  • Rear Cassette: Shimano Deore, CS-M5100, 10-51t
  • Chain: KMC e11S
  • Front Derailleur: NA
  • Rear Derailleur: Shimano Deore, RD-M5100, Shadow Plus
  • Bottom Bracket: Bosch, Isis
  • Pedals: MTB alloy
  • Rims: Cross X18, disc, eyelets, width: 30 mm
  • Front Hub: Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
  • Rear Hub: Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
  • Front Tyre: Schwalbe Al Grounder, 29x2.35"
  • Rear Tyre: Schwalbe Al Grounder, 29x2.35"
  • Brakes: Shimano BR-MT410, hydraulic disc brake
  • Handlebars: Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
  • Handlebar Tape: Syncros E-MTB
  • Headset: Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
  • Stem: Satori Viper, 0°
  • Saddle: Syncros Tofino 2.5
  • Seatpost: Syncros M3.0
  • Accessories: Racktime / BGM E-revox carrier, SnapIt 2.0 System, Light Front: Litemove SE, 110 Lux, LED Light Rear: Herrmans H-Trace Mini, LED
  • Weight: 27.2 KG
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

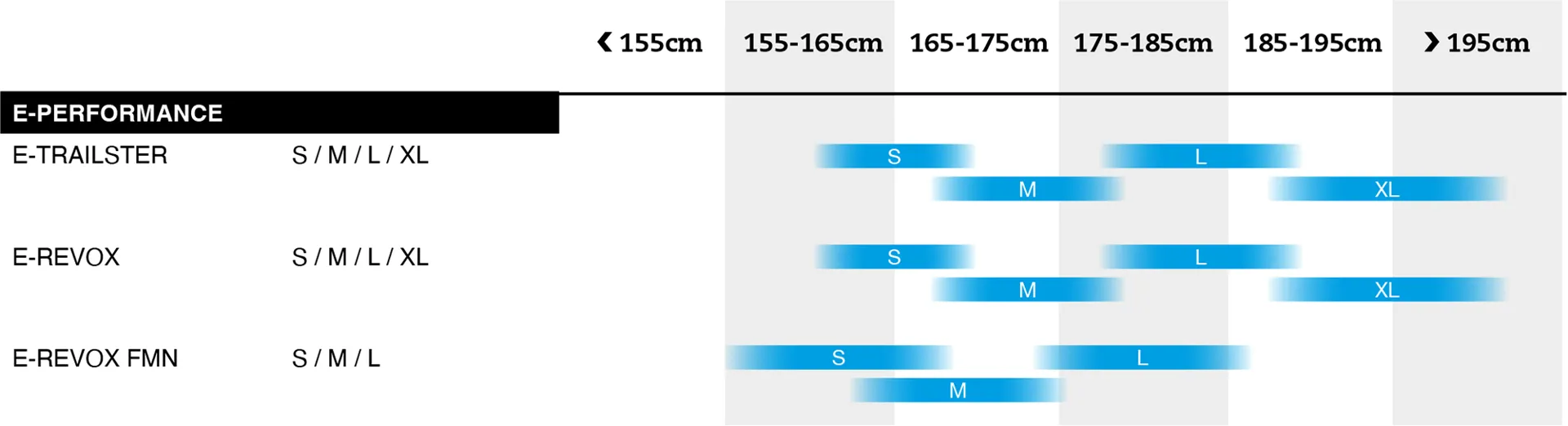

Bergamont E-Revox Size Guide



Bergamont E-Revox Geometry Guide

SmallMediumLargeX-Large
ABB center to top of seattube420 mm450 mm480 mm520 mm
Btop tube parallel563 mm582 mm587 mm593 mm
B*top tube horizontal580 mm590 mm600 mm610 mm
Cchainstay500 mm500 mm500 mm500 mm
Dheadtube length120 mm130 mm140 mm160 mm
Ehead angle68,0 °68,0 °68,0 °68,0 °
Fseat angle74,0 °74,0 °74,0 °74,0 °
HBB offset-65 mm-65 mm-65 mm-65 mm
Kwheelbase1.176 mm1.187 mm1.198 mm1.210 mm
Lstandover height780 mm791 mm812 mm844 mm
Mstack643 mm653 mm662 mm680 mm
Nreach395 mm402 mm410 mm415 mm
fork length547 mm547 mm547 mm547 mm
fork rake47 mm47 mm47 mm47 mm
Gseatpost diameter31,6 mm
Ishock dimension
headset dimensionZS56/ZS56
BB standardBosch Gen4 / Bosch Gen3
hanger typeBGM-H054
max. rotor size220 mm

Geemetry Chart for FS Models:

ABB center to top of seattube410 mm440 mm470 mm500 mm
Btop tube parallel545 mm560 mm584 mm613 mm
B*top tube horizontal585 mm605 mm635 mm665 mm
Cchainstay465 mm465 mm465 mm465 mm
Dheadtube length120 mm125 mm135 mm145 mm
Ehead angle66,0 °66,0 °66,0 °66,0 °
Fseat angle75,0 °75,0 °75,0 °75,0 °
HBB offset-30 mm-30 mm-30 mm-30 mm
Kwheelbase1.215 mm1.236 mm1.258 mm1.290 mm
Lstandover height769 mm769 mm798 mm810 mm
Mstack627 mm631 mm641 mm650 mm
Nreach422 mm440 mm460 mm488 mm
fork length557 mm557 mm557 mm557 mm
fork rake44 mm44 mm44 mm44 mm
Gseatpost diameter31,6 mm
Ishock dimension185x55 mm



Warranty Information for Bergamont:

The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the BERGAMONT bicycle is not serviced at least once a year by an authorized BERGAMONT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the BERGAMONT manual and must be confirmed there by the stamp and signature of the authorized BERGAMONT dealer.

For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by BERGAMONT, the duration of the manufacturer's guarantee is limited to two years.

If a defect on the BERGAMONT bicycle is remedied within the scope of a manufacturer’s guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the BERGAMONT bicycle to a third person.
For full warranty policy please visit https://www.bergamont.com/gb/en/support/warranty

Sizing Information
