Cube Stereo Hybrid ONE77 HPC AT 800, Bosch CX, 800Wh, XT Di2 12-speed, Fox 38/Float X2, Newmen Beskar wheels, 170mm travel, big mountain-ready.

Cube Stereo Hybrid ONE77 HPC AT 800, Bosch CX, 800Wh, XT Di2 12-speed, Fox 38/Float X2, Newmen Beskar wheels, 170mm travel, big mountain-ready.

Cube

Cube Stereo Hybrid one77 HPC AT 800 Full Suspension Electric Mountain Bike 2026 in Actionteam

£6,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Cube Stereo Hybrid one77 HPC AT 800 Full Suspension Electric Mountain Bike 2026 in Actionteam

Season:2026

Brand:Cube

Code:103510ACTION

The Stereo Hybrid ONE77 HPC AT 800 Carbon/Gold is a big mountain eMTB with 170mm travel front and rear, Bosch CX Performance drive, 800Wh battery, Shimano XT Di2 12-speed, and mullet wheels for ultimate trail control.

Key Features & Benefits:

  • Carbon frame: C:62® Monocoque with integrated 800Wh battery for lightweight strength and clean internal routing
  • Wireless precision: Shimano XT Di2 12-speed electronic shifting for smooth, reliable gear changes
  • Confidence & stability: Fox 38 Float Factory fork and Float X2 shock with 170mm travel plus mullet wheels for aggressive trail handling

Full Specification:

  • Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

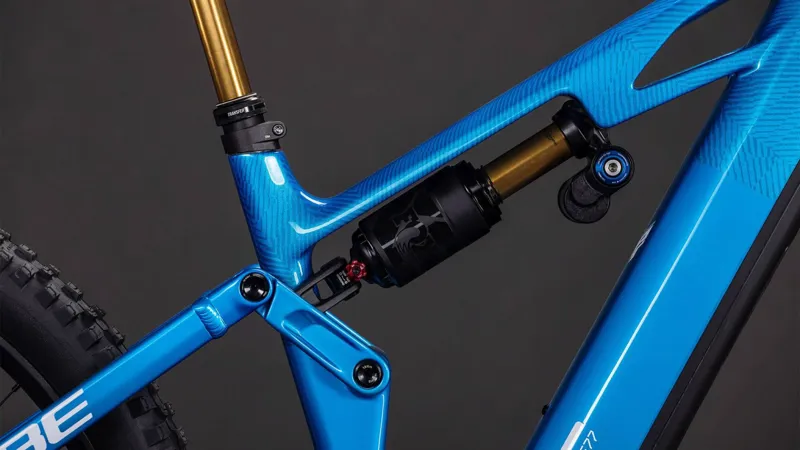

  • Rear Suspension: Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever

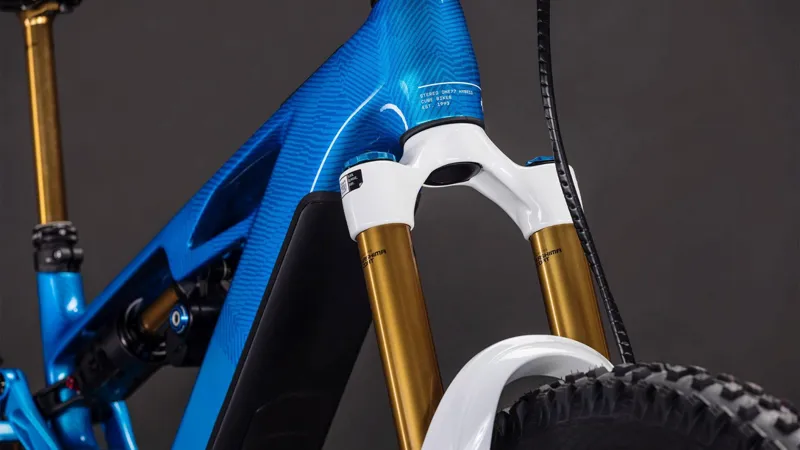

  • Fork: Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
  • Motor: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
  • Battery: Bosch PowerTube 800

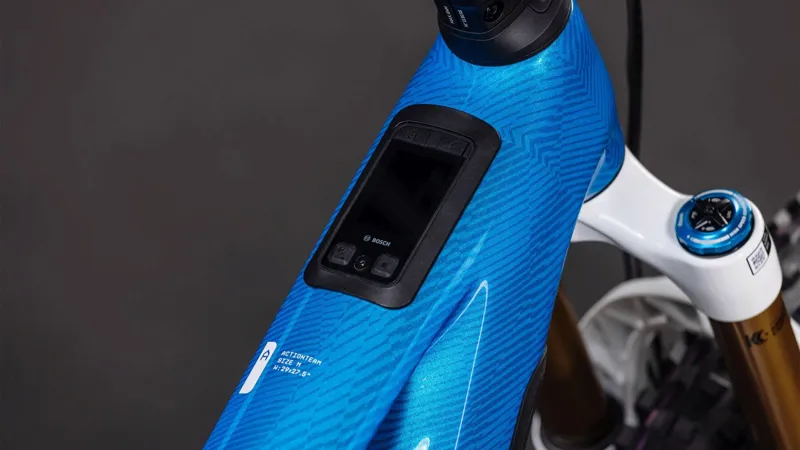

  • Controller: Bosch Kiox 400C
  • Number of Gears: 12
  • Gear Shifters: Shimano XT Di2 SW-M8250-IR, Direct Attach

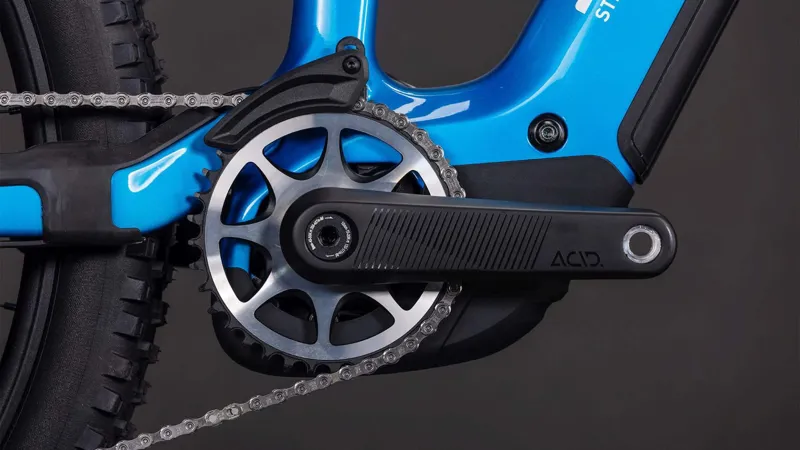

  • Chainset: Acid MTB Hybrid Carbon, 36T
  • Chainrings: 36T
  • Rear Cassette: Shimano XT CS-M8100, 10-51T
  • Chain: Shimano XT CN-M8100
  • Front Derailleur: Not Applicable
  • Rear Derailleur: Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
  • Bottom Bracket: Integrated in Acid MTB Hybrid Carbon crank
  • Pedals: Acid PP MTB
  • Rims: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Front Hub: 15x110mm
  • Rear Hub: 12x148mm
  • Front Tyre: Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
  • Rear Tyre: Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
  • Brakes: Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203)
  • Handlebars: RaceFace ERA 35
  • Handlebar Tape: Acid Disrupt, Soft Compound
  • Headset: Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
  • Stem: Cube Performance Stem E-MTB 35, FPI-Link
  • Saddle: Acid Venec EMTB Trail 140
  • Seatpost: Fox Transfer Factory 31.6mm, Kashima Coated
  • Accessories: Cube Semi-Integrated Seatpost Clamp
  • Weight: 24.7kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Cube Stereo ONE77 Geometry Guide

Slack/ModerateMLXLXXL
Seat tube405420470470
Top Tube Horizontal589 / 591610 / 611633 / 635659 / 661
Seat angle76.7° / 76.5°76.7° / 76.5°76.7° / 76.5°76.7° / 76.5°
Head tube angle63.8° / 64.4°63.8° / 64.4°63.8° / 64.4°63.8° / 64.4°
Chainstays435435435435
Head tube103105115135
Wheelbase1229 / 12221250 / 12421274 / 12671297 / 1289
BB-Height to Hub-27 / -25-27 / -25-27 / -25-27 / -25
Protrusion height - 80mm743 / 747740 / 744766 / 770767 / 771
Reach452 / 450472 / 470492 / 490512 / 510
Stack626 / 627627 / 629636 / 638654 / 656

MLXLXXL
Length seat post418.3475.1475.1475.1
Diameter seatpost31.631.631.631.6
Crank length170170170170
Diameter tire maximum760760760760
Width tire maximum65656565
Stem length40405050
Handlebar width780800800800
Stroke seatpost150175175175
Rear suspension travel170170170170

Warranty Information for Cube:

Your CUBE bike is warranted to be free from manufacturing defects for 2 years with effect from the date of sale. In addition, we provide our customers with the following warranty in the event of frame breakage outside the statutory warranty period as follows:
For all frames and rigid forks from model year 2012 and onwards Cube guarantee from the date of sale from the dealer:
Aluminium: 6-year guarantee
Carbon fibre, aluminium-carbon fibre: 3-year guarantee
If a break occurs during this period (from date of sale), Cube will replace the item with the same or similar.
BOSCH Warranty (E-Bikes): The warranty period is 24 months.
For full warranty policy please visit cube.eu
