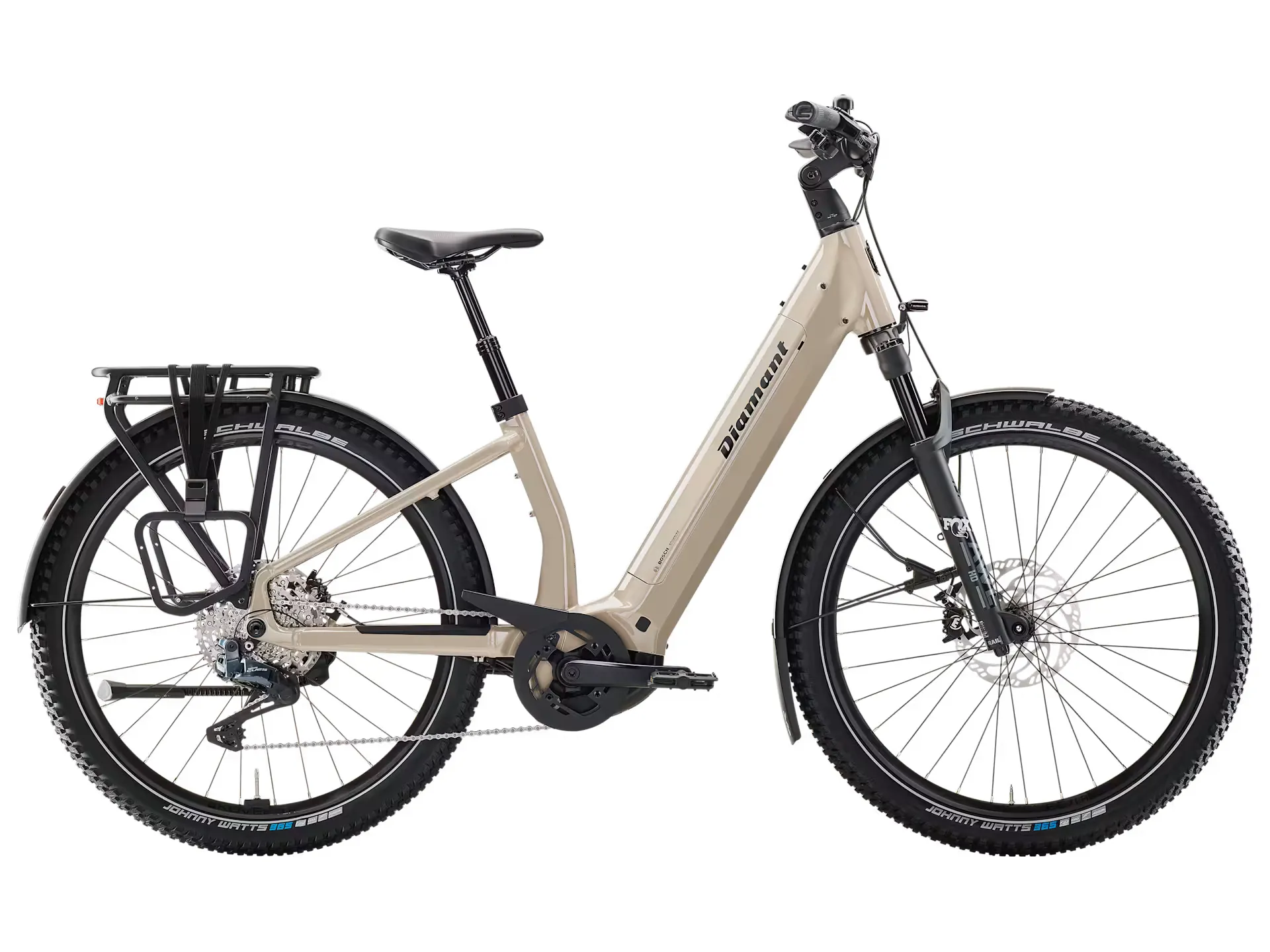

Diamant Suvea Trip Pro Lowstep 600wh Electric Hybrid Bike 2026 in Clay Beige

Season:2026

Brand:Diamant

Code:49651600LSLEHMBGELEHMBGE

The new Suvea is the ultimate E-SUV. This innovative bike ignites a fireworks display of practical innovations that make the experience on two wheels easier, more comfortable, and safer. The Suvea Trip Pro is ready for the ultimate electrified experience, not shying away from really bad paths, yet it wraps its competence in a reserved, timeless, appropriately slim shell. The versatility of the low-entry frame with the optional Accessory Bar is incomparable.

The right-side 3/4 position of the battery opening simplifies battery removal, allows the integration of an Apple AirTag holder in the motor housing, and supports Bosch batteries, which use artificial intelligence to ensure the battery never runs out too soon.

Key Features & Benefits:

  • 250W Bosch Performance Line Motor:The most reliable pedal-assist motor in the e-bike industry, capable of sustaining speeds up to 15.5mph
  • Hydraulic Disc Brakes:Reliable braking performance to keep you in control, whatever the weather.
  • 11-speed Shimano Drivetrain:For reliable shifting performance, with a range of gears to tackle the hills.

Full Specification:

  • Frame: High-performance hydroformed alloy, Smart Routing for cables, UDH dropout, belt split, ringlock mount
  • Fork:.Fox 36 AWL HD, air spring, Sweep adjust, 100 mm travel
  • Number of Gears:11
  • Gear Shifters:Shimano EN605 Di2, 11-speed
  • Chainset:ProWheel alloy, 165-170mm length
  • Chainrings:Alloy, with 40T narrow-wide steel ring, alloy guard
  • Rear Cassette:Shimano CUES LG400, LINKGLIDE, 11-50, 11-speed
  • Chain:Shimano LG500, 9/10/11-speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano CUES U8050 Di2, 50T max cog
  • Bottom Bracket:N/A
  • Pedals:VP-536 nylon platform
  • Rims:Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
  • Front Hub:Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
  • Rear Hub:Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
  • Front Tyre:Schwalbe Johnny Watts 365, reflective strip, puncture protection, 65-584
  • Rear Tyre:Schwalbe Johnny Watts 365, reflective strip, puncture protection, 65-584
  • Brakes:Magura MT Thirty, 4-piston hydraulic disc, Magura MDR-C, 203 mm
  • Handlebars:Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
  • Handlebar tape: Ergotec EG Active Flex, lock on, flex adjustment
  • Stem:Aluminium, adjustable, 31.8 mm, Blendr-compatible, with display mount
  • Saddle:Selle Royal Vivo Moderate Ergo with Royalgel
  • Seatpost:Suspension dropper post TransX YSP28PLQ, internal cable routing with 100 mm drop, 362 mm long
  • Front Light:Supernova Starstream, 500 lumen, LED
  • Rear Light:Spanninga Pimento Large, with brake light
  • Kickstand:Pletscher Comp Flex 40 kickstand
  • Weight: S-M - 28.50 kg (600Wh) / 29.40 kg (800Wh)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Suvea is compatible with an optional Accessory Bar (link opens in new tab) which converts your lowstep e-bike into a stepover e-bike with a multifunctional, gear-carrying top tube.

Size Guide for Diamant Suvea

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S-M155 – 1775’1″ – 5’10″72 - 8428 - 33
L-XL173 – 1955’8” – 6’5″81 - 9332 - 37

Geometry Information Diamant Suvea

Frame size letterS-ML-XL
Wheel size27.5"27.5"
A —Seat tube4353
B —Seat tube angle68.0°68.0°
C —Head tube length16.518.5
D —Head angle69.0°69.0°
E —Effective top tube6163
F —Bottom bracket height29.429.4
G —Bottom bracket drop77
H —Chainstay length48.348.3
I —Offset4.54.5
J —Trail8.78.7
K —Wheelbase117119
L —Standover4747
M —Frame reach4142
N —Frame stack6870

Warranty Information for Diamant:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
