Every trail, every steep climb, every thrilling descent.
Every trail, every steep climb, every thrilling descent.
Giant

Giant Reign E+ 1 Electric Full Suspension Mountain Bike 2024 in Blue Dragonfly

£4,899.00 £6,999.00 30% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

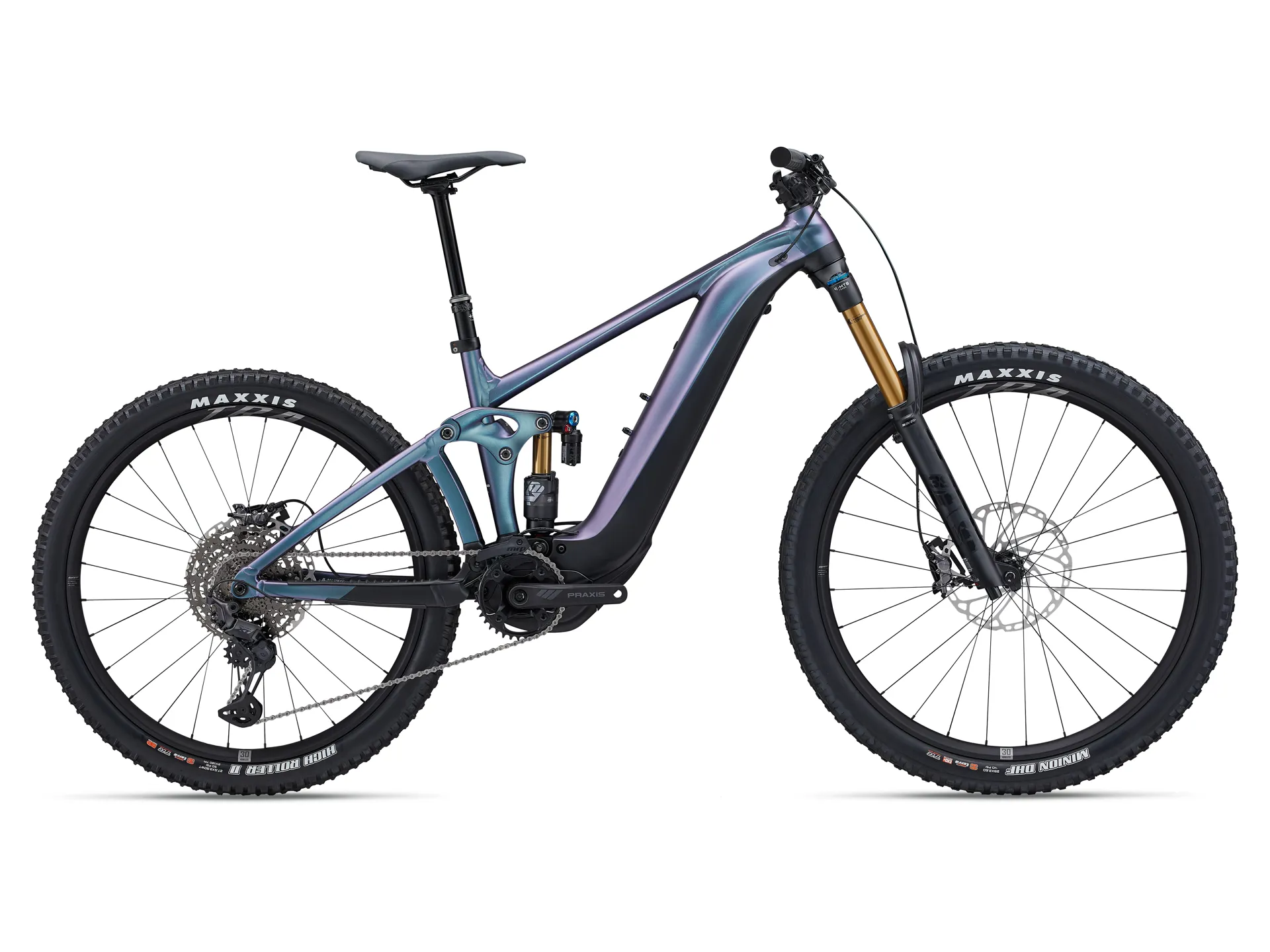

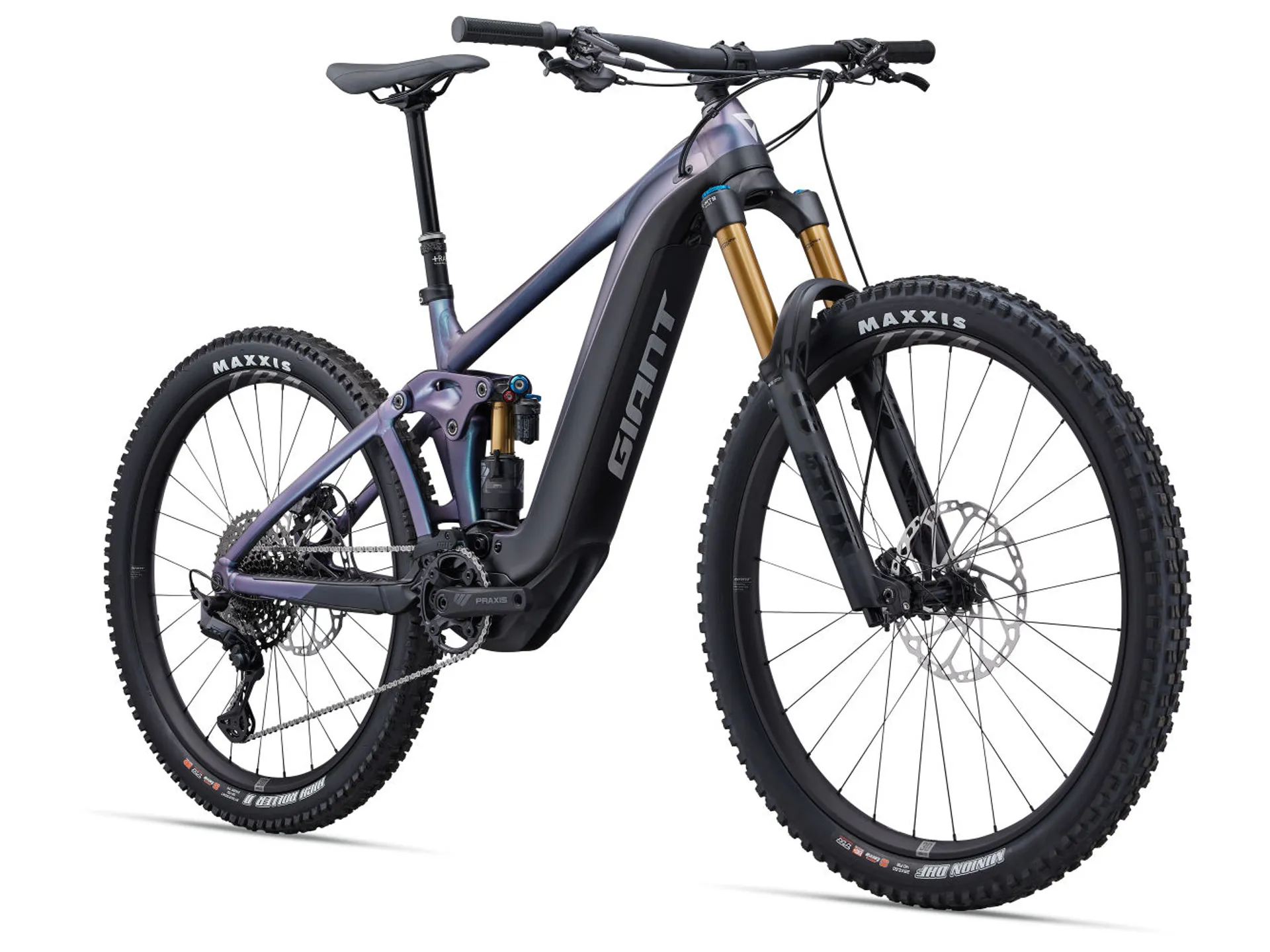

Giant Reign E+ 1 Electric Full Suspension Mountain Bike 2024 in Blue Dragonfly

Season:2024

Brand:Giant

Code:6046000BLUDragonfly

Every trail, every steep climb, every thrilling descent. nothing is out of bounds with the reign e+. Tested and developed by giant’s e-bike enduro pros, this proven trail ripper gives you the power to enjoy the best parts of the ride again and again.
Trail technology

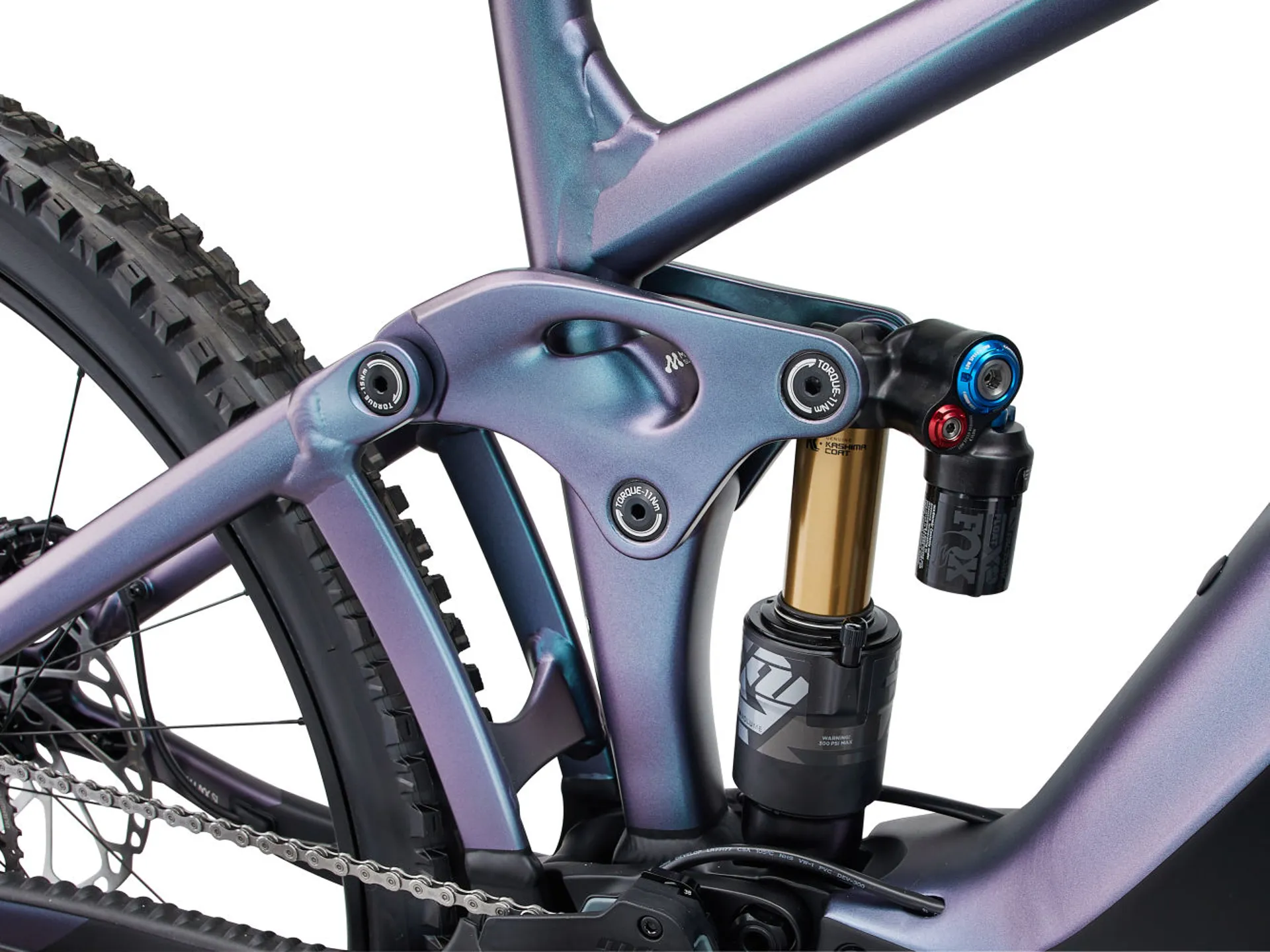

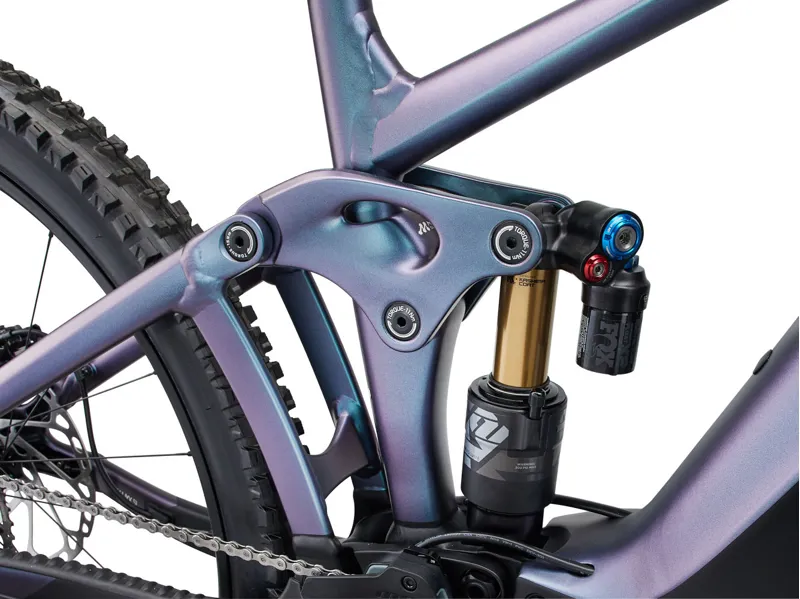

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.

Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power
Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.

Key Features & Benefits:

  • Smooth power delivery:New high-performance SyncDrive Pro motor delivers 85Nm of torque and 400 percent tunable support.
  • Responsive hardtail handling:Proven Maestro rear suspension (160mm)
  • Longer range:New integrated RideControl Go and RideControl Ergo 3 units offer clean, simple control buttons, and the EnergyPak Smart battery system increases range by up to 20 percent.

Full Specification:

  • Frame:ALUXX SL-grade aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger

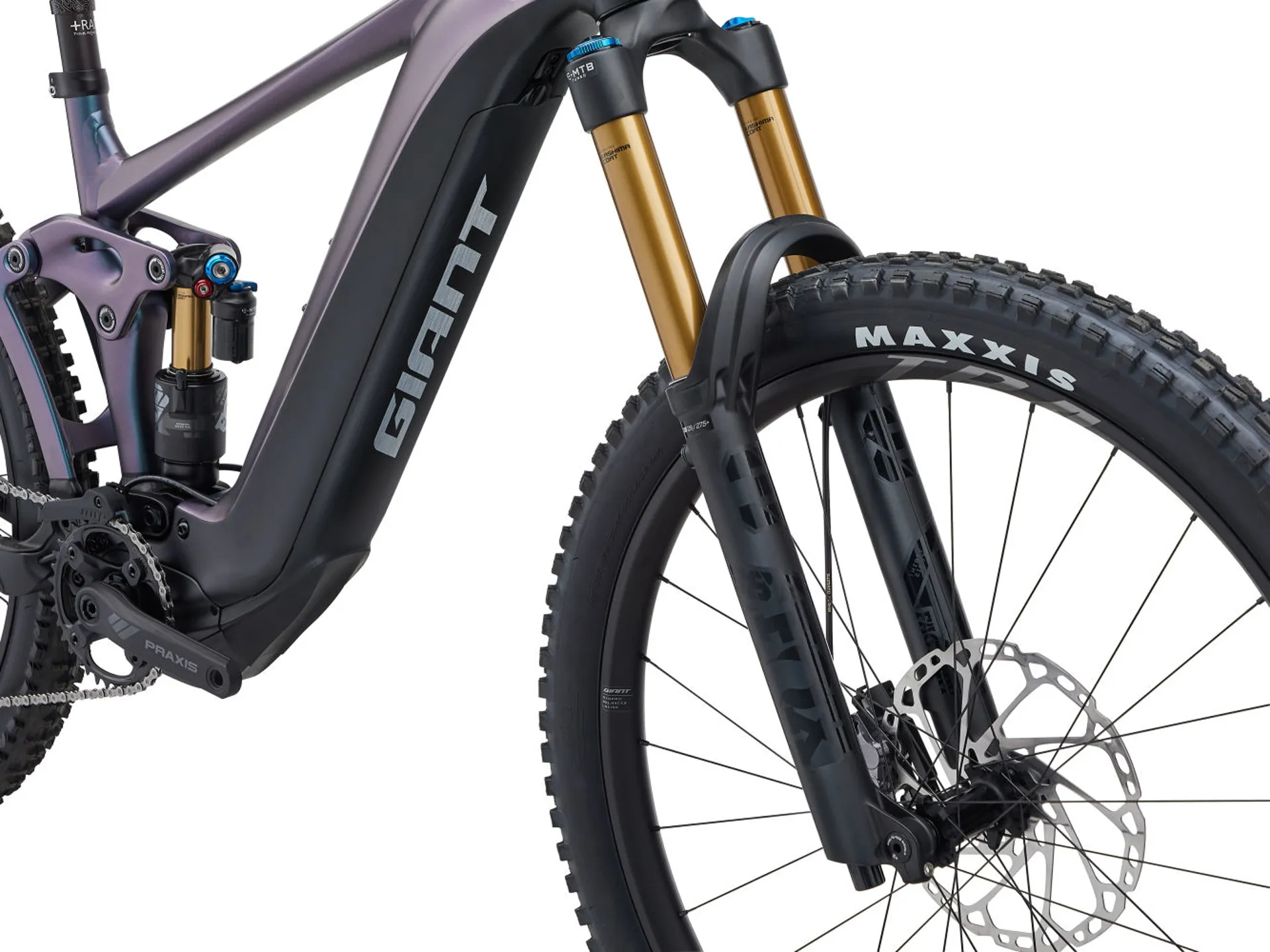

  • Fork:Fox 38 Factory E-Tuned, 29er, 170mm travel, 44mm offset, Grip2 VVC damper Kabolt-X 110
  • Rear Shock:Fox X2 Factory, EVOL Large Volume sleeve, 205x62.5mm Trunnion mount, custom tuned, recommended sag: 30%

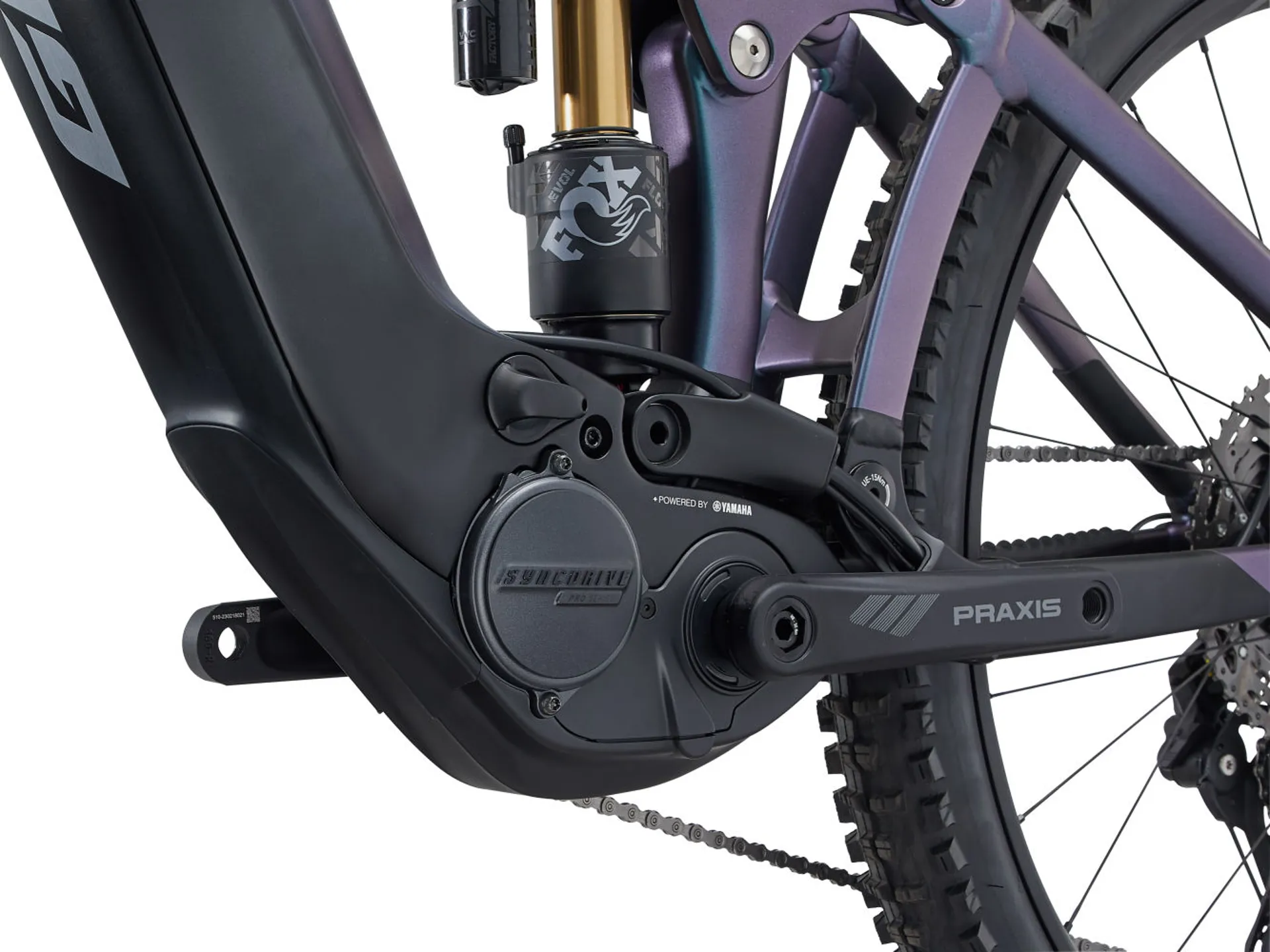

  • Motor:Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
  • Controller:RideControl Ergo 3, grip integrated

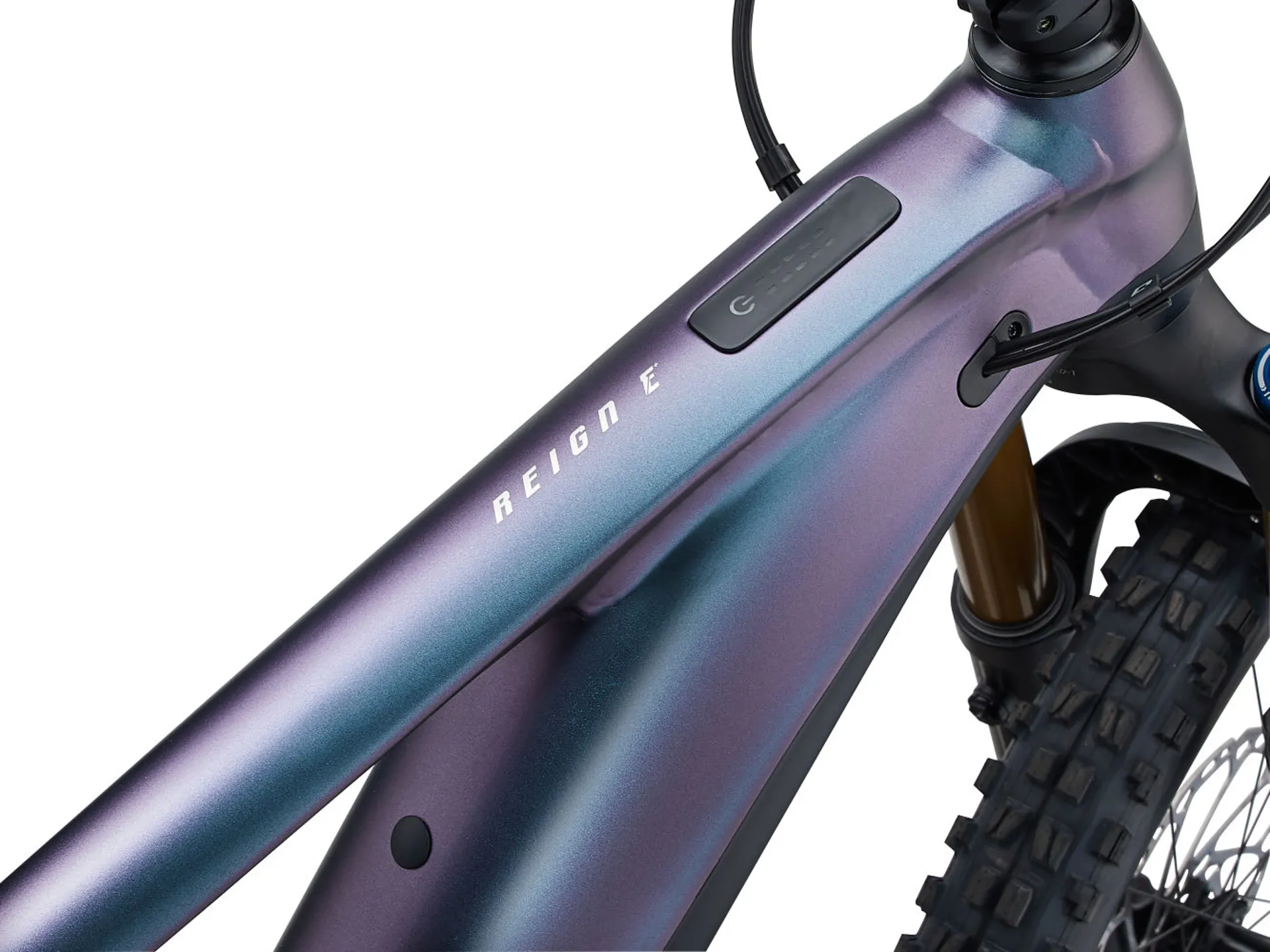

  • Display:RideControl GO, frame integrated LED displayANT+ Wireless display compatible
  • Battery:Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible (exculde S size)
  • Charger:Giant EnergyPak 6A smart charger, 60% in 2:15h
  • Number of Gears:11
  • Gear Shifters:Shimano XT LinkGlide 1x11
  • Chainset:Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm)
  • Chainrings:36T
  • Rear Cassette:Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
  • Chain:Shimano LinkGlide, CN-LG500
  • Front Derailleur:MRP 1X HD2 custom co-molded chain guide
  • Rear Derailleur:Shimano XT LinkGlide
  • Bottom Bracket:Giant Integrated
  • Pedals:Flat Pedal
  • Rims:E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width
  • Front Hub:E-TRA MTB Alloy Hub, 6 Bolt, 110x15
  • Rear Hub:148x12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle
  • Front Tyre:Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra
  • Rear Tyre:Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound
  • Brakes:Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 223mm
  • Handlebars:Giant Contact 35 Trail, 35x800mm
  • Handlebar Grips:Giant Tactal Pro-E, single lock-on
  • Stem:Giant Contact SL 35
  • Saddle:Giant Romero Trail
  • Seatpost:Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
  • Accessories:Giant EnergyPak Smart 6A charger Tubeless kit (liquid, valves, levers, manual, tool).
  • Weight:

Optional Extras: Lighting- Giant Recon series e-bike lights available and direct connectable, Lock -Torx 25 Battery Lock with built-in Torque limiter
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Sizing Chart for Giant Reign E+

Frame SizeRider Height (cm)
S5'3" – 5'7"
M5'7" – 6'0"
L6'0" – 6'4"
XL6'0" >

Geometry Chart for Giant Reign E+
bike diagram with measurements referenced in table that follows

SMLXL
LOW|HIGHLOW|HIGHLOW|HIGHLOW|HIGH
ASEAT TUBE LENGTH(mm)400425450475
BSEAT TUBE ANGLE76.7°|77.5°76.7°|77.5°76.7°|77.5°76.7°|77.5°
CTOP TUBE LENGTH(mm)569|568595|594622|621649|648
DHEAD TUBE LENGTH(mm)100100110120
EHEAD TUBE ANGLE63.7°|64.5°63.7°|64.5°63.7°|64.5°63.7°|64.5°
FFORK RAKE(mm)44444444
GTRAIL(mm)135.5|132.1135|132135|132135.5|132.1
HWHEELBASE(mm)1209|12101236|12371265|12661295|1296
ICHAIN STAY LENGTH(mm)454|454454|454454|454454|454
JBOTTOM BRACKET DROP(mm)25|1525|1525|1525|15
KSTACK(mm)636|632635|632645|641654|650
LREACH(mm)425|430450|455475|480500|505
MSTAND OVER HEIGHT(mm)785|789772|776771|775768|772
NHANDLEBAR WIDTH(mm)800800800800
OSTEM LENGTH(mm)40405050
PCRANK LENGTH(mm)160160165165
QWHEEL SIZEF29" / R27.5"F29" / R27.5"F29" / R27.5"F29" / R27.5"

Warranty Information for Giant

ComponentWarranty Period
Bicycle frame (Downhill excluded)Lifetime
Rigid Forks10 Years
Downhill frame3 Years
Giant own brand components, Pedals, grips, bar tape, saddle, Paint & Decals2 Years
Electronic E-bike components including battery2 Years (or 600 charge cycles)

For full warranty policy please visit giant-bicycles.com

Technical Information
  • Motor
    SyncDrive Pro, 85Nm, powered by Yamaha
  • Controller
    RideControl Ergo 3, grip integrated
  • Display
    RideControl GO, frame integrated LED displayANT+ Wireless display compatible
  • Battery
    EnergyPak Smart 625WhEnergyPak Plus range extender compatible
  • Charger
    EnergyPak 6A smart charger
  • Sizes
    S, M, L, XL
  • Colours
    Good Grey
  • Frame
    ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, UDHTM derrailleur hanger
  • Fork
    Fox 38 Float Performance Elite 29er, 170mm travel, GRIP2 VVC Damper, Boost 110x15 Kabolt floating axle, e-Bike optimised
  • Shock
    Fox Float X2 Performance Elite, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned
  • Handlebar
    Giant Contact Trail, 35x800mm
  • Grips
    Giant Tactal Pro-E, single lock-on
  • Stem
    Giant Contact SL 35
  • Seatpost
    Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
  • Saddle
    Giant Romero Trail
  • Pedals
    Flat pedal
  • Shifters
    Shimano Deore XT
  • Front Derailleur
    MRP 1X HD2 custom co-molded chain guide
  • Rear Derailleur
    Shimano Deore XT, 12-Speed, Shadow+
  • Brakes
    Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm
  • Brake Levers
    Shimano Deore XT BL-M8100, I-spec EV
  • Cassette
    Shimano HG-M7100, 10-51T, 12-speed
  • Chain
    KMC e.12 Turbo, EcoProteq, e-bike optimised
  • Crankset
    Praxis WaveTM 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)
  • Bottom Bracket
    N/A
  • Rims
    Giant e-TR1 27.5"/29", Tubeless ready, 30mm inner width
  • Hubs
    Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
  • Spokes
    Giant e-TR1
  • Tyres
    Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool)
  • Lighting
    Optional:- Giant Recon series e-bike lights available and direct connectable
  • Lock
    Torx 25 Battery Lock with built-in Torque limiter
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
