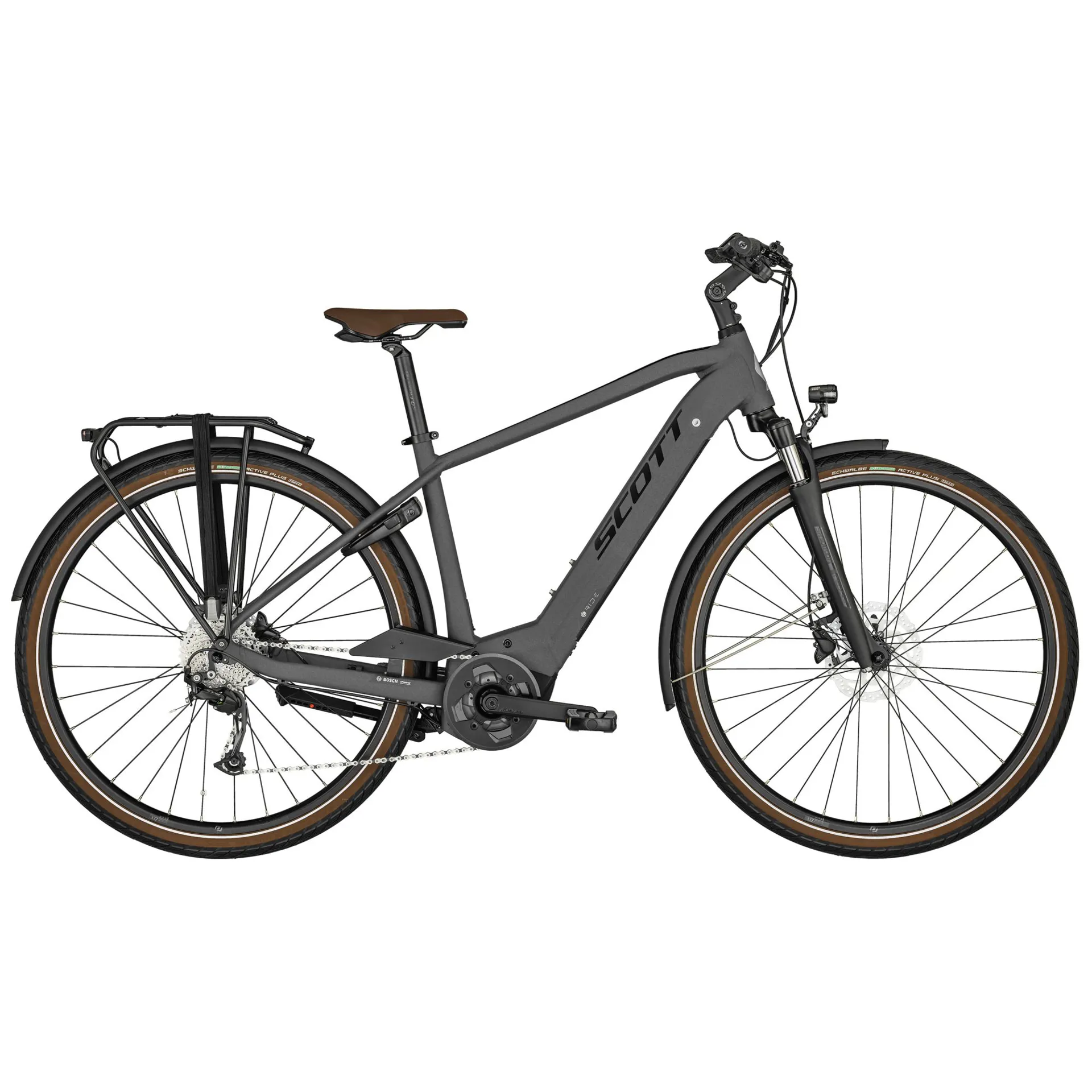

Scott Bike Sub Active eRIDE 20 Electric Hybrid Bike 2025 in Grey

Season:2025Sale

Brand:Scott

Code:290687

The SCOTT Sub Active eRIDE 20 is a comfortable, easy-to-ride electric bike designed for everyday urban use and leisure riding. With an upright riding position, step-through friendly geometry and a smooth Bosch Active motor system, it delivers relaxed assistance for commuting, errands and weekend rides. Fully equipped with lights, rack, mudguards and kickstand, it’s city-ready straight out of the box.

Key Features & Benefits:

  • Bosch Active Drive System: Smooth, quiet pedal assistance ideal for urban riding and relaxed leisure cycling.
  • Comfort-Focused Alloy Frame: Upright geometry, wide saddle and high cockpit for confident, stress-free riding.
  • Fully Equipped for the City: Integrated lights, rack, mudguards and kickstand make it ready for daily use.

Full Specification:

  • Frame: Sub eRIDE 6061 Alloy
  • Fork: SR Suntour NEX-E25 DS, Tapered, 63mm Travel
  • Motor: Bosch Active BES2 (EU: 25km/h)
  • Battery: Bosch PowerTube 400Wh
  • Controller: Bosch Purion Display
  • Number of Gears: 9
  • Gear Shifters: Shimano Alivio SL-M3100, 9-Speed
  • Chainset: Miranda, 172.5mm
  • Chainrings: 38T Chainflow with Chain Protector
  • Rear Cassette: Shimano CS-HG400, 11–36T
  • Chain: KMC E9s NPBK
  • Front Derailleur: Not Applicable
  • Rear Derailleur: Shimano Alivio RD-M3100, 9-Speed
  • Bottom Bracket: Integrated with Motor
  • Pedals: Syncros SP-828
  • Rims: Cross X17 Disc, 32h
  • Front Hub: Shimano HB-MT200-B, QR, Centrelock
  • Rear Hub: Shimano FH-MT200-B, QR, Centrelock
  • Front Tyre: Schwalbe Energizer Active Plus, 700x50c
  • Rear Tyre: Schwalbe Energizer Active Plus, 700x50c
  • Brakes: Shimano BR-M200 Hydraulic Disc
  • Handlebars: Syncros UC3.0, 680mm, 10° Bend
  • Handlebar Tape: Syncros Grips
  • Headset: GW Semi-Integrated
  • Stem: Syncros UC 3.0 Adjustable
  • Saddle: Syncros Capilano
  • Seatpost: Syncros 3.0, 31.6mm, 350mm
  • Accessories: Racktime rear rack with SnapIt 2.0, Axa Compactline 35 front light, Axa rear light, Curana mudguards, Ursus Mooi central kickstand, Abus 4750L ART battery lock
  • Weight: 26.4kg (Max system weight: 128kg)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Geometry Guide for Scott Sub eRIDE Step-through

Geometry

S / 900M / 900L / 900XL / 900
Ahead tube angle68.2 °68.2 °68.2 °68.2 °
Bhead tube length160.0 mm160.0 mm170.0 mm170.0 mm
Ctop tube horizontal575.0 mm595.0 mm615.0 mm615.0 mm
Dstandover height638.0 mm633.0 mm630.0 mm630.0 mm
EBB offset-75.5 mm-75.5 mm-75.5 mm-75.5 mm
FBB height299.5 mm299.5 mm299.5 mm299.5 mm
Gwheel base1,190.0 mm1,210.0 mm1,232.0 mm1,232.0 mm
HBB center to toptube center
IBB center to top of seattube440.0 mm480.0 mm520.0 mm560.0 mm
Jseat angle76.9 °76.9 °76.9 °76.9 °
Kchainstay482.0 mm482.0 mm482.0 mm482.0 mm
Lreach413.0 mm433.0 mm450.0 mm450.0 mm
Mstack696.0 mm688.0 mm705.0 mm705.0 mm
Nstem length90.0 mm90.0 mm90.0 mm90.0 mm
Otrail100.0 mm100.0 mm100.0 mm100.0 mm

Geometry Guide for Scott Sub eRIDE

XSSMLXL
Ahead tube angle67.2 °67.2 °68.2 °68.2 °68.2 °
Bhead tube length130.0 mm130.0 mm130.0 mm140.0 mm150.0 mm
Ctop tube horizontal577.0 mm577.0 mm597.0 mm617.0 mm637.0 mm
Dstandover height752.2 mm767.2 mm768.0 mm805.4 mm840.1 mm
EBB offset72.6 mm72.6 mm72.6 mm72.6 mm72.6 mm
FBB height302.4 mm302.4 mm302.4 mm302.4 mm302.4 mm
Gwheel base1,205.7 mm1,197.1 mm1,205.7 mm1,227.2 mm1,248.8 mm
HBB center to toptube center
IBB center to top of seattube370.0 mm400.0 mm440.0 mm490.0 mm540.0 mm
Jseat angle77.0 °77.0 °77.0 °77.0 °77.0 °
Kchainstay482.0 mm482.0 mm482.0 mm482.0 mm482.0 mm
Lreach425.4 mm425.4 mm444.2 mm461.8 mm479.4 mm
Mstack636.0 mm636.0 mm641.0 mm651.0 mm660.0 mm
Nstem length90.0 mm90.0 mm90.0 mm90.0 mm90.0 mm
Otrail115.6 mm115.6 mm108.3 mm108.3 mm108.3 mm

Warranty Information for Scott:

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.
The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer.
For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.
