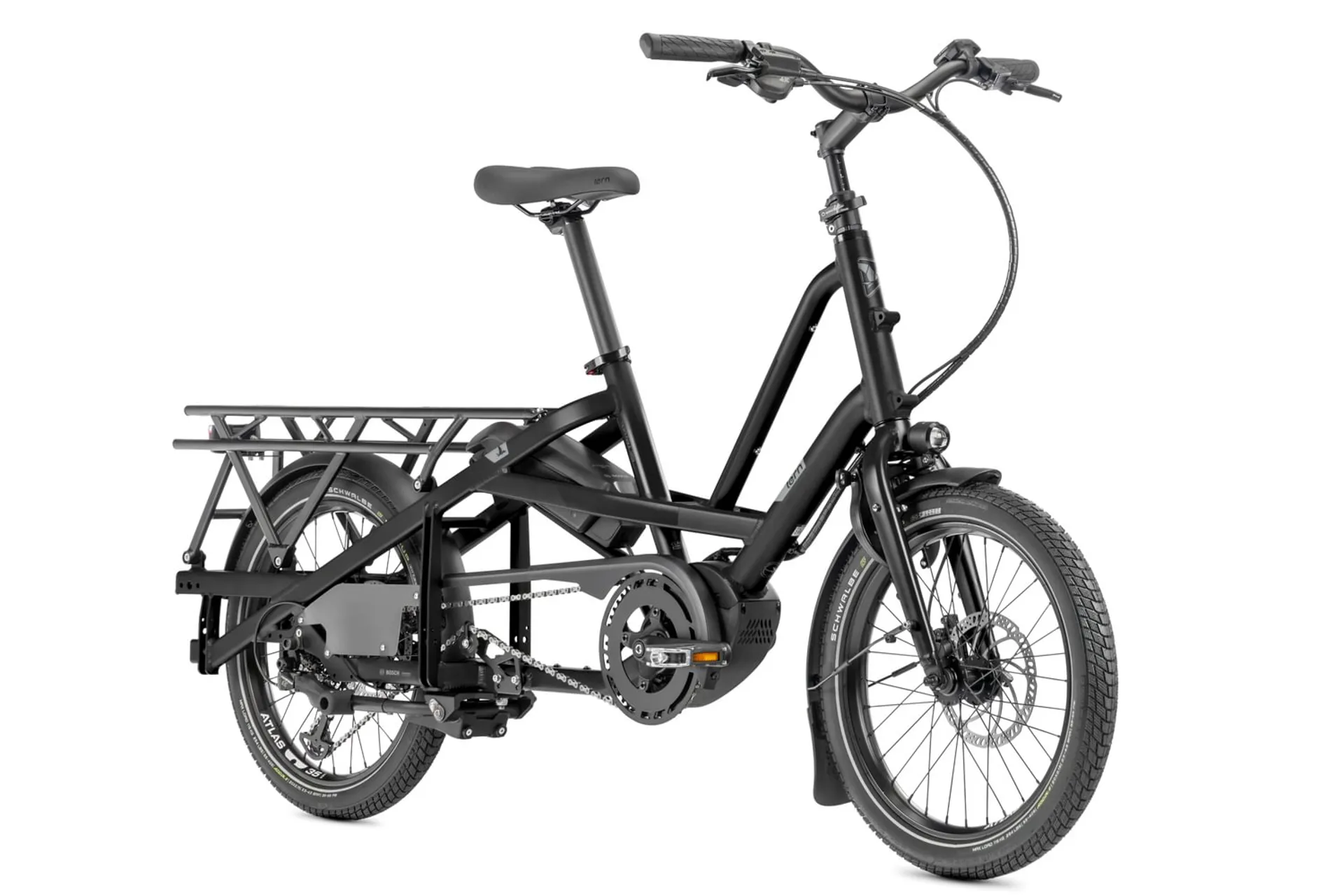

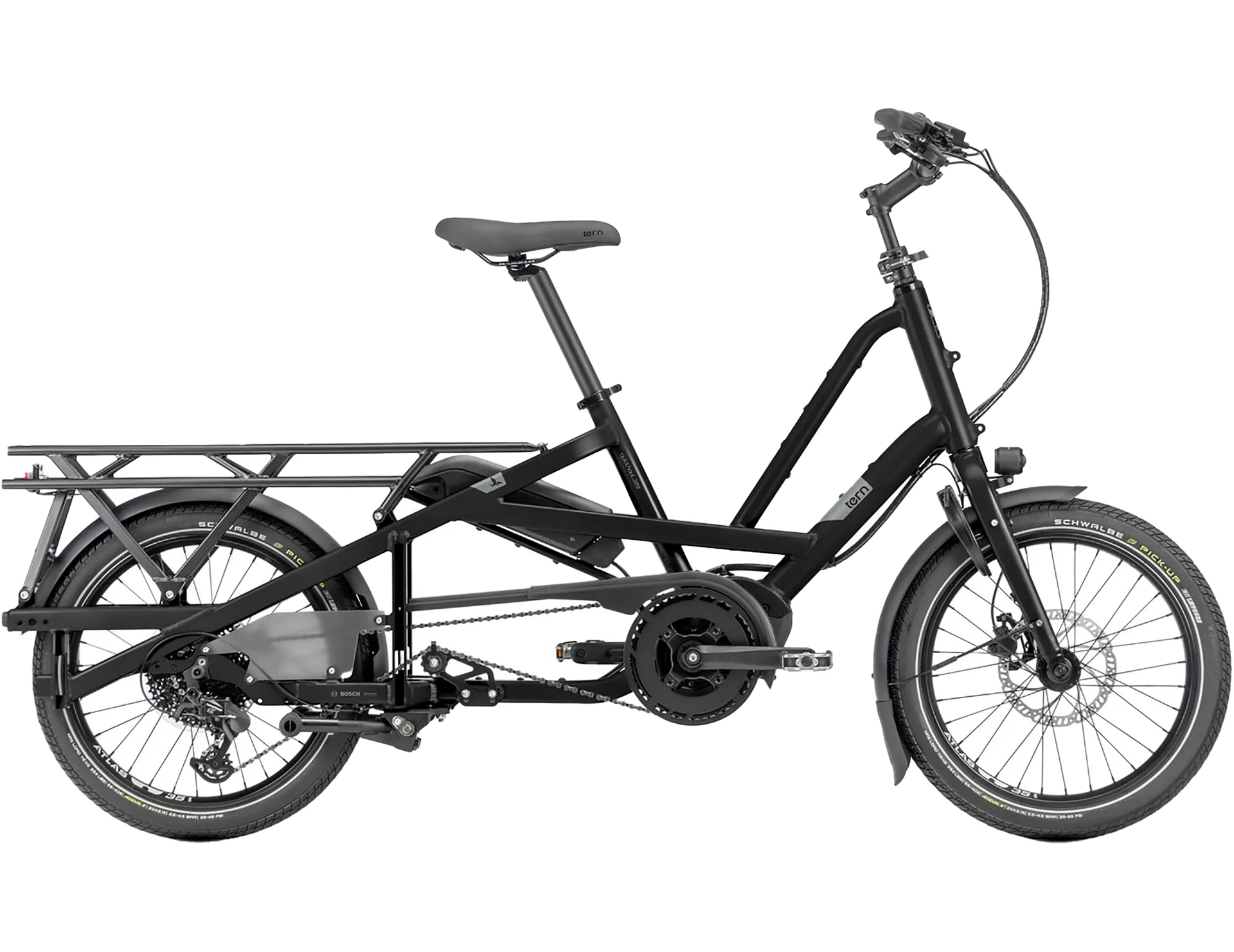

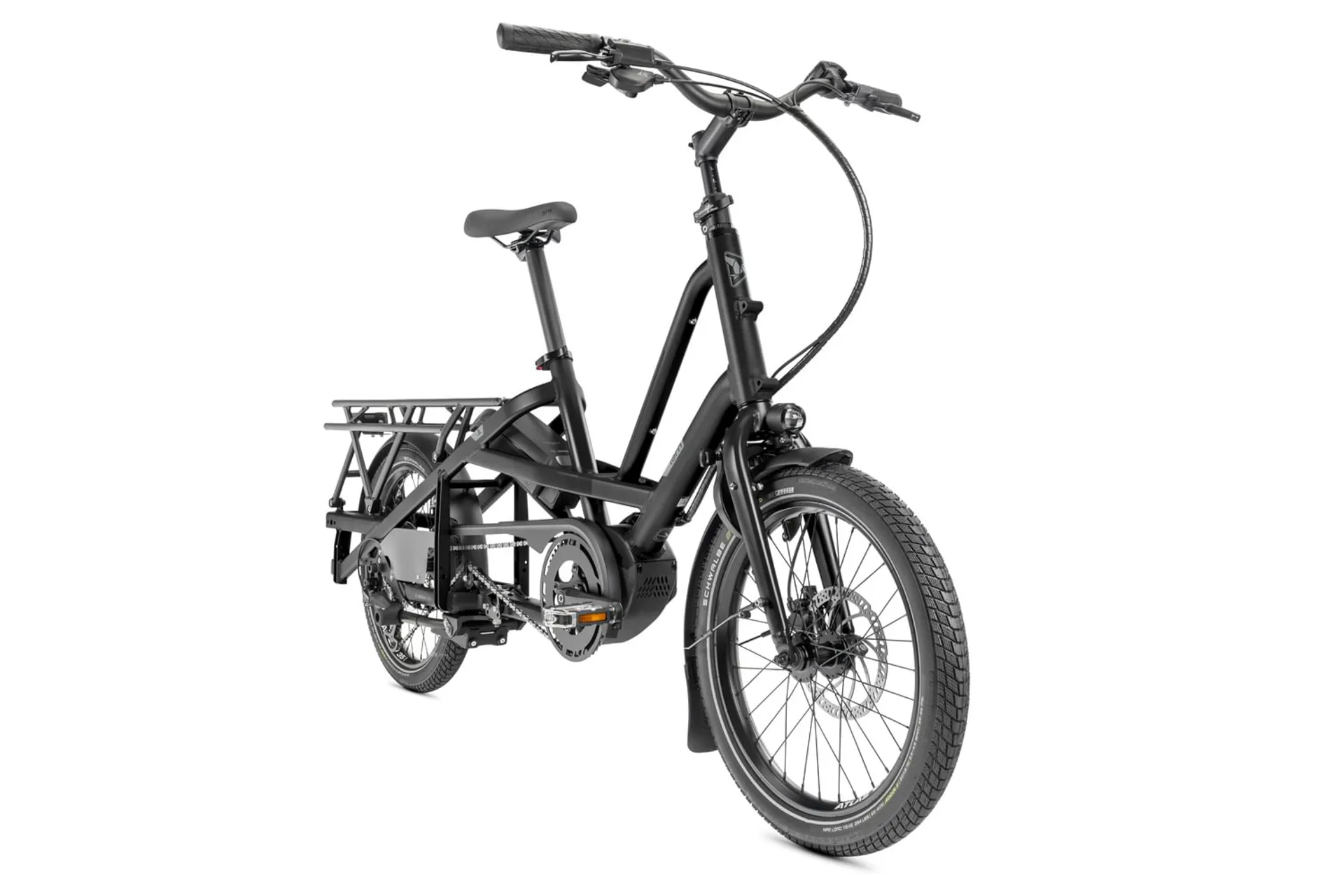

Uncomplicated and incredibly versatile, Quick Haul Long is a compact cargo bike for families on the go. It’s similar in length to a regular bike for easy maneuvering past traffic queues, but built extra tough to safely carry 2 kids or your biggest shop. And best of all, it’s a funner, freer way to get around for you and your family without putting strain on the environment.
Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats.
Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support. Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road. Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting.
Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb).
Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers. Create customized setups using Tern's wide range of kid & cargo-carrying accessories.
Adjusts without tools to fit riders 155 - 190 cm (5'1" - 6'3"), weighing up to 120 kg (265 lb). Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements
Key Features & Benefits
- Tern 6061 series aluminium frame:makes the Quick Haul an extremely versatile and adaptable bike, with max combined weight of 190 Kg.
- Bosch Cargo Motor:Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 15 mph
- Easy to Store:Parks and rolls vertically to fit in tight spaces (including elevators), so you can simply bring it indoors whether at home or work.
Full Specification
- Frame:Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
- Fork:Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
- Motor:Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 15 mph
- Battery:Bosch PowerPack 400
- Controller:Bosch Purion, 4 mode selectable, walk assist
- Charger:4 Amp
- Number of Gears:9
- Gear Shifters:Tektro, 1 x 9 spd, trigger
- Chainset:Tern custom, forged 6061-AL crankarm, anti-drop chainring
- Chainrings:Not Available
- Rear Cassette:Tektro 11-42T, 9 spd
- Chain:KMC for eBike, 9 spd
- Front Derailleur:N/A
- Rear Derailleur:Tektro custom for Tern, 1 x 9 spd
- Bottom Bracket:Motor integrated
- Pedals:Urban with non-slip surface, sealed bearings
- Rims:Tern Atlas H, cargo
- Front Hub:Disc, aluminum
- Rear Hub:Disc, aluminum, 9 spd, disc, aluminum, Boost
- Front Tyre:Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
- Rear Tyre:Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
- Brakes:Tektro hydraulic disc
- Handlebars:Low riser ergo, 31.8, 6061-AL
- Handlebar Grips:Velo ergonomic, lock-on
- Headset:TH, cartridge bearings
- Stem:Speedlifter, adjustable, 3D forged stem, 31.8
- Saddle:Velo Comfort
- Seatpost:34.9 mm, 6061-AL, micro-adjust clamp
- Accessories:Bosch 2A Charger
- Bell:Aluminium
- Frame Lock:ABUS or AXA, keyed-alike with Bosch battery
- Chaingauard:SKS CHainbalde
- Kickstand:>Atlas Kickstand, for cargo
- Luggage Socket:Combo Mount
- Front Light: 90 lux, StVZO approved
- Rear Light:Herrmans
- Mudguards: SplashGuard, stainless hardware
- Rack: Atlas L, 90 kg (198 lb) capacity
- Weight:25.7 kg (56.5 lb)
- Notes:Cargo bikes are available for click and collect in store or via Balfe's Bike personal home delivery service in local postcodes.
