Trek Charter+ 4 e-bike with Bosch Performance Line motor, 540Wh battery, Shimano CUES 9-speed and comfort-focused geometry.
Trek Charter+ 4 e-bike with Bosch Performance Line motor, 540Wh battery, Shimano CUES 9-speed and comfort-focused geometry.
Trek

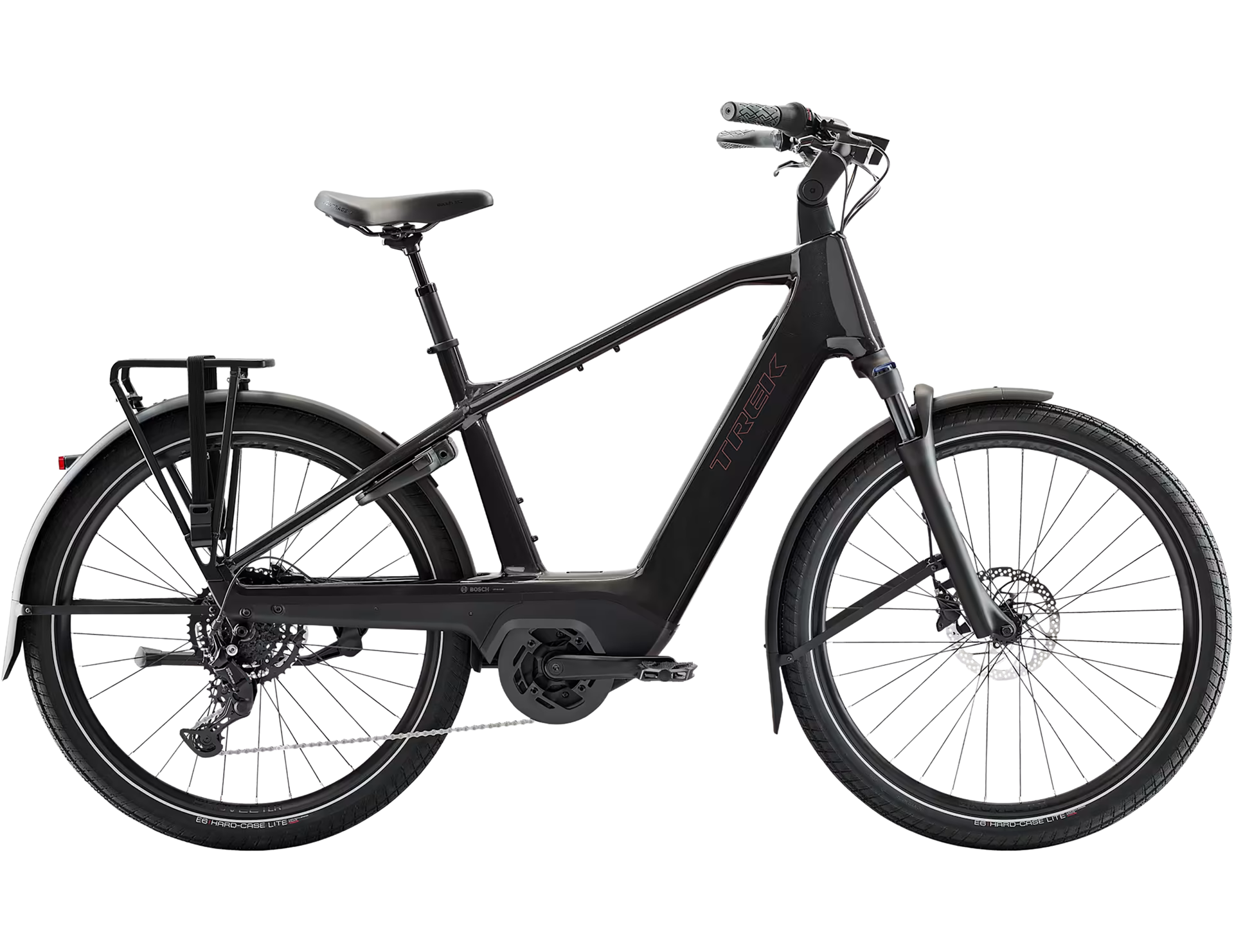

Trek Charter+ 4 540Wh Electric Hybrid Bike 2026 in Dark Web

£3,225.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Charter+ 4 540Wh Electric Hybrid Bike 2026 in Dark Web

Season:2026

Brand:Trek

Code:60493BLK

The Trek Charter+ 4 is a comfortable and versatile city e-bike built for everyday commuting and relaxed urban riding. Its premium Alpha Platinum aluminium frame features confidence-inspiring geometry and an adjustable cockpit for a personalised riding position. Bosch Performance Line power, a large 540Wh battery and reliable Shimano CUES 9-speed gearing make it ideal for daily transport with smooth, dependable assistance.

Key Features & Benefits:

  • Bosch Performance Line Motor: Smooth and powerful 75Nm assistance delivers confident support for city riding and daily commutes.
  • 540Wh Integrated Battery: Large-capacity Bosch PowerTube battery provides dependable range for regular urban use.
  • Alpha Platinum Frame: Premium design with adjustable cockpit for comfort-focused or more active riding positions.

Full Specification:

  • Frame: Premium Alpha Platinum Aluminium, top-load Bosch PowerPack, internal routing, 135x5mm QR
  • Fork: SR Suntour SF25-NVX32, coil spring, preload adjust, 63mm travel
  • Motor: Bosch Performance Line, 250W, 75Nm, 25km/h
  • Battery: Bosch PowerTube 540Wh
  • Controller: Bosch Purion 200
  • Number of Gears: 9
  • Gear Shifters: Shimano U4000
  • Chainset: ProWheel alloy, 170mm
  • Chainrings: 40T narrow-wide steel ring with alloy guard
  • Rear Cassette: Shimano LINKGLIDE LG300, 11–46T
  • Chain: Shimano LG500
  • Front Derailleur: Not Applicable
  • Rear Derailleur: Shimano CUES U4000
  • Bottom Bracket: Motor Integrated
  • Pedals: Bontrager City
  • Rims: Bontrager Kovee, double-wall, Tubeless Ready, 23mm
  • Front Hub: Shimano Tourney HB-QC300, CentreLock
  • Rear Hub: Shimano TC500, CentreLock
  • Front Tyre: Bontrager E6 Hard-Case Lite, reflective, 27.5x2.40"
  • Rear Tyre: Bontrager E6 Hard-Case Lite, reflective, 27.5x2.40"
  • Brakes: Shimano MT200 hydraulic disc
  • Handlebars: Alloy, 31.8mm clamp, 25mm rise, 630mm
  • Handlebar Grips: Trek Ergonomic Comp lock-on grips
  • Headset: Integrated
  • Stem: Bontrager alloy, adjustable rise, Blendr compatible, 80mm
  • Saddle: Bontrager Boulevard
  • Seatpost: Alloy suspension seatpost, 31.6mm
  • Accessories: Trek LED front light (400/800 lumen), Trek LED rear light, Pletscher Comp Flex 40 kickstand
  • Weight: 26.8kg (M, excluding battery) (Max system weight: 136kg)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Charter

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
SizeRider HeightInseam
S

147 - 155 cm

4'10" - 5'1"

69 - 88 cm

27" - 35"

M

155 - 173 cm

5'1" - 5'8"

77 - 96 cm

30" - 38"

L

170 - 185 cm

5'7" - 6'1"

80 - 99 cm

31" - 39"

XL

185 - 203 cm

6'1" - 6'8"

86 - 105 cm

34" - 41"

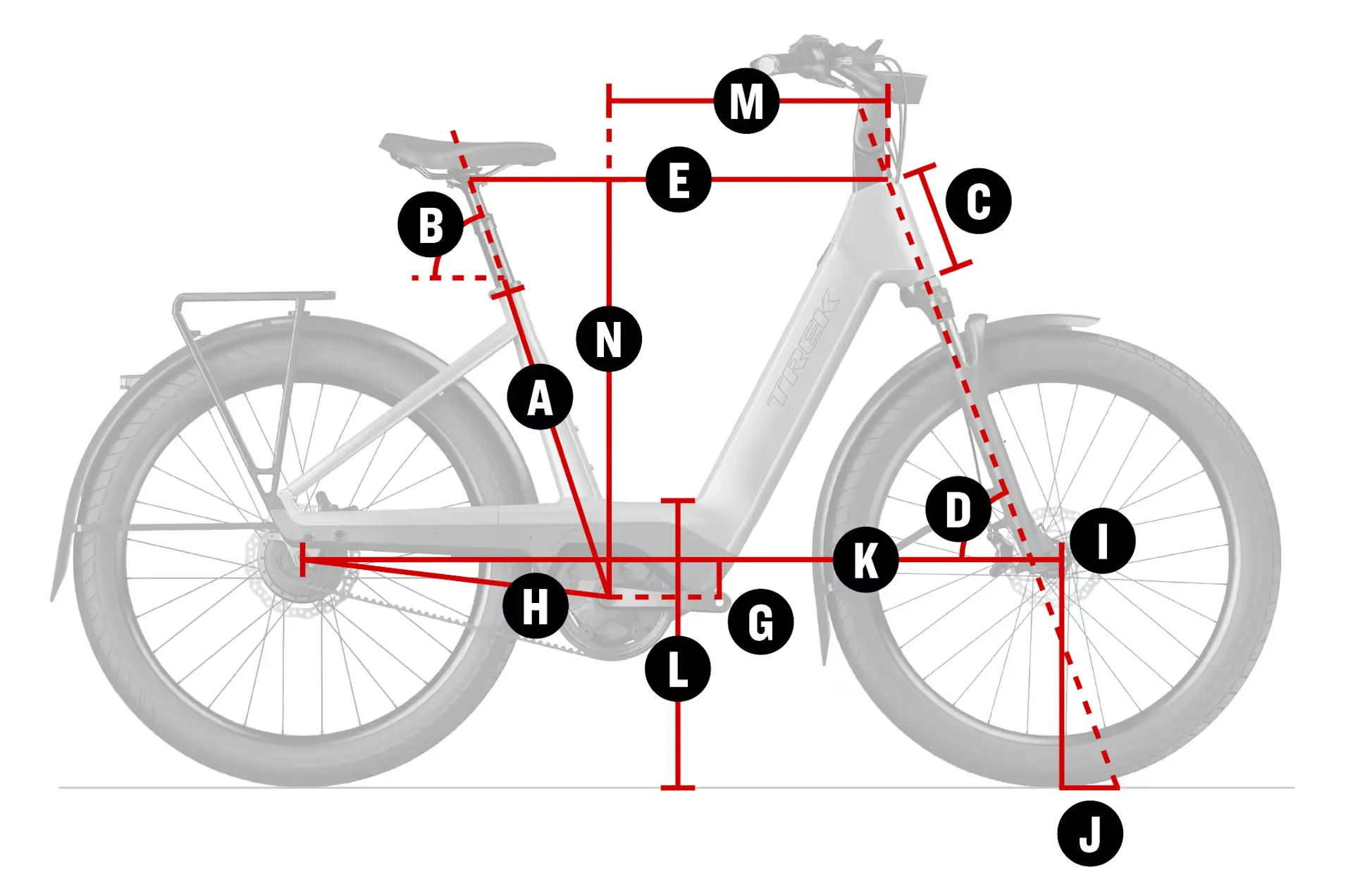

Geometry for Trek Charter


Frame size number42cm50cm56cm62cm
Frame size letterSMLXL
Wheel size27.5"27.5"27.5"27.5"
A —Seat tube42505359
B —Seat tube angle72.0°71.0°71.0°70.0°
C —Head tube length14.316.319.322.8
D —Head angle68.5°69.0°69.5°70.0°
E —Effective top tube59.962.564.367.4
F —Bottom bracket height29.929.929.929.9
G —Bottom bracket drop6666
H —Chainstay length48.548.548.548.5
I —Offset4.44.44.44.4
J —Trail9.49.18.78.4
K —Wheelbase114.5115.5116.9118
L —Standover44444444
M —Frame reach4040.54141.5
N —Frame stack60.462.565.669.1

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
