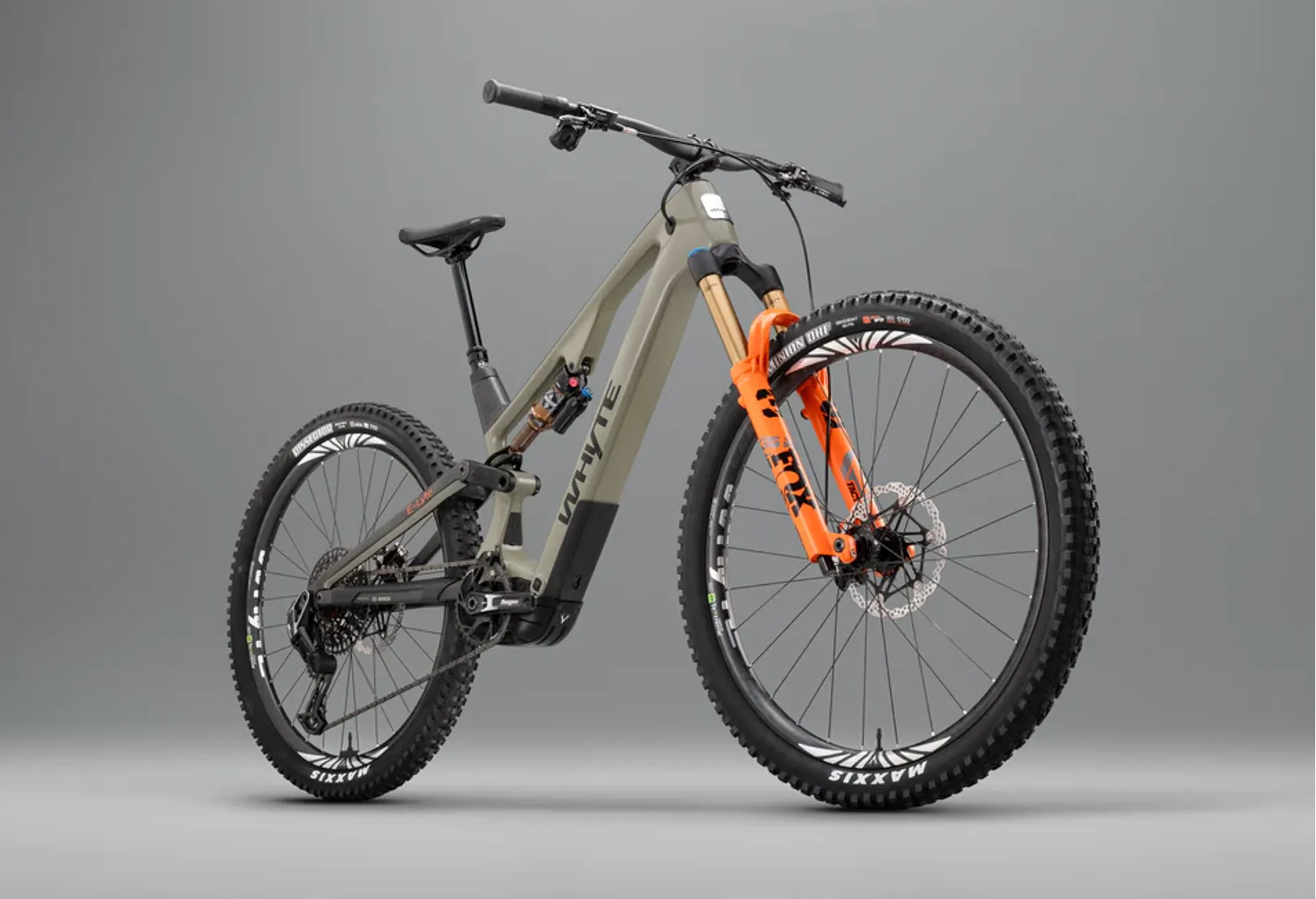

Fast, light and powerful, the top of the range E-Lyte 150 Works masterfully blends the very best natural mountain bike handling and ride feel with the power and capability of full-fat electric mountain bikes (E-MTBs).
Weighing just 19.2kg (size M) with 55Nm of torque, 600W of peak power, and a total combined battery capacity of 650Wh, it has the power – and the range – to do it all: the singletrack, the all-day epic, the home trail hot laps, the drop-ins, the descents, the tech and the climbs back out.
Flawless trail perfection - every E-Lyte 150 Works is specced to perform flawlessly right from the first pedal stroke so you can focus on what really counts – your ride. Top of the range Fox Factory suspension front and rear tames the roughest trails with ease; SRAM's XO T-Type AXS electronic gearing gives you reliably impeccable shifting performance; richly powerful Hope Tech 4 V4 four-piston hydraulic disc brakes deliver the ultimate in braking control; Hope cranks and hubs; traction-rich Maxxis tyres; and more. It’s the finest trail-proven kit to serve you perfectly, wherever and however hard you ride.
Beautifully Light, Reassuringly Strong - the beating heart of the E-Lyte 150 Works is an all-new, lightweight yet strong carbon fibre chassis that carefully packages Bosch's light and powerful Performance Line SX mid-torque (55Nm), full power (600W) motor – and the 400Wh internal battery – seamlessly so you can fly under the radar as stealthily as you'll fly down the trails. They've also carefully positioned the Bosch PowerMore range extender as low in the frame as possible to optimise the bike's centre of gravity and deliver an exceptional handling bike, however you want to ride – with the range extender for longer rides out in the hills, or without for lapping your local trails.

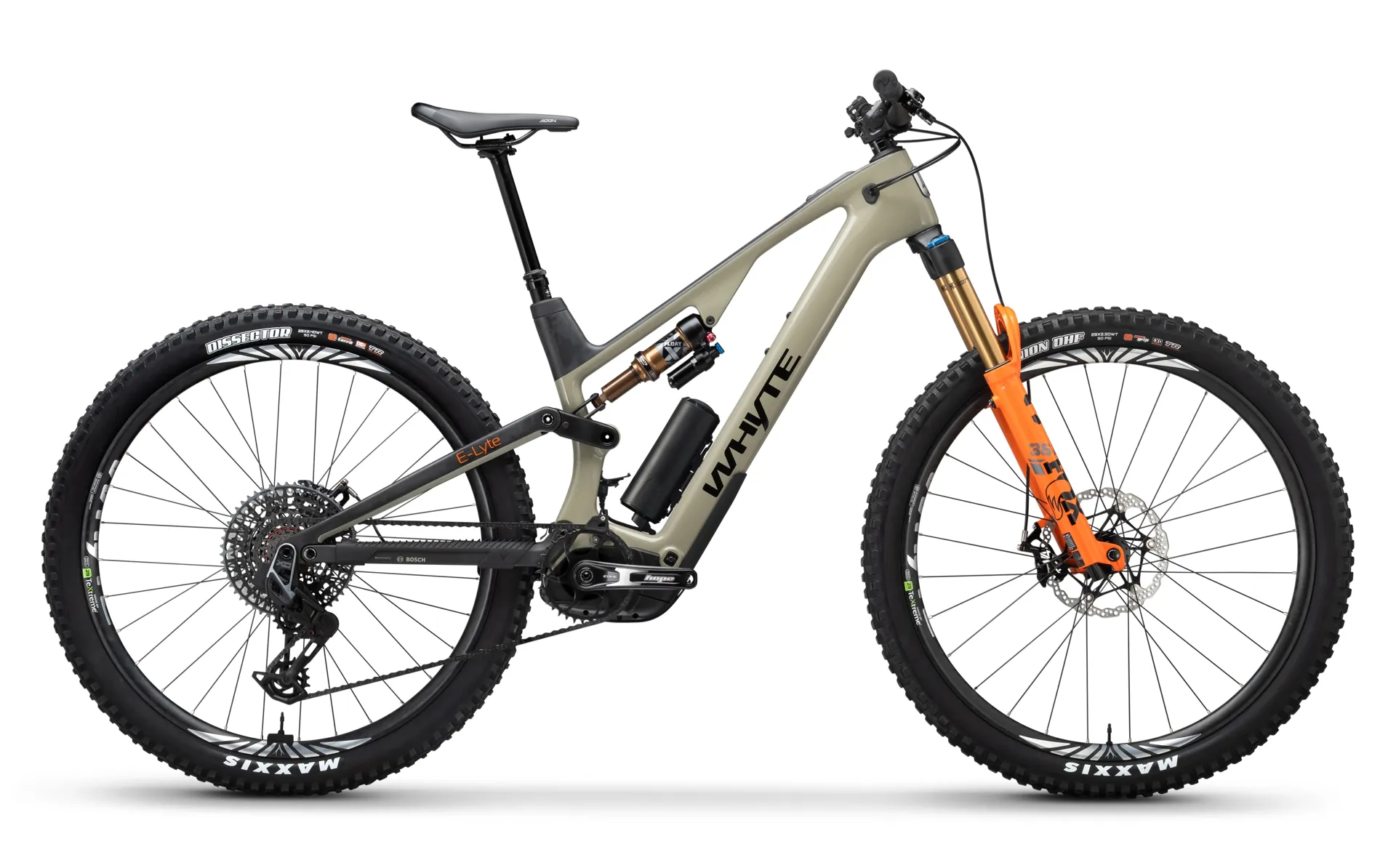

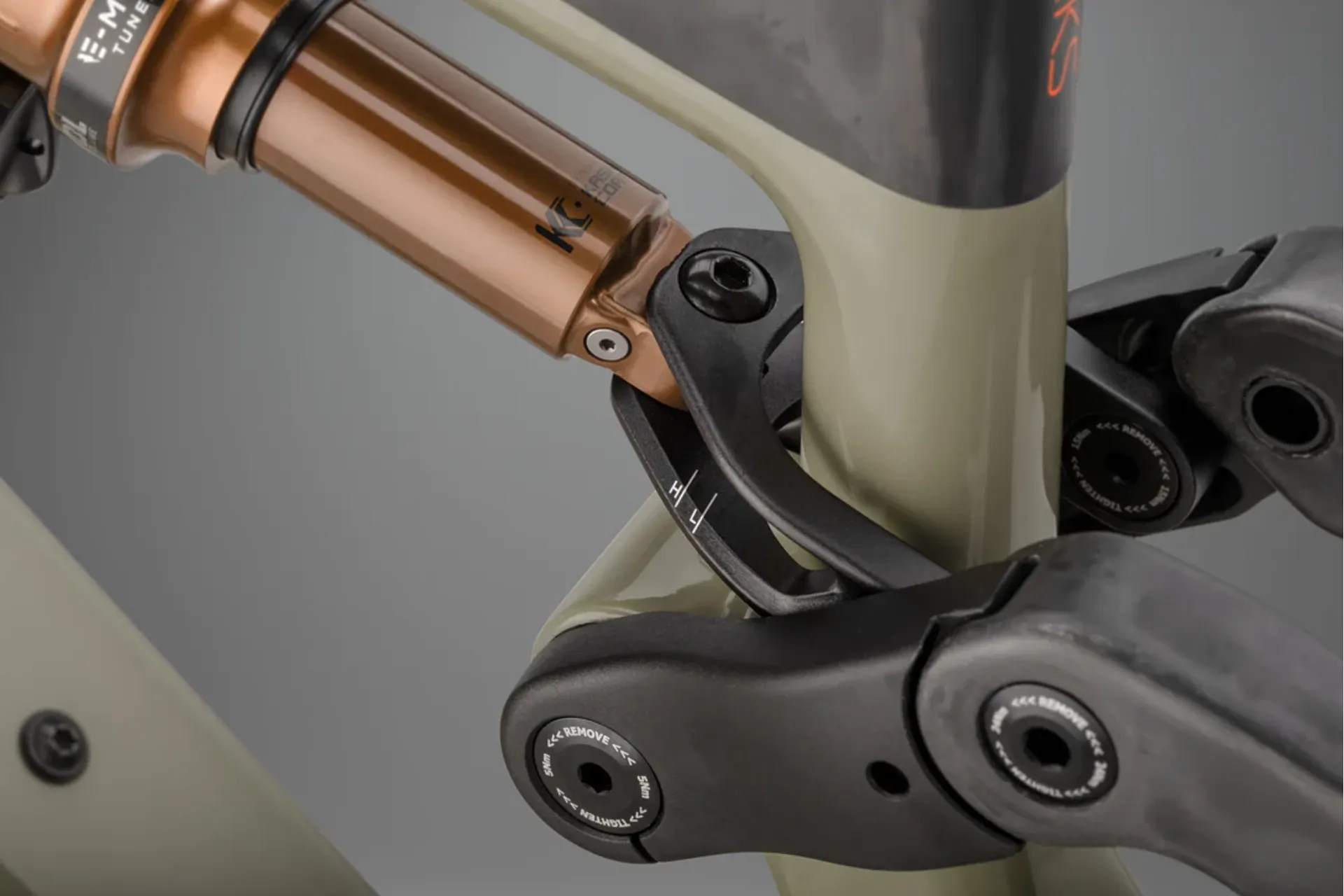

Your Bike, Your Way - Whyte have engineered the E-Lyte 150 Works to give you the option to set it up and ride it as you want. Want more battery? The E-Lyte 150 Works comes with Bosch’s 250Wh PowerMore range extender – that mounts in the lower bottle boss position. Want to run a bottle, or even two? The frame has two bottle positions: a lower for a full 750ml bottle (using the included bottle cage adaptor), and a higher Fidlock position for a smaller 400ml bottle (on sizes M-XL) – even with the PowerMore in place. Or you can use the Fidlock mounts for tool or tube mounting (all sizes). Want to slacken the geometry out? The ‘Shape.it Link V2’ geometry adjustment lets you change between the stock high to its low setting for a lower, slacker geometry for more downhill grins. Want to pedal further? Keep it in its higher, more all-day ride-friendly position.
Engineered For the Best and Worst Conditions - Whyte have designed, tested and proven every E-Lyte in their native UK, riding all year round through the best and the worst weathers, and have added a whole host of touches that will keep you riding sweeter and for longer. Things such as: a fully weather-sealed seat-clamp gaiter, and sealed cable and hose ports to keep the water out; positioning the charge port at the base and to the front of the seat tube out of the firing line of the rear wheel spray; clearance for up to 2.5in tyres between the seat and chainstays to prevent mud and gunk slowing you down; phosphate-coated and marine grease packed pivot bearings to maximise pivot bearing service life; as well as frame protection on the lower downtube and chainstay to keep the frame in great shape, and much more.
150mm front + 142mm rear of custom-tuned suspension travel
Uni-directional carbon fibre frame is light and reassuringly strong
Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor
650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further
29er wheels front and rear for balanced handling
250Wh PowerMore range extender included
Key Features and Benefits
- Bosch Performance Line SX:New full-power (600W) lightweight motor is super-compact with exceptionally smooth power delivery.
- Dream Build:Hope Hubs, brakes, and carbon cranks, Raceface bars, rolling on Carbon rims, Zero upgrades needed out the box on this build!
- Total of 650Wh battery:gives you increased range, with the Bosch 250Wh PowerMore range extender included.
Full Specification
- Frame:Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
- Rear Suspension:Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm
- Fork:Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip2 damper, tapered steerer, 110m x 15mm Kabolt axle
- Motor:Bosch Performance Line SX 55Nm
- Battery:Bosch 400Wh internal battery, 250Wh Power more extender
- Controller:Bosch LED Mini Remote
- Number of Gears:12

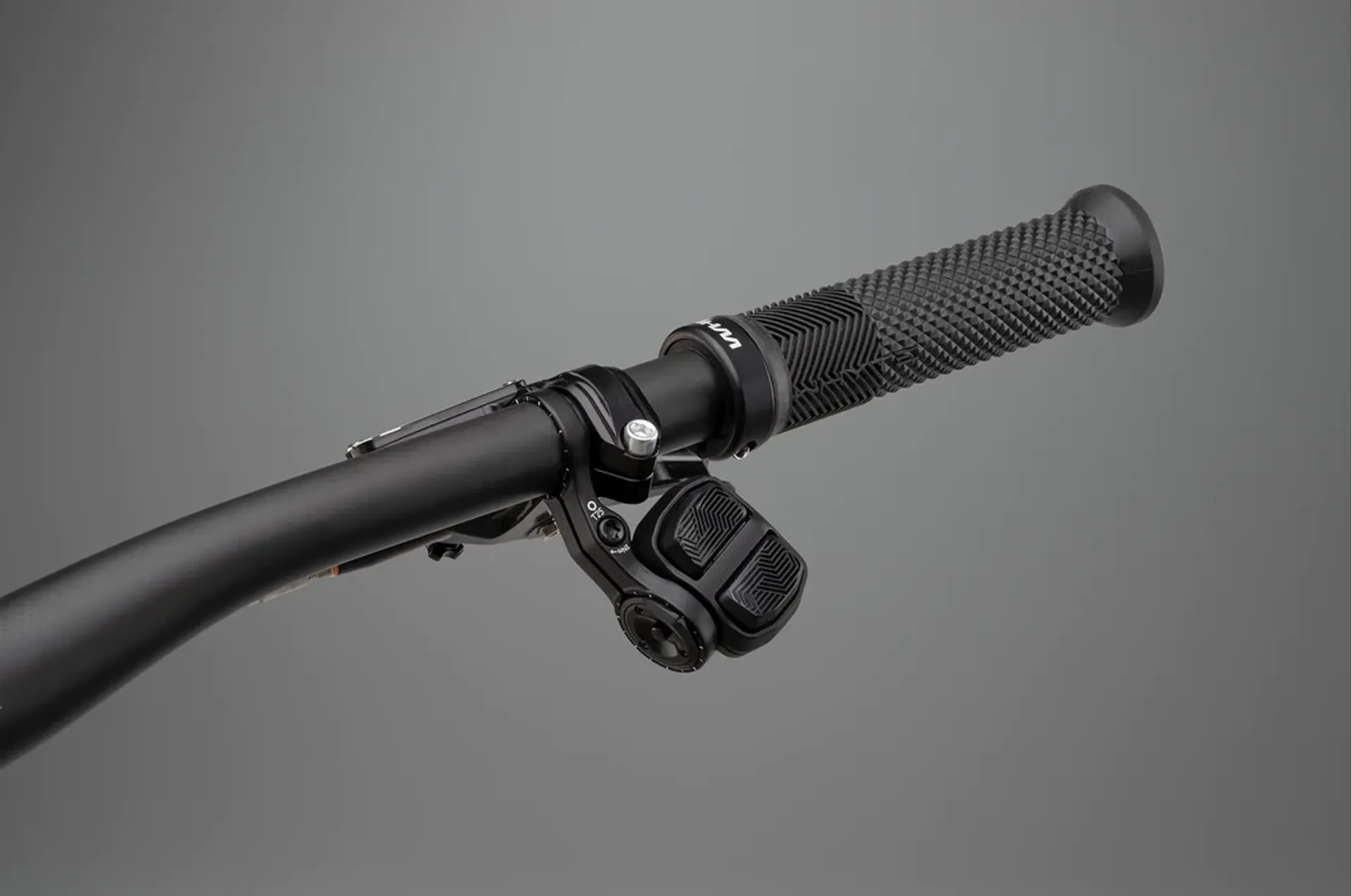

- Gear Shifters:SRAM AXS Pod, right, MMX, 12 speed

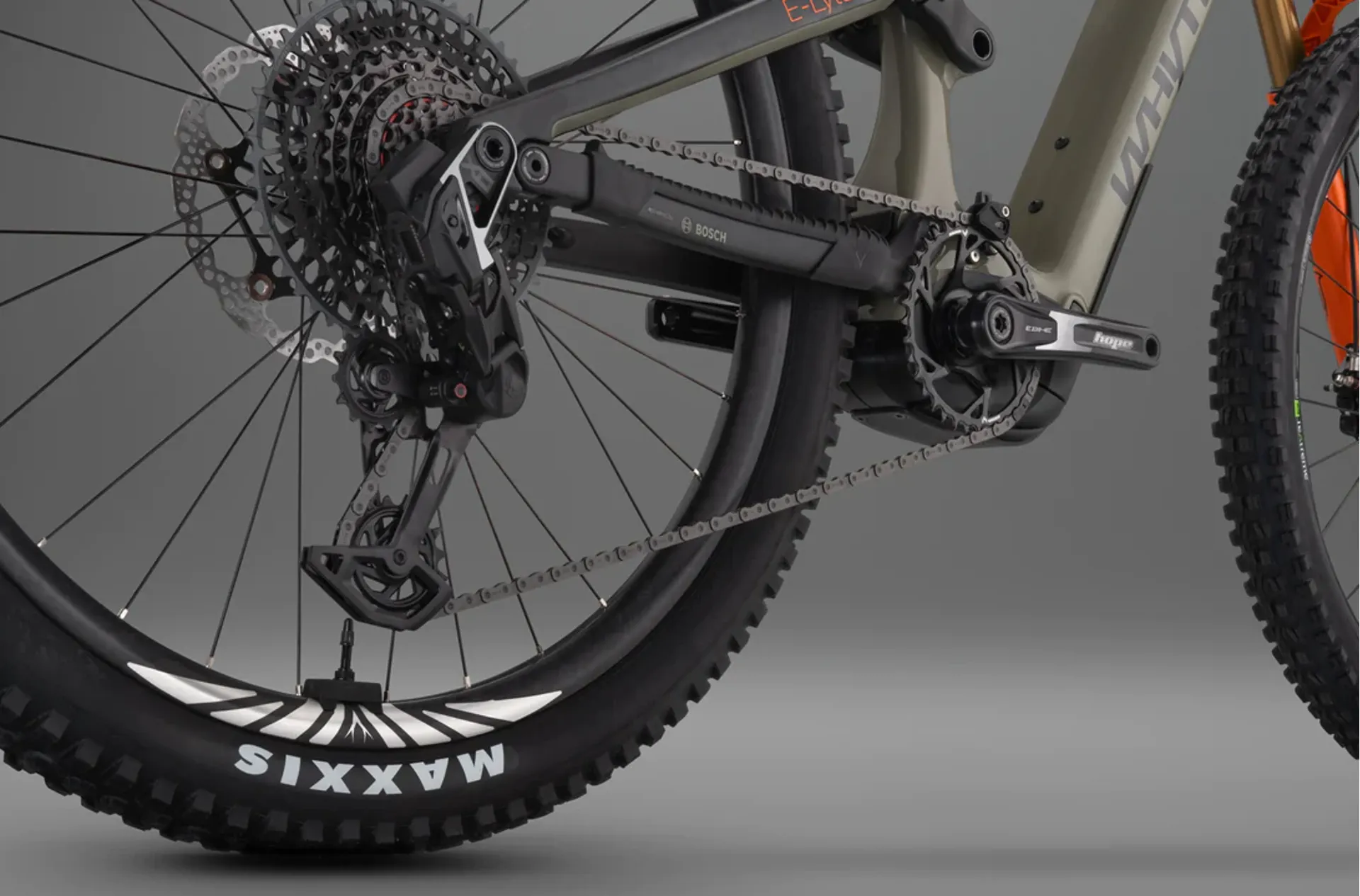

- Chainset:Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
- Chainrings:36T
- Rear Cassette:SRAM XS 1295, T-Type, 10-52T, 12 speed
- Chain:SRAM XO T-Type, 12 speed
- Front Derailleur:N/A
- Rear Derailleur:SRAM XO T-Type AXS, 12 speed
- Bottom Bracket:N/A
- Pedals:Not supplied:Shop pedals here
- Rims:Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear
- Front Hub:Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
- Rear Hub:Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
- Front Tyre:Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in
- Rear Tyre:Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in

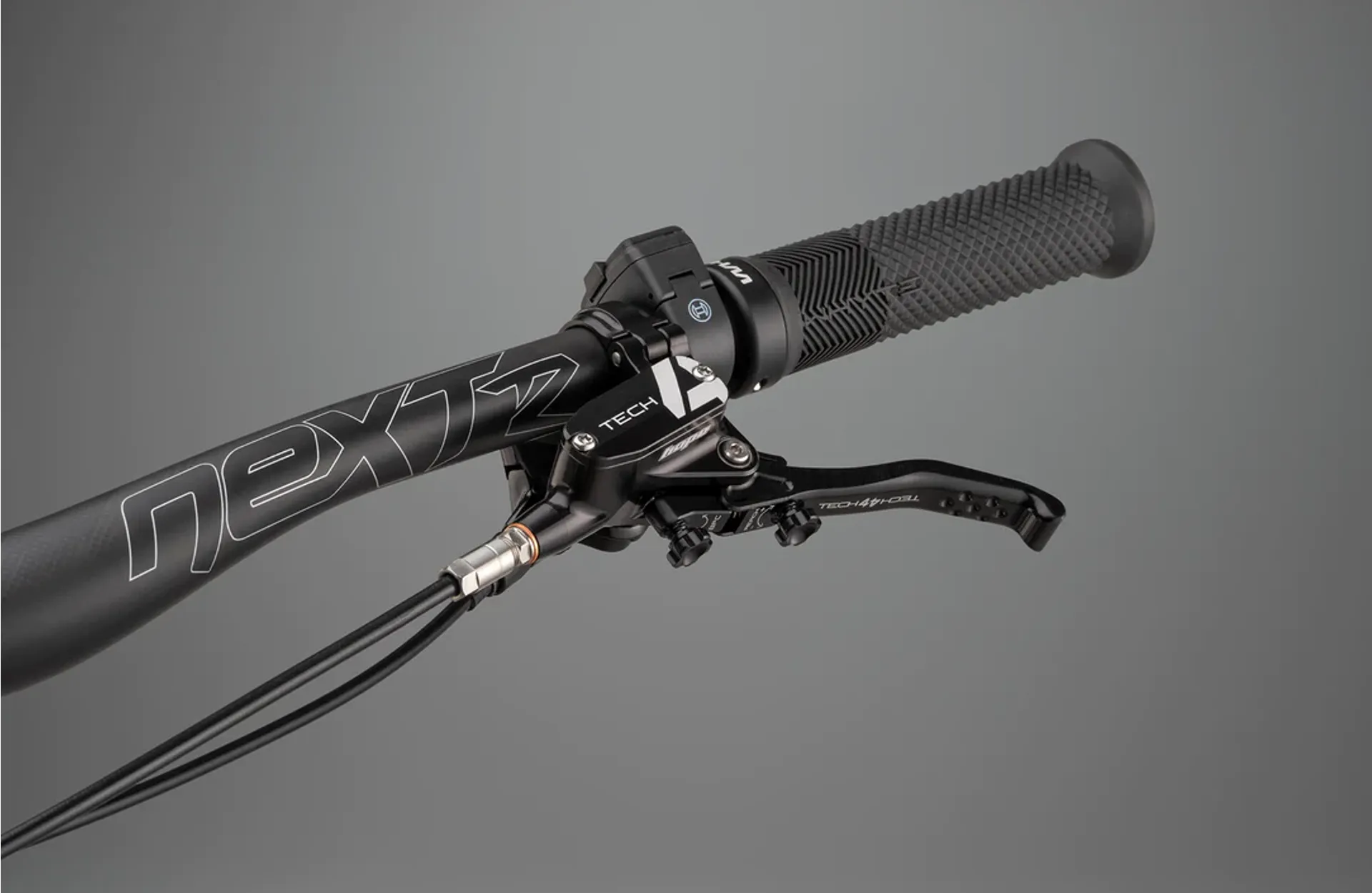

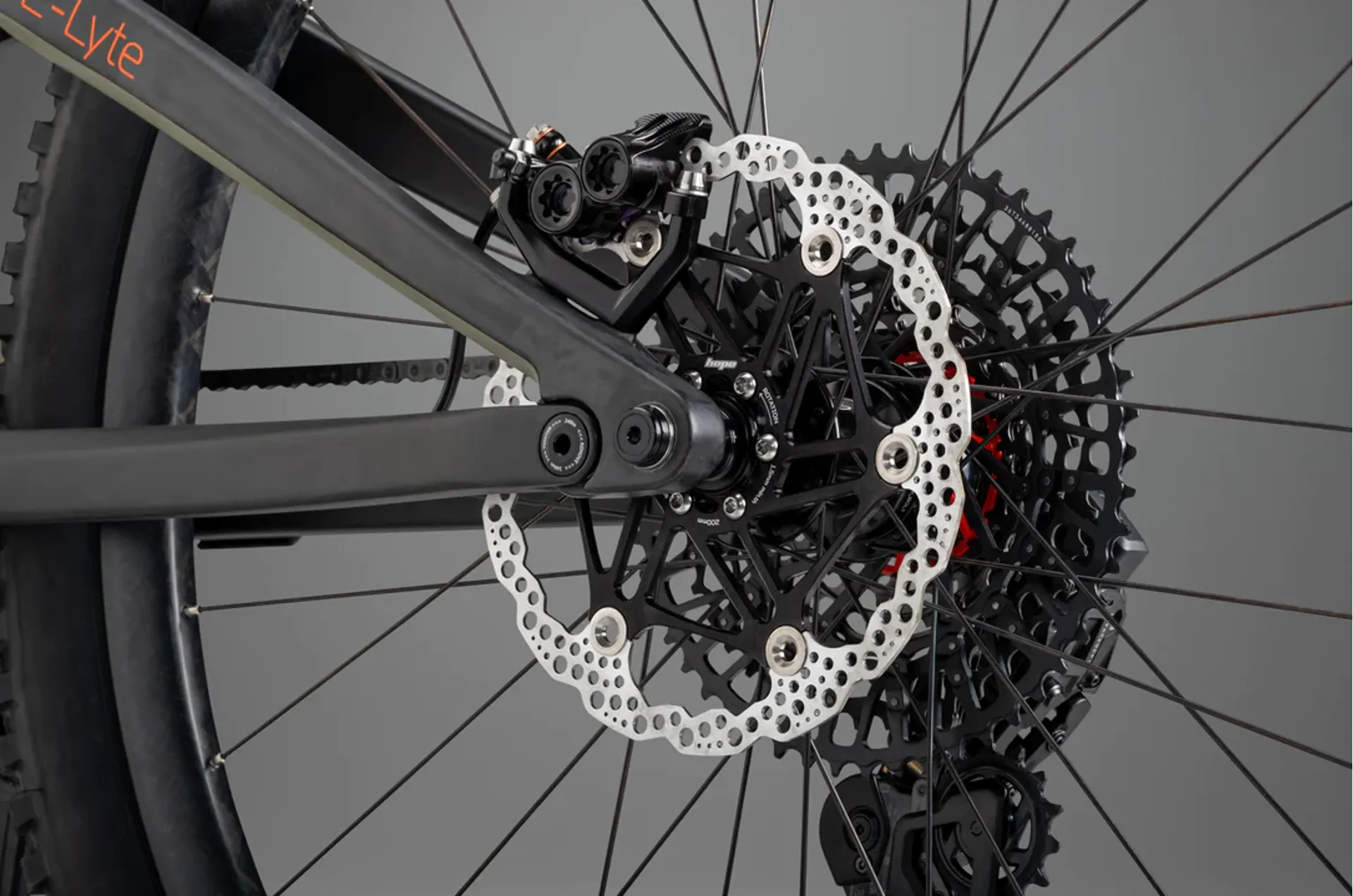

- Brakes:Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor
- Handlebars:Race Face Next R Carbon, 20mm rise, 35mm bar bore, 800mm width
- Handlebar Grips:Whyte Lock-on Enduro Grip
- Headset:FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing
- Stem:Whyte Trail full CNC, 32mm extension, 35mm bar bore
- Saddle:Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
- Seatpost:Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
- Accessories:Bosch 4A charger
- Weight:19.2kg (size M)
