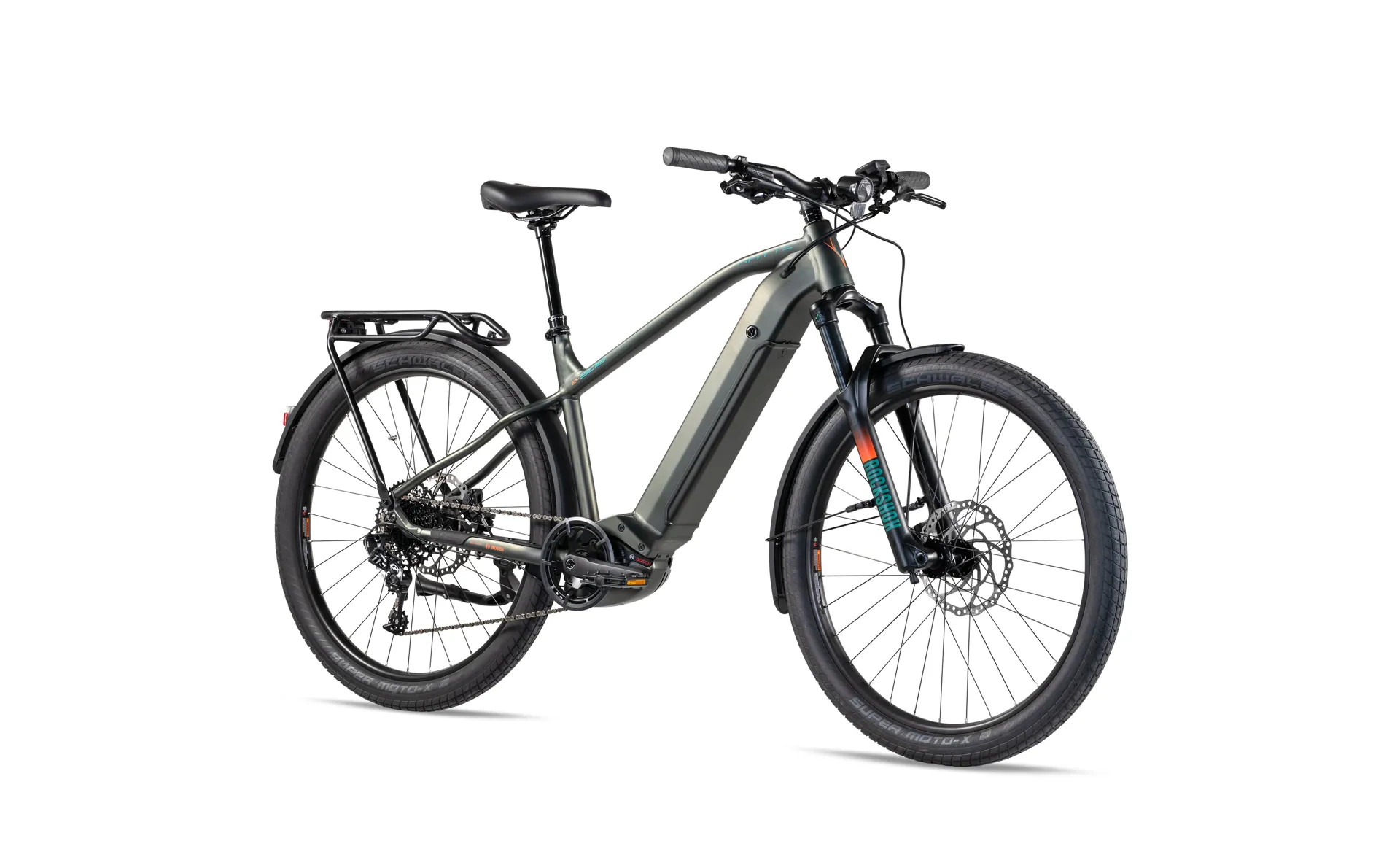

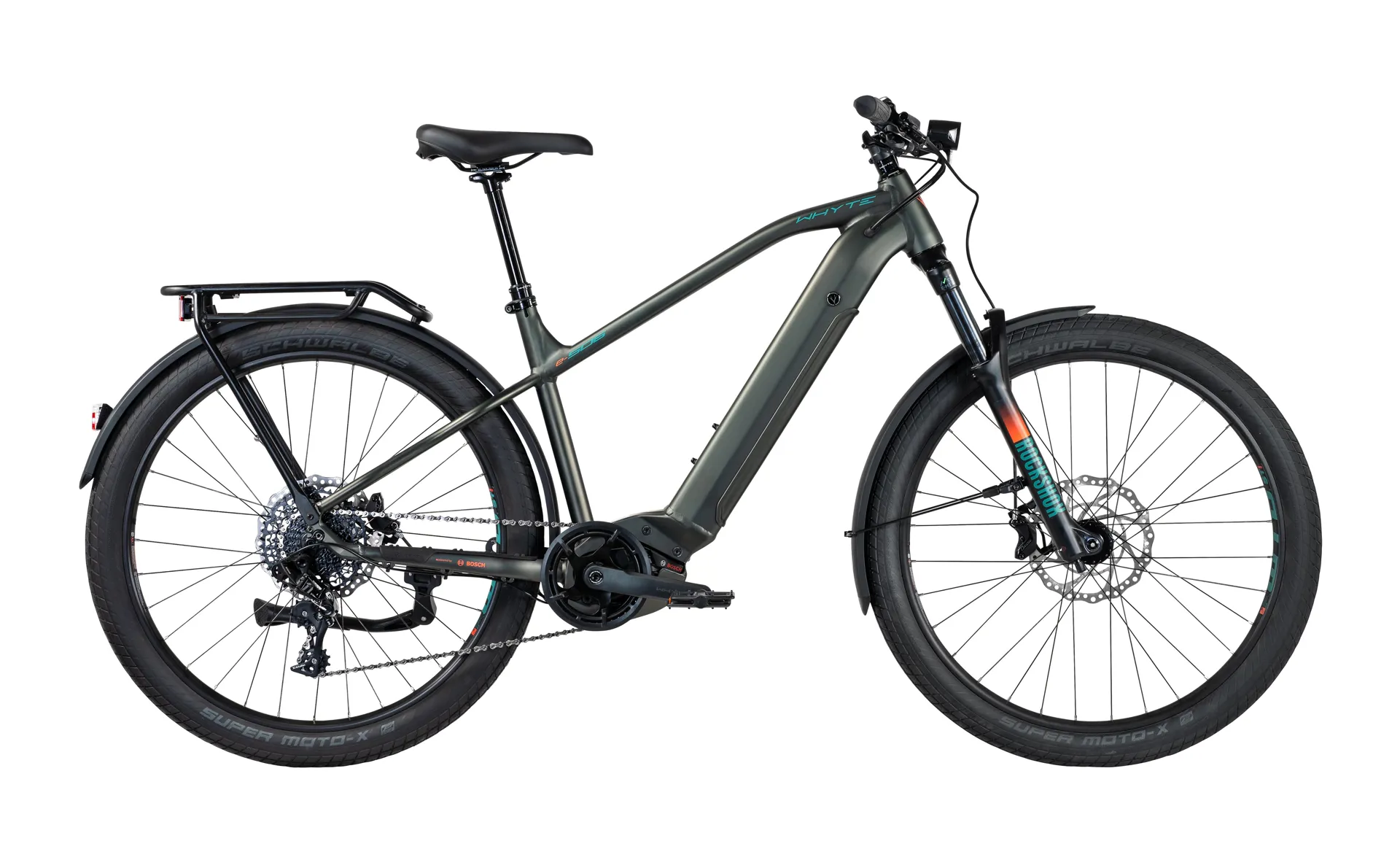

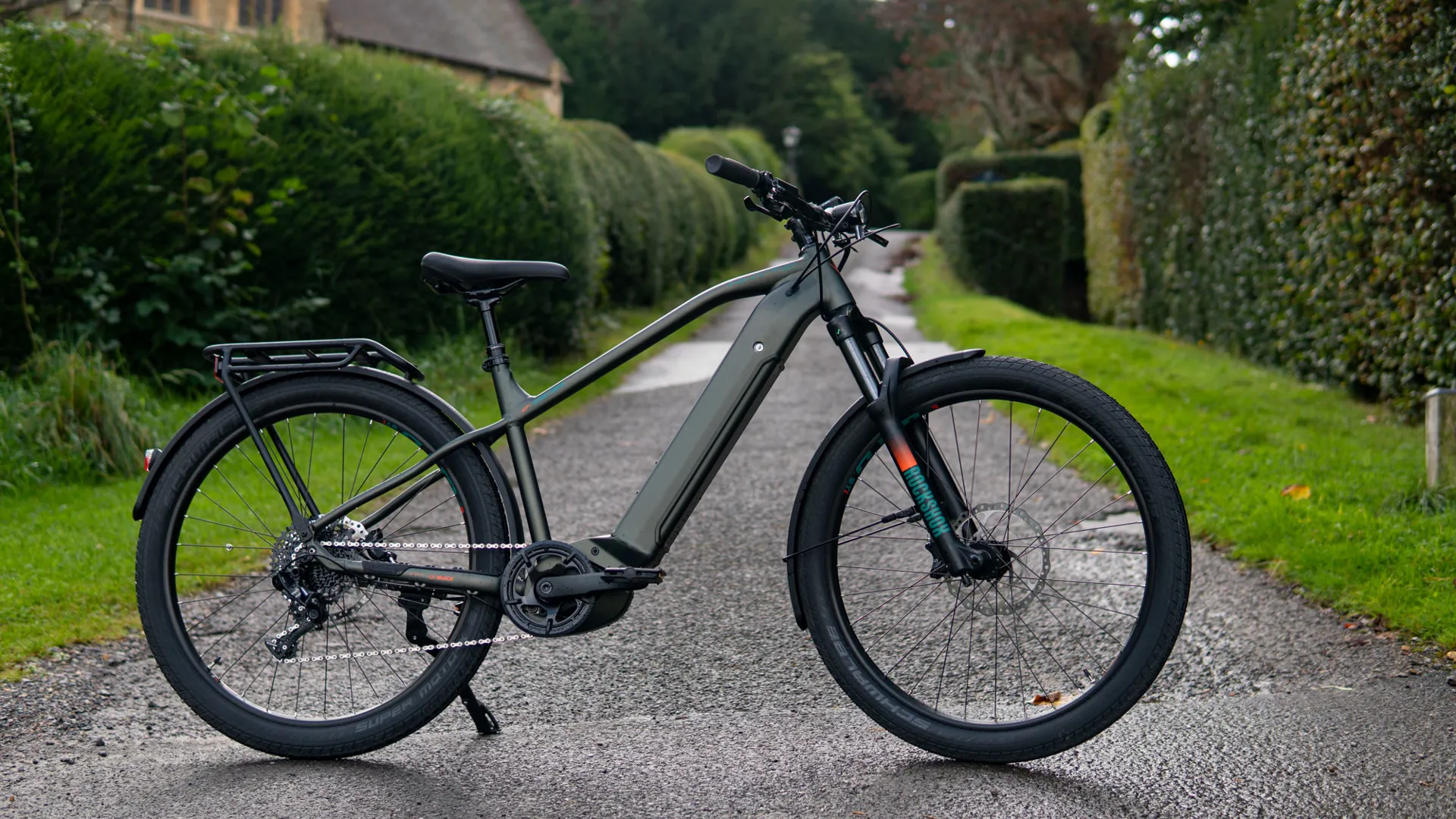

Whyte e-506 v1 Electric Mountain Bike 2022 in Matt Moss

Season:2022

Brand:Whyte Bikes

Code:Whyte e- 506 v1 Moss

The super-versatile, multi-role e-506 takes a big leaf out of their MTB design book with Whyte trail geometry for sure-footed mountain bike handling - exactly what you need in traffic when your panniers are fully loaded.

Like its off-road cousins, the e-506 uses a class-leading Bosch system with the exceptional Performance Line CX Drive Unit, providing all the assistance you need to flatten out your ride and power up your commute.

The 35mm stanchion RockShox 35 Silver front fork and 4 piston Tektro brakes mean comfort and control. These quality off-road developed parts improve your ride whether you’re cutting across town, making a trip to the shops or taking an off-road short-cut home. The e-506 is ready for everything.

Each one of the eMTBs delivers more fun than any other bike they have ever made.

Key Features and Benefits

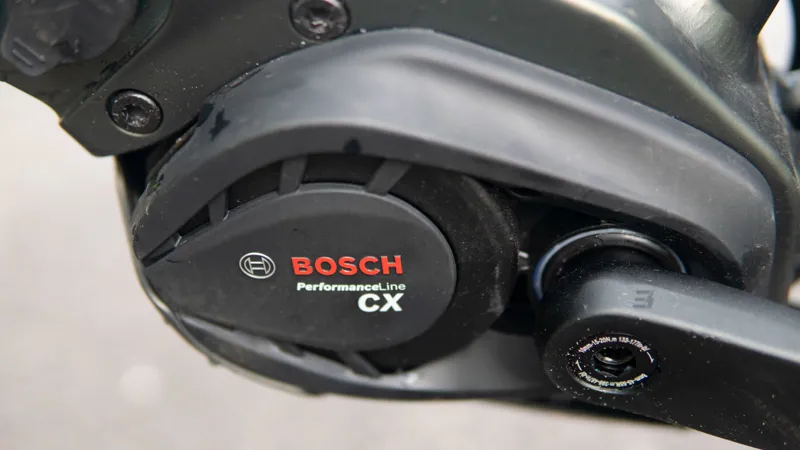

  • Bosch Performance line CX motor: is super-compact with exceptionally smooth power delivery.
  • RockShox Silver R forks: perfectly complement the geometry for maximum steering control.
  • 500Wh battery: gives you increased range.

Full Specification

  • Frame:6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
  • Fork: RockShox 35 Silver R 27.5", 120mm Travel, 37mm Offset, Coil, Fast Black Coating, Adjustable Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
  • Motor: Performance CX 85Nm
  • Battery: Bosch 500 Wh internal PowerTube. 2 Amp Charger
  • Controller: Bosch Purion
  • Number of Gears:11
  • Gear Shifters: SRAM GX, 11 Speed
  • Chainset: Whyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black
  • Chainrings:36T

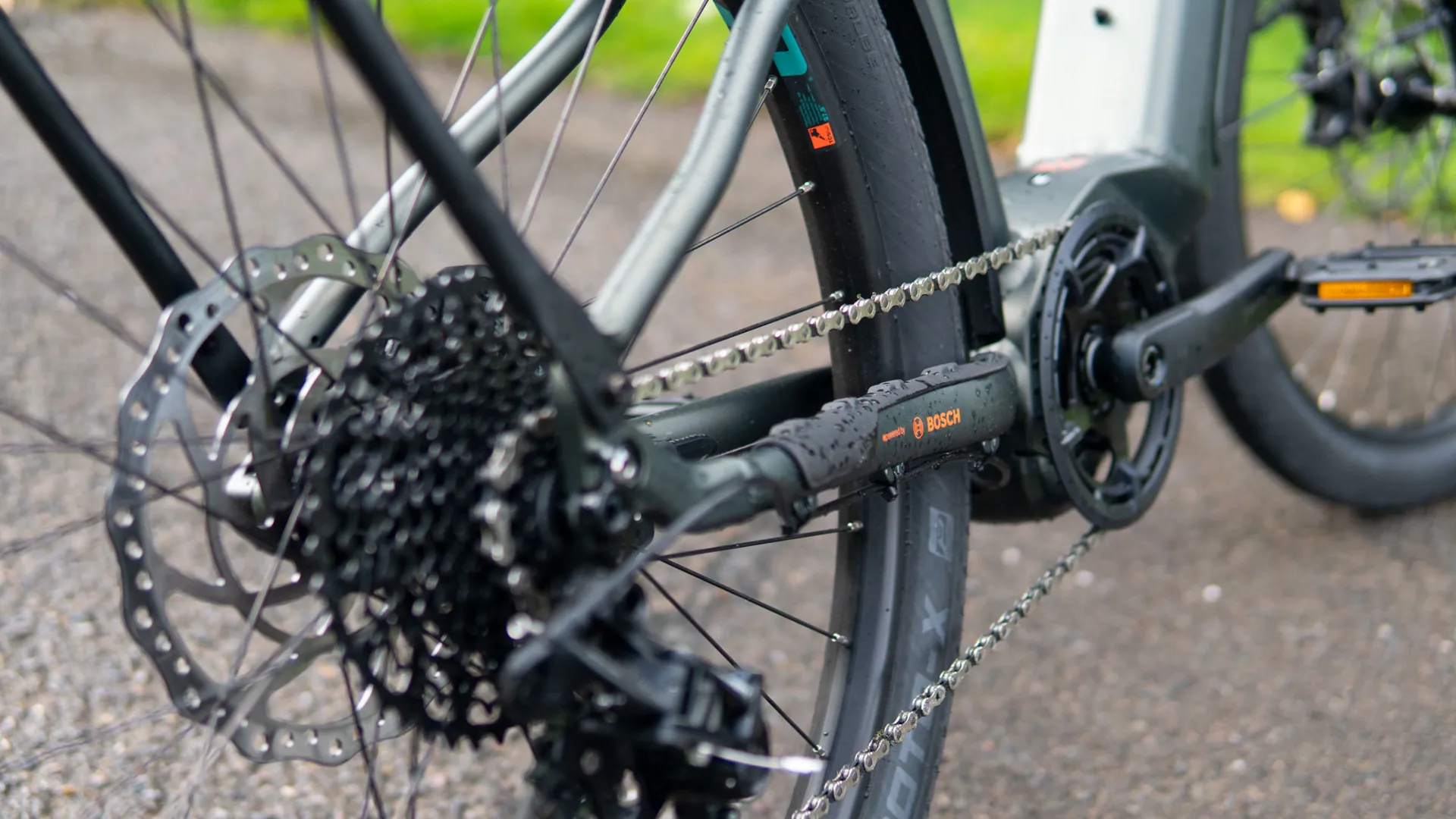

  • Rear Cassette:SRAM PG-1130, 11-42, 11 Speed
  • Chain: KMC NPBK Sport, 11 Speed
  • Front Derailleur: N/A
  • Rear Derailleur:SRAM GX, 11 Speed
  • Bottom Bracket: N/A
  • Pedals: N/A
  • Rims: WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
  • Front Hub: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole
  • Rear Hub: Alloy, E-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole
  • Front Tyre: Schwalbe, Super Moto-X, 27.5" x 2.4, Greenguard Puncture Protection
  • Rear Tyre: Schwalbe, Super Moto-X, 27.5" x 2.4, Greenguard Puncture Protection
  • Brakes: Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing rear
  • Handlebars: Whyte Custom 6061 Alloy, 15-30mm Rise, 31.8mm Bar Bore, 760-780mm Wide
  • Handlebar Grips: Whyte Custom Dual Density Lock-on
  • Headset: FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
  • Stem: Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
  • Saddle: Whyte Custom, SUV Comfort sport, Single panel, with moulded rear handle
  • Seatpost: Whyte drop.it Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever
  • Accessories: Bosch Charger
  • Weight: M - 24.5kg Approx

Size Guide for Whyte Hardtail Bikes:
Hardtail mountain bikes don’t have rear suspension, but award winning designs and Total Geometry handling guarantee you’ll still have a ton of fun tackling the toughest trails or biggest adventures. Their simpler design makes them a whole lot lighter, easier to set up and awesome value too.

Choose from:
Enduro Hardtails with gravity inspired handling and powerful, punchy frames for faster trouble-skimming and to shred the sickest trails.
Trail Hardtails 29ers that’ll boss technical sections and beast climbs all day long.
Sport Hardtails with Whyte’s famous trail vibe to turn every ride into a tear up.

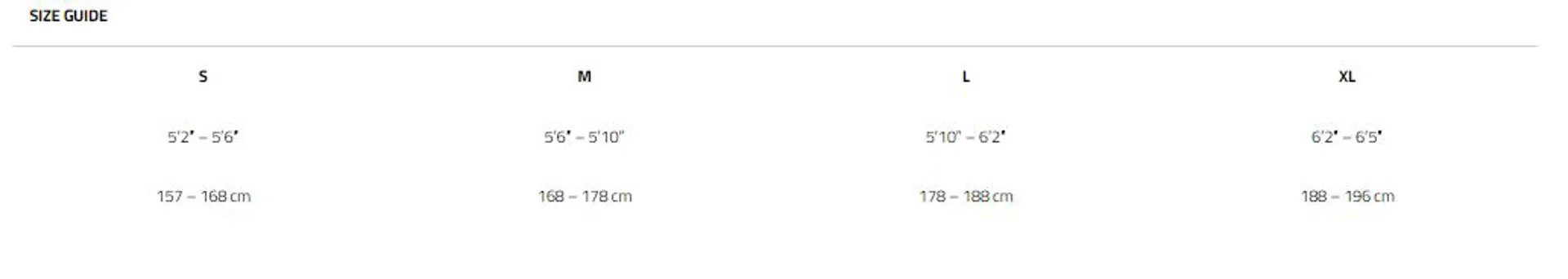

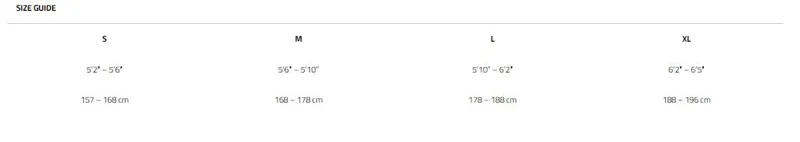

Frame SizeRider Height (cm)Rider Height (')
XS148 – 1574’10″ – 5’2″
S157 – 1685’2″ – 5’6″
M168 – 1785’6″ – 5’10”
L178 – 1885'10" – 6'2"
XL*188 – 1966'2" – 6'5"
*Models 429, 529, & 629 up to 198cm (6'6")
Whyte Hardtail (Compact Models)
Frame SizeRider Height (cm)Rider Height (')
XS145 – 1554’9″ – 5’1″
S155 – 1655’1″ – 5’5″
M165 – 1755’5″ – 5’9”
L175 – 1855'9" – 6'1"
Sizing Information
Professional Opinion
Question(s) answered about Whyte e-506 v1 Electric Mountain Bike 2022 in Matt Moss
Ask a question
Question(s) asked regarding Whyte e-506 v1 Electric Mountain Bike 2022 in Matt Moss

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • Can you tell me the difference between the E-506 V1 2022 and the current E-506 V2 2023?
    Question asked by Lee Errington on 10/03/2023 15:55:38
    The V2 version has a Shimano set up for the gearing.
  • What is the weight of this bike?
    Question asked by ROBERT KING-MASON on 27/08/2022 15:31:31
    The weight of this bike is approximately 24.5kg (54lbs) based on a medium size.
